Page 4377 of 4770
SA0II±01
W03648
± SUSPENSION AND AXLEFRONT SHOCK ABSORBER
SA±37
1988 Author: Date:
DISPOSAL
1. FULLY EXTEND SHOCK ABSORBER ROD
2. DRILL HOLE TO REMOVE GAS FROM CYLINDER
Using a drill, make a hole in the cylinder as shown in the illustra-
tion to remove the gas inside.
CAUTION:
The discharged gas is harmless, but be careful of chips
which may fly up when drilling.
Page 4378 of 4770

SA07R±01
W03200
SST
W03201
W03199
SST SA±38
± SUSPENSION AND AXLEFRONT SHOCK ABSORBER
1989 Author: Date:
REASSEMBLY
1. INSTALL LOWER INSULATOR ONTO SHOCK AB-
SORBER
2. INSTALL SPRING BUMPER TO PISTON ROD
3. INSTALL COIL SPRING
(a) Using SST, compress the coil spring.
SST 09727±30021
NOTICE:
Do not use an impact wrench. It will damage the SST.
HINT:
Use 2 of the same type of SST.
(b) Install the coil spring to the shock absorber.
HINT:
Fit the lower end of the coil spring into the gap of the spring low-
er seat.
4. INSTALL SPRING UPPER SEAT AND INSULATOR
(a) Align the 'OUT' mark of spring upper seat with the mark
of the upper insulator.
(b) Install the spring upper seat with upper insulator to the
shock absorber with the mark facing the outside of the ve-
hicle.
(c) Install the bearing and suspension support.
(d) Using SST to hold the suspension support, install a new
nut.
SST 09729±22031
Torque: 49 N´m (500 kgf´cm, 36 ft´lbf)
(e) Remove the SST from the coil spring.
SST 09727±30021
NOTICE:
Check that the bearing fits into the recess in the suspen-
sion support.
Page 4379 of 4770
SA07S±01
± SUSPENSION AND AXLEFRONT SHOCK ABSORBER
SA±39
1990 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page SA±34).
AFTER INSTALLATION, CHECK FRONT WHEEL ALIGNMENT (See page SA±4)
Page 4380 of 4770
SA07T±04
F06530
Suspension Support
Spring Bumper
Link Stabilizer Bar
Shock
Absorber
ABS Speed Sensor
Wire Harness ClampFront Drive Shaft with Coil SpringUpper Seat Bearing
Lower
Insulator
Lower Suspension Arm Lower Suspension
Bushing StopperBrake CaliperInsulator UpperSpring Support No. 2Suspension
Shock Absorber
Coil Spring
Tie Rod End
Dust
Deflector
Cotter Pin
Cotter Pin Cotter
Pin
Lower Ball jointDisc
Lock Cap ABS Speed Sensor
N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable part
80 (820, 59)49 (500, 36)
39 (400, 29)
211 (2,150, 156)
107 (1,090, 79)
29 (300, 22)
123 (1,250, 90)49 (500, 36)
8.0 (82, 71 in.´lbf)
294 (3,000, 217)
206 (2,100, 152)
206 (2,100, 152)
206 (2,100, 152)
127 (1,300, 94)
127 (1,300, 94)
SA±40
± SUSPENSION AND AXLEFRONT LOWER SUSPENSION ARM
1991 Author: Date:
FRONT LOWER SUSPENSION ARM
COMPONENTS
Page 4381 of 4770
SA07U±01
W03202
W03203
W03204
± SUSPENSION AND AXLEFRONT LOWER SUSPENSION ARM
SA±41
1992 Author: Date:
REMOVAL
1. REMOVE FRONT WHEEL
Torque: 103 N´m (1,050 kgf´cm, 76 ft´lbf)
2. DISCONNECT LOWER SUSPENSION ARM FROM
LOWER BALL JOINT
Remove the 2 nuts and bolt.
Torque: 127 N´m (1,300 kgf´cm, 94 ft´lbf)
3. REMOVE LOWER SUSPENSION ARM
(a) Remove the 2 bolts on the front side of the lower suspen-
sion arm.
Torque: 206 N´m (2,100 kgf´cm, 152 ft´lbf)
(b) Remove the bolt and nut on the rear side of the lower sus-
pension arm.
Torque: 206 N´m (2,100 kgf´cm, 152 ft´lbf)
(c) Remove the lower suspension arm.
(d) Remove the lower suspension arm bushing stopper from
the lower suspension arm shaft.
Page 4382 of 4770
SA07W±01
SA±42
± SUSPENSION AND AXLEFRONT LOWER SUSPENSION ARM
1993 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page SA±41).
AFTER INSTALLATION, CHECK FRONT WHEEL ALIGNMENT (See page SA±4)
Page 4383 of 4770
SA07X±05
F06530
Suspension Support
Spring Bumper
Link Stabilizer Bar
Shock
Absorber
ABS Speed Sensor
Wire Harness ClampFront Drive Shaft with Coil SpringUpper Seat Bearing
Lower
Insulator
Lower Suspension Arm Lower Suspension
Bushing StopperBrake CaliperInsulator UpperSpring Support No. 2Suspension
Shock Absorber
Coil Spring
Tie Rod End
Dust
Deflector
Cotter Pin
Cotter Pin Cotter
Pin
Lower Ball jointDisc
Lock Cap ABS Speed Sensor
N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable part
80 (820, 59)49 (500, 36)
39 (400, 29)
211 (2,150, 156)
107 (1,090, 79)
29 (300, 22)
123 (1,250, 90)49 (500, 36)
8.0 (82, 71 in.´lbf)
294 (3,000, 217)
206 (2,100, 152)
206 (2,100, 152)
206 (2,100, 152)
127 (1,300, 94)
127 (1,300, 94)

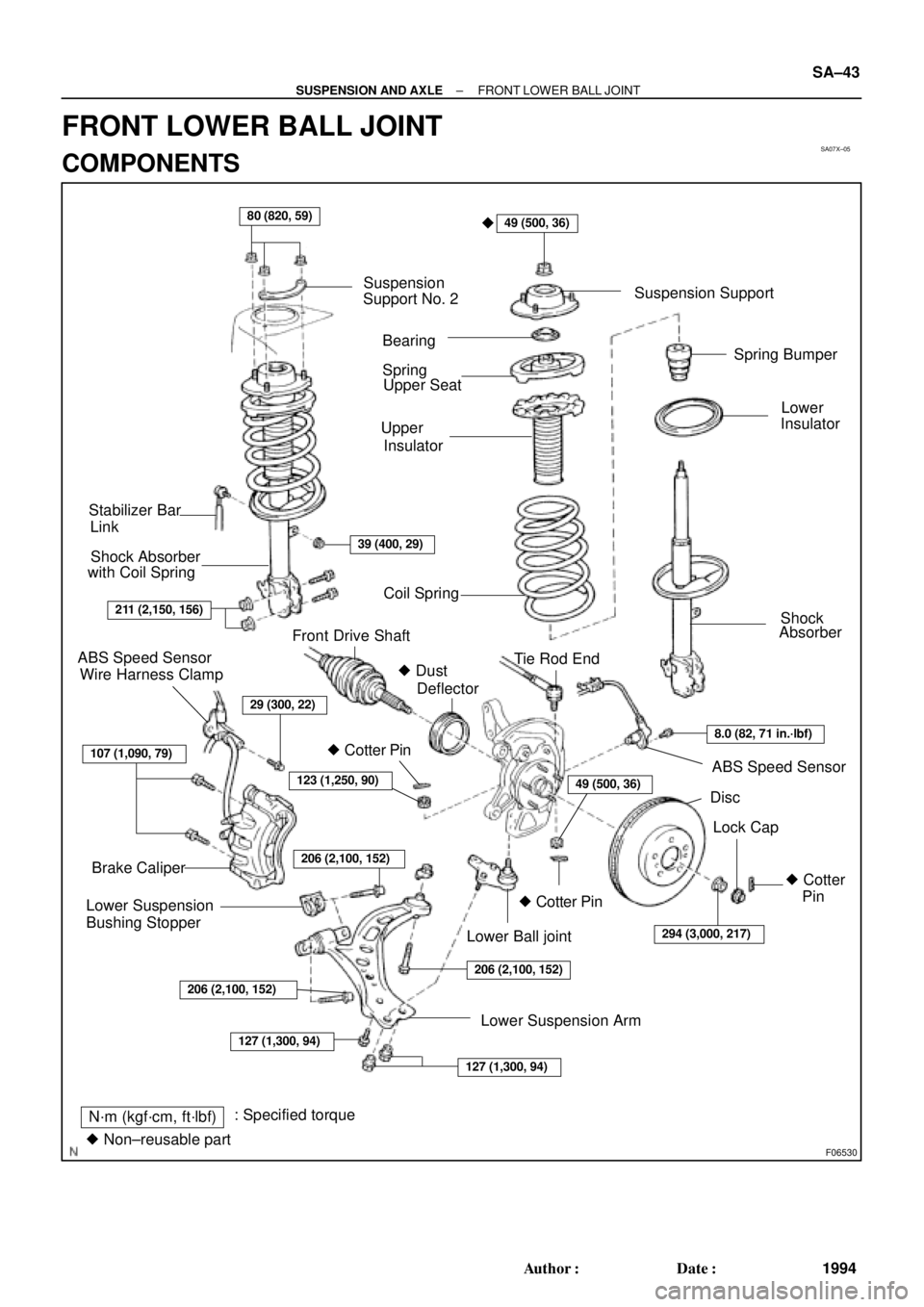

± SUSPENSION AND AXLEFRONT LOWER BALL JOINT
SA±43
1994 Author: Date:
FRONT LOWER BALL JOINT
COMPONENTS
Page 4384 of 4770
SA07Y±01
R08859
SST SA±44
± SUSPENSION AND AXLEFRONT LOWER BALL JOINT
1995 Author: Date:
REMOVAL
1. REMOVE STEERING KNUCKLE WITH AXLE HUB
(See page SA±10)
2. REMOVE LOWER BALL JOINT
(a) Using a screwdriver, remove the dust deflector.
(b) Remove the cotter pin and nut.
(c) Using SST, remove the lower ball joint.
SST 09628±62011
