Page 945 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 231 Replacing light bulbsÐ The following illustrations show how to gain access to the bulbs. When replacing a bulb, make sure the ignition switch and light switch are off. Use bulbs with t

Page 946 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 232 ÐHeadlights 1. Open the hood. Unplug the connec- tor. Remove the rubber cover. If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a

Page 947 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 233 Use a flat±bladed screwdriver. Remove and install the cover clips as shown in the following illustrations.Removing cover clips Installing cover clips Use a flat±bladed screw driver. T

Page 948 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 234 a: Rear side marker light b: Rear turn signal light c: Stop and tail light ÐRear side maker, rear turn signal, stop and tail lights

Page 949 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 235 a: Back±up light b: Tail lightUse a flat±bladed screwdriver. Remove and install the cover clips as shown in the following illustrations. ÐBack±up and tail lights (type A)ÐBack±up

Page 950 of 4770

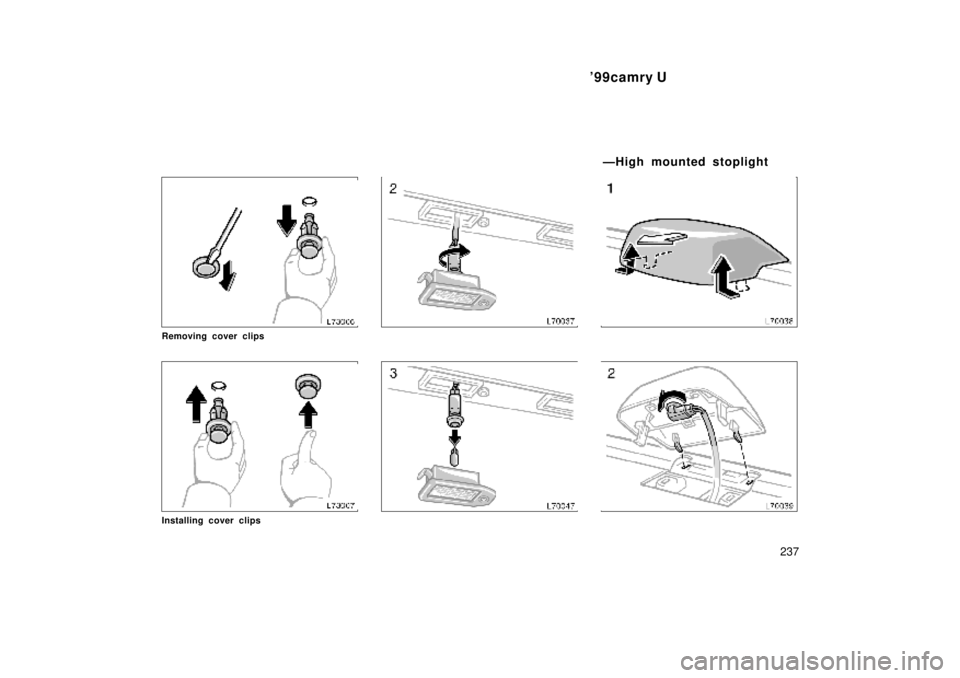

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 236 Removing the cover clips Installing the cover clipsa: Back±up light b: Tail light Use a flat±bladed screwdriver. Remove and install the cover clips as shown in the following illustrat

Page 951 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 237 Removing cover clips Installing cover clips ÐHigh mounted stoplight

Page 952 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 238
