Page 1985 of 4770

TOYOTA CAMRY 2000 Service Repair Manual H01764 Gasket Mirror w/case Mirror HousingWire Retainer BO0LC±01 H01765 50±60 mm H01766 Glass Case Edge H01767 Claw BClaw A BO±26 ± BODYOUTSIDE REAR VIEW MIRROR 2374 Author: Date: REASSEMBLY 1.

Page 1986 of 4770

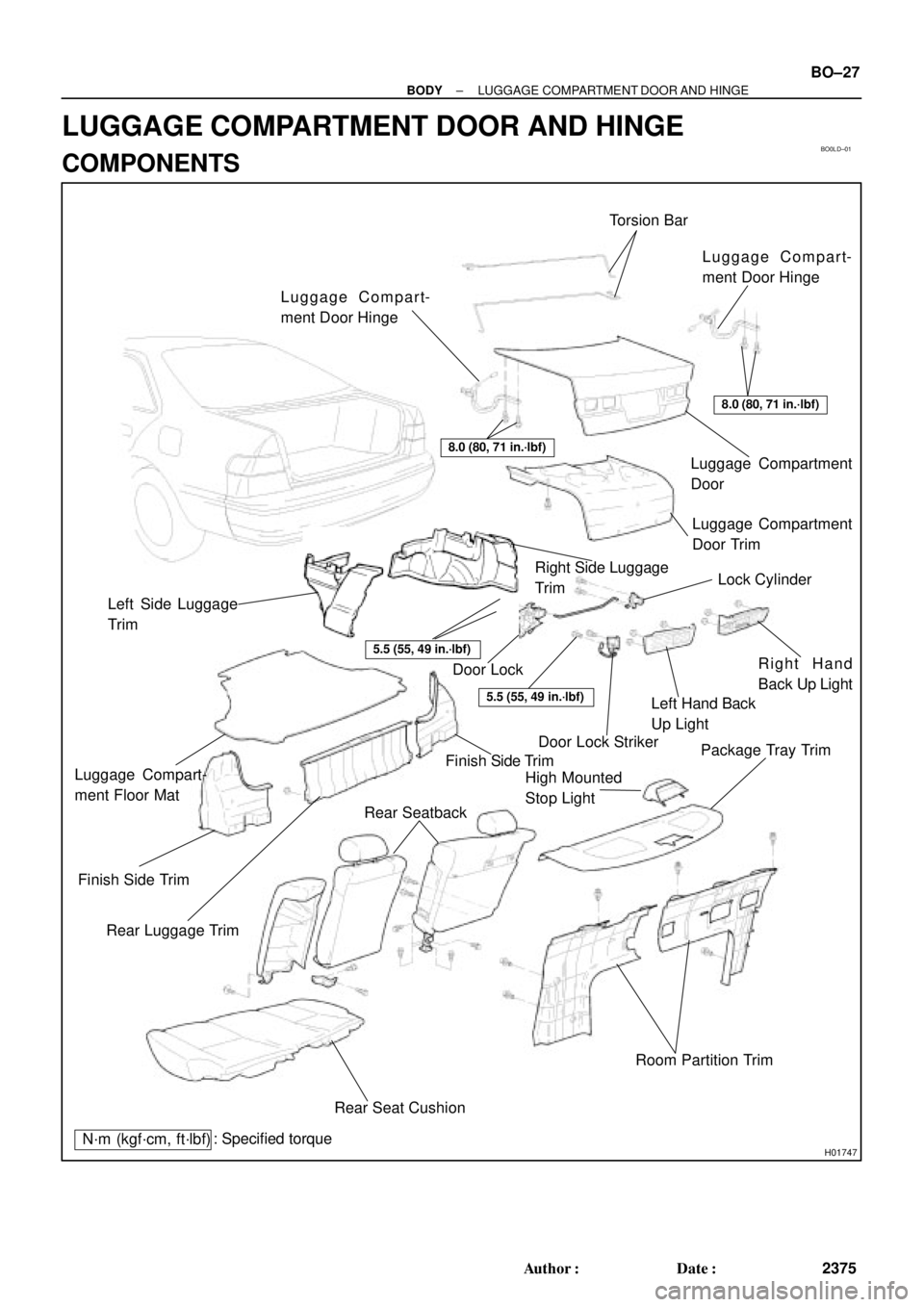

TOYOTA CAMRY 2000 Service Repair Manual BO0LD±01 H01747 Torsion Bar Luggage Compart- ment Door Hinge Luggage Compart- ment Door Hinge Luggage Compartment Door Luggage Compartment Door Trim Left Side Luggage Trim Finish Side Trim Rear Lugga

Page 1987 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0LE±01 N22588 121 N21430 : 4 Clips N22591 BO±28 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE 2376 Author: Date: REMOVAL 1. REMOVE LUGGAGE COMPARTMENT DOOR TRIM 2. REMOVE LUGGAGE COMPARTMENT DOOR (a

Page 1988 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO4010 SST BO4011 SST BO4012 SST ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE BO±29 2377 Author: Date: (b) Install SST to the torsion bar on the hinge side. SST 09804±24010 (c) Push down on SST, and

Page 1989 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0LF±01 BO±30 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE 2378 Author: Date: DISASSEMBLY 1. REMOVE DOOR LOCK (a) Disconnect the control link. (b) Remove the 2 bolts and lock. Torque: 5.5 N´m (56 k

Page 1990 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0LG±01 N22589 N22590 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE BO±31 2379 Author: Date: ADJUSTMENT 1. ADJUST LUGGAGE COMPARTMENT DOOR (a) Remove the 11 clips and luggage compartment door trim.

Page 1991 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0LH±01 BO±32 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE 2380 Author: Date: REASSEMBLY Reassembly is in the reverse order of disassembly (See page BO±30).

Page 1992 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0LI±01 H01754 H01755 H01756 N21430 : 4 clips ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE BO±33 2381 Author: Date: INSTALLATION 1. INSTALL TORSION BAR (a) Insert the torsion bar into the bracket. H
