Page 3193 of 4770

AB0118
R13006AB0119H01012
H01065H01164
Airbag
Sensor
Assembly Side Airbag Sensor
Assembly (LH)
E1 TcACCON
or
DLC1
DTC B1140/32 " u
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±773
1008 Author: Date:

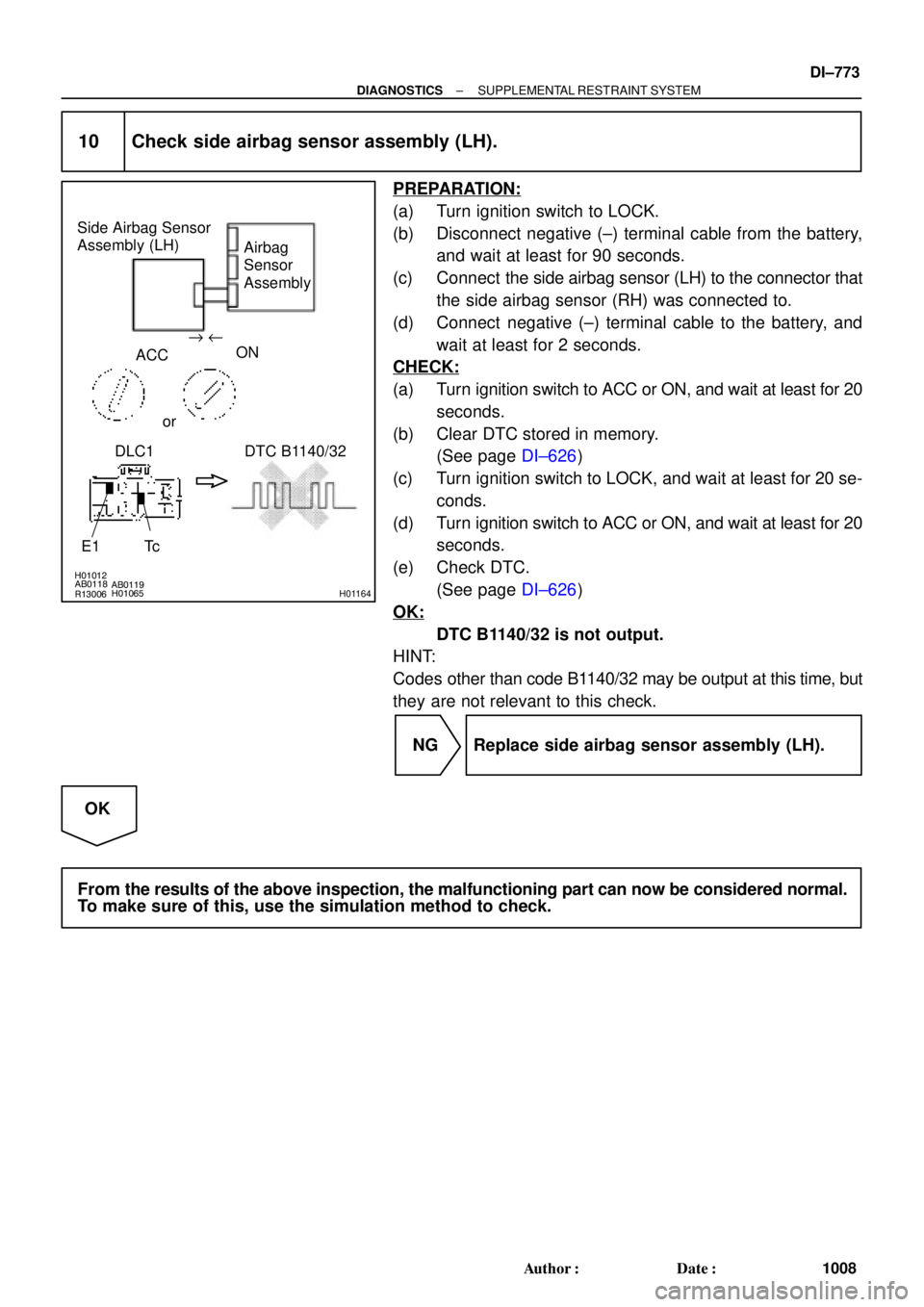

10 Check side airbag sensor assembly (LH).
PREPARATION:
(a) Turn ignition switch to LOCK.
(b) Disconnect negative (±) terminal cable from the battery,
and wait at least for 90 seconds.
(c) Connect the side airbag sensor (LH) to the connector that
the side airbag sensor (RH) was connected to.
(d) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(b) Clear DTC stored in memory.
(See page DI±626)
(c) Turn ignition switch to LOCK, and wait at least for 20 se-
conds.
(d) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(e) Check DTC.
(See page DI±626)
OK:
DTC B1140/32 is not output.
HINT:
Codes other than code B1140/32 may be output at this time, but
they are not relevant to this check.
NG Replace side airbag sensor assembly (LH).
OK
From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check.
Page 3194 of 4770
H02750
Airbag Sensor Assembly
Front Airbag Sensor (RH)
SR+
SR± C18
C189
20 B±W
BR±W IU12
1 B±W
BR±W 2
1 SR+
SR± IU1 DI±774
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1009 Author: Date:
DTC B1156/B1157/15 Front Airbag Sensor (RH) Malfunction
CIRCUIT DESCRIPTION
The front airbag sensor (RH) circuit consists of the airbag sensor assembly and front airbag sensor (RH).
For details of the function of each component, see OPERATION on page RS±2.
DTC B1156/B1157/15 is recorded when malfunction is detected in the front airbag sensor (RH) circuit.
DTC No.DTC Detecting ConditionTrouble Area
B1156/B1157/15Front airbag sensor (RH) malfunction
Front airbag sensor (RH)
Wire harness
Engine room main wire harness
Airbag sensor assembly

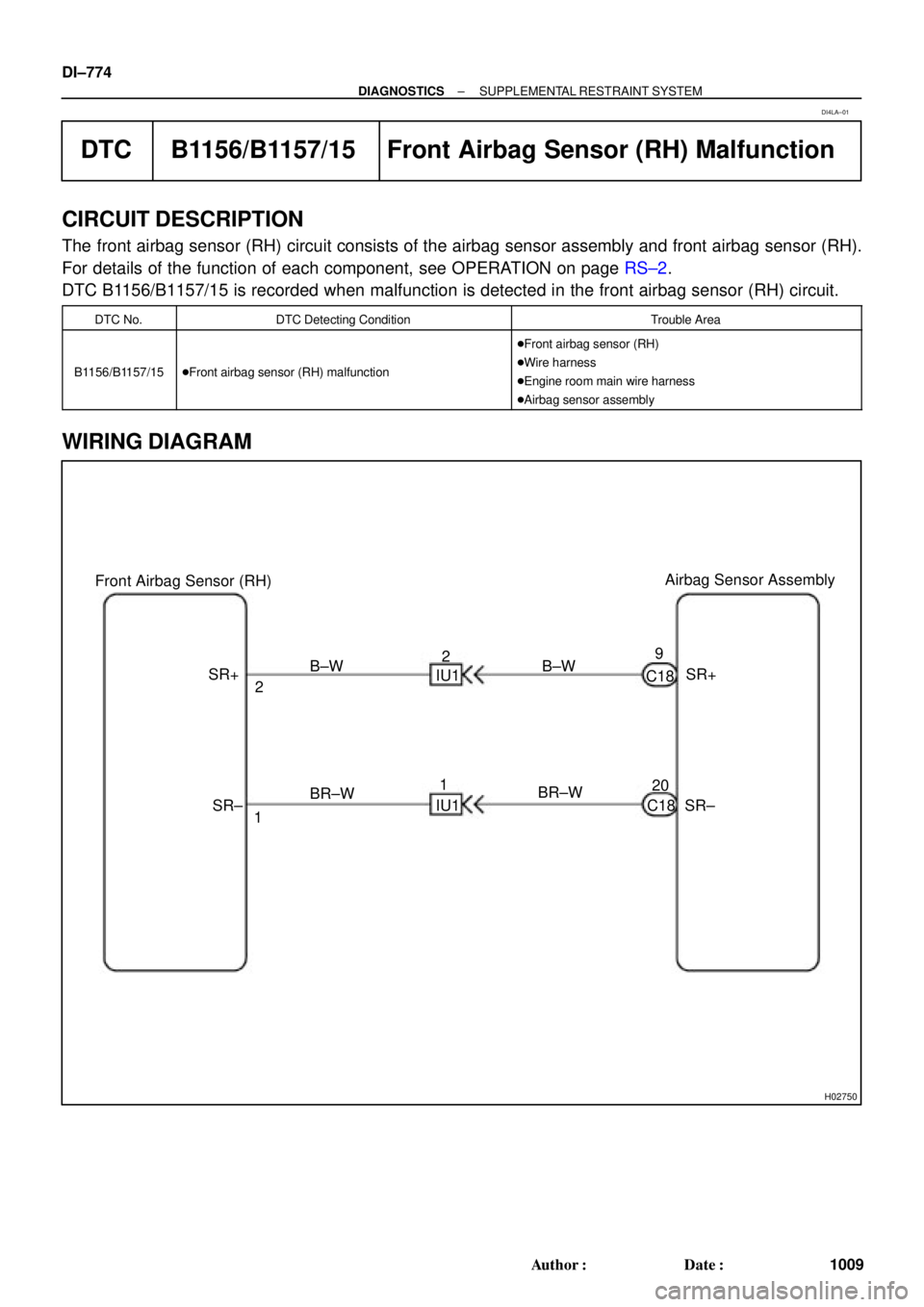

WIRING DIAGRAM
DI4LA±01
Page 3195 of 4770
H03363
H03355AB0119H03445
Airbag
Sensor
Assembly
Front Airbag
Sensor (RH)
(+)SR+
(±)
SR± Airbag Sensor
Assembly
ON
H03361H03353H03443
Airbag
Sensor
Assembly
Front Airbag
Sensor (RH)
(+)SR+
(±)
SR± Airbag Sensor
Assembly
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±775
1010 Author: Date:
INSPECTION PROCEDURE
1 Prepare for inspection. (See step 1 on page DI±787)

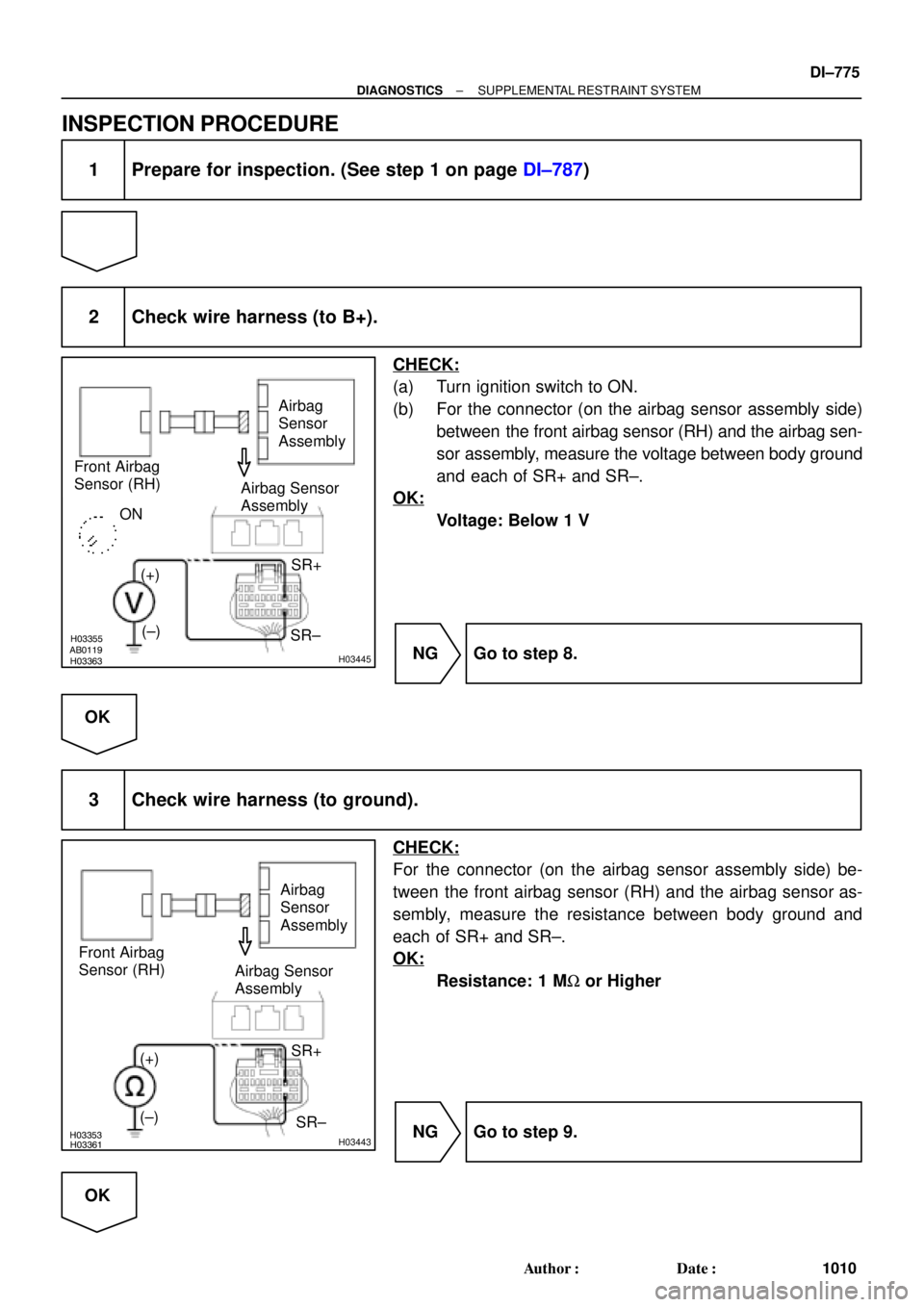

2 Check wire harness (to B+).
CHECK:
(a) Turn ignition switch to ON.
(b) For the connector (on the airbag sensor assembly side)
between the front airbag sensor (RH) and the airbag sen-
sor assembly, measure the voltage between body ground
and each of SR+ and SR±.
OK:
Voltage: Below 1 V
NG Go to step 8.
OK
3 Check wire harness (to ground).
CHECK:
For the connector (on the airbag sensor assembly side) be-
tween the front airbag sensor (RH) and the airbag sensor as-
sembly, measure the resistance between body ground and
each of SR+ and SR±.
OK:
Resistance: 1 MW or Higher
NG Go to step 9.
OK
Page 3196 of 4770
H03355H03356H09518
Airbag
Sensor
Assembly Front Airbag
Sensor (RH)
(+)SR+
(±)
SR± Airbag Sensor
Assembly
H03353H09521H03356H09523
Front Airbag
Sensor (RH)
Airbag
Sensor
Assembly
(+)SR+ Airbag Sensor
Assembly
(±)
SR± SR+SR±
DI±776
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1011 Author: Date:

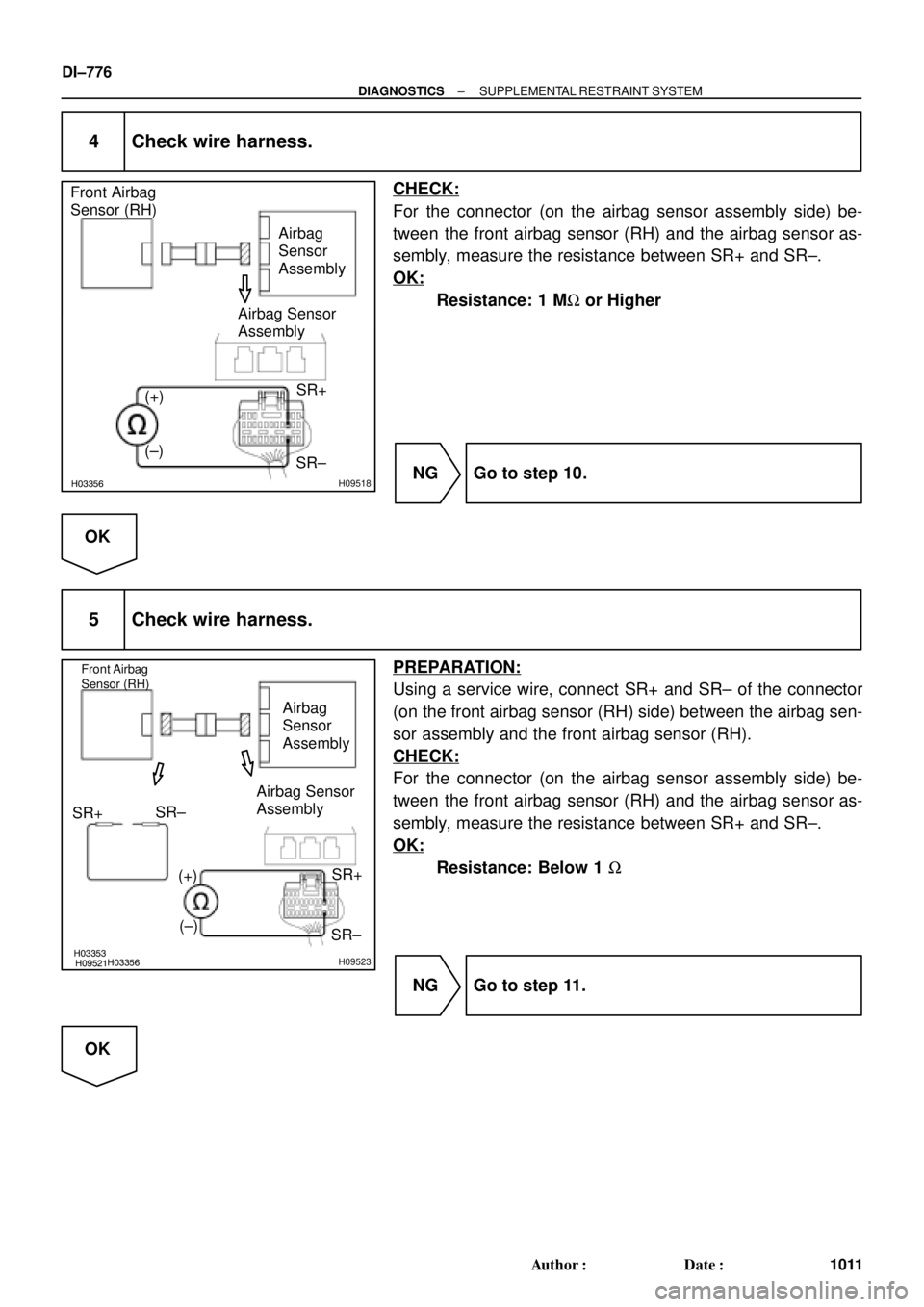

4 Check wire harness.
CHECK:
For the connector (on the airbag sensor assembly side) be-
tween the front airbag sensor (RH) and the airbag sensor as-
sembly, measure the resistance between SR+ and SR±.
OK:
Resistance: 1 MW or Higher
NG Go to step 10.
OK
5 Check wire harness.
PREPARATION:
Using a service wire, connect SR+ and SR± of the connector
(on the front airbag sensor (RH) side) between the airbag sen-
sor assembly and the front airbag sensor (RH).
CHECK:
For the connector (on the airbag sensor assembly side) be-
tween the front airbag sensor (RH) and the airbag sensor as-
sembly, measure the resistance between SR+ and SR±.
OK:
Resistance: Below 1 W
NG Go to step 11.
OK
Page 3197 of 4770
H04504H01062H08346
Airbag
Sensor
Assembly Front Airbag
Sensor (RH)
(+) SR+
(±)SR±
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±777
1012 Author: Date:

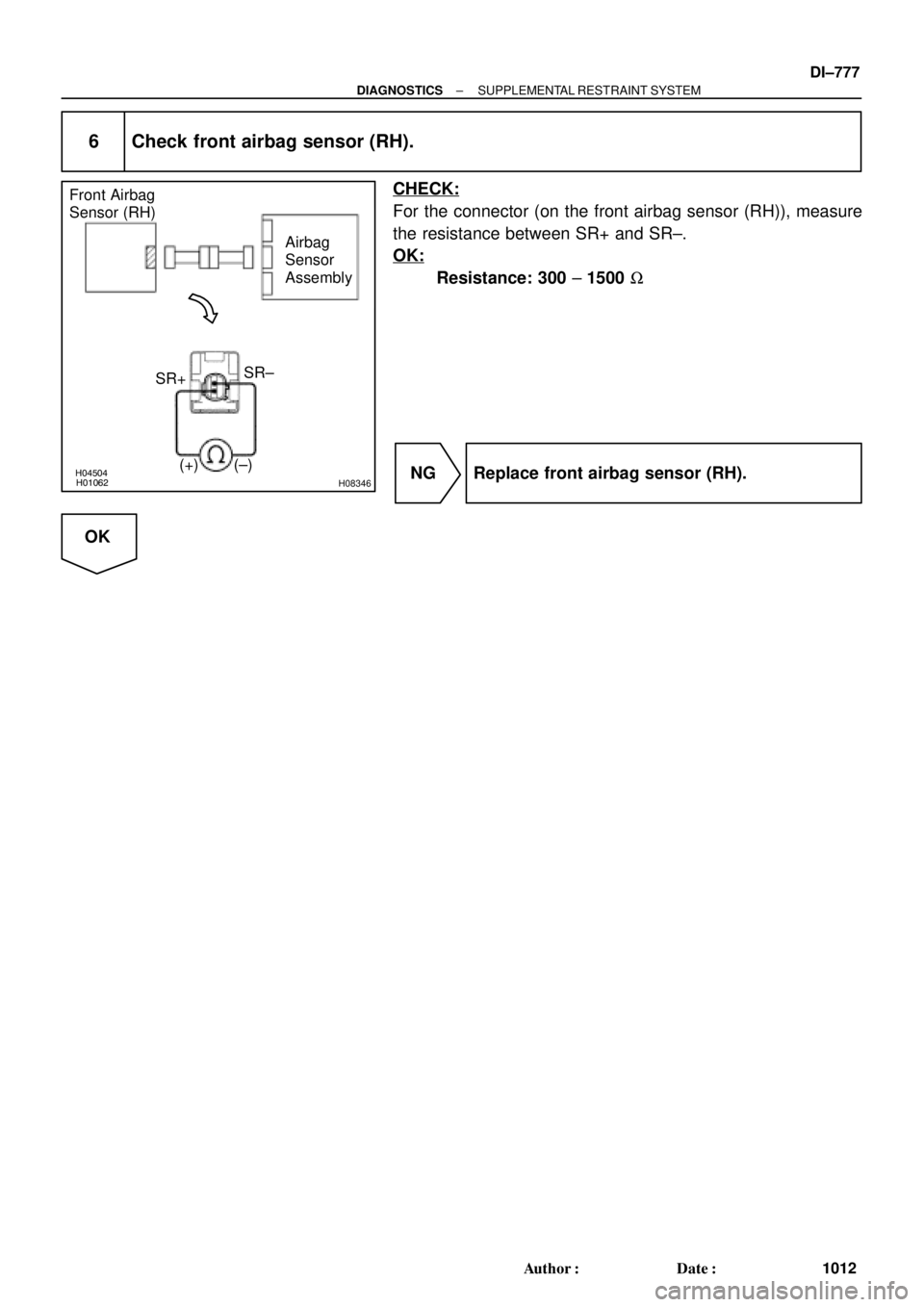

6 Check front airbag sensor (RH).
CHECK:
For the connector (on the front airbag sensor (RH)), measure
the resistance between SR+ and SR±.
OK:
Resistance: 300 ± 1500 W
NG Replace front airbag sensor (RH).
OK
Page 3198 of 4770

H02757AB0118AB0119R13006H01063H04014
Front Airbag
Sensor (RH)
Airbag
Sensor
Assembly
ON
or
DTC B1156/B1157/15 ACC
DLC1
E1
Tc
"u "u
DI±778
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1013 Author: Date:

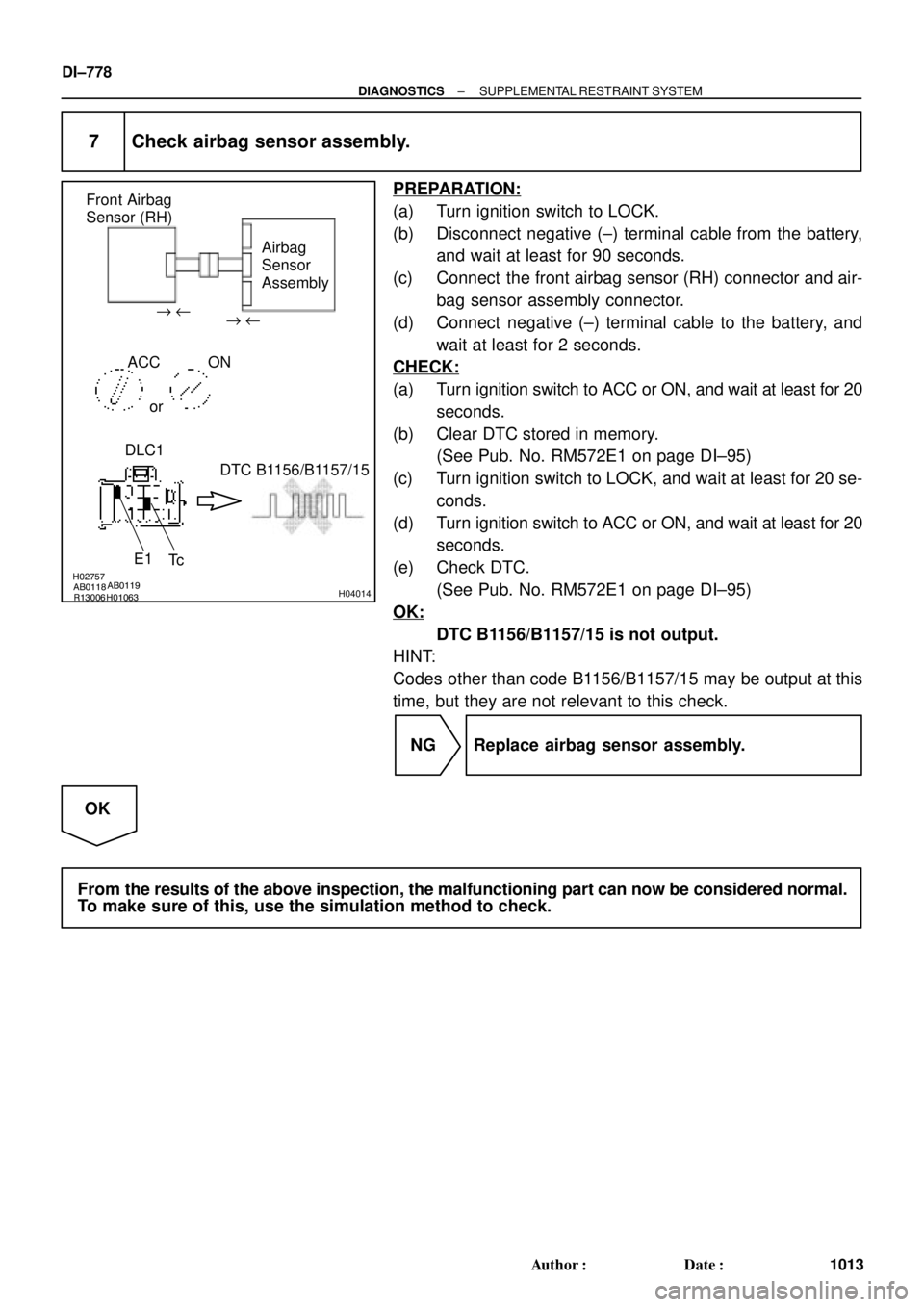

7 Check airbag sensor assembly.
PREPARATION:
(a) Turn ignition switch to LOCK.
(b) Disconnect negative (±) terminal cable from the battery,
and wait at least for 90 seconds.
(c) Connect the front airbag sensor (RH) connector and air-
bag sensor assembly connector.
(d) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(b) Clear DTC stored in memory.
(See Pub. No. RM572E1 on page DI±95)
(c) Turn ignition switch to LOCK, and wait at least for 20 se-
conds.
(d) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(e) Check DTC.
(See Pub. No. RM572E1 on page DI±95)
OK:
DTC B1156/B1157/15 is not output.
HINT:
Codes other than code B1156/B1157/15 may be output at this
time, but they are not relevant to this check.
NG Replace airbag sensor assembly.
OK
From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check.
Page 3199 of 4770

H03354
H06141AB0119H08272
Airbag
Sensor
Assembly Front Airbag
Sensor (RH)
(+)
SR+
(±)
SR±
ON
Engine Room Main
Wire Harness
u"
H03354H06140H08258
Airbag
Sensor
Assembly Front Airbag
Sensor (RH)
(+)SR+
(±)SR± Engine Room Main
Wire Harness
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±779
1014 Author: Date:

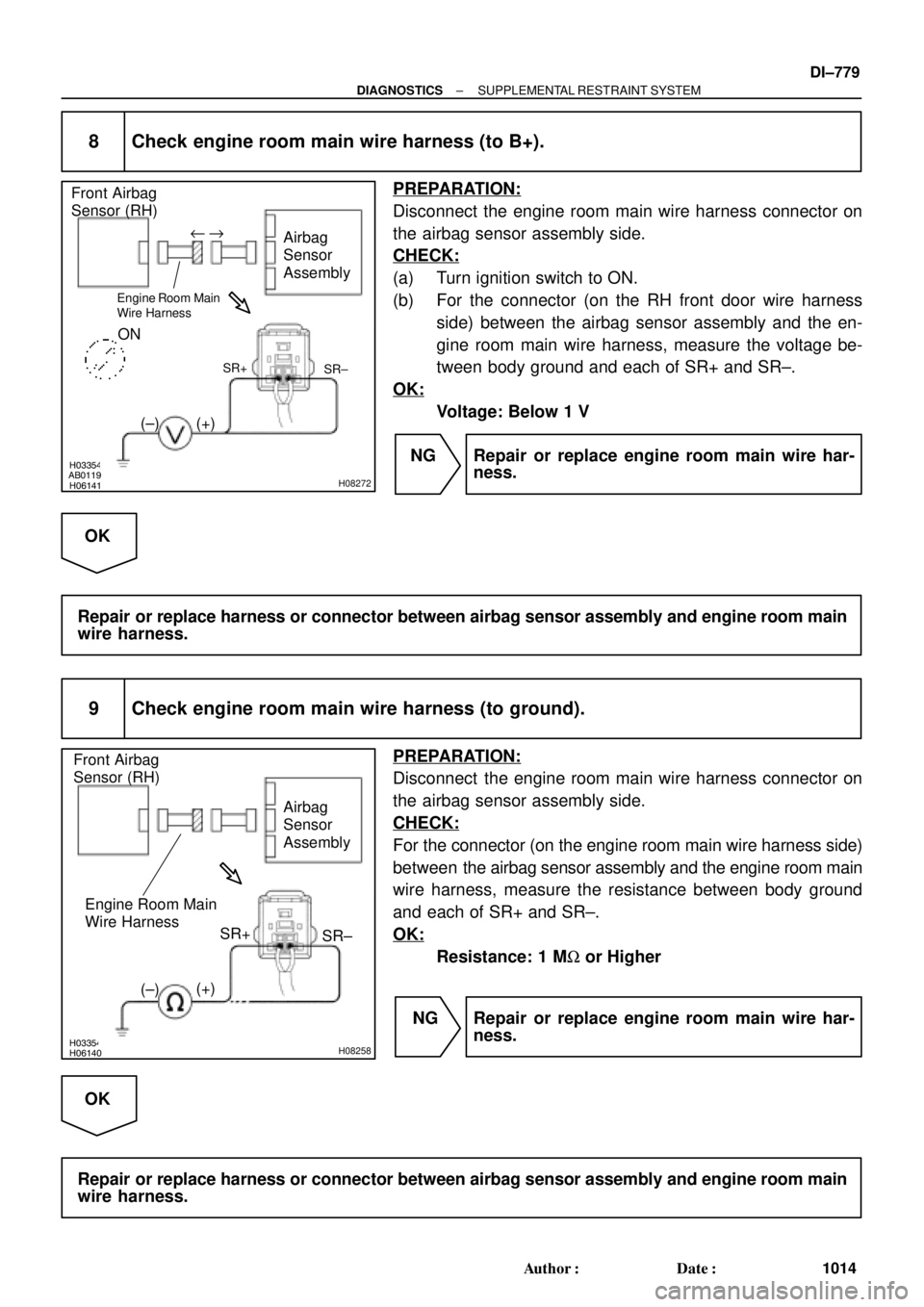

8 Check engine room main wire harness (to B+).
PREPARATION:
Disconnect the engine room main wire harness connector on
the airbag sensor assembly side.
CHECK:
(a) Turn ignition switch to ON.
(b) For the connector (on the RH front door wire harness
side) between the airbag sensor assembly and the en-
gine room main wire harness, measure the voltage be-
tween body ground and each of SR+ and SR±.
OK:
Voltage: Below 1 V
NG Repair or replace engine room main wire har-
ness.
OK
Repair or replace harness or connector between airbag sensor assembly and engine room main
wire harness.
9 Check engine room main wire harness (to ground).
PREPARATION:
Disconnect the engine room main wire harness connector on
the airbag sensor assembly side.
CHECK:
For the connector (on the engine room main wire harness side)
between the airbag sensor assembly and the engine room main
wire harness, measure the resistance between body ground
and each of SR+ and SR±.
OK:
Resistance: 1 MW or Higher
NG Repair or replace engine room main wire har-
ness.
OK
Repair or replace harness or connector between airbag sensor assembly and engine room main
wire harness.
Page 3200 of 4770
H03354H09519H09520
Airbag
Sensor
Assembly
Front Airbag
Sensor (RH)
(±) SR+SR±
Engine Room Main
Wire Harness
(+)
u "
DI±780
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1015 Author: Date:

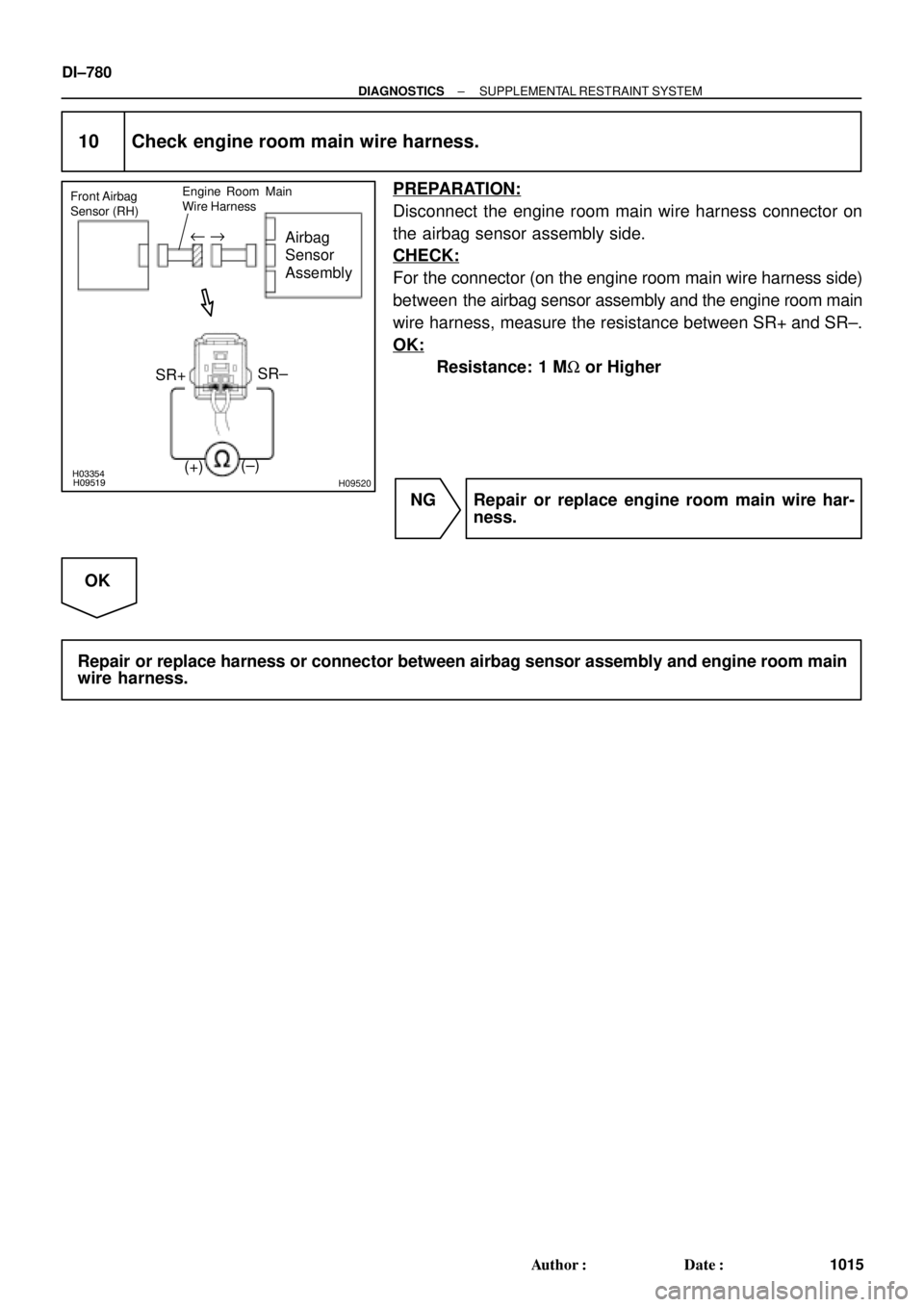

10 Check engine room main wire harness.
PREPARATION:
Disconnect the engine room main wire harness connector on
the airbag sensor assembly side.
CHECK:
For the connector (on the engine room main wire harness side)
between the airbag sensor assembly and the engine room main
wire harness, measure the resistance between SR+ and SR±.
OK:
Resistance: 1 MW or Higher
NG Repair or replace engine room main wire har-
ness.
OK
Repair or replace harness or connector between airbag sensor assembly and engine room main
wire harness.
