Page 185 of 4770

(f) Gently turn the No.1 balance shaft by hand, until
resistance is felt, and measure the backlash.
HINT:
wRotate the No. 1 balance shaft 4 or 5 times to
provide a steady backlash reading.
wTo prevent excessive backlash due to thrust cle±
arance, measure the backlash while pressing on
the rear of the No.1 balance shaft.
Standard backlash (use SST):
0.060 ± 0.100 mm (0.0024 ± 0.0039 In.)
NOTICE: Do not turn the No.1 balance shaft strongly.
(g) Remove the dial gauge and the SST.
(h) Turn the crankshaft clockwise to align the groove of
the No.2 housing with the punch mark B.
(i) Set the dial gauge. (See procedure in step (e))
(j) Measure the backlash. (See procedure in step (f))
Standard backlash ( use SST ):
0.080 ± 0.100 mm (0.0024 ± 0.0039 in.)
(k) Remove the dial gauge. (e) Position the SST and dial indicator as shown in the
illustration.
SST 09224 ± 74010
HINT: Make sure that the stem of the dial indicator is
perpendicular to the SST and that it is placed in the
middle of the 3rd indentation.
± 5S±FE ENGINEENGINE MECHANICALEG1±135
Page 186 of 4770

(p) Turn the crankshaft clockwise again to align the
groove of the No.2 housing with the punch mark B.
(q) Set the dial gauge. (See procedure in step (e))
(r) Measure the backlash. (See procedure in step (f))
Standard backlash( use SST ):
0.06 ± 0.100 mm (0.0024 ± 0.0039 in.)
(s) Remove the dial gauge.

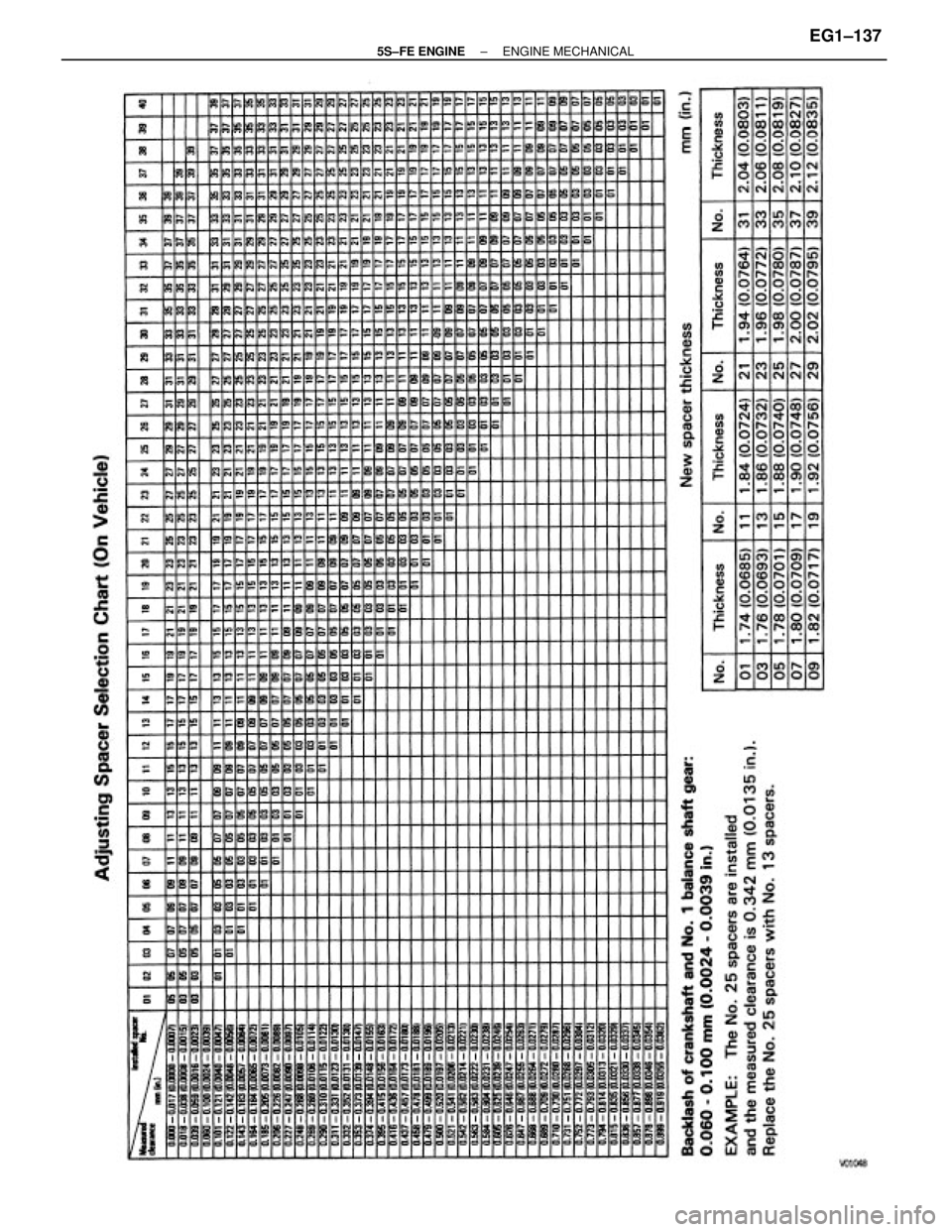

If even one of the 4 points measured above exceeds
the backlash specification, adjust the backlash with
new spacers.
NOTICE: Use the same size spacers for both the left and
right sides.
HINT:
wVarying the spacer thickness by 0.02 mm
(0.0008 in.) changes the backlash by about 0.042
mrn (0.0017 in.).
wIf the backlash is greater than permitted maxi±
mum, select a thinner shim.
wIf the backlash is less than the specification,
select a thicker shim. (I) Turn the crankshaft clockwise again to align the
groove of the No.2 housing with the punch mark A.
(m) Set the dial gauge. (See procedure in step (e))
(n) Measure the backlash. (See procedure in step (f))
Standard backlash ( use SST ):
0.060 ± 0.100 mm (0.0024 ± 0.0039 in.)
(o) Remove the dial gauge.
± 5S±FE ENGINEENGINE MECHANICALEG1±136
Page 187 of 4770
± 5S±FE ENGINEENGINE MECHANICALEG1±137
Page 188 of 4770

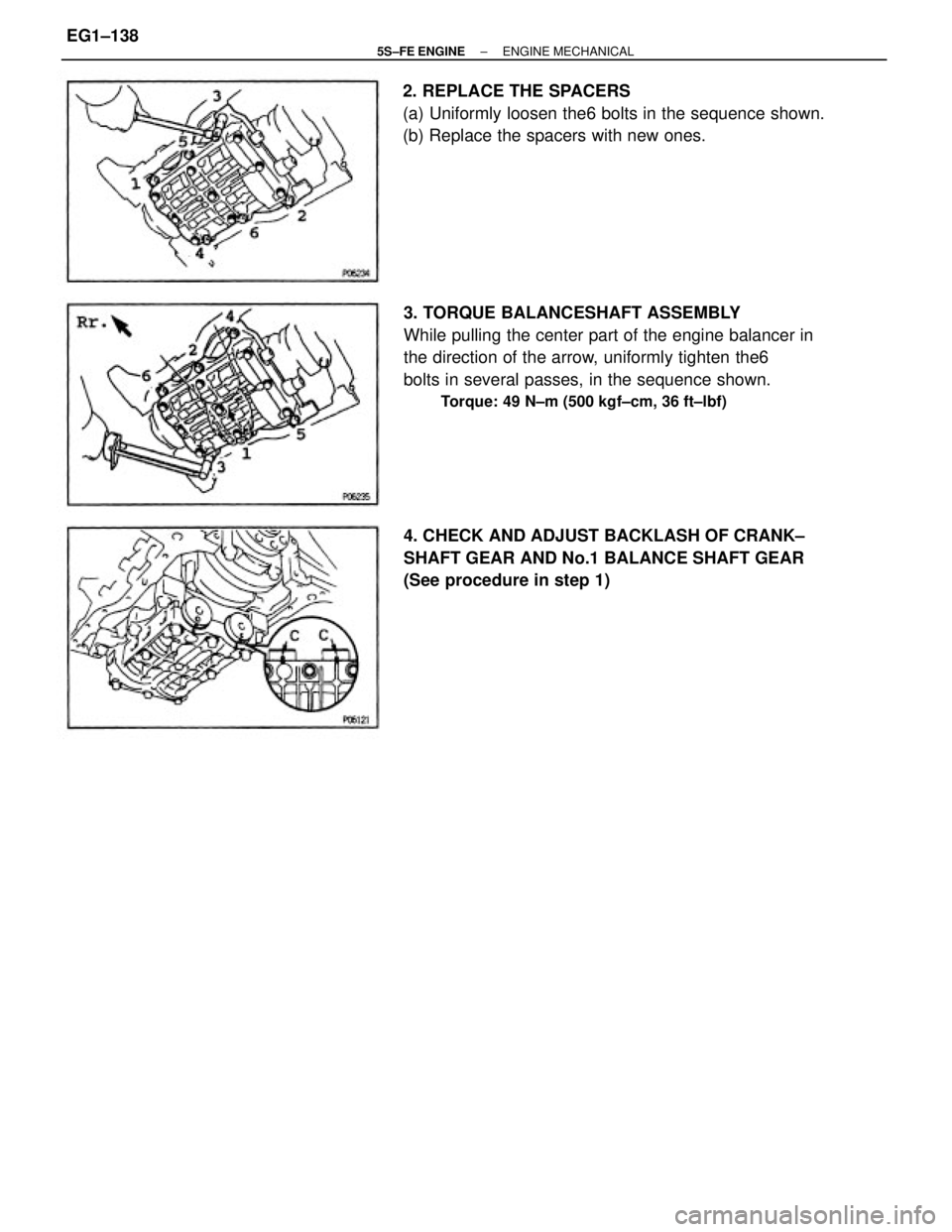

3. TORQUE BALANCESHAFT ASSEMBLY
While pulling the center part of the engine balancer in
the direction of the arrow, uniformly tighten the6
bolts in several passes, in the sequence shown.
Torque: 49 N±m (500 kgf±cm, 36 ft±lbf)
4. CHECK AND ADJUST BACKLASH OF CRANK±
SHAFT GEAR AND No.1 BALANCE SHAFT GEAR
(See procedure in step 1) 2. REPLACE THE SPACERS
(a) Uniformly loosen the6 bolts in the sequence shown.
(b) Replace the spacers with new ones.
± 5S±FE ENGINEENGINE MECHANICALEG1±138
Page 189 of 4770

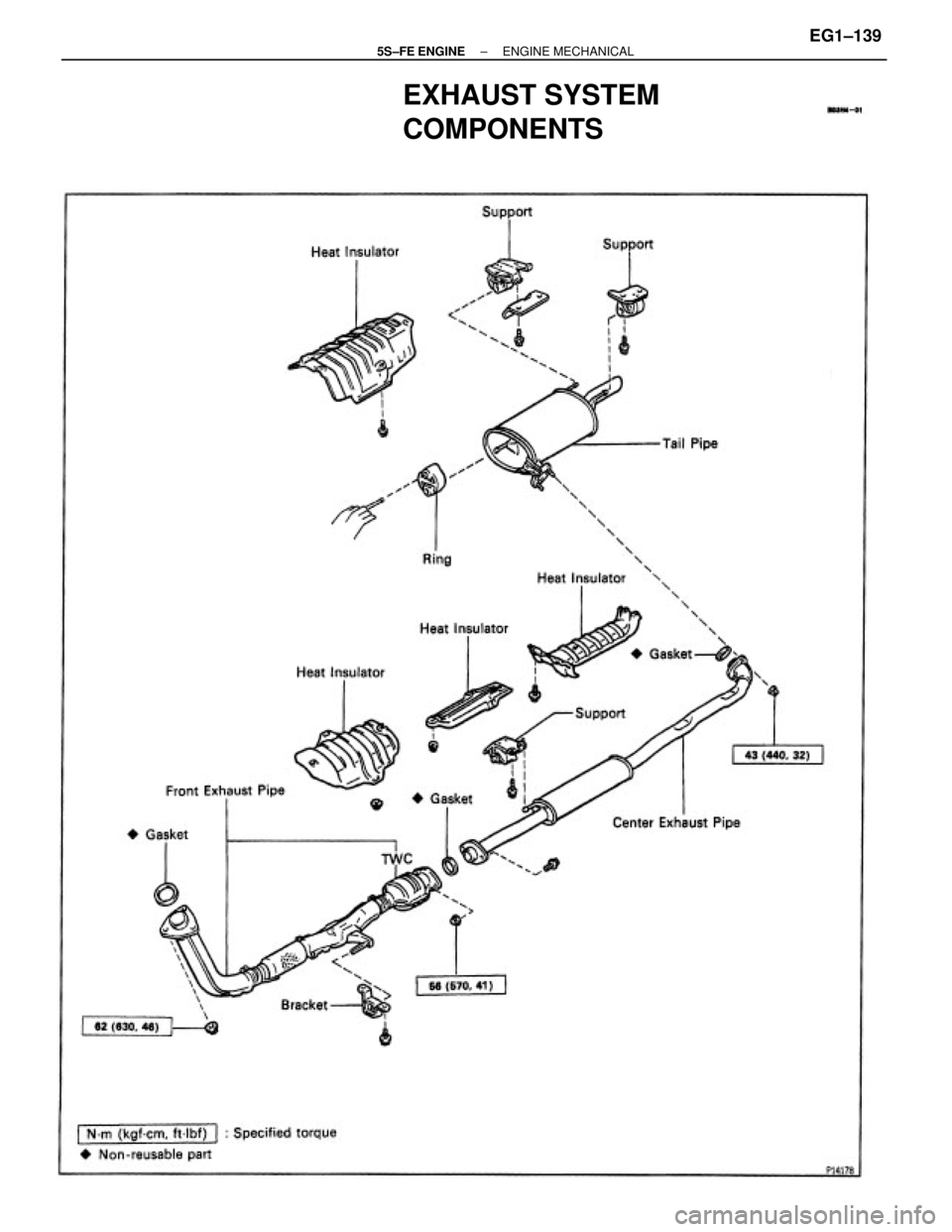

EXHAUST SYSTEM
COMPONENTS
± 5S±FE ENGINEENGINE MECHANICALEG1±139
Page 190 of 4770
Warpage
Cylinder block side
Manifold side
Valve seat
Refacing angle
Contacting angle
Contacting width

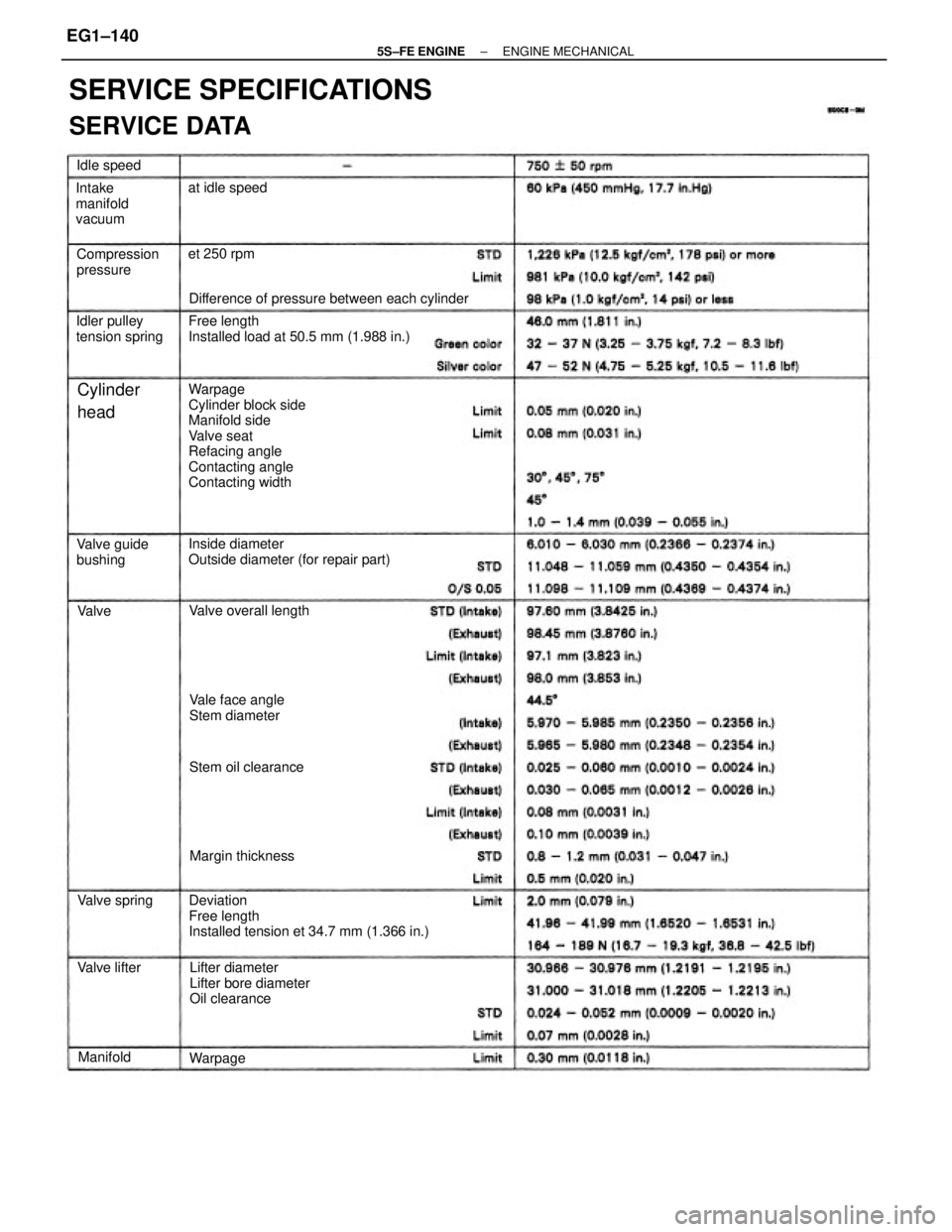

SERVICE SPECIFICATIONS
SERVICE DATA
Deviation
Free length
Installed tension et 34.7 mm (1.366 in.) Free length
Installed load at 50.5 mm (1.988 in.)
Inside diameter
Outside diameter (for repair part)
Lifter diameter
Lifter bore diameter
Oil clearance Difference of pressure between each cylinder
Vale face angle
Stem diameter Idler pulley
tension spring Intake
manifold
vacuum
Compression
pressure
Valve guide
bushing
Valve overall length
Stem oil clearance
Margin thickness
Cylinder
head
at idle speed
Valve springet 250 rpm Idle speed
Valve lifter
Warpage Manifold Valve
± 5S±FE ENGINEENGINE MECHANICALEG1±140

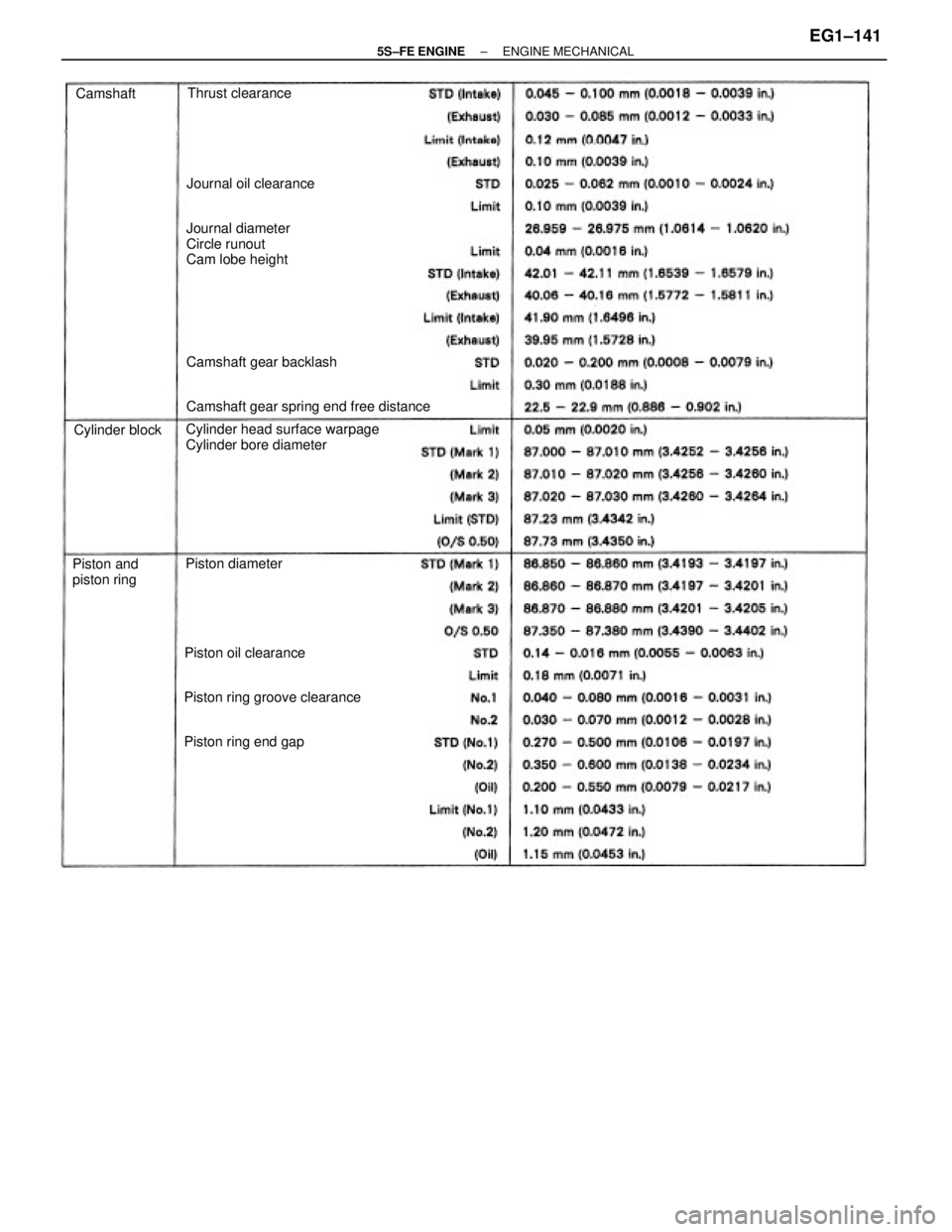

Page 191 of 4770
Cylinder head surface warpage
Cylinder bore diameterJournal diameter
Circle runout
Cam lobe height
Camshaft gear spring end free distance
Piston ring groove clearanceCamshaft gear backlash
Piston and
piston ring
Piston ring end gapJournal oil clearance
Piston oil clearanceThrust clearance
Piston diameter Cylinder blockCamshaft
± 5S±FE ENGINEENGINE MECHANICALEG1±141
Page 192 of 4770
Rod bend
Rod twist
Bushing inside diameter
Piston pin diameter
Piston pin oil clearance
Connecting rod bolt outside diameter
Circle runout
Main journal taper and out±of±round
Crank pin taper and out±of±round Connecting rod bearing center wall thickness
(Reference)
Main bearing center wall thickness (Reference) Thrust washer thickness
Main journal oil clearanceConnecting rod oil clearance
Main journal diameter Connecting
rod
Crank pin diameter Thrust clearance
Thrust clearance Crankshaft
± 5S±FE ENGINEENGINE MECHANICALEG1±142
