LU027±04

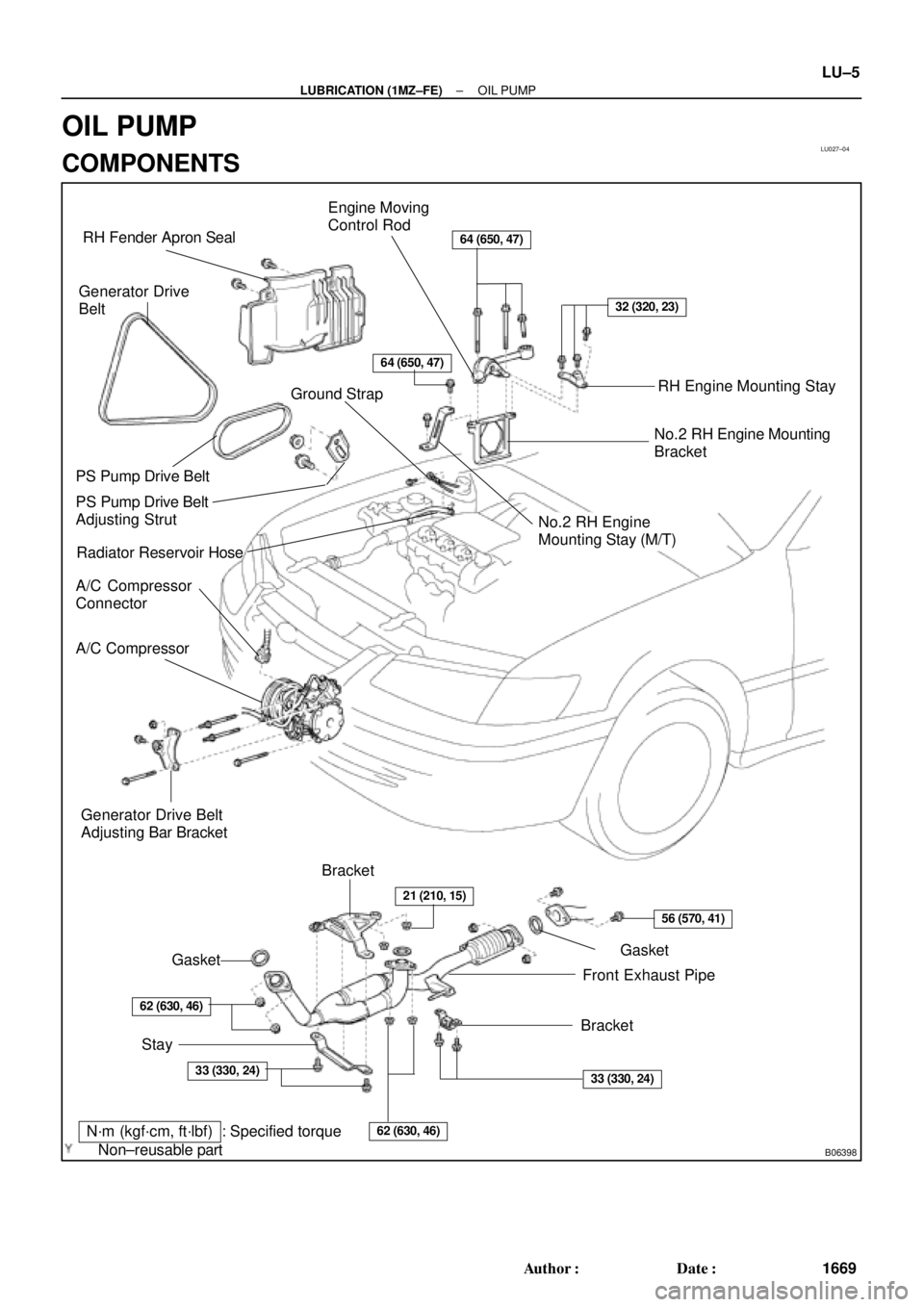

B06398
Gasket RH Fender Apron Seal
PS Pump Drive Belt
A/C Compressor
Connector
A/C Compressor
No.2 RH Engine
Mounting Stay (M/T) Engine Moving
Control Rod
RH Engine Mounting Stay
No.2 RH Engine Mounting
Bracket
Ground Strap
Bracket
Front Exhaust Pipe
Stay
PS Pump Drive Belt
Adjusting Strut
Generator Drive Belt
Adjusting Bar Bracket
Gasket
64 (650, 47)
62 (630, 46)
33 (330, 24)
21 (210, 15)
56 (570, 41)
64 (650, 47)
32 (320, 23)
62 (630, 46)
33 (330, 24)
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable part
Bracket
Generator Drive
Belt
Radiator Reservoir Hose
± LUBRICATION (1MZ±FE)OIL PUMP
LU±5
1669 Author: Date:
OIL PUMP
COMPONENTS
Page 3738 of 4770

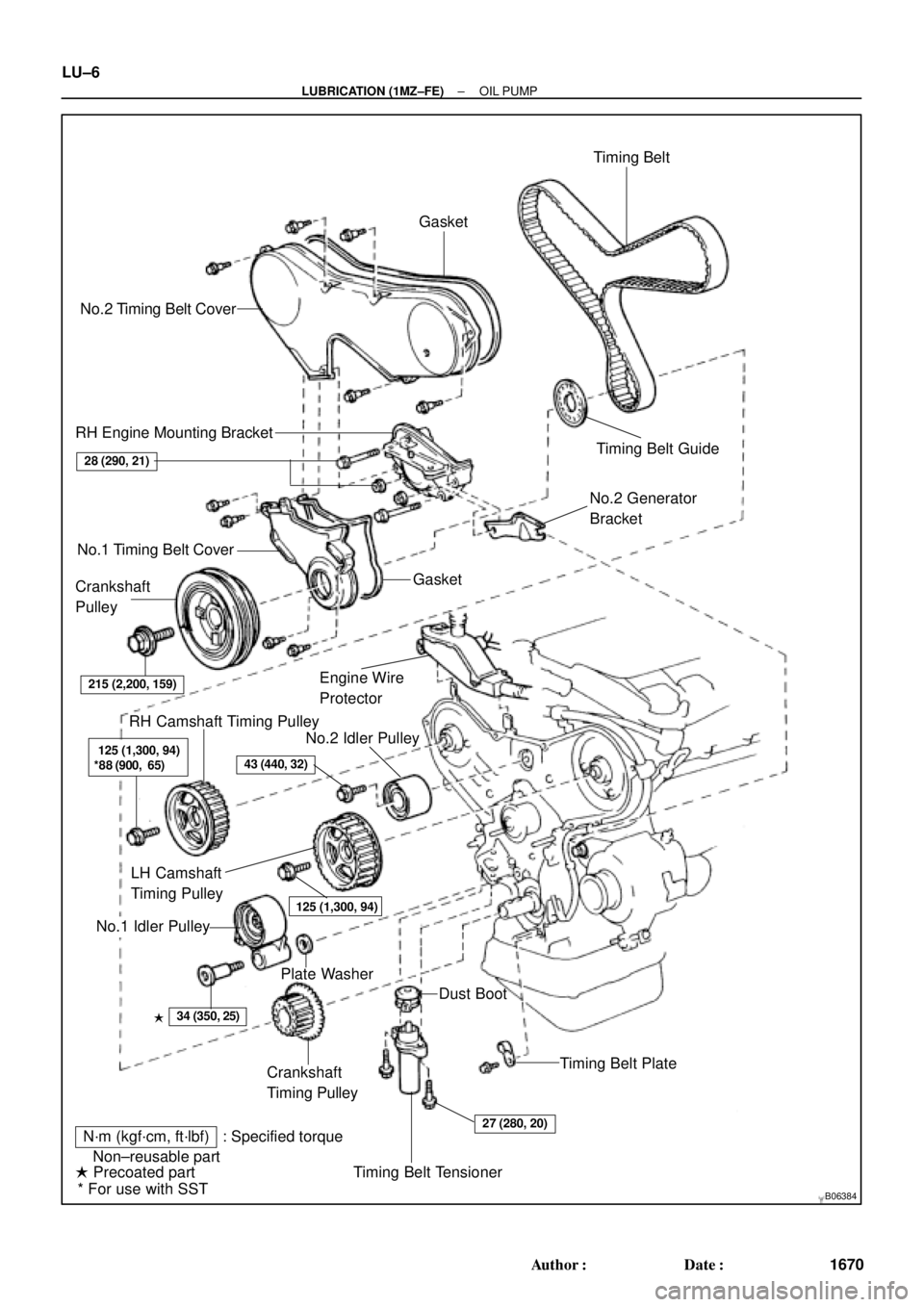

B06384
No.2 Timing Belt CoverTiming Belt
Gasket
Timing Belt Guide
No.2 Generator
Bracket RH Engine Mounting Bracket
Crankshaft
PulleyGasket
Engine Wire
Protector
RH Camshaft Timing Pulley
No.2 Idler Pulley
Crankshaft
Timing PulleyDust Boot
Timing Belt Plate Plate Washer
Timing Belt Tensioner
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable part No.1 Timing Belt Cover
LH Camshaft
Timing Pulley
No.1 Idler Pulley
Precoated part
* For use with SST
28 (290, 21)
215 (2,200, 159)
125 (1,300, 94)*88 (900, 65)43 (440, 32)
34 (350, 25)
27 (280, 20)
125 (1,300, 94)
LU±6
± LUBRICATION (1MZ±FE)OIL PUMP
1670 Author: Date:
Page 3739 of 4770

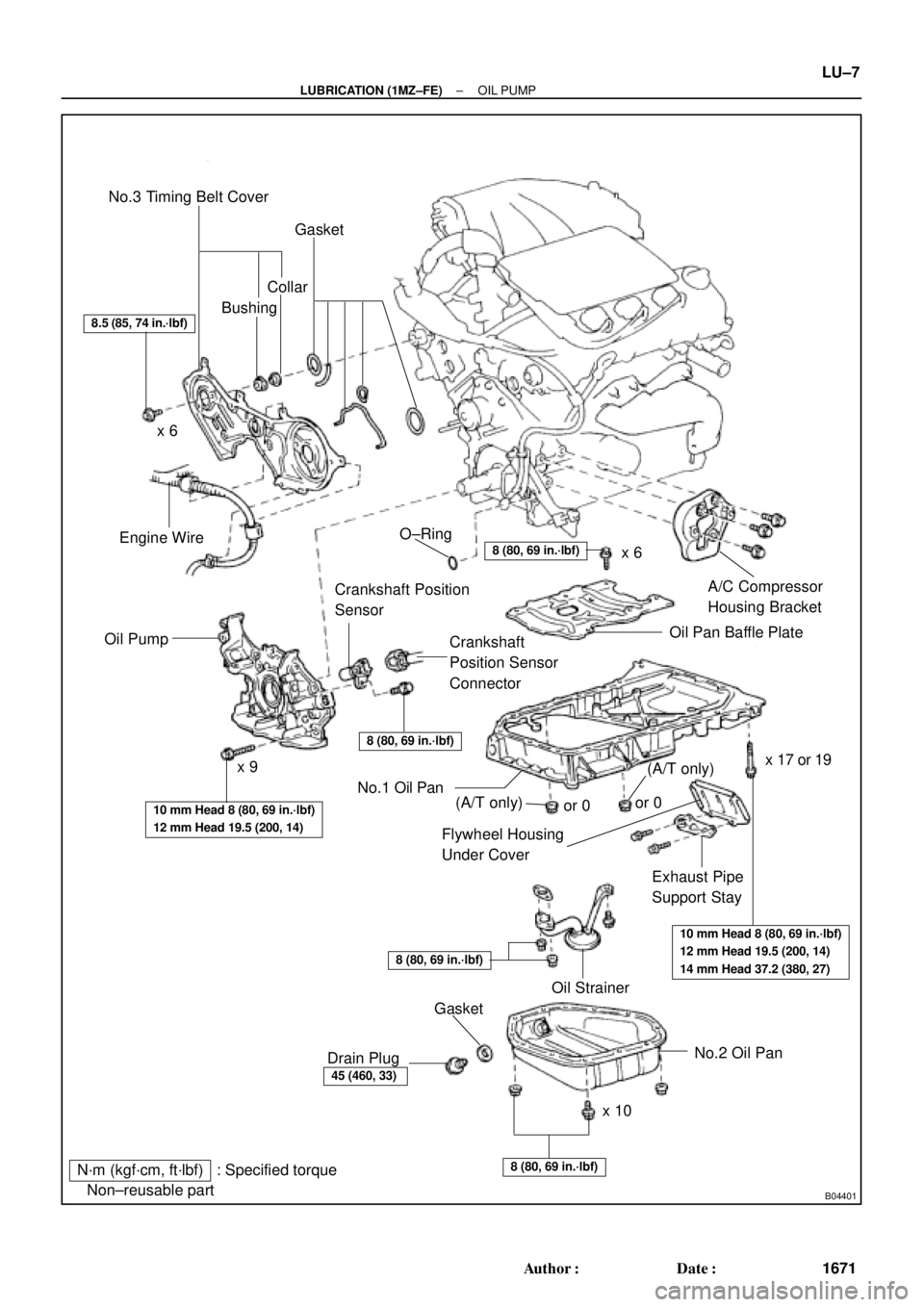

B04401
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable partNo.3 Timing Belt Cover
Gasket
BushingCollar
A/C Compressor
Housing Bracket
Oil Pan Baffle Plate
Crankshaft
Position Sensor
Connector Crankshaft Position
Sensor
Oil PumpEngine Wire
Flywheel Housing
Under Cover
Exhaust Pipe
Support Stay
Oil Strainer
No.2 Oil Pan
x 10x 6
x 9 O±Ring
No.1 Oil Pan
Gasket
Drain Plug
8.5 (85, 74 in.´lbf)
8 (80, 69 in.´lbf)
8 (80, 69 in.´lbf)
10 mm Head 8 (80, 69 in.´lbf)
12 mm Head 19.5 (200, 14)
10 mm Head 8 (80, 69 in.´lbf)
12 mm Head 19.5 (200, 14)
14 mm Head 37.2 (380, 27)
8 (80, 69 in.´lbf)
45 (460, 33)
8 (80, 69 in.´lbf)
x 6
x 17 or 19
(A/T only)(A/T only)or 0or 0
± LUBRICATION (1MZ±FE)OIL PUMP
LU±7
1671 Author: Date:
Page 3740 of 4770
B01016
N´m (kgf´cm, ft´lbf) : Specified torque

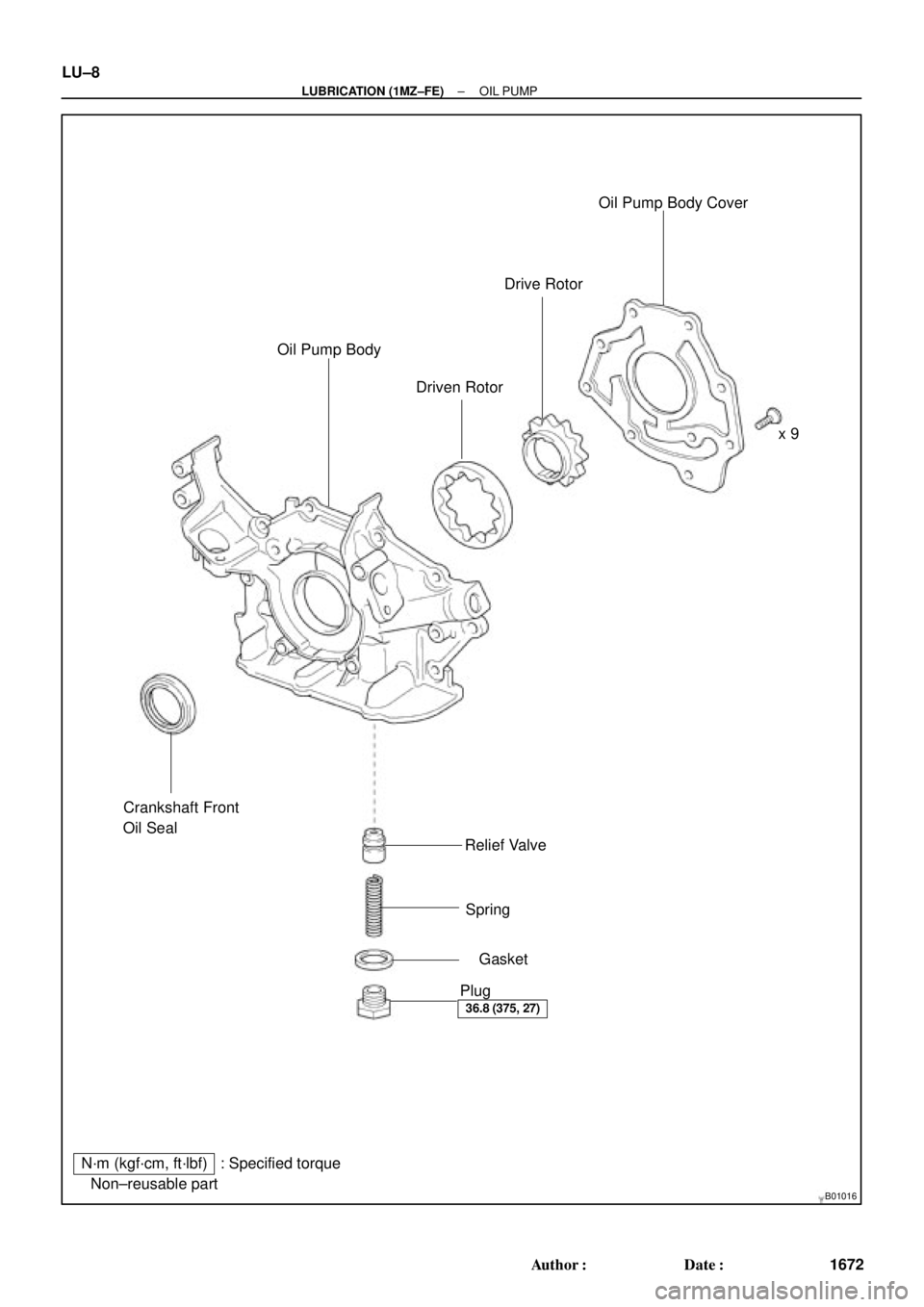

Non±reusable partx 9
Gasket Crankshaft Front
Oil Seal
Relief Valve
Spring
Plug Oil Pump Body
Driven RotorDrive RotorOil Pump Body Cover
36.8 (375, 27)
LU±8
± LUBRICATION (1MZ±FE)OIL PUMP
1672 Author: Date:
Page 3741 of 4770
LU028±03
P18778Adjusting Bolt
Adjusting
Strut Pivot
Bolt
B01015
P18801
± LUBRICATION (1MZ±FE)OIL PUMP
LU±9
1673 Author: Date:
REMOVAL
HINT:
When repairing the oil pump, the oil pan and strainer should be
removed and cleaned.
1. REMOVE RH FRONT WHEEL
2. REMOVE RH FENDER APRON SEAL
3. DRAIN ENGINE OIL
4. REMOVE FRONT EXHAUST PIPE (See page EM±32)
5. REMOVE FRONT EXHAUST PIPE BRACKET FROM
NO.1 OIL PAN
6. REMOVE GENERATOR DRIVE BELT
(See page CH±6)
7. DISCONNECT A/C COMPRESSOR FROM ENGINE
(See page AC±41)
8. REMOVE PS PUMP DRIVE BELT AND ADJUSTING
STRUT
(a) Loosen the pivot and adjusting bolts, and remove the
drive belt.
(b) Remove the bolt, nut and adjusting strut.
9. REMOVE TIMING BELT (See page EM±15)
10. REMOVE TIMING PULLEYS (See page EM±15)
11. REMOVE NO.3 TIMING BELT COVER
(See page EM±32)
12. REMOVE A/C COMPRESSOR HOUSING
BRACKET
Remove the 3 bolts and housing bracket.
13. REMOVE NO.2 OIL PAN
(a) Remove the 10 bolts and 2 nuts.
Page 3742 of 4770

P12716
SST
SST
P18802
B04136
B04137
P20050Pry LU±10
± LUBRICATION (1MZ±FE)OIL PUMP
1674 Author: Date:
(b) Insert the blade of SST between the No.1 and No.2 oil
pans, and cut off applied sealer and remove the No.1 oil
pan.
SST 09032±00100
NOTICE:
Be careful not to the damage the No.2 oil pan contact
surface of the No.1 oil pan.
Be careful not to damage the No.2 oil pan flange.
14. REMOVE OIL STRAINER
Remove the bolt, 2 nuts, oil strainer and gasket.
15. REMOVE NO.1 OIL PAN
(a) Remove the 2 bolts, exhaust pipe support stay and fly-
wheel housing under cover.
(b) Remove the 19 bolts (or 17 bolts and 2 nuts).
(c) Using a screwdriver, remove the oil pan by prying the por-
tions between the cylinder block and oil pan.
NOTICE:
Be careful not to damage the contact surfaces of the cylin-
der block and oil pan.
16. REMOVE BAFFLE PLATE FROM NO.1 OIL PAN
17. REMOVE CRANKSHAFT POSITION SENSOR
18. REMOVE OIL PUMP
(a) Remove the 9 bolts.
(b) Remove the oil pump by prying a screwdriver between the
oil pump and main bearing cap.
(c) Remove the O±ring.
Page 3743 of 4770
LU029±03
P12680
P12681
± LUBRICATION (1MZ±FE)OIL PUMP
LU±11
1675 Author: Date:
DISASSEMBLY
1. REMOVE RELIEF VALVE
Remove the plug, gasket, spring and relief valve.
2. REMOVE DRIVE AND DRIVEN ROTORS
Remove the 9 screws, pump body cover, drive and driven ro-
tors.
Page 3744 of 4770

LU02A±03
P12419
P12807
Mark
P12597
P12593
P12592
LU±12
± LUBRICATION (1MZ±FE)OIL PUMP
1676 Author: Date:
INSPECTION
1. INSPECT RELIEF VALVE
Coat the valve with engine oil and check that it falls smoothly
into the valve hole by its own weight.
If it does not, replace the relief valve. If necessary, replace the
oil pump assembly.
2. PLACE DRIVE AND DRIVEN ROTORS INTO OIL PUMP
BODY
Place the drive and driven rotors into the oil pump body with the
mark facing upward.
3. INSPECT ROTOR SIDE CLEARANCE
Using a feeler gauge and precision straight edge, measure the
clearance between the rotors and precision straight edge.
Standard side clearance:
0.030 ± 0.090 mm (0.0012 ± 0.0035 in.)
Maximum side clearance: 0.15 mm (0.0059 in.)
If the side clearance is greater than maximum, replace the ro-
tors as a set. If necessary, replace the oil pump assembly.
4. INSPECT ROTOR TIP CLEARANCE
Using a feeler gauge, measure the clearance between the drive
and driven rotor tips.
Standard tip clearance:
0.110 ± 0.240 mm (0.0043 ± 0.0094 in.)
Maximum tip clearance: 0.35 mm (0.0138 in.)
If the tip clearance is greater than maximum, replace the rotors
as a set.
5. INSPECT ROTOR BODY CLEARANCE
Using a feeler gauge, measure the clearance between the driv-
en rotor and body.
Standard body clearance:
0.100 ± 0.175 mm (0.0039 ± 0.0069 in.)
Maximum body clearance: 0.30 mm (0.0118 in.)
If the body clearance is greater than maximum, replace the ro-
tors as a set. If necessary, replace the oil pump assembly.
