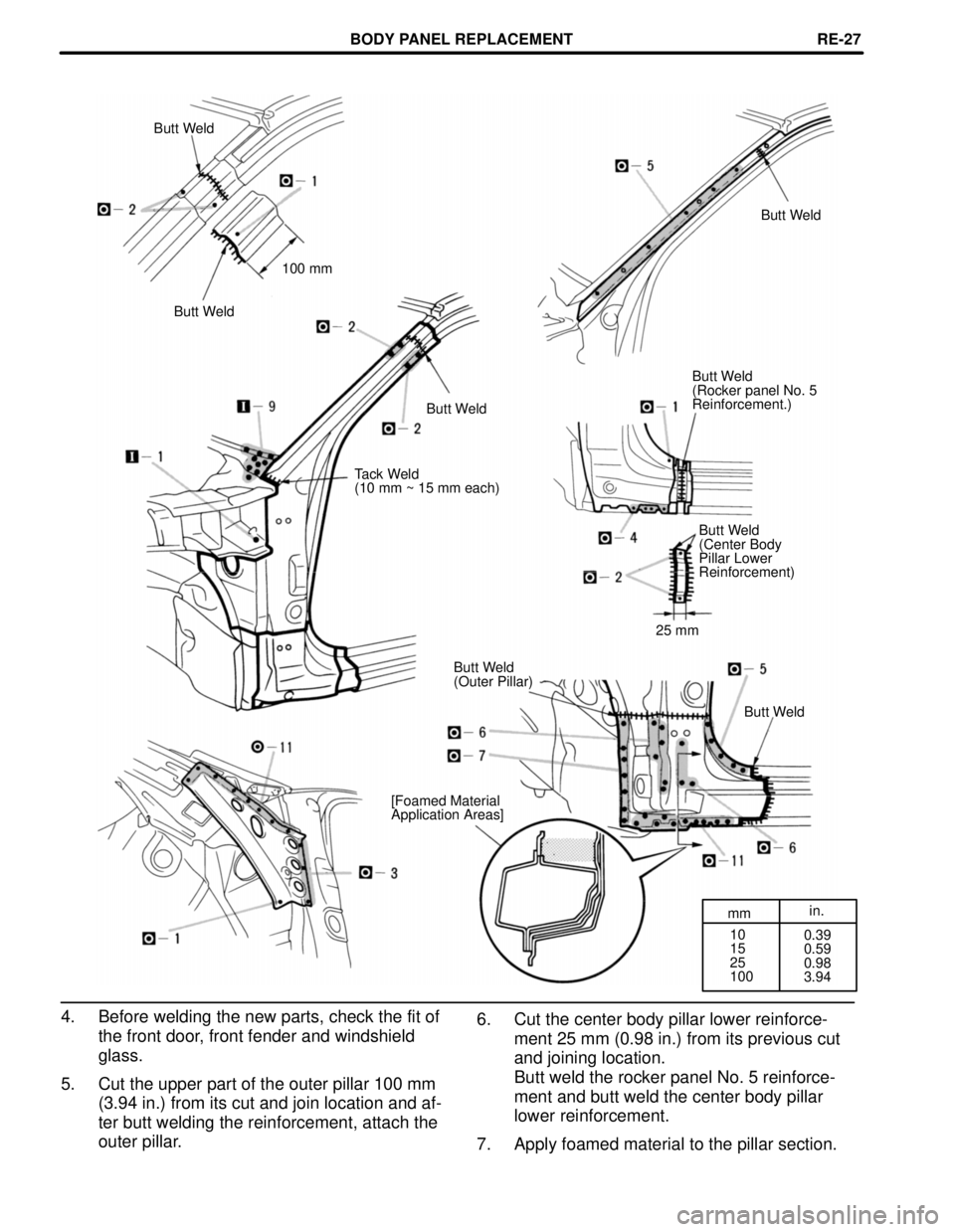

TOYOTA CAMRY 2000 Service Repair Manual mmin. 10 15 25 1000.39 0.59 0.98 3.94 Butt Weld Butt Weld 100 mm Butt Weld Butt Weld (Rocker panel No. 5 Reinforcement.) Butt Weld Tack Weld (10 mm ~ 15 mm each) Butt Weld (Center Body Pillar Lower Re

Page 650 of 4770

TOYOTA CAMRY 2000 Service Repair Manual ±MEMO±RE-28

Page 651 of 4770

TOYOTA CAMRY 2000 Service Repair Manual mm in. 20 50 70 85 260 3800.79 1.97 2.76 3.35 11.42 14.96 CENTER BODY PILLAR (CUT) REMOVAL Cut and Join Location (Cut Location for Supply Parts) Cut and Join Location 260 mm 380 mm Cut and Join locati

Page 652 of 4770

TOYOTA CAMRY 2000 Service Repair Manual mm in. 60 702.36 2.76 INSTALLATION Center Body Pillar Reinforcement Center Pillar Reinforcement 60 mm 70 mm Cut Location Butt Weld Center Body Pillar Reinforcement Butt Weld Butt Weld Inner Pillar 1.

Page 653 of 4770

TOYOTA CAMRY 2000 Service Repair Manual Butt Weld [Foamed Material Application Areas] [Foamed Material Application Areas] Butt Weld Butt Weld Butt Weld 5. After welding the inner pillar, reinforcement and center body pillar reinforcement to

Page 654 of 4770

TOYOTA CAMRY 2000 Service Repair Manual FRONT DOOR OUTER PANEL (CUT) REMOVAL Cut and Join Location Cut and Join Location Hemming Location Disc Sander 2. After grinding off the hemming location, re- move the outer panel. 1. Cut and join the

Page 655 of 4770

TOYOTA CAMRY 2000 Service Repair Manual mm in. 100.39 INSTALLATION Body Sealer Butt Weld Body Sealer about 10 mm Butt WeldDo not close the drain hole. Body Sealer Cloth Tape 30° Hemming Tool 1. Before temporarily installing the new parts,

Page 656 of 4770

TOYOTA CAMRY 2000 Service Repair Manual REAR DOOR OUTER PANEL (CUT) REMOVAL Cut and Join Location Cut and Join Location Hemming Location Disc Sander 2. After grinding off the hemming location, re- move the outer panel. 1. Cut and join the p
