Page 4401 of 4770
SA08E±01
R00911
SST
R00912
R00823
Outside I
± SUSPENSION AND AXLEREAR SHOCK ABSORBER
SA±61
2012 Author: Date:
REASSEMBLY
1. INSTALL LOWER INSULATOR
2. INSTALL SPRING BUMPER TO PISTON ROD
3. INSTALL COIL SPRING
(a) Using SST, compress the coil spring.
SST 09727±30021
NOTICE:
Do not use an impact wrench. It will damage the SST.
(b) Install the coil spring to the shock absorber.
HINT:
Fit the lower end of the coil spring into the gap of the spring low-
er seat.
4. INSTALL SUSPENSION SUPPORT
(a) Install the suspension support to the piston rod and tem-
porarily tighten a new nut.
(b) Rotate the suspension support and set it in the direction
shown in the illustration.
(c) Remove the SST.
SST 09727±30021
HINT:
After removing SST, again check the direction of the suspen-
sion support.
Page 4402 of 4770
SA08F±01
SA±62
± SUSPENSION AND AXLEREAR SHOCK ABSORBER
2013 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page SA±57).
AFTER INSTALLATION, CHECK REAR WHEEL ALIGNMENT (See page SA±7)
Page 4403 of 4770
SA08G±01
56 (570, 41)
W03215
Suspension member
Suspension Member Lower Stopper
Suspension Member
Lower Stopper
Sub±Assembly
N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable torqueStabilizer Bar
Bracket Bushing
Bracket Bushing Stabilizer Bar Link
Exhaust Center PipeClip
Heat Insulator Strut Rod Parking BrakeSuspension Arm Washer
No.2 Lower Suspension Arm
No.1 Lower Suspension Arm
Stabilizer
Gasket AdjustingNo.2 LOWER SUSPENSION ARM
RH
Tube
Adjusting
Tube
GasketBar Link Cable Clamp
51 (520, 38)
51 (520, 38)
LH
181 (1,850, 134)
38 (390, 28)56 (570, 41)56 (570, 41)
181 (1,850, 134)
113 (1,150, 83)
5.4 (55, 48 in.´lbf)
39 (400, 29)
113 (1,150, 83)
56 (570, 41)
19 (195, 14)Parking Brake Cable
± SUSPENSION AND AXLEREAR LOWER SUSPENSION ARM AND STRUT ROD
SA±63
2014 Author: Date:

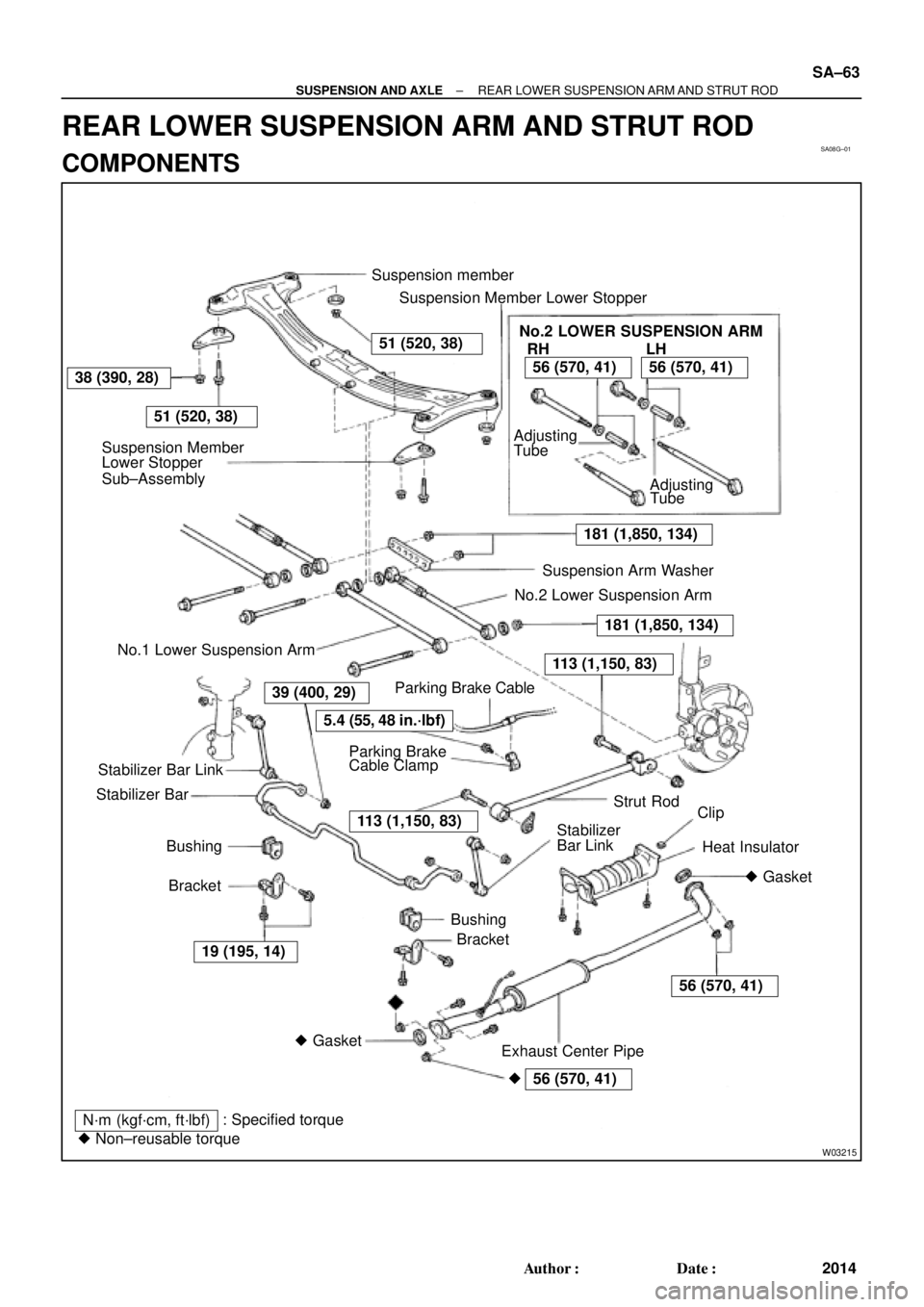

REAR LOWER SUSPENSION ARM AND STRUT ROD
COMPONENTS
Page 4404 of 4770

SA08H±01
W03216
W03217
Rear
W03219A B
A B SA±64
± SUSPENSION AND AXLEREAR LOWER SUSPENSION ARM AND STRUT ROD
2015 Author: Date:
REMOVAL
1. REMOVE REAR WHEEL
Torque: 103 N´m (1,050 kgf´cm, 76 ft´lbf)
2. REMOVE EXHAUST CENTER PIPE
5S±FE Engine: (See page EM±114)
1MZ±FE Engine: (See page EM±111)
3. REMOVE STRUT ROD
(a) Remove the bolt and disconnect the parking brake cable.
Torque: 5.4 N´m (55 kgf´cm, 48 in.´lbf)
(b) Remove the 2 bolts and nuts.
Torque: 113 N´m (1,150 kgf´cm, 83 ft´lbf)
HINT:
At the time of installtion,after stabilizing the suspension, torque
the bolts.
(c) Remove the strut rod.
4. REMOVE NO.2 LOWER SUSPENSION ARM
(a) Remove the 3 nuts, suspension arm washer and wash-
ers.
Torque: 181 N´m (1,850 kgf´cm, 134 ft´lbf)
HINT:
At the time of installtion, after stabilizing the suspension, torque
the nuts.
(b) Remove the No.2 lower suspension arm.
HINT:
At the time of installtion, face the paint mark to the rearward.
5. REMOVE LEFT AND RIGHT STABILIZER BRACKETS
(See page SA±70)
6. REMOVE NO.1 LOWER SUSPENSION ARM
(a) Support the suspension member with a jack.
(b) Remove the 4 nuts, 2 bolts and suspension member low-
er stoppers.
Torque:
Bolt: 51 N´m (520 kgf´cm, 38 ft´lbf)
Nut A: 51 N´m (520 kgf´cm, 38 ft´lbf)
Nut B: 38 N´m (390 kgf´cm, 28 ft´lbf)
(c) Lower the suspension member.
Page 4405 of 4770
W03220
Rear
± SUSPENSION AND AXLEREAR LOWER SUSPENSION ARM AND STRUT ROD
SA±65
2016 Author: Date:
(d) Remove the No.1 lower suspension arm with the 2 bolts
and washer.
HINT:
At the time of installtion, face the paint mark to the rearward.
Page 4406 of 4770
SA08I±01
W03221
SA±66
± SUSPENSION AND AXLEREAR LOWER SUSPENSION ARM AND STRUT ROD
2017 Author: Date:
DISASSEMBLY
DISASSEMBLE NO.2 LOWER SUSPENSION ARM
(a) Loosen the 2 lock nuts.
(b) Turn and disassemble the No.2 lower suspension arm.
(c) Remove the lock nuts from the No.2 lower suspension
arm.
Page 4407 of 4770
SA08J±01
W03222
W03223
AB
W03224
± SUSPENSION AND AXLEREAR LOWER SUSPENSION ARM AND STRUT ROD
SA±67
2018 Author: Date:
REASSEMBLY
ASSEMBLE NO.2 LOWER SUSPENSION ARM
(a) Install the 2 lock nuts to the No.2 lower suspension arm.
(b) Turn the adjusting tube and assemble the No.2 lower sus-
pension arm.
HINT:
When assembling the No.2 lower suspension arm, make sure
that the length of A and B shown in the illustration is the same.
Maximum difference: 3.0 mm (0.118 in.)
(c) Adjust the No.2 lower suspension arm length by turning
the adjusting tube.
Arm length: 512.3 mm (20.169 in.)
(d) Temporarily tighten the 2 lock nuts.
HINT:
After adjusting the rear wheel alignment, torque the lock nuts
(See page SA±7).
Torque: 56 N´m (570 kgf´cm, 41 ft´lbf)
Page 4408 of 4770
SA08K±01
SA±68
± SUSPENSION AND AXLEREAR LOWER SUSPENSION ARM AND STRUT ROD
2019 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page SA±64).
AFTER INSTALLATION, CHECK REAR WHEEL ALIGNMENT (See page SA±7)
