TOYOTA CAMRY 2000 Service Repair Manual THEFT DETERRENT (TMMK MADE)
D16, D17 DOOR KEY LOCK AND UNLOCK SW FRONT LH, RH
1±3 : Closed with door lock cylinder unlocked with key
1±2 : Closed with door lock cylinder locked with key
E6 ENGINE

Page 1338 of 4770

TOYOTA CAMRY 2000 Service Repair Manual : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1B20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)1C20Cowl Wire and Instrument Pan

: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1B20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)1C20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1D20Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)1G20Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)
1J20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)1M20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1S20Floor Wire and Instrument Panel J/B (Lower Finish Panel)
1V20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)1W20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
2F22Engine Room Main Wire and Engine Room J/B No.2 (Engine Compartment Left)
2J22Cowl Wire and Engine Room J/B No 2 (Engine Compartment Left)2K22Cowl Wire and Engine Room J/B No.2 (Engine Compartment Left)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IE140Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IF140Floor Wire and Instrument Panel Wire (Left Kick Panel)IF240Floor Wire and Instrument Panel Wire (Left Kick Panel)
IG140Instrument Panel Wire and Cowl Wire (Lower Finish Panel)
IG340Instrument Panel Wire and Cowl Wire (Under the Blower Motor)
IK142Engine Room Main Wire and Cowl Wire (Right Kick Panel)
IM142Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IN242Floor No.2 Wire and Instrument Panel Wire (Right Kick Panel)
BO144Rear Door Wire LH and Floor Wire (Under the Left Center Pillar)
BP144Rear Door Wire RH and Floor No.2 Wire (Under the Right Center Pillar)
: GROUND POINTS
CodeSee PageGround Points Location
EB36 (1MZ±FE)Left Radiator Side SupportEB38 (5S±FE)Left Radiator Side Support
IE40Cowl Side Panel LH
IF40Left Kick Panel
IG40Instrument Panel Brace LH
IH40Instrument Panel Brace RH
IJ40Right Kick PanelIK40Right Kick Panel
BL44Under the Left Center Pillar
BN44Under the Right Center Pillar
BP44Back Panel Center
: SPLICE POINTS
CodeSee PageWire Harness with Splice PointsCodeSee PageWire Harness with Splice Points
E336 (1MZ±FE)Cowl WireB1344Front Door LH WireE338 (5S±FE)Cowl WireB1444Front Door RH Wire
B644Floor No.2 Wire

Page 1339 of 4770

TOYOTA CAMRY 2000 Service Repair Manual THEFT DETERRENT (TMMK MADE)
5 9
1212
11
2
314
12
1
12
A A A
CCCAAA AA
AAAA AAAA
BB BB
FFFF
BBCC
DDD E E E
AA
AAAA
B
BB B
1111
2
3
141414

Page 1340 of 4770

TOYOTA CAMRY 2000 Service Repair Manual AAB CC
AABB BBCCAA
AAAA121
121 XXXX6
7 X 9 10111212
34567891011
X13
14 15 16 X 18 X X XX12
XX5X

J37 J40 L4GRAY
BLACK
T3 (B) T4 (A) U1
W6
(Hint : See Page 7)(Hint : See Page 7)
L6
T1

Page 1341 of 4770

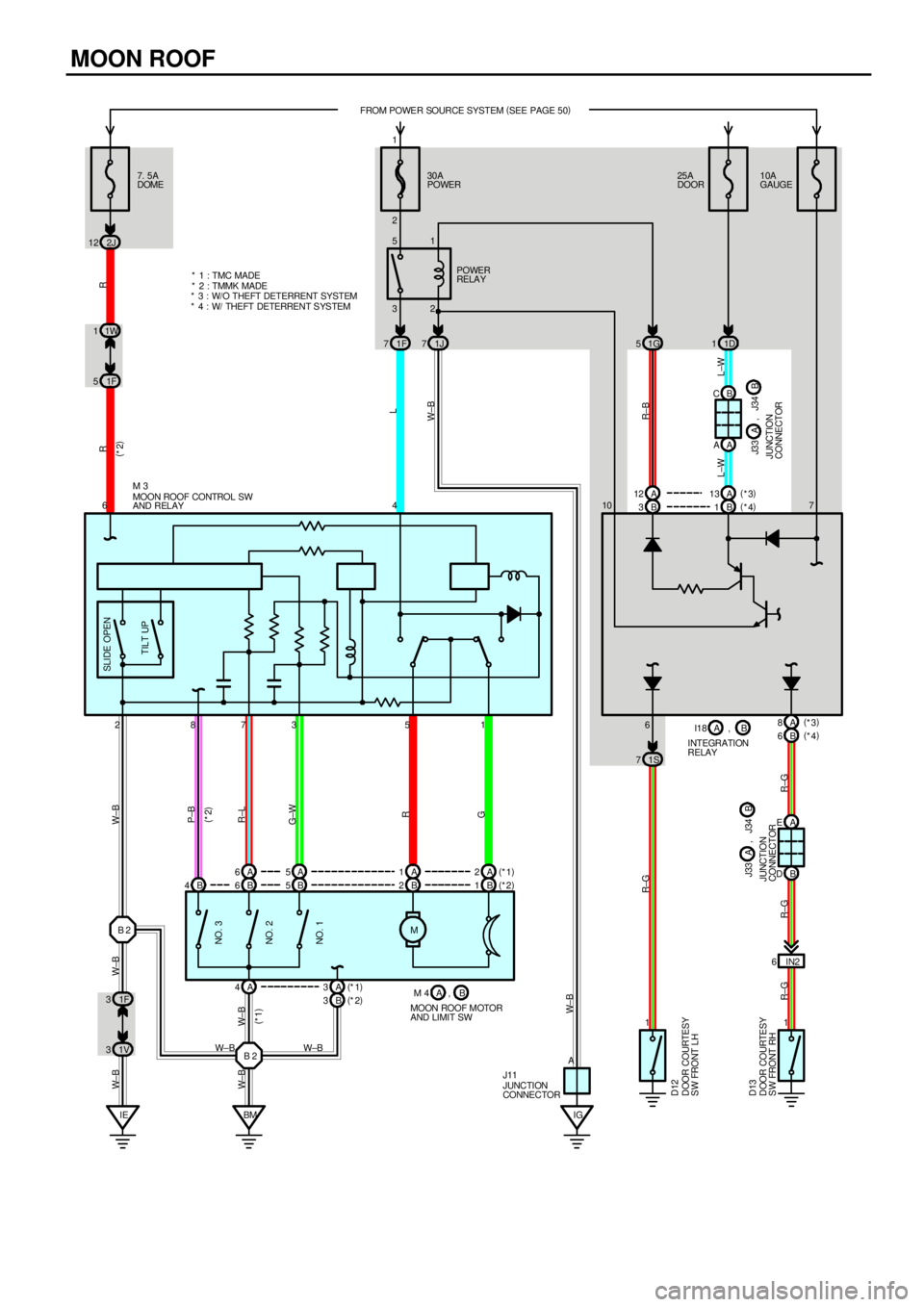

TOYOTA CAMRY 2000 Service Repair Manual MOON ROOF
7. 5A
DOME30A
POWER
MB 1(
*2) A 2(
*1)
A 3(
*1)
B 3(
*2) A 4 B 4B6A 6
B 5A 5
B 2A 1 2J 12
1F 51W 1
B 2
BM IEFROM POWER SOURCE SYSTEM (
SEE PAGE 50)
IG W±B W±B
R R
W± B W± B W± B
P±B W�

Page 1342 of 4770

TOYOTA CAMRY 2000 Service Repair Manual Current is applied at all times through the POWER fuse to TERMINAL 5 of the power relay. With the ignition SW turned on,
the current flows through the GAUGE fuse to TERMINAL 7 of the integration relay

Current is applied at all times through the POWER fuse to TERMINAL 5 of the power relay. With the ignition SW turned on,
the current flows through the GAUGE fuse to TERMINAL 7 of the integration relay to TERMINAL (A) 12 (w/o theft deterrent
system), (B) 3 (w/ theft deterrent system) to TERMINAL 1 of the power relay to TERMINAL 2 to GROUND, as a result, power
relay is activated and the current to TERMINAL 5 of the power relay flows from TERMINAL 3 of the power relay to
TERMINAL 4 of the moon roof control relay.
1. SLIDE OPEN OPERATION
Only when the slide open switch is valid and actuated the moon roof motor continually will operate towards the open
direction of the roof panel.
Releasing and again depressing the open switch, or depressing another operation switch shall cancel this express open
function. The relay shall only operate the moon roof motor continually for approx. 20 seconds per actuation.
2. SLIDE CLOSE OPERATION
Only when the tilt up switch is valid and actuated the moon roof motor will operate towards the close direction of the roof
panel.
When the moon roof reaches about 120 mm short of the fully closed position, the limit switch No.2 is turned from on to off.
Thereby signaling the moon roof control relay to stop the motor. The motor can not continue to operate until the close switch
is released and again depressed.
3. TILT UP OPERATION
Only when the tilt up switch is valid and actuated the moon roof motor will operate towards the closed direction of the roof
panel.
4. TILT DOWN OPERATION
Only when the slide open switch is valid and actuated the moon roof motor will operate towards the open direction of the roof
panel.
5. KEY OFF MOON ROOF OPERATION
With the ignition SW turned from on to off, the integration relay operates and current flows from the DOOR fuse to
TERMINAL (A) 13 (w/o theft deterrent system), (B) 1 (w/ theft deterrent system) of the relay to TERMINAL (A) 12 (w/o theft
deterrent system), (B) 3 (w/ theft deterrent system) to TERMINAL 1 of the power relay to TERMINAL 2 to GROUND for about
43 seconds. In the same way as normal operation, the current flows from the POWER fuse to TERMINAL 5 of the power
relay to TERMINAL 3 to TERMINAL 4 of the moon roof control relay. As a result, for about 43 seconds after the ignition SW
is turned off, the functioning of this relay makes it possible to open and close the moon roof. Also, by opening the front door
(Door courtesy SW on) within about 43 seconds after turning the ignition SW to off, a signal is input to TERMINALS 6 or (A) 8
(w/o theft deterrent system), (B) 6 (w/ theft deterrent system) of the integration relay. As a result, the relay turns off and open
close movement of the moon roof stops.
POWER RELAY [INSTRUMENT PANEL J/B]
5±3 : Closed with the ignition SW at ON position or key off moon roof operation
M3 MOON ROOF CONTROL SW AND RELAY
2±GROUND : Always continuity
4±GROUND : Approx. 12 volts with the ignition SW at ON position or key off moon roof operation
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
D1232J1131M4A33
D1332J33A31M4B33
I18A30J34B31I18B30M333
SYSTEM OUTLINE
SERVICE HINTS

Page 1343 of 4770

TOYOTA CAMRY 2000 Service Repair Manual MOON ROOF
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1D20Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)
1F20Roof

Page 1344 of 4770

TOYOTA CAMRY 2000 Service Repair Manual MEMO
