Page 4249 of 4770
RS01W±09
RS±74
± SUPPLEMENTAL RESTRAINT SYSTEMWIRE HARNESS AND CONNECTOR
2219 Author: Date:
INSPECTION
HINT:
The SRS wire harness is integrated with the instrument panel wire harness assembly. All the connectors in
the system are a standard yellow color.
1. VEHICLE NOT INVOLVED IN COLLISION
Do a diagnostic system check. (See page DI±626)
2. VEHICLE INVOLVED IN COLLISION
(a) Do a diagnostic system check. (See page DI±626)
(b) Check breaks in all wires of the SRS wire harness, and exposed conductors.
(c) Check to see if the SRS wire harness connectors are cracked or chipped.
Page 4250 of 4770
RS01X±09
± SUPPLEMENTAL RESTRAINT SYSTEMWIRE HARNESS AND CONNECTOR
RS±75
2220 Author: Date:
REPLACEMENT
In the following cases, replace the wire harness or connector.
If any part of the SRS wire harness or any connector has been found to be faulty in troubleshoot-
ing.
If any part of the SRS wire harness or any connector has been found to be faulty during checking
items. (See page RS±74)
CAUTION:
If the wire harness used in the SRS is damaged, replace the whole wire harness assembly.
Page 4251 of 4770
ST03H±01
± STARTING (5S±FE)STARTING SYSTEM
ST±1
1708 Author: Date:
STARTING SYSTEM
ON±VEHICLE INSPECTION
NOTICE:
Before changing the starter, check the following items again:
Connector connection
Accessory installation, e.g.: theft deterrent system
Page 4252 of 4770
ST03I±04

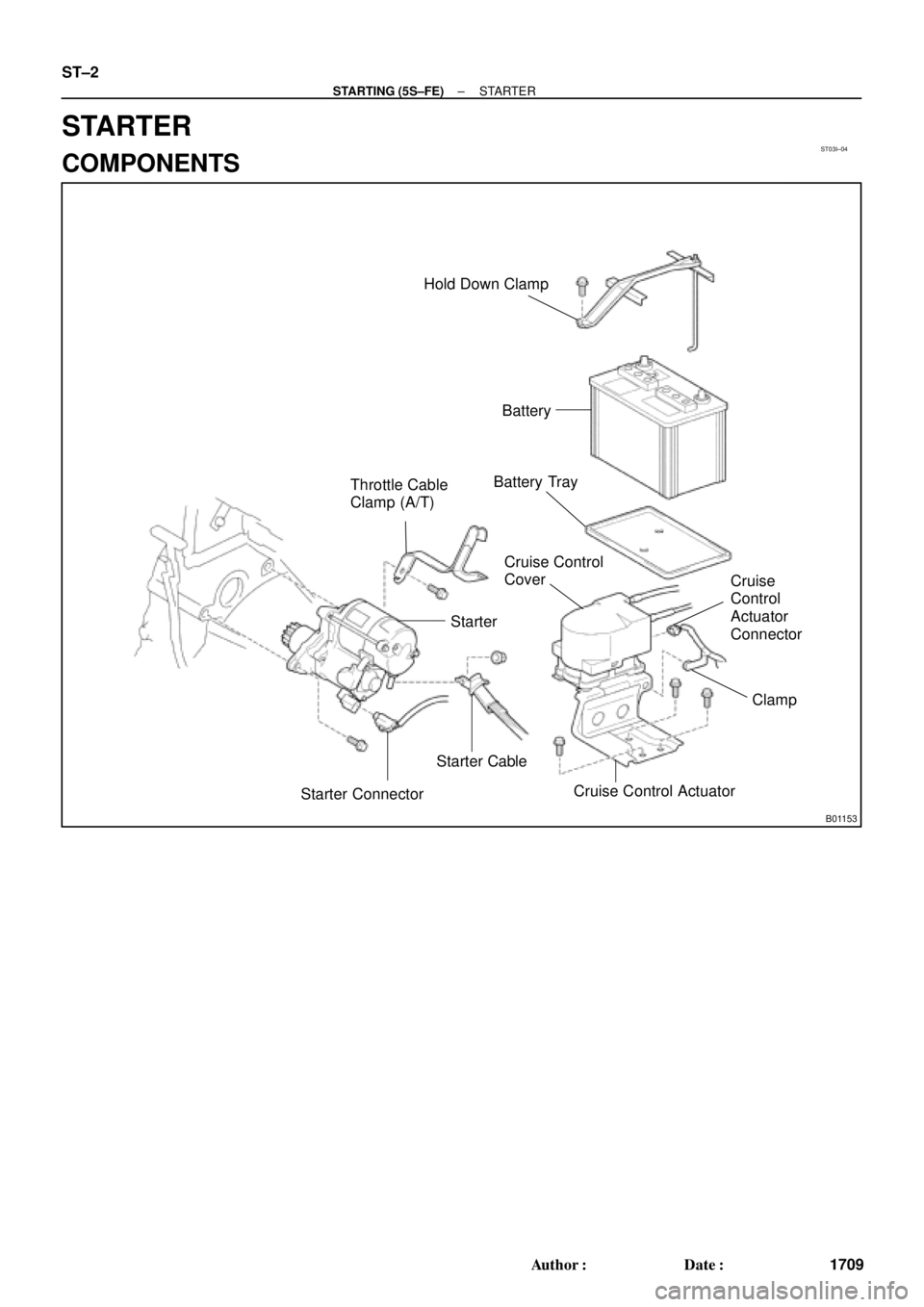

B01153
Throttle Cable
Clamp (A/T)Battery Tray
Cruise
Control
Actuator
Connector
Cruise Control Actuator Cruise Control
Cover
Clamp Hold Down Clamp
Starter Cable
Starter Connector
Starter
Battery
ST±2
± STARTING (5S±FE)STARTER
1709 Author: Date:
STARTER
COMPONENTS
Page 4253 of 4770

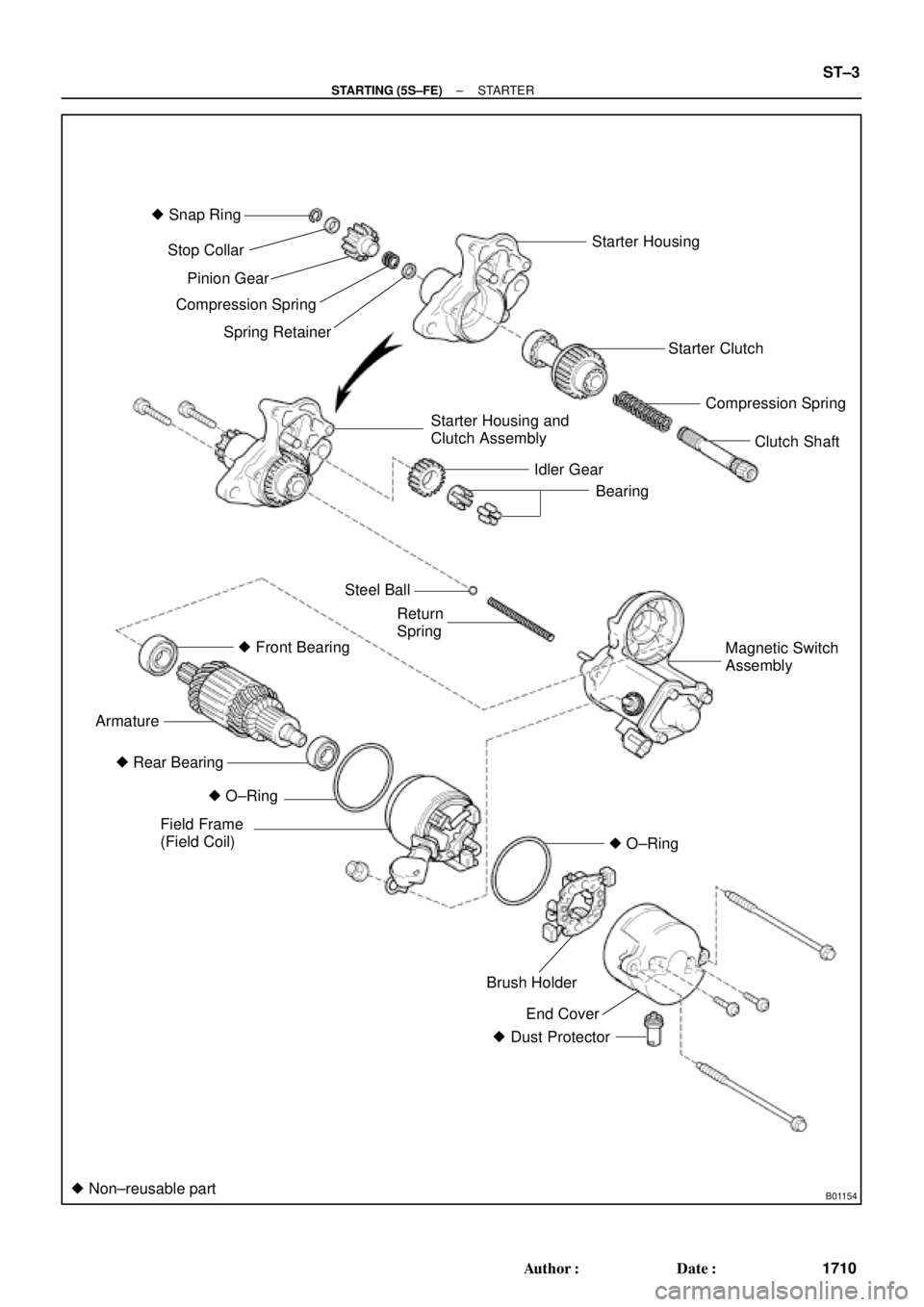

B01154
Snap Ring
Starter Housing
Starter Clutch
Compression Spring
Clutch Shaft
Starter Housing and
Clutch Assembly
Idler Gear
Bearing Stop Collar
Pinion Gear
Compression Spring
Spring Retainer
Steel Ball
Return
Spring
Front Bearing
Armature
O±Ring
Field Frame
(Field Coil)
End Cover Brush Holder Rear Bearing
Dust Protector
Non±reusable part
Magnetic Switch
Assembly
O±Ring
± STARTING (5S±FE)STARTER
ST±3
1710 Author: Date:
Page 4254 of 4770

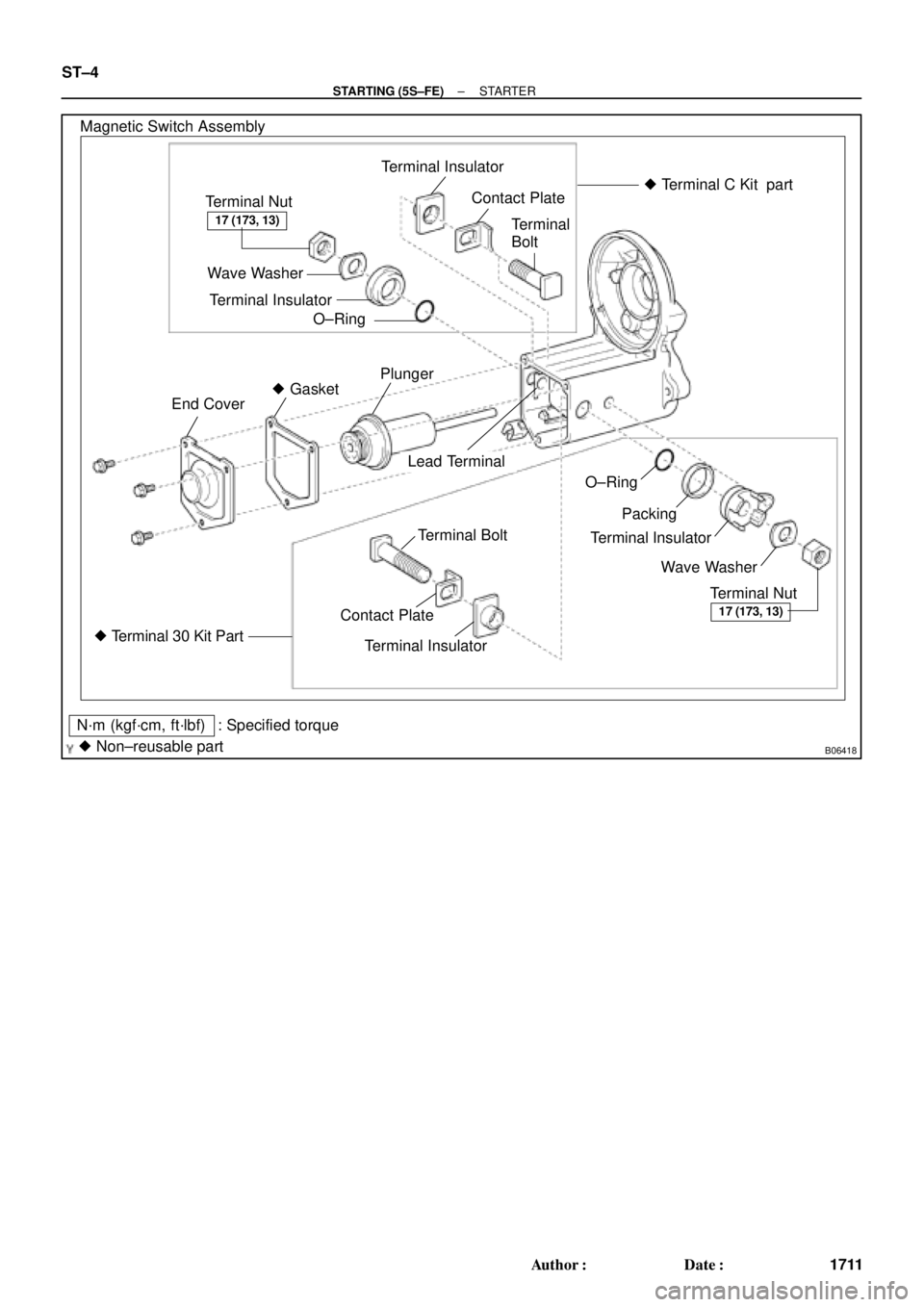

B06418
Magnetic Switch Assembly
Terminal Nut
Wave Washer
Terminal Insulator
O±RingContact Plate
Terminal
Bolt
Terminal Insulator Terminal C Kit part
Plunger
Gasket
End Cover
O±Ring
Packing
Terminal Insulator
Wave Washer
Terminal Nut Terminal Bolt
Terminal 30 Kit PartContact PlateTerminal Insulator
N´m (kgf´cm, ft´lbf)
Non±reusable part: Specified torque
17 (173, 13)
17 (173, 13)
Lead Terminal
ST±4
± STARTING (5S±FE)STARTER
1711 Author: Date:
Page 4255 of 4770
ST03J±01
± STARTING (5S±FE)STARTER
ST±5
1712 Author: Date:
REMOVAL
1. REMOVE BATTERY AND TRAY
2. w/ CRUISE CONTROL SYSTEM:
REMOVE CRUISE CONTROL ACTUATOR
(a) Disconnect the actuator connector and clamp.
(b) Remove the 3 bolts, and disconnect the actuator with the bracket.
3. REMOVE STARTER
(a) Disconnect the starter connector.
(b) Remove the 2 bolts, throttle cable clamp (A/T) and starter.
(c) Remove the nut, and disconnect the starter cable.
Torque: 37 N´m (380 kgf´cm, 27 ft´lbf)
Page 4256 of 4770

ST03K±01
B01156
B01157
Protrusion
Identation
B01158
B01160
(1)
(4)
(3)
(2)
B01159
ST±6
± STARTING (5S±FE)STARTER
1713 Author: Date:
DISASSEMBLY
1. REMOVE DUST PROTECTOR
2. REMOVE FIELD FRAME AND ARMATURE
(a) Remove the nut, and disconnect the lead wire from the
magnetic switch terminal.
Torque: 5.9 N´m (60 kgf´cm, 52 in.´lbf)
(b) Remove the 2 through bolts.
Torque: 5.9 N´m (60 kgf´cm, 52 in.´lbf)
(c) Pull out the field frame together with the armature.
HINT:
Align the protrusion of the field frame with the identation of the
magnetic switch.
(d) Remove the O±ring from the field frame.
HINT:
At the time of installation, please refer to following items. Use
a new O±ring.
3. REMOVE STARTER HOUSING, CLUTCH
ASSEMBLY AND GEAR
(a) Remove the 2 screws.
Torque: 5.9 N´m (60 kgf´cm, 52 in.´lbf)
(b) Remove these parts from the magnetic switch:
(1) Starter housing and clutch assembly
(2) Return spring
(3) Idler gear
(4) Bearing
4. REMOVE STEEL BALL
Using a magnetic finger, remove the steel ball from the clutch
shaft hole.
