Page 3305 of 4770
I00311
4
3
± DIAGNOSTICSCRUISE CONTROL SYSTEM
DI±885
1120 Author: Date:
3 Check resistance between terminals L and GND of actuator magnetic clutch.
PREPARATION:
(a) Turn ignition switch OFF.
(b) Disconnect the actuator connector.
CHECK:
Measure resistance between terminals 3 and 4.
OK:
Resistance: 34.65 ± 42.35 W.
NG Replace cruise control actuator.
OK
4 Check for open and short in harness and connectors between cruise control
ECU and actuator magnetic clutch, actuator magnetic clutch and body ground
(See page IN±31).
NG Repair or replace harness or connector.
OK
Check and replace cruise control ECU
(See page IN±31).
Page 3306 of 4770
I00055
4
3(+)
(±)
DI±886
± DIAGNOSTICSCRUISE CONTROL SYSTEM
1121 Author: Date:
DTC 14 Actuator Mechanical Malfunction
CIRCUIT DESCRIPTION
The circuit detects the rotation position of the actuator control plate and sends a signal to the ECU.
DTC No.Detection ItemTrouble Area
14Cruise control actuator mechanical malfunction.
Actuator lock: (motor, arm)
Actuator motor
Cruise control ECU
WIRING DIAGRAM
See page DI±881.
INSPECTION PROCEDURE
1 Check cruise control actuator arm locking operation
PREPARATION:
(a) Turn ignition switch OFF.
(b) Disconnect the actuator connector.
CHECK:
Connect the positive (+) lead from the battery to the terminal 3
of actuator and the negative (±) lead to terminal 4.
NOTICE:
Do not connect the high tension cables to the wrong bat-
tery terminal. The cruise control actuator will be damaged.
Move the control plate by hand.
OK:
Control plate doesn't move.
NG Replace cruise control actuator.
OK
DI08O±12
Page 3307 of 4770
I08437
Fully open side
Fully Closed sideControl plate
Control plate4
321
4
321
± DIAGNOSTICSCRUISE CONTROL SYSTEM
DI±887
1122 Author: Date:

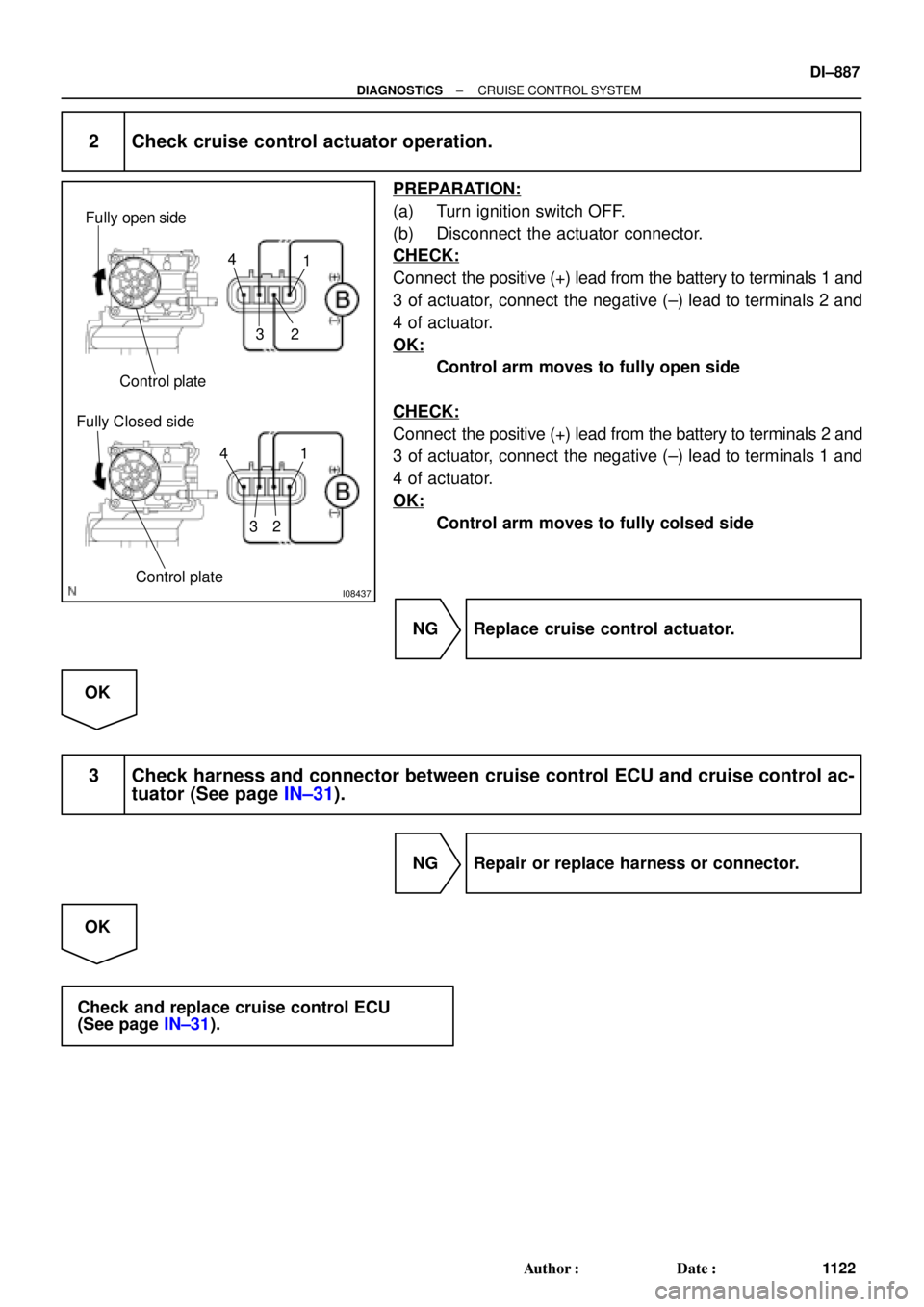

2 Check cruise control actuator operation.
PREPARATION:
(a) Turn ignition switch OFF.
(b) Disconnect the actuator connector.
CHECK:
Connect the positive (+) lead from the battery to terminals 1 and
3 of actuator, connect the negative (±) lead to terminals 2 and
4 of actuator.
OK:
Control arm moves to fully open side
CHECK:
Connect the positive (+) lead from the battery to terminals 2 and
3 of actuator, connect the negative (±) lead to terminals 1 and
4 of actuator.
OK:
Control arm moves to fully colsed side
NG Replace cruise control actuator.
OK
3 Check harness and connector between cruise control ECU and cruise control ac-
tuator (See page IN±31).
NG Repair or replace harness or connector.
OK
Check and replace cruise control ECU
(See page IN±31).
Page 3308 of 4770

I00292
Vehicle Speed Sensor
ECUCombination Meter
Cruise Control ECU
4 pulses/
1 rotation
of rotor shaft4 pulses/
1 rotation
of rotor shaft
I00282
Cruise Control ECU
12
SPDV±W V±WB
BJ15
J/CIG3
3
V±W14
Combination Meter
15
6
Speedo
±meter
P L
IJ12IJ17
P
3L
2
SI
SE
IG+
1
R±Lto GAUGE Fuse
C15
C9 C9
C10
Speed
Sensor DI±888
± DIAGNOSTICSCRUISE CONTROL SYSTEM
1123 Author: Date:

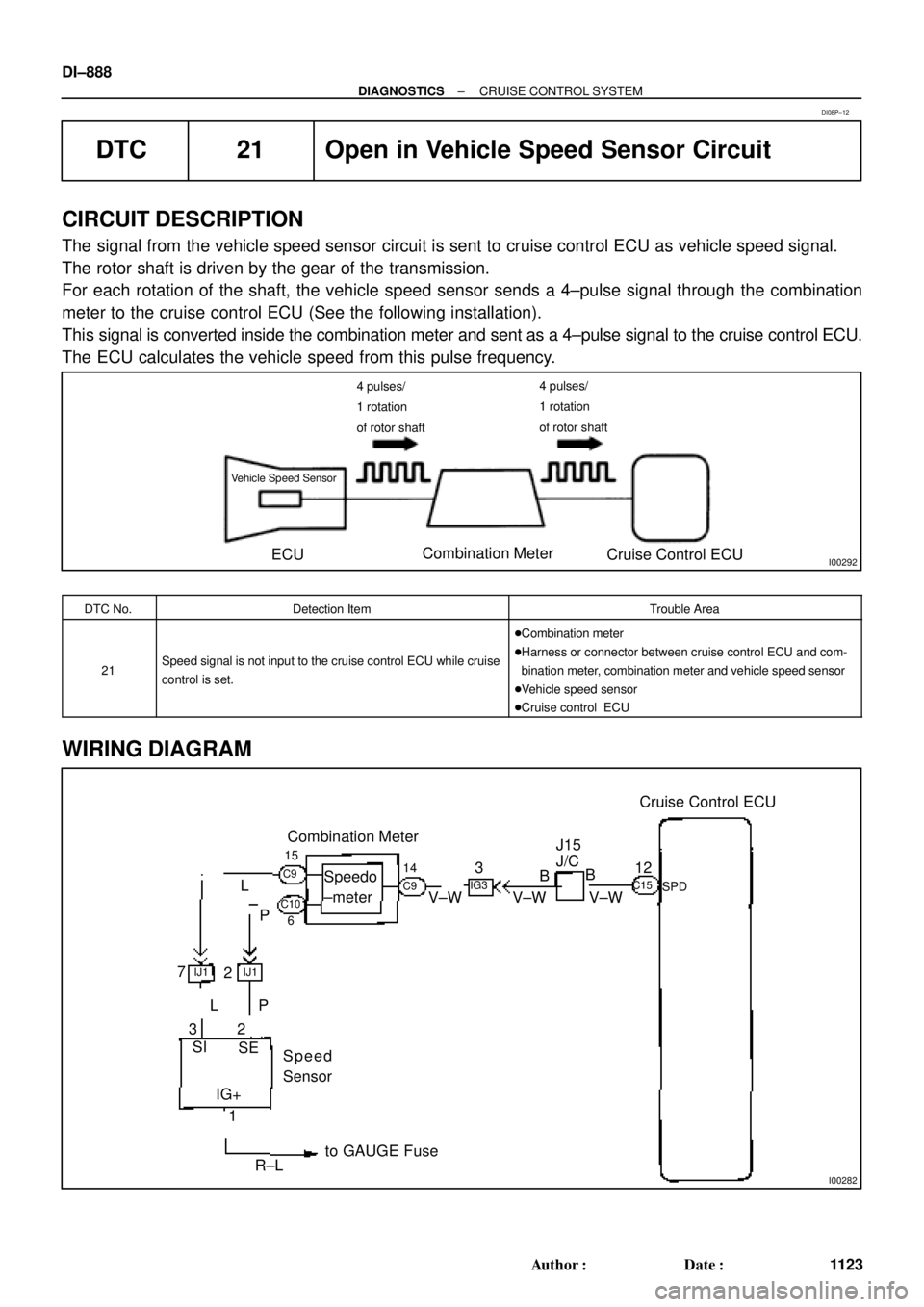

DTC 21 Open in Vehicle Speed Sensor Circuit
CIRCUIT DESCRIPTION
The signal from the vehicle speed sensor circuit is sent to cruise control ECU as vehicle speed signal.
The rotor shaft is driven by the gear of the transmission.
For each rotation of the shaft, the vehicle speed sensor sends a 4±pulse signal through the combination
meter to the cruise control ECU (See the following installation).
This signal is converted inside the combination meter and sent as a 4±pulse signal to the cruise control ECU.
The ECU calculates the vehicle speed from this pulse frequency.
DTC No.Detection ItemTrouble Area
21Speed signal is not input to the cruise control ECU while cruise
control is set.
Combination meter
Harness or connector between cruise control ECU and com-
bination meter, combination meter and vehicle speed sensor
Vehicle speed sensor
Cruise control ECU
WIRING DIAGRAM
DI08P±12
Page 3309 of 4770
Input SignalIndicator Light
Blinking Pattern
Drive at about
40 km/h (25 mph)
or below
Drive at about
40 km/h (25 mph)
or higherLightON
OFF
LightON
OFF
± DIAGNOSTICSCRUISE CONTROL SYSTEM
DI±889
1124 Author: Date:
INSPECTION PROCEDURE
1 Input signal check.
CHECK:
(a) See input signal check on page DI±870.
(b) Check indicator light operation when driving with vehicle
speed above 40 km/h (25 mph), and with vehicle speed
below 40 km/h (25 mph).
OK:
Vehicle speed above 40 km/h (25 mph):
Indicator light blinks
Vehicle speed below 40 km/h (25 mph):
Indicator light stays on
OK Check and replace cruise control ECU
(See page IN±31).
NG
2 Check speedometer circuit (See Combination meter troubleshooting on page
BE±2).
NG Repair or replace harness, connector or com-
bination meter assembly.
OK
3 Check harness and connector between cruise control ECU and combination me-
ter, combination meter and vehicle speed sensor (See page IN±31).
NG Repair or replace harness or connector.
OK
Page 3310 of 4770
DI±890
± DIAGNOSTICSCRUISE CONTROL SYSTEM
1125 Author: Date:
4 Check vehicle speed sensor (See page BE±47).
NG Replace vehicle speed sensor.
OK
Check and replace cruise control ECU
(See page IN±31).
Page 3311 of 4770
± DIAGNOSTICSCRUISE CONTROL SYSTEM
DI±891
1126 Author: Date:
DTC 23 Vehicle Speed Signal Abnormal
CIRCUIT DESCRIPTION
See page DI±888.
DTC No.Detection ItemTrouble Area
23Vehicle speed sensor pulse is abnormal.Vehicle speed sensor
Cruise control ECU
WIRING DIAGRAM
See page DI±888.
INSPECTION PROCEDURE
1 Check vehicle speed sensor (See page BE±47).
NG Replace vehicle speed sensor.
OK
Check and replace cruise control ECU
(See page IN±31).
DI08Q±10
Page 3312 of 4770
I00283
Cruise Control ECU
CMS
CCS
GND
CMS
W±L
W±B
W Cruise Control Switch
Main Switch
Control Switch
1J
78
W±B5
4
3
W±B MAIN
CANCEL
SET/COAST
RES/ACC
A11
10
16 CCS
EP
J7
J7J8 AJ/C
A
A
1J
W±B J/C
IGC15
C15
C15
J11
Instrument Panel J/B DI±892
± DIAGNOSTICSCRUISE CONTROL SYSTEM
1127 Author: Date:
DTC 32 Control Switch Circuit (Cruise Control
Switch)
CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.
DTC No.Detection ItemTrouble Area
32Short in control switch circuit.
Cruise control switch
Harness or connector between cruise control ECU and
cruise control switch, cruise control switch and body ground
Cruise control ECU
WIRING DIAGRAM
DI08R±12
