INSTALLATION
Installation is in the reverse order of removal
(See page BR±32).
NOTICE:
Apply lithium soap base glycol grease and high tempera-
ture grease to the parts indicated by the arrows
(See page BR±31).
1. AFTER INSTALLATION, FILL BRAKE RESERVOIR
WITH BRAKE FLUID, BLEED BRAKE SYSTEM
(See page BR±4)
2. CHECK FOR LEAKS
3. CHECK OPERATION OF AUTOMATIC ADJUSTING
MECHANISM
(a) Move the parking brake lever of the rear shoe back and
forth. Check that the adjuster turns.
If the adjuster does not turn, check for incorrect installation of
the rear brake.
(b) Adjust the adjuster length as short as possible.
(c) Align the adjusting hole on the brake drum and the largest
hole on the axle carrier, install the brake drum.
(d) Pull the parking brake lever all the way up until a clicking
sound can no longer be heard.
4. CHECK CLEARANCE BETWEEN BRAKE SHOES AND
DRUM
(a) Remove the drum.
(b) Measure the brake drum inside diameter and diameter
between the brake shoes. Check that the difference be-
tween the diameters is the correct shoe clearance.
Shoe clearance: 0.6 mm (0.024 in.)
If incorrect, check the parking brake system.
Page 2258 of 4770
BR0B0±03
F02610
Pad Support Plate
Outer Pad
Anti±squeal Shim
Inner Anti±squeal Shim Anti±squeal Shim
Inner Anti±squeal Shim
Inner Pad
Pad Support Plate
Disc brake grease
N´m (kgf´cm, ft´lbf) : Specified torque
29 (300, 21)20 (200, 14)
BR±36
± BRAKEREAR BRAKE PAD
2059 Author: Date:
REAR BRAKE PAD

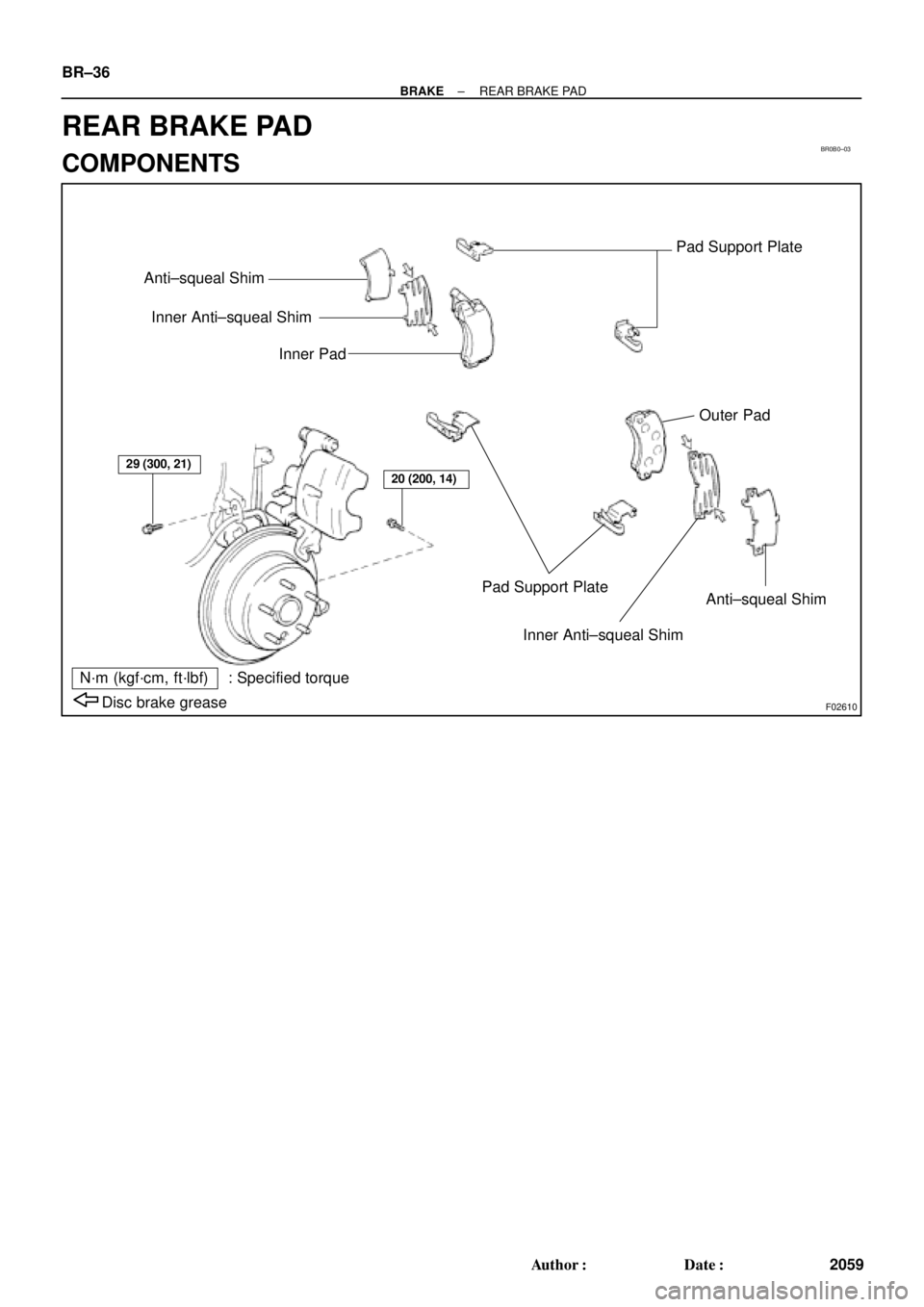

COMPONENTS
Page 2259 of 4770

BR0B1±03
R00591
R00514
R10387
± BRAKEREAR BRAKE PAD
BR±37
2060 Author: Date:
REPLACEMENT
1. REMOVE REAR WHEEL
Remove the wheel and temporarily fasten the disc with the hub
nuts.
2. INSPECT PAD LINING THICKNESS
Check the pad thickness through the caliper inspection hole
and replace pads if not within specification.
Minimum thickness: 1.0 mm (0.039 in.)
3. LIFT UP CALIPER
(a) Remove the bolt and flexible hose from the bracket.
(b) Remove the installation bolt from the torque plate.
(c) Lift up the caliper and suspend it securely.
HINT:
Do not disconnect the flexible hose.
4. REMOVE 2 BRAKE PADS
5. REMOVE 4 ANTI±SQUEAL SHIMS
6. REMOVE 4 PAD SUPPORT PLATES
NOTICE:
The support plates can be used again provided that they
have sufficient rebound, no deformation, cracks or wear,
and have had all rust, dirt and foreign particles cleaned off.
7. CHECK DISC THICKNESS AND RUNOUT
(See page BR±42)
8. INSTALL 4 PAD SUPPORT PLATES
9. INSTALL NEW PADS
NOTICE:
When replacing worn pads, the anti±squeal shims must be
replaced together with the pads.
(a) Apply disc brake grease to both side of the inner anti±
squeal shims (See page BR±36).
(b) Install the 2 anti±squeal shims on each pad.
(c) Install 2 pads with the pad wear indicator plate facing up-
ward.
NOTICE:
There should be no oil or grease adhering to the friction
surfaces of the pads or the disc.
10. INSTALL CALIPER
(a) Draw out a small amount of brake fluid from the reservoir.
(b) Press in the piston with a hammer handle or similar imple-
ment.
HINT:
If the piston is difficult to push in, loosen the bleeder plug and
push in the piston while letting some brake fluid escape.
(c) Install the caliper and torque the installation bolt.
Torque: 20 N´m (200 kgf´cm, 14 ft´lbf)
(d) Install the flexible hose and bolt to the bracket.
Torque: 29 N´m (300 kgf´cm, 21 ft´lbf)
Page 2260 of 4770
BR±38
± BRAKEREAR BRAKE PAD
2061 Author: Date:
11. INSTALL REAR WHEEL
Torque: 103 N´m (1.050 kgf´cm, 76 ft´lbf)
12. DEPRESS BRAKE PEDAL SEVERAL TIMES
13. CHECK THAT FLUID LEVEL IS AT MAX LINE
Page 2261 of 4770
BR0B2±03
W03262
Gasket
Caliper
Torque Plate
Plug
Bleeder Plug
Dust Boot
Main Pin Boot
Piston Seal
Piston
Boot
Set Ring Dust Boot Main Pin
Anti±squeal Shim
Inner Anti±squeal Shim
Inner PadSliding Bushing
Pad Support Plate
Outer Pad
Inner Anti±squeal Shim
Anti±squeal Shim
Disc brake grease Lithium soap base glycol grease Non±reusable part
N´m (kgf´cm, ft´lbf): Specified torque
47 (475, 34)
20 (200, 14)
26 (270, 20)
29 (300, 21)
29 (300, 21)
8.3 (85, 74 in.´lbf)
Disc
± BRAKEREAR BRAKE CALIPER
BR±39
2062 Author: Date:
REAR BRAKE CALIPER

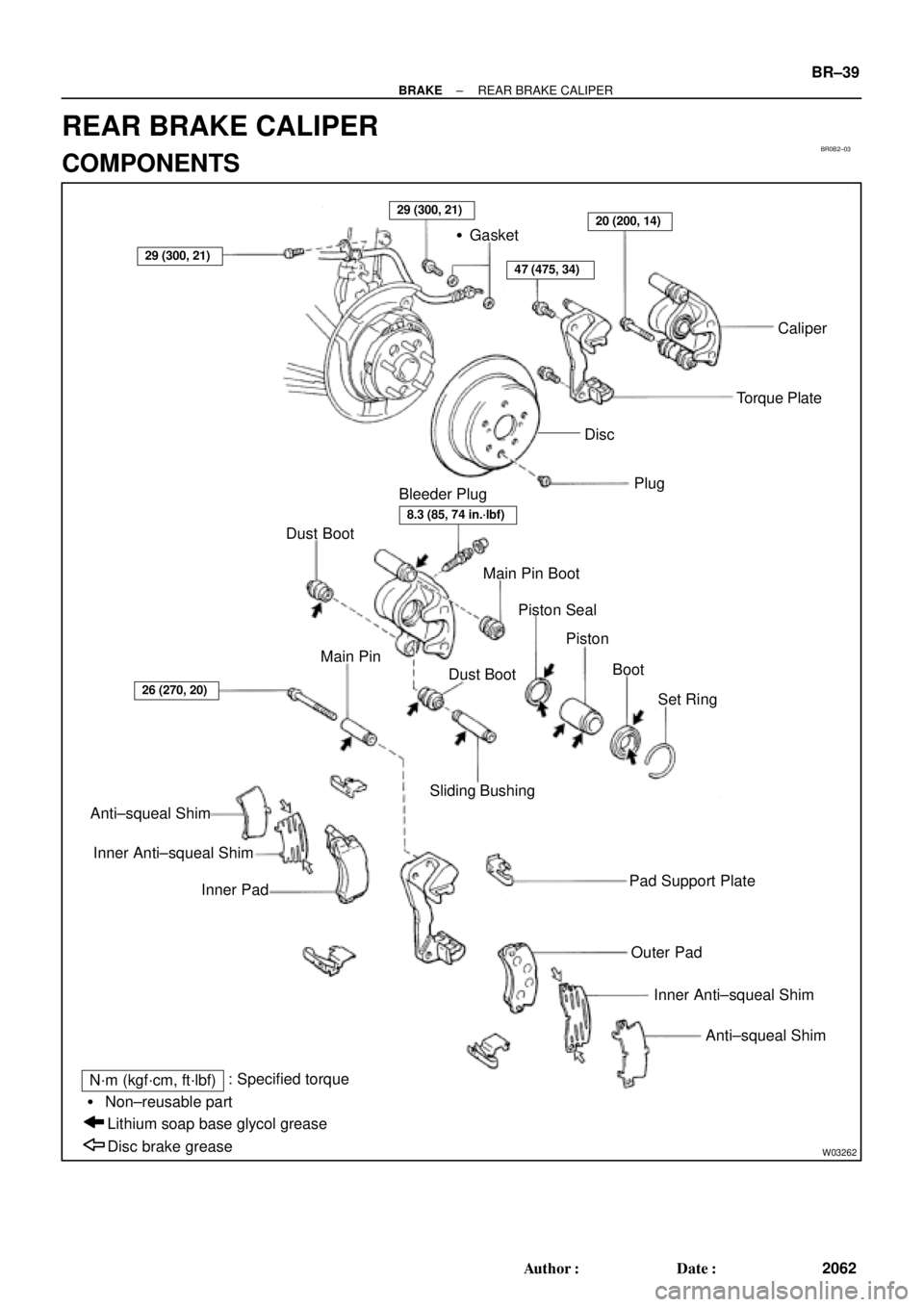

COMPONENTS
