Page 2041 of 4770

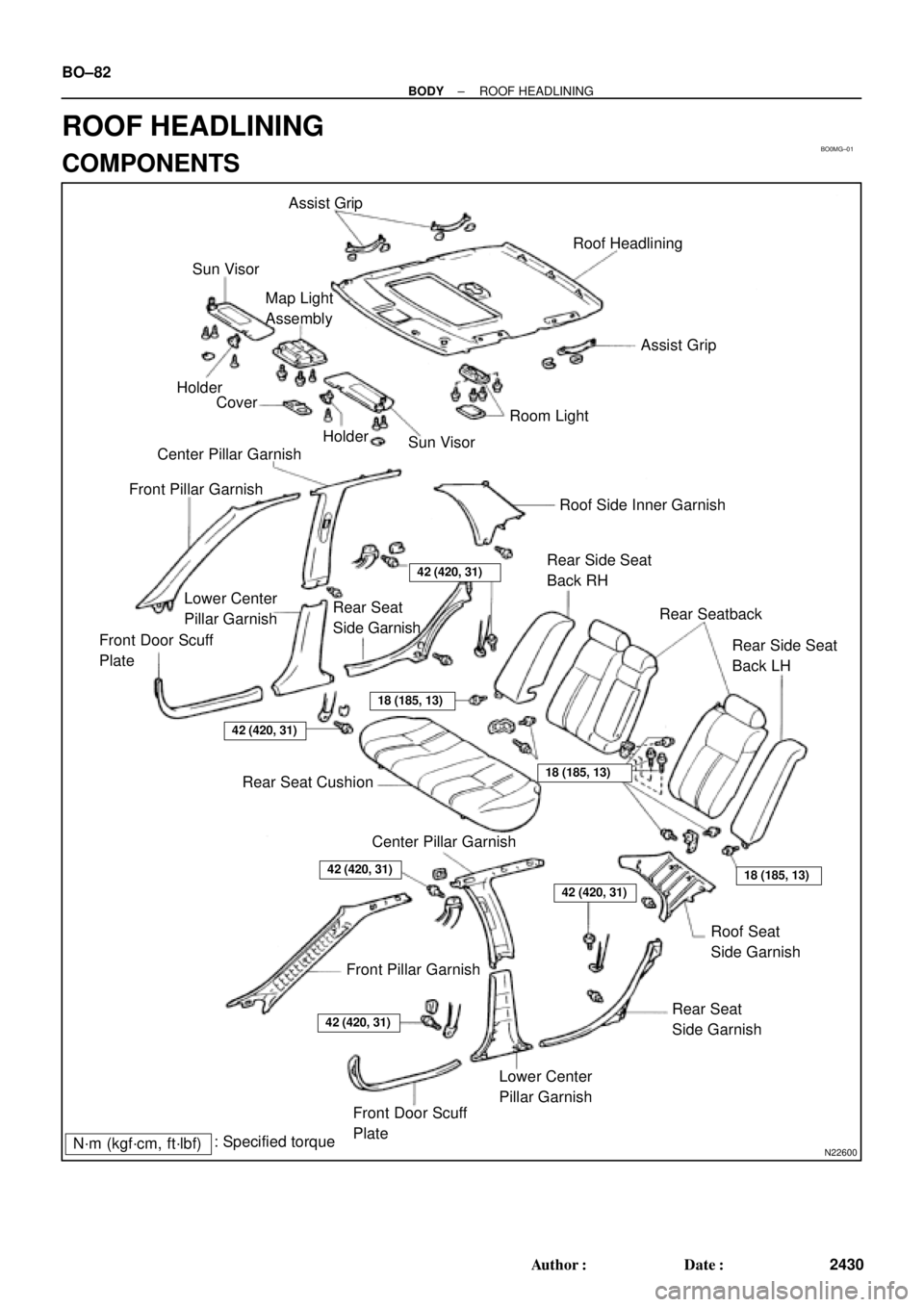

TOYOTA CAMRY 2000 Service Repair Manual BO0MG±01 N22600 Assist Grip Sun VisorRoof Headlining Assist Grip Room Light Map Light Assembly Holder Cover Holder Sun Visor Center Pillar Garnish Roof Side Inner Garnish Front Pillar Garnish Fro

Page 2042 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MH±01 N21457 : 4 Clips N21458 : Clip : 2 Clips N21415 ± BODYROOF HEADLINING BO±83 2431 Author: Date: REMOVAL 1. REMOVE THESE PARTS: (a) Rear seat cushion (b) Rear seatback and rear side seatba

Page 2043 of 4770

TOYOTA CAMRY 2000 Service Repair Manual N22971 2 Clips BO±84 ± BODYROOF HEADLINING 2432 Author: Date: 7. REMOVE ROOF HEADLINING (a) Remove the 2 clips from the roof panel rear end. (b) Remove the headlining. (c) Bring out the headlining

Page 2044 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MI±01 ± BODYROOF HEADLINING BO±85 2433 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±83).

Page 2045 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MI±01 ± BODYROOF HEADLINING BO±85 2433 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±83).

Page 2046 of 4770

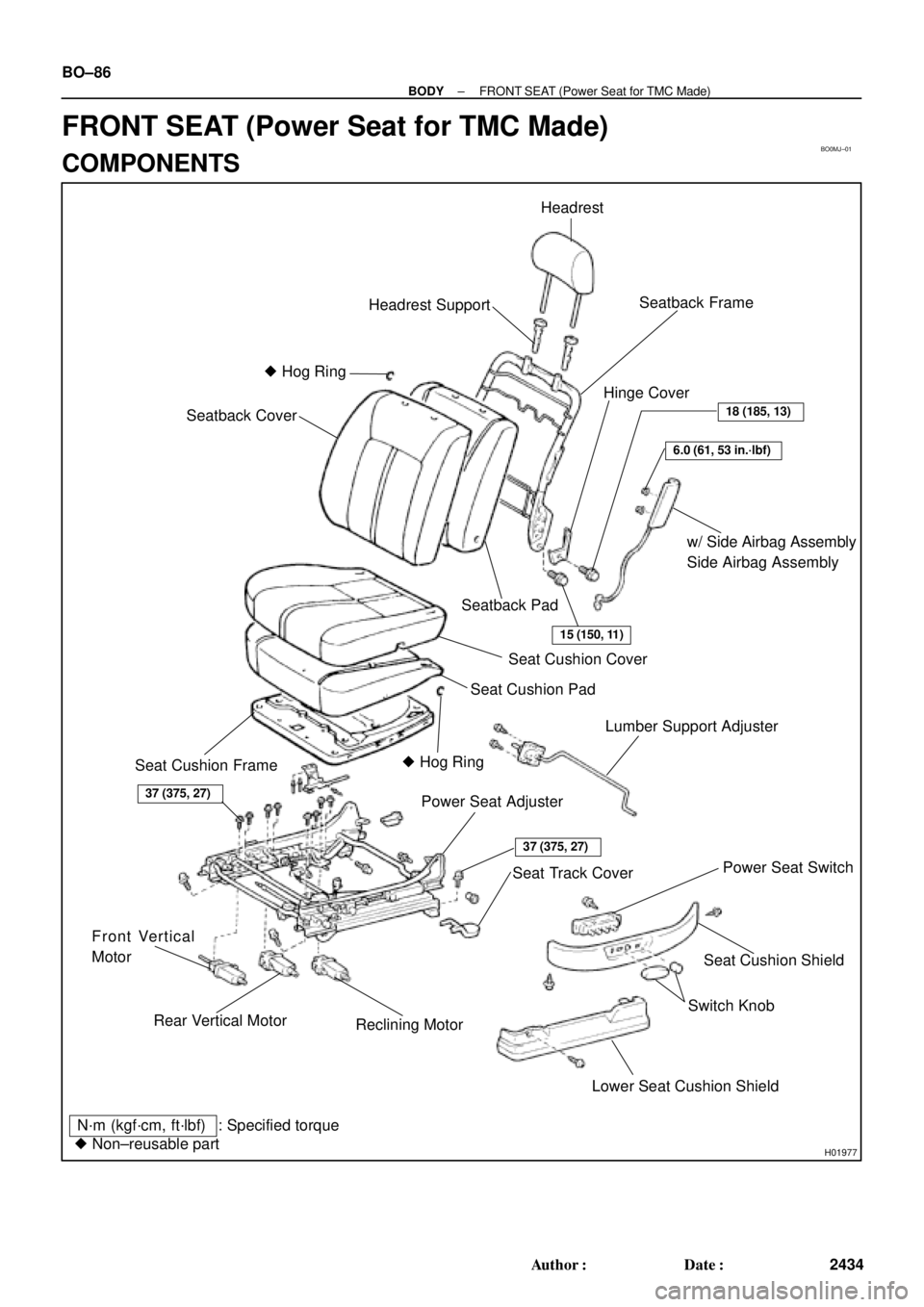

TOYOTA CAMRY 2000 Service Repair Manual BO0MJ±01 H01977 Headrest Seatback Frame w/ Side Airbag Assembly Side Airbag Assembly Headrest Support  Hog Ring Seatback Pad Seatback Cover Seat Cushion Cover Seat Cushion Pad Seat Cushion Frame Ho

Page 2047 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MK±01 ± BODYFRONT SEAT (Power Seat for TMC Made) BO±87 2435 Author: Date: REMOVAL REMOVE FRONT SEAT (a) Using a screwdriver, remove the seat track covers. HINT: Tape the screwdriver tip before

Page 2048 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0ML±01 H01870 BO±88 ± BODYFRONT SEAT (Power Seat for TMC Made) 2436 Author: Date: DISASSEMBLY 1. REMOVE THESE PARTS: (a) Headrest (b) Switch knobs (c) Seat cushion shield (d) Lower seat cushion
