Page 4289 of 4770
ST021±01
± STARTING (1MZ±FE)STARTER
ST±19
1746 Author: Date:
INSTALLATION
Installation is in the reverse order of removal. (See page ST±5)
Page 4290 of 4770
B00796
Starter
Relay
ST022±01
P07170
Ohmmeter
Ohmmeter No
ContinuityContinuity 1
3
25
P07171
Ohmmeter
Continuity1
3
25
Battery ST±20
± STARTING (1MZ±FE)STARTER RELAY
1747 Author: Date:
STARTER RELAY
INSPECTION
1. REMOVE RELAY BOX COVER
2. REMOVE STARTER RELAY (Marking: ST)
3. INSPECT STARTER RELAY
(a) Inspect the relay continuity.
(1) Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
If there is no continuity, replace the relay.
(2) Check that there is no continuity between terminals
3 and 5.
If there is continuity, replace the relay.
(b) Inspect the relay operation.
(1) Apply battery positive voltage across terminals 1
and 2.
(2) Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
If there is no continuity, replace the relay.
4. REINSTALL STARTER RELAY
5. REINSTALL RELAY BOX COVER
Page 4291 of 4770
SR06B±01
± STEERINGSTEERING SYSTEM
SR±1
2096 Author: Date:
STEERING SYSTEM
PRECAUTION
Care must be taken to replace parts properly because they could affect the performance of the
steering system and result in a driving hazard.
The CAMRY is equipped with SRS (Supplemental Restraint System) such as the driver airbag
and front passenger airbag. Failure to carry out service operation in the correct sequence could
cause the SRS to unexpectedly deployed during servicing, possibly leading to a serious acci-
dent. Before servicing (including removal or installation of parts, inspection or replacement),
be sure to read the precautionary notices in the RS section.
Page 4292 of 4770

SR06C±01
SR±2
± STEERINGTROUBLESHOOTING
2097 Author: Date:
TROUBLESHOOTING
PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely
cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.
SymptomSuspect AreaSee page
Hard steering
1. Tires (Improperly inflated)
2. Power steering fluid level (Low)
3. Drive belt (Loose)
4. Front wheel alignment (Incorrect)
5. Steering system joints (Worn)
6. Suspension arm ball joints (Worn)
7. Steering column (Binding)
8. Power steering vane pump
9. Power steering gearSA±2
SR±5
SR±3
SA±4
±
SA±45
±
SR±18
SR±31
Poor return
1. Tires (Improperly inflated)
2. Front wheel alignment (Incorrect)
3. Steering column (Binding)
4. Power steering gearSA±2
SA±4
±
SR±31
Excessive play
1. Steering system joints (Worn)
2. Suspension arm ball joints (Worn)
3. Intermediate shaft, Sliding yoke (Worn)
4. Front wheel bearing (Worn)
5. Power steering gear±
SA±45
±
SA±10
SR±31
Abnormal noise
1. Power steering fluid level (Low)
2. Steering system joints (Worn)
3. Power steering vane pump
4. Power steering gearSR±5
±
SR±18
SR±31
Page 4293 of 4770

P06717
SR06D±01
Z00038
DENSO Borroughs
P06723
CORRECT WRONG WRONG
± STEERINGDRIVE BELT
SR±3
2098 Author: Date:
DRIVE BELT
INSPECTION
INSPECT DRIVE BELT
(a) Visually check the belt for excessive wear, frayed cords
etc.
If any defect has been found, replace the drive belt.
HINT:
Cracks on the rib side of a belt are considered acceptable. If the
belt has chunks missing from the ribs, it should be replaced.
(b) Using a belt tension gauge, measure the belt tension.
Belt tension gauge:
DENSO BTG±20 (95506±00020)
Borroughs No. BT±33±73F
5S±FE Engine:
Drive belt tension:
New belt: 95 ± 145 lbf
Used belt: 60 ± 100 lbf
1MZ±FE Engine:
Drive belt tension:
New belt: 150 ± 185 lbf
Used belt: 95 ± 135 lbf
If the belt tension is not as specified, adjust it.
HINT:
ºNew beltº refers to a belt which has been used less than
5 minutes on a running engine.
ºUsed beltº refers to a belt which has been used on a run-
ning engine for 5 minutes or more.
After installing a belt, check that it fits properly in the
ribbed grooves.
Check with your hand to confirm that the belt has not
slipped out of the groove on the bottom of the pulley.
After installing a new belt, run the engine for about 5 min-
utes and recheck the belt tension.
Page 4294 of 4770
SR06E±01
R09599
Normal Abnormal SR±4
± STEERINGPOWER STEERING FLUID
2099 Author: Date:
POWER STEERING FLUID
BLEEDING
1. CHECK FLUID LEVEL
(See page SR±5)
2. JACK UP FRONT OF VEHICLE AND SUPPORT IT
WITH STANDS
3. TURN STEERING WHEEL
With the engine stopped, turn the wheel slowly from lock to lock
several times.
4. LOWER VEHICLE
5. START ENGINE
Run the engine at idle for a few minutes.
6. TURN STEERING WHEEL
(a) With the engine idling, turn the wheel to left or right full
lock and keep it there for 2±3 seconds, then turn the
wheel to the opposite full lock and keep it there for 2±3 se-
conds.
(b) Repeat (a) several times.
7. STOP ENGINE
8. CHECK FOR FOAMING OR EMULSIFICATION
If the system has to be bled twice specifically because of foam-
ing or emulsification, check for fluid leaks in the system.
9. CHECK FLUID LEVEL
(See page SR±5)
Page 4295 of 4770

SR06F±01
R00427
R09599
Normal Abnormal
R11562
5 mm (0.2 in.)
or less
Engine Idling Engine Stopped
± STEERINGPOWER STEERING FLUID
SR±5
2100 Author: Date:
INSPECTION
1. CHECK FLUID LEVEL
(a) Keep the vehicle level.
(b) With the engine stopped, check the fluid level in the oil
reservoir.
If necessary, add fluid.
Fluid: ATF DEXRON® II or III
HINT:
Check that the fluid level is within the HOT LEVEL range on the
reservoir. If the fluid is cold, check that it is within the COLD
LEVEL range.
(c) Start the engine and run it at idle.
(d) Turn the steering wheel from lock to lock several times to
boost fluid temperature.
Fluid temperature: 80°C (176°F)
(e) Check for foaming or emulsification.
If there is foaming or emulsification, bleed power steering
system.
(See page SR±4)
(f) With the engine idling, measure the fluid level in the oil
reservoir.
(g) Stop the engine.
(h) Wait a few minutes and remeasure the fluid level in the oil
reservoir.
Maximum fluid level rise: 5 mm (0.20 in.)
If a problem is found, bleed power steering system.
(See page SR±4)
(i) Check the fluid level.
Page 4296 of 4770
W03331
Attachment
Pressure Feed TubePressure Feed Tube SST
Out In 5S±FE Engine : 1MZ±FE Engine :
Out In
AttachmentAttachment Attachment
SST SR±6
± STEERINGPOWER STEERING FLUID
2101 Author: Date:
2. CHECK STEERING FLUID PRESSURE
(a) Disconnect the pressure feed tube.
(See page SR±21)

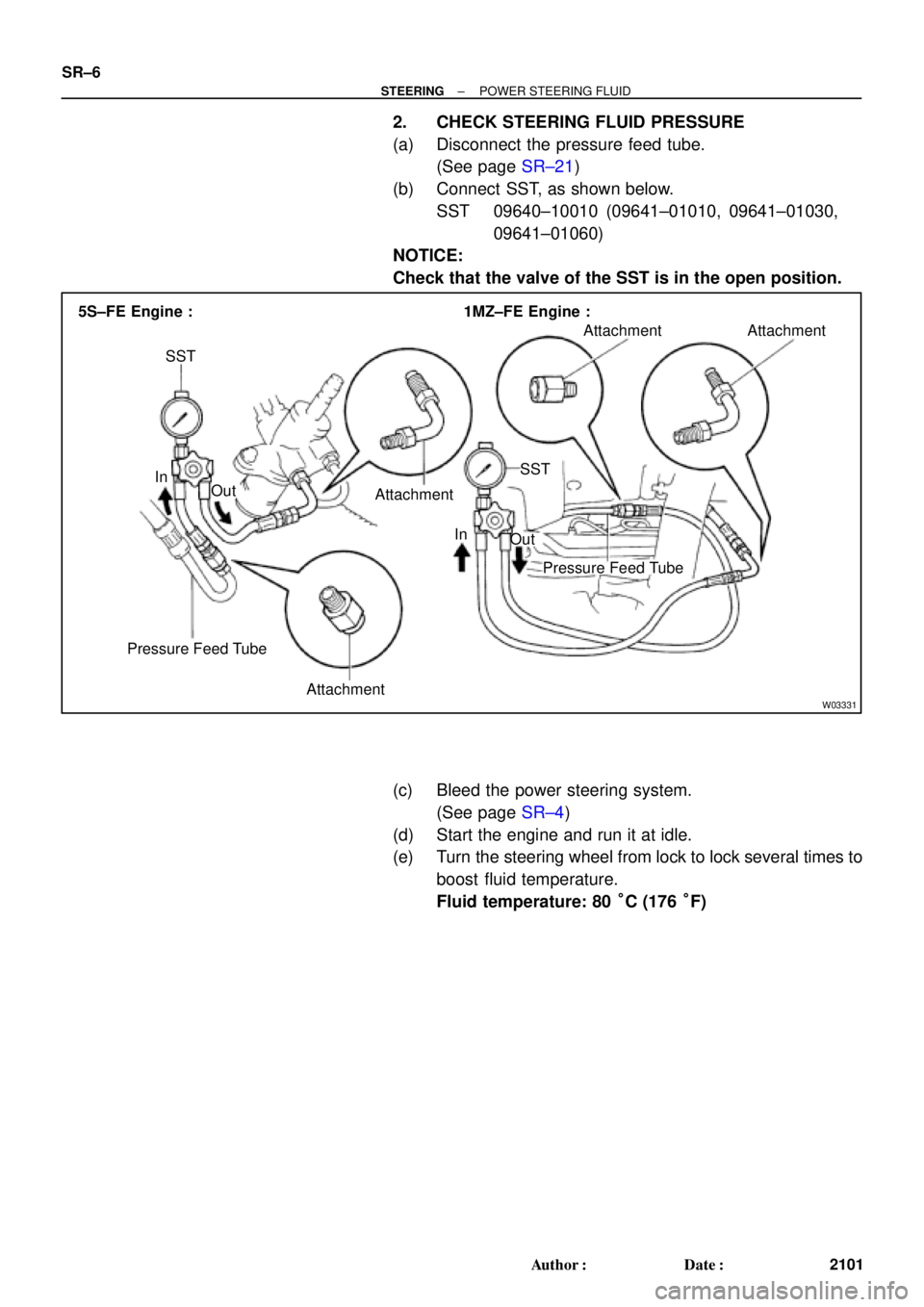

(b) Connect SST, as shown below.
SST 09640±10010 (09641±01010, 09641±01030,
09641±01060)
NOTICE:
Check that the valve of the SST is in the open position.
(c) Bleed the power steering system.
(See page SR±4)
(d) Start the engine and run it at idle.
(e) Turn the steering wheel from lock to lock several times to
boost fluid temperature.
Fluid temperature: 80 °C (176 °F)
