Page 2065 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0N4±01 ± BODYFRONT SEAT (Manual Seat for TMC Made) BO±105 2453 Author: Date: INSTALLATION INSTALL FRONT SEAT (a) Slide the front seat to the most front position. NOTICE: Make sure that seat adj

Page 2066 of 4770

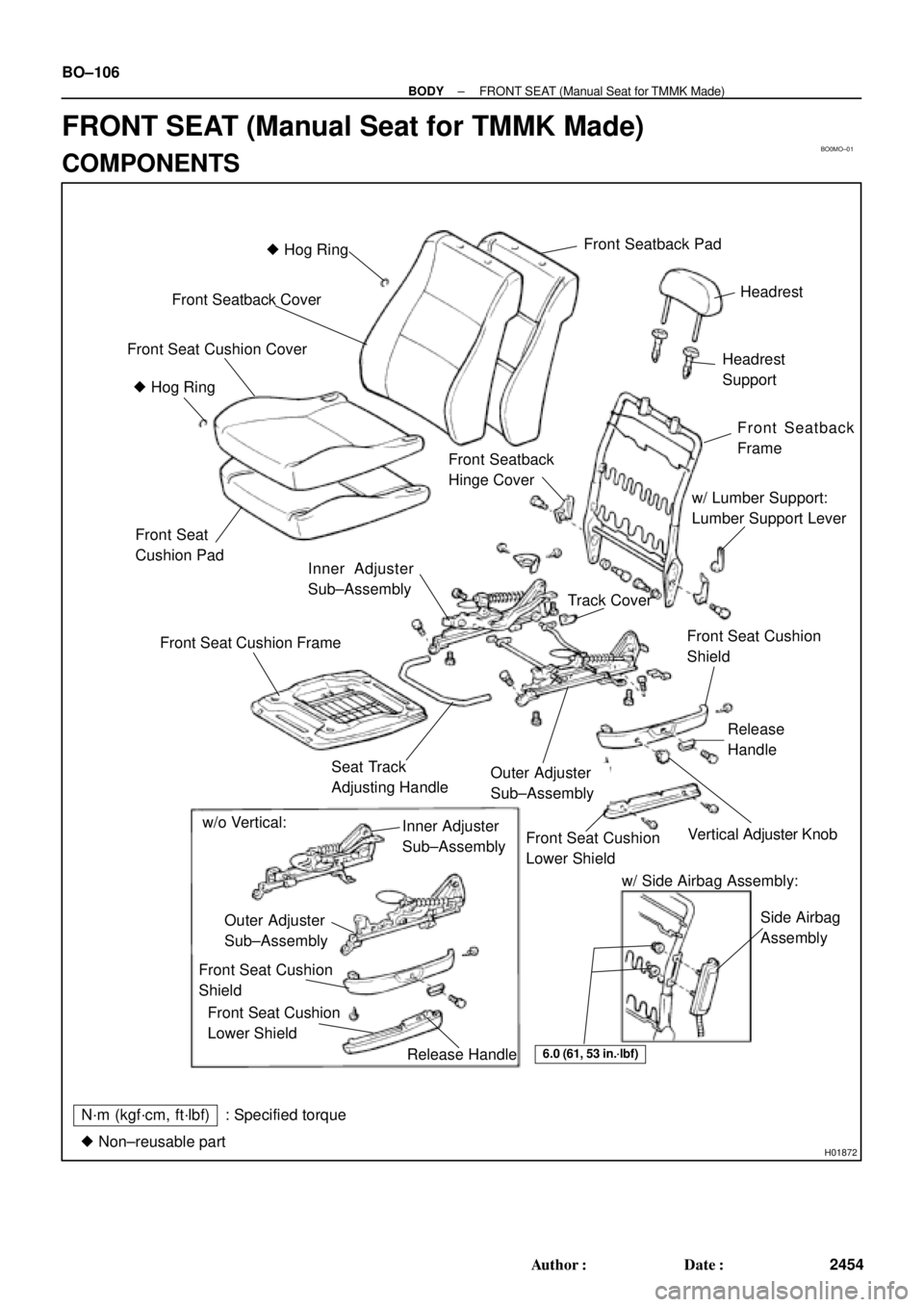

TOYOTA CAMRY 2000 Service Repair Manual BO0MO±01 H01872  Hog Ring Front Seatback Cover Front Seatback Pad Headrest Headrest Support  Hog Ring Front Seatback Hinge Cover Front Seatback Frame w/ Lumber Support: Lumber Support Lever Front S

Page 2067 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MP±01 ± BODYFRONT SEAT (Manual Seat for TMMK Made) BO±107 2455 Author: Date: REMOVAL REMOVE FRONT SEAT (a) Using a screwdriver, remove the seat track covers. HINT: Tape the screwdriver tip bef

Page 2068 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MQ±01 H01870 BO±108 ± BODYFRONT SEAT (Manual Seat for TMMK Made) 2456 Author: Date: DISASSEMBLY 1. REMOVE THESE PARTS: (a) Release handle (b) Front seat cushion shield (c) Vertical Seat Adjust

Page 2069 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MR±01 ± BODYFRONT SEAT (Manual Seat for TMMK Made) BO±109 2457 Author: Date: INSPECTION INSPECT RECLINING LOCK POSITION AND SLIDING LOCK POSITION SLIPPING OFF (a) When reclining the seat, insp

Page 2070 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MS±01 BO±110 ± BODYFRONT SEAT (Manual Seat for TMMK Made) 2458 Author: Date: REASSEMBLY 1. INSTALL OUTER ADJUSTER SUB±ASSEMBLY Install the outer adjuster sub±assembly to the inner adjuster s

Page 2071 of 4770

TOYOTA CAMRY 2000 Service Repair Manual H01870 H01871 ± BODYFRONT SEAT (Manual Seat for TMMK Made) BO±111 2459 Author: Date: (d) w/ Side Airbag Assembly: Hang the hook on to the seatback frame. CAUTION: Take care to hung the hook secure

Page 2072 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MT±01 BO±112 ± BODYFRONT SEAT (Manual Seat for TMMK Made) 2460 Author: Date: INSTALLATION INSTALL FRONT SEAT (a) Slide the front seat to the most front position. NOTICE: Make sure that seat ad
