Page 2129 of 4770
BE0AD±02
N14065
Push
Free
± BODY ELECTRICALBACK±UP LIGHT SYSTEM
BE±35
2255 Author: Date:
INSPECTION
INSPECT BACK±UP LIGHT SWITCH CONTINUITY
ConditionTester connectionSpecified condition
Free±No continuity
Push1 ± 2Continuity
If continuity is not as specified, replace the switch.
Page 2130 of 4770
BE0AE±02

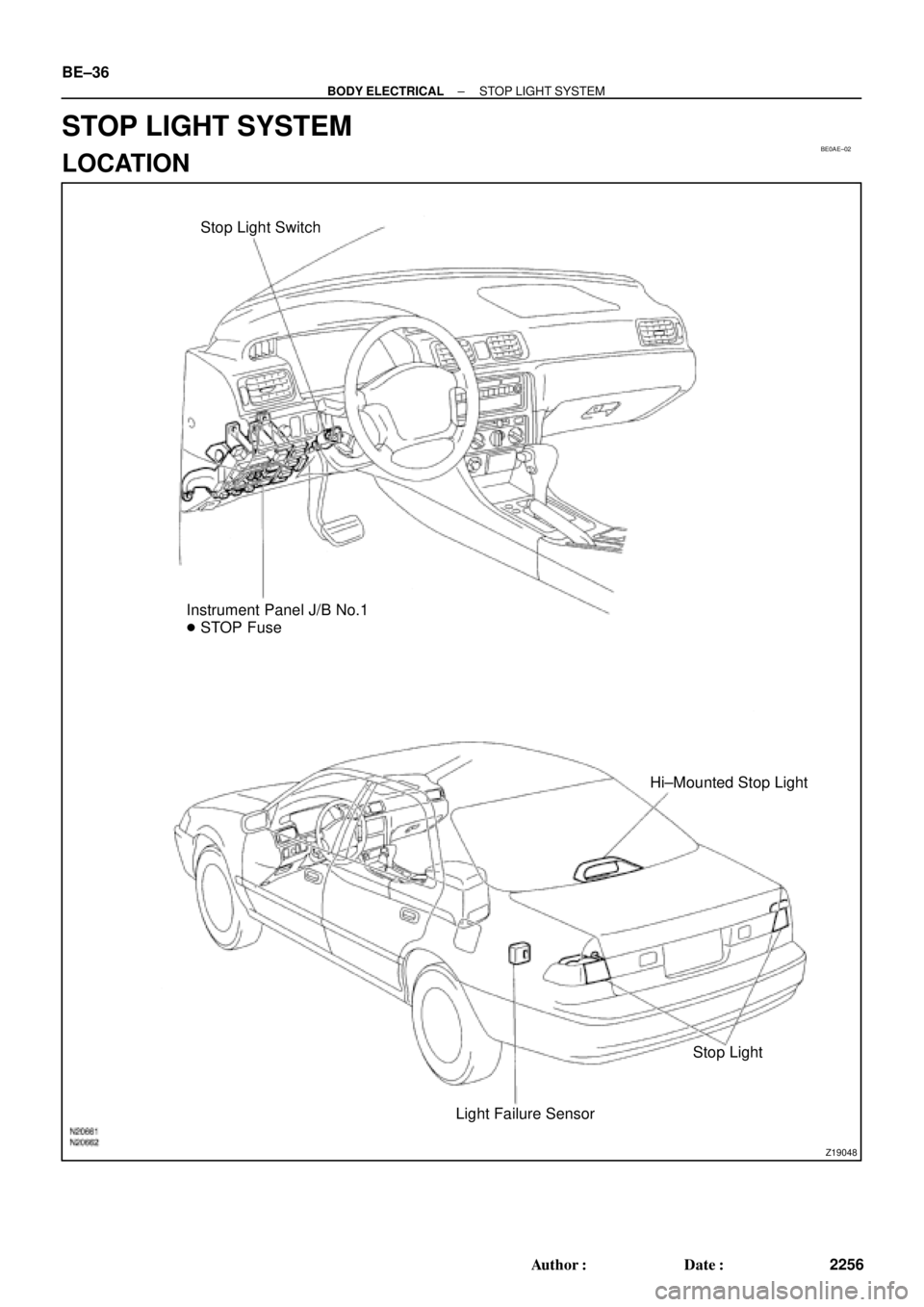

Z19048
Stop Light Switch
Instrument Panel J/B No.1
STOP Fuse
Hi±Mounted Stop Light
Stop Light
Light Failure Sensor BE±36
± BODY ELECTRICALSTOP LIGHT SYSTEM
2256 Author: Date:
STOP LIGHT SYSTEM
LOCATION
Page 2131 of 4770
BE0AF±02
N18026
FreePushed in
FreePushed in w/o Cruise control:
w/ Cruise control:1 2
3 1
2
4
N20208
1
2
± BODY ELECTRICALSTOP LIGHT SYSTEM
BE±37
2257 Author: Date:
INSPECTION
1. w/o Cruise control:
INSPECT STOP LIGHT SWITCH CONTINUITY
Switch positionTester connectionSpecified condition
Switch pin free1 ± 2Continuity
Switch pin pushed in1 ± 2No continuity
If continuity is not as specified, replace the switch.
2. w/ Cruise control:
INSPECT STOP LIGHT SWITCH CONTINUITY
Switch positionTester connectionSpecified condition
Switch pin free1 ± 2Continuity
Switch pin pushed in1 ± 2No continuity
Switch pin free3 ± 4No continuity
Switch pin pushed in3 ± 4Continuity
If continuity is not as specified, replace the switch.
3. INSPECT HI±MOUNTED STOP LIGHT ASSEMBLY
CONTINUITY
Using the ohmmeter, check that continuity exists between ter-
minals.
If continuity is not as specified, replace the bulb or light assem-
bly.
Page 2132 of 4770

N20209
Wire harness side:
1 2 3 4 5
6 7 8 9 10 11 12
e±12±2±B
BE±38
± BODY ELECTRICALSTOP LIGHT SYSTEM
2258 Author: Date:
4. INSPECT LIGHT FAILURE RELAY CIRCUIT
Disconnect the connector from the relay and inspect the con-
nector on the wire harness side, as shown.
Tester connectionConditionSpecified condition
1 ± GroundConstantContinuity*
2 ± GroundConstantContinuity*
9 ± GroundConstantContinuity*
11 ± GroundConstantContinuity
3 ± GroundLight control switch OFFNo voltage
3 ± GroundLight control switch TAIL or HEADBattery positive voltage
4 ± GroundIgnition switch LOCK or ACCNo voltage
4 ± GroundIgnition switch ONBattery positive voltage
7 ± GroundStop light switch OFFNo voltage
7 ± GroundStop light switch ONBattery positive voltage
8 ± GroundIgnition switch LOCK or ACCNo voltage
8 ± GroundIgnition switch ONBattery positive voltage
*: There is resistance because this circuit is grounded through
the bulb.
If the circuit is as specified, replace the relay.
If the circuit is not as specified, inspect the circuits connected
to other parts.
Page 2133 of 4770
BE0AG±03

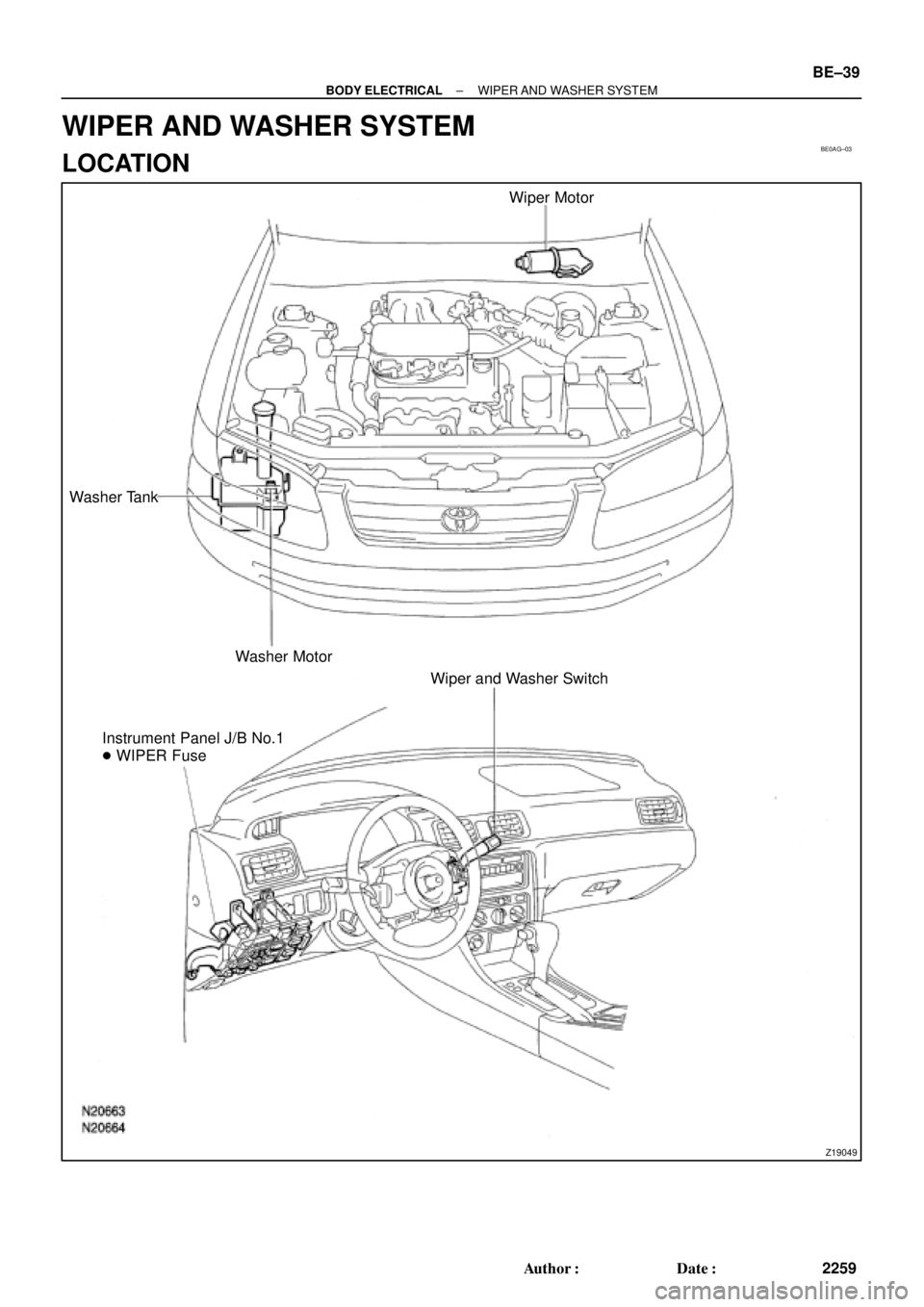

Z19049
Wiper Motor
Washer Tank
Washer Motor
Wiper and Washer Switch
Instrument Panel J/B No.1
WIPER Fuse
± BODY ELECTRICALWIPER AND WASHER SYSTEM
BE±39
2259 Author: Date:
WIPER AND WASHER SYSTEM
LOCATION
Page 2134 of 4770

BE0AH±03
N20218
w/o Timer
w/ TimerWasher ON
Washer ONOFF
INT
LO
HI
OFF
INT
LO
HI
2 7
8
17
1611
N20210
2
7
16
N20211
2 7
16 17
INT time control
switch position
FAST
SLOW
Non variable typeVoltage
Approx. 2 sec.
Battery positive voltage
0 V
Battery positive voltage
0 V
Battery positive voltage
0 V 10.7 ± 5 sec.
3.3 ± 1 sec.
BE±40
± BODY ELECTRICALWIPER AND WASHER SYSTEM
2260 Author: Date:
INSPECTION
1. INSPECT FRONT WIPER AND WASHER SWITCH
CONTINUITY
Switch positionTester connectionSpecified condition
OFF7 ± 16Continuity
INT7 ± 16Continuity
LO7 ± 17Continuity
HI8 ± 17Continuity
Washer ON2 ± 11Continuity
If continuity is not as specified, replace the switch.
2. INSPECT INTERMITTENT OPERATION
(a) Turn the wiper switch to INT position.
(b) Turn the intermittent time control switch to FAST position.
(c) Connect the positive (+) lead from the battery to terminal
16 and the negative (±) lead to terminal 2.
(d) Connect the positive (+) lead from the voltmeter to termi-
nal 7 and the negative (±) lead to terminal 2, check that
the meter needle indicates battery positive voltage.
(e) After connecting terminal 16 to terminal 17, connect it to
terminal 2, check the voltage rises from 0 volts to battery
positive voltage within the time, as shown in the table.
If operation is not as specified, replace the wiper and washer
switch.
Page 2135 of 4770
N20210
2
7
16
N11301
Washer Switch ON
OFF
Battery positive
Voltage
0 VLess than 1 sec.Approx. 3 sec.
N20151
4
5
± BODY ELECTRICALWIPER AND WASHER SYSTEM
BE±41
2261 Author: Date:
3. INSPECT WASHER LINKED OPERATION
(a) Connect the positive (+) lead from the battery to terminal
16 and the negative (±) lead to terminal 2.
(b) Connect the positive (+) lead from the voltmeter to termi-
nal 7 and the negative (±) lead to terminal 2.
(c) Push in the washer switch, and check that the voltage
changes as shown in the chart.
If operation is not as specified, replace the wiper and washer
switch.
4. Low speed:
INSPECT FRONT WIPER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 5 and
the negative (±) lead to terminal 4, check that the motor oper-
ates at low speed.
If operation is not as specified, replace the motor.
Page 2136 of 4770
N20152
3
4
N20153
5
4 BE±42
± BODY ELECTRICALWIPER AND WASHER SYSTEM
2262 Author: Date:
5. High speed:
INSPECT FRONT WIPER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 3 and
the negative (±) lead to terminal 4, check that the motor oper-
ates at high speed.
If operation is not as specified, replace the motor.
6. Stopping in stop position:
INSPECT FRONT WIPER MOTOR OPERATION
(a) Operate the motor at low speed and stop the motor opera-
tion anywhere except in the stop position by disconnect-
ing positive (+) lead from terminal 5.
