Page 673 of 4770

TOYOTA CAMRY 2000 Service Repair Manual INSTALLATION 1. Temporarily installing the new parts, check the fit of the luggage compartment door and rear combination light. BODY PANEL REPLACEMENTRE-51

Page 674 of 4770

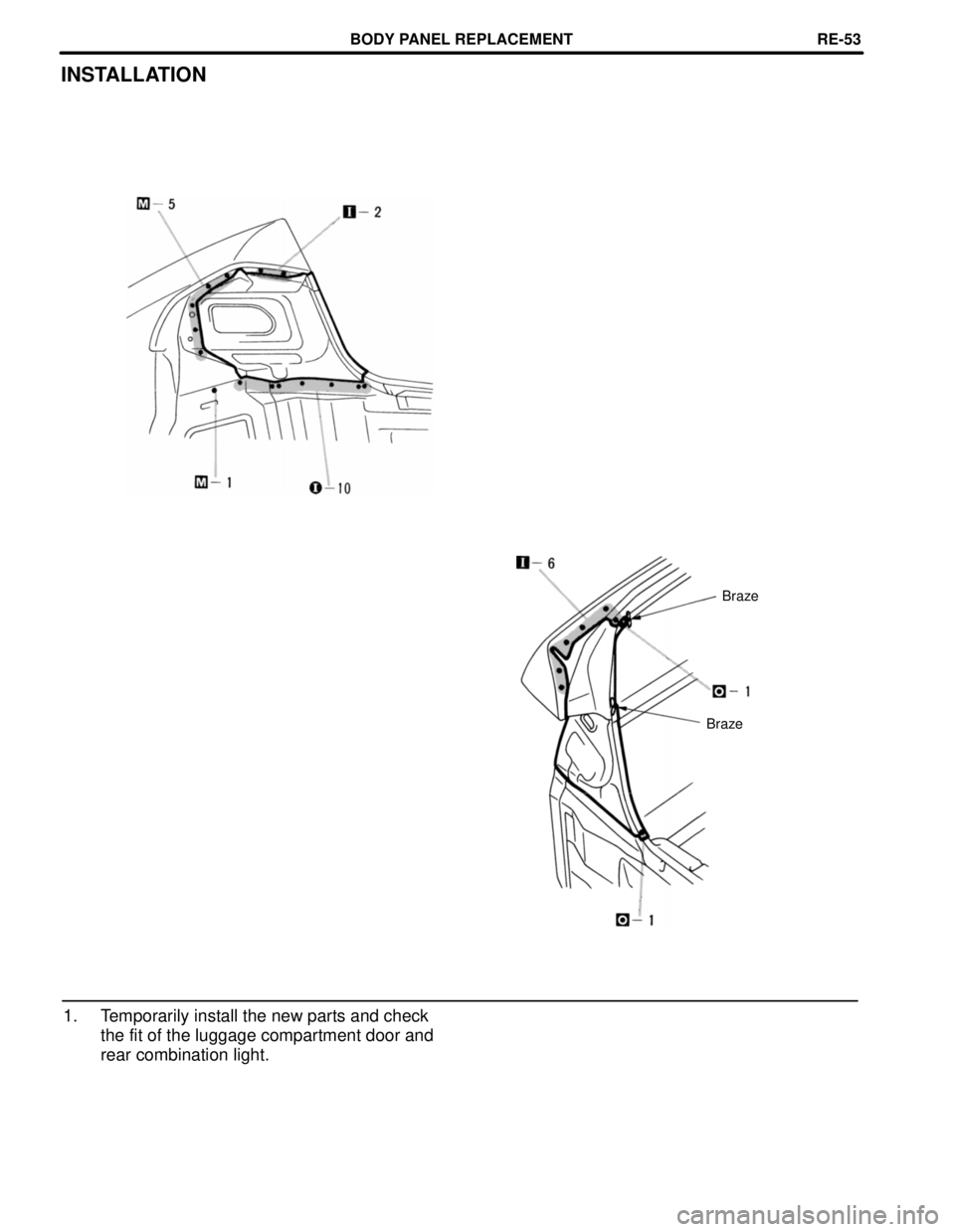

TOYOTA CAMRY 2000 Service Repair Manual LUGGAGE COMPARTMENT OPENING TROUGH (ASSY) REMOVAL Braze BODY PANEL REPLACEMENTRE-52

Page 675 of 4770

TOYOTA CAMRY 2000 Service Repair Manual INSTALLATION Braze Braze 1. Temporarily install the new parts and check the fit of the luggage compartment door and rear combination light. BODY PANEL REPLACEMENTRE-53

Page 676 of 4770

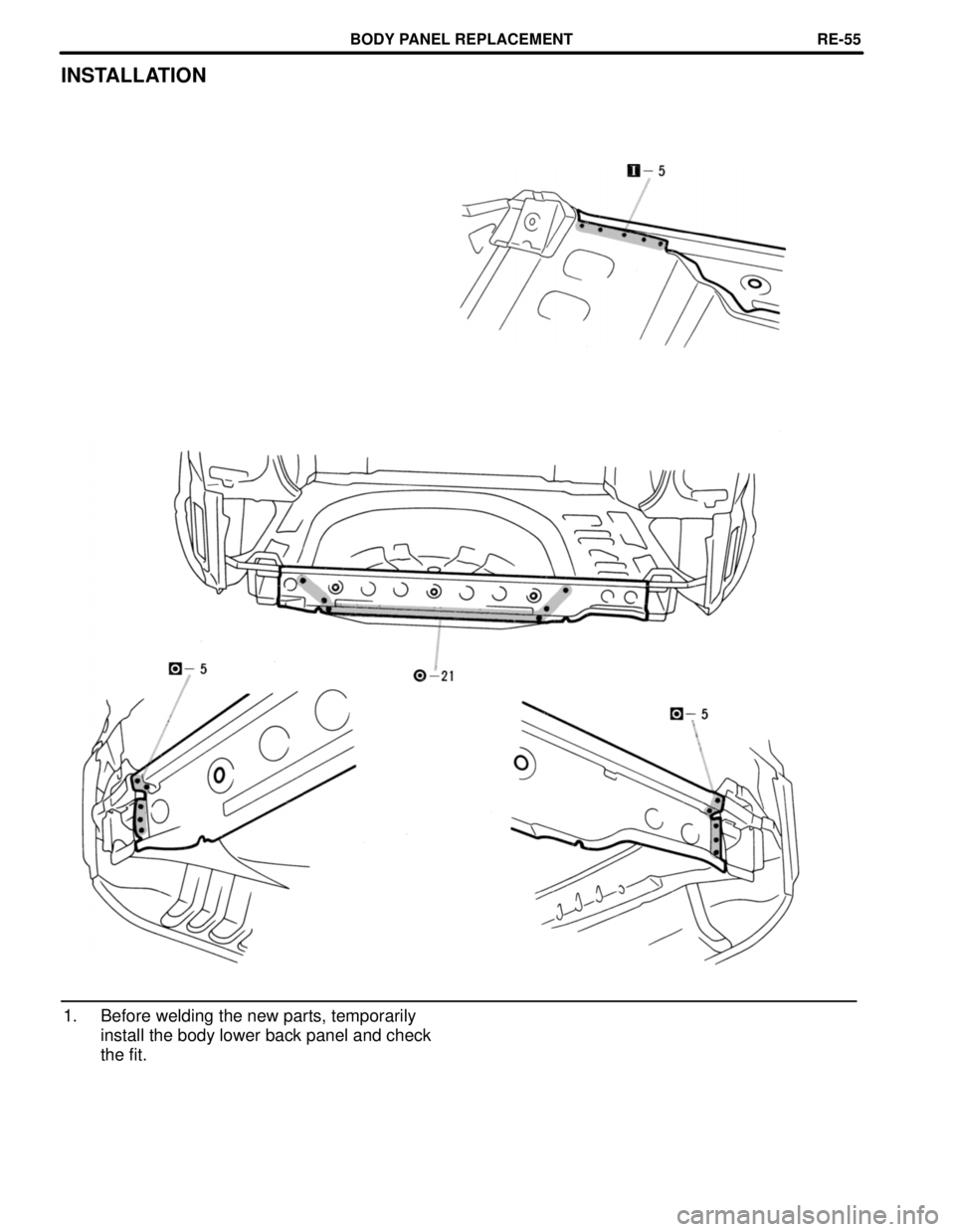

TOYOTA CAMRY 2000 Service Repair Manual REAR FLOOR NO. 3 CROSSMEMBER (ASSY) REMOVAL (With the body lower back panel removed.) BODY PANEL REPLACEMENTRE-54

Page 677 of 4770

TOYOTA CAMRY 2000 Service Repair Manual INSTALLATION 1. Before welding the new parts, temporarily install the body lower back panel and check the fit. BODY PANEL REPLACEMENTRE-55

Page 678 of 4770

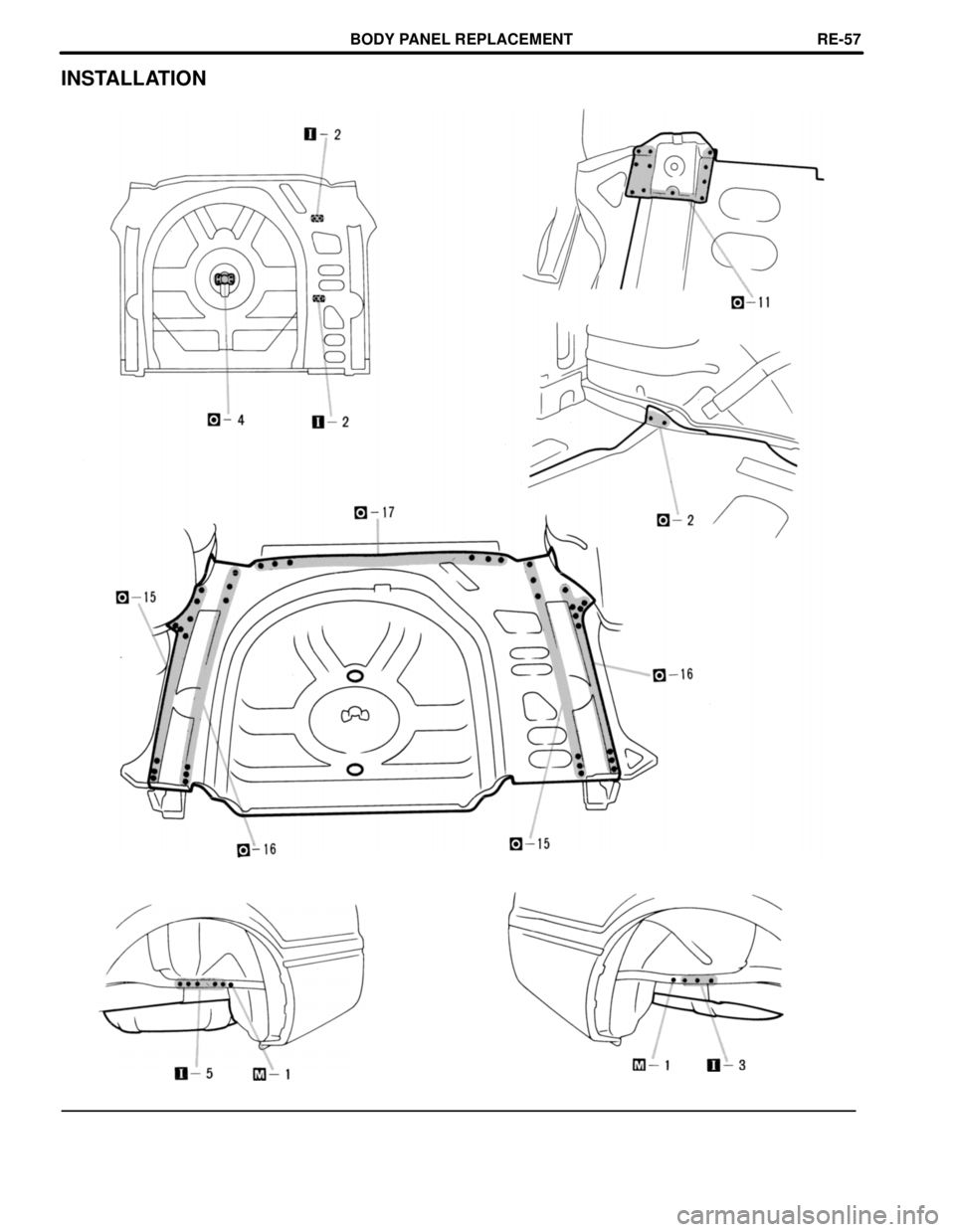

TOYOTA CAMRY 2000 Service Repair Manual REAR FLOOR PAN (ASSY) REMOVAL (With the rear floor No. 3 crossmember removed.) Rear Floor Pan Reinforcement 1. After removing the rear floor pan reinforce- ment, remove the rear floor pan. BODY PANEL

Page 679 of 4770

TOYOTA CAMRY 2000 Service Repair Manual INSTALLATION BODY PANEL REPLACEMENTRE-57

Page 680 of 4770

TOYOTA CAMRY 2000 Service Repair Manual REAR FLOOR SIDE PANEL (ASSY): Right Side REMOVAL (With the rear floor pan removed.) BODY PANEL REPLACEMENTRE-58
