Page 4057 of 4770

SF0DJ±03
S05525
SST (Hose)Union Bolt
SST (Union)
Injector Fuel Filter
(On Vehicle)SST
(Clamp)
SST
(Union)
S05522
S05524
Union Bolt
Gasket SST (Union)
SST (Hose)
P01078
SST
(Clamp) O±Ring
Vinyl
Tube SST (Union)SST (Hose)
S05331
± SFI (5S±FE)INJECTOR
SF±23
1456 Author: Date:
INSPECTION
1. INSPECT INJECTOR INJECTION
CAUTION:
Keep injector clean of sparks during the test.
(a) Remove the union bolt and 2 gaskets, and disconnect the
fuel inlet hose from the fuel filter outlet.
(b) Connect SST (union and hose) to the fuel filter outlet with
the 2 gaskets and union bolts.
SST 09268±41047 (90405±09015)
Torque: 29 N´m (300 kgf´cm, 21 ft´lbf)
(c) Install the grommet and O±ring to the injector.
(d) Connect SST (union and hose) to the injector, and hold
the injector and union with SST (clamp).
SST 09268±41047 (09268±41100, 09268±41110)
(e) Put the injector into the graduated cylinder.
CAUTION:
Install a suitable vinyl hose onto the injector to prevent
gasoline from splashing out.
(f) Connect a TOYOTA hand±held tester to the DLC3.
(g) Connect the battery negative (±) cable to the battery.
(h) Turn the ignition switch ON and push the TOYOTA hand±
held tester main switch ON.
NOTICE:
Do not start the engine.
(i) Select the ACTIVE TEST mode on the TOYOTA hand±
held tester.
(j) Please refer to the TOYOTA hand±held tester operator's
manual for further details.
Page 4058 of 4770

P01077
ConnectSST
(Wire)
Z09211
CaliforniaExcept California
S05522
SF±24
± SFI (5S±FE)INJECTOR
1457 Author: Date:
(k) If you have no TOYOTA hand±held tester, connect the
positive (+) and negative (±) leads from the battery to the
fuel pump connector. (See page SF±6)
(l) Connect SST (wire) to the injector and battery for 15 se-
conds, and measure the injection volume with a gra-
duated cylinder. Test each injector 2 or 3 times.
SST 09842±30070
Volume: 51 ± 63 cm
3 (3.2 ± 3.8 cu in.) per 15 seconds
Difference between each injector:
12 cm
3 (0.7 cu in.) or less
If the injection volume is not as specified, replace the injector.
2. INSPECT LEAKAGE
(a) In the condition above, disconnect the tester probes of
SST (wire) from the battery and check the fuel leakage
from the injector.
SST 09842±30070
Fuel drop: 1 drop or less per 3 minutes
(b) Turn the ignition switch OFF.
(c) Disconnect the negative (±) terminal cable from the bat-
tery.
(d) Remove the SST.
SST 09268±41047, 09842±30070
(e) Disconnect the TOYOTA hand±held tester from the
DLC3.
(f) Reconnect the fuel inlet hose to the fuel filter outlet with
2 new gaskets and the union bolt.
Torque: 29 N´m (300 kgf´cm, 22 ft´lbf)
Page 4059 of 4770
SF0Z8±01
Z09141
California
Except CaliforniaNew O±RingNew Insulator
New GrommetNew O±Ring
New GrommetNew
O±Ring
S05980
Spacer New InsulatorSpacer
S05978
Upward
Turn
Connector
Push
± SFI (5S±FE)INJECTOR
SF±25
1458 Author: Date:
INSTALLATION
1. INSTALL INJECTORS AND DELIVERY PIPE
(a) California:
Install new insulator and grommet to each injector.
(b) Except California:
Install a new grommet to each injector.
(c) California:
Apply a light coat of gasoline onto 2 new O±rings, and
install them to each injector.
(d) Except California:
Apply a light coat of gasoline onto a new O±ring, and
install it to each injector.
(e) Install the 2 spacers and 4 new insulators to the cylinder
head.
(f) While turning the injector left and right, install it to the de-
livery pipe. Install the 4 injectors.
(g) Position the injector connector upward.
Page 4060 of 4770

B06352
S05976
Upward
Turn
Connector
B06351
Gray
Brown No.1
No.2
No.3
No.4
S05289
(b)
(c) (d) SF±26
± SFI (5S±FE)INJECTOR
1459 Author: Date:
(h) Attach the 4 injectors and delivery pipe assembly to the
cylinder head.
(i) Temporarily install the 2 bolts holding the delivery pipe to
the cylinder head.
(j) Check that the injectors rotate smoothly.
HINT:
If injectors do not rotate smoothly, the probable cause is incor-
rect installation of O±rings. Replace the O±rings.
(k) Position the injector connector upward.
(l) Tighten the 2 bolts holding the delivery pipe to the cylinder
head.
Torque: 13 N´m (130 kgf´cm, 9 ft´lbf)
(m) Connect the 4 injector connectors.
HINT:
The No.1 and No.3 injector connectors are brown, and the No.2
and No.4 injector connectors are gray.
2. INSTALL CYLINDER HEAD COVER
(a) Install the cylinder head cover. (See page EM±53)
(b) Connect the PCV hose to the intake manifold.
(c) Connect the PCV hose to the cylinder head cover.
(d) Install the engine wire clamp to the mounting bolt of the
No.2 timing belt cover.
(e) Connect the 4 high±tension cords to the spark plugs.
(f) Install the 4 high±tension cords to the clamps on the cylin-
der head cover.
3. CHECK FOR FUEL LEAKS (See page SF±1)
Page 4061 of 4770

SF0DL±03
B06469
Heated Oxygen Sensor (Bank 1 Sensor 2)
Before installing the heated oxygen sensor,
twist the sensor wire counterclockwise
3 and 1/2 turns. HINT:
After installing the heated oxygen sensor,
check that the sensor wire is not twisted,
if it is twisted, remove the heated oxygen
sensor and reinstall it. Location of Fuel Tank Cushion
No.1 Fuel Tank
Protector
Fuel Tank Vent
Tube Set Plate
Fuel Pump
Fuel Outlet Tube
Fuel Inlet Pipe Fuel Inlet Pipe Shield
Fuel Tank Cap
Fuel Inlet Pipe Protector
Heated Oxygen Sensor
(Bank 1 Sensor 2)Heat Insulator
Fuel Tank Band
Center Exhaust Pipe Gasket Gasket Gasket
Non±reusable part
N´m (kgf´cm, ft´lbf): Specified torque
39 (400, 29)
44 (450, 33)
56 (570, 41)
56 (570, 41)
x 8
Gasket
Fuel TankFuel Inlet Hose
Charcoal
Canister
EVAP Line Hose Vent Line Hose
± SFI (5S±FE)FUEL TANK AND LINE
SF±27
1460 Author: Date:

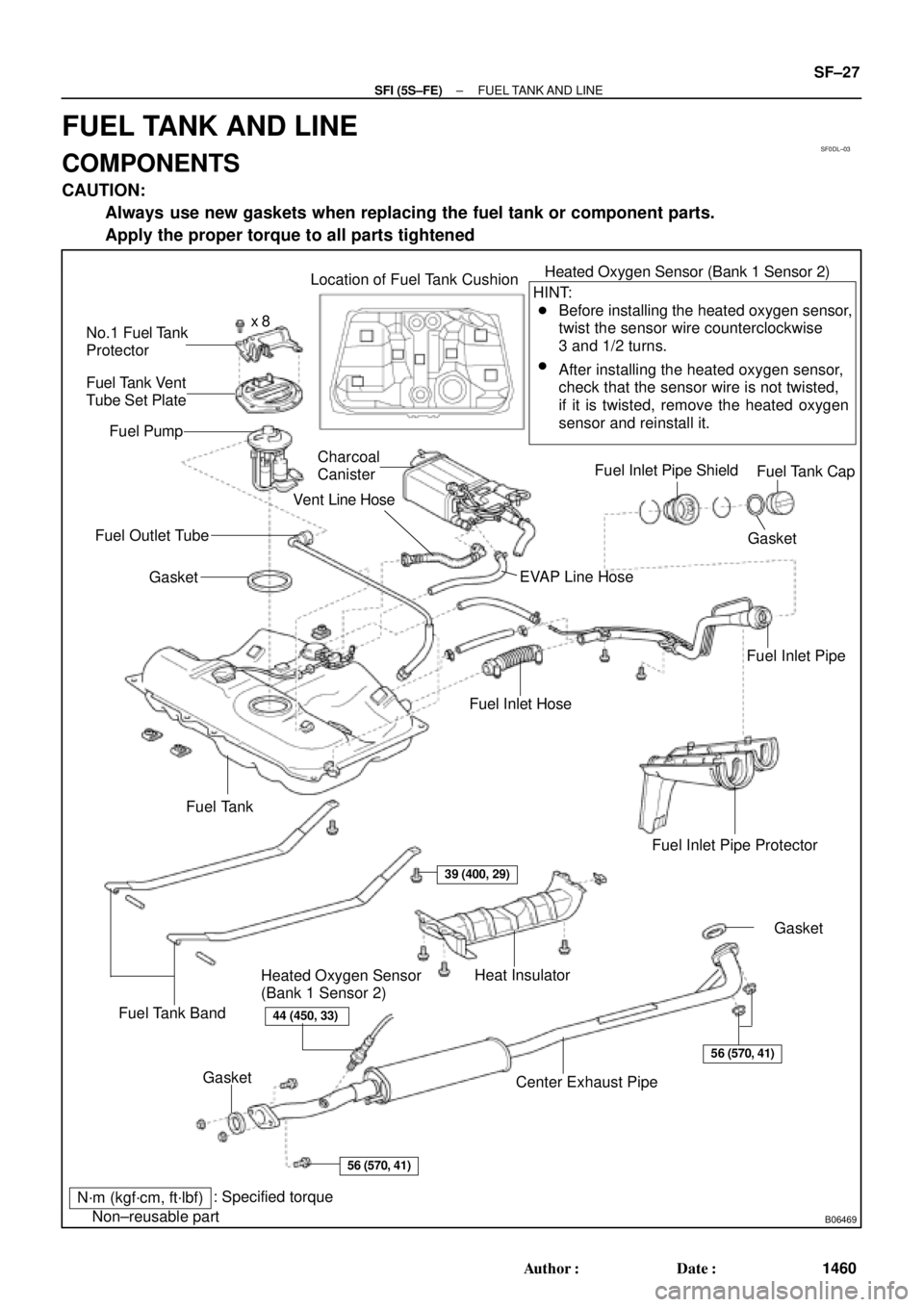

FUEL TANK AND LINE
COMPONENTS
CAUTION:
Always use new gaskets when replacing the fuel tank or component parts.
Apply the proper torque to all parts tightened
Page 4062 of 4770
SF0DM±03
BO0919
Crack
Leakage
Deformation
Z10162
Use SST
28 N´m
(285 kgf´cm, 21ft´lbf)
Fulcrum
Length
30 cm
(11.81 in.) SST
SST: 09631±22020
FU0041
2 ± 7 mm (0.08 ± 0.28 in.)
0 ± 3 mm (0 ± 0.12 in.) Pipe
Clip Hose
SF±28
± SFI (5S±FE)FUEL TANK AND LINE
1461 Author: Date:

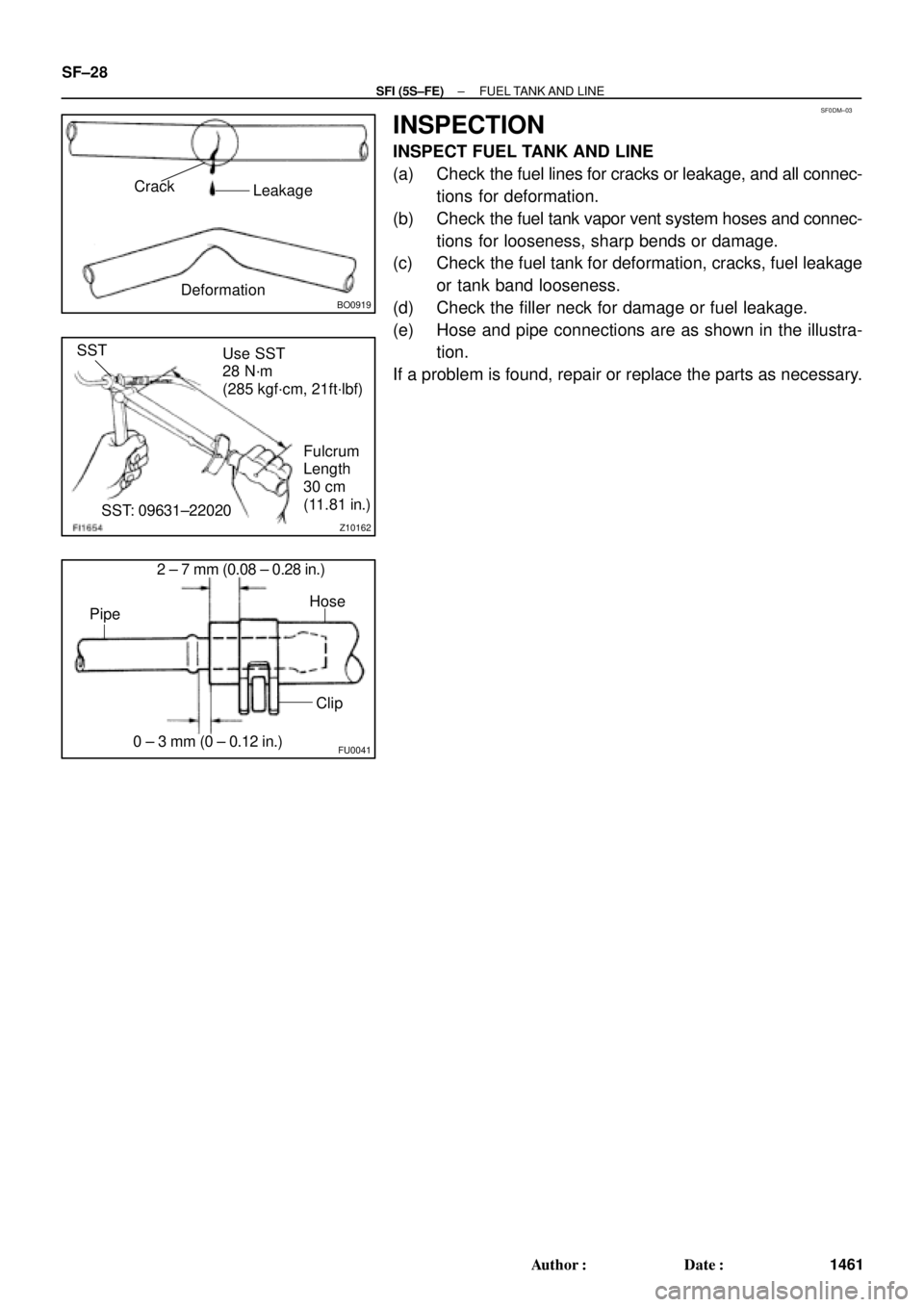

INSPECTION
INSPECT FUEL TANK AND LINE
(a) Check the fuel lines for cracks or leakage, and all connec-
tions for deformation.
(b) Check the fuel tank vapor vent system hoses and connec-
tions for looseness, sharp bends or damage.
(c) Check the fuel tank for deformation, cracks, fuel leakage
or tank band looseness.
(d) Check the filler neck for damage or fuel leakage.
(e) Hose and pipe connections are as shown in the illustra-
tion.
If a problem is found, repair or replace the parts as necessary.
Page 4063 of 4770

B01277
Move
SF0DN±03
B00525
P
R
E
B01278
Disconnect
Vacuum
B01282
VTA
E2
VCOhmmeter
± SFI (5S±FE)THROTTLE BODY
SF±29
1462 Author: Date:
THROTTLE BODY
ON±VEHICLE INSPECTION
1. INSPECT THROTTLE BODY
(a) Check that the throttle linkage moves smoothly.
(b) Check the vacuum at each port.
Start the engine.
Check the vacuum with your finger.
Port nameAt idleOther than idle
Mark EVacuumVacuum
Mark PNo vacuumVacuum
Mark RNo vacuumNo vacuum
2. INSPECT THROTTLE POSITION SENSOR
(a) Disconnect the sensor connector.
(b) Disconnect the vacuum hose from the throttle opener.
(c) Apply vacuum to the throttle opener.
(d) Using an ohmmeter, measure the resistance between
each terminal.
Clearance between
lever and stop screwBetween
terminalsResistance
0 mm (0 in.)VTA ± E20.2 ± 5.7 kW
Throttle valve fully
openVTA ± E22.0 ± 10.2 kW
±VC ± E22.5 ± 5.9 kW
(e) Reconnect the vacuum hose to the throttle opener.
(f) Reconnect the sensor connector.
3. INSPECT THROTTLE OPENER
(a) Allow the engine to warm up to normal operating tempera-
ture.
Page 4064 of 4770

S05331
B01279
Plug
Disconnect
B01280
2.5 mm Hexagon Wrench
SF±30
± SFI (5S±FE)THROTTLE BODY
1463 Author: Date:

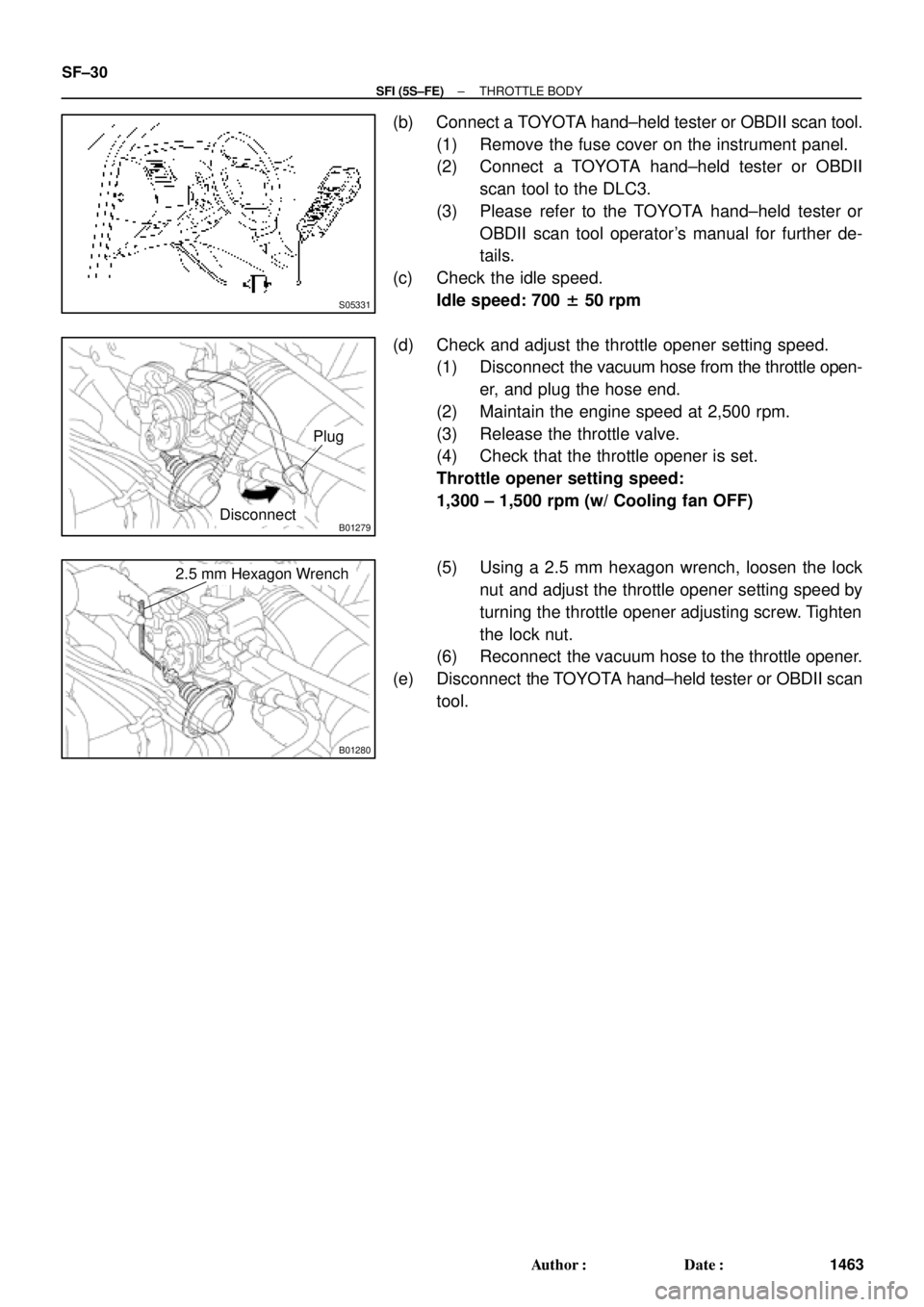

(b) Connect a TOYOTA hand±held tester or OBDII scan tool.
(1) Remove the fuse cover on the instrument panel.
(2) Connect a TOYOTA hand±held tester or OBDII
scan tool to the DLC3.
(3) Please refer to the TOYOTA hand±held tester or
OBDII scan tool operator's manual for further de-
tails.
(c) Check the idle speed.
Idle speed: 700 ± 50 rpm
(d) Check and adjust the throttle opener setting speed.
(1) Disconnect the vacuum hose from the throttle open-
er, and plug the hose end.
(2) Maintain the engine speed at 2,500 rpm.
(3) Release the throttle valve.
(4) Check that the throttle opener is set.
Throttle opener setting speed:
1,300 ± 1,500 rpm (w/ Cooling fan OFF)
(5) Using a 2.5 mm hexagon wrench, loosen the lock
nut and adjust the throttle opener setting speed by
turning the throttle opener adjusting screw. Tighten
the lock nut.
(6) Reconnect the vacuum hose to the throttle opener.
(e) Disconnect the TOYOTA hand±held tester or OBDII scan
tool.
