Page 4369 of 4770
SA07K±01
W02121
SST
W03193
SST
W03316
SST
W03145
SST
SST
W03194
SST
(3.957 in.) 100.5 mm
± SUSPENSION AND AXLEFRONT DRIVE SHAFT (1MZ±FE)
SA±29
1980 Author: Date:
REASSEMBLY
1. INSTALL NO.2 DUST DEFLECTOR
Using SST and a press, install a new No.2 dust deflector.
SST 09309±36010, 09316±20011
2. RH DRIVE SHAFT:
ASSEMBLE INBOARD JOINT SHAFT
(a) Install a new snap ring to the inboard joint shaft.
(b) Using SST and a press, install a new bearing.
SST 09223±56010
(c) Using a snap ring expander, install a new snap ring.
(d) Using SST and a press, install a new dust cover.
SST 09223±56010
3. INSTALL DUST COVER
(LH drive shaft)
Using SST and a press, install a dust cover.
SST 09223±56010, 09555±55010
(RH drive shaft)
Using SST and a press, install a new dust cover until the dis-
tance from the tip of the inboard joint shaft to the dust cover falls
within the specification, as shown in the illustration.
SST 09223±56010
Page 4370 of 4770

W03195
Inboard Joint BootOutboard Joint Boot
Vinyl Tape
W03196
R14973
SA±30
± SUSPENSION AND AXLEFRONT DRIVE SHAFT (1MZ±FE)
1981 Author: Date:
4. TEMPORARILY INSTALL OUTBOARD AND INBOARD
JOINT BOOTS AND NEW BOOT CLAMPS
HINT:
Before installing the boots, wrap the spline of the drive
shaft in vinyl tape to prevent the boots from being dam-
aged.
Before installing the boots, place 3 new clamps to the
small boot ends and large end (wheel side) and then
install boots to drive shaft.
5. INSTALL INBOARD JOINT SHAFT TO OUTBOARD
JOINT SHAFT
Align the matchmarks placed at removal, and using a snap ring
expander, put in the inboard joint shaft expanding the snap ring.
6. INSTALL BOOT TO OUTBOARD JOINT
Before assembling the boot, pack the outboard joint and boot
with grease in the boot kit.
Grease capacity: (Color = Black)
105 ± 125 g (3.7 ± 4.4 oz.)
7. INSTALL BOOT TO INBOARD JOINT SHAFT
(a) Pack the inboard joint and boot with grease in the boot kit.
Grease capacity: (Color = Gray)
Joint side: 142.5 ± 157.5 g (5.0 ± 5.6 oz.)
Boot side: 52.5 ± 57.5 g (2.1 ± 2.3 oz.)
(b) Install the boot to the inboard joint shaft.
8. ASSEMBLE BOOT CLAMPS TO BOTH BOOTS
(a) Make sure that the 2 boots are on the shaft groove.
(b) Make sure that the 2 boots are not stretched or contracted
when the drive shaft is at standard length.
Drive shaft standard length:
M/T LH601.5 ± 2.0 mm (23.681 ± 0.079 in.)
RH871.6 ± 2.0 mm (34.315 ± 0.079 in.)
A/T LH586.0 ± 2.0 mm (23.071 ± 0.079 in.)
RH881.6 ± 2.0 mm (34.709 ± 0.079 in.)
(c) Holding the clamp near the closing hooks, using pliers,
position the holes in the clamp's free end over the closing
hooks.
(d) Secure clamp by drawing the closing hooks together.
Page 4371 of 4770
R10353
SST
F02023
Clearance
SST
ABC
± SUSPENSION AND AXLEFRONT DRIVE SHAFT (1MZ±FE)
SA±31
1982 Author: Date:
(e) Secure the preplaced 3 clamps onto the boots.
(f) Place SST onto the clamp.
SST 09521±24010
(g) Tighten the SST so that the clamp is pinched.
NOTICE:
Do not overtighten the SST.
(h) Using SST, adjust the clearance of the clamp.
SST 09240±00020
Clearance:
A : 1.9 mm (0.075 in.) or less
B : 1.5 ± 2.5 mm (0.059 ± 0.098 in.)
C : 3.0 ± 4.0 mm (0.118 ± 0.157 in.)
9. CHECK DRIVE SHAFT (See page SA±27)
Page 4372 of 4770
SA07L±01
SA±32
± SUSPENSION AND AXLEFRONT DRIVE SHAFT (1MZ±FE)
1983 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page SA±26).
AFTER INSTALLATION, CHECK ABS SPEED SENSOR SIGNAL (See page DI±493 or DI±539) AND
FRONT WHEEL ALIGNMENT (See page SA±4)
Page 4373 of 4770
SA07M±05
F06530
Suspension Support
Spring Bumper
Link Stabilizer Bar
Shock
Absorber
ABS Speed Sensor
Wire Harness ClampFront Drive Shaft with Coil SpringUpper Seat Bearing
Lower
Insulator
Lower Suspension Arm Lower Suspension
Bushing StopperBrake CaliperInsulator UpperSpring Support No. 2Suspension
Shock Absorber
Coil Spring
Tie Rod End
Dust
Deflector
Cotter Pin
Cotter Pin Cotter
Pin
Lower Ball jointDisc
Lock Cap ABS Speed Sensor
N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable part
80 (820, 59)49 (500, 36)
39 (400, 29)
211 (2,150, 156)
107 (1,090, 79)
29 (300, 22)
123 (1,250, 90)49 (500, 36)
8.0 (82, 71 in.´lbf)
294 (3,000, 217)
206 (2,100, 152)
206 (2,100, 152)
206 (2,100, 152)
127 (1,300, 94)
127 (1,300, 94)
± SUSPENSION AND AXLEFRONT SHOCK ABSORBER
SA±33
1984 Author: Date:

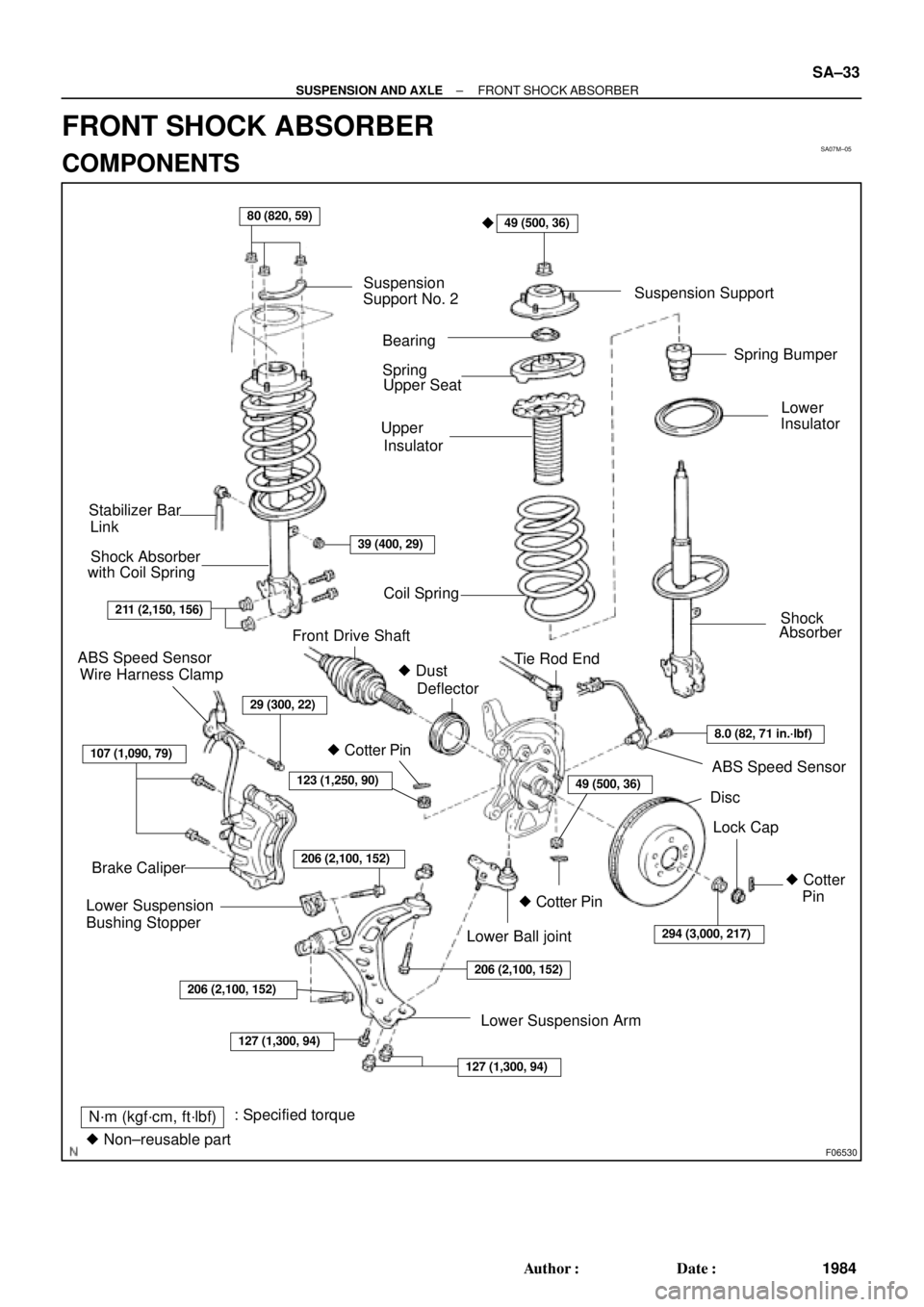

FRONT SHOCK ABSORBER
COMPONENTS
Page 4374 of 4770

SA07N±01
Z19346
To Outside SA±34
± SUSPENSION AND AXLEFRONT SHOCK ABSORBER
1985 Author: Date:
REMOVAL
1. REMOVE FRONT WHEEL
Torque: 103 N´m (1,050 kgf´cm, 76 ft´lbf)
2. REMOVE FLEXIBLE HOSE AND ABS SPEED SEN-
SOR WIRE HARNESS (w/ ABS) AND CLAMP FROM
SHOCK ABSORBER
Remove the bolt, flexible hose and ABS wire harness clamp.
Torque: 29 N´m (300 kgf´cm, 22 ft´lbf)
3. DISCONNECT STABILIZER BAR LINK FROM SHOCK
ABSORBER (See page SA±48)
4. DISCONNECT SHOCK ABSORBER FROM STEERING
KNUCKLE
(a) Remove the 2 nuts and bolts on the lower side of the
shock absorber.
Torque: 211 N´m (2,150 kgf´cm, 156 ft´lbf)
(b) Remove the shock absorber from the steering knuckle.
HINT:
At the time of installation, coat the nut's threads with engine oil.
5. REMOVE SHOCK ABSORBER WITH COIL SPRING
Remove the 3 nuts, suspension support No.2 and shock ab-
sorber with the coil spring.
Torque: 80 N´m (820 kgf´cm, 59 ft´lbf)
HINT:
At the time of installation rotate the suspension support and set
it in the direction, as shown in the illustration.
Page 4375 of 4770
SA07O±01
W03198
SST
SST
W03199
SST
± SUSPENSION AND AXLEFRONT SHOCK ABSORBER
SA±35
1986 Author: Date:
DISASSEMBLY
REMOVE COIL SPRING
(a) Install 2 nuts and a bolt to the bracket at the lower portion
of the shock absorber and secure it in a vise.
(b) Using SST, compress the coil spring.
SST 09727±30021
NOTICE:
When holding the shock absorber with the coil spring
removed, do not hold it by the spring lower seat. Also,
do not knock the spring lower seat.
Do not use an impact wrench. It will damage the SST.
HINT:
Use 2 of the same type of SST.
(c) Using SST to hold the suspension support, remove the
nut.
SST 09729±22031
(d) Remove these parts from the shock absorber:
Suspension support
Bearing
Spring upper seat
Upper insulator
Coil spring
Lower insulator
Spring bumper
Page 4376 of 4770
SA07P±01
W03646
SA±36
± SUSPENSION AND AXLEFRONT SHOCK ABSORBER
1987 Author: Date:
INSPECTION
INSPECT SHOCK ABSORBER
Compress and extend the shock absorber rod and check that
there is no abnormal resistance or unusual operation sound.
NOTICE:
When discarding the shock absorber, see DISPOSAL on
page SA±37.
