Page 3249 of 4770

TOYOTA CAMRY 2000 Service Repair Manual I00228
0.25 ± 0.05 sec.
0.25 ± 0.05 sec.
ON
OFF
Horns Sounding and Lights Flashing
Pattern
0.2 ± 0.05 sec.
0.55 ± 0.05 sec. ON
OFF
Output of Key Lock Pattern
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
D

Page 3250 of 4770

TOYOTA CAMRY 2000 Service Repair Manual I00229
0.75 ± 0.1 sec.
1.25 ± 0.1 sec.
ON
OFF
Blinking Pattern Security only: DI±830
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
1065 Author: Date:
4. CANCELLATION OF THEFT DETERRENT OPERA-
TION OR MODE

Page 3251 of 4770

TOYOTA CAMRY 2000 Service Repair Manual Remove the ignition key from key cylinder.
All the doors, engine hood and luggage
compartment door are closed and unlocked.
Any of doors is locked and unlocked by turns
3 times by the key or remote co

Page 3252 of 4770

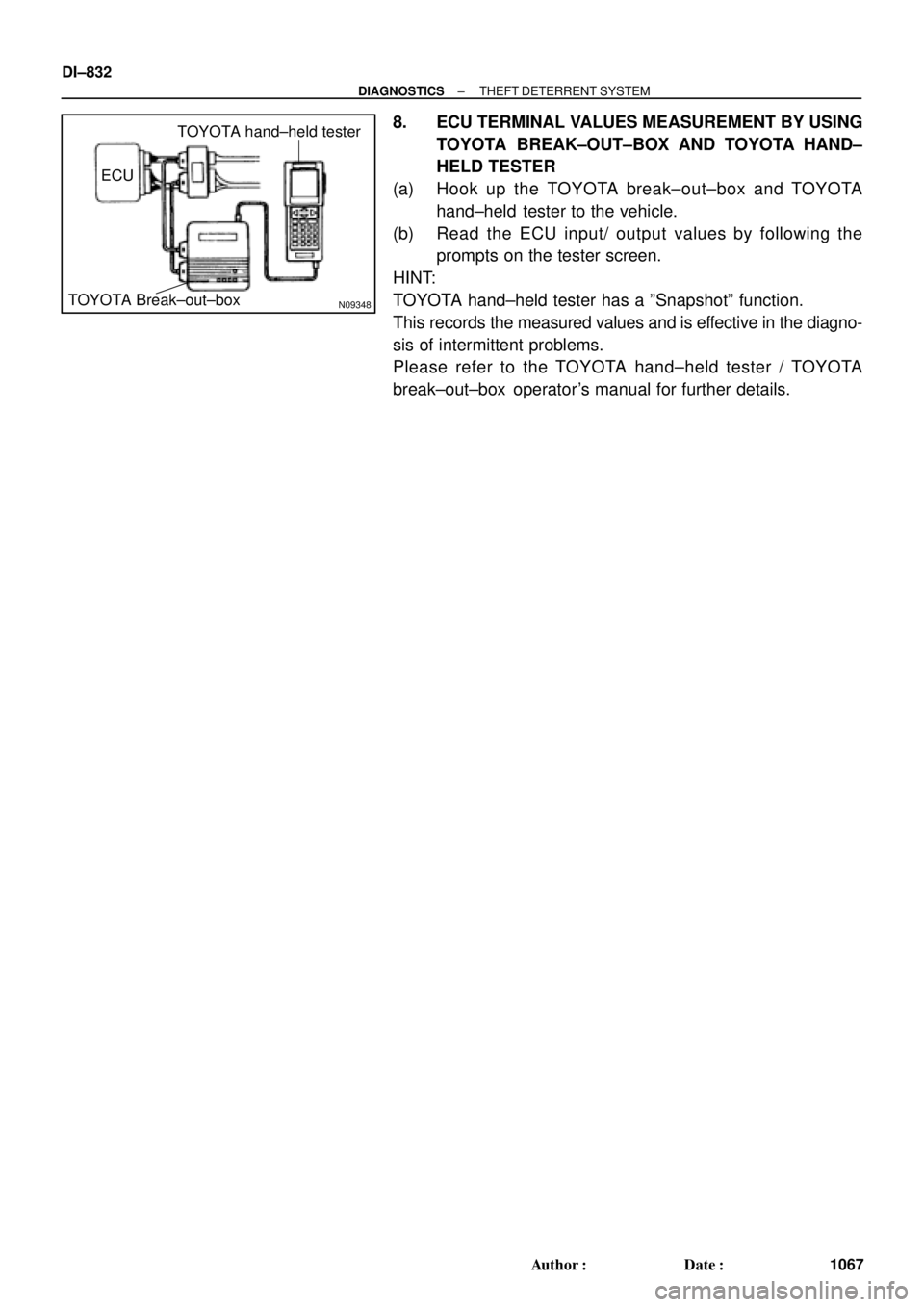

TOYOTA CAMRY 2000 Service Repair Manual N09348
ECUTOYOTA hand±held tester
TOYOTA Break±out±box
DI±832
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
1067 Author: Date:
8. ECU TERMINAL VALUES MEASUREMENT BY USING
TOYOTA BREAK±OUT±BOX AND TOYO

Page 3253 of 4770

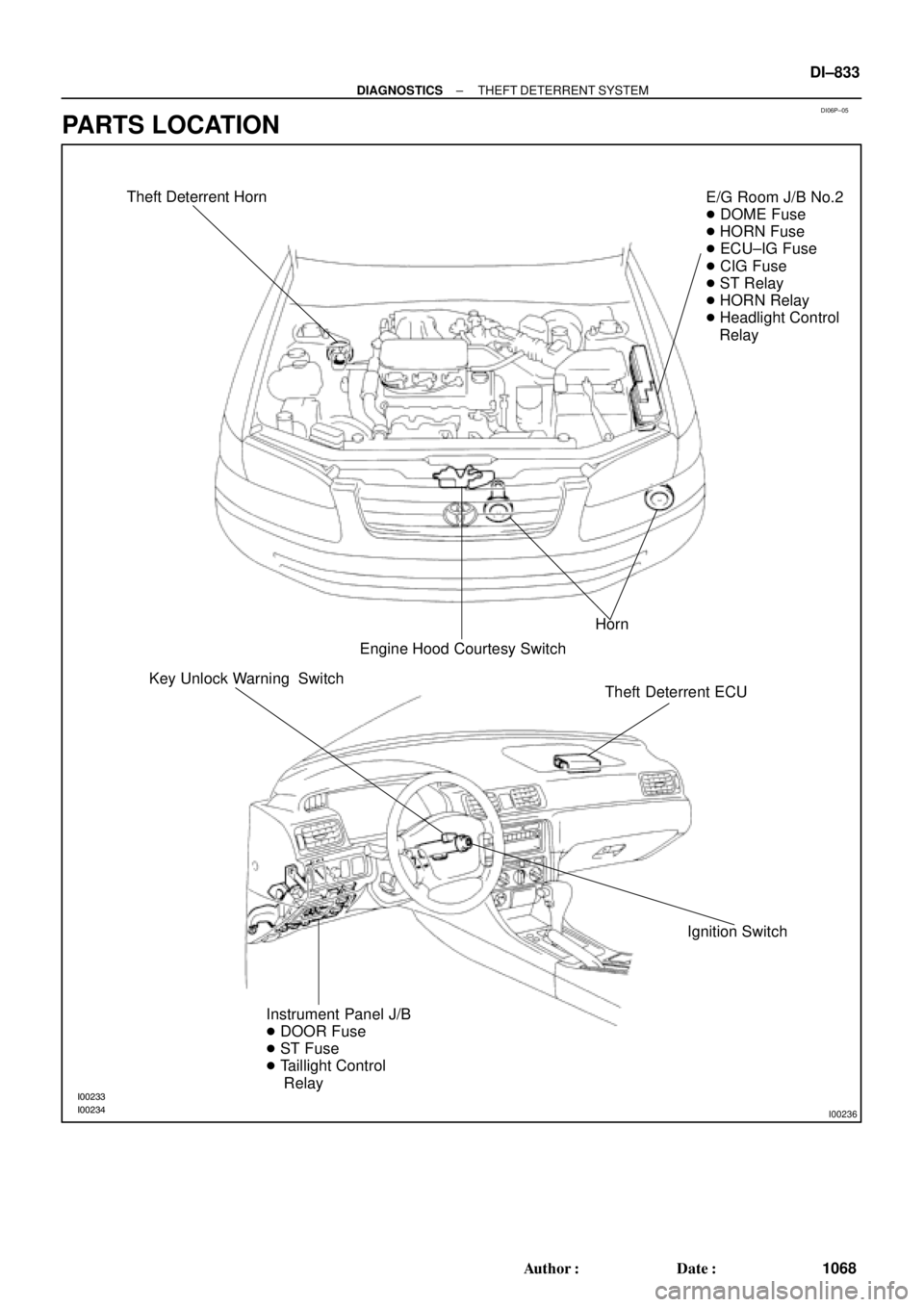

TOYOTA CAMRY 2000 Service Repair Manual DI06P±05
I00233
I00234
I00236
Theft Deterrent Horn
Horn
Engine Hood Courtesy SwitchE/G Room J/B No.2
DOME Fuse
HORN Fuse
ECU±IG Fuse
CIG Fuse
ST Relay
HORN Relay
Headlight Control

Page 3254 of 4770

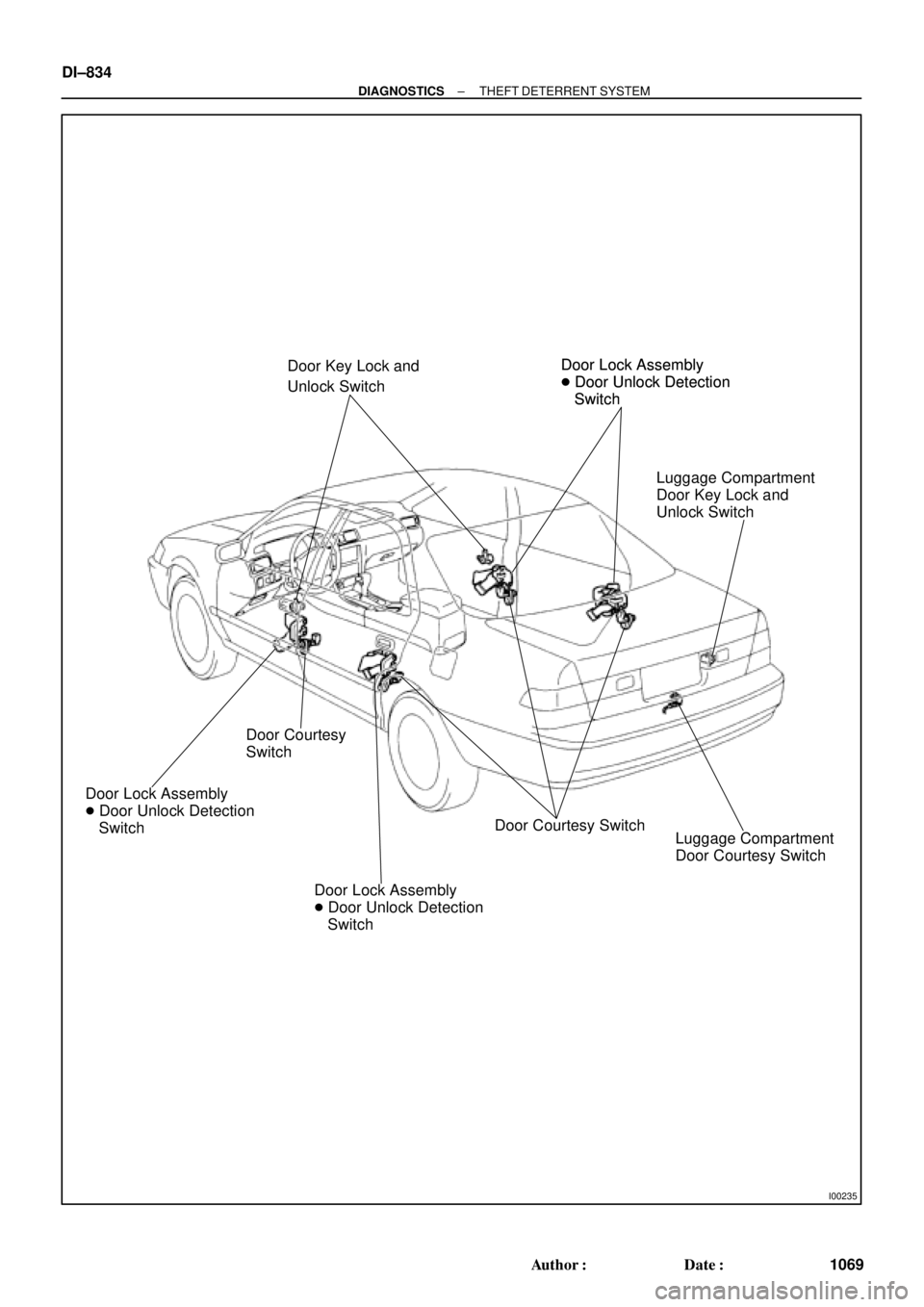

TOYOTA CAMRY 2000 Service Repair Manual I00235
Door Key Lock and
Unlock SwitchDoor Lock Assembly
Door Unlock Detection
Switch Door Lock Assembly
Door Unlock Detection
Switch
Door Lock Assembly
Door Unlock Detection
Switch
Doo

Page 3255 of 4770

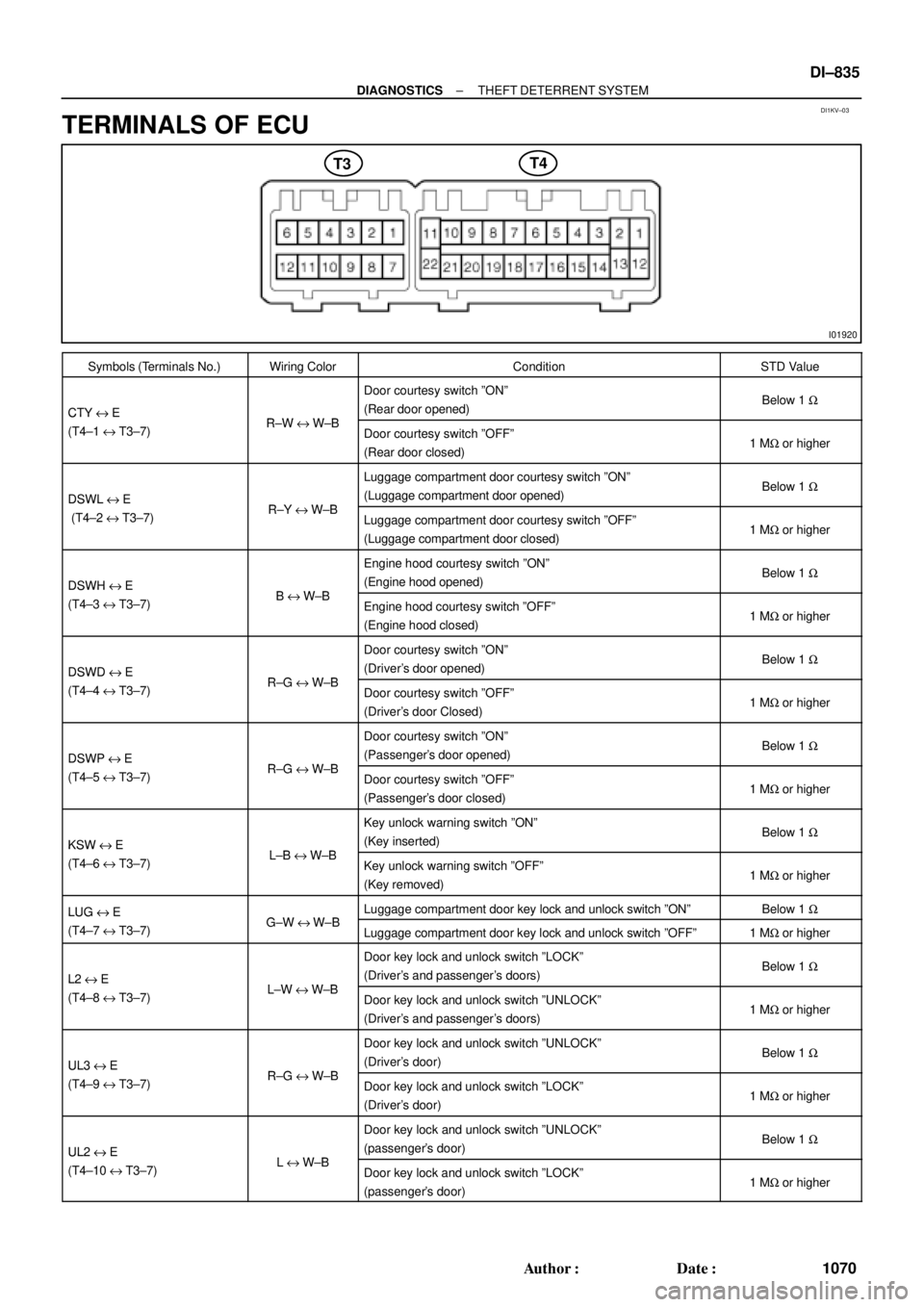

TOYOTA CAMRY 2000 Service Repair Manual DI1KV±03
I01920
T4
T3
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
DI±835
1070 Author: Date:
TERMINALS OF ECU
Symbols (Terminals No.)Wiring ColorConditionSTD Value
CTY e ERWWB
Door courtesy switch ºONº

DI1KV±03
I01920
T4
T3
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
DI±835
1070 Author: Date:
TERMINALS OF ECU
Symbols (Terminals No.)Wiring ColorConditionSTD Value
CTY e ERWWB
Door courtesy switch ºONº
(Rear door opened)Below 1 WCTY e E
(T4±1 e T3±7)R±W e W±BDoor courtesy switch ºOFFº
(Rear door closed)1 MW or higher
DSWL e ERYWB
Luggage compartment door courtesy switch ºONº
(Luggage compartment door opened)Below 1 WDSWL e E
(T4±2 e T3±7)R±Y e W±BLuggage compartment door courtesy switch ºOFFº
(Luggage compartment door closed)1 MW or higher
DSWH e EBWB
Engine hood courtesy switch ºONº
(Engine hood opened)Below 1 WDSWH e E
(T4±3 e T3±7)B e W±BEngine hood courtesy switch ºOFFº
(Engine hood closed)1 MW or higher
DSWD e ERGWB
Door courtesy switch ºONº
(Driver's door opened)Below 1 WDSWD e E
(T4±4 e T3±7)R±G e W±BDoor courtesy switch ºOFFº
(Driver's door Closed)1 MW or higher
DSWP e ERGWB
Door courtesy switch ºONº
(Passenger's door opened)Below 1 WDSWP e E
(T4±5 e T3±7)R±G e W±BDoor courtesy switch ºOFFº
(Passenger's door closed)1 MW or higher
KSW e ELBWB
Key unlock warning switch ºONº
(Key inserted)Below 1 WKSW e E
(T4±6 e T3±7)L±B e W±BKey unlock warning switch ºOFFº
(Key removed)1 MW or higher
LUG e E GWWBLuggage compartment door key lock and unlock switch ºONºBelow 1 WLUG e E
(T4±7 e T3±7)G±W eW±BLuggage compartment door key lock and unlock switch ºOFFº1 MW or higher
L2 e E LWWB
Door key lock and unlock switch ºLOCKº
(Driver's and passenger's doors)Below 1 WL2 e E
(T4±8 e T3±7)L±W e W±BDoor key lock and unlock switch ºUNLOCKº
(Driver's and passenger's doors)1 MW or higher
UL3 e E RGWB
Door key lock and unlock switch ºUNLOCKº
(Driver's door)Below 1 WUL3 e E
(T4±9 e T3±7)R±G e W±BDoor key lock and unlock switch ºLOCKº
(Driver's door)1 MW or higher
UL2 e E LWB
Door key lock and unlock switch ºUNLOCKº
(passenger's door)Below 1 WUL2 e E
(T4±10 e T3±7)L e W±BDoor key lock and unlock switch ºLOCKº
(passenger's door)1 MW or higher

Page 3256 of 4770

TOYOTA CAMRY 2000 Service Repair Manual DI±836
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
1071 Author: Date:
+B1 e Body ground
(T4±12 eBody ground)R eW±BAlways10 ± 14 V
IG e E
(T4±13 e T3±7)B±R e W±BIgnition switch is turned to ºONº p
