Page 2921 of 4770

DI03G±04
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
DI±501
736 Author: Date:
PROBLEM SYMPTOMS TABLE
If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each
problem symptom in the order given in the table below and proceed to the relevant troubleshooting page.
SymptomSuspect AreaSee page
ABS does not operate
Only when 1. to 4. are all normal and the problem is still
occurring, replace the ABS ECU.
13.Check the DTC reconfirming that the normal code is
output.
14.IG power source circuit.
15.Speed sensor circuit.
16.Check the ABS actuator with a checker.
If abnormal, check the hydraulic circuit for leakage
(See page DI±536).
DI±493
DI±520
DI±514
BR±50
ABS does not operate efficiently
Only when 1. to 4. are all normal and the problem is still
occurring, replace the ABS ECU.
1. Check the DTC reconfirming that the normal code is
output.
2. Speed sensor circuit
3. Stop light switch circuit
4. Check the ABS actuator with a checker.
If abnormal, check the hydraulic circuit for leakage
(See page DI±536).
DI±493
DI±514
DI±523
BR±50
ABS warning light abnormal1. ABS warning light circuit
2. ABS ECUDI±529
DI±527
DTC check cannot be done
Only when 1. and 2. are all normal and the problem is still
occurring, replace the ABS ECU.
1. ABS warning light circuit
2. Tc terminal circuit
DI±529
DI±532
Speed sensor signal check cannot be done1. Ts terminal circuit
2. ABS ECUDI±534
DI±527
Page 2922 of 4770

DI03H±03
DI±502
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
737 Author: Date:
CIRCUIT INSPECTION
DTC 11, 12 ABS Solenoid Relay Circuit
CIRCUIT DESCRIPTION
This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is
OK, the relay goes on.
DTC No.DTC Detecting ConditionTrouble Area
11
Condition 1. or 2. continues for 0.2 sec. or more:
1. IG1 terminal voltage of ABS ECU is 9.5 ± 18.5 V, and
when the solenoid relay is ON.*
1
2. With solenoid relay ON driving, when IG1 terminal of
ABS ECU is less than 9.5 V.*1
ABS solenoid relay
ABS solenoid relay circuit
ECU
12Immediately after IG switch has been turned ON, when the
solenoid relay is OFF.*2
ECU
*1 Solenoid relay contact OFF condition:
All of solenoid terminal voltage is half of IG1 terminal voltage or less than.
*
2
Solenoid relay contact ON condition:
All of solenoid terminal voltage is half of IG 1 terminal voltage or more.
Fail safe function:
If trouble occurs in the ABS solenoid relay circuit, the ECU cuts off current to the ABS solenoid relay and
prohibits ABS control.
Page 2923 of 4770

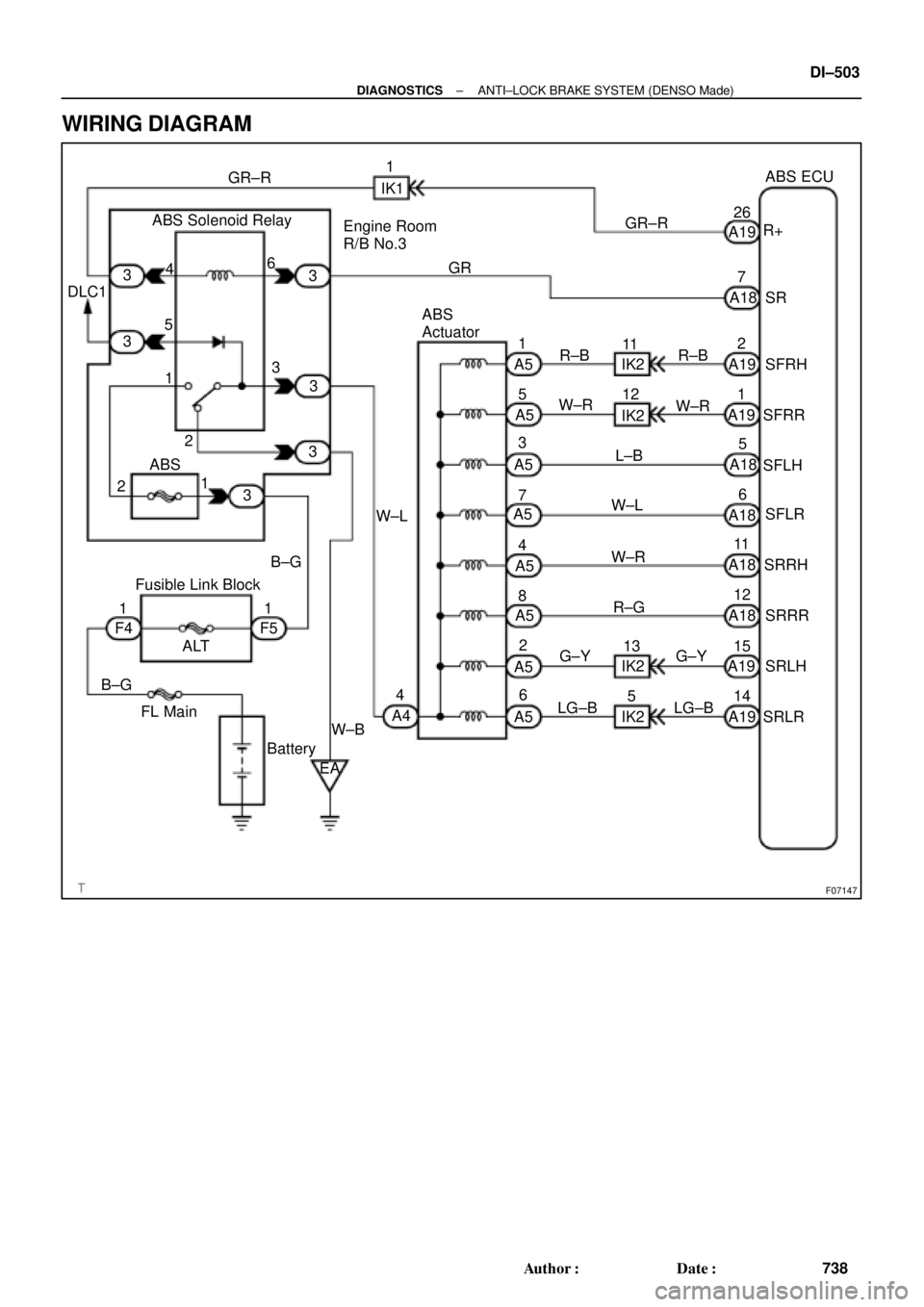

F07147
ABS Solenoid RelayGR±R1
IK1
GR±RABS ECU
26
A19R+
34
56
33
3
3 1
2 DLC1Engine Room
R/B No.3
GR
7
2ABS
1
3
W±L
B±G
Fusible Link Block
1
F5 F41
B±G
FL Main
Battery ALT
EAW±B4
A4A18 SR
ABS
Actuator
1
A5
A55
A53
7
A5
A5
A5
A5
A54
8
2
6R±B
W±R11
IK2
IK212R±B
W±R2
A19
A191
A18
A18
A18
A18
A19
A19 L±B
W±L
W±R
R±G
G±Y
LG±B13
IK2
IK255
6
11
12
15
14SFRH
SFRR
SFLH
SFLR
SRRH
SRRR
SRLH
SRLR 3
G±Y
LG±B
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
DI±503
738 Author: Date:
WIRING DIAGRAM
Page 2924 of 4770

F00048
12 (+) (±)
Engine Room
R/B No. 3
3
45 6 12 (+) (±)
Engine Room
R/B No. 3
3
45 6 12 (+) (±)
Engine Room
R/B No. 3
3
45 612 (+) (±)
Engine Room
R/B No. 3
3
45 6
F07153
3
4
ABS
Actuator
ABS
Solenoid
Relay
A4
A18
ECUA5
1234
56781
5 2
6 3
7 4
8
SFRH
SFRR
SRLR
SRLH
SFLH
SFLR
SRRH
SRRR
DI±504
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
739 Author: Date:
INSPECTION PROCEDURE

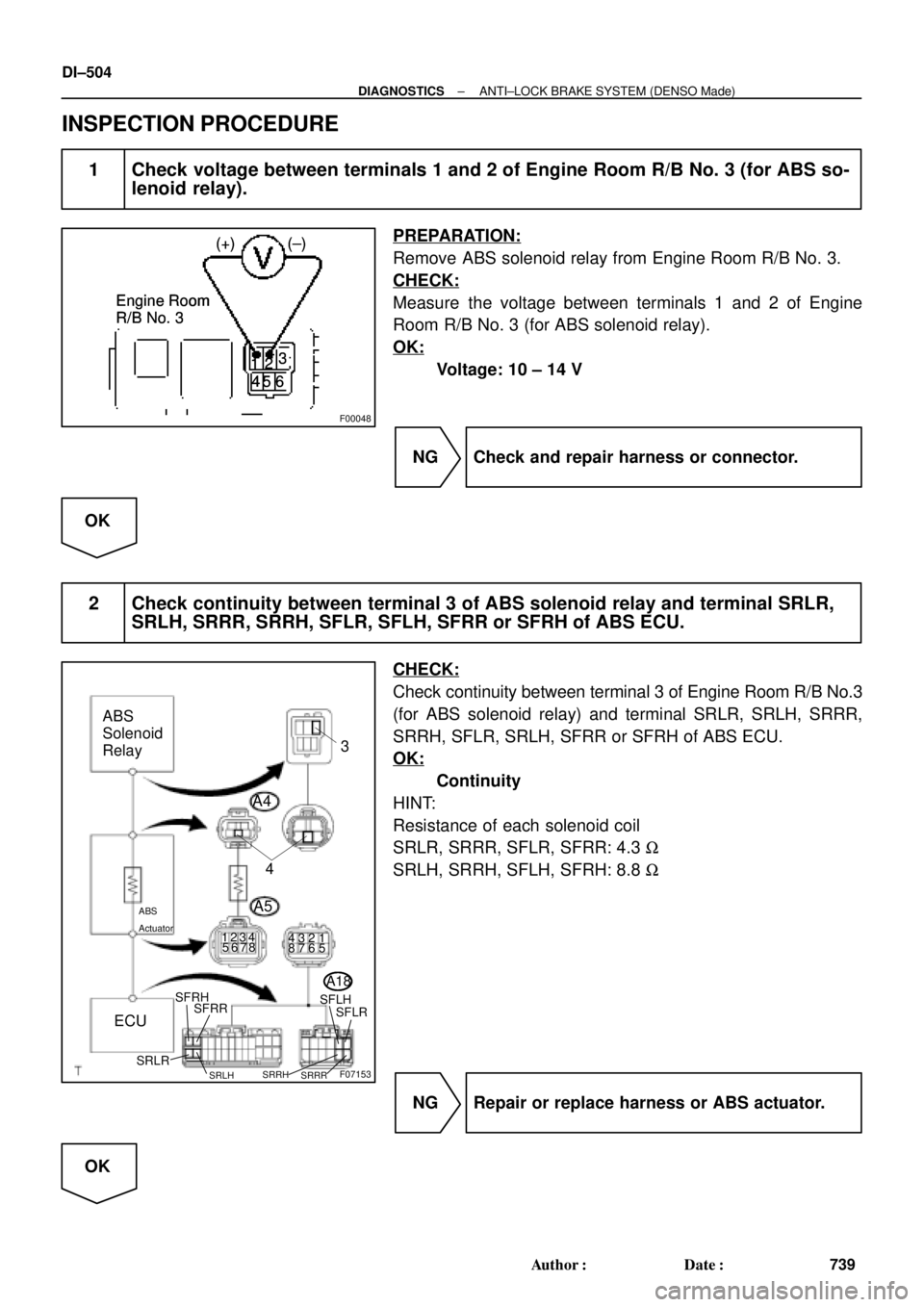

1 Check voltage between terminals 1 and 2 of Engine Room R/B No. 3 (for ABS so-
lenoid relay).
PREPARATION:
Remove ABS solenoid relay from Engine Room R/B No. 3.
CHECK:
Measure the voltage between terminals 1 and 2 of Engine
Room R/B No. 3 (for ABS solenoid relay).
OK:
Voltage: 10 ± 14 V
NG Check and repair harness or connector.
OK
2 Check continuity between terminal 3 of ABS solenoid relay and terminal SRLR,
SRLH, SRRR, SRRH, SFLR, SFLH, SFRR or SFRH of ABS ECU.
CHECK:
Check continuity between terminal 3 of Engine Room R/B No.3
(for ABS solenoid relay) and terminal SRLR, SRLH, SRRR,
SRRH, SFLR, SRLH, SFRR or SFRH of ABS ECU.
OK:
Continuity
HINT:
Resistance of each solenoid coil
SRLR, SRRR, SFLR, SFRR: 4.3 W
SRLH, SRRH, SFLH, SFRH: 8.8 W
NG Repair or replace harness or ABS actuator.
OK
Page 2925 of 4770
F00042
1 2 3
4 5 6
(+)(±)1 2 3
4 5 6
1 2 3
4 5 6 Open
Continuity
Continuity
Continuity
Open
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
DI±505
740 Author: Date:

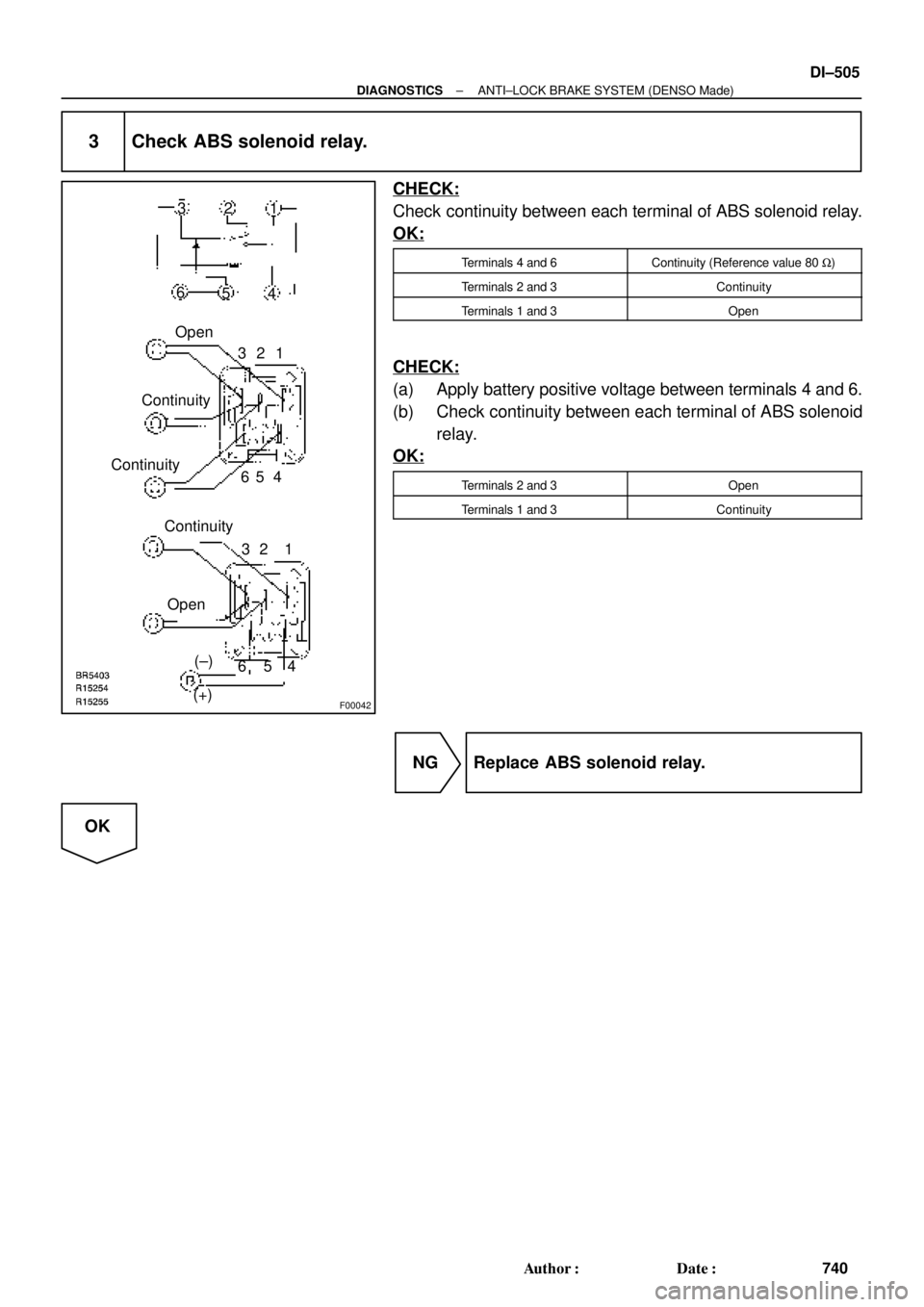

3 Check ABS solenoid relay.
CHECK:
Check continuity between each terminal of ABS solenoid relay.
OK:
Terminals 4 and 6Continuity (Reference value 80 W)
Terminals 2 and 3Continuity
Terminals 1 and 3Open
CHECK:
(a) Apply battery positive voltage between terminals 4 and 6.
(b) Check continuity between each terminal of ABS solenoid
relay.
OK:
Terminals 2 and 3Open
Terminals 1 and 3Continuity
NG Replace ABS solenoid relay.
OK
Page 2926 of 4770
DI±506
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
741 Author: Date:
4 Check for open and short circuit in harness and connector between ABS sole-
noid relay and ABS ECU (See page IN±31).
NG Repair or replace harness or connector.
OK
If the same code is still output after the DTC is deleted, check the contact condition of each con-
nection.
If the connections are normal, the ECU may be defective.
Page 2927 of 4770

± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
DI±507
742 Author: Date:
DTC 13, 14 ABS Motor Relay Circuit
CIRCUIT DESCRIPTION
The ABS motor relay supplies power to the ABS pump motor. While the ABS is activated, the ECU switches
the ABS motor relay ON and operates the ABS pump motor.
DTC No.DTC Detecting ConditionTrouble Area
13
Condition 1. or 2. continues for 0.2 sec. or more:
1. ABS ECU terminal IG1 voltage is 9.5 V to 18.5 V, and
when motor relay is ON in the midst of initial check or in
operation of ABS control.*
1
2. Motor relay is ON driving in the midst of initial check or
in operation of ABS control, ABS ECU terminal IG1 volt-
age becomes 9.5 V or less.*
2
ABS motor relay
ABS motor relay circuit
ECU
14
Condition below continues for 4 sec. or more:
When the motor relay is OFF, there is open circuit in MT
terminal of ABS ECU.
*1
Relay contact OFF condition: MT terminal voltage is below 3.6 V.
*
2
Relay contact ON condition: MT terminal voltage is 3.6 V or above.
Fail safe function:
If trouble occurs in the ABS motor relay circuit, the ECU cuts off current to the ABS solenoid relay and prohib-
its ABS control.
DI03I±03
Page 2928 of 4770

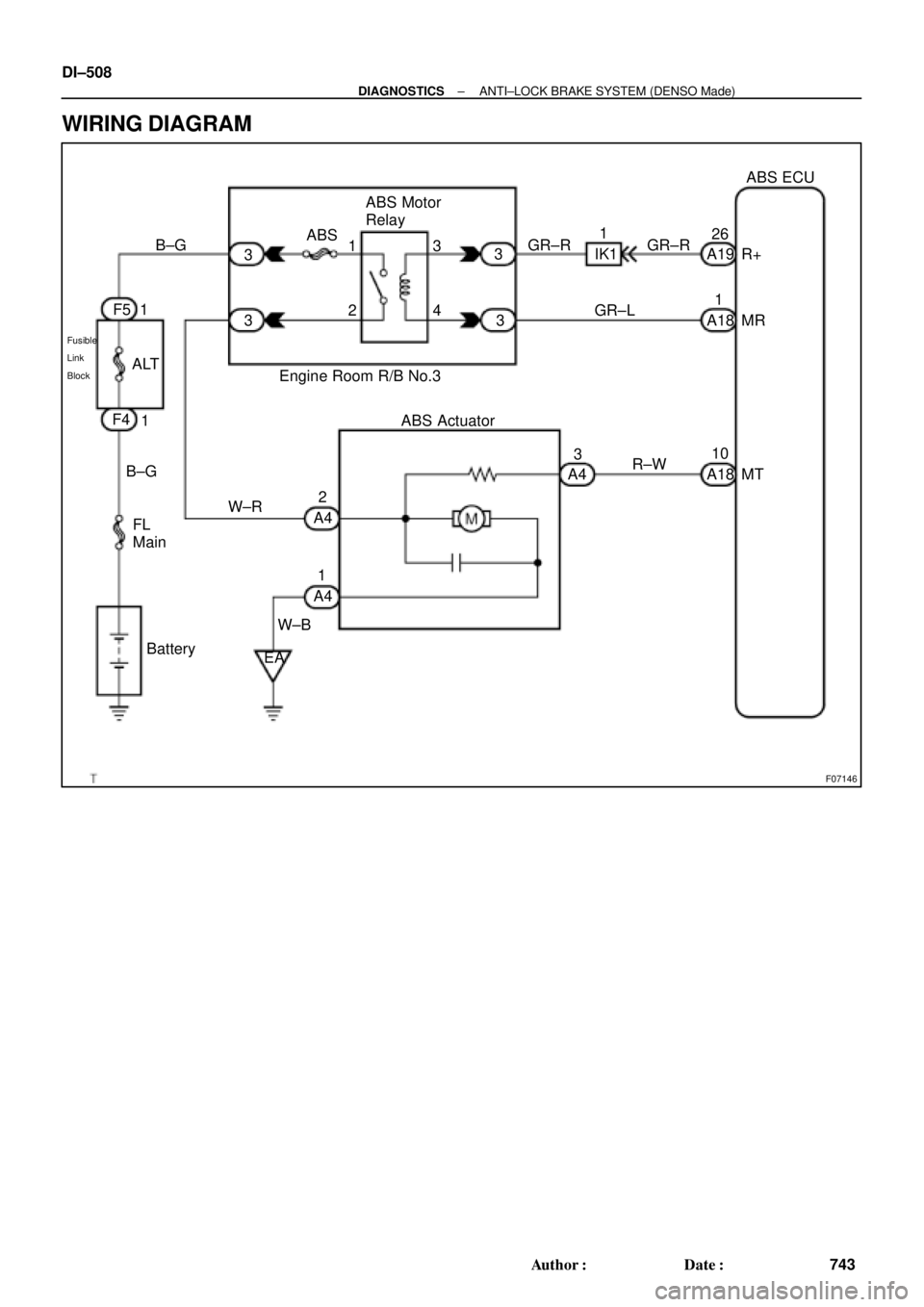

F07146
B±G
Fusible
Link
Block
F5 1
F4
1
FL
Main B±G
Battery3
3ABSABS Motor
Relay
2 13
43
3
Engine Room R/B No.3GR±R GR±R1
IK126
A19 R+ABS ECU
GR±L1
A18 MR
W±R2
A4
A41
W±B
EAABS Actuator
3
A4R±W10
A18 MT ALT DI±508
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
743 Author: Date:
WIRING DIAGRAM
