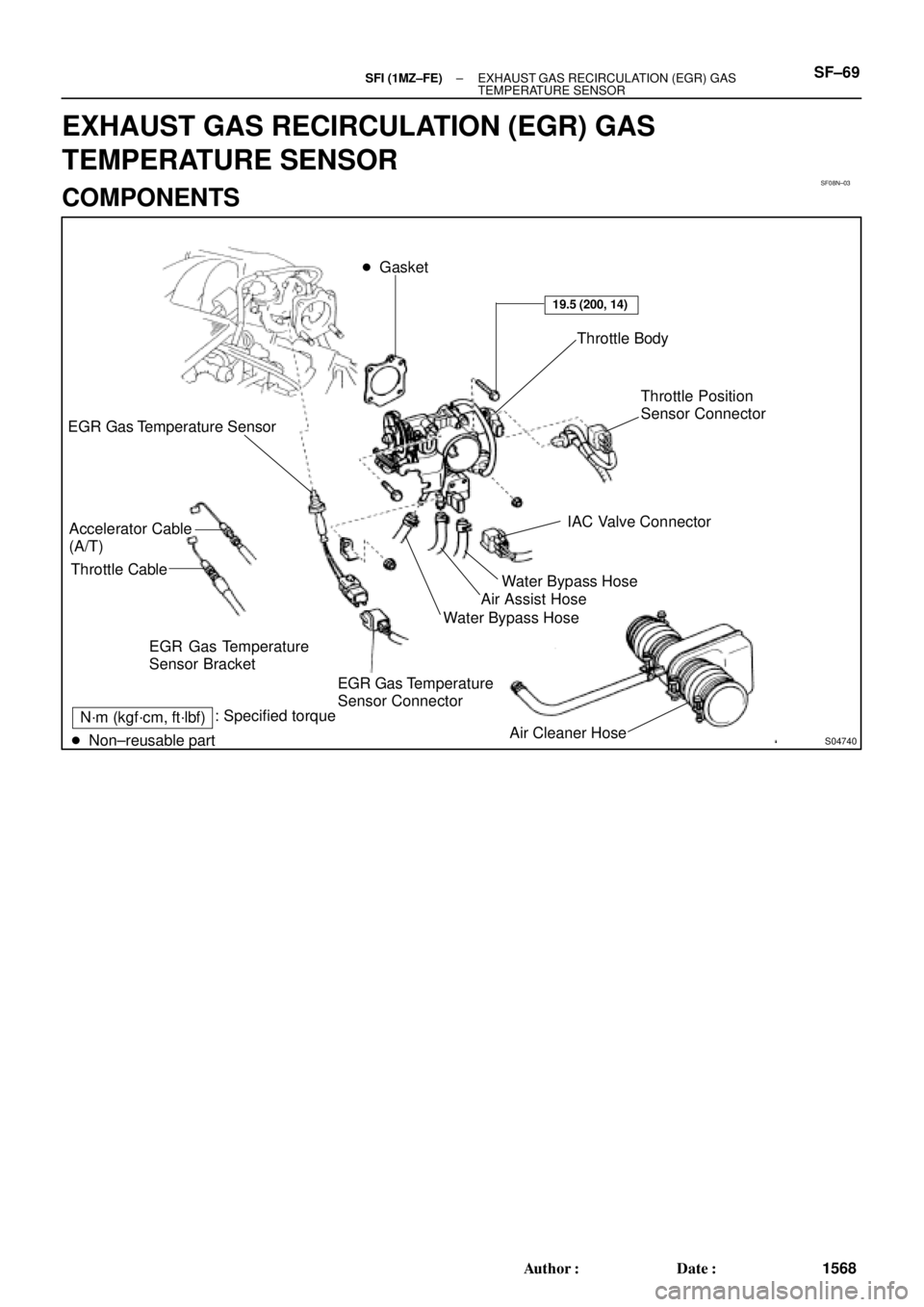

TOYOTA CAMRY 2000 Service Repair Manual SF08N±03
S04740
EGR Gas Temperature
Sensor Connector EGR Gas Temperature
Sensor Bracket
Air Cleaner Hose Gasket
Throttle Body
Throttle Position
Sensor Connector
IAC Valve Connector
Water Bypass Hos

Page 4170 of 4770

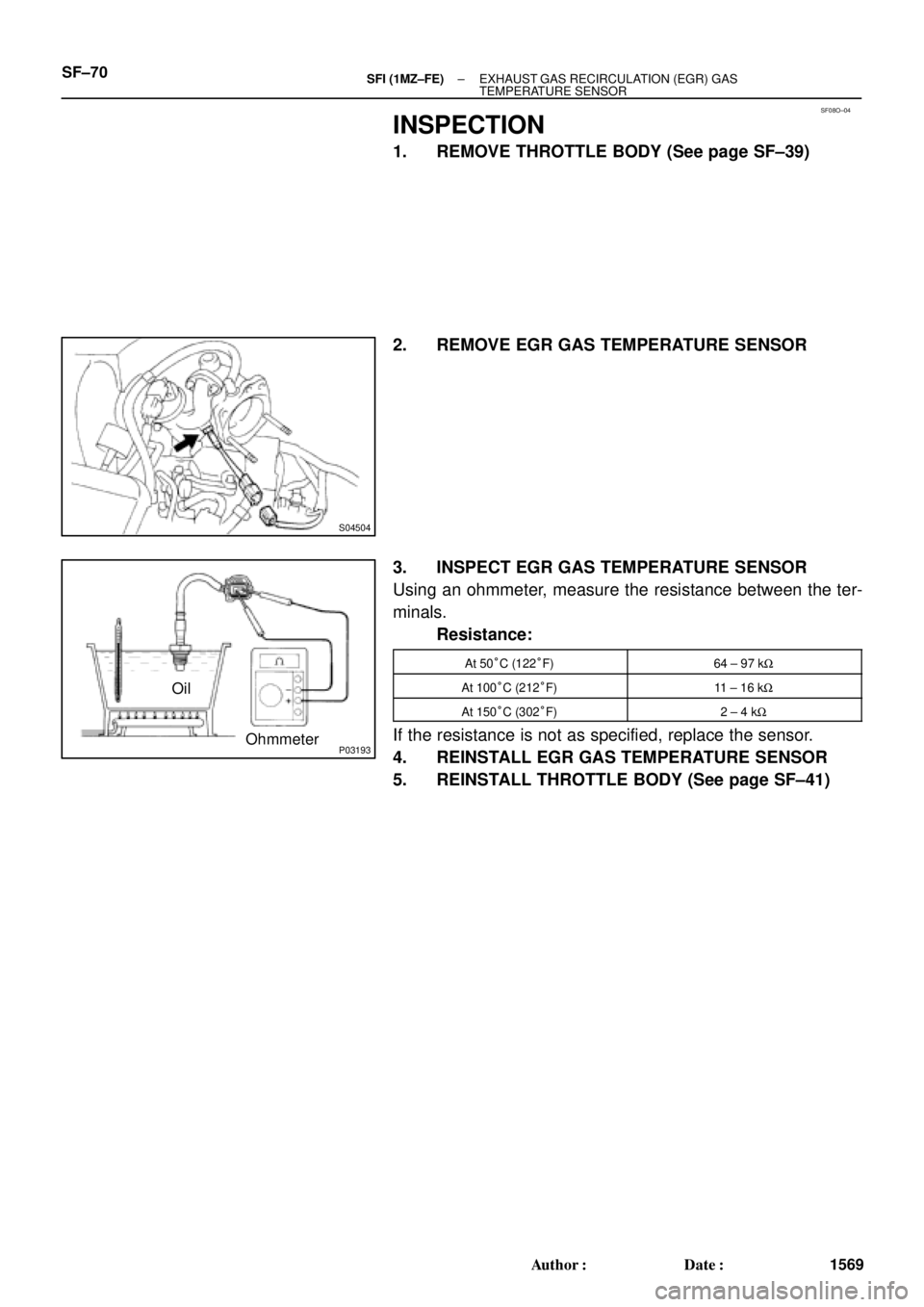

TOYOTA CAMRY 2000 Service Repair Manual SF08O±04
S04504
P03193
Oil
Ohmmeter SF±70
± SFI (1MZ±FE)EXHAUST GAS RECIRCULATION (EGR) GAS
TEMPERATURE SENSOR
1569 Author: Date:
INSPECTION
1. REMOVE THROTTLE BODY (See page SF±39)
2. REMOVE

Page 4171 of 4770

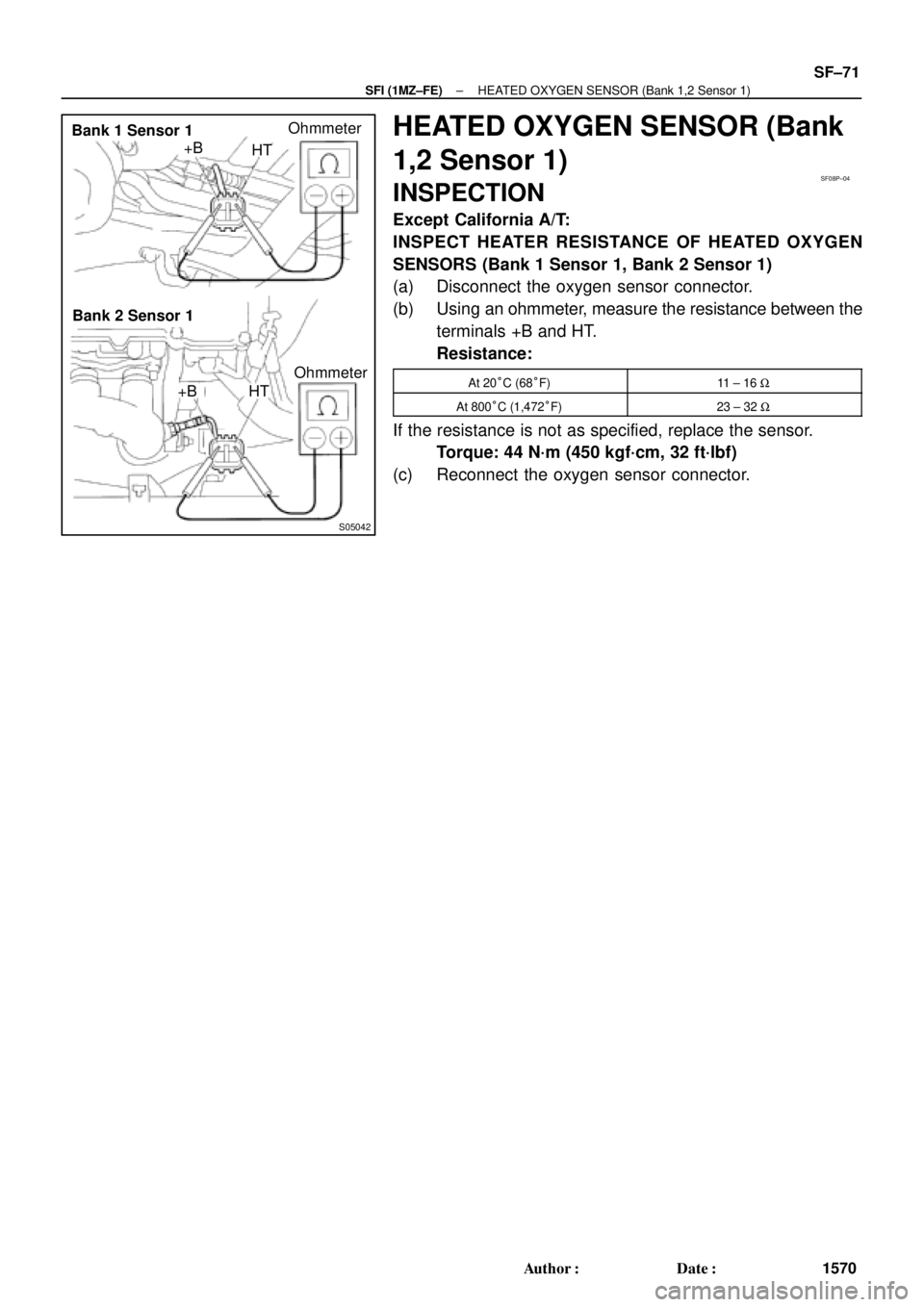

TOYOTA CAMRY 2000 Service Repair Manual S05042
Bank 1 Sensor 1
Bank 2 Sensor 1+B
HTOhmmeter
+B HTOhmmeter
SF08P±04
± SFI (1MZ±FE)HEATED OXYGEN SENSOR (Bank 1,2 Sensor 1)
SF±71
1570 Author: Date:
HEATED OXYGEN SENSOR (Bank
1,2 Sensor 1

Page 4172 of 4770

TOYOTA CAMRY 2000 Service Repair Manual S05163
Ohmmeter
+B
HTSF08Q±03
SF±72
± SFI (1MZ±FE)HEATED OXYGEN SENSOR (Bank 1 Sensor 2)
1571 Author: Date:
HEATED OXYGEN SENSOR (Bank
1 Sensor 2)
INSPECTION
INSPECT HEATER RESISTANCE OF HEATED

Page 4173 of 4770

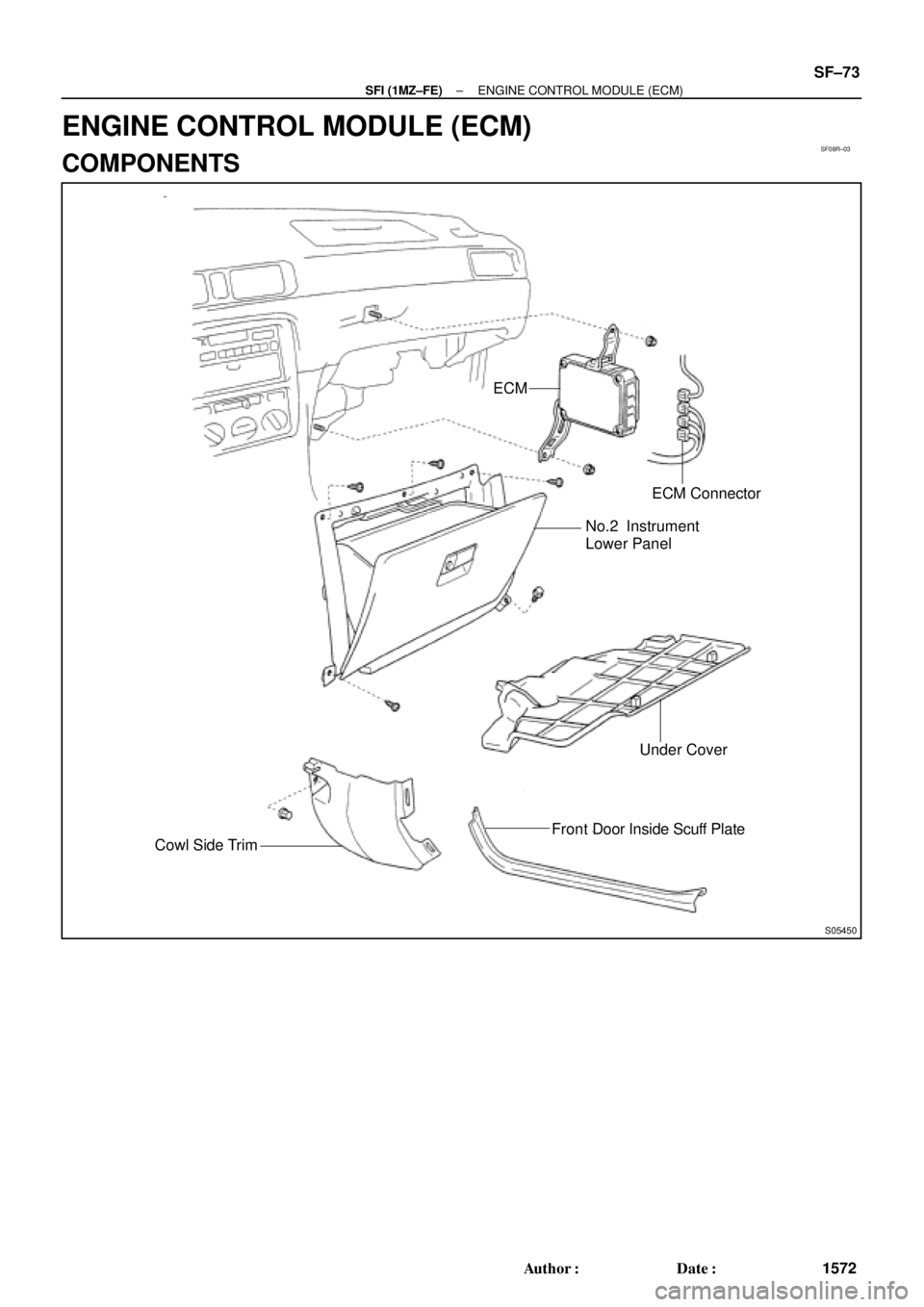

TOYOTA CAMRY 2000 Service Repair Manual SF08R±03
S05450
ECM
ECM Connector
No.2 Instrument
Lower Panel
Under Cover
Cowl Side TrimFront Door Inside Scuff Plate
± SFI (1MZ±FE)ENGINE CONTROL MODULE (ECM)
SF±73
1572 Author: Date:
ENGINE CO

Page 4174 of 4770

TOYOTA CAMRY 2000 Service Repair Manual SF08S±01
SF±74
± SFI (1MZ±FE)ENGINE CONTROL MODULE (ECM)
1573 Author: Date:
INSPECTION
1. REMOVE ECM
2. INSPECT ECM (See page DI±218)
3. REINSTALL ECM

Page 4175 of 4770

TOYOTA CAMRY 2000 Service Repair Manual S04528
5 mm
Hexagon
Wrench
Clip
SF08T±03
S05358
TOYOTA
Hand±Held Tester
B00623
Sound Scope
Sound Scope California A/T
Except California A/T
± SFI (1MZ±FE)FUEL CUT RPM
SF±75
1574 Author: Date:
F

Page 4176 of 4770

TOYOTA CAMRY 2000 Service Repair Manual RS01Y±22
± SUPPLEMENTAL RESTRAINT SYSTEMSRS AIRBAG
RS±1
2146 Author: Date:
SRS AIRBAG
PRECAUTION
NOTICE:
The CAMRY is equipped with SRS, which comprises a driver airbag, front passenger airbag,

RS01Y±22
± SUPPLEMENTAL RESTRAINT SYSTEMSRS AIRBAG
RS±1
2146 Author: Date:
SRS AIRBAG
PRECAUTION
NOTICE:
The CAMRY is equipped with SRS, which comprises a driver airbag, front passenger airbag,
and side airbag. Failure to carry out service operations in the correct sequence could cause
the SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Fur-
ther, if a mistake is made in servicing the SRS, it is possible that the SRS may fail to operate
when required. Before performing servicing (including removal or installation of parts, inspec-
tion or replacement), be sure to read the following items carefully, then follow the correct proce-
dures described in the repair manual.
Malfunction symptoms of the SRS are difficult to confirm, so the DTCs become the most impor-
tant source of information when troubleshooting. When troubleshooting the SRS, always in-
spect the DTCs before disconnecting the battery.
Even in cases of a minor collision where the SRS does not deploy, the steering wheel pad, front
passenger airbag assembly, side airbag assembly (TMC made and TMMK made), airbag sensor
assembly, front airbag sensor and side airbag sensor assembly should be inspected.
(See page RS±16, RS±29, RS±41, RS±54, RS±60, RS±65 and RS±70)
Never use SRS parts from another vehicle. When replacing parts, replace them with new parts.
Never disassemble and repair the steering wheel pad, front passenger airbag assembly, side
airbag assembly, airbag sensor assembly, front airbag sensor or side airbag sensor assembly
in order to reuse it.
If the steering wheel pad, front passenger airbag assembly, side airbag assembly, airbag sen-
sor assembly, front airbag sensor or side airbag sensor assembly has been dropped, or if there
are cracks, dents or other defects in the case, bracket or connector, replace them with new
ones.
Use a volt/ohmmeter with high impedance (10 kW/V minimum) for troubleshooting the system's
electrical circuits.
Information labels are attached to the periphery of the SRS components. Follow the instruc-
tions on the notices.
After work on the SRS is completed, perform the SRS warning light check (See page DI±626).
If the vehicle is equipped with a mobile communication system, refer to the precaution in the
IN section.
CAUTION:
Work must be started 90 seconds after the ignition switch is turned to the ºLOCKº position and
the negative (±) terminal cable is disconnected from the battery.
(The SRS is equipped with a back±up power source so that if work is started within 90 seconds
from disconnecting the negative (±) terminal cable of the battery, the SRS may be deployed.)
When the negative (±) terminal cable is disconnected from the battery, the memory of the clock
and audio system will be canceled. So before starting work, make a record of the contents mem-
orized in the audio memory system. When work is finished, reset the audio systems as they
were before and adjust the clock. To avoid erasing the memory in each memory system, never
use a back± up power supply from outside the vehicle.
Before repairs, remove the airbag sensor if shocks are likely to be applied to the sensor during
repairs.
Do not expose the steering wheel pad, front passenger airbag assembly, side airbag assembly,
airbag sensor assembly, front airbag sensor or side airbag sensor assembly directly to hot air
or flames.
