Page 1593 of 4770

TOYOTA CAMRY 2000 Service Repair Manual I09189 Magnetic Clutch Relay AC225±01 Z18060 35 1212 3 5 ± AIR CONDITIONINGMAGNETIC CLUTCH RELAY AC±71 2553 Author: Date: MAGNETIC CLUTCH RELAY INSPECTION 1. REMOVE MAGNETIC CLUTCH RELAY FROM ENG

Page 1594 of 4770

TOYOTA CAMRY 2000 Service Repair Manual S05390 No. 1 Cooling Fan Relay AC226±01 S05387 No. 2 Cooling Fan Relay S05388 No. 3 Cooling Fan Relay Z12319 1 3 24 1 2 34 N23635 5 1 42 3 AC±72 ± AIR CONDITIONINGCOOLING FAN RELAY 2554 Author: Da

Page 1595 of 4770

TOYOTA CAMRY 2000 Service Repair Manual Z18060 12 3 5 12 3 5 ± AIR CONDITIONINGCOOLING FAN RELAY AC±73 2555 Author: Date: 6. INSPECT NO. 3 COOLING FAN RELAY (Marking: FAN RLY NO. 3) CONTINUITY ConditionTester connectionSpecified conditi

Page 1596 of 4770

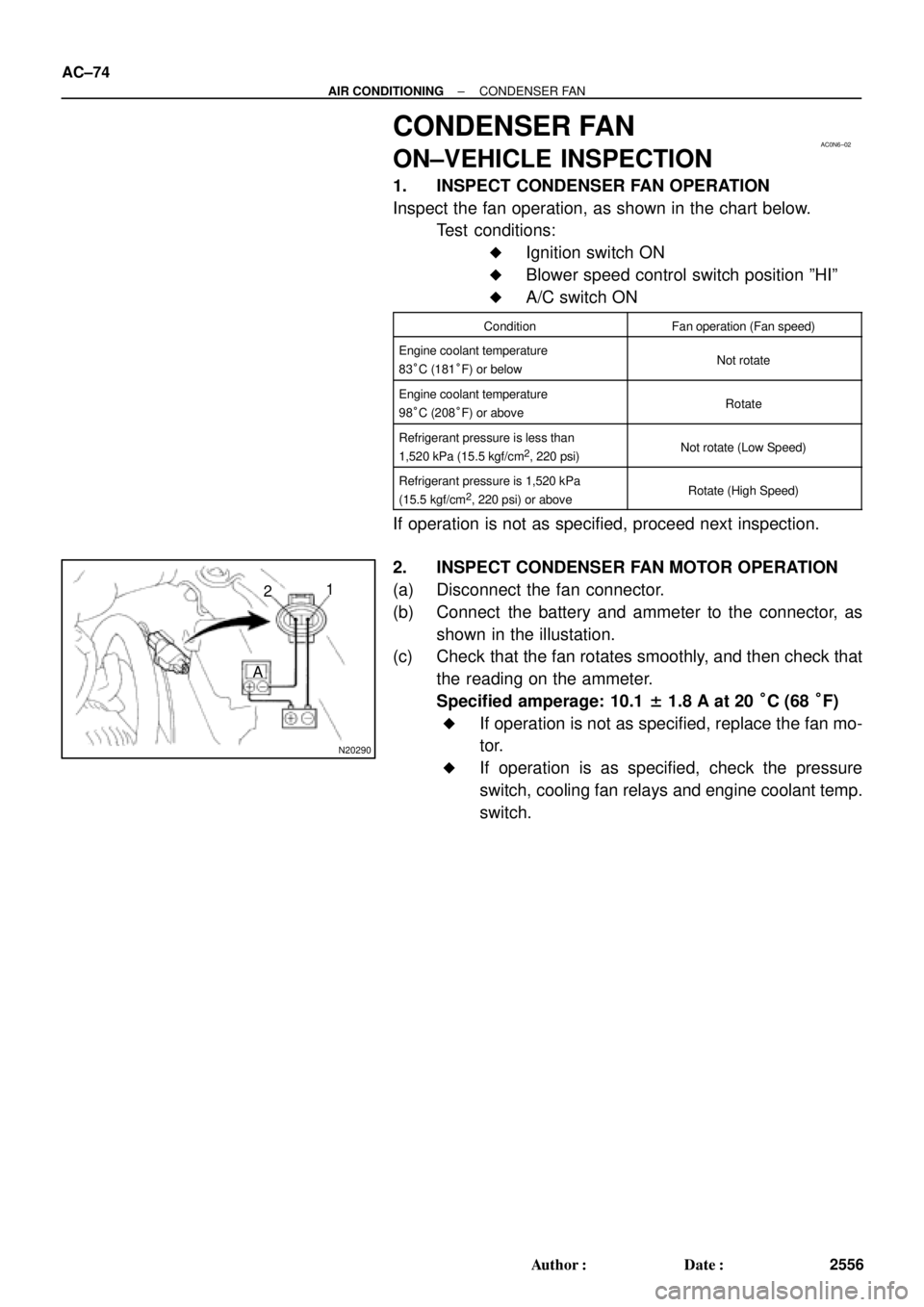

TOYOTA CAMRY 2000 Service Repair Manual AC0N6±02 N20290 21 A AC±74 ± AIR CONDITIONINGCONDENSER FAN 2556 Author: Date: CONDENSER FAN ON±VEHICLE INSPECTION 1. INSPECT CONDENSER FAN OPERATION Inspect the fan operation, as shown in the ch

Page 1597 of 4770

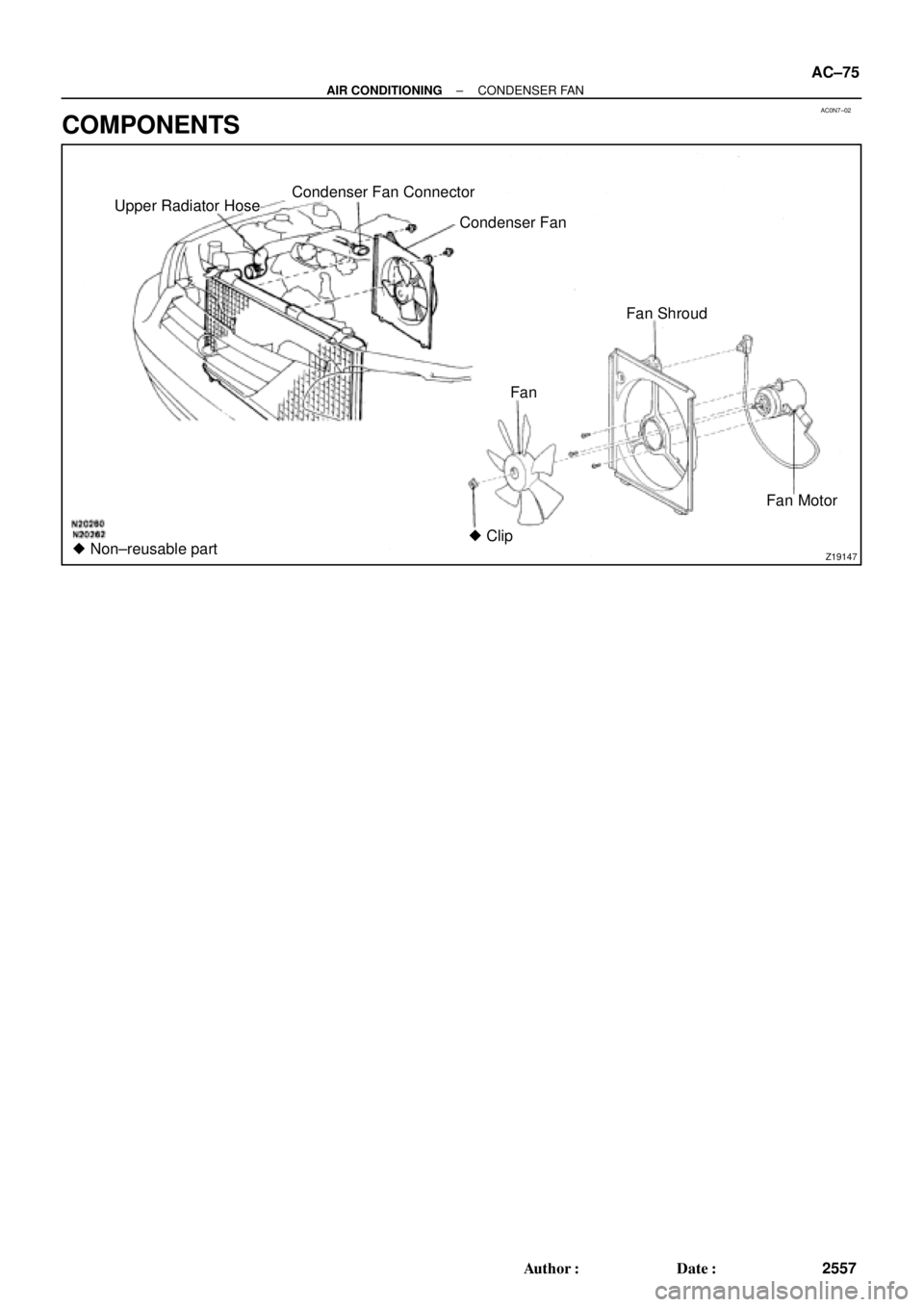

TOYOTA CAMRY 2000 Service Repair Manual AC0N7±02 Z19147 Upper Radiator Hose Fan Condenser Fan Connector Fan Motor Condenser Fan  Non±reusable partFan Shroud  Clip ± AIR CONDITIONINGCONDENSER FAN AC±75 2557 Author: Date: COMPONENTS

Page 1598 of 4770

TOYOTA CAMRY 2000 Service Repair Manual AC0N8±02 AC±76 ± AIR CONDITIONINGCONDENSER FAN 2558 Author: Date: REMOVAL 1. 1MZ±FE engine models only: DRAIN ENGINE COOLANT FROM RADIATOR HINT: It is not necessary to drain out all the coolant.

Page 1599 of 4770

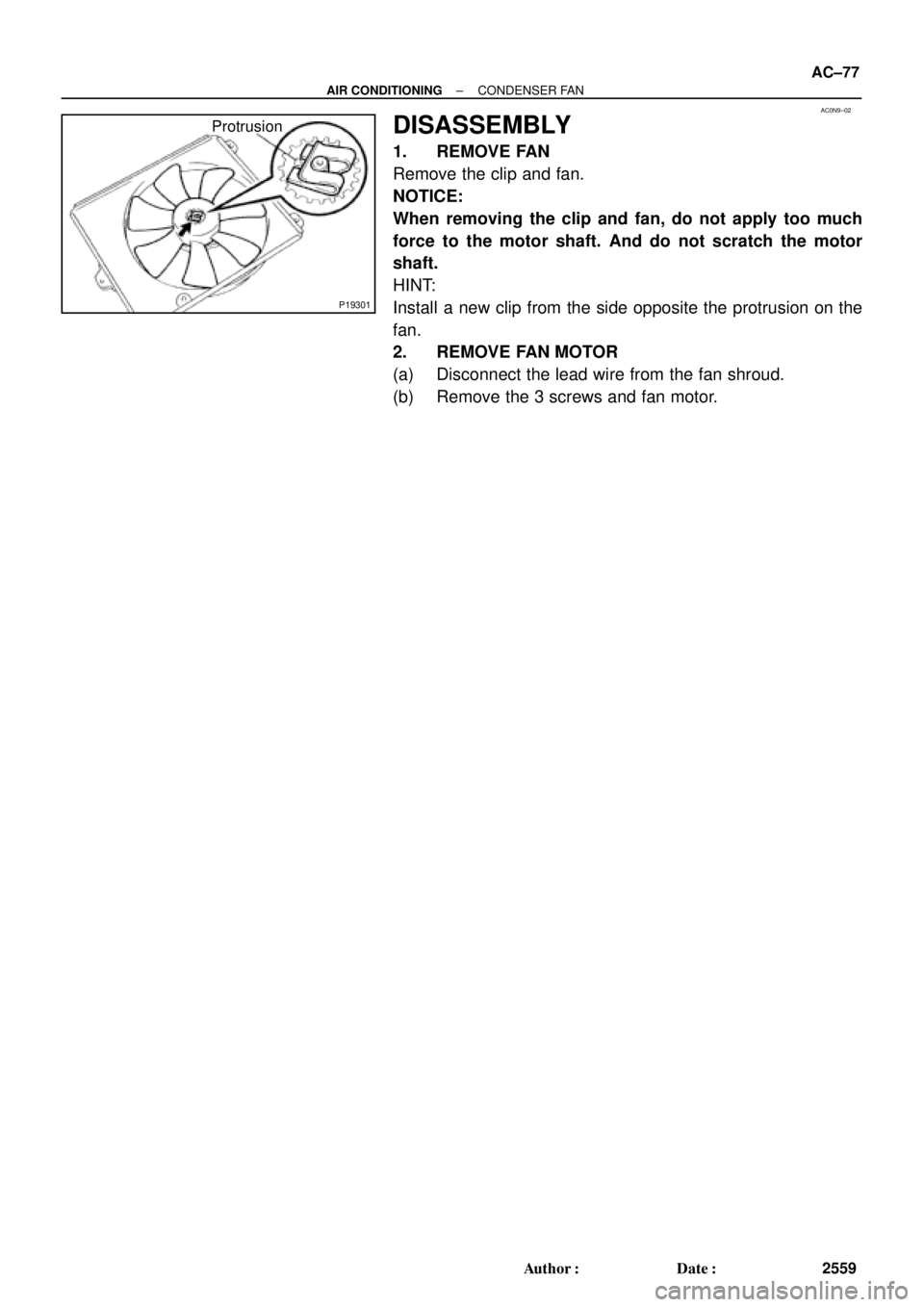

TOYOTA CAMRY 2000 Service Repair Manual AC0N9±02 P19301 Protrusion ± AIR CONDITIONINGCONDENSER FAN AC±77 2559 Author: Date: DISASSEMBLY 1. REMOVE FAN Remove the clip and fan. NOTICE: When removing the clip and fan, do not apply too muc

Page 1600 of 4770

TOYOTA CAMRY 2000 Service Repair Manual AC0NA±01 AC±78 ± AIR CONDITIONINGCONDENSER FAN 2560 Author: Date: REASSEMBLY Reassembly is in the reverse order of disassembly (See page AC±77).
