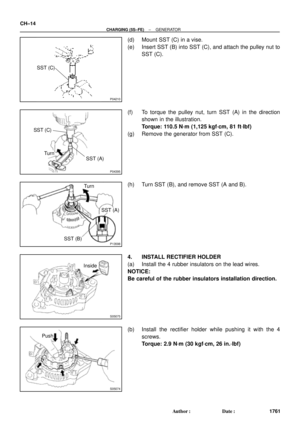

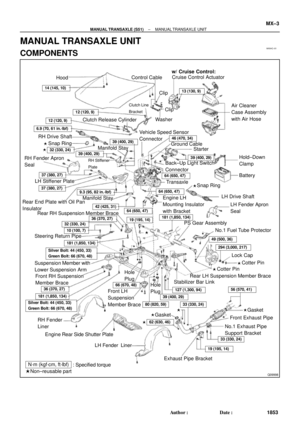

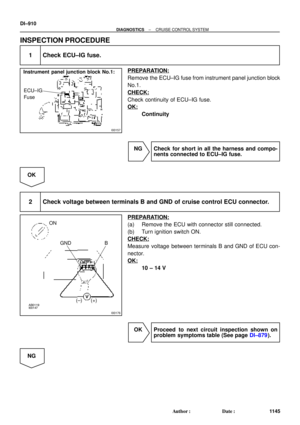

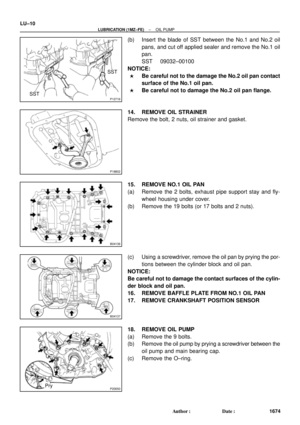

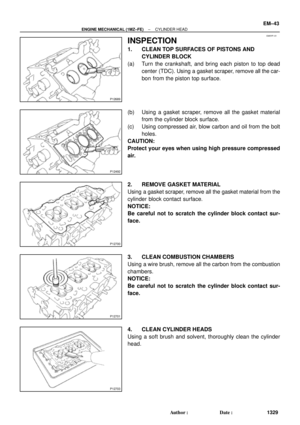

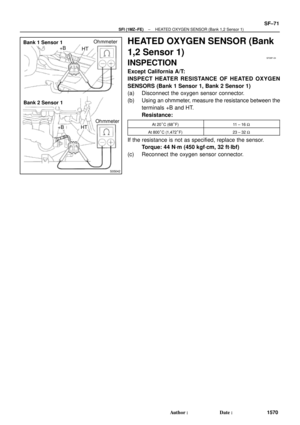

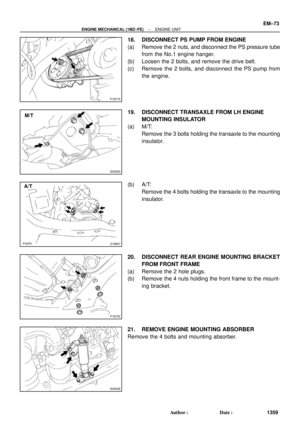

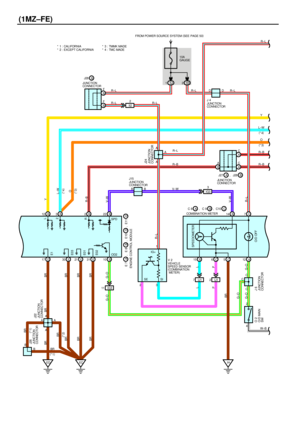

2000 TOYOTA CAMRY Service Repair Manual

air conditioning mirror controls fuel filter service indicator coolant lug pattern

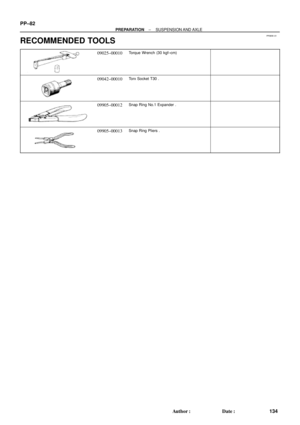

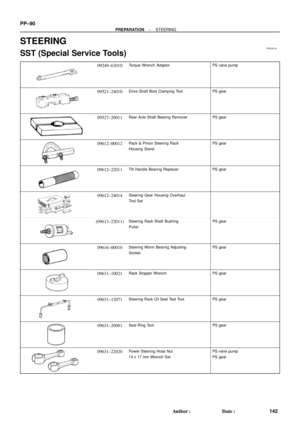

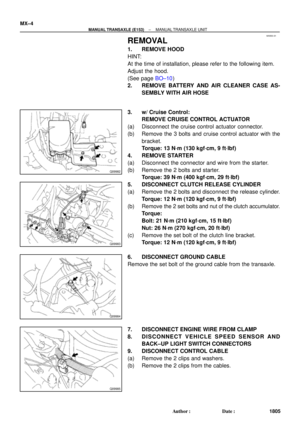

Page 1 of 4770

TOYOTA CAMRY 2000 Service Repair Manual W 1999 TOYOTA MOTOR CORPORATIONAll rights reserved. This book may not be repro-
duced or copied, in whole or in part, without the
written permission of Toyota Motor Corporation.
First Printing: Jul.

Page 2 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 9
8
7
6
5
4
3
2
1
GENERAL 2000 FEATURES
DESCRIPTION 2. . . . . . . . . . . . . . . . . . . . . . . . . . .
ENGINE
Evaporative Emission Control System3 . . . . . . . .
AUTOMATIC TRANSMISSION
Overdriv

9
8
7
6
5
4
3
2
1
GENERAL 2000 FEATURES
DESCRIPTION 2. . . . . . . . . . . . . . . . . . . . . . . . . . .
ENGINE
Evaporative Emission Control System3 . . . . . . . .
AUTOMATIC TRANSMISSION
Overdrive switch4 . . . . . . . . . . . . . . . . . . . . . . . . .
COROLLA
OUTLINE OF NEW FEATURES 6. . . . . . . . . . . .
MODEL CODE 7. . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL LINE-UP 7. . . . . . . . . . . . . . . . . . . . . . . .
NEW FEATURES
1ZZ-FE Engine
Description8 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Major Difference9 . . . . . . . . . . . . . . . . . . . . . . .
Valve Mechanism10 . . . . . . . . . . . . . . . . . . . . . . .

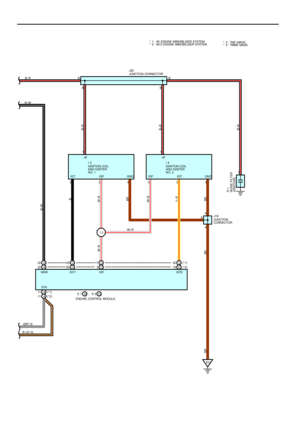

Ignition System11 . . . . . . . . . . . . . . . . . . . . . . . .

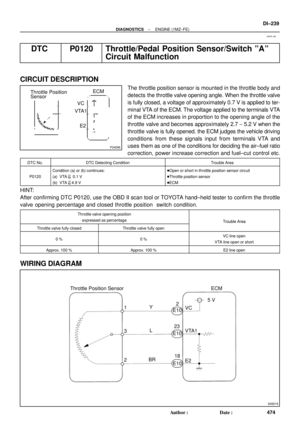

Engine Control System12 . . . . . . . . . . . . . . . . . . .
Brakes
General20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Diagram20 . . . . . . . . . . . . . . . . . . . . . . . .
Hydraulic Circuit20 . . . . . . . . . . . . . . . . . . . . . . .
Operation21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CAMRY
OUTLINE OF NEW FEATURES 26. . . . . . . . . . . .
MODEL CODE 29. . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL LINE-UP 30. . . . . . . . . . . . . . . . . . . . . . . . .
NEW FEATURES
Exterior31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

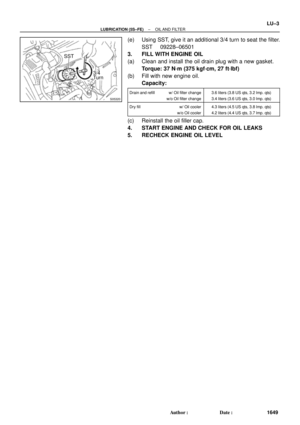

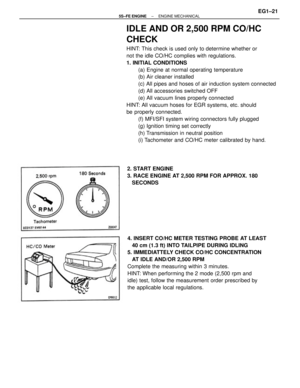

5S-FE Engine
Description33 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Major Difference34 . . . . . . . . . . . . . . . . . . . . . . .

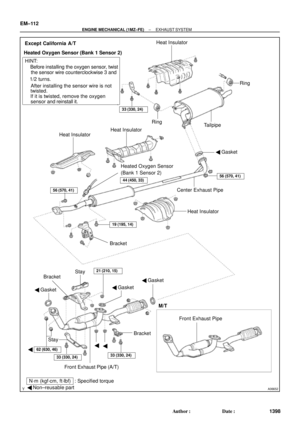

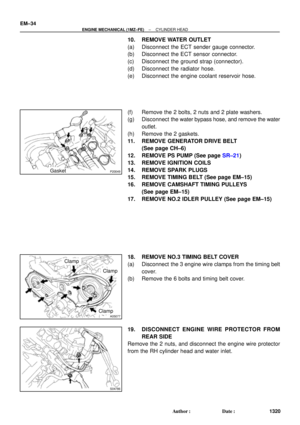

Intake and Exhaust System34 . . . . . . . . . . . . . . .

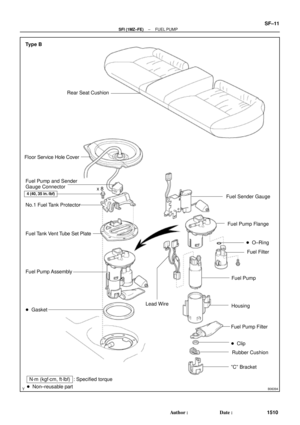

Fuel System35 . . . . . . . . . . . . . . . . . . . . . . . . . . .
5S-FNE Engine
Description36 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Features of 5S-FNE Engine38 . . . . . . . . . . . . . . .
Engine Proper39 . . . . . . . . . . . . . . . . . . . . . . . . . .

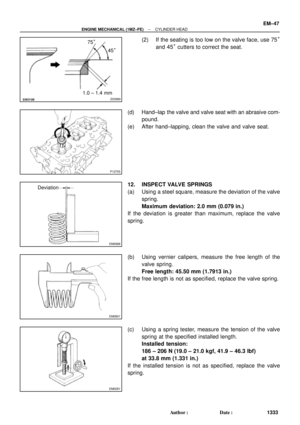

Valve Mechanism40 . . . . . . . . . . . . . . . . . . . . . . .
Intake and Exhaust System41 . . . . . . . . . . . . . . .
Fuel System43 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition System48 . . . . . . . . . . . . . . . . . . . . . . . .

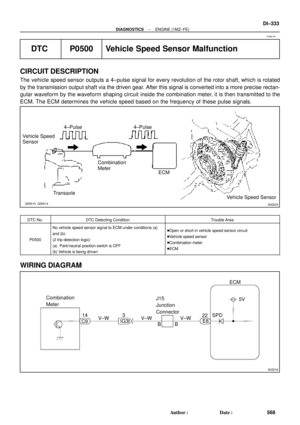

Engine Control System49 . . . . . . . . . . . . . . . . . . .

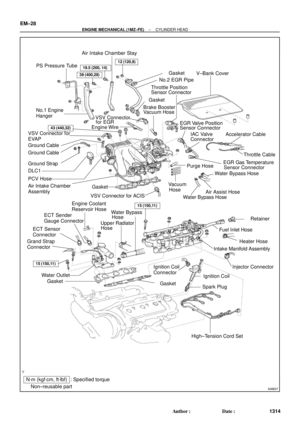

1MZ-FE Engine54 . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Transaxle54 . . . . . . . . . . . . . . . . . . . . . .
Brakes55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Body57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lighting58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Conditioning59 . . . . . . . . . . . . . . . . . . . . . . . . .
SRS Airbag59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CAMRY SOLARA
OUTLINE OF NEW FEATURES 62. . . . . . . . . . . .
MODEL CODE 64. . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL LINE-UP 64. . . . . . . . . . . . . . . . . . . . . . . . .
SIENNA
OUTLINE OF NEW FEATURES 66. . . . . . . . . . . .
MODEL CODE 67. . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL LINE-UP 67. . . . . . . . . . . . . . . . . . . . . . . . .
RAV4
OUTLINE OF NEW FEATURES 70. . . . . . . . . . . .
MODEL CODE 71. . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL LINE-UP 71. . . . . . . . . . . . . . . . . . . . . . . . .
TOYOTA TACOMA
OUTLINE OF NEW FEATURES 74. . . . . . . . . . . .
MODEL CODE 76. . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL LINE-UP 77. . . . . . . . . . . . . . . . . . . . . . . . .
NEW FEATURES
2RZ-FE and 3RZ-FE Engine
Description78 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LEV Compliance78 . . . . . . . . . . . . . . . . . . . . . . .
Differential82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4RUNNER
OUTLINE OF NEW FEATURES 84. . . . . . . . . . . .
MODEL CODE 86. . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL LINE-UP 86. . . . . . . . . . . . . . . . . . . . . . . . .
LAND CRUISER
OUTLINE OF NEW FEATURES 88. . . . . . . . . . . .
MODEL CODE 90. . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL LINE-UP 90. . . . . . . . . . . . . . . . . . . . . . . . .
NEW FEATURES
Engine91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Differential91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brakes
General92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Function92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Diagram93 . . . . . . . . . . . . . . . . . . . . . . . .
Layout of Components94 . . . . . . . . . . . . . . . . . . .
2
TABLE OF CONTENTS

Page 3 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 10
Function of Components95 . . . . . . . . . . . . . . . .
Construction and Operation of Main
Components96 . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation98 . . . . . . . . . . . . .

Page 4 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 4

Page 5 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 1

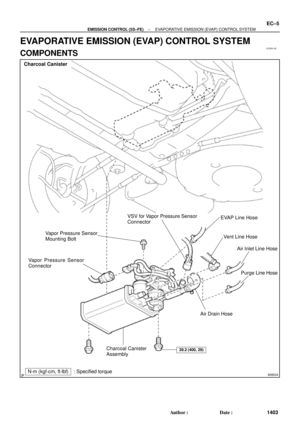

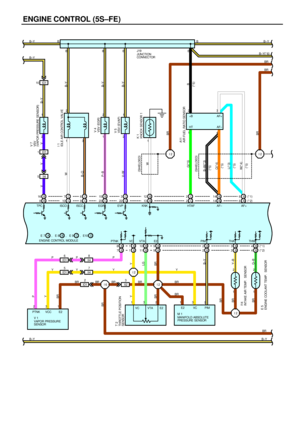

GENERAL 2000 FEATURES

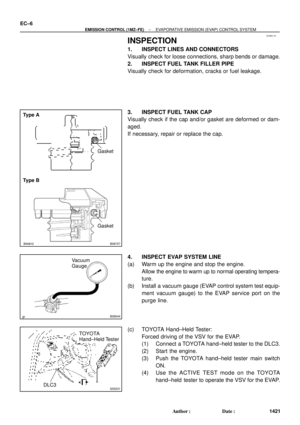

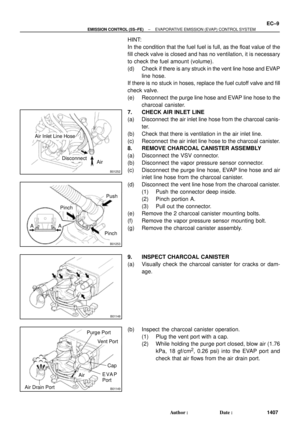

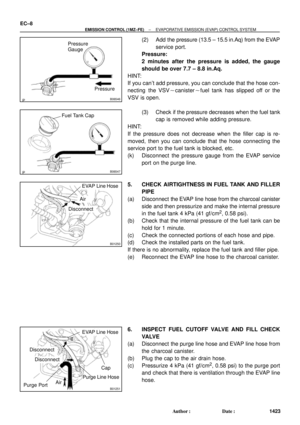

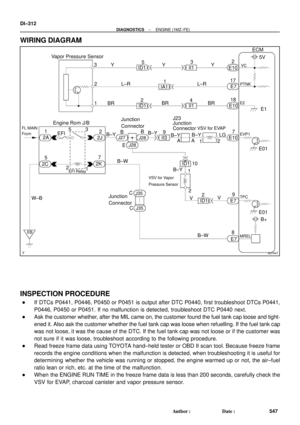

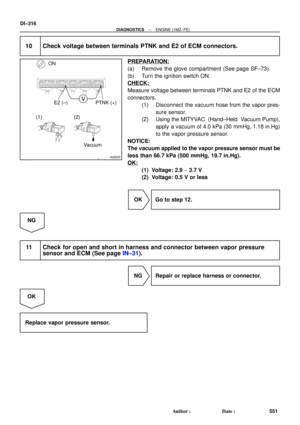

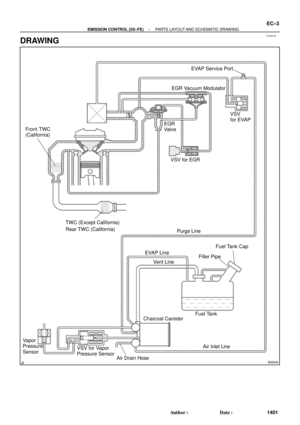

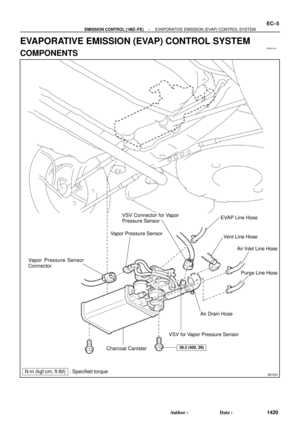

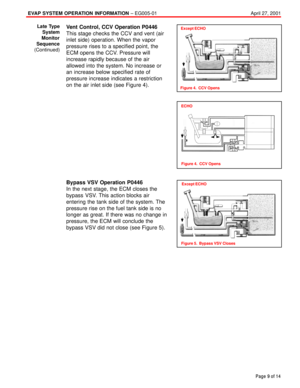

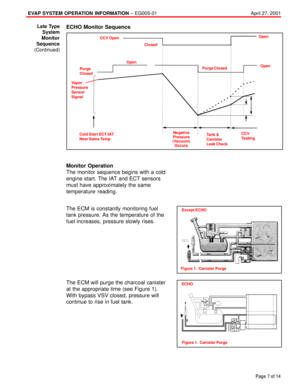

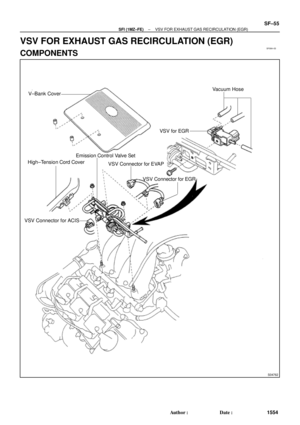

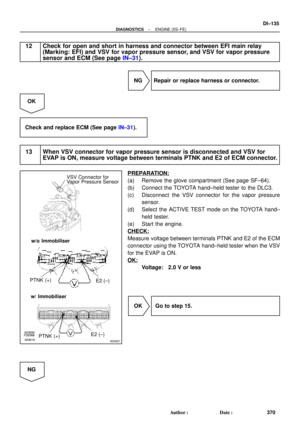

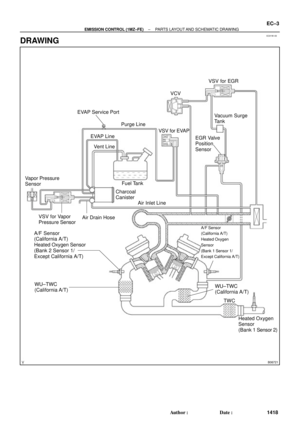

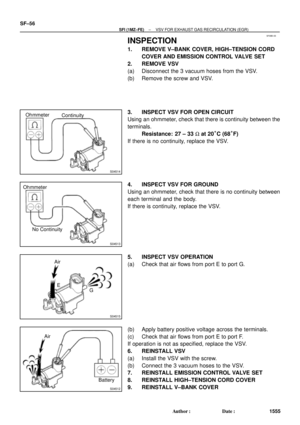

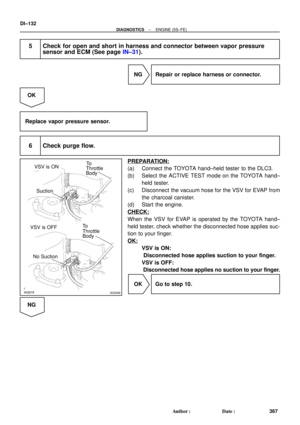

170EG08
VSV
(for Canister
Closed Valve)VSV
(for
EVAP)
Fuel Tank
Purge Line
Fresh Air LineVapor Pressure
SensorVSV
(for Pressure Switching Valve)
Chacoal Canister
Fresh Air Valv

Page 6 of 4770

TOYOTA CAMRY 2000 Service Repair Manual CAMRY
CAMRY ± OUTLINE OF NEW FEATURES 26
OUTLINE OF NEW FEATURES
The CAMRY is a high-quality family sedan with advanced technology and sporty performance. The following
changes are made for the 2000

CAMRY
CAMRY ± OUTLINE OF NEW FEATURES 26
OUTLINE OF NEW FEATURES
The CAMRY is a high-quality family sedan with advanced technology and sporty performance. The following
changes are made for the 2000 model year.
1. Model Line-Up
The 5S-FNE CNG (Compressed Natural Gas) engine model has been added.
2. Exterior
Four new exterior colors have been added, for a total of 10 colors.
The design of the front and rear bumpers has been changed.
The bumper and the radiator grille have been made separate, and the radiator grille is chrome-plated.

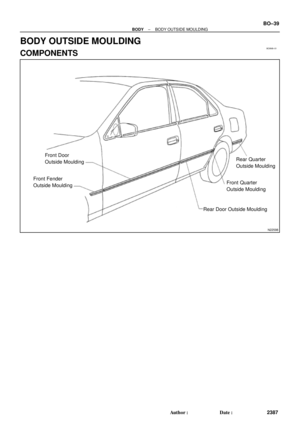

The side protection molding has been increased in size. On the XLE grade model, chrome stripes have been
adopted for the side protection molding.
The 4-light multi-reflector type headlights are adopted with new styling.
The design and styling of the rear combination light has been changed.
The 16º aluminum alloy wheel and wheel cap has been added.
The styling of the 15º full wheel cover has been changed.
3. Interior
Wood-grain panels have been adopted in the interior of the XLE grade model.
CRS tether anchor brackets have been provided on the package tray trim. (except 5S-FNE engine Model)
A clock with an outside temperature gauge has been provided on the models with manual air conditioning.

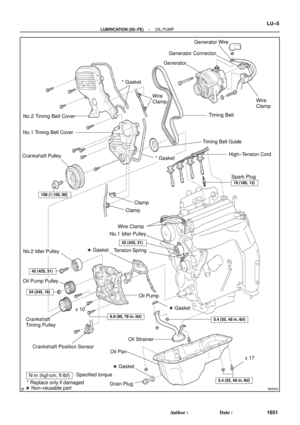

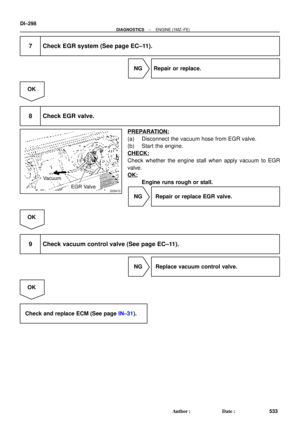

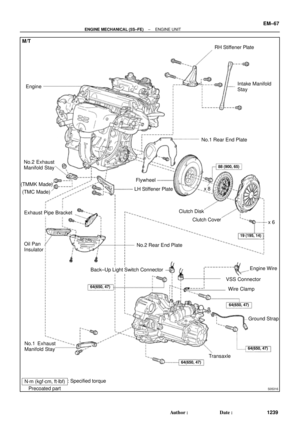

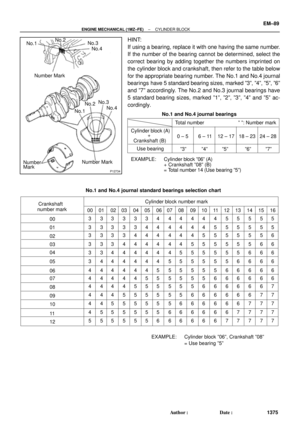

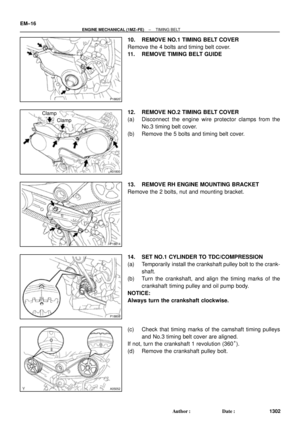

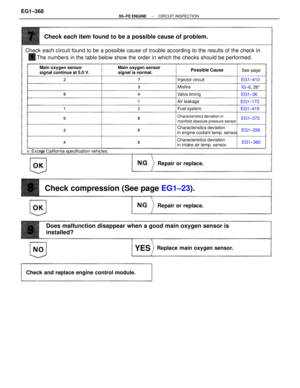

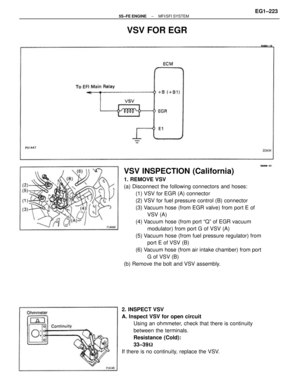

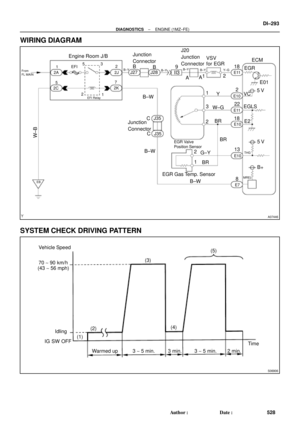

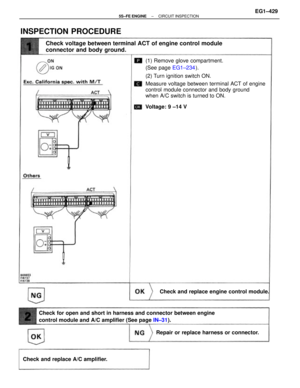

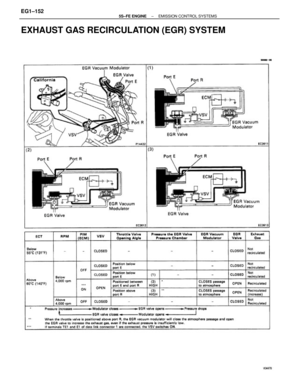

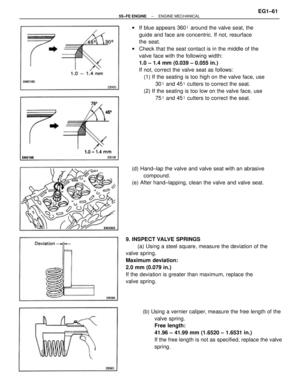

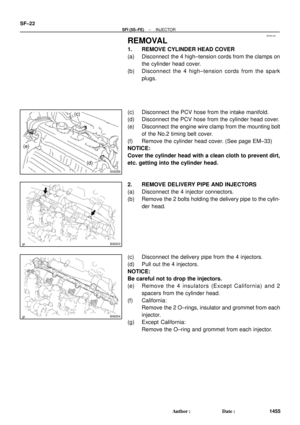

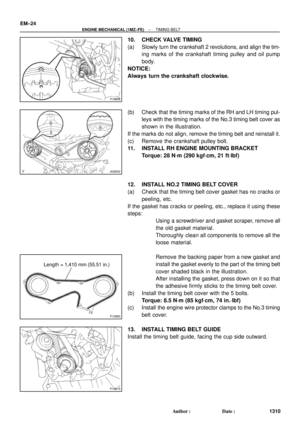

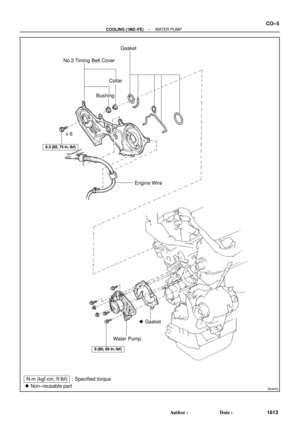

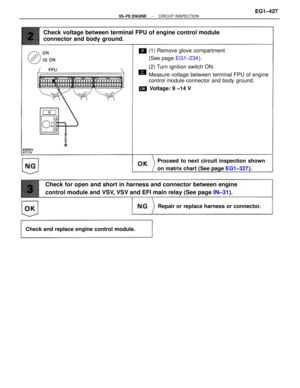

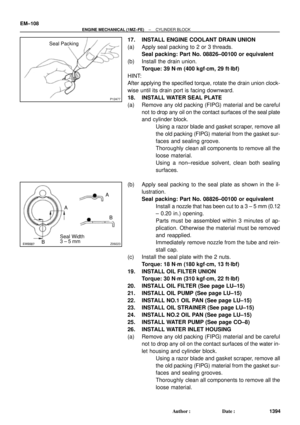

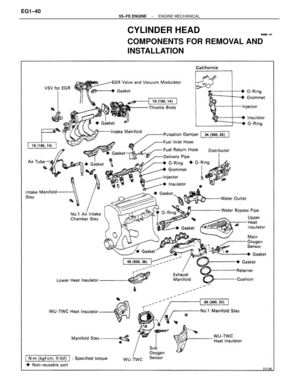

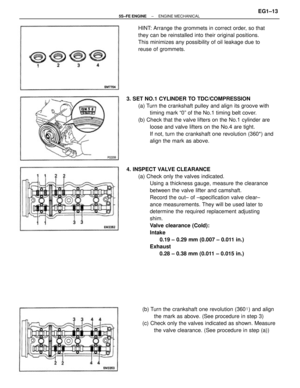

4. 5S-FE Engine

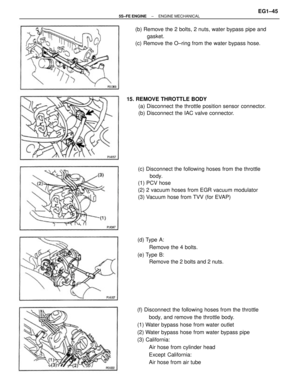

The intake system from the inlet duct to the throttle body has been improved to increase torque and reduce
noise.

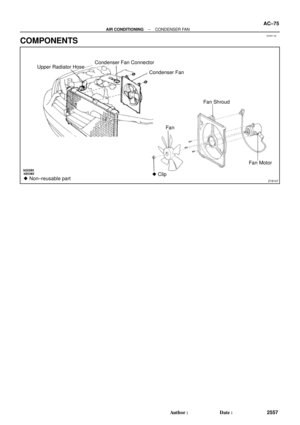

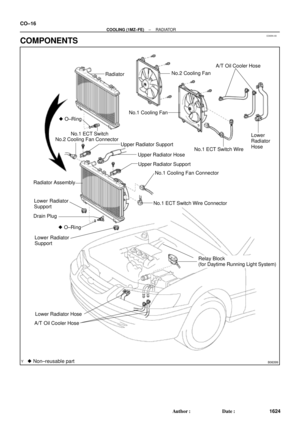

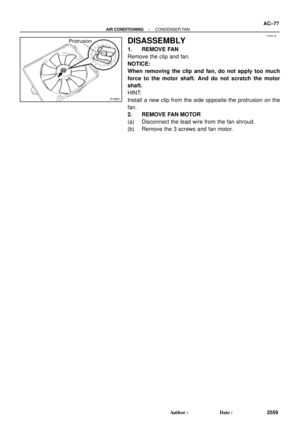

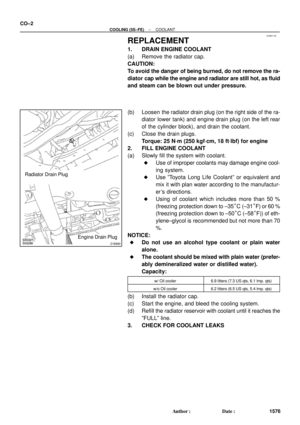

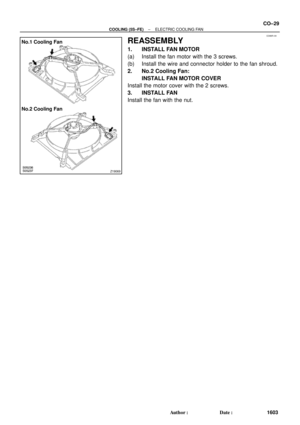

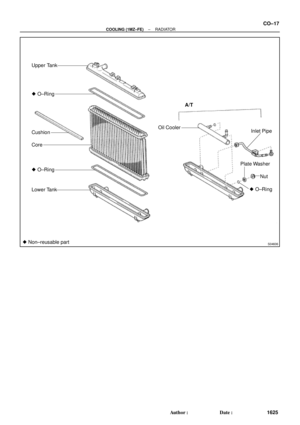

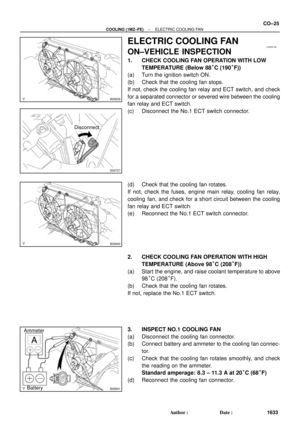

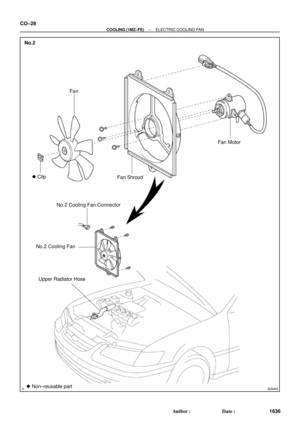

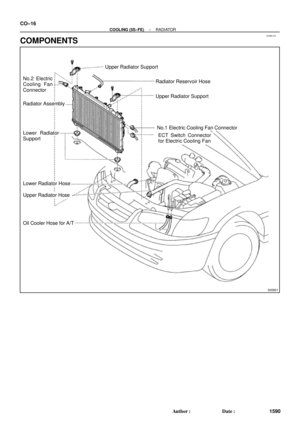

The direction of the rotation of the radiator cooling fan has been reversed.

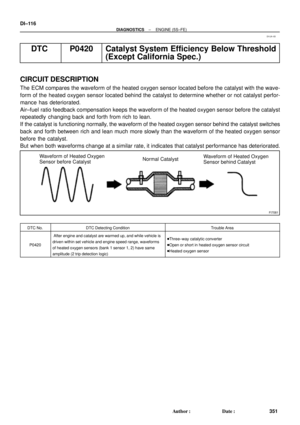

A 2-way exhaust control system has been adopted on the TMMK made model.

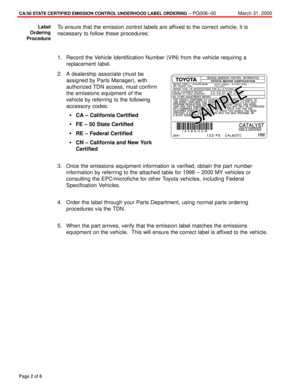

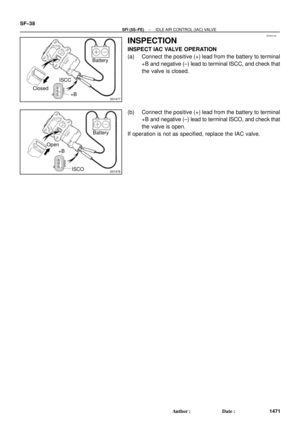

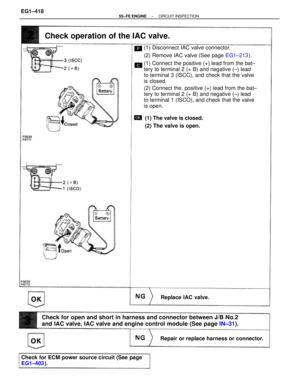

Along with the discontinuance of the air assist system, the fuel injectors and the IAC valve have been
changed for the California specification model, in order to meet ULEV (Ultra-Low Emission Vehicle) re-
quirement.
The system for detecting evaporative emission leaks has been changed. For details, see the General 2000
Features section.

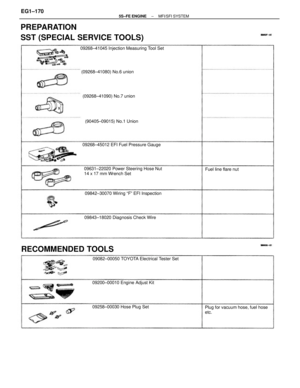

5. 5S-FNE Engine
Based on the 5S-FE gasoline engine, the 5S-FNE engine uses compressed natural gas. The fuel lines have
been designed exclusively for compressed natural gas application.

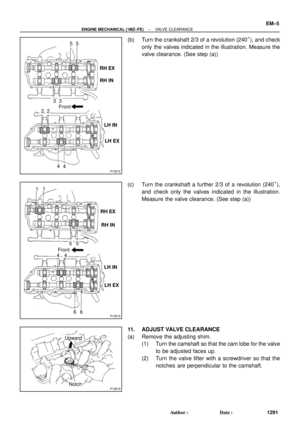

6. 1MZ-FE Engine
The system for detecting evaporative emission leaks has been changed. For details, see the General 2000
Features section.

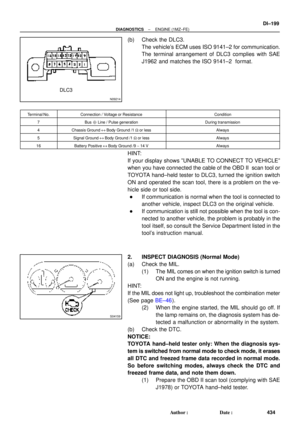

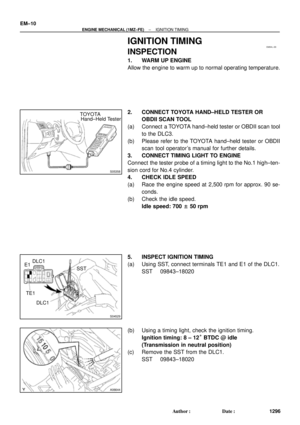

A diagnostic trouble code (DTC) has been added for indicating a thermostat malfunction.

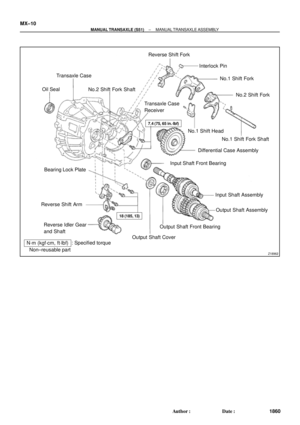

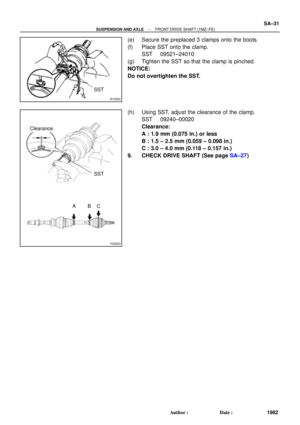

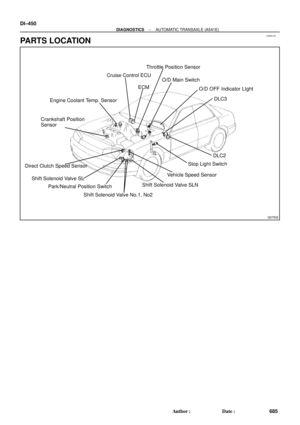

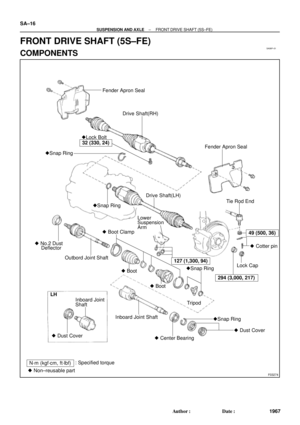

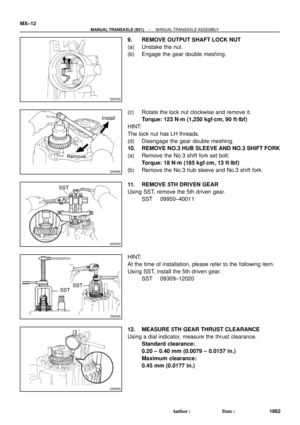

7. Automatic Transaxle

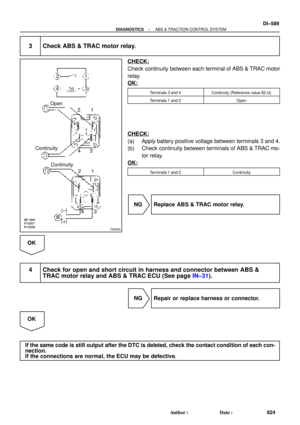

The overdrive switch has been changed to the momentary type. For details, see the General 2000 Features
section.
The differential gear ratio of the A140E automatic transaxle has been changed for the 5S-FNE engine mod-
el to accommodate the performance of the 5S-FNE engine.

Page 7 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 3
CAMRY ± OUTLINE OF NEW FEATURES27

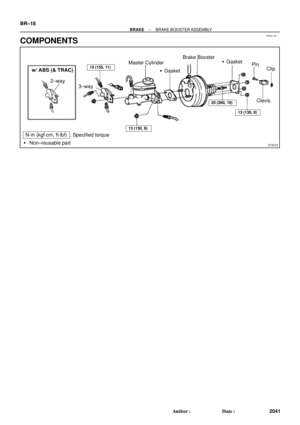

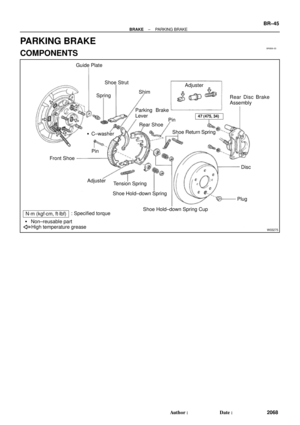

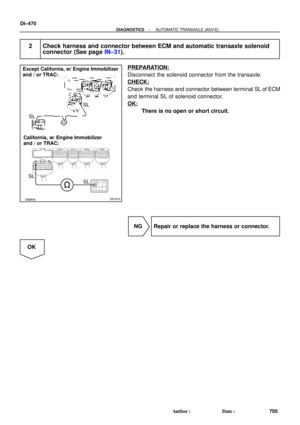

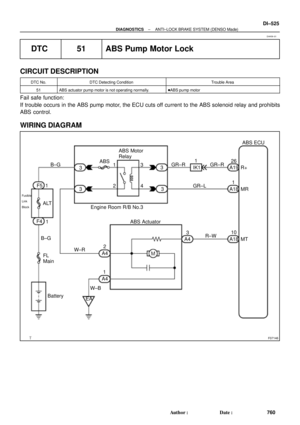

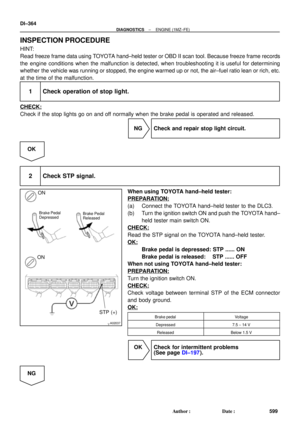

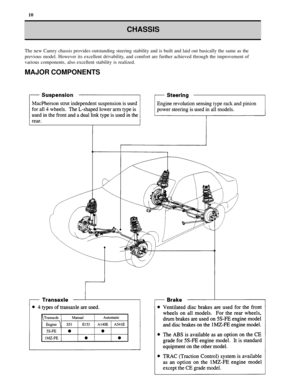

8. Brakes
The specifications of the front and rear brakes have been changed.

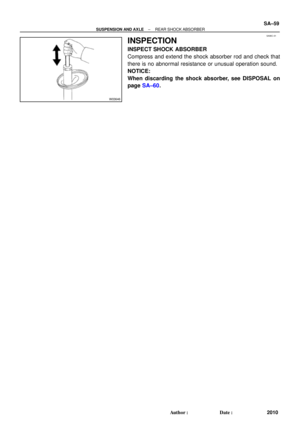

9. Suspension
The front and rear springs, stabilizers, and shock absorbers have been m

3
CAMRY ± OUTLINE OF NEW FEATURES27

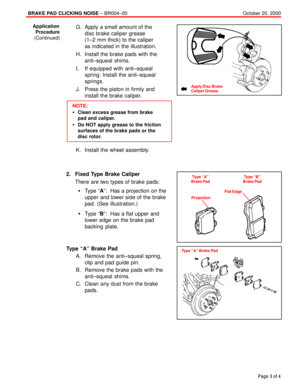

8. Brakes
The specifications of the front and rear brakes have been changed.

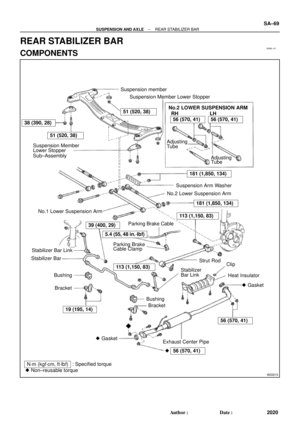

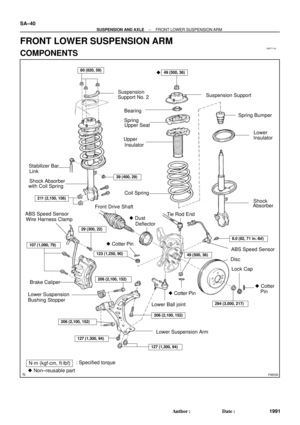

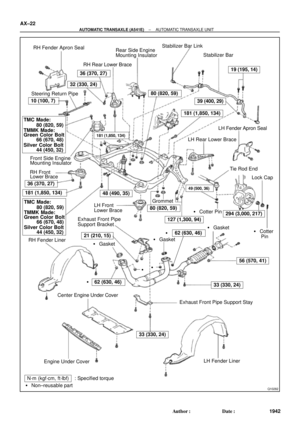

9. Suspension
The front and rear springs, stabilizers, and shock absorbers have been modified to realize excellent stability,
controllability, and riding comfort.

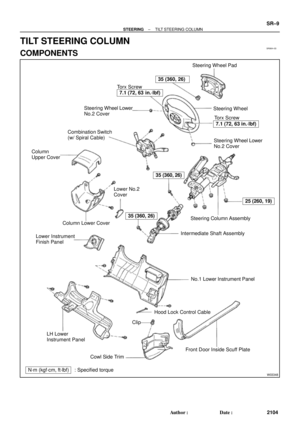

10. Steering
A check valve has been added to the power steering gear box to help reduce kickback.
The rack stroke of the 5S-FE engine model has been changed to 145mm (5.71 in.), which is the same as
in the 1MZ-FE engine.

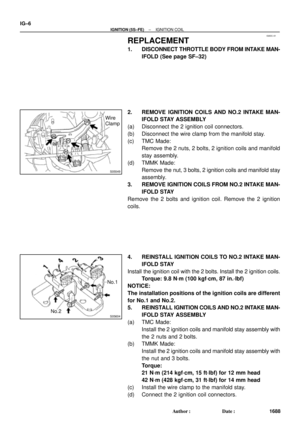

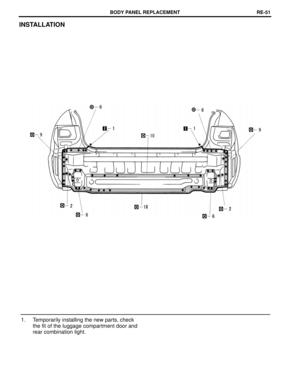

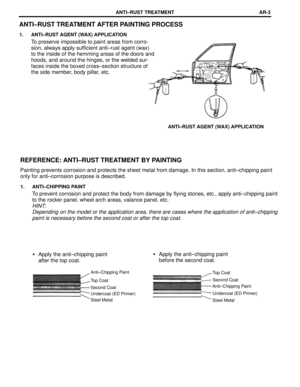

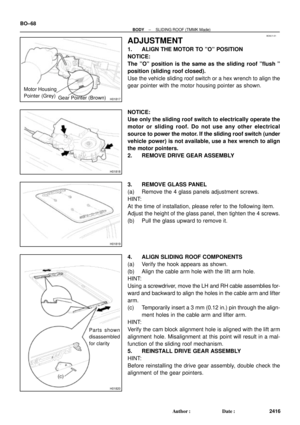

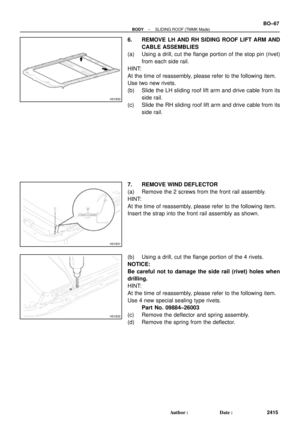

11. Body
Hood support dampers are used.
Two utility hooks added in the luggage room for the gasoline engine model.
To install the fuel tank in the front area of the luggage compartment, the upper back panel has been cut
out for the 5S-FNE engine model.
A performance rod that joins the tops of the right and left rear suspension strut towers has been adopted
for the 5S-FNE engine model.
The shape of the rear floor pan has been changed to prevent the luggage compartment capacity from being
reduced as a result of the installation of the fuel tank in the luggage compartment for the 5S-FNE engine
model.

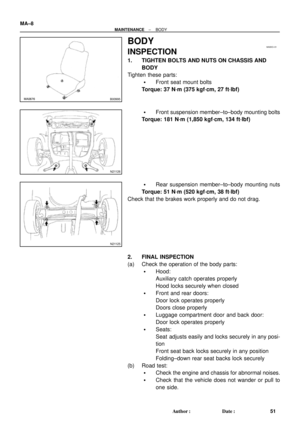

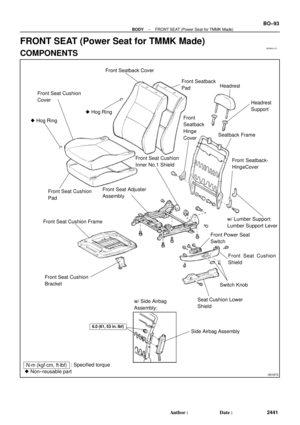

12. Seat
The seat cover of the LE grade model has been changed.

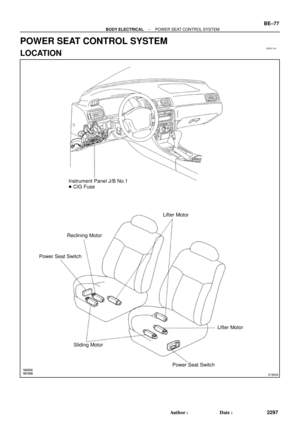

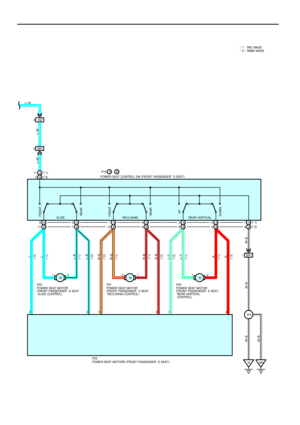

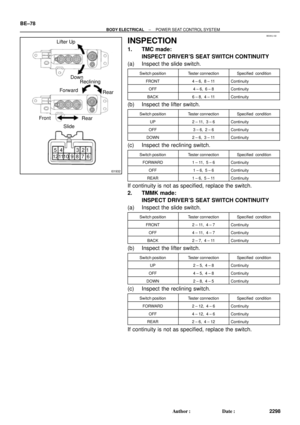

Optional driver power seat added for the LE grade model.
A fixed type seat back is used for the rear seat for the 5S-FNE engine model.

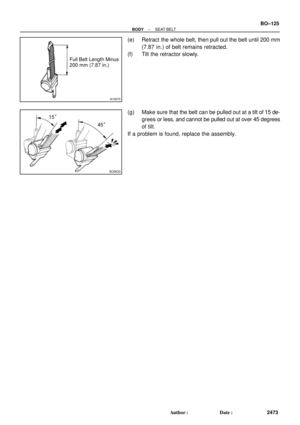

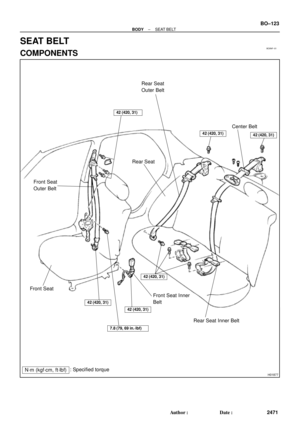

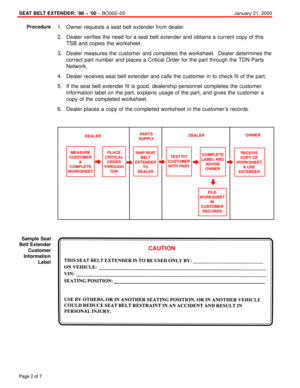

13. Seat Belt
2-point NR (Non-Retractor) seat belt is used for the rear center seat for the 5S-FNE engine model.

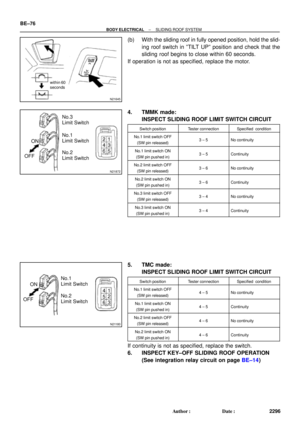

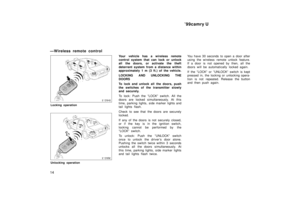

14. Wireless Door Lock Control
Audio answer back is adopted.

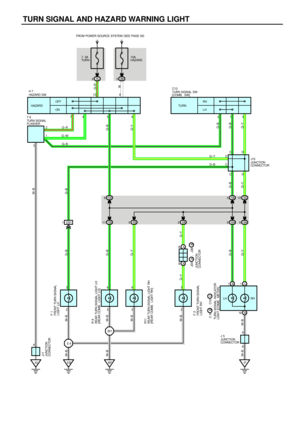

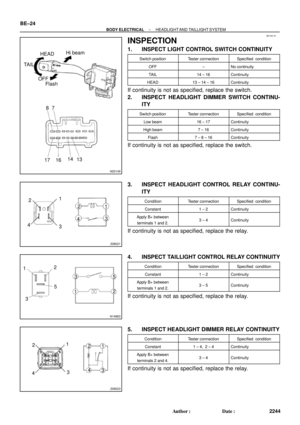

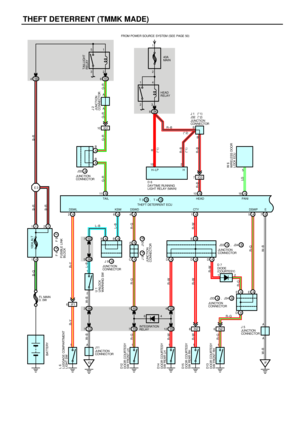

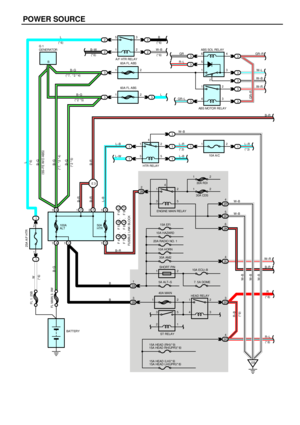

15. Lighting
Along with the adoption of the 4-beam headlights, the electrical circuit of the daytime running light system
has been changed.

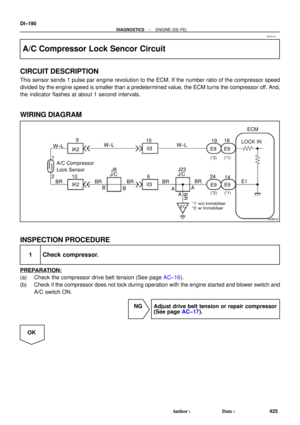

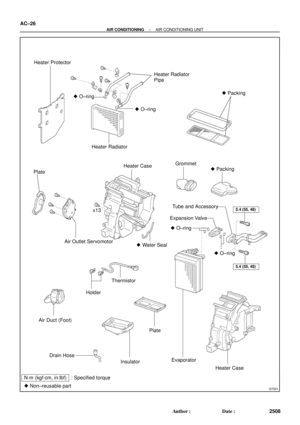

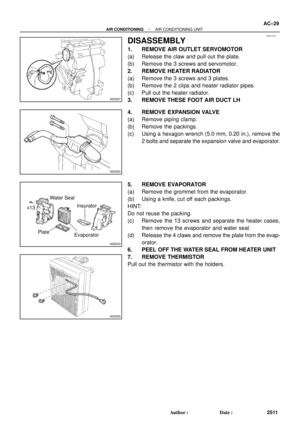

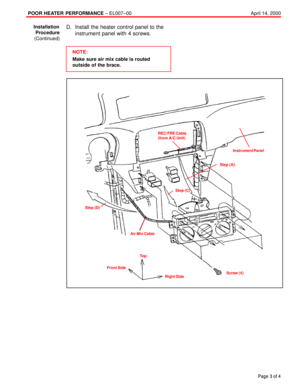

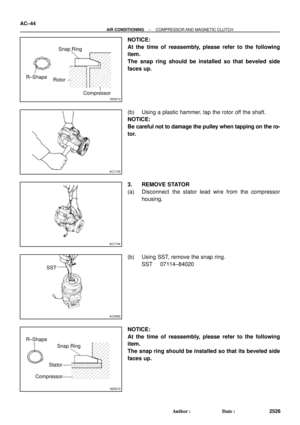

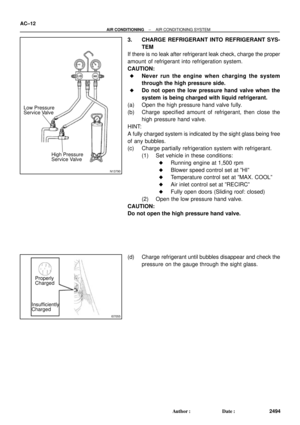

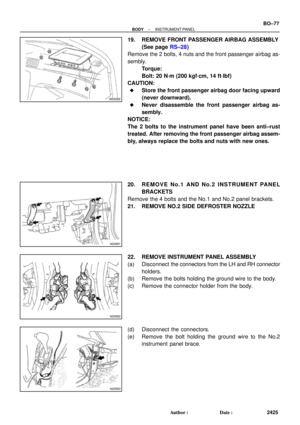

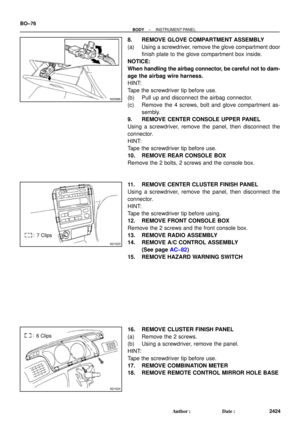

16. Air Conditioning
The air inlet mode selector of heater control panel has been changed from the lever type to the push button
type on the CE and LE grade model.
When the air outlet mode is set to the DEF or FOOT / DEF mode, the air inlet mode also changes to the
FRESH mode, has been also added on the CE and LE grade model.

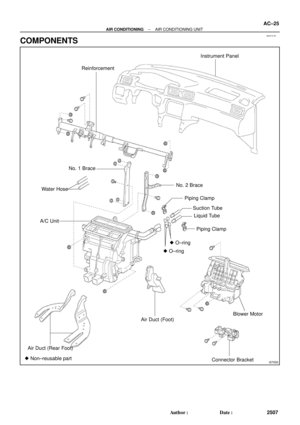

A fully automatic controlled type air conditioning is used on the XLE grade model.
A defroster-linked air conditioning start up control has been continuing to use since the previous models
with air conditioning.

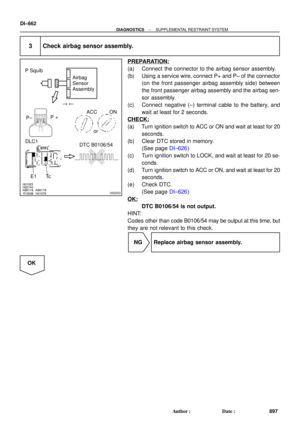

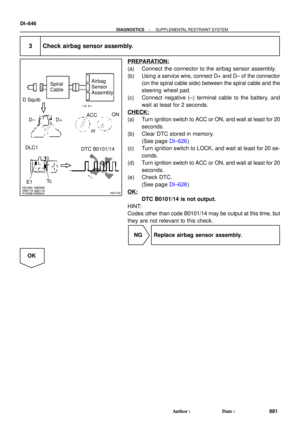

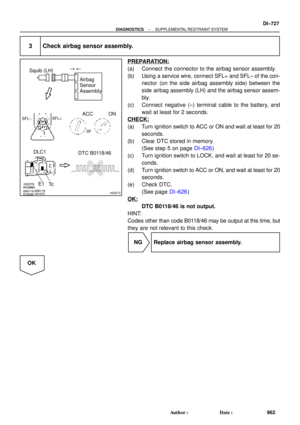

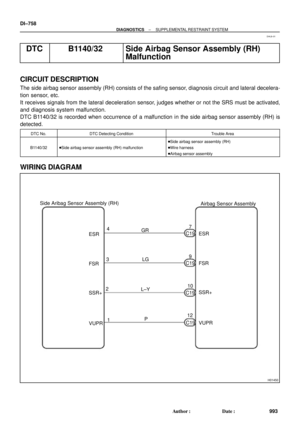

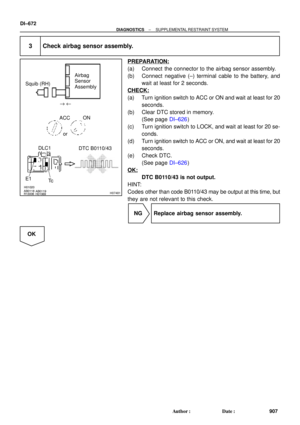

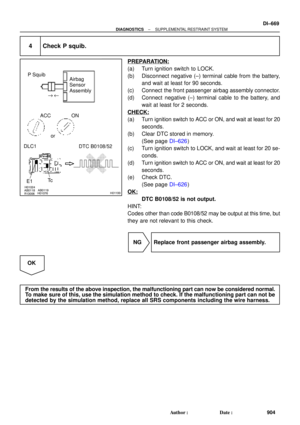

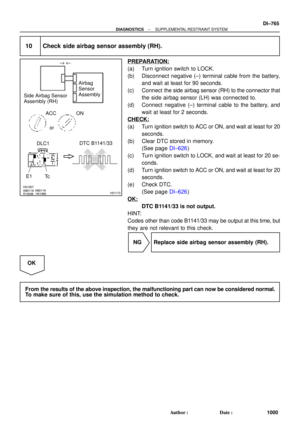

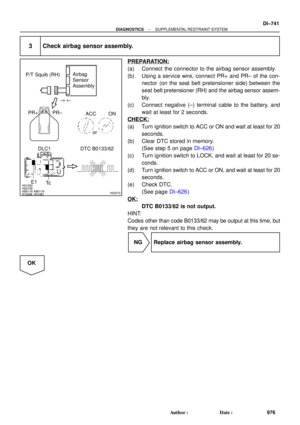

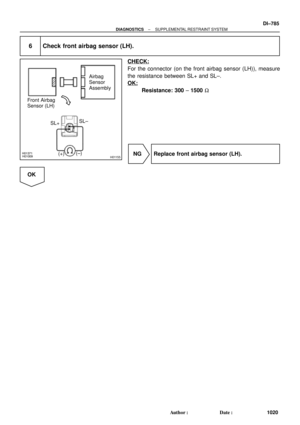

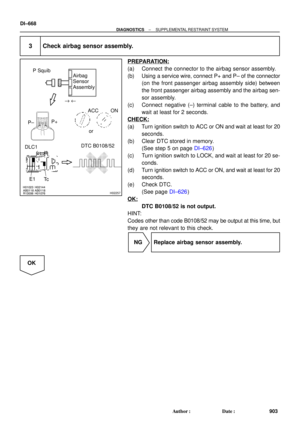

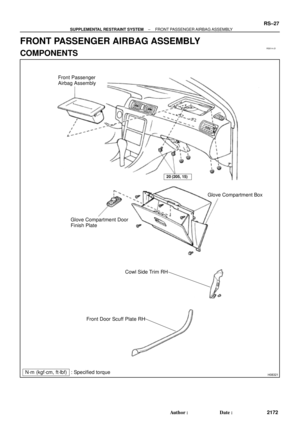

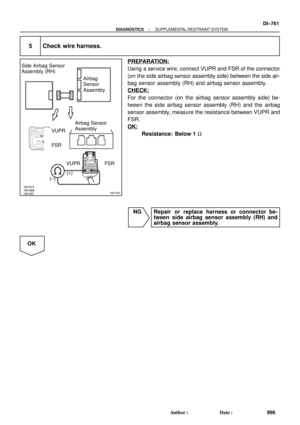

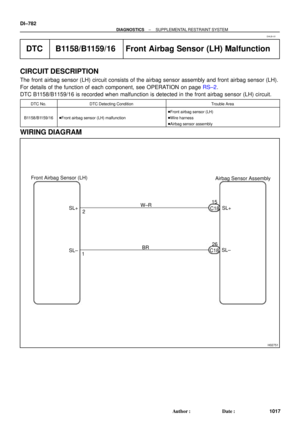

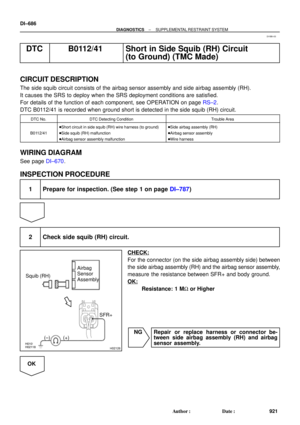

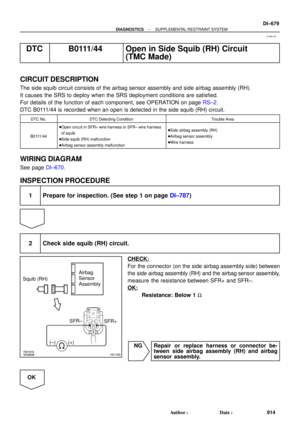

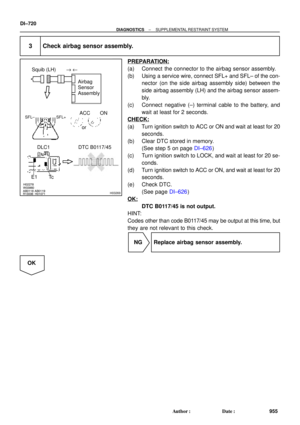

17. SRS Airbag
The inflator of the SRS airbag for the driver has been made more compact and lightweight.

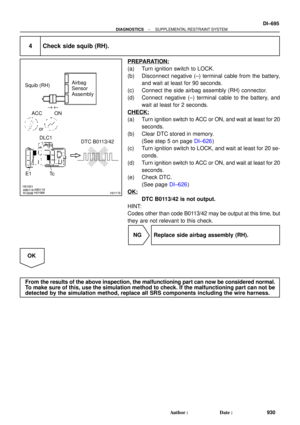

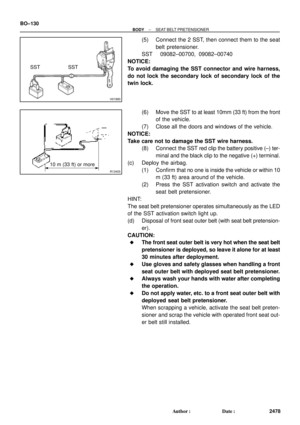

A signal that causes the supply of fuel to be cut off during a frontal collision is output by the airbag sensor
assembly to the ECM for the 5S-FNE engine model.

Page 8 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 172CM01
28

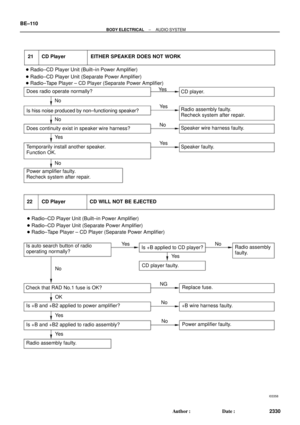

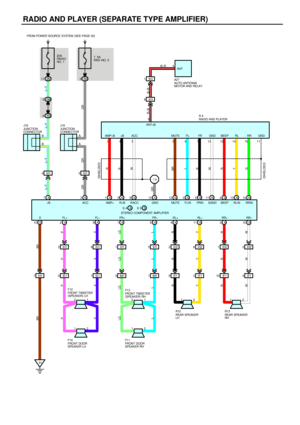

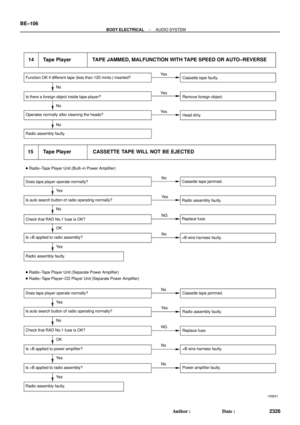

18. Audio
An integrated, 2DIN size radio, cassette, and CD player unit is provided on the CE and LE grade models.
An integrated, 2DIN size radio, cassette, and CD changer unit and JBL spe
