Page 2201 of 4770

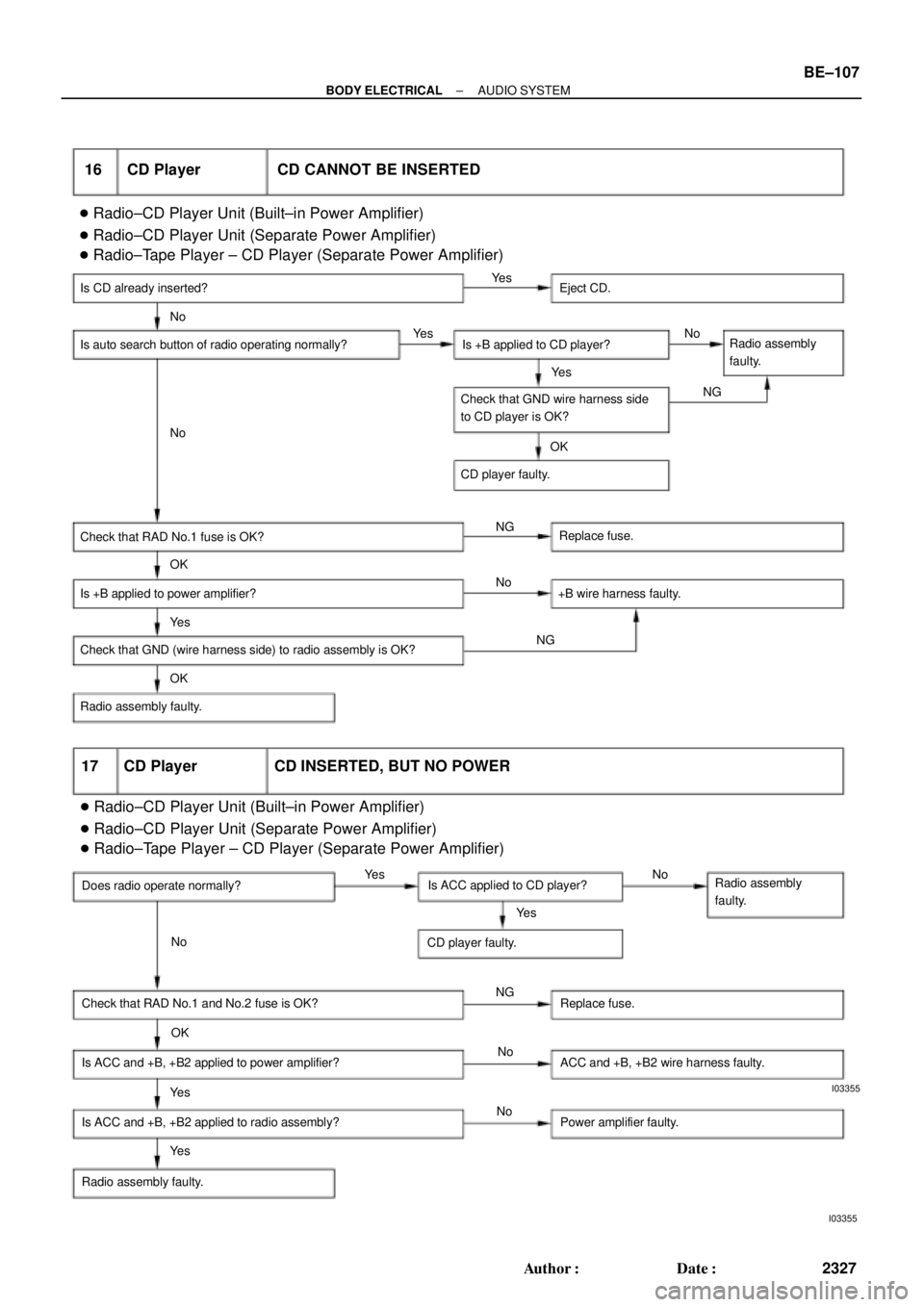

TOYOTA CAMRY 2000 Service Repair Manual I03355I03355 16 CD Player CD CANNOT BE INSERTED Is CD already inserted? Eject CD. Is auto search button of radio operating normally? Is +B applied to CD player?Radio assembly faulty. Check that GND wi

Page 2202 of 4770

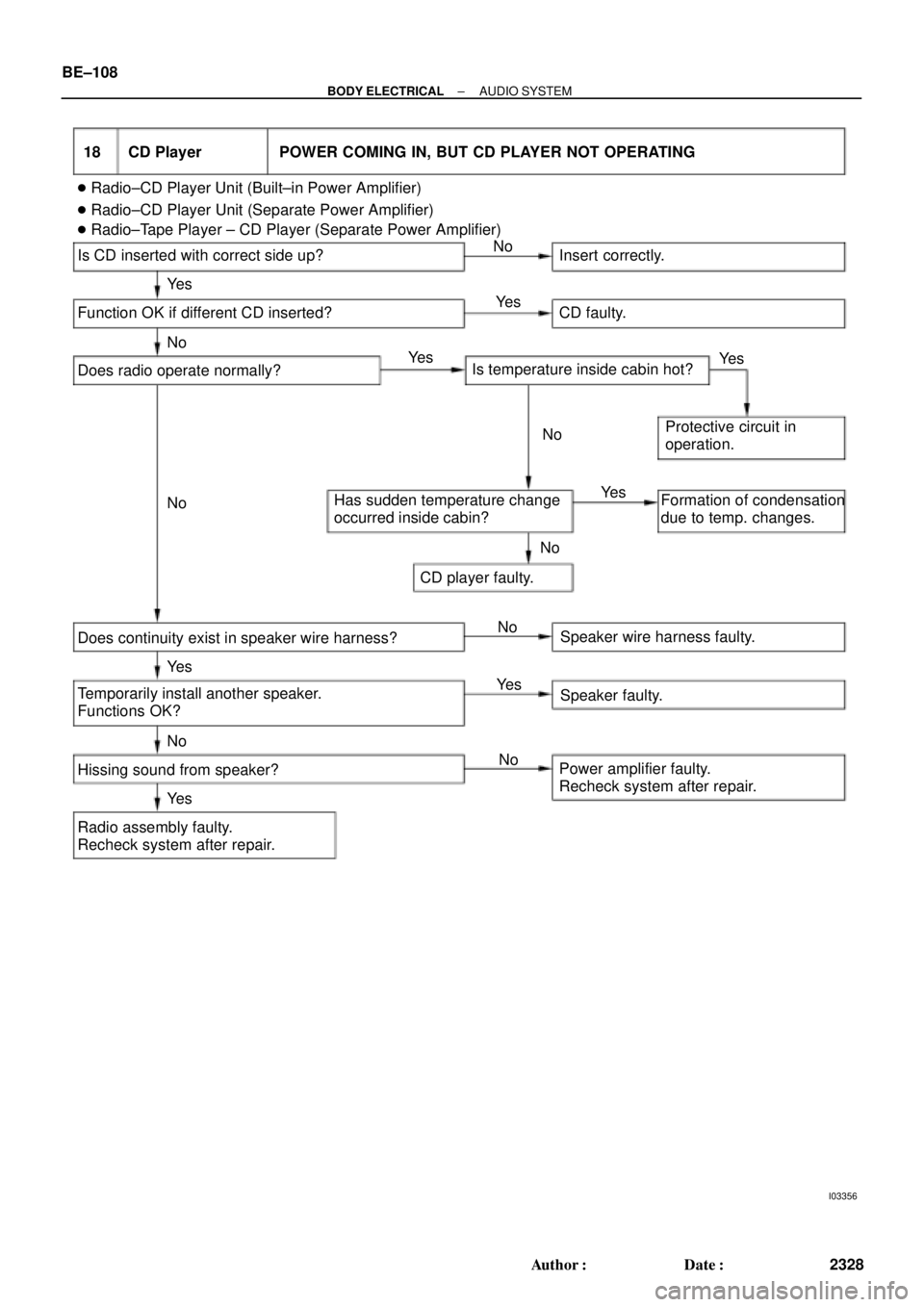

TOYOTA CAMRY 2000 Service Repair Manual I03356 18 CD Player POWER COMING IN, BUT CD PLAYER NOT OPERATING Is CD inserted with correct side up? Function OK if different CD inserted? Does radio operate normally?Insert correctly. CD faulty. Is

Page 2203 of 4770

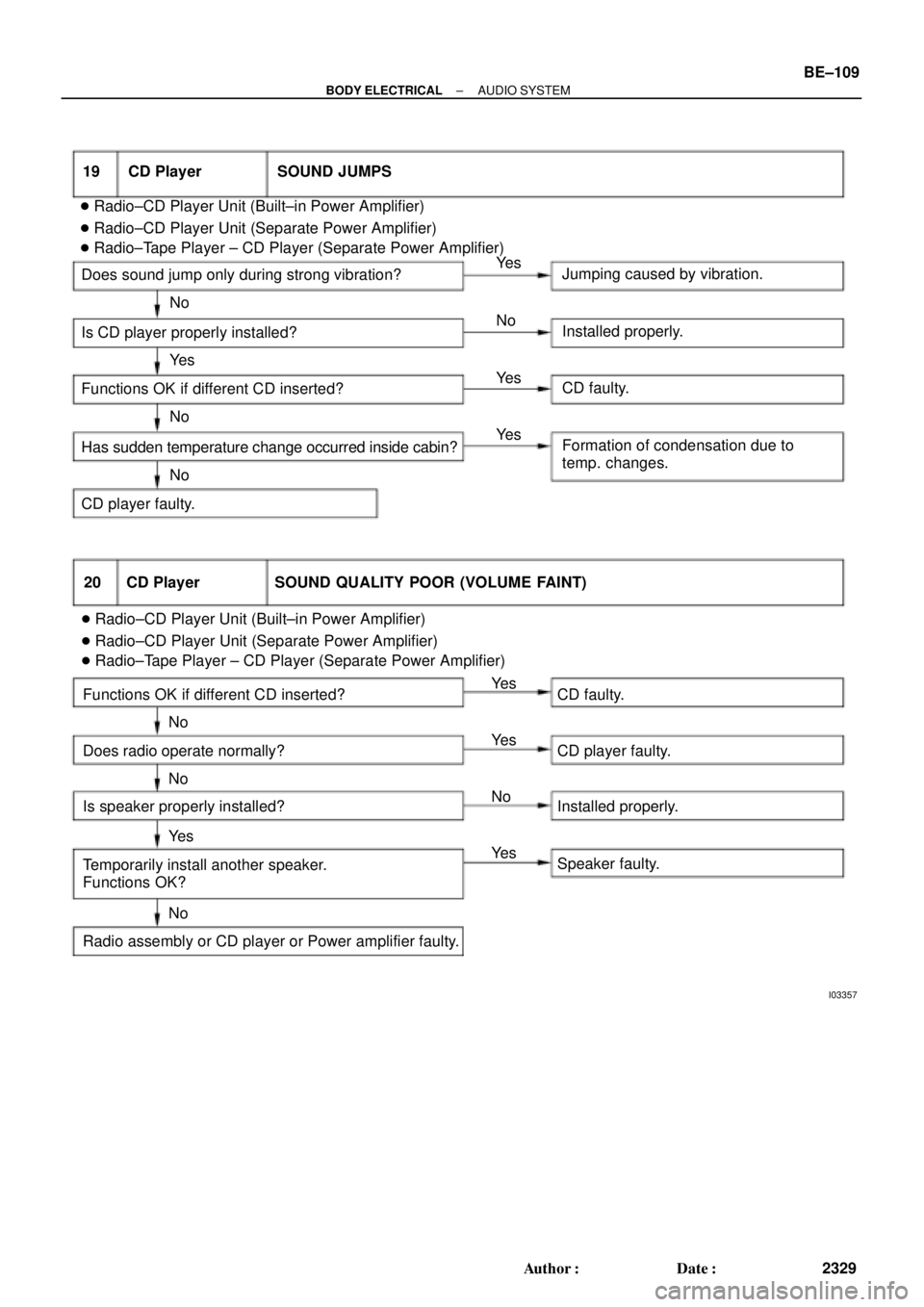

TOYOTA CAMRY 2000 Service Repair Manual I03357 19 CD Player SOUND JUMPS Jumping caused by vibration. Installed properly. CD faulty. Formation of condensation due to temp. changes. No No No NoYe s Ye s Ye s Ye s Does sound jump only during s

Page 2204 of 4770

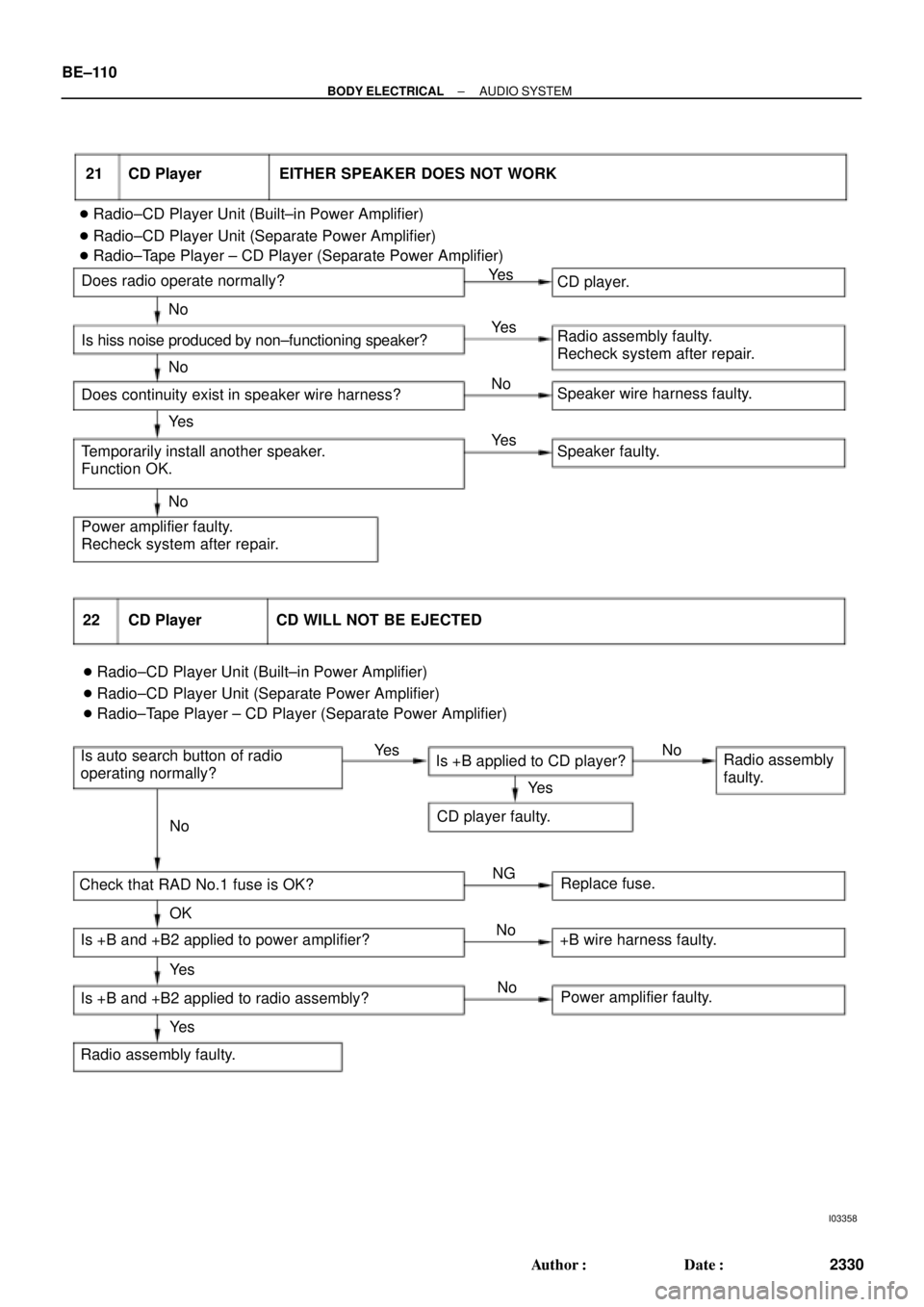

TOYOTA CAMRY 2000 Service Repair Manual I03358 Does radio operate normally? Is hiss noise produced by non±functioning speaker? Does continuity exist in speaker wire harness? Temporarily install another speaker. Function OK. Power amplifier

Page 2205 of 4770

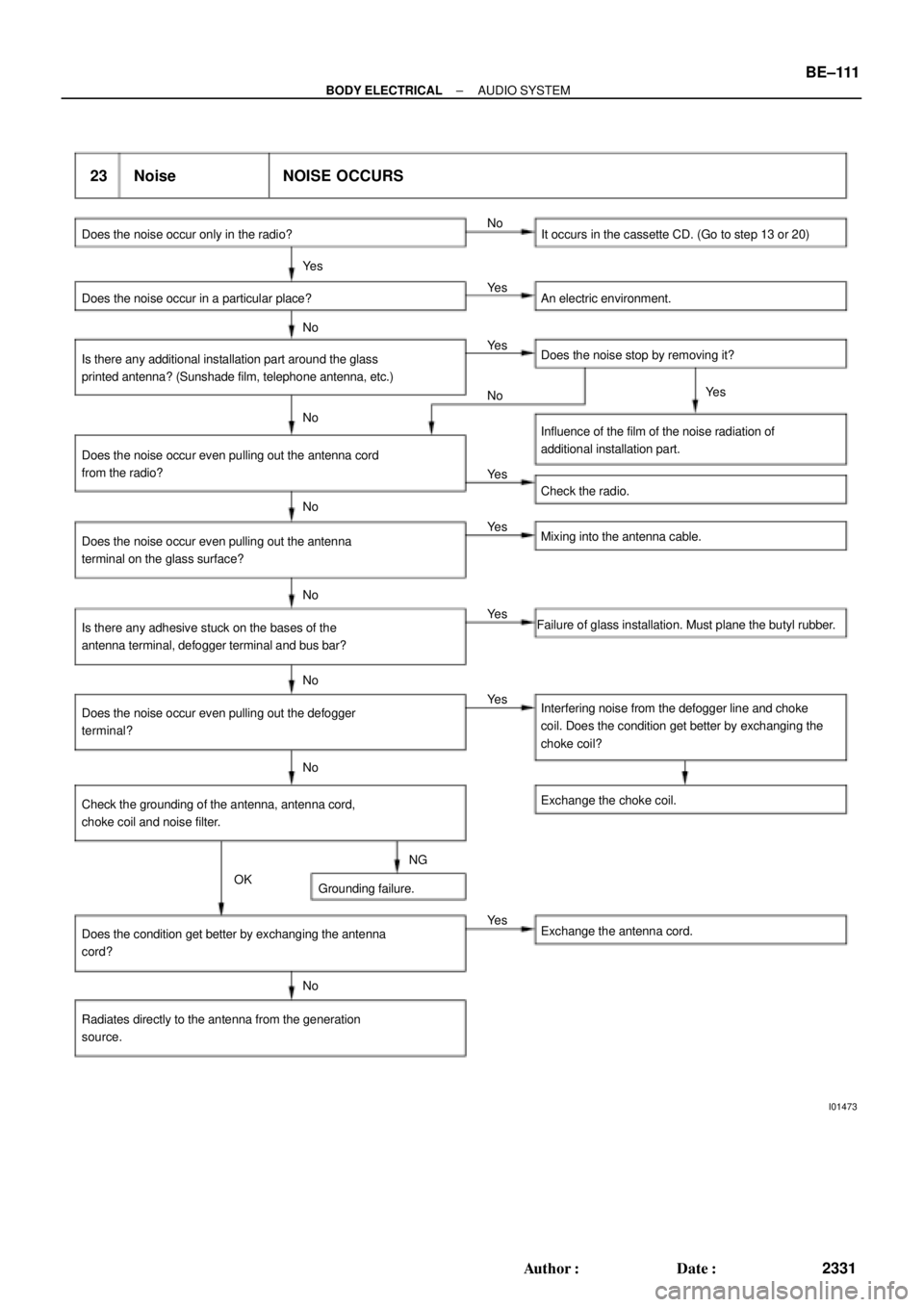

TOYOTA CAMRY 2000 Service Repair Manual I01473 23 Noise NOISE OCCURS Does the noise occur only in the radio? It occurs in the cassette CD. (Go to step 13 or 20) Does the noise occur in a particular place? An electric environment.No Ye s Ye

Page 2206 of 4770

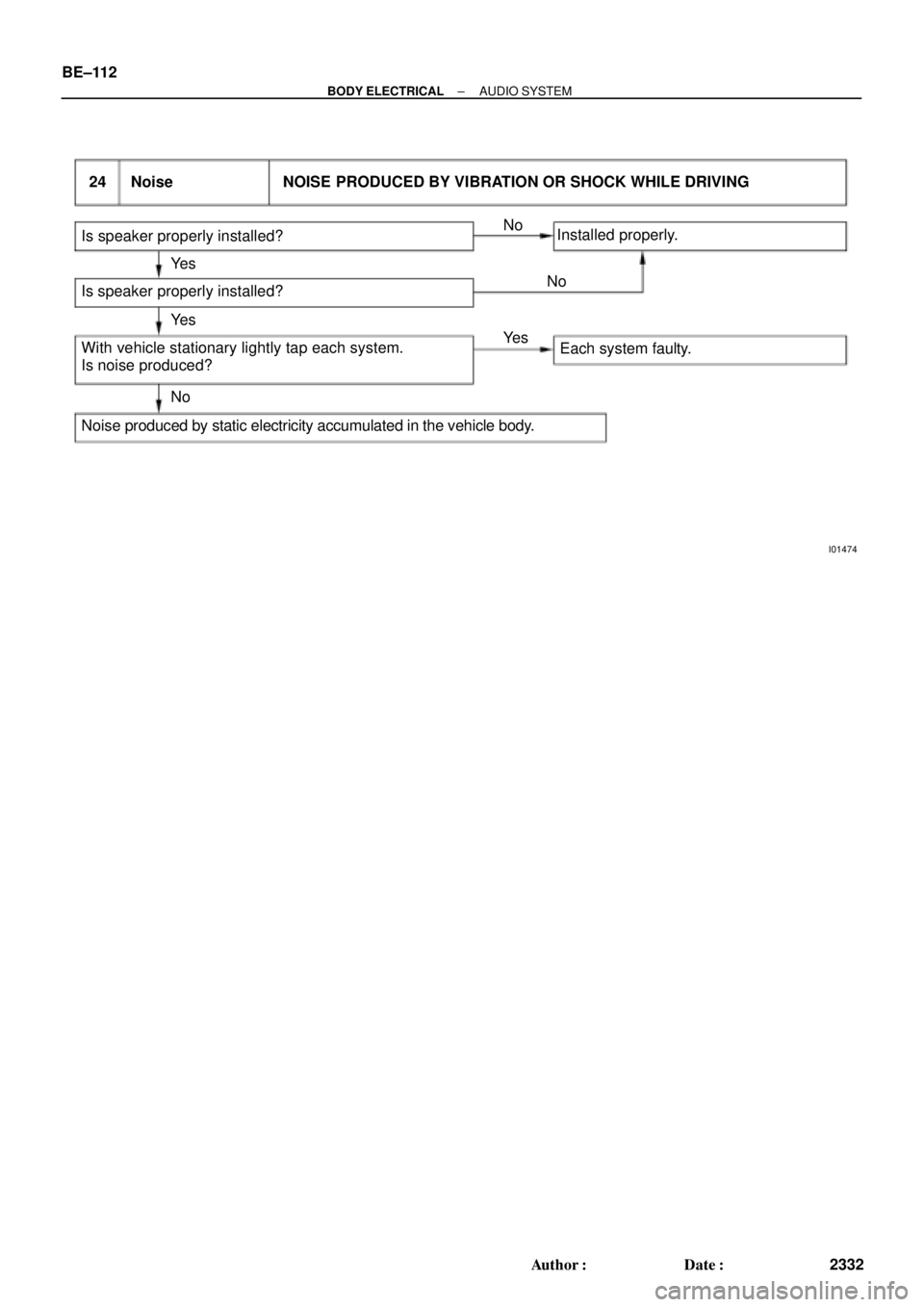

TOYOTA CAMRY 2000 Service Repair Manual I01474 24 Noise NOISE PRODUCED BY VIBRATION OR SHOCK WHILE DRIVING Is speaker properly installed? Is speaker properly installed? With vehicle stationary lightly tap each system. Is noise produced? Noi

Page 2207 of 4770

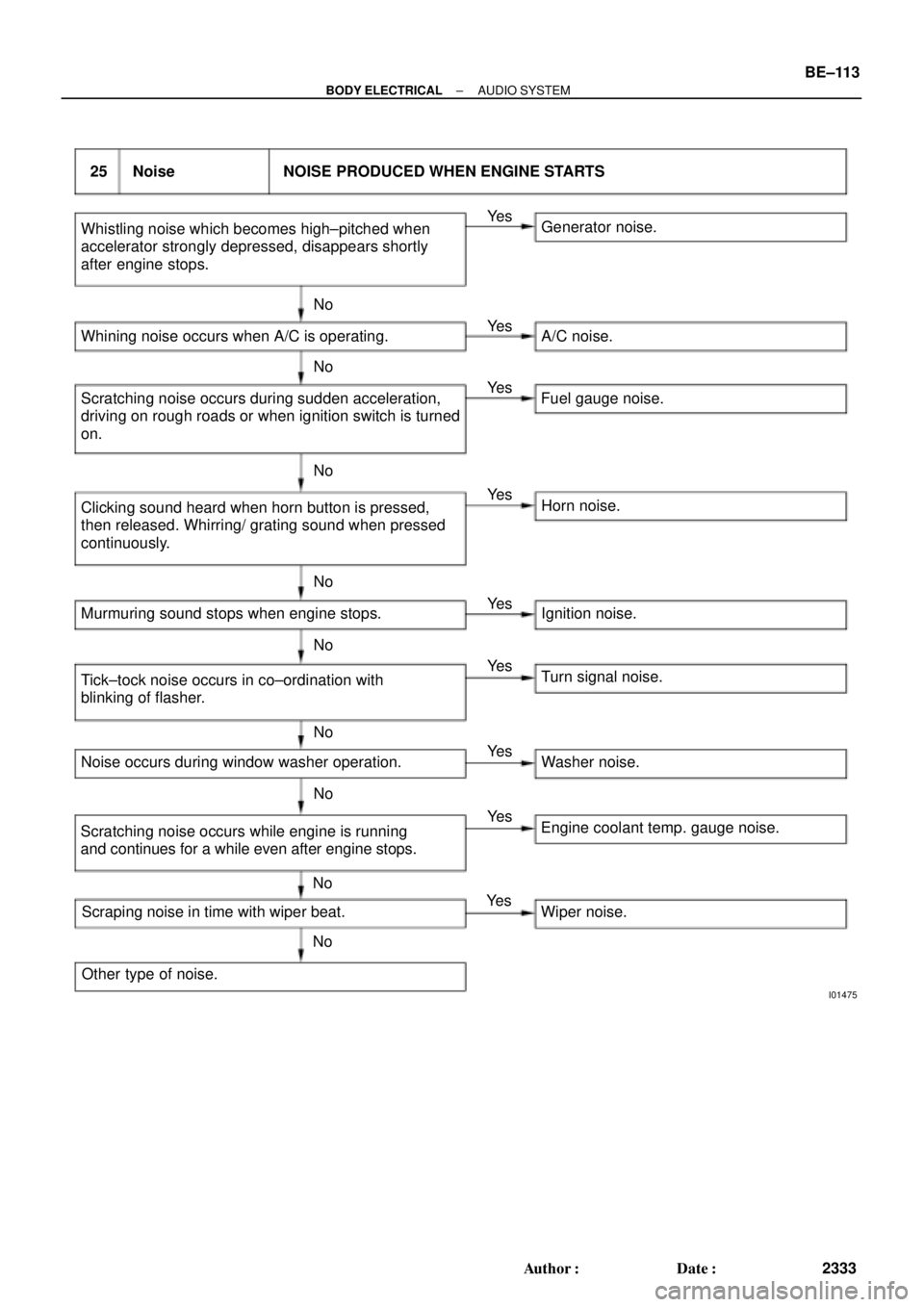

TOYOTA CAMRY 2000 Service Repair Manual I01475 25 Noise NOISE PRODUCED WHEN ENGINE STARTS Whistling noise which becomes high±pitched when accelerator strongly depressed, disappears shortly after engine stops.Generator noise. Whining noise

Page 2208 of 4770

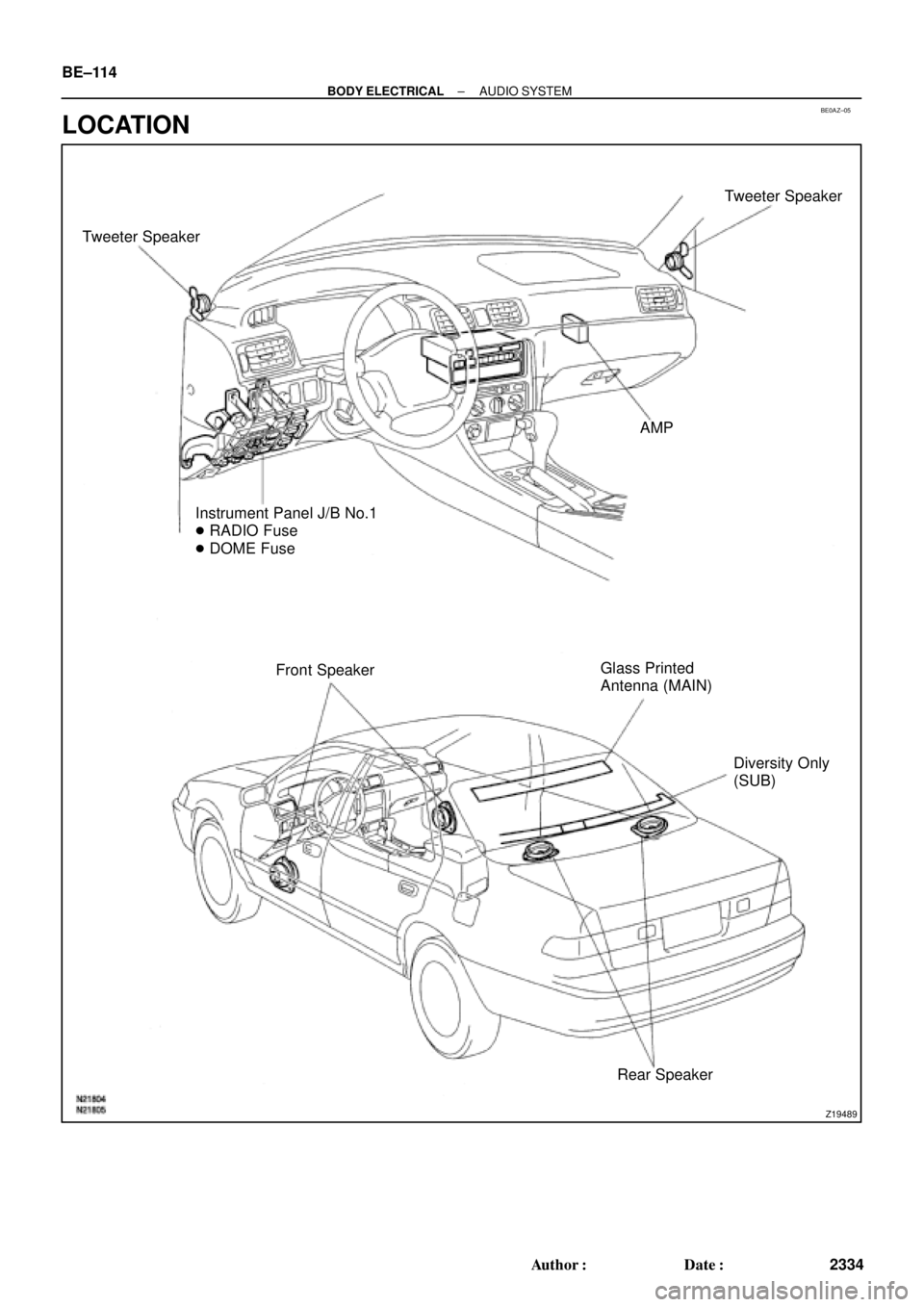

TOYOTA CAMRY 2000 Service Repair Manual BE0AZ±05 Z19489 Tweeter SpeakerTweeter Speaker AMP Instrument Panel J/B No.1  RADIO Fuse  DOME Fuse Front SpeakerGlass Printed Antenna (MAIN) Diversity Only (SUB) Rear Speaker BE±114 ± BODY ELECT
