Page 73 of 4770

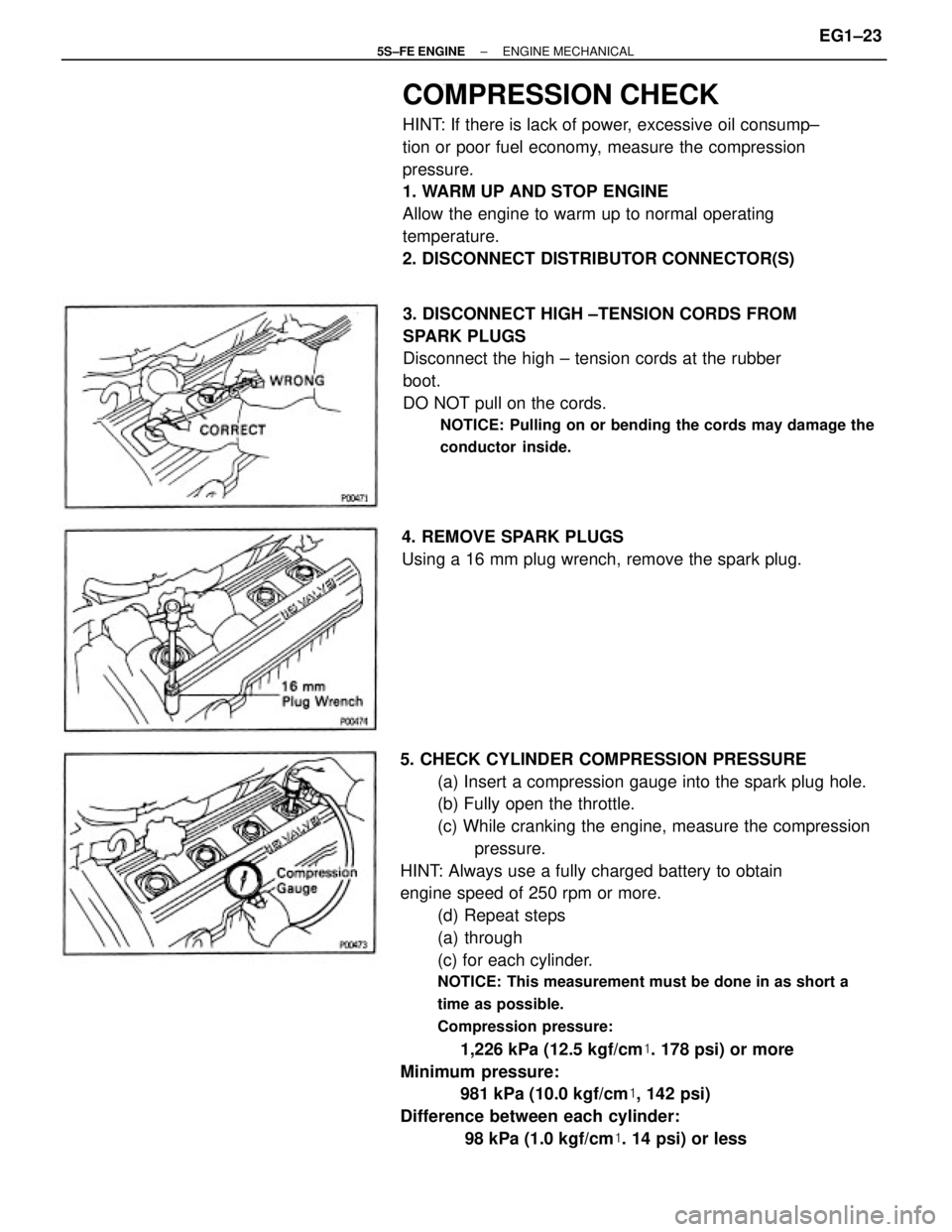

TOYOTA CAMRY 2000 Service Repair Manual 5. CHECK CYLINDER COMPRESSION PRESSURE (a) Insert a compression gauge into the spark plug hole. (b) Fully open the throttle. (c) While cranking the engine, measure the compression pressure. HINT: Alwa

Page 74 of 4770

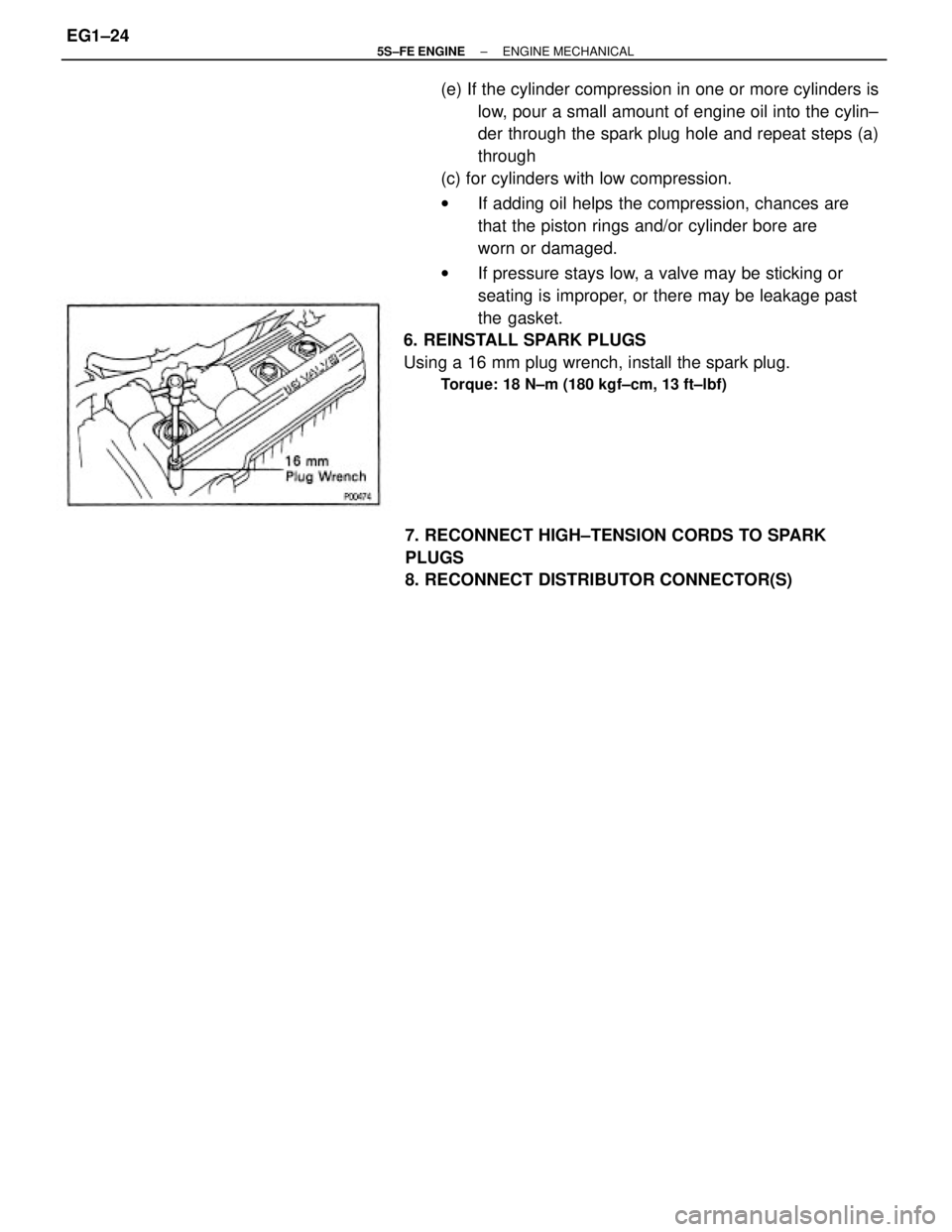

TOYOTA CAMRY 2000 Service Repair Manual (e) If the cylinder compression in one or more cylinders is low, pour a small amount of engine oil into the cylin± der through the spark plug hole and repeat steps (a) through (c) for cylinders with

Page 75 of 4770

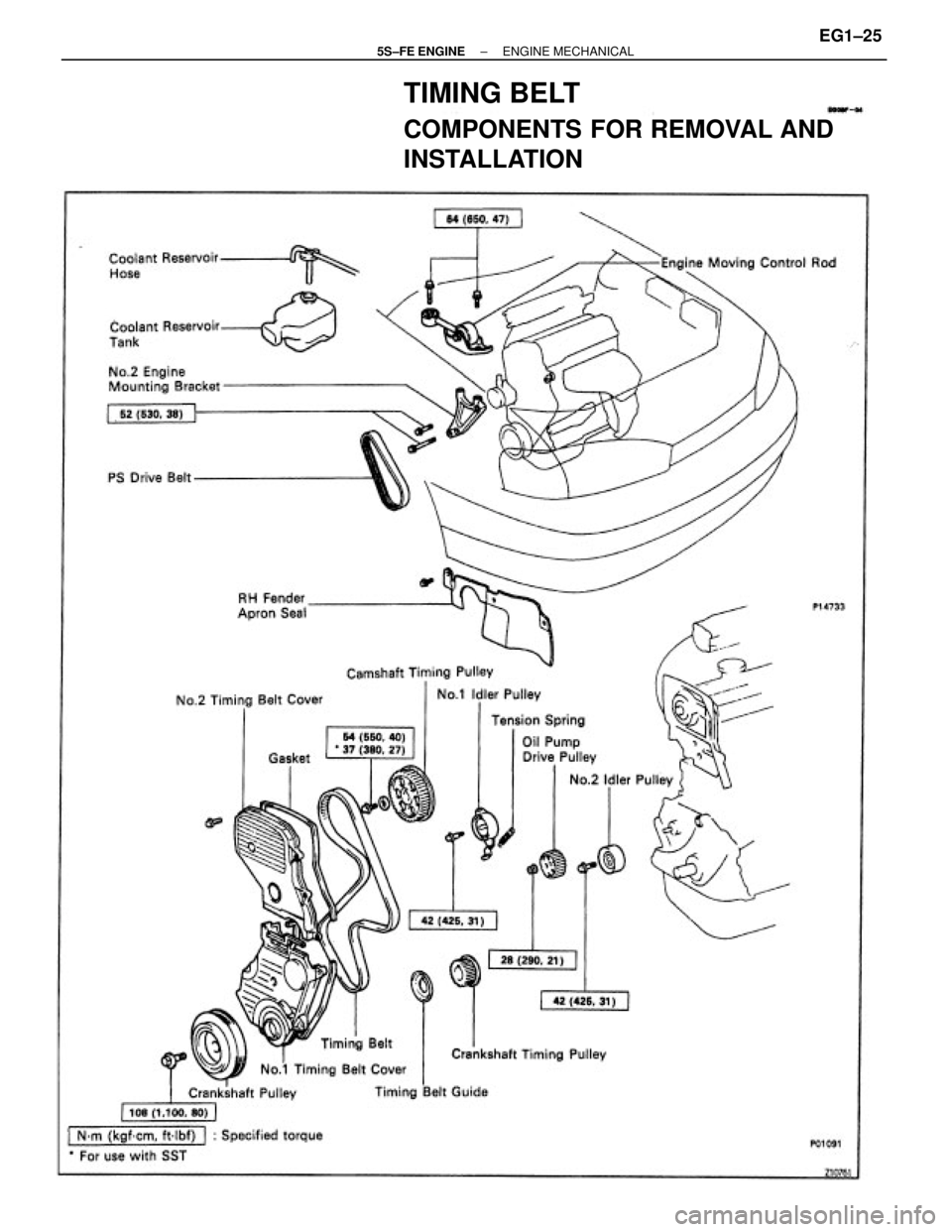

TOYOTA CAMRY 2000 Service Repair Manual TIMING BELT COMPONENTS FOR REMOVAL AND INSTALLATION ± 5S±FE ENGINEENGINE MECHANICALEG1±25

Page 76 of 4770

TOYOTA CAMRY 2000 Service Repair Manual TIMING BELT REMOVAL (See Components for Removal and Installation) 1. DISCONNECT NEGATIVE (±) TERMINAL CABLE FROM BATTERY CAUTION: Work must be started after 90 seconds from the time the ignition swit

Page 77 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 11. REMOVE SPARK PLUGS (a) Disconnect the high ± tension cords at the rubber boot. DO NOT pull on the cords. NOTICE: Pulling on or bending the cords may damage the conductor inside. 13. SET NO.1 CYLI

Page 78 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 14. REMOVE TIMING BELT FROM CAMSHAFT TIMING PULLEY HINT (When re±using timing belt): Place the match± marks on the timing belt and camshaft timing pulley, and place matchmark on timing belt to match

Page 79 of 4770

TOYOTA CAMRY 2000 Service Repair Manual HINT (When re±using timing belt): After loosening the crankshaft pulley bolt, check that the timing belt matchmark aligns with the end of the No. 1 timing belt cover when the crankshaft pulley groove

Page 80 of 4770

TOYOTA CAMRY 2000 Service Repair Manual (b) Using SST, remove the pulley. SST 09213±60017 (09213±00020, 09213±00030, 09213±00060) HINT (When re±using timing belt): Remove the pulley without turning it. 19. REMOVE TIMING BELT HINT (When
