Page 2025 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0LX±01 H01826 H01827 H01828 H01829 BO±66 ± BODYSLIDING ROOF (TMMK Made) 2414 Author: Date: DISASSEMBLY 1. REMOVE SLIDING ROOF HOUSING DRAIN CAP Pull the drain cap rearward to remove it. HINT: A

Page 2026 of 4770

TOYOTA CAMRY 2000 Service Repair Manual H01830 H01831 H01832 ± BODYSLIDING ROOF (TMMK Made) BO±67 2415 Author: Date: 6. REMOVE LH AND RH SIDING ROOF LIFT ARM AND CABLE ASSEMBLIES (a) Using a drill, cut the flange portion of the stop pin

Page 2027 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0LY±01 H01817 Motor Housing Pointer (Grey) Gear Pointer (Brown) H01818 H01819 H01820 Parts shown disassembled for clarity BO±68 ± BODYSLIDING ROOF (TMMK Made) 2416 Author: Date: ADJUSTMENT 1. A

Page 2028 of 4770

TOYOTA CAMRY 2000 Service Repair Manual H01821 OK NG H01822 Guide Pin Lift Arm Assembly Slide Rail H01823 Hook ± BODYSLIDING ROOF (TMMK Made) BO±69 2417 Author: Date: 6. VERIFY CORRECT INSTALLATION TIMING (a) Cycle the unit once (vent p

Page 2029 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0LZ±01 BO±70 ± BODYSLIDING ROOF (TMMK Made) 2418 Author: Date: REASSEMBLY Reassembly is in the reverse order of disassembly (See page BO±66).

Page 2030 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0M0±01 ± BODYSLIDING ROOF (TMMK Made) BO±71 2419 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±65). NOTICE: Check and adjust the sliding roof after in

Page 2031 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MB±01 N20950 Instrument Panel ReinforcementNN DD No.2 Instrumental Panel Bracket No.1 Instrumental Panel Bracket No.2 Instrumental Panel Brace QQH N N N N GG NG NOB NN Instrument Panel Brace Moun

Page 2032 of 4770

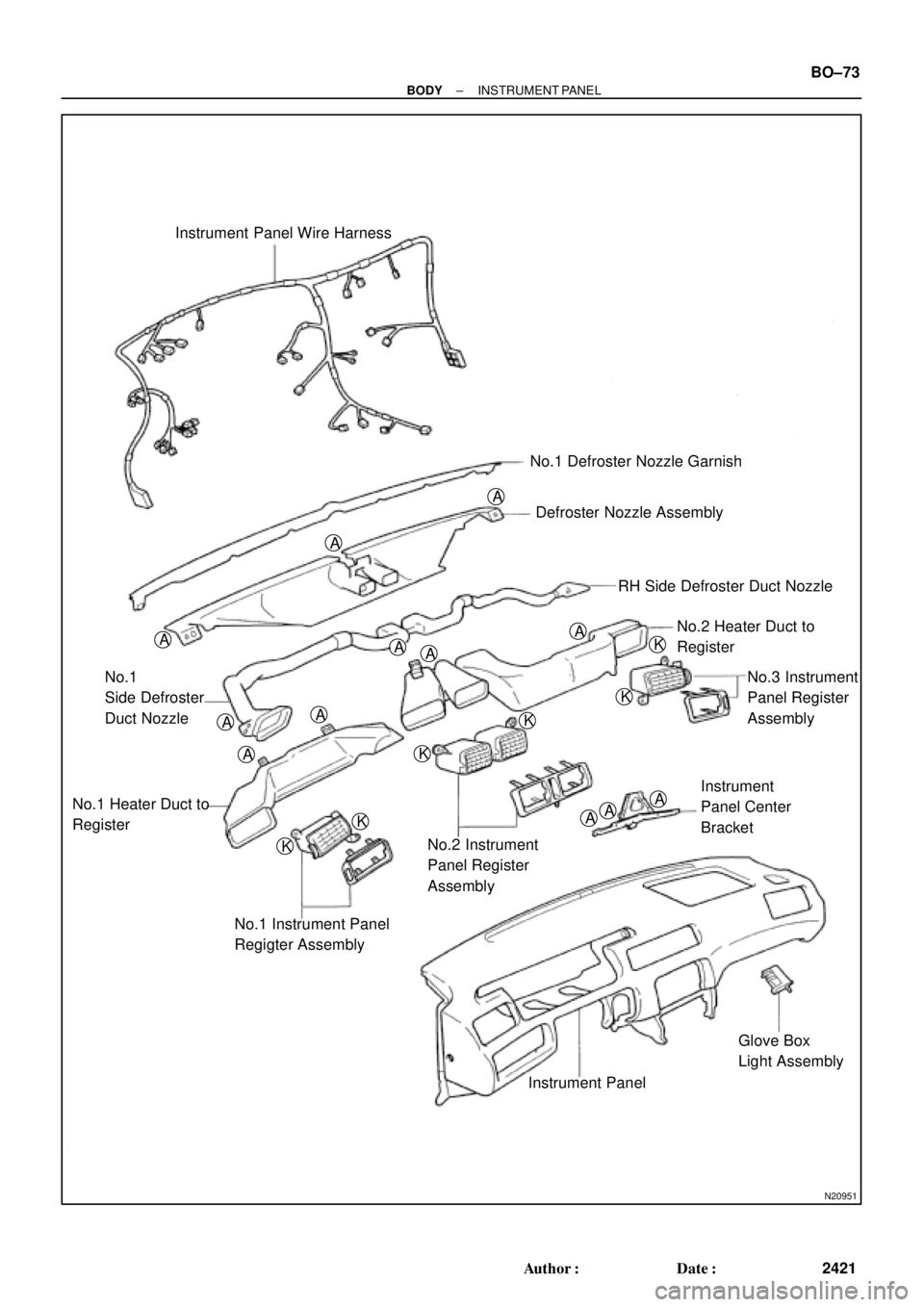

TOYOTA CAMRY 2000 Service Repair Manual N20951 A Instrument Panel Wire Harness No.1 Defroster Nozzle Garnish Defroster Nozzle Assembly A A RH Side Defroster Duct Nozzle No.1 Side Defroster Duct Nozzle A A A A A ANo.2 Heater Duct to Register
