Page 1601 of 4770
AC0NB±01
± AIR CONDITIONINGCONDENSER FAN
AC±79
2561 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page AC±76).
Page 1602 of 4770
AC0NC±01
AC±80
± AIR CONDITIONINGAIR CONDITIONING CONTROL ASSEMBLY
2562 Author: Date:
AIR CONDITIONING CONTROL ASSEMBLY
ON±VEHICLE INSPECTION
INSPECT A/C CONTROL DIAL AND LEVER OPERATION
Move the control dial and lever left and right and check for stiffness and binding through the full range of the
levers.
Page 1603 of 4770
AC0ND±02
Z19017
LH Lower Instrument
Panel
No.1 Lower Finish
Panel
Cowl Side Trim
Front Door Inside
Scuff PlateCenter Cluster Finish Panel
A/C Control Assembly
Glove Compartment
Cowl Side Trim
Air Inlet Damper Control Cable
Air Inlet Control Lever
Mode Switch
A/C Switch
Defogger Switch
Heater Control
Name Sheet
Heater Control Knob Heater Control BaseBlower Speed Control
SwitchFront Door Inside Scuff Plate
± AIR CONDITIONINGAIR CONDITIONING CONTROL ASSEMBLY
AC±81
2563 Author: Date:

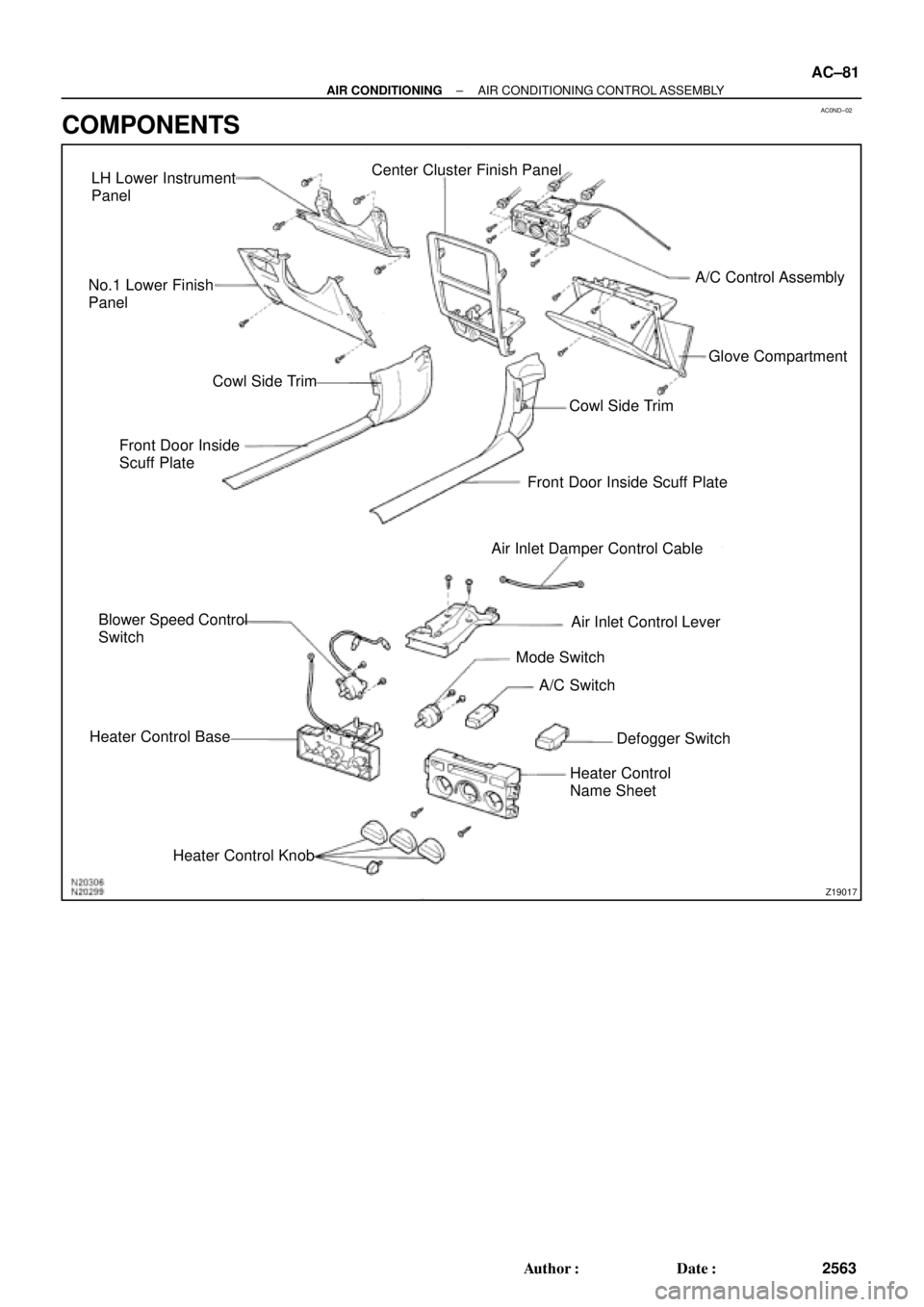

COMPONENTS
Page 1604 of 4770
AC0NE±02
N20304
Air Mix Damper
Control Cable
Air Inlet Damper
Control Cable
N20289
AC±82
± AIR CONDITIONINGAIR CONDITIONING CONTROL ASSEMBLY
2564 Author: Date:

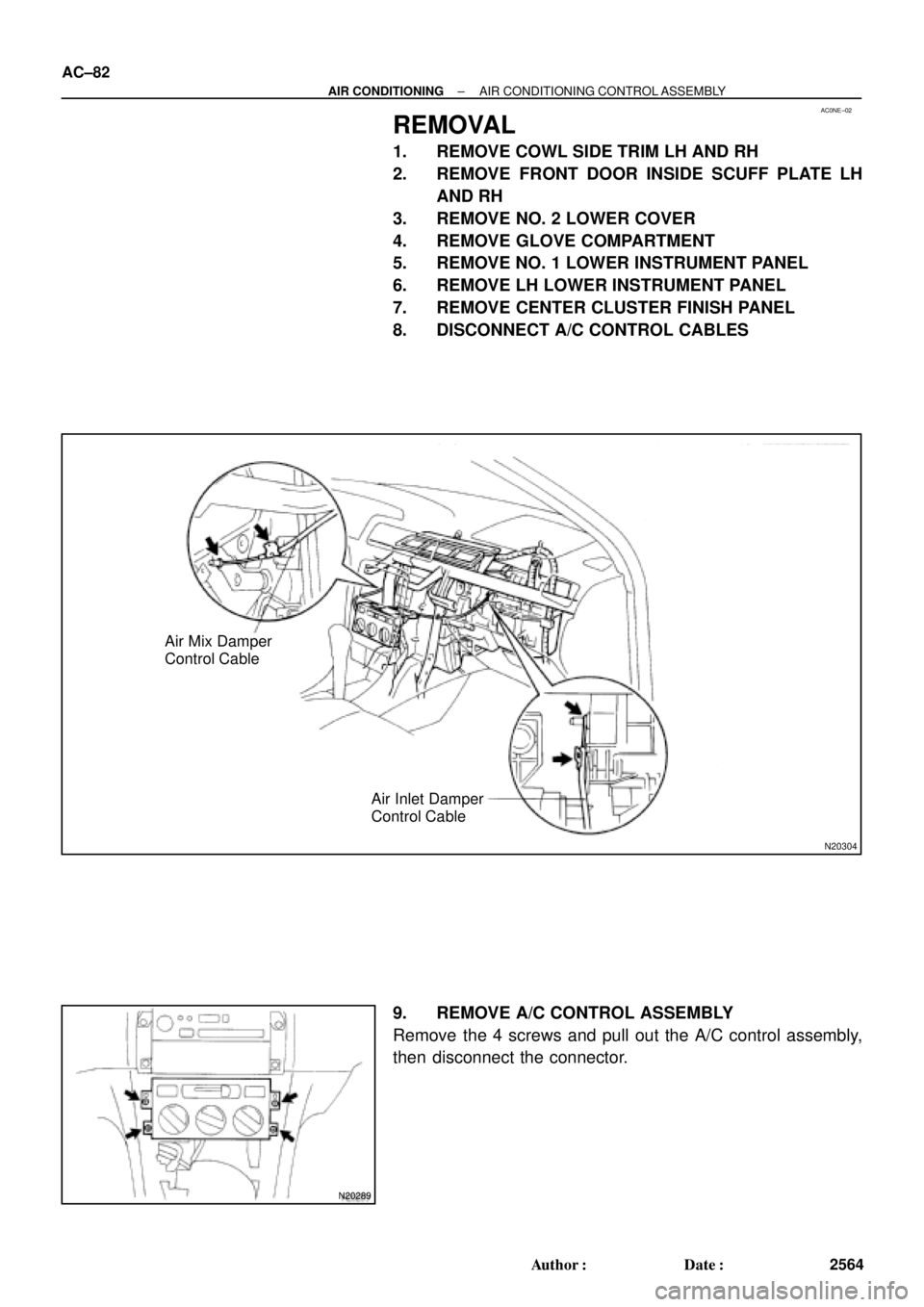

REMOVAL
1. REMOVE COWL SIDE TRIM LH AND RH
2. REMOVE FRONT DOOR INSIDE SCUFF PLATE LH
AND RH
3. REMOVE NO. 2 LOWER COVER
4. REMOVE GLOVE COMPARTMENT
5. REMOVE NO. 1 LOWER INSTRUMENT PANEL
6. REMOVE LH LOWER INSTRUMENT PANEL
7. REMOVE CENTER CLUSTER FINISH PANEL
8. DISCONNECT A/C CONTROL CABLES
9. REMOVE A/C CONTROL ASSEMBLY
Remove the 4 screws and pull out the A/C control assembly,
then disconnect the connector.
Page 1605 of 4770
AC0NF±02
± AIR CONDITIONINGAIR CONDITIONING CONTROL ASSEMBLY
AC±83
2565 Author: Date:
DISASSEMBLY
1. REMOVE A/C SWITCH AND DEFOGGER SWITCH
Using a screwdriver, release the claw and pull out the switch backward.
HINT:
Tape the screwdriver tip before use.
2. REMOVE HEATER CONTROL KNOBS
3. REMOVE HEATER CONTROL CABLE
4. REMOVE BLOWER SPEED CONTROL SWITCH
Remove the 2 screws and pull out the switch.
5. REMOVE MODE SWITCH
Remove the 2 screws and pull out the switch.
6. REMOVE HEATER CONTROL NAME SHEET
(a) Remove the 2 screws.
(b) Using a screwdriver, release the 4 claws and heater control name sheet.
HINT:
Tape the screwdriver tip before use.
Page 1606 of 4770

AC0NG±02
N19466
ON OFF
2
1
N19484
ON
OFF
2
1 4
N19467
ON
OFF
N19464
M1
M2 AC±84
± AIR CONDITIONINGAIR CONDITIONING CONTROL ASSEMBLY
2566 Author: Date:

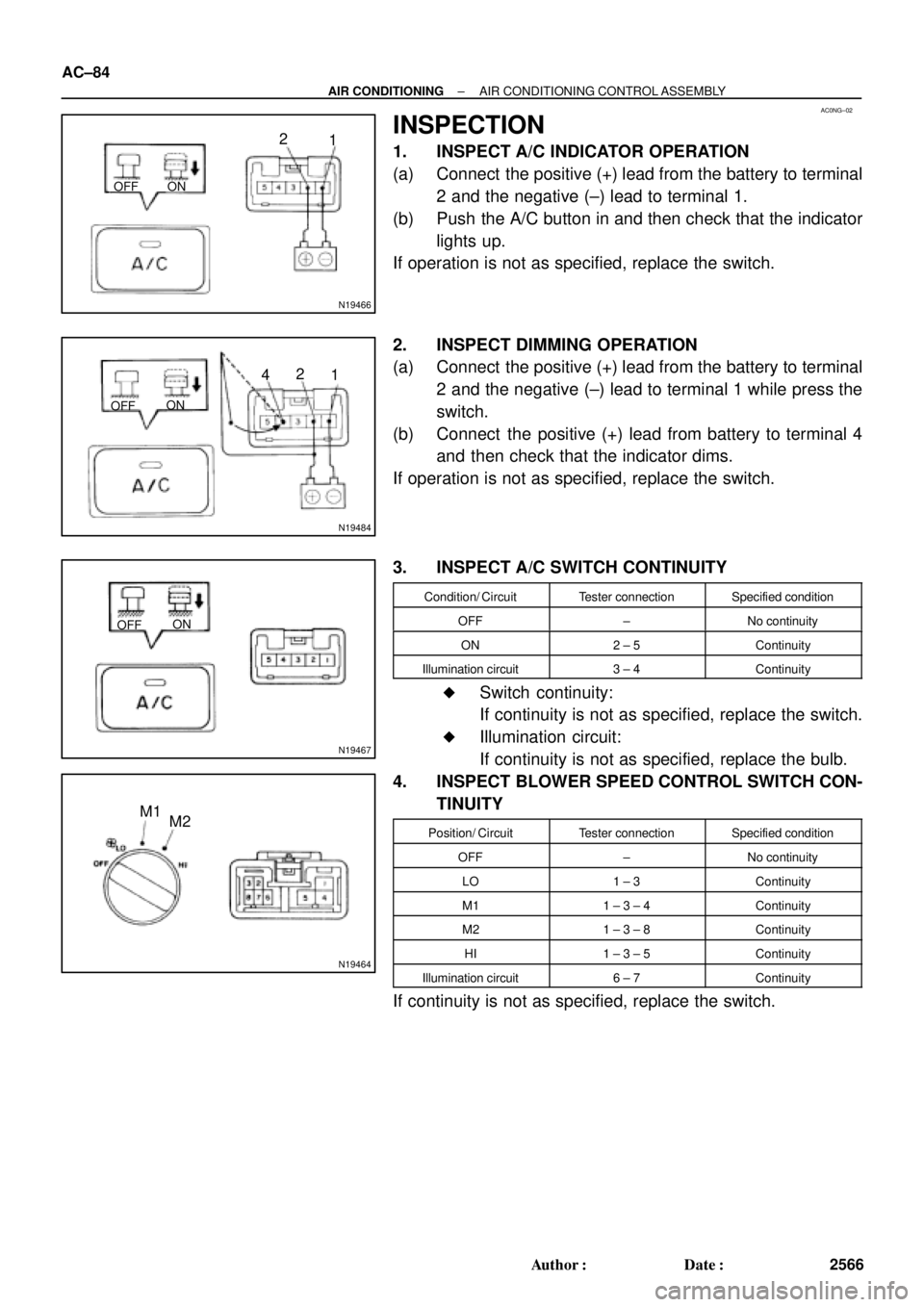

INSPECTION
1. INSPECT A/C INDICATOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal
2 and the negative (±) lead to terminal 1.
(b) Push the A/C button in and then check that the indicator
lights up.
If operation is not as specified, replace the switch.
2. INSPECT DIMMING OPERATION
(a) Connect the positive (+) lead from the battery to terminal
2 and the negative (±) lead to terminal 1 while press the
switch.
(b) Connect the positive (+) lead from battery to terminal 4
and then check that the indicator dims.
If operation is not as specified, replace the switch.
3. INSPECT A/C SWITCH CONTINUITY
Condition/ CircuitTester connectionSpecified condition
OFF±No continuity
ON2 ± 5Continuity
Illumination circuit3 ± 4Continuity
Switch continuity:
If continuity is not as specified, replace the switch.
Illumination circuit:
If continuity is not as specified, replace the bulb.
4. INSPECT BLOWER SPEED CONTROL SWITCH CON-
TINUITY
Position/ CircuitTester connectionSpecified condition
OFF±No continuity
LO1 ± 3Continuity
M11 ± 3 ± 4Continuity
M21 ± 3 ± 8Continuity
HI1 ± 3 ± 5Continuity
Illumination circuit6 ± 7Continuity
If continuity is not as specified, replace the switch.
Page 1607 of 4770
N20257
± AIR CONDITIONINGAIR CONDITIONING CONTROL ASSEMBLY
AC±85
2567 Author: Date:
5. INSPECT MODE SWITCH CONTINUITY
Switch positionTester connectionSpecified condition
FACE1 ± 6Continuity
B/L1 ± 5Continuity
FOOT1 ± 4Continuity
FOOT/DEF.1 ± 3Continuity
DEF.1 ± 2
7 ± 8Continuity
If continuity is not as specified, replace the switch.
6. INSPECT REAR DEFOGGER SWITCH OPERATION
(See page BE±56)
Page 1608 of 4770
AC0NH±01
AC±86
± AIR CONDITIONINGAIR CONDITIONING CONTROL ASSEMBLY
2568 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly (See page AC±83).
