Page 2017 of 4770

TOYOTA CAMRY 2000 Service Repair Manual N21420 N21522 BO±58 ± BODYSLIDING ROOF (TMC Made) 2406 Author: Date: 7. REMOVE GUIDE BLOCK Remove the 2 screws and guide block. 8. REMOVE SLIDING ROOF HOUSING Remove the 6 screws and sliding roof

Page 2018 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0M5±01 N21422 Z04207 BO3396 N21525 ± BODYSLIDING ROOF (TMC Made) BO±59 2407 Author: Date: ADJUSTMENT 1. REMOVE SIDE GARNISH Before making adjustments, using a screwdriver, remove the side garni

Page 2019 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0M6±01 BO±60 ± BODYSLIDING ROOF (TMC Made) 2408 Author: Date: REASSEMBLY Reassembly is in the reverse order of disassembly (See page BO±57).

Page 2020 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0M7±01 ± BODYSLIDING ROOF (TMC Made) BO±61 2409 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±55).

Page 2021 of 4770

TOYOTA CAMRY 2000 Service Repair Manual H01814 BO0LU±01 H01815 Glass Panel Level Difference ± 1.5 mm Roof Panel Weatherstrip H01816 BO±62 ± BODYSLIDING ROOF (TMMK Made) 2410 Author: Date: SLIDING ROOF (TMMK Made) ON±VEHICLE INSPECTIO

Page 2022 of 4770

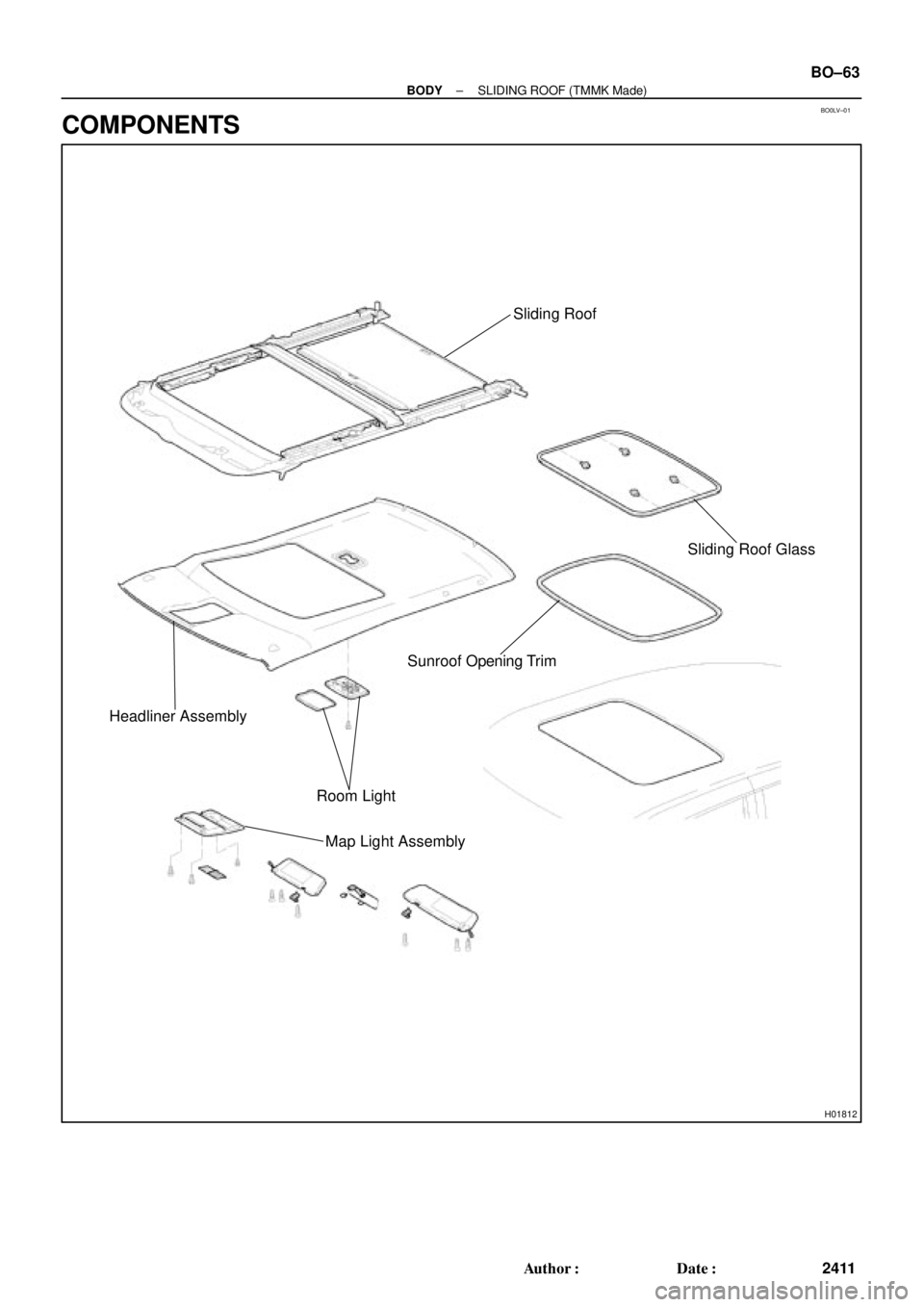

TOYOTA CAMRY 2000 Service Repair Manual BO0LV±01 H01812 Sliding Roof Sliding Roof Glass Sunroof Opening Trim Headliner Assembly Room Light Map Light Assembly ± BODYSLIDING ROOF (TMMK Made) BO±63 2411 Author: Date: COMPONENTS

Page 2023 of 4770

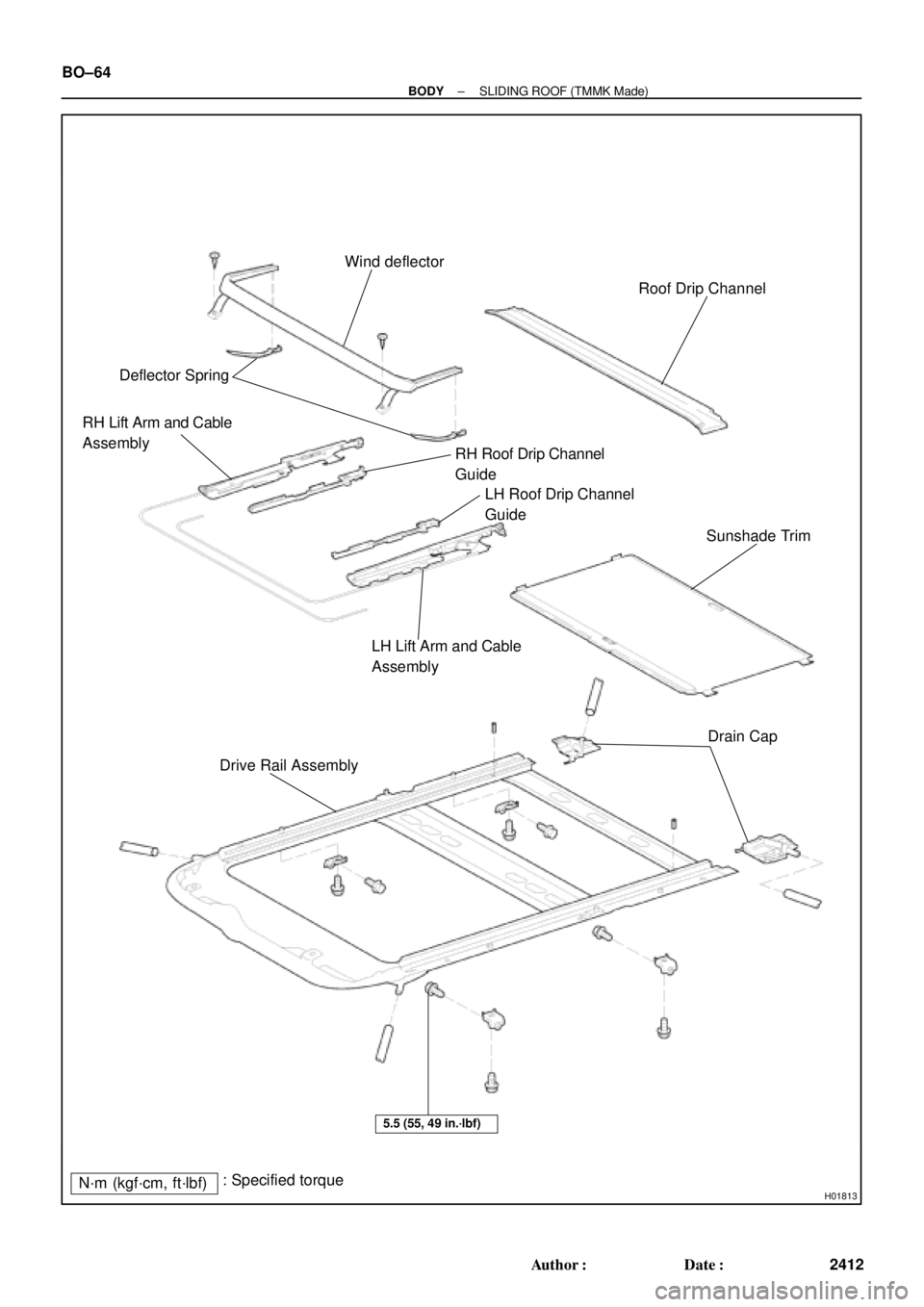

TOYOTA CAMRY 2000 Service Repair Manual H01813 Wind deflector Roof Drip Channel RH Lift Arm and Cable AssemblyDeflector Spring Sunshade Trim RH Roof Drip Channel Guide LH Roof Drip Channel Guide Drain Cap Drive Rail AssemblyLH Lift Arm and

Page 2024 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0LW±01 H01824 H01825 ± BODYSLIDING ROOF (TMMK Made) BO±65 2413 Author: Date: REMOVAL 1. REMOVE ROOF HEADLINING (See page BO±83) 2. REMOVE SIDE GARNISHES HINT: At the time of installation, plea
