± BRAKETROUBLESHOOTING
BR±3
2026 Author: Date:
Hard pedal but brake inefficient
1. Fluid leaks for brake system
2. Air in brake system
3. Pad or lining (Worn)
4. Pad or lining (Cracked or distorted)
5. Rear brake shoe clearance (Out of adjustment)
6. Pad or lining (Oily)
7. Pad or lining (Glazed)
8. Disc (Scored)
9. Booster push rod (Out of adjustment)
10.Vacuum leaks for booster systemDI±536
BR±4
BR±21
BR±31
BR±36
BR±21
BR±31
BR±36
BR±35
BR±21
BR±31
BR±36
BR±21
BR±31
BR±36
BR±24
BR±39
BR±20
BR±18
Noise from brakes
1. Pad or lining (Cracked or distorted)
2. Installation bolt (Loose)
3. Disc (Scored)
4. Pad support plate (Loose)
5. Sliding pin (Worn)
6. Pad or lining (Dirty)
7. Pad or lining (Glazed)
8. Anchor, return or tension spring (Faulty)
9. Anti±squeal shim (Damaged)
10.Shoe hold±down spring (Damaged)BR±21
BR±31
BR±36
BR±24
BR±39
BR±24
BR±39
BR±21
BR±36
BR±24
BR±39
BR±21
BR±31
BR±36
BR±21
BR±31
BR±36
BR±31
BR±45
BR±21
BR±36
BR±31
BR±45
Page 2226 of 4770

F05595
F05596
BR0AB±03
F05597
R00252
BR±4
± BRAKEBRAKE FLUID
2027 Author: Date:
BRAKE FLUID
BLEEDING
HINT:
If any work is done on the brake system or if air is suspected in
the brake lines, bleed the air from the system.
NOTICE:
Do not let brake fluid remain on a painted surface. Wash it
off immediately.
1. FILL BRAKE RESERVOIR WITH BRAKE FLUID
Check the fluid level in the reservoir after bleeding each wheel.
Add fluid, if necessary.
Fluid: SAEJ1703 or FMVSS No.116 DOT 3
2. BLEED MASTER CYLINDER
HINT:
If the master cylinder has been disassembled or if the reservoir
becomes empty, bleed the air from the master cylinder.
(a) Disconnect the 2 brake lines from the master cylinder.
(b) Slowly depress the brake pedal and hold it.
(c) Block off the outlet plugs with your fingers, and release
the brake pedal.
(d) Repeat (b) and (c) 3 or 4 times.
3. CONNECT VINYL TUBE TO BRAKE CALIPER OR
WHEEL CYLINDER BLEEDER PLUG
Insert the other end of the tube in a half±full container of brake
fluid.
NOTICE:
Bleed air of the rear brake first. If front brake is bled first,
rear brake air cannot be bled.
4. BLEED BRAKE LINE
(a) Slowly depress the brake pedal several times.
(b) While an assistant depresses the pedal, loosen the
bleeder plug until fluid starts to run out. Then tighten the
bleeder plug.
(c) Repeat this procedure until there are no more air bubbles
in the fluid.
Torque: (Bleeder plug)
8.3 N´m (85 kgf´cm, 74 in.´lbf)
5. REPEAT PROCEDURE FOR EACH WHEEL
Page 2227 of 4770

R00954
Stop Light
Switch
Push Rod
Pedal HeightBR0YH±01
R00935
Pedal Freeplay
± BRAKEBRAKE PEDAL
BR±5
2028 Author: Date:
BRAKE PEDAL
ON±VEHICLE INSPECTION
1. CHECK PEDAL HEIGHT
Pedal height from asphalt sheet:
152.0 ± 162.0 mm (5.984 ± 6.378 in.)
2. IF NECESSARY, ADJUST PEDAL HEIGHT
(a) Disconnect the connector from the stop light switch.
(b) Loosen the stop light switch lock nut and remove the stop
light switch.
(c) Loosen the push rod lock nut.
(d) Adjust the pedal height by turning the pedal push rod.
(e) Tighten the push rod lock nut.
Torque: 25 N´m (260 kgf´cm, 19 ft´lbf)
(f) Install the stop light switch and turn it until it lightly con-
tacts the pedal stopper.
(g) Push in the brake pedal 5±15 mm (0.20±0.59 in.), turn the
stop light switch to lock the nut in the position where the
stop light goes off.
(h) Connect the connector to the stop light switch.
(i) After installation, push in the brake pedal 5±15 mm
(0.20±0.59 in.), check that stop light lights up.
(j) Connect the connector to the stop light switch.
(k) After adjusting the pedal height, check the pedal freeplay.
3. CHECK PEDAL FREEPLAY
(a) Stop the engine and depress the brake pedal several
times until there is no more vacuum left in the booster.
(b) Push in the pedal by hand until the resistance begins to
be felt, then measure the distance.
Pedal freeplay: 1 ± 6 mm (0.04 ± 0.24 in.)
HINT:
The freeplay to the 1st resistance is due to the play between the
clevis and pin. This is magnified up to 1 ± 6 mm (0.04 ± 0.24 in.)
at the pedal.
If incorrect, check the stop light switch clearance.
If the clearance is OK, then troubleshoot the brake system.
Stop light switch clearance:
0.5 ± 2.4 mm (0.020 ± 0.094 in.)
Page 2228 of 4770
R00934
Pedal Reserve Distance BR±6
± BRAKEBRAKE PEDAL
2029 Author: Date:
4. CHECK PEDAL RESERVE DISTANCE
(a) Release the parking brake.
(b) With the engine running, depress the pedal and measure
the pedal reserve distance, as shown.
Pedal reserve distance from asphalt sheet at 490 N
(50 kgf, 110.2 lbf): More than 70 mm (2.76 in.)
If the reserve distance is incorrect, troubleshoot the brake sys-
tem.
Page 2229 of 4770
BR0YI±01
F07004
Lower Panel Insert
Bushing ClipClevis PinNo.1 Lower Panel
Return Spring
Cushion Plate
Collar
Brake Pedal
Cowl Side Trim Front Opening Cover
Brake Pedal
Inside Scuff PlateM/T: Stop Light Switch
Wave Washer
Cruise Control ECU
Lithium soap base glycol grease
13 (130, 9)
5.0 (51, 44 in.´lbf)
13 (130, 9)
Pedal Pad
Pedal Pad Bushing A/T:
39 (400, 29)
: Specified torqueN´m (kgf´cm, ft´lbf)
Non±reusable partBrake Pedal Bracket
± BRAKEBRAKE PEDAL
BR±7
2030 Author: Date:

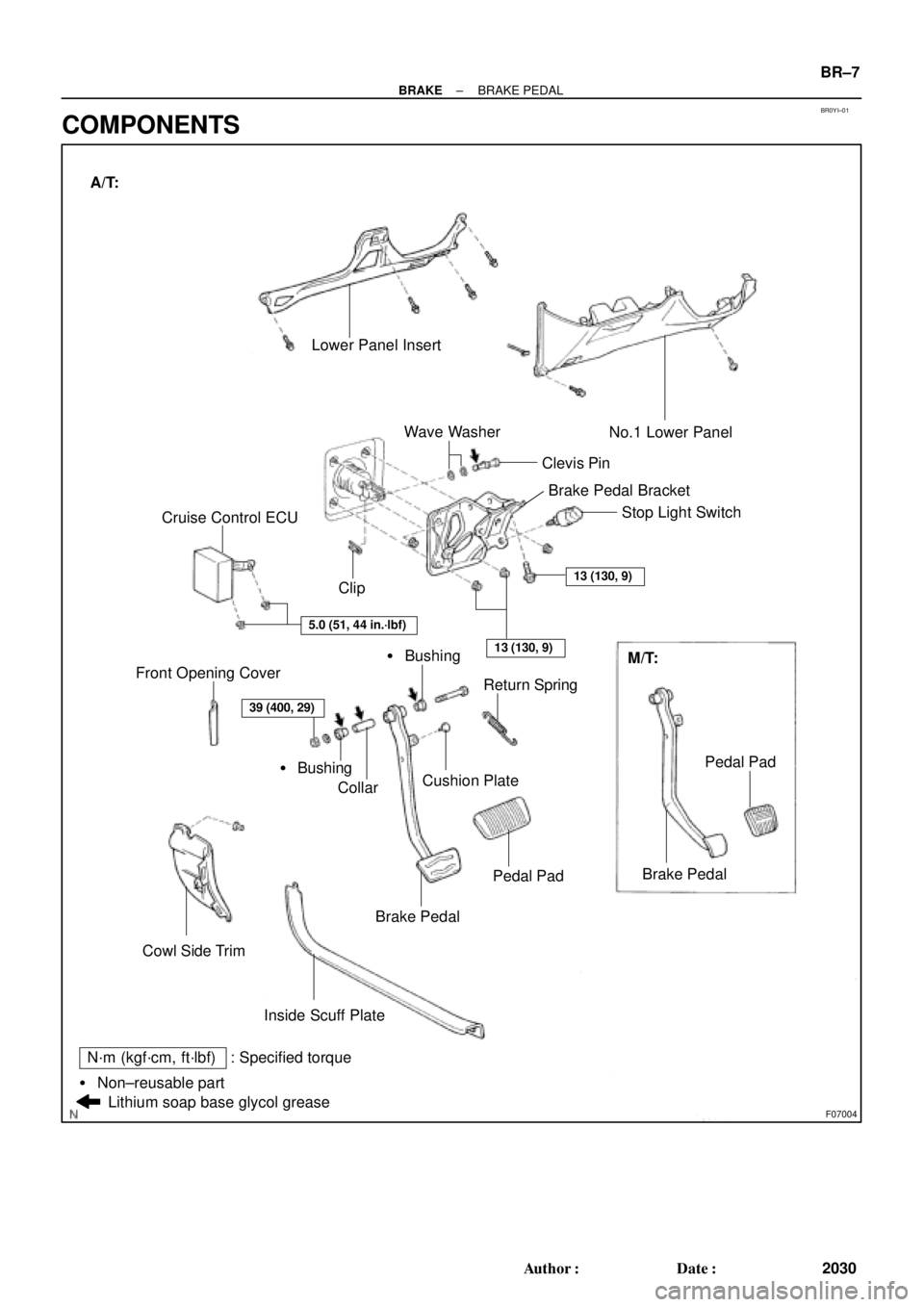

COMPONENTS
Page 2230 of 4770
W03254
W03255
Lock Nut
Adjusting Nut
BR0AD±03
BR±8
± BRAKEPARKING BRAKE LEVER
2031 Author: Date:
PARKING BRAKE LEVER
ON±VEHICLE INSPECTION
1. CHECK THAT PARKING BRAKE LEVER TRAVEL
Pull the parking brake lever all the way up, and count the num-
ber of clicks.
Parking brake lever travel at 196 N (20 kgf, 44.1 lbf):
5 ± 8 clicks
If incorrect, adjust the parking brake.
2. IF NECESSARY, ADJUST PARKING BRAKE LEVER
TRAVEL
HINT:
Before adjusting the parking brake lever travel, make sure that
the rear brake shoe clearance has been adjusted. For shoe
clearance adjustment, see step 2 on page BR±35 or step 1 on
page BR±48.
(a) Remove the console box.
(b) Loosen the lock nut and adjust the adjusting nut until the
lever travel is correct.
(c) Tighten the lock nut.
Torque: 5.4 N´m (55 kgf´cm, 48 in.´lbf)
(d) Install the console box.
Page 2231 of 4770
BR0AE±02
Z19120
w/ ABS (& TRAC)
2±way
15 (155, 11)
13 (130, 9)
Master Cylinder
GasketBrake Booster
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable part w/o ABS
3±way
W03569
N´m (kgf´cm, ft´lbf) : Specified torque
Lithium soap base glycol grease
Grommet
Cylinder BodyNo. 2 PistonNo. 1 Piston SpringSpring Cap
Strainer
Reservoir
Grommet Straight PinReservoir Set Screw
1.7 (18, 16 in.´lbf)
w/ TRAC
± BRAKEBRAKE MASTER CYLINDER
BR±9
2032 Author: Date:
BRAKE MASTER CYLINDER
COMPONENTS
Page 2232 of 4770

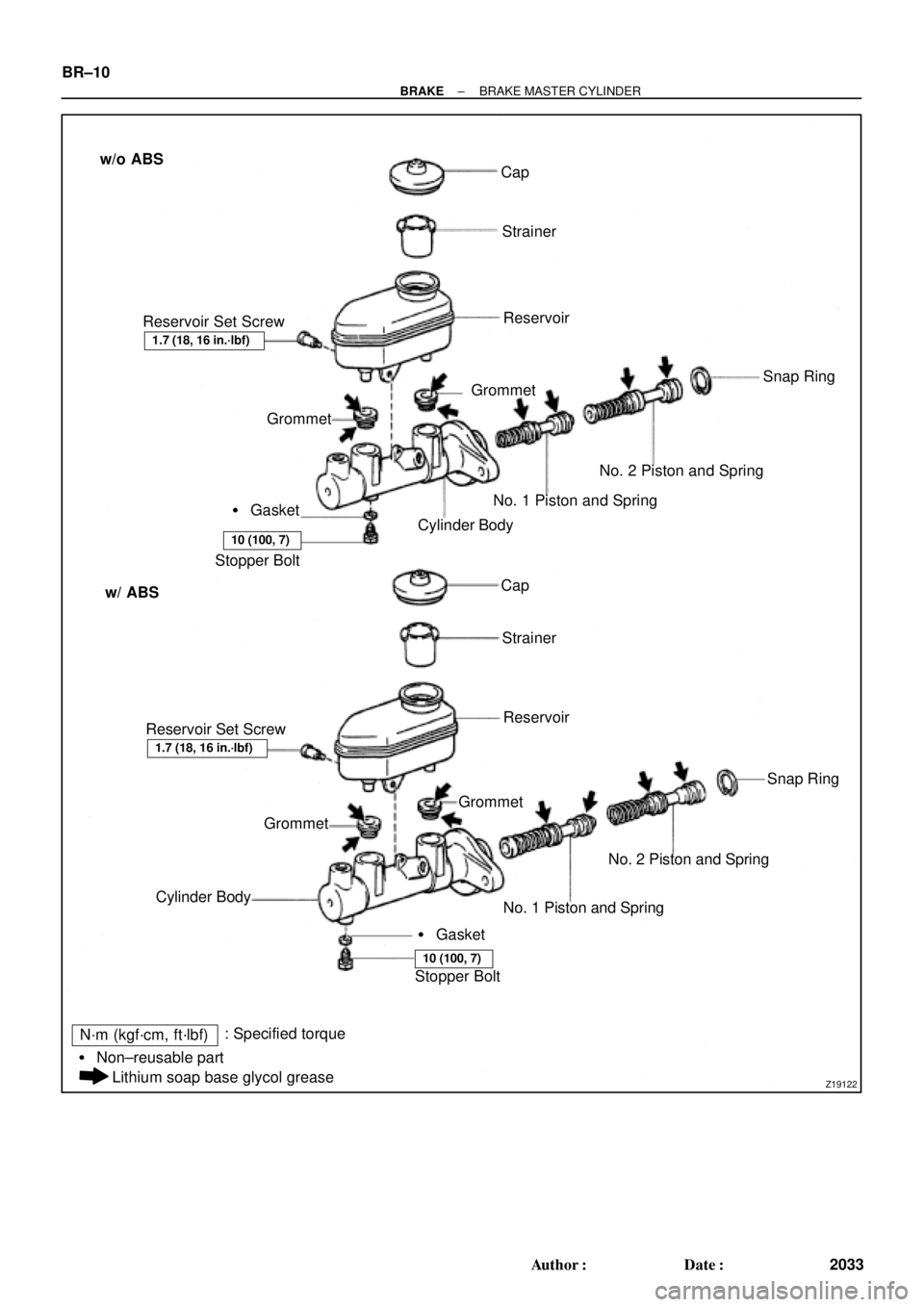

Z19122
w/o ABS
w/ ABSCap
Strainer
Reservoir
No. 2 Piston and Spring
No. 1 Piston and Spring
Cylinder Body
Stopper Bolt Gasket Reservoir Set Screw
GrommetSnap Ring
Grommet
Cap
Strainer
Reservoir
Reservoir Set Screw
Cylinder Body
Gasket
Stopper Bolt GrommetGrommet
No. 1 Piston and SpringNo. 2 Piston and SpringSnap Ring
Lithium soap base glycol grease Non±reusable part
N´m (kgf´cm, ft´lbf): Specified torque
1.7 (18, 16 in.´lbf)
10 (100, 7)
1.7 (18, 16 in.´lbf)
10 (100, 7)
BR±10
± BRAKEBRAKE MASTER CYLINDER
2033 Author: Date:
