Page 825 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 59 4. Compress the shoulder belt clip to separate the right and left shoulder belts.5. Pull down the seatback part of the removable pad. Make sure the childs shoulders are at or below the

Page 826 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 60 7. Sit the child on the child seat. Place a shoulder belt over each shoulder. Insert the tabs into the buckle. CAUTION When the built±in child restraint is in use, do not use the adul

Page 827 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 61 9. Pull the seat belt adjustment strap (gray tab) firmly until the shoulder belts are snugly adjusted around the childs shoulders. You should not be able to put more than two fingers be

Page 828 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 62 CAUTION Before using the vehicles seat belt, make sure the head restraint and up- per pad is reinstalled. Do not occupy this position unless the head restraint and upper pad is reinstal

Page 829 of 4770

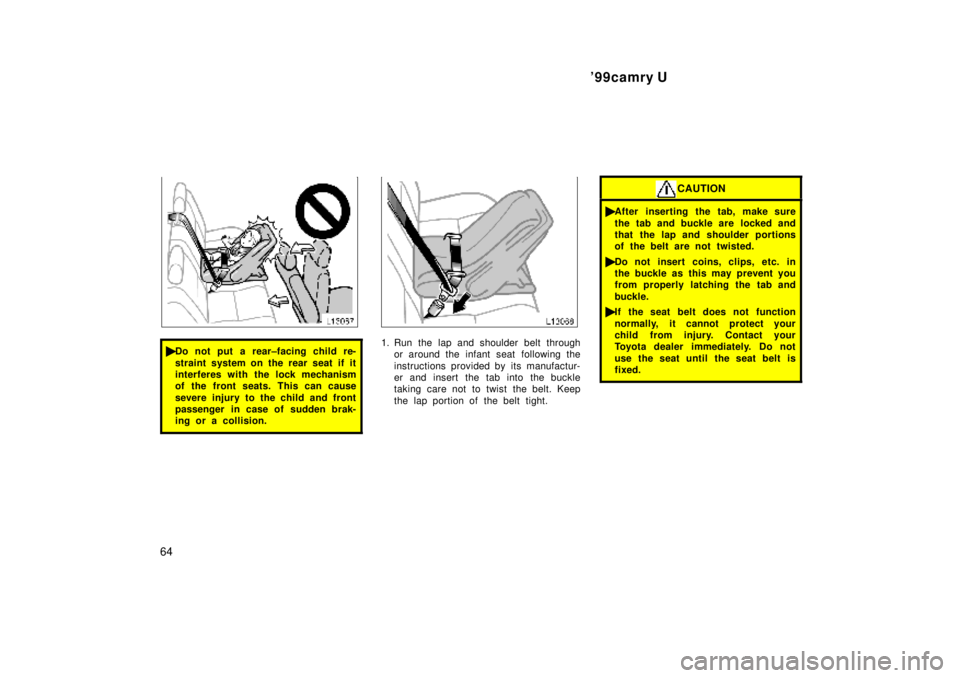

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 63 (C) Booster seat(A) INFANT SEAT INSTALLATION An infant seat is used in rear±facing position only.CAUTION Never put a rear±facing child re- straint system on the front seat be- cause t

Page 830 of 4770

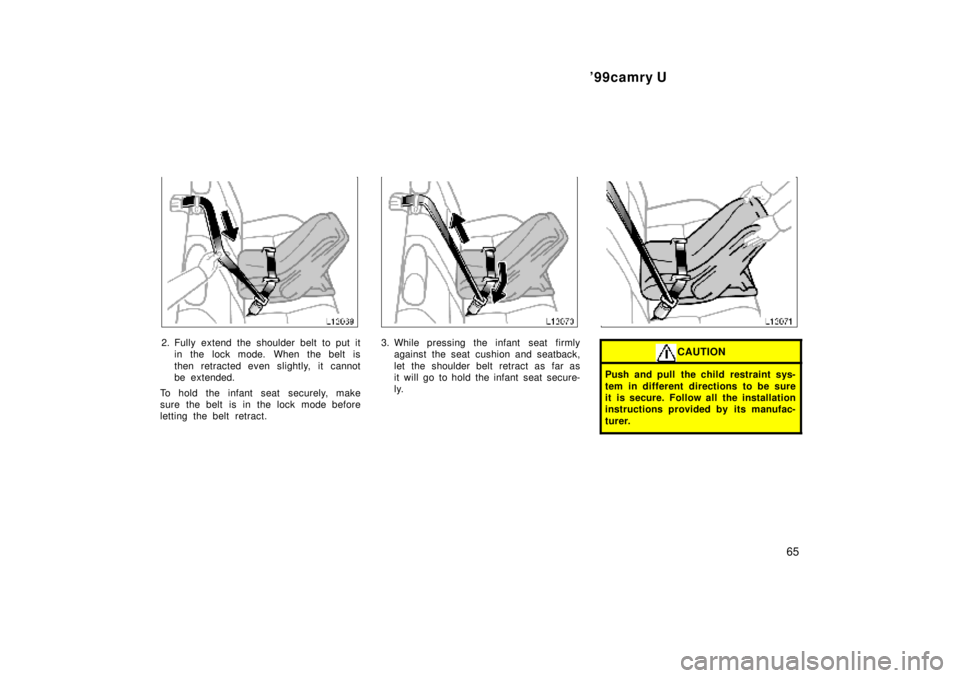

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 64 Do not put a rear±facing child re- straint system on the rear seat if it interferes with the lock mechanism of the front seats. This can cause severe injury to the child and front pass

Page 831 of 4770

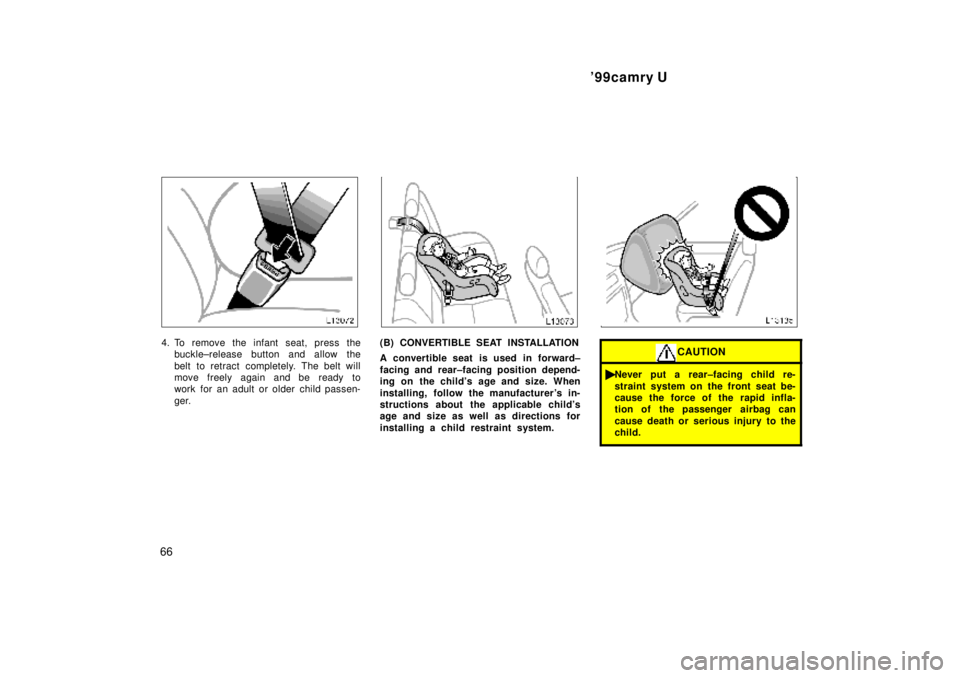

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 65 2. Fully extend the shoulder belt to put it in the lock mode. When the belt is then retracted even slightly, it cannot be extended. To hold the infant seat securely, make sure the belt i

Page 832 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 99camry U 66 4. To remove the infant seat, press the buckle±release button and allow the belt to retract completely. The belt will move freely again and be ready to work for an adult or older child
