Page 4209 of 4770

W03519
L
M
W03652
2 times or more
R08582
Width
Inner
Diam. RS±34
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
2179 Author: Date:
CAUTION:
If the front passenger airbag assembly is tied down with
too thin wire harness, it may snap. This is highly danger-
ous. Always use a wire harness which is at least 1.25 mm
2
(0.0019 in.2).
HINT:
To calculate the square of the stripped wire harness section:
Square = 3.14 X (Diameter)
2 divided by 4

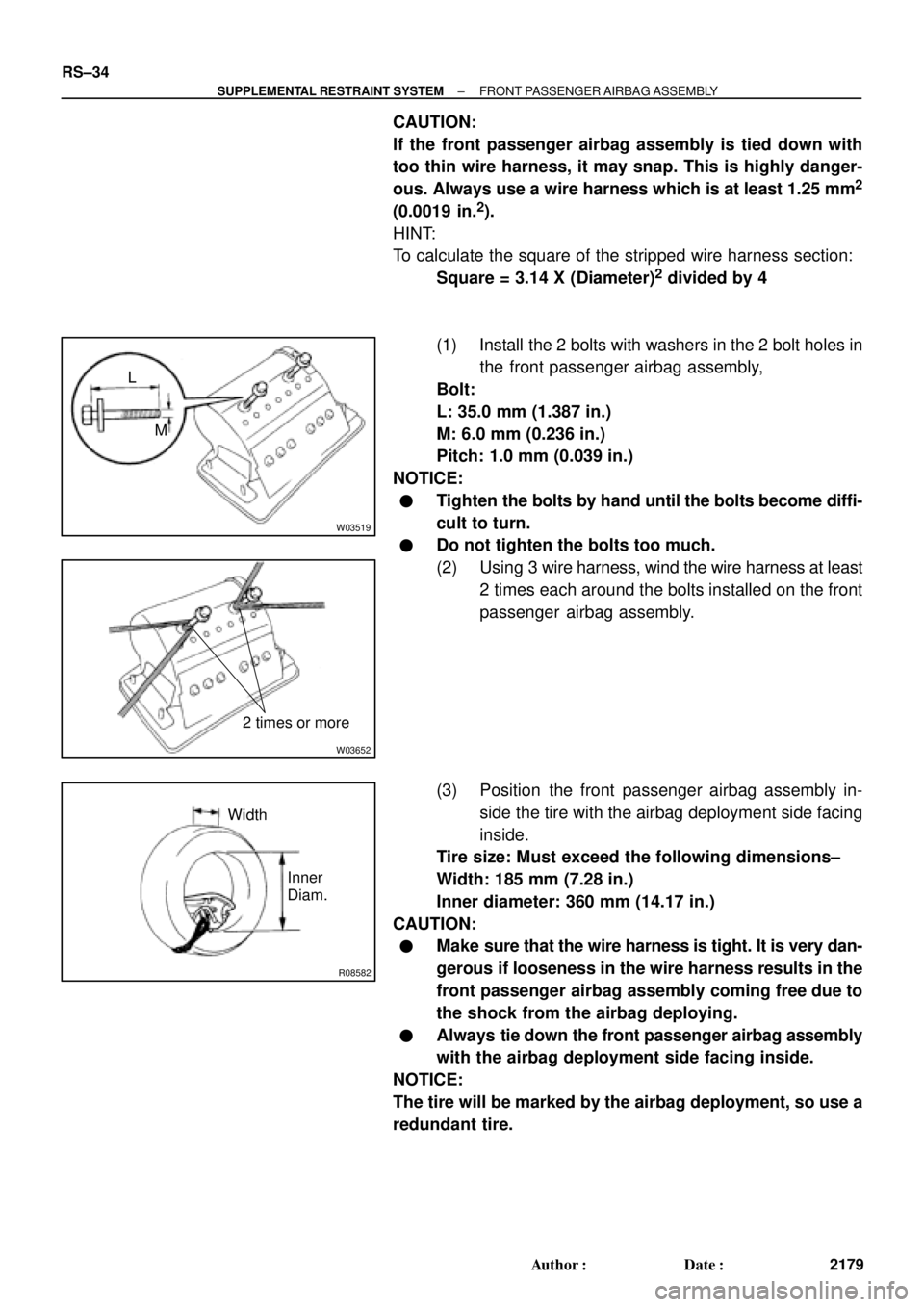

(1) Install the 2 bolts with washers in the 2 bolt holes in
the front passenger airbag assembly,
Bolt:
L: 35.0 mm (1.387 in.)
M: 6.0 mm (0.236 in.)
Pitch: 1.0 mm (0.039 in.)
NOTICE:
Tighten the bolts by hand until the bolts become diffi-
cult to turn.
Do not tighten the bolts too much.
(2) Using 3 wire harness, wind the wire harness at least
2 times each around the bolts installed on the front
passenger airbag assembly.
(3) Position the front passenger airbag assembly in-
side the tire with the airbag deployment side facing
inside.
Tire size: Must exceed the following dimensions±
Width: 185 mm (7.28 in.)
Inner diameter: 360 mm (14.17 in.)
CAUTION:
Make sure that the wire harness is tight. It is very dan-
gerous if looseness in the wire harness results in the
front passenger airbag assembly coming free due to
the shock from the airbag deploying.
Always tie down the front passenger airbag assembly
with the airbag deployment side facing inside.
NOTICE:
The tire will be marked by the airbag deployment, so use a
redundant tire.
Page 4210 of 4770

AB0158
Battery
SST
H04528
Tires
(5 or more)
R05403
R09690
Battery
SSTFront Passenger
Airbag Assembly
10 m (33 ft) or more
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
RS±35
2180 Author: Date:

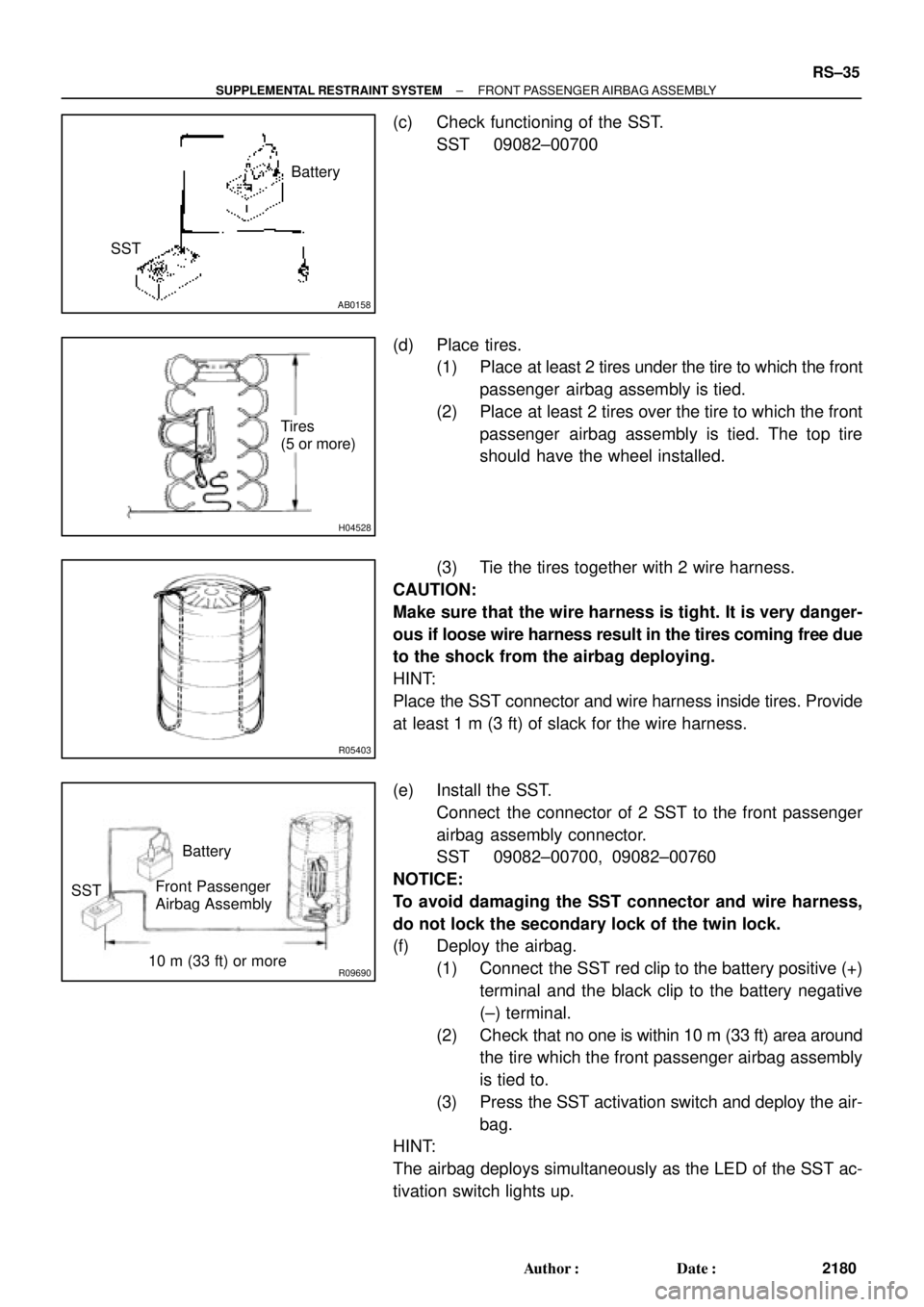

(c) Check functioning of the SST.
SST 09082±00700
(d) Place tires.
(1) Place at least 2 tires under the tire to which the front
passenger airbag assembly is tied.
(2) Place at least 2 tires over the tire to which the front
passenger airbag assembly is tied. The top tire
should have the wheel installed.
(3) Tie the tires together with 2 wire harness.
CAUTION:
Make sure that the wire harness is tight. It is very danger-
ous if loose wire harness result in the tires coming free due
to the shock from the airbag deploying.
HINT:
Place the SST connector and wire harness inside tires. Provide
at least 1 m (3 ft) of slack for the wire harness.
(e) Install the SST.
Connect the connector of 2 SST to the front passenger
airbag assembly connector.
SST 09082±00700, 09082±00760
NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock the secondary lock of the twin lock.
(f) Deploy the airbag.
(1) Connect the SST red clip to the battery positive (+)
terminal and the black clip to the battery negative
(±) terminal.
(2) Check that no one is within 10 m (33 ft) area around
the tire which the front passenger airbag assembly
is tied to.
(3) Press the SST activation switch and deploy the air-
bag.
HINT:
The airbag deploys simultaneously as the LED of the SST ac-
tivation switch lights up.
Page 4211 of 4770
R09687
RS±36
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
2181 Author: Date:
(g) Dispose of the front passenger airbag assembly.
CAUTION:
The front passenger airbag assembly is very hot
when the airbag is deployed, so leave it alone for at
least 30 minutes after deployment.
Use gloves and safety glasses when handling a front
passenger airbag assembly with deployed airbag.
Always wash your hands with water after completing
the operation.
Do not apply water, etc. to a front passenger airbag
assembly with deployed airbag.
(1) Remove the front passenger airbag assembly from
the tire.

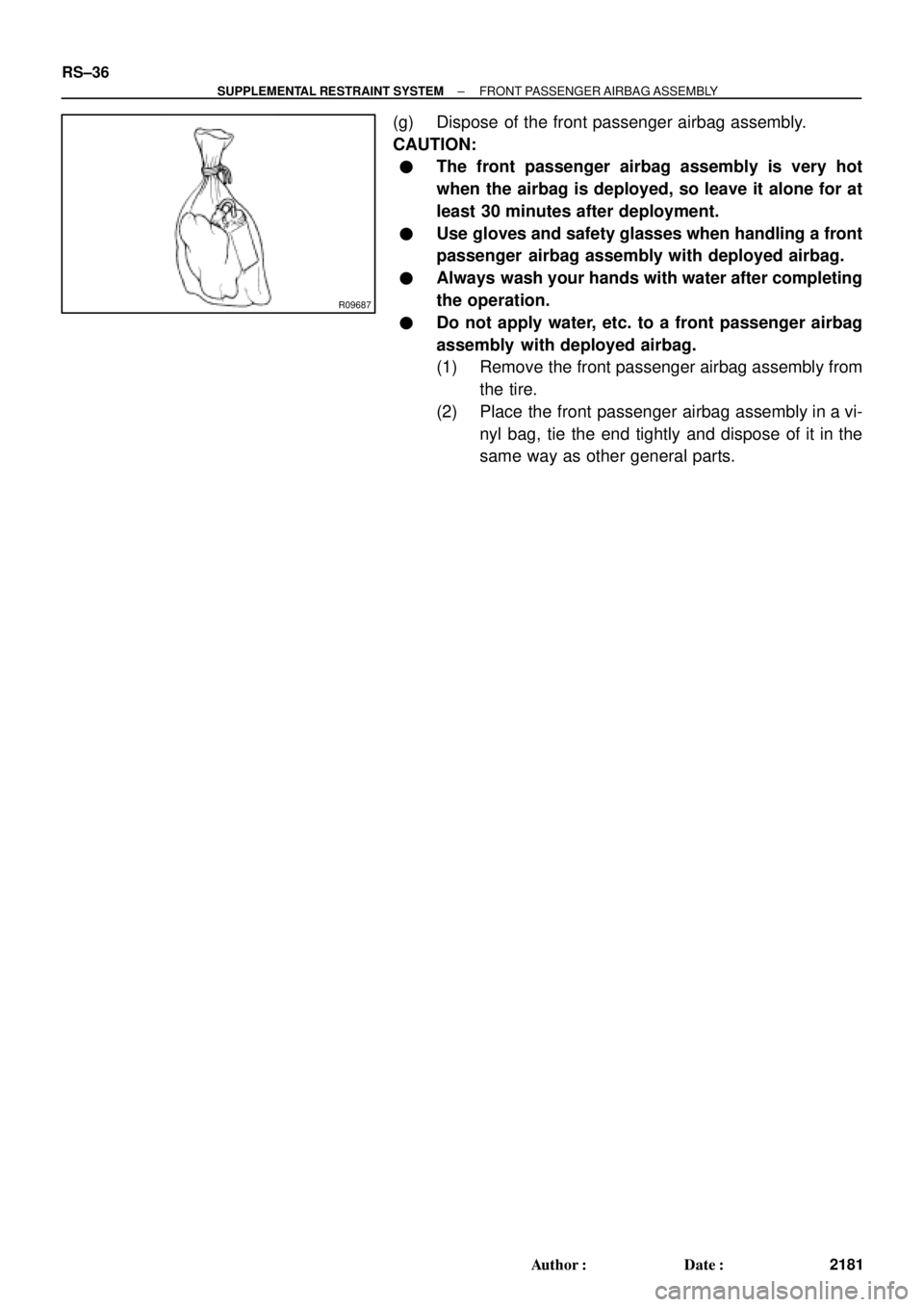

(2) Place the front passenger airbag assembly in a vi-
nyl bag, tie the end tightly and dispose of it in the
same way as other general parts.
Page 4212 of 4770

RS018±17
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
RS±37
2182 Author: Date:
REPLACEMENT
REPLACEMENT REQUIREMENTS
In the following cases, replace the front passenger airbag assembly, instrument panel or instrument panel
reinforcement.
CaseReplacing part
If the airbag has been deployed.Front passenger airbag assembly
If the front passenger airbag assembly has been found to be faulty in trouble-
shooting.Front passenger airbag assembly
If the front passenger airbag assembly has been found to be faulty during
checking items. (See page RS±29)Front passenger airbag assembly
If the instrument panel has been found to be faulty during checking items.
(See page RS±29)Instrument panel
If the instrument panel reinforcement has been found to be faulty during
checking items. (See page RS±29)Instrument panel reinforcement
If the front passenger airbag assembly has been dropped.Front passenger airbag assembly
CAUTION:
For replacement of the front passenger airbag assembly, see page RS±28 and RS±38. Be sure to fol-
low the correct procedure.
Page 4213 of 4770

RS019±05
W03509
H03288
RS±38
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
2183 Author: Date:
INSTALLATION
NOTICE:
Never use airbag parts from another vehicle. When replac-
ing parts, replace them with new parts.
HINT:
For step 2 to 4, refer to page BO±81.

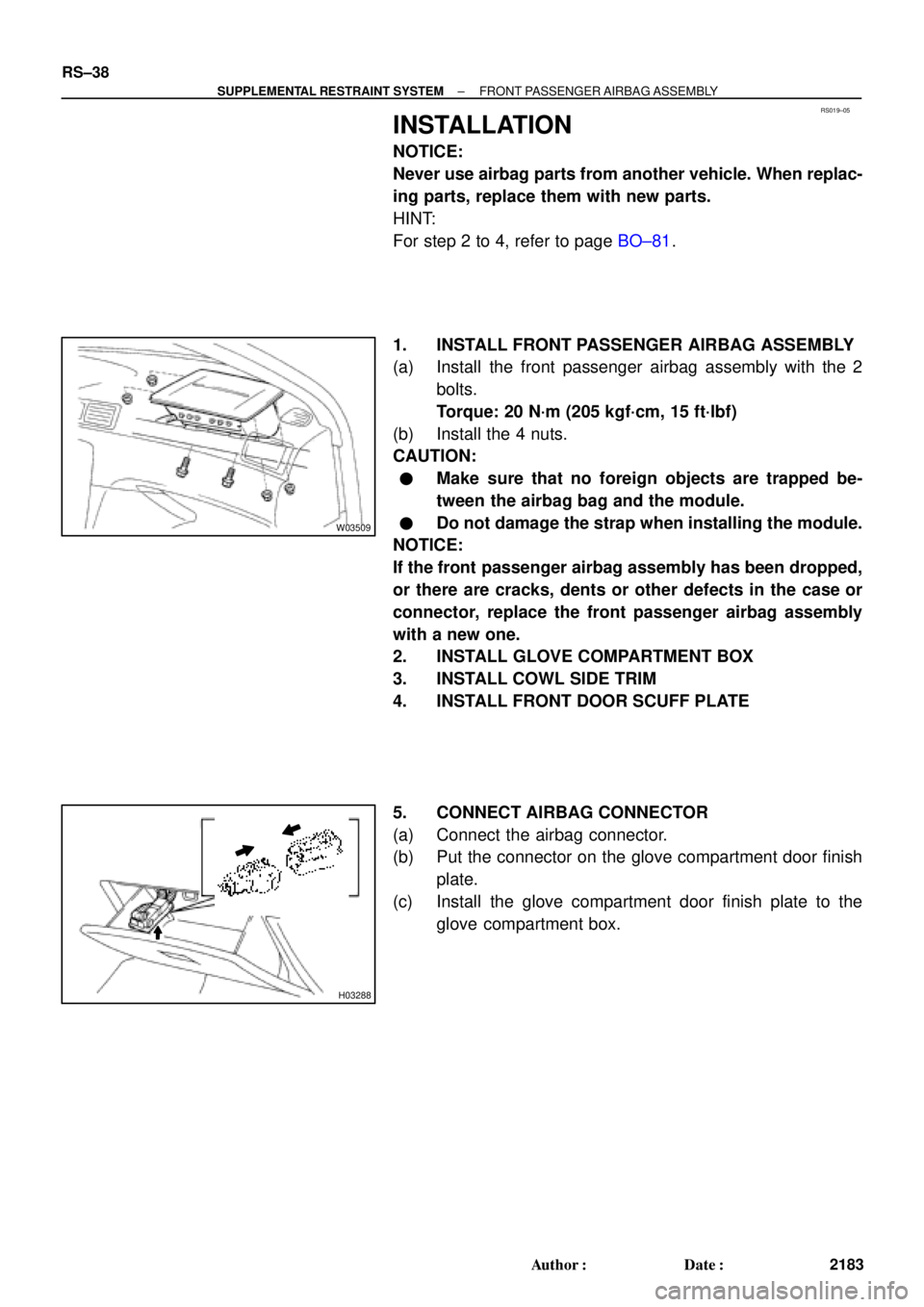

1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
(a) Install the front passenger airbag assembly with the 2
bolts.
Torque: 20 N´m (205 kgf´cm, 15 ft´lbf)
(b) Install the 4 nuts.
CAUTION:
Make sure that no foreign objects are trapped be-
tween the airbag bag and the module.
Do not damage the strap when installing the module.
NOTICE:
If the front passenger airbag assembly has been dropped,
or there are cracks, dents or other defects in the case or
connector, replace the front passenger airbag assembly
with a new one.
2. INSTALL GLOVE COMPARTMENT BOX
3. INSTALL COWL SIDE TRIM
4. INSTALL FRONT DOOR SCUFF PLATE
5. CONNECT AIRBAG CONNECTOR
(a) Connect the airbag connector.
(b) Put the connector on the glove compartment door finish
plate.
(c) Install the glove compartment door finish plate to the
glove compartment box.
Page 4214 of 4770
RS05G±02
H08245
Headrest
Headrest Support
Side Airbag
Assembly
Front Seatback Cover
Hinge Cover
Front Seat Cushion Shield
Release Handle
Power adjuster type:
Front Seat
Cushion Shield
Front Seat Cushion
Lower Shield Vartical Adjuster Knob Front Seat Cushion
Inner Shield
Front Seat Cushion
Lower Shield
37 (375, 27)
15 (150, 11)
18 (185, 13)
N´m (kgf´cm, ft´lbf): Specified torqueFront Seatback Assembly
Front Seat Cushion
Assembly
Seat Track Cover
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
RS±39
2184 Author: Date:

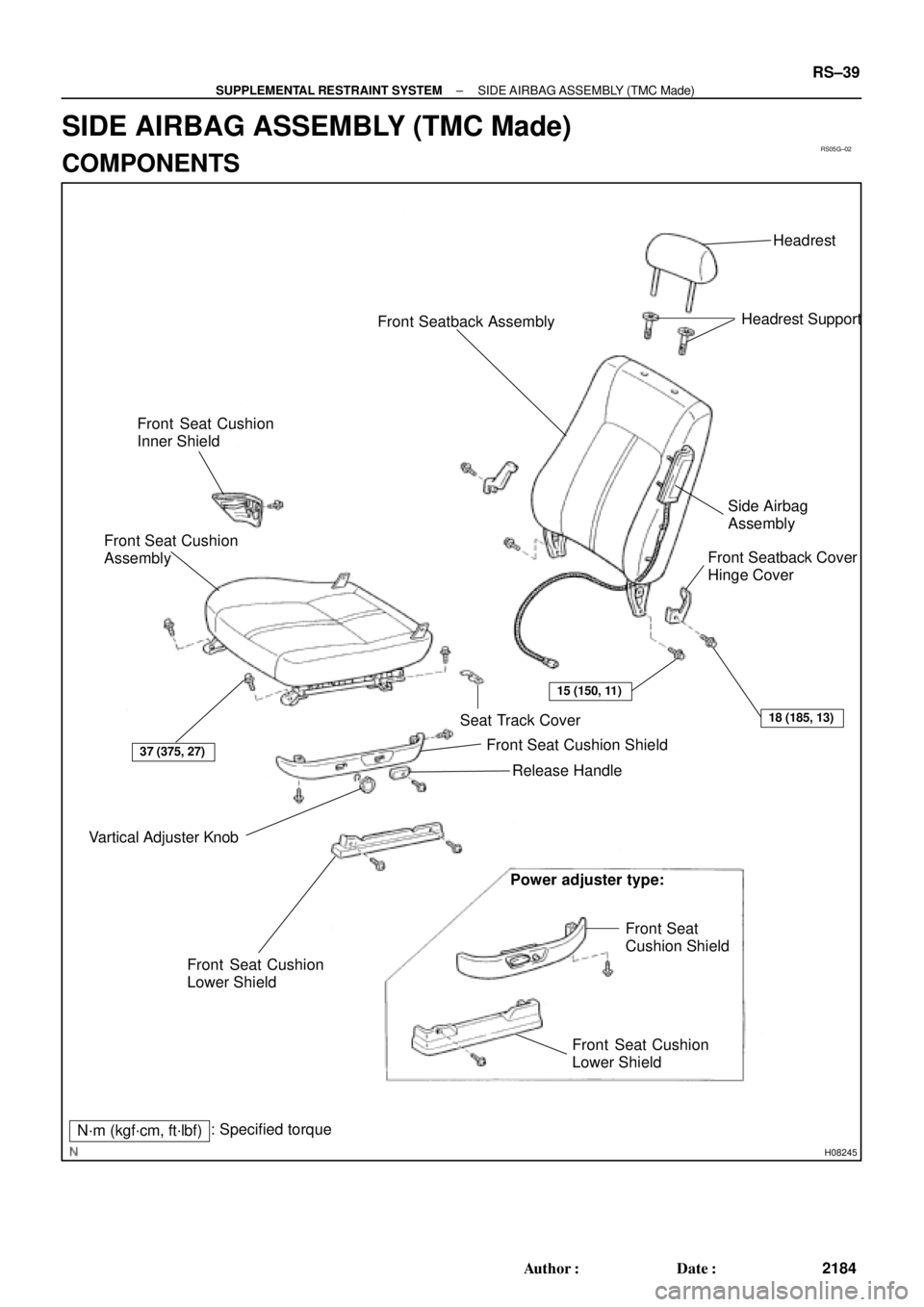

SIDE AIRBAG ASSEMBLY (TMC Made)
COMPONENTS
Page 4215 of 4770

RS0EU±01
H02270
H02259
RS±40
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
2185 Author: Date:
REMOVAL
NOTICE:
If the wiring connector of the SRS is disconnected
and the ignition switch is in ON or ACC position, DTCs
will be recorded.
Never use the airbag parts from another vehicle.
When replacing parts, replace them with new parts.

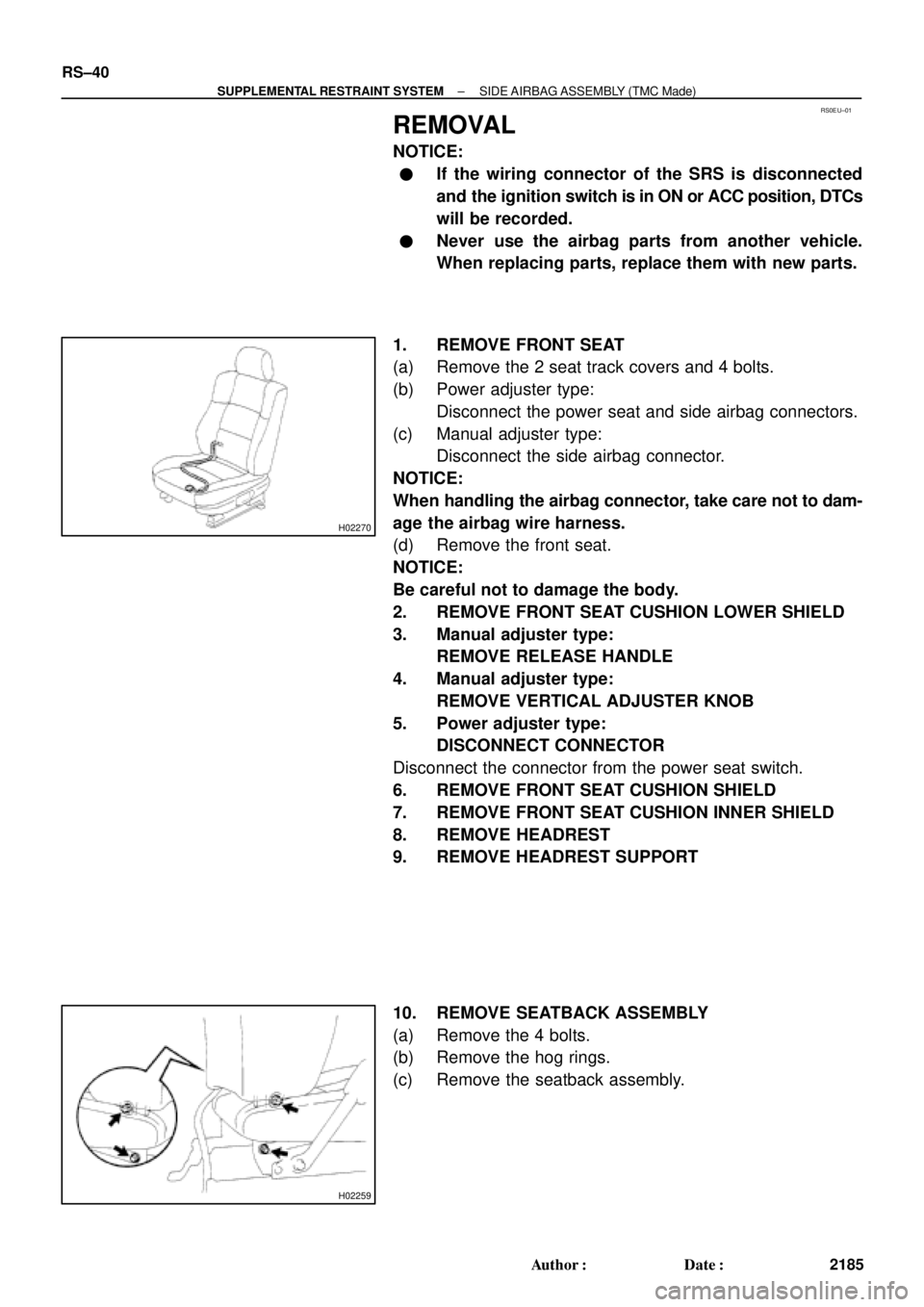

1. REMOVE FRONT SEAT
(a) Remove the 2 seat track covers and 4 bolts.
(b) Power adjuster type:
Disconnect the power seat and side airbag connectors.
(c) Manual adjuster type:
Disconnect the side airbag connector.
NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.
(d) Remove the front seat.
NOTICE:
Be careful not to damage the body.
2. REMOVE FRONT SEAT CUSHION LOWER SHIELD
3. Manual adjuster type:
REMOVE RELEASE HANDLE
4. Manual adjuster type:
REMOVE VERTICAL ADJUSTER KNOB
5. Power adjuster type:
DISCONNECT CONNECTOR
Disconnect the connector from the power seat switch.
6. REMOVE FRONT SEAT CUSHION SHIELD
7. REMOVE FRONT SEAT CUSHION INNER SHIELD
8. REMOVE HEADREST
9. REMOVE HEADREST SUPPORT
10. REMOVE SEATBACK ASSEMBLY
(a) Remove the 4 bolts.
(b) Remove the hog rings.
(c) Remove the seatback assembly.
Page 4216 of 4770

RS05I±02
H01608
Cross Section
H08274
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
RS±41
2186 Author: Date:

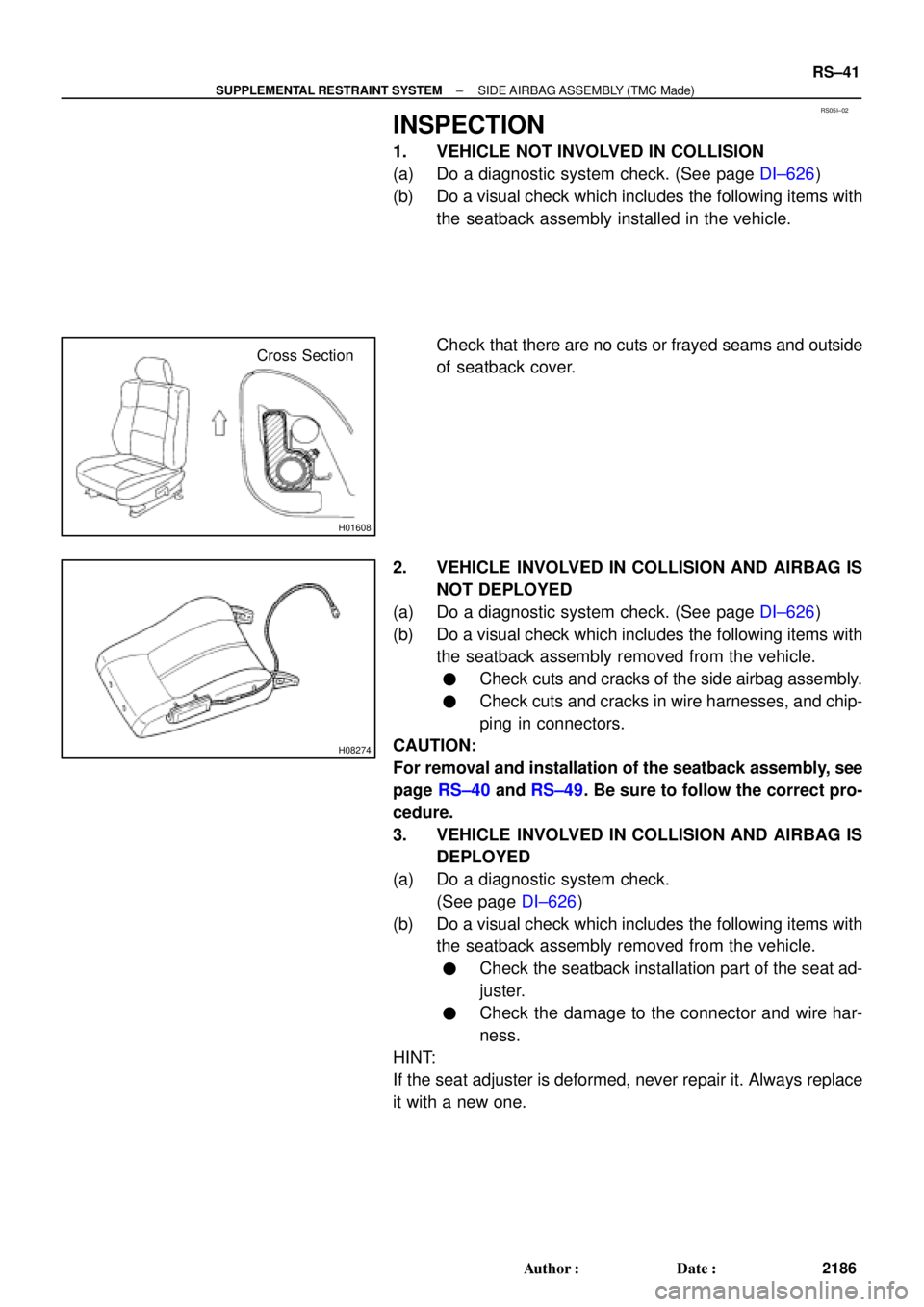

INSPECTION
1. VEHICLE NOT INVOLVED IN COLLISION
(a) Do a diagnostic system check. (See page DI±626)
(b) Do a visual check which includes the following items with
the seatback assembly installed in the vehicle.
Check that there are no cuts or frayed seams and outside
of seatback cover.
2. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS
NOT DEPLOYED
(a) Do a diagnostic system check. (See page DI±626)
(b) Do a visual check which includes the following items with
the seatback assembly removed from the vehicle.
Check cuts and cracks of the side airbag assembly.
Check cuts and cracks in wire harnesses, and chip-
ping in connectors.
CAUTION:
For removal and installation of the seatback assembly, see
page RS±40 and RS±49. Be sure to follow the correct pro-
cedure.
3. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS
DEPLOYED
(a) Do a diagnostic system check.
(See page DI±626)
(b) Do a visual check which includes the following items with
the seatback assembly removed from the vehicle.
Check the seatback installation part of the seat ad-
juster.
Check the damage to the connector and wire har-
ness.
HINT:
If the seat adjuster is deformed, never repair it. Always replace
it with a new one.
