2000 TOYOTA CAMRY wiring diagram

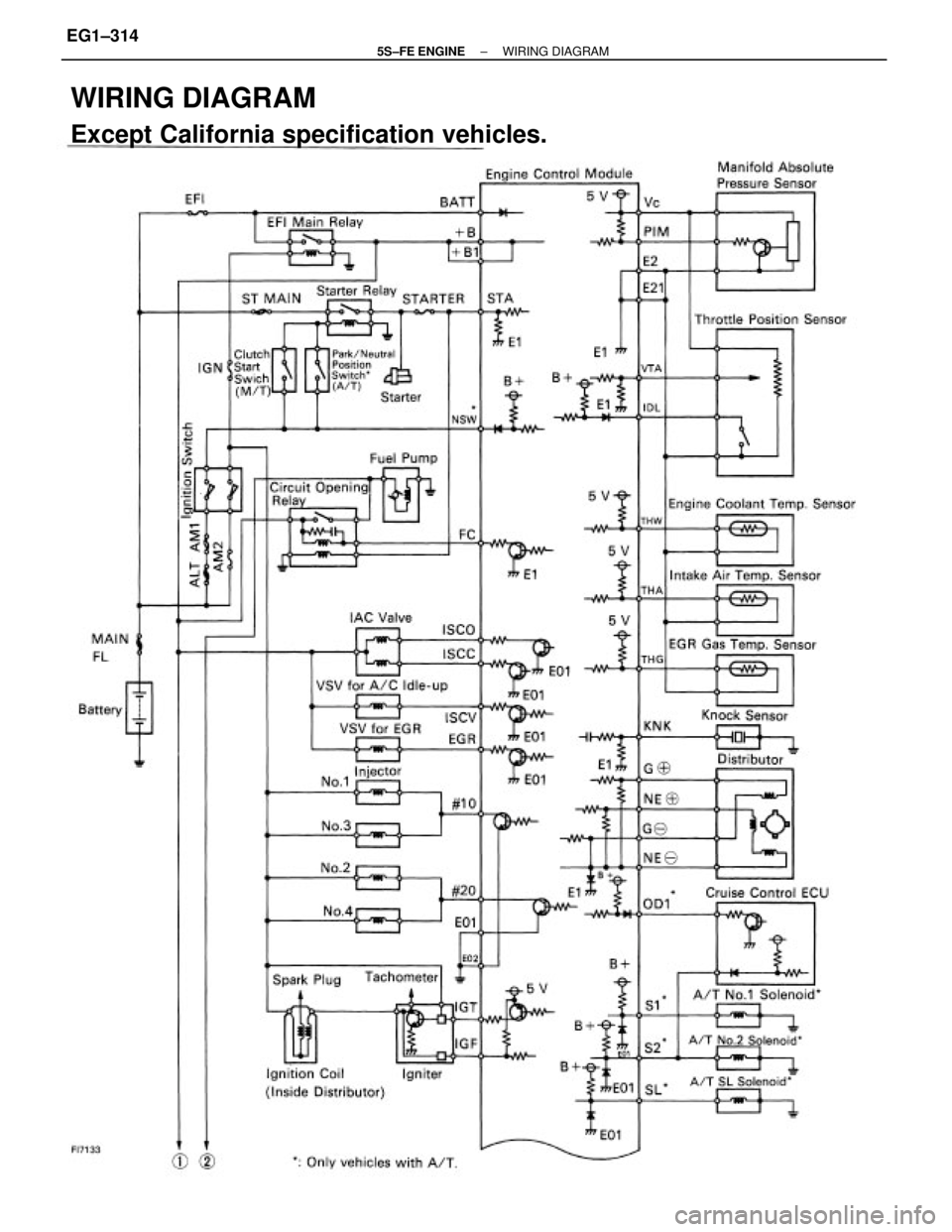

WIRING DIAGRAM
Except California specification vehicles.
± 5S±FE ENGINEWIRING DIAGRAMEG1±314

± 5S±FE ENGINEWIRING DIAGRAMEG1±315

WIRING DIAGRAM (Cont'd)
Only for California specification vehicles.
± 5S±FE ENGINEWIRING DIAGRAMEG1±316

± 5S±FE ENGINEWIRING DIAGRAMEG1±317

Check for open and short in harness and
connector between ECM and distributor.Check resistance of each pickup coils in
distributor.
Repair or replace harness or connector.
DIAGNOSTIC CHART
WIRING DIAGRAM
Replace distributor housing.
Replace distributor housing.
Check and replace ECM. Check air gap.
± 5S±FE ENGINECIRCUIT INSPECTIONEG1±337

Check for open and short in harness and
connector between ECM and distributor. Check resistance of each pickup coils in
distributor.
Repair or replace harness or connector.
DIAGNOSTIC CHART
WIRING DIAGRAM
Check and replace ECM.Replace distributor. Replace distributor.
Check air gap.
± 5S±FE ENGINECIRCUIT INSPECTIONEG1±340

CIRCUIT DESCRIPTION
The ECM determines the ignition timing, turns on Tr, at a predetermined angle ('*CA) before the
desired ignition timing and outputs an ignition signal (IGT) ª1º to the igniter.
Since the width of the IGT signal is constant, the dwell angle control circuit in the igniter determines
the time the control circuit starts primary current flow to the ignition coil based on the engine rpm and
ignition timing one revolution ago, that is, the time the Tr
2 turns on.
When it reaches the ignition timing, the ECM turns Tr, off and outputs the IGT signal ªOº.
This turns Tr2 off, interrupting the primary current flow and generating a high voltage in the secondary
coil which causes the spark plug to spark. Also, by the counter electromotive force generated when
the primary current is interrupted, the igniter sends an ignition confirmation signal (IGF) to the ECM.
The ECM stops fuel injection as a fail safe function when the lG F signal is not input to the ECM.
wOpen or short in IG F or IGT circuit from
igniter to ECM.
wIgniter
wECM No IGF signal to ECM for 4 (8*2) consecutive
IGT signals. Diagnostic Trouble Code Detecting Condition
WIRING DIAGRAM
Trouble Area
DTC 14 Ignition Signal Circuit
DTC No.
± 5S±FE ENGINECIRCUIT INSPECTIONEG1±344

Are there any other codes (besides code 21)
being output ?Go to relevant diagnostic trouble code
chart.
DIAGNOSTIC CHART
WIRING DIAGRAM
Replace main oxygen sensor.YES
± 5S±FE ENGINECIRCUIT INSPECTIONEG1±354
