Page 2073 of 4770

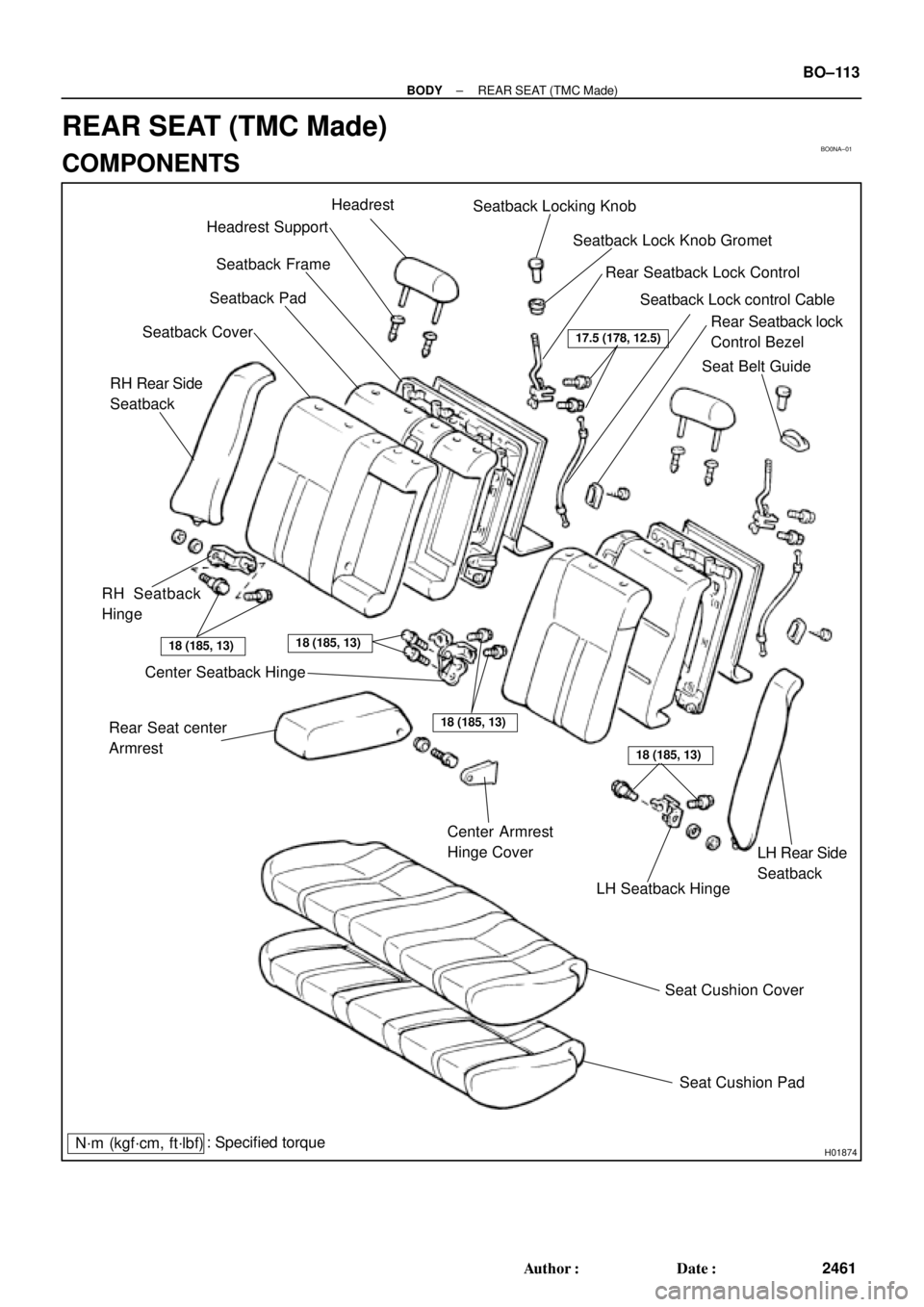

TOYOTA CAMRY 2000 Service Repair Manual BO0NA±01 H01874 Headrest SupportHeadrest Seatback Frame Seatback Pad Seatback Cover RH Seatback Hinge Center Seatback Hinge Rear Seat center Armrest Center Armrest Hinge Cover LH Seatback Hinge Seat

Page 2074 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0NB±01 BO±114 ± BODYREAR SEAT (TMC Made) 2462 Author: Date: REMOVAL 1. REMOVE LH SEATBACK ASSEMBLY (a) Release lock to lean the seat back to front. (b) Remove the clips. (c) Remove the 2 bolts

Page 2075 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0NC±01 ± BODYREAR SEAT (TMC Made) BO±115 2463 Author: Date: DISASSEMBLY 1. REMOVE SEAT CUSHION COVER Remove the hog rings and seat cushion cover from the seat cushion pad. 2. REMOVE THESE PARTS

Page 2076 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0ND±01 BO±116 ± BODYREAR SEAT (TMC Made) 2464 Author: Date: REASSEMBLY Reassembly is in the reverse order of disassembly (See page BO±115).

Page 2077 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0NE±01 ± BODYREAR SEAT (TMC Made) BO±117 2465 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±114).

Page 2078 of 4770

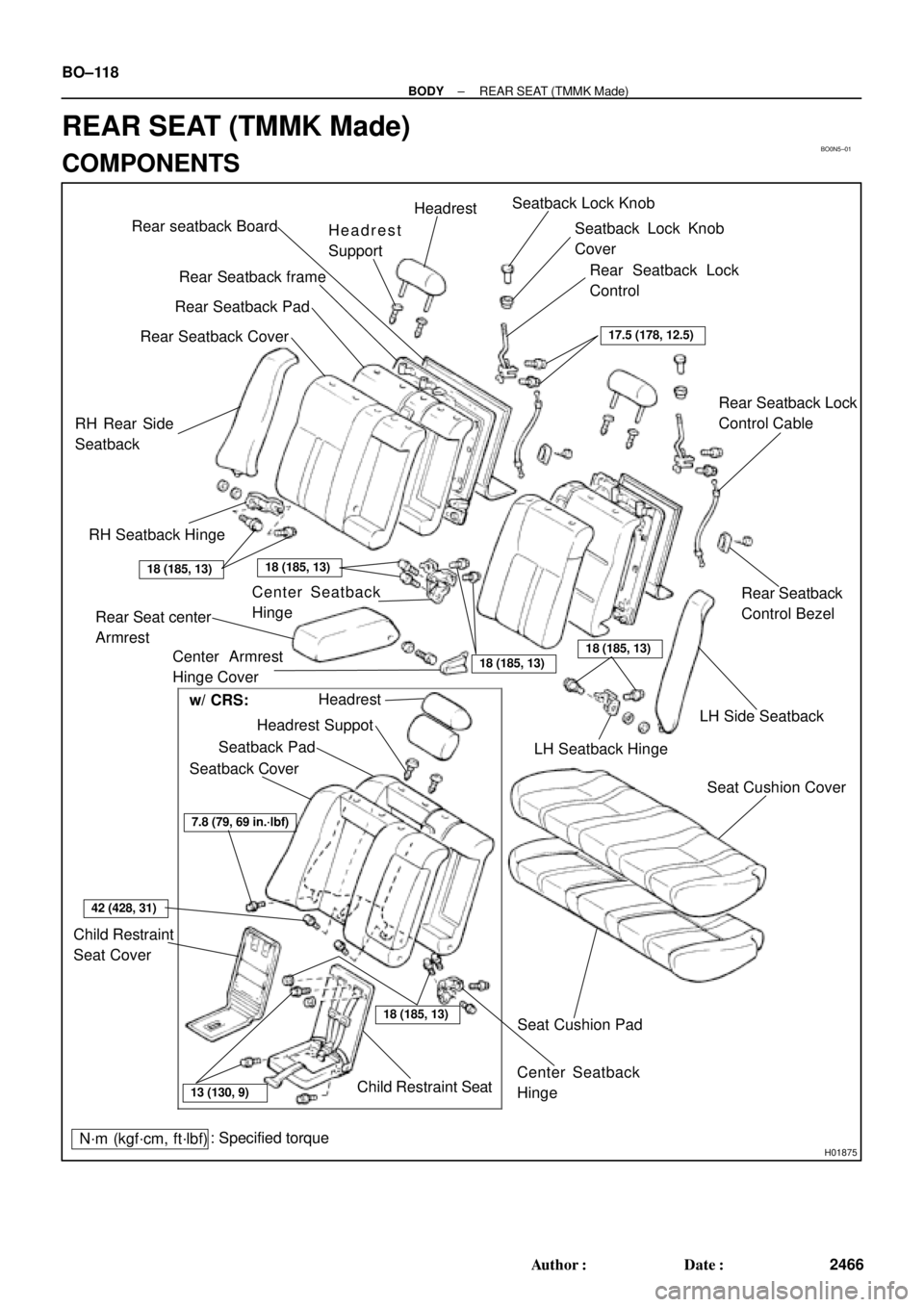

TOYOTA CAMRY 2000 Service Repair Manual BO0N5±01 H01875 Rear seatback Board Rear Seatback frame RH Rear Side SeatbackRear Seatback CoverRear Seatback PadHeadrest Support LH Seatback Hinge Seatback Lock Knob Seatback Lock Knob Cover Rear Se

Page 2079 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0N6±01 ± BODYREAR SEAT (TMMK Made) BO±119 2467 Author: Date: REMOVAL 1. REMOVE SEAT CUSHION ASSEMBLY (a) Remove the seat cushion assembly. HINT: Remove the rear seat inner with center belt from

Page 2080 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0N7±01 BO±120 ± BODYREAR SEAT (TMMK Made) 2468 Author: Date: DISASSEMBLY 1. REMOVE SEAT CUSHION COVER Remove the hog rings and seat cushion cover from the seat cushion pad. 2. REMOVE THESE PART
