Page 3673 of 4770

TOYOTA CAMRY 2000 Service Repair Manual Illustration:
what to do and where
21. CHECK PISTON STROKE OF OVERDRIVE BRAKE
(a)
Task heading : what to do
SST 09350±30020 (09350±06120)
Set part No. Component part No.
Detailed text : how to do

Illustration:
what to do and where
21. CHECK PISTON STROKE OF OVERDRIVE BRAKE
(a)
Task heading : what to do
SST 09350±30020 (09350±06120)
Set part No. Component part No.
Detailed text : how to do task
(b)
Piston stroke: 1.40 1.70 mm (0.0551 0.0669 in.)
Specification
Place SST and a dial indicator onto the overdrive brake pis-
ton as shown in the illustration.
Measure the stroke applying and releasing the compressed
air (392 785 kPa, 4 8 kgf/cm
2 or 57 114 psi) as shown
in the illustration. IN±2
± INTRODUCTIONHOW TO USE THIS MANUAL
2 Author: Date:
The procedures are presented in a step±by±step format:
The illustration shows what to do and where to do it.
The task heading tells what to do.
The detailed text tells how to perform the task and gives other information such as specifications
and warnings.
Example:
This format provides the experienced technician with a FAST TRACK to the information needed. The upper
case task heading can be read at a glance when necessary, and the text below it provides detailed informa-
tion. Important specifications and warnings always stand out in bold type.
6. REFERENCES
References have been kept to a minimum. However, when they are required you are given the page to refer
to.
7. SPECIFICATIONS
Specifications are presented in bold type throughout the text where needed. You never have to leave the
procedure to look up your specifications. They are also found in Service Specifications section, for quick
reference.
8. CAUTIONS, NOTICES, HINTS:
CAUTIONS are presented in bold type, and indicate there is a possibility of injury to you or other
people.
NOTICES are also presented in bold type, and indicate the possibility of damage to the components
being repaired.
HINTS are separated from the text but do not appear in bold. They provide additional information to
help you perform the repair efficiently.
9. SI UNIT
The UNITS given in this manual are primarily expressed according to the SI UNIT (International System of
Unit), and alternately expressed in the metric system and in the English System.
Example:
Torque: 30 N´m (310 kgf´cm, 22 ft´lbf)

Page 3674 of 4770

TOYOTA CAMRY 2000 Service Repair Manual IN0CN±03
B01453
A
B
B02122
5S±FE engine:
1MZ±FE engine:
± INTRODUCTIONIDENTIFICATION INFORMATION
IN±3
3 Author: Date:
IDENTIFICATION INFORMATION
VEHICLE IDENTIFICATION AND
ENGINE SERIAL NUMBER

Page 3675 of 4770

TOYOTA CAMRY 2000 Service Repair Manual FI1066
IN0CO±04
Z11554
Seal Lock Adhesive
IN±4
± INTRODUCTIONREPAIR INSTRUCTIONS
4 Author: Date:
REPAIR INSTRUCTIONS
GENERAL INFORMATION
BASIC REPAIR HINT
(a) Use fender, seat and floor covers to

Page 3676 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BE1367
Medium Current Fuse and High Current Fuse
Equal Amperage Rating
V00076
Abbreviation Part Name Symbol Illustration
FUSE
MEDIUM CURRENT FUSE
HIGH CURRENT FUSE
FUSIBLE LINK
CIRCUIT BREAKERFUSE
M±

Page 3677 of 4770

TOYOTA CAMRY 2000 Service Repair Manual IN0253
WRONG CORRECT
IN0252
WRONG CORRECT IN±6
± INTRODUCTIONREPAIR INSTRUCTIONS
6 Author: Date:
(k) Care must be taken when jacking up and supporting the
vehicle. Be sure to lift and support the

Page 3678 of 4770

TOYOTA CAMRY 2000 Service Repair Manual IN0002
Example
± INTRODUCTIONREPAIR INSTRUCTIONS
IN±7
7 Author: Date:
(m) Installation and removal of vacuum hose:
(1) When disconnecting vacuum hoses, use tags to
identify how they should be reco

Page 3679 of 4770

TOYOTA CAMRY 2000 Service Repair Manual IN0CP±03
N20619
Front

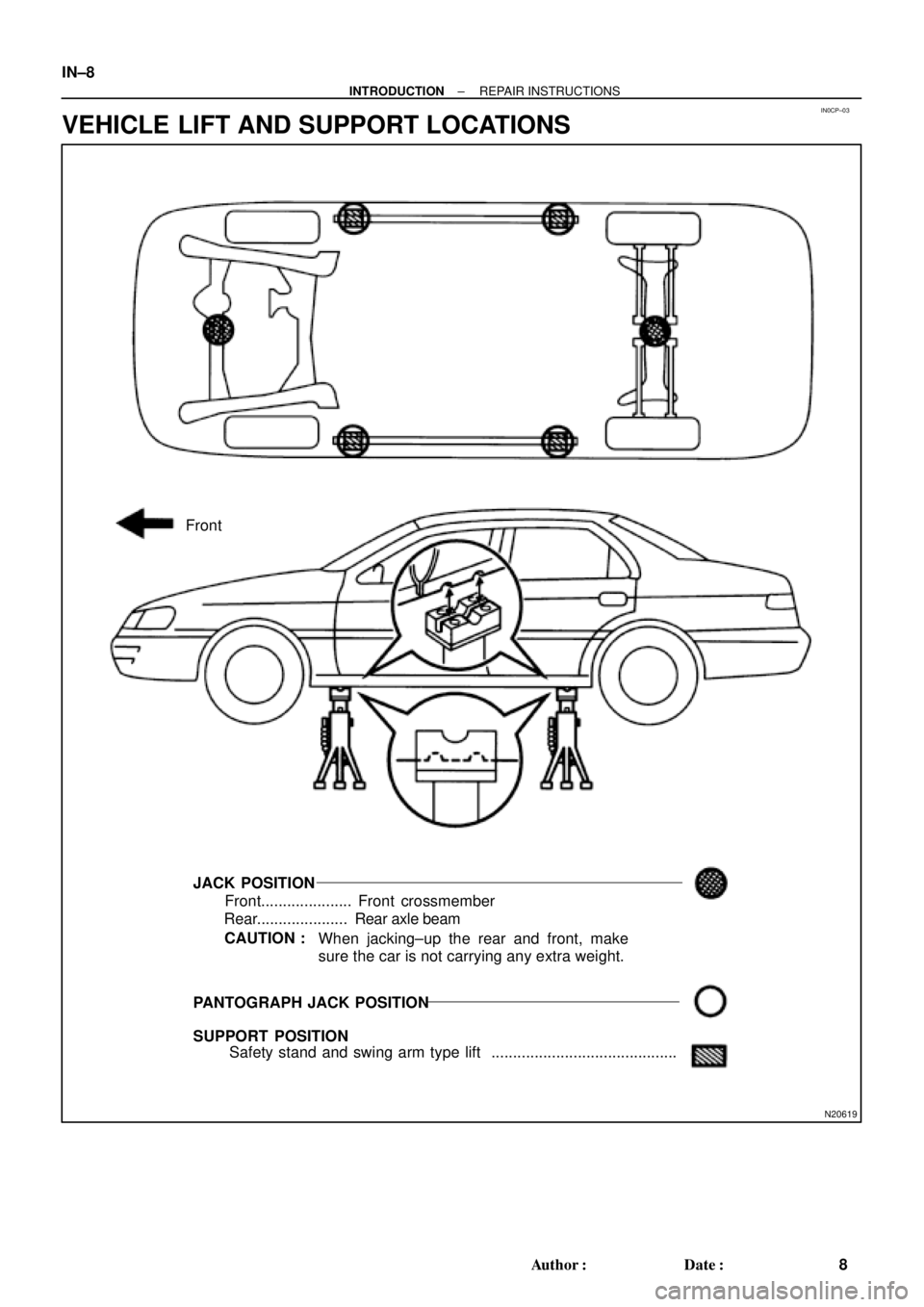

JACK POSITION
Front..................... Front crossmember
Rear..................... Rear axle beam
CAUTION :
PANTOGRAPH JACK POSITION
SUPPORT POSITION
Safety stand and swing a

Page 3680 of 4770

TOYOTA CAMRY 2000 Service Repair Manual N20620

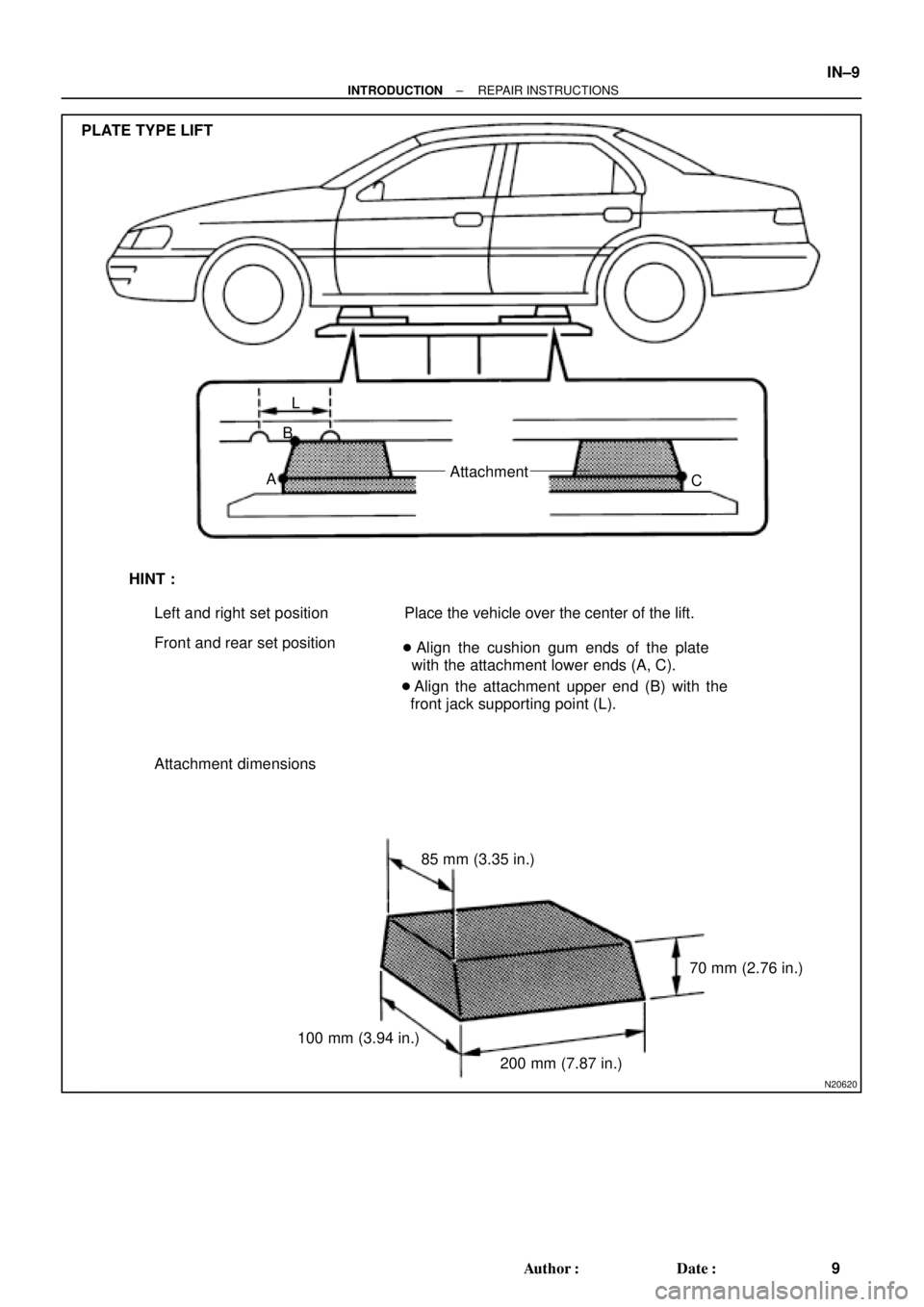

PLATE TYPE LIFT
L
B
AAttachment
C
HINT :
Left and right set position
Front and rear set positionPlace the vehicle over the center of the lift.
Align the cushion gum ends of the plate
with t
