Page 337 of 4770

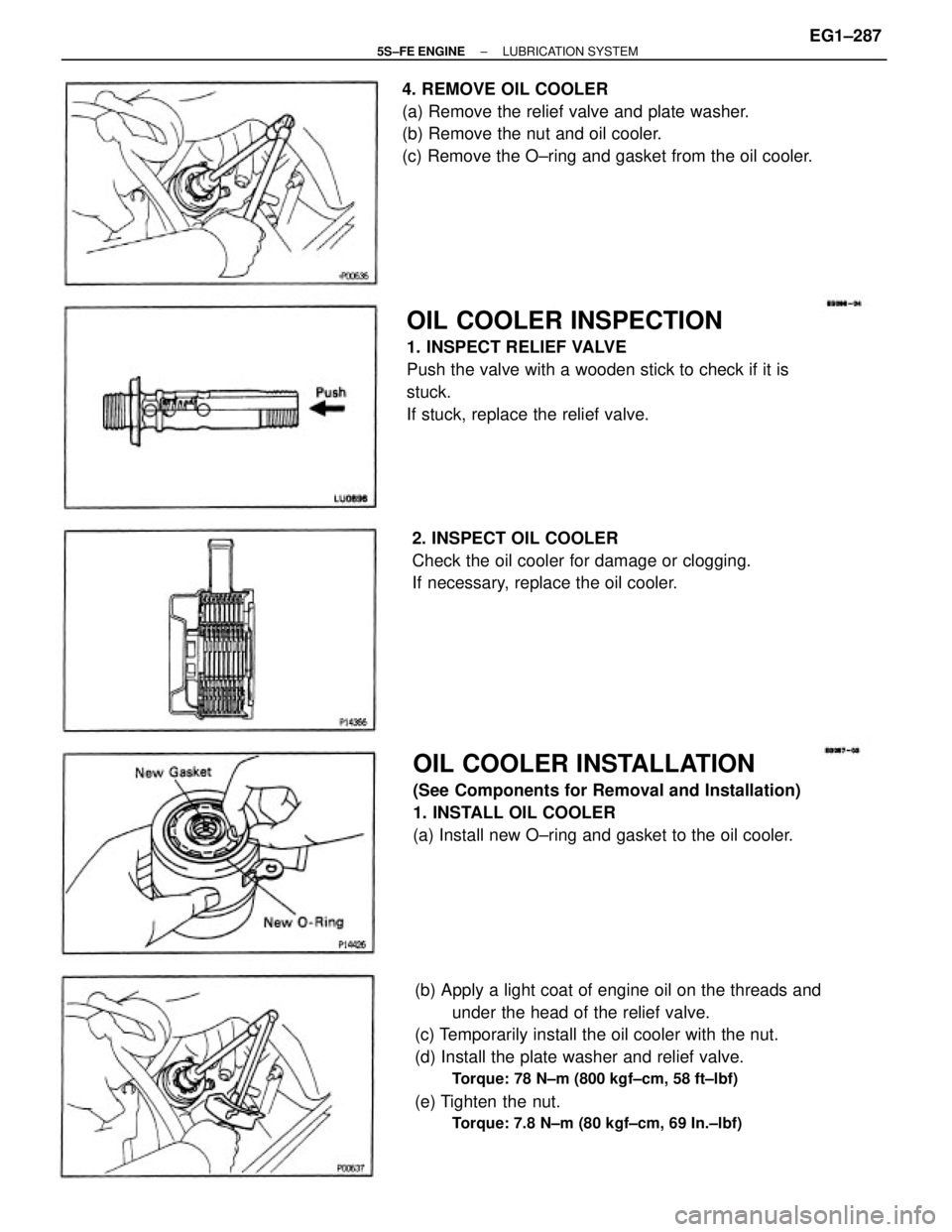

TOYOTA CAMRY 2000 Service Repair Manual (b) Apply a light coat of engine oil on the threads and
under the head of the relief valve.
(c) Temporarily install the oil cooler with the nut.
(d) Install the plate washer and relief valve.
Torque:

Page 338 of 4770

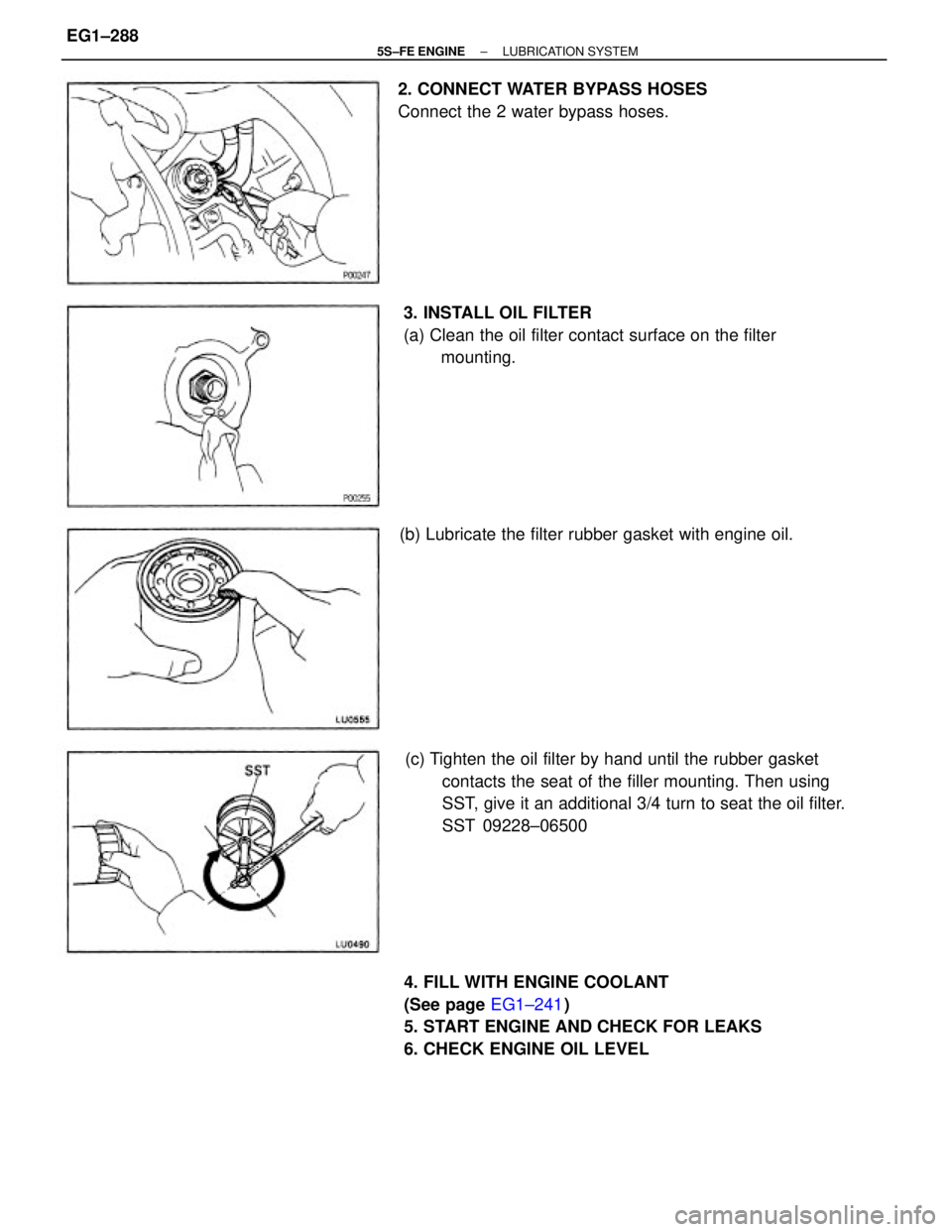

TOYOTA CAMRY 2000 Service Repair Manual (c) Tighten the oil filter by hand until the rubber gasket
contacts the seat of the filler mounting. Then using
SST, give it an additional 3/4 turn to seat the oil filter.
SST 09228±06500
4. FILL WIT

Page 339 of 4770

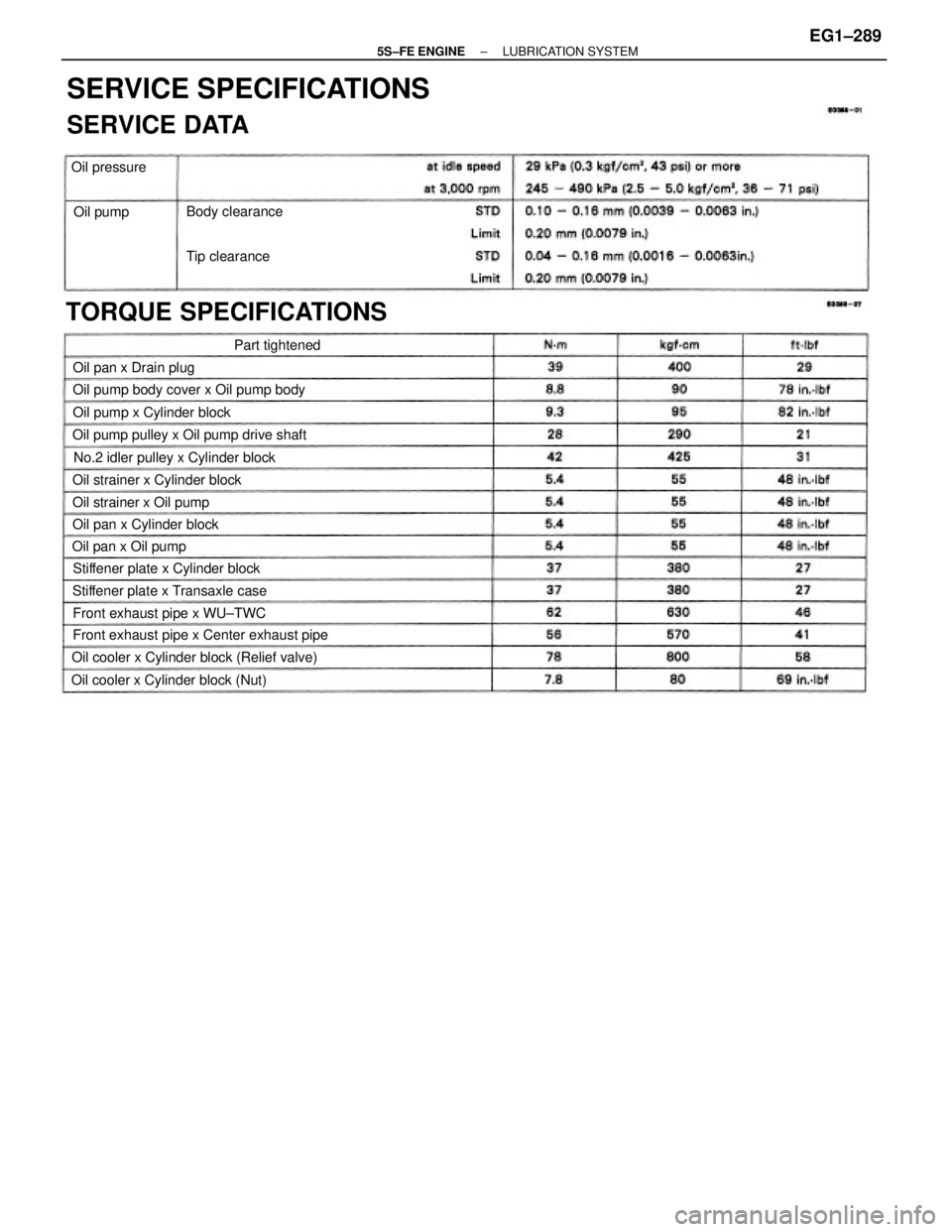

TOYOTA CAMRY 2000 Service Repair Manual SERVICE SPECIFICATIONS
SERVICE DATA
TORQUE SPECIFICATIONS
Front exhaust pipe x Center exhaust pipe
Oil cooler x Cylinder block (Relief valve)Oil pump pulley x Oil pump drive shaftOil pump body cover x

Page 340 of 4770

TOYOTA CAMRY 2000 Service Repair Manual
5S-FE ENGINE –
-Memo

Page 341 of 4770

TOYOTA CAMRY 2000 Service Repair Manual 5S±FE ENGINE TROUBLESHOOTING
± 5S±FE ENGINEEG1±291

Page 342 of 4770

TOYOTA CAMRY 2000 Service Repair Manual HOW TO PROCEED WITH TROUBLESHOOTING
The Engine Control System broadly consists of the sensors, Engine Control Module (ECM) and actuators.
The ECM receives signals from various sensors, judges the oper

HOW TO PROCEED WITH TROUBLESHOOTING
The Engine Control System broadly consists of the sensors, Engine Control Module (ECM) and actuators.
The ECM receives signals from various sensors, judges the operating conditions and determines the
optimum injection duration, timing, ignition timing and idle speed.
In general, the Engine Control System is considered to be a very intricate system to troubleshoot. But, the
fact is that if you proceed to inspect the circuit one by one following the procedures directed in this manu-
al, troubleshooting of this system is not complex.
This section explains the most ideal method of troubleshooting and tells how to carry out the necessary
repairs.
1. CUSTOMER PROBLEM ANALYSIS
Using the customer problem analysis check sheet for reference, ask the customer in as much details
as possible about the problem.
2. CHECK AND CLEAR DIAGNOSTIC TROUBLE CODE (PRECHECK)
Before confirming the problem symptom, first check the diagnostic trouble code and make a note of
any malfunction code which is output, then clear the code.
HINT: Output of the malfunction code indicates that there is a malfunction in the circuit indicated.
However, it does not indicate whether the malfunction is still occurring or occurred in the past and
returned to normal. In order to determine this, the problem sym toms should be confirmed in step 4
first and the diagnostic trouble code be rechecked in step [6].
Accordingly, if troubleshooting is begun based on the malfunction code only in diagnostic trouble
code check in step [2], it could result in a misdiagnosis, leading to troubleshooting of circuits which
are normal and making it more difficult to locate the cause of the problem.
3. SETTING THE TEST MODE DIAGNOSIS, [4] PROBLEM SYMPTOM CONFIRMATION,
[5] SYMPTOM SIMULATION
In order to find out the trouble more quickly, set the diagnosis check in test mode and with higher
sensing ability of the ECM, confirm the problem symptoms. If the trouble does not reappear, use the
symptom simulation method to make sure the trouble is reproduced.
6. DIAGNOSTIC TROUBLE CODE CHECK IN TEST MODE
Check the diagnostic trouble code in test mode. If the malfunction code is output, proceed to step. If the
normal code is output, proceed to step [7].
7. BASIC INSPECTION
Carry out basic inspection such as the spark check and fuel pressure check, etc.
8. DIAGNOSTIC TROUBLE CODE CHART
If the malfunction code is displayed, proceed to inspect the circuit indicated by the chart for each
code.
9. MATRIX CHART OF PROBLEM SYMPTOMS
If the normal code is displayed in the diagnosis in test mode, perform troubleshooting according to
the inspection order in the Matrix Chart of Problem Symptoms.
10. PARTS INSPECTION
When the Matrix Chart of Problem Symptoms instructs to check the parts, proceed to parts inspection
section included in this manual.
11. CIRCUIT INSPECTION
Determine if the malfunction is the sensor, actuator, wire harness, connector or the ECM.
± 5S±FE ENGINEHOW TO PROCEED WITH TROUBLESHOOTINGEG1±292

Page 343 of 4770

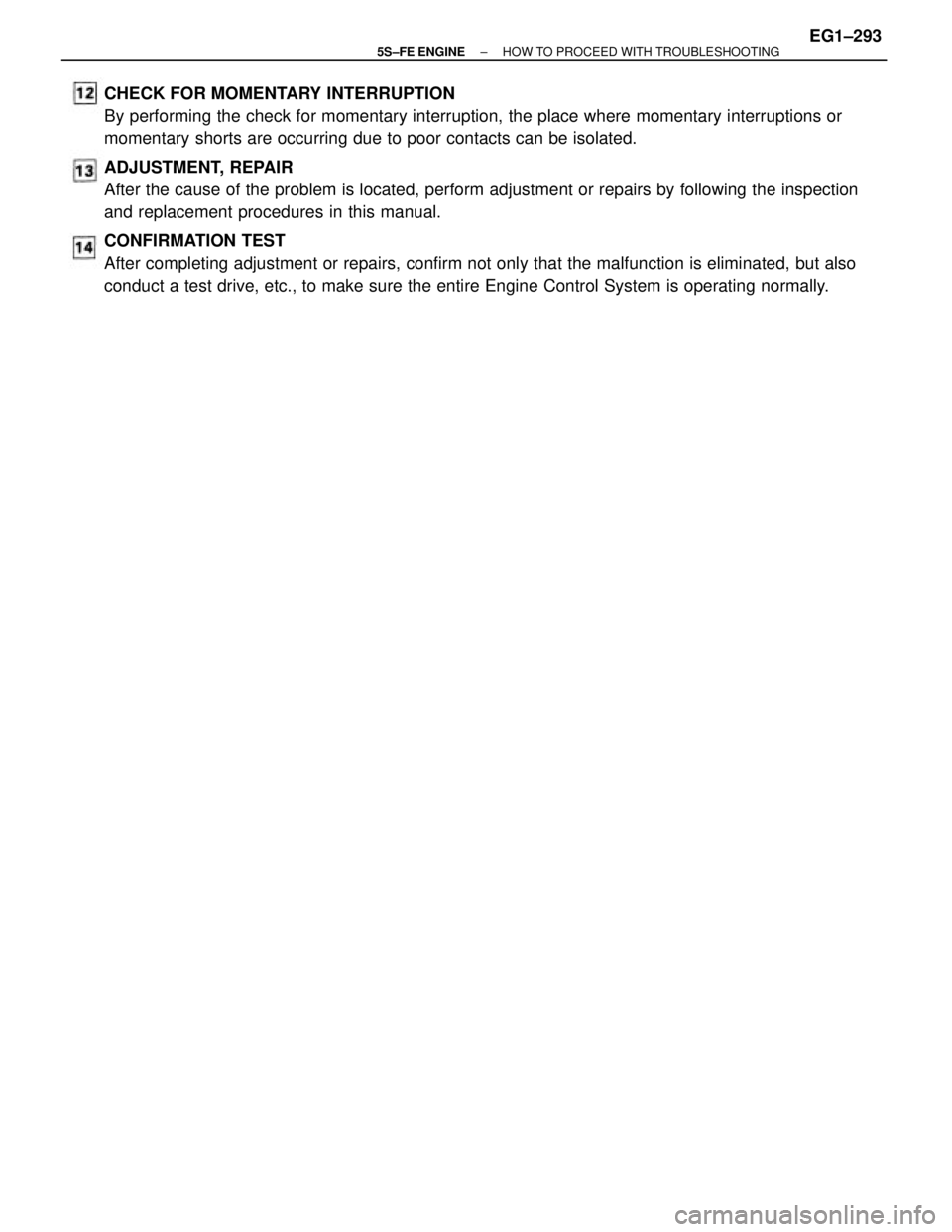

TOYOTA CAMRY 2000 Service Repair Manual CHECK FOR MOMENTARY INTERRUPTION
By performing the check for momentary interruption, the place where momentary interruptions or
momentary shorts are occurring due to poor contacts can be isolated.
ADJ

Page 344 of 4770

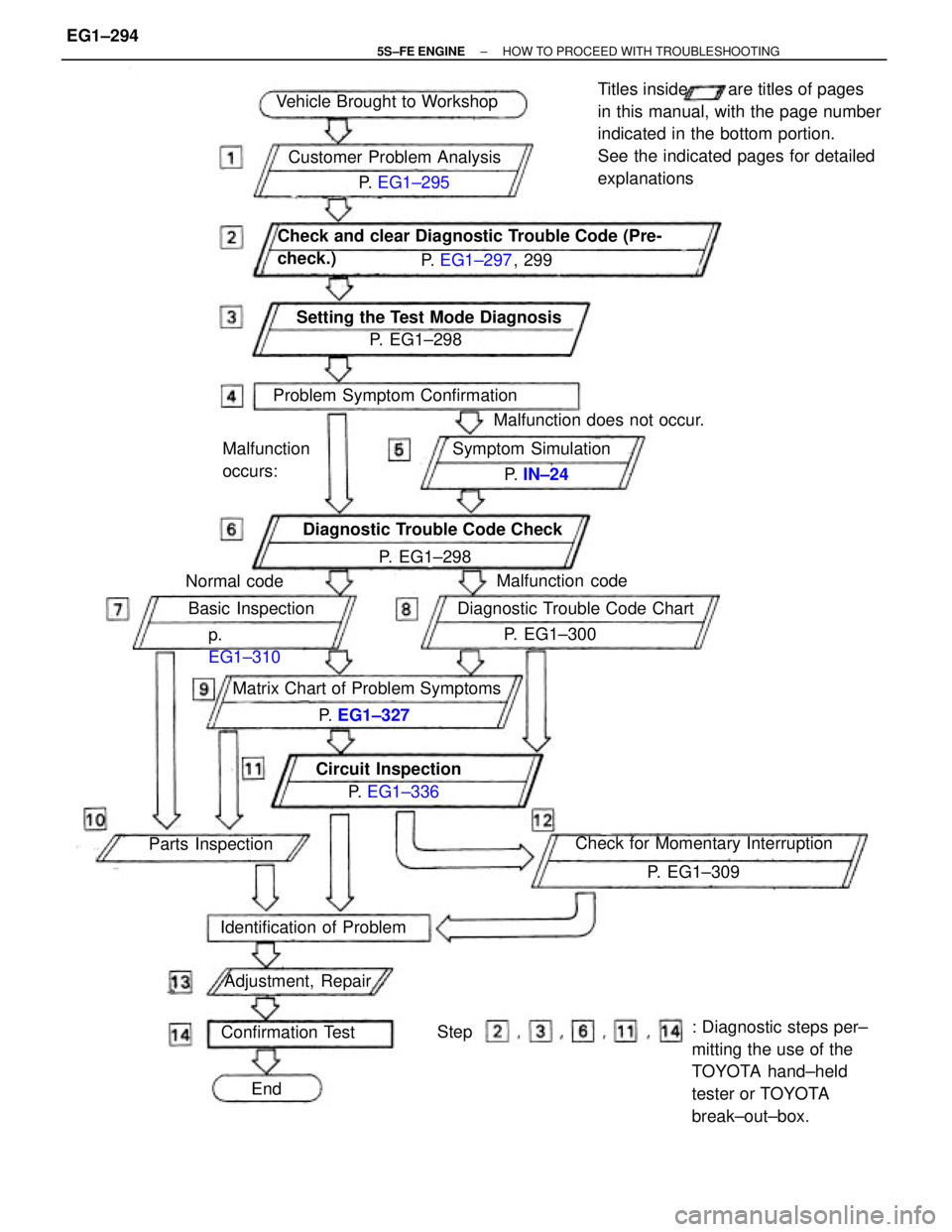

TOYOTA CAMRY 2000 Service Repair Manual Titles inside are titles of pages
in this manual, with the page number
indicated in the bottom portion.
See the indicated pages for detailed
explanations
: Diagnostic steps per±
mitting the us
