2000 TOYOTA CAMRY wiper fluid

'99camry U
83
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ºONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
With interval adjuster: The ºINT TIMEº
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see ºAdding washer fluidº in Chapter 7±3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
To defog or defrost the rear window,
push the switch.
The key must be in the ºONº position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
On some models, heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.
Windshield wipers and
washerRear window and outside
rear view mirror defoggers

'99camry U
214
Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
NOTICE
Remember that battery and ignition
cables carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.
Add only demineralized or distilled
water to fill the radiator. And if you
spill some of the coolant, be sure
to wash off with water to prevent it
from damaging the parts or paint.
Do not allow dirt or anything else
to fall through the spark plugholes.
Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
Do not reuse platinum±tipped spark
plugs by cleaning or regapping.
Do not overfill automatic transmis-
sion fluid, or the transmission
could be damaged.
Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
Be careful not to scratch the glass
surface with the wiper frame.
When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.

B HOW TO USE THIS MANUAL

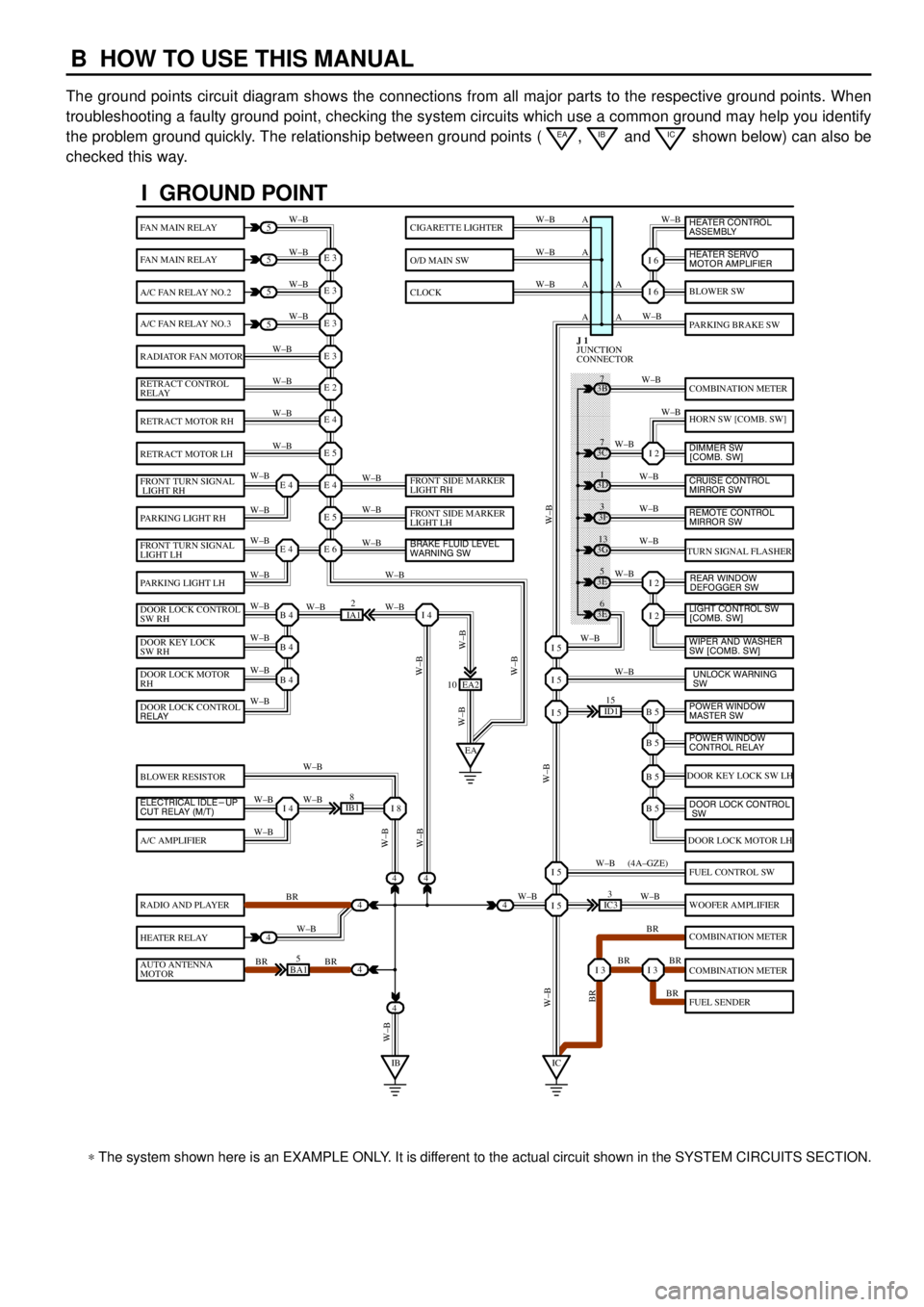

The ground points circuit diagram shows the connections from all major parts to the respective ground points. When
troubleshooting a faulty ground point, checking the system circuits which use a common ground may help you identify
the problem ground quickly. The relationship between ground points (
EA, IB and IC shown below) can also be
checked this way.

I GROUND POINT
FAN MAIN RELAY
FAN MAIN RELAY
A/C FAN RELAY NO.2
A/C FAN RELAY NO.3
RADIATOR FAN MOTOR
RETRACT CONTROL
RELAY
RETRACT MOTOR RH
RETRACT MOTOR LH
FRONT TURN SIGNAL
LIGHT RH
PARKING LIGHT RH
FRONT TURN SIGNAL
LIGHT LH
PARKING LIGHT LH
DOOR LOCK CONTROL
SW RH
DOOR KEY LOCK
SW RH
DOOR LOCK MOTOR
RH
BLOWER RESISTOR
A/C AMPLIFIER
RADIO AND PLAYER
HEATER RELAY
AUTO ANTENNA
MOTOR
BLOWER SW
PARKING BRAKE SW
COMBINATION METER
HORN SW [COMB. SW]
TURN SIGNAL FLASHER
DOOR KEY LOCK SW LH
DOOR LOCK MOTOR LH
FUEL CONTROL SW
WOOFER AMPLIFIER
COMBINATION METER
COMBINATION METER
FUEL SENDER
CIGARETTE LIGHTER
O/D MAIN SW
CLOCK
5
5
5
5
4
4
4
4
4BA15
IB18
EA2 10
3E5
3E
6 3G
13 3F
3 3D
1 3B
7
ID115
IC33
IA12
E 3
A
A AW±B
W±BW±B W±B
W±B W±B
W±B
W±B
W±B
W±B
W±B
W±B
W±B
W±B
W±B W±BW±B W±B W±B W±B
W±B W±B
W±BW±B
W±B
W±B
W±B W±B
W±B
BR
W±B
BR BRW±BW±B
W±B
W±B
W±B
W±B
W±B
W±B
W±B
W±B
W±B W±B
W±B
W±B
W±B
W±B
BR W±B
BR BR
BR W±B W±BW±B
W±BW±BBR W±B (4A±GZE)
W±B A A A
I 6
I 6
I 2
I 2
I 2
B 5I 5
I 5
I 5
B 5
B 5
B 5
I 5
I 5
I 3I 3
E 3
E 3
E 3
E 2
E 4
E 5
E 4
E 5
E 6E 4
E 4
B 4
EAI 4
B 4
B 4
I 4I 8
IBIC
3C7
4
JUNCTION
CONNECTOR J 1
4
DOOR LOCK CONTROL
RELAY
ELECTRICAL IDLE-UP
CUT RELAY (M/T)FRONT SIDE MARKER
LIGHT RH
FRONT SIDE MARKER
LIGHT LH
BRAKE FLUID LEVEL
WARNING SW
UNLOCK WARNING
SW WIPER AND WASHER
SW [COMB. SW] LIGHT CONTROL SW
[COMB. SW] HEATER CONTROL
ASSEMBLY
HEATER SERVO
MOTOR AMPLIFIER
DIMMER SW
[COMB. SW]
CRUISE CONTROL
MIRROR SW
REAR WINDOW
DEFOGGER SW
POWER WINDOW
MASTER SW
POWER WINDOW
CONTROL RELAY
DOOR LOCK CONTROL
SW
REMOTE CONTROL
MIRROR SW
* The system shown here is an EXAMPLE ONLY. It is different to the actual circuit shown in the SYSTEM CIRCUITS SECTION.

G ELECTRICAL WIRING ROUTING
Position of Parts in Engine Compartment
[1MZ±FE]
A 1 A/C Condenser Fan Motor
A 2 A/C Magnetic Clutch and Lock Sensor
A 3 A/C Triple Pressure SW
(A/C Dual and Single Pressure SW)
A 4 ABS Actuator
A 5 ABS Actuator
A 6 ABS Actuator and ECU
A 7 ABS and Traction Actuator
A 8 ABS and Traction Actuator
A 9 ABS Speed Sensor Front LH
A 10 ABS Speed Sensor Front RH
A 28 Air Fuel Ratio Sensor (Bank 1 Sensor 1)
A 29 Air Fuel Ratio Sensor (Bank 2 Sensor 1)
A 30 A/C Ambient Temp. Sensor
A 31 Airbag Sensor Front LH
A 32 Airbag Sensor Front RH
B 1 Back±Up Light SW
B 2 Brake Fluid Level Warning SW
C 1 Camshaft Position Sensor
C 2 Crankshaft Position Sensor
C 3 Cruise Control Actuator
D 1 Data Link Connector 1
D 2 Daytime Running Light Resistor
D 3 Diode (A/C)E 1 EGR Gas Temp. Sensor
E 2 EGR Valve Position Sensor
E 3 Electronically Controlled Transmission Solenoid
E 5 Engine Coolant Temp. Sensor
E 6 Engine Hood Courtesy SW
F 1 Front Turn Signal Light and Parking Light LH
F 2 Front Turn Signal Light and Parking Light RH
F 3 Front Wiper Motor
F 4 Fusible Link Block
F 5 Fusible Link Block
F 6 Fusible Link Block
F 7 Fusible Link Block
F 8 Fusible Link Block
F 9 Fusible Link Block
G 1 Generator
G 2 Generator
H 1 Headlight LH
H 2 Headlight RH
H 3 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 4 Heated Oxygen Sensor (Bank 2 Sensor 1)
H 5 Horn (High)
H 6 Horn (Low)

G ELECTRICAL WIRING ROUTING
Position of Parts in Engine Compartment
[5S±FE]
A 1 A/C Condenser Fan Motor
A 2 A/C Magnetic Clutch and Lock Sensor
A 3 A/C Triple Pressure SW
(A/C Dual and Single Pressure SW)
A 4 ABS Actuator
A 5 ABS Actuator
A 6 ABS Actuator and ECU
A 9 ABS Speed Sensor Front LH
A 10 ABS Speed Sensor Front RH
A 11 Air Fuel Ratio Sensor
A 31 Airbag Sensor Front LH
A 32 Airbag Sensor Front RH
B 1 Back±Up Light SW
B 2 Brake Fluid Level Warning SW
C 1 Camshaft Position Sensor
C 2 Crankshaft Position Sensor
C 3 Cruise Control Actuator
D 1 Data Link Connector 1
D 2 Daytime Running Light ResistorE 3 Electronically Controlled Transmission Solenoid
E 4 Electronically Controlled Transmission Solenoid
E 5 Engine Coolant Temp. Sensor
E 6 Engine Hood Courtesy SW
F 1 Front Turn Signal Light and Parking Light LH
F 2 Front Turn Signal Light and Parking Light RH
F 3 Front Wiper Motor
F 4 Fusible Link Block
F 5 Fusible Link Block
F 6 Fusible Link Block
F 7 Fusible Link Block
F 8 Fusible Link Block
F 9 Fusible Link Block
G 1 Generator
G 2 Generator
H 1 Headlight LH
H 2 Headlight RH
H 3 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 5 Horn (High)
H 6 Horn (Low)

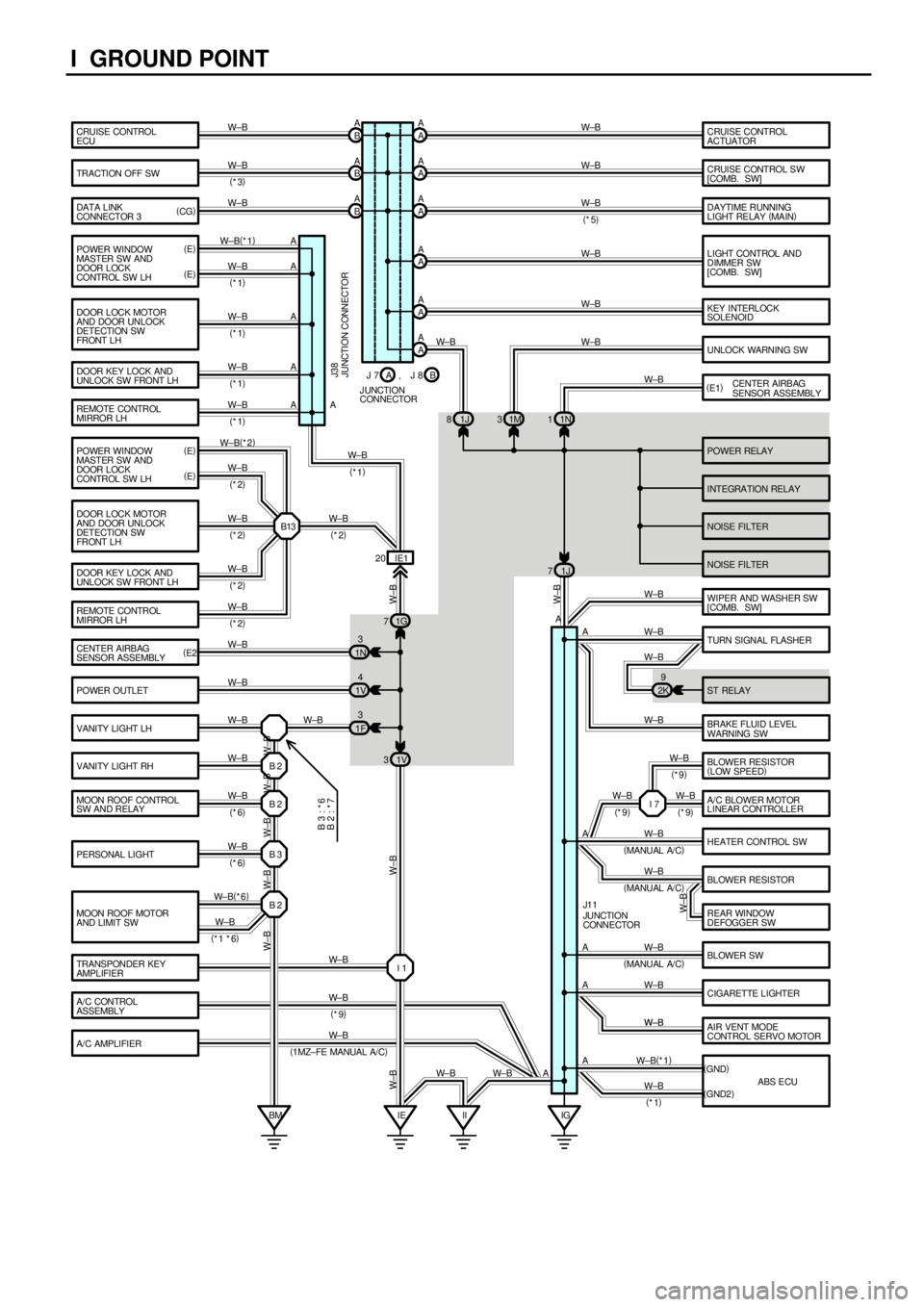

I GROUND POINT
CRUISE CONTROL
ECU
TRACTI ON OFF SW
DATA LINK
CONNECTOR 3
POWER RELAY
INTEGRA TION RELAY
NOISE FILTER POWER WINDOW
MASTER SW AND
DOOR LOCK
CONTROL SW LHCRUISE CONTROL
ACTUATOR
CRUISE CONTROL S W
[COMB. SW]
LIGHT CONTROL AND
DIMMER SW
[COMB. SW]
KEY INTERLOCK
SOLENOID
UNLOCK WARNING SW
CENTER AIRBAG
SENSOR ASSEMBLY
WIPER AND WASHER SW
[COMB. SW]
BRAKE FLUID LEVEL
WARNING SW
A/C AMPLIFIERHEATER CONTROL SW
AIR VENT MODE
CONTROL SERVO MOTOR BLOWER SW BLOWER RESISTOR
REAR WINDOW
DEFOGGER SW
CIGARETTE LIGHTER TURN SIGNAL FLASHE R
ST RELAY DOOR LOCK MOTOR
AND DOOR UNLOCK
DETECTION SW
FRONT L H
DOOR KEY LOCK AND
UNLOCK SW FRONT LH
REMOTE CONTROL
MIRROR LH
CENTER AIRB AG
SENSOR ASSEMBLY
POWER OUTLET
VANITY LIGHT LH
VANITY LIGHT RH
MOON ROOF CONTROL
SW AND RELAY
PERSONAL LIGHT
MOON ROOF MOTOR
AND LIMIT SWA A
A A
A A
A A
A A B A
B A
B A
1J 81M31N1
A A
A
A
A
A
A
A
A A A
1N3
1V4
1F31G 7
1V 3IE1 20
IG IE B 2
B 2
B 3
B 2
BM IIANOISE FILTER W±B
W±B
W±B
W±B W±B W±B W±B W±B W±B
W±B
W±B W±B
W±B W±B(
*2)
W±B
W±B
W±B
W±B
W±B
W±B
W±B W±B
W±B
W±B
W±B
W± B(
*6)
W± B W± B
W±B W± B W±B W± B
W± B
JUNCTION CONNECTOR J38
JUNCTION
CONNECTOR J1 1
W±BW±B
W± B (
*3)
B 3 : * 6
B 2 : * 7
(
E)
(
E) (
CG)
(
E1)
(
E2)
W±B
(
*1 *6)
W±B
DAYTIME RUNNING
LIGHT RELAY (
MAIN) A A
W±B
(
*5)
(
1 MZ± FE MANUAL A/ C)2K9
I 1 TRANSPONDER KEY
AMPLIFIERW± B
W±B
W±B
W±B W±B W±B W±B W±B 1J 7
W±B
W± B
W±B
J 7
J UNCTION
CONNECTORB A, J 8 POWER WINDOW
MASTER SW AND
DOOR LOCK
CONTROL SW LH
DOOR LOCK MOTOR
AND DOOR UNLOCK
DETECTION SW
FRONT L H
DOOR KEY LOCK AND
UNLOCK SW FRONT LH
REMOTE CONTROL
MIRROR LHW±B(
*1)
W±B
W±B
W±B
W±B (
E)
(
E)
B13 (
*1)
(
*1)
(
*1) (
*1)
(
*2)
(
*2)
(
*2)
(
*2)(
*1)
W± B
(
*2)
A/C CONTROL
ASSEMBLYW± B
(
*9) (
*6)
(
*6)(
MANU AL A/ C)
(
MANU AL A/ C)
(
MANU AL A/ C)BLOWER RESISTOR
(
LOW SPEED)
A/C BLOWER MOTOR
LINEAR CONTROLLER I 7 W±B W±BW± B
(
*9)(
*9) (
*9)
ABS ECU (
GND)
(
GND2) AW±B(
*1)
W±B
(
*1)

BO0LM±01
H01773
D
CB
C
AE
F B
B
A B
U.S.
H01774
D
C B
AB
FG
H E
ºaººbº
Canada
BE3367
2 ± 2.5 mm
(0.079 ± 0.098 in.)
0.7 ± 0.75 mm
(0. 028 ± 0.030 in.)
± BODYFRONT WIPER AND WASHER
BO±37
2385 Author: Date:
ADJUSTMENT
1. INSPECT WASHER NOZZLE
(a) While operating the washer, check that the washer fluid
hits the windshield and the upsurge area within the
shaded areas.
U.S. mm (in.)Canada mm (in.), Approx.
ºAº280 (11)600 (23.6)
ºBº150 (5.9)150 (5.9)
ºCº50 (2.0)250 (9.8)
ºDº50 (2.0) Max
ºEº180 (7.1)360 (14)
ºFº395 (15.5)114 (4.5)
ºGº 90 (3.5)
ºHº 474 (18.7)
ºIº 350 (13.8)
(b) Canadian models:
Adust the nozzle so the outboard points ºaº and ºbº are
within the wipe pattern.
(c) Check if the lower point where the washer fluid hits the
windshield is within the range of the wiping pattern (the
area of the glass the wiper blades wipe).
2. ADJUST WASHER NOZZLE
Using a tool like that shown in the illustration, rotate the nozzle
to adjust the fluid direction against the windshield.

BE±6
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2226 Author: Date:
Washer fluid does not operate.1. Washer Hose and Nozzle±

In wiper switch HI position, the wiper blade is in contact with
the body.

When the wiper switch is OFF, the wiper blade does not
retract or the retract position is wrong.1. *1Wiper Switch
2. Wire HarnessBE±40
±
COMBINATION METER
METER, GAUGES AND ILLUMINATION:
SymptomSuspect AreaSee page
Tachometer, Fuel Gauge and Engine Coolant Temperature Gauge
do not operate.1. GAUGE Fuse (I/P J/B No.1)
2. Meter Circuit Plate
3. Wire Harness±
BE±46
±
Speedometer does not operate.
1. No.1 Vehicle Speed Sensor
2. Meter Circuit Plate
3. Wire HarnessBE±47
BE±46
±
Tachometer does not operate.
1. Igniter (5S±FE)
(1MZ±FE)
2. Meter Circuit Plate
3. Wire HarnessIG±1
IG±1
BE±46
±
Fuel Gauge does not operate or abnormal operation.
1. Fuel Receiver Gauge
2. Fuel Sender Gauge
3. Meter Circuit Plate
4. Wire HarnessBE±47
BE±47
BE±46
±
Engine Coolant Temperature Gauge does not operate or abnormal
operation
1. Engine Coolant Temperature Receiver Gauge
2. Engine Coolant Temperature Sender Gauge
3. Meter Circuit Plate
4. Wire HarnessBE±47
BE±47
BE±46
±
All illumination lights do not light up.
1. TAIL Fuse (I/P J/B No.1)
2. Light Control Rheostat
3. Wire Harness±
BE±47
±
Brightness does not change even when rheostat turned.1. Bulb
2. Wire Harness±
±
Only one illumination light does not light up.1. Bulb
2. Wire Harness±
±
COMBINATION METER
WARNING LIGHTS:
SymptomSuspect AreaSee page
Warning lights do not light up. (Except Discharge, Open Door and
SRS)1. GAUGE Fuse (I/P J/B No.1)
2. Meter Circuit Plate
3. Wire Harness±
BE±46
±
Low Oil Pressure warning light does not light up.
1. Bulb
2. Low Oil Pressure Warning Switch
3. Meter Circuit Plate
4. Wire Harness±
BE±47
BE±46
±
Fuel Level warning light does not light up.
1. Bulb
2. Fuel Level Warning Switch
3. Meter Circuit Plate
4. Wire Harness±
BE±47
BE±46
±
ABS warning light does not light up.
1. Bulb
2. ABS ECU
3. Wire Harness±
IN±31
±
