FRONT WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
Front Wiper Interval Time Is Not Controlled by Vehicle SpeedAKS007A1
1. CHECK FUNCTION OF COMBINATION METER
Confirm that speedometer operates normally.
Does the front wiper operate normally?
YES >> GO TO 2.
NO >> Combination meter vehicle speed system malfunction. GO TO DI-17, "
Vehicle Speed Signal
Inspection" .
2. CHECK CAN COMMUNICATION BETWEEN BCM AND COMBINATION METER

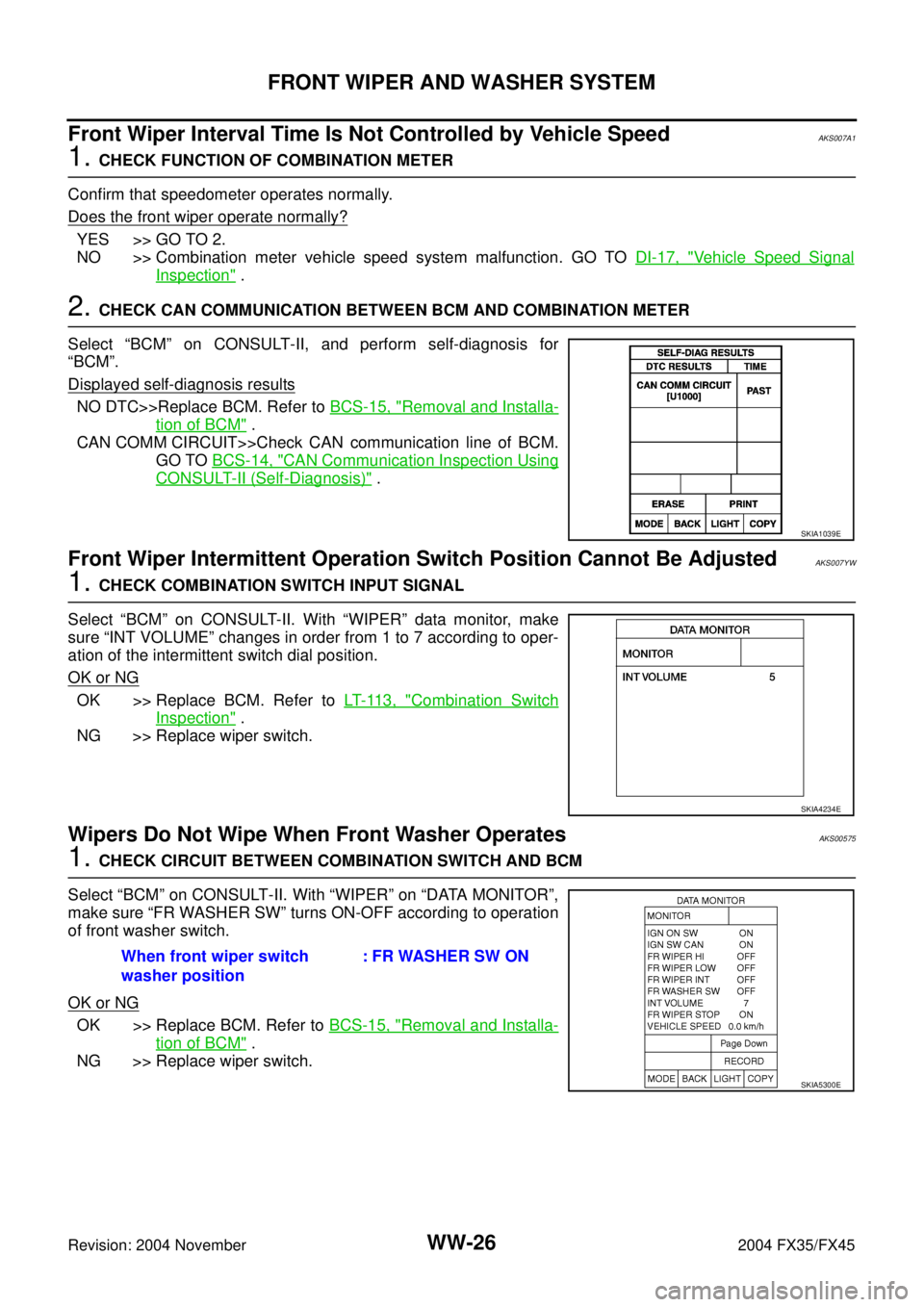

Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.
Displayed self
-diagnosis results
NO DTC>>Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
CAN COMM CIRCUIT>>Check CAN communication line of BCM.
GO TO BCS-14, "
CAN Communication Inspection Using
CONSULT-II (Self-Diagnosis)" .
Front Wiper Intermittent Operation Switch Position Cannot Be AdjustedAKS007YW
1. CHECK COMBINATION SWITCH INPUT SIGNAL
Select “BCM” on CONSULT-II. With “WIPER” data monitor, make
sure “INT VOLUME” changes in order from 1 to 7 according to oper-
ation of the intermittent switch dial position.
OK or NG
OK >> Replace BCM. Refer to LT- 11 3 , "Combination Switch
Inspection" .
NG >> Replace wiper switch.
Wipers Do Not Wipe When Front Washer OperatesAKS00575
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
Select “BCM” on CONSULT-II. With “WIPER” on “DATA MONITOR”,
make sure “FR WASHER SW” turns ON-OFF according to operation
of front washer switch.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> Replace wiper switch.
SKIA1039E
SKIA4234E
When front wiper switch
washer position: FR WASHER SW ON
SKIA5300E
Page 4418 of 4449

FRONT WIPER AND WASHER SYSTEM
WW-27
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
After Front Wipers Operate for 10 Seconds, They Stop for 20 Seconds, and after
repeating the operations five times, they become inoperative
AKS007A2
CAUTION:
When auto-stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this
symptom.
This status can be checked by “DATA MONITOR” of “IPDM E/R” on which “WIPER PROTECTION”
item shows “BLOCK”.
1. CHECK CIRCUIT BETWEEN IPDM E/R AND WIPER MOTOR (1)
With CONSULT-ll
Select “IPDM E/R” on CONSULT-II. With “DATA MONITOR”, confirm
that “WIP AUTO STOP” turns “ACT P” - “STOP P” linked with wiper
operation.
Without CONSULT-ll
GO TO 2.
OK or NG
OK >> Replace IPDM E/R.
NG >> GO TO 2.
2. CHECK CIRCUIT BETWEEN IPDM E/R AND WIPER MOTOR (2)
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connec-
tor.

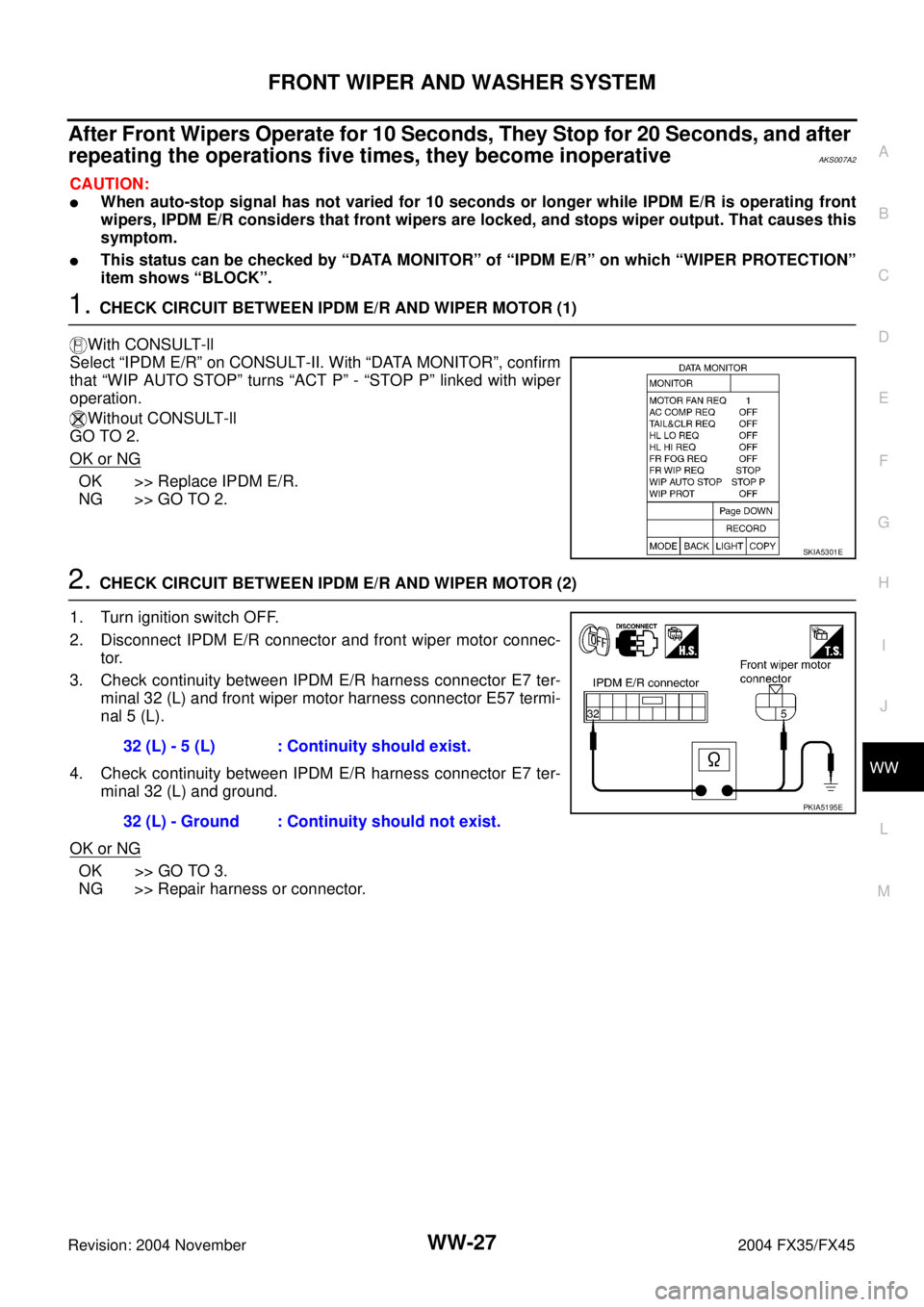

3. Check continuity between IPDM E/R harness connector E7 ter-
minal 32 (L) and front wiper motor harness connector E57 termi-
nal 5 (L).
4. Check continuity between IPDM E/R harness connector E7 ter-
minal 32 (L) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
SKIA5301E
32 (L) - 5 (L) : Continuity should exist.
32 (L) - Ground : Continuity should not exist.
PKIA5195E
Page 4419 of 4449

WW-28
FRONT WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
3. CHECK CIRCUIT BETWEEN IPDM E/R AND WIPER MOTOR (3)
1. Connect IPDM E/R connector and front wiper connector.
2. Turn ignition switch ON.

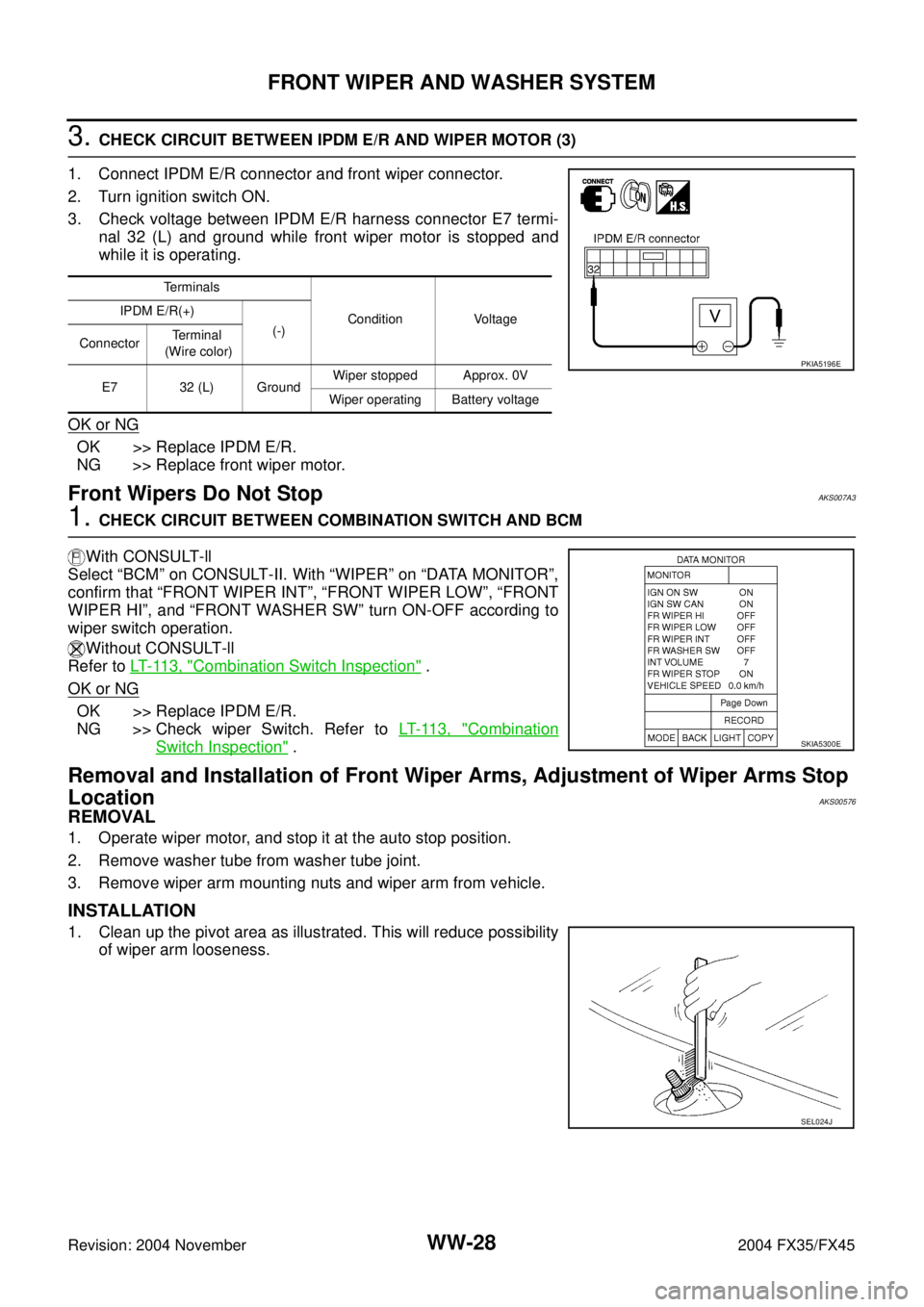

3. Check voltage between IPDM E/R harness connector E7 termi-
nal 32 (L) and ground while front wiper motor is stopped and
while it is operating.
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace front wiper motor.
Front Wipers Do Not StopAKS007A3
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
Select “BCM” on CONSULT-II. With “WIPER” on “DATA MONITOR”,
confirm that “FRONT WIPER INT”, “FRONT WIPER LOW”, “FRONT
WIPER HI”, and “FRONT WASHER SW” turn ON-OFF according to
wiper switch operation.
Without CONSULT-ll
Refer to LT- 11 3 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace IPDM E/R.
NG >> Check wiper Switch. Refer to LT- 11 3 , "
Combination
Switch Inspection" .
Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop
Location
AKS00576
REMOVAL
1. Operate wiper motor, and stop it at the auto stop position.
2. Remove washer tube from washer tube joint.
3. Remove wiper arm mounting nuts and wiper arm from vehicle.
INSTALLATION
1. Clean up the pivot area as illustrated. This will reduce possibility
of wiper arm looseness.
Terminals
Condition Voltage IPDM E/R(+)
(-)
ConnectorTerminal
(Wire color)
E7 32 (L) GroundWiper stopped Approx. 0V
Wiper operating Battery voltage
PKIA5196E
SKIA5300E
SEL024J
Page 4420 of 4449

FRONT WIPER AND WASHER SYSTEM
WW-29
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
2. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (auto stop).
3. Push wiper arm onto pivot shaft, paying attention to blind spline.
4. Attach washer tube to washer tube joint.
5. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L1” & “L2” immediately before
tightening nut.
6. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
7. Ensure that wiper blades stop within clearance “L1” & “L2”.
Tighten wiper arm nuts to specified torque.
ADJUSTMENT
Refer to WW-28, "INSTALLATION" .
Removal and Installation of Front Wiper Motor and LinkageAKS00577
REMOVAL
1. Prior to wiper motor and linkage removal, turn ON wiper switch to operate wiper motor and then turn it
“OFF” (auto stop).
2. Remove wiper arm. Refer to WW-28, "
REMOVAL" .
3. Remove cowl top cover. Refer to EI-24, "
Removal and Installa-
tion" in “EI” section.
4. Remove washer tube.
5. Disconnect wiper motor connector.
6. Remove wiper motor and linkage mounting bolts, and remove
wiper motor and linkage.
INSTALLATION
1. Install wiper motor and linkage to the vehicle.
2. Connect wiper motor assembly to the connector. Turn wiper switch ON to operate wiper motor, then turn
wiper switch OFF (auto stop).
3. Attach washer tube to washer tube joint.
4. Install cowl top cover. Refer to EI-24, "
Removal and Installation" in “EI” section.
5. Install wiper arms. Refer to WW-28, "
Removal and Installation of Front Wiper Arms, Adjustment of Wiper
Arms Stop Location" .
6. Attach wiper arm washer tube.
CAUTION:
Do not drop the wiper motor or cause it to contact other parts.
Check grease conditions of the motor arm and wiper link joint (at retainer). Apply grease if nec-

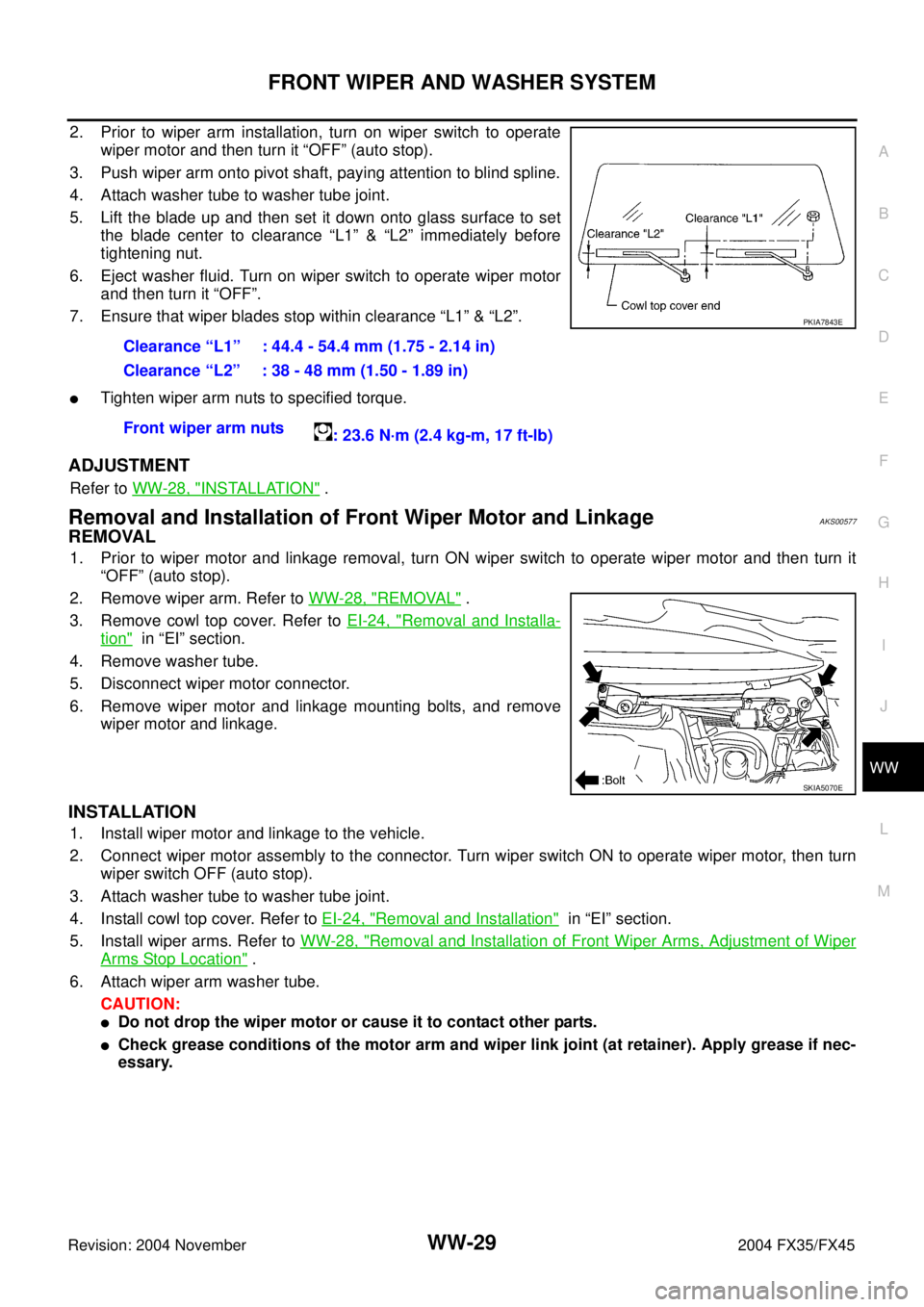

essary.Clearance “L1” : 44.4 - 54.4 mm (1.75 - 2.14 in)
Clearance “L2” : 38 - 48 mm (1.50 - 1.89 in)
Front wiper arm nuts
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
PKIA7843E
SKIA5070E
Page 4421 of 4449

WW-30
FRONT WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
Disassembly and Assembly of Front Wiper Motor and LinkageAKS00578
DISASSEMBLY
1. Remove wiper link 1 and 2 from wiper motor mounting frame and wiper motor arm.
2. Remove wiper motor mounting bolts, and remove wiper motor from wiper motor mounting frame.
ASSEMBLY
Paying attention to the work listed below, assemble in reverse order of disassembly.
Washer Nozzle AdjustmentAKS00579
1. When wiper blade position is in auto stop condition, remove wiper motor connector to ensure wiper arms
do not move.

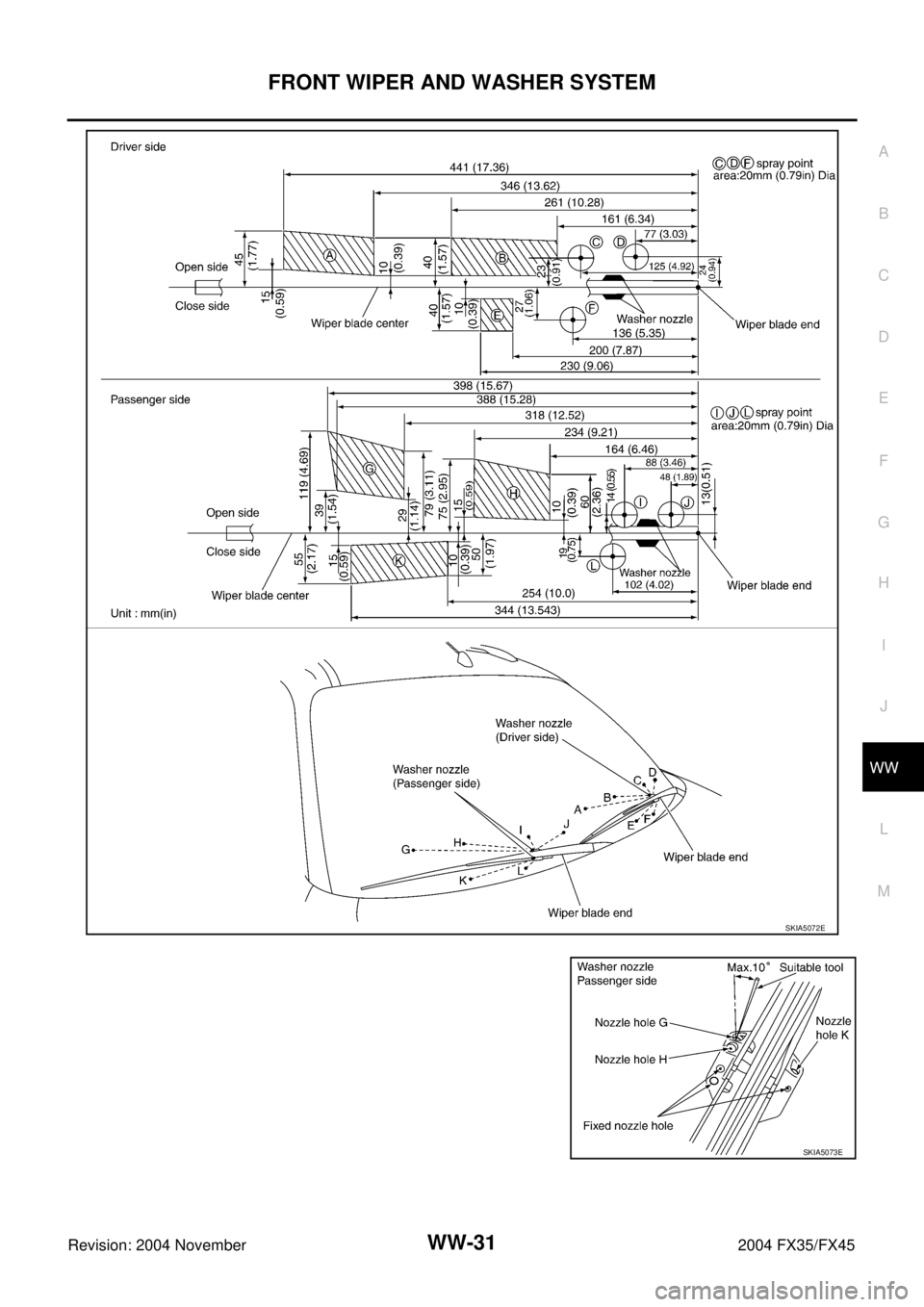

2. Adjust each nozzle position (A, B, E, G, H, and K) so that spray positions are in the range of shaded parts.
CAUTION:
Only washer nozzles (A, B, E, G, H, and K) can be adjusted. Washer nozzles (C, D, F, I, J, and L)
cannot be adjusted because of fixed nozzles.

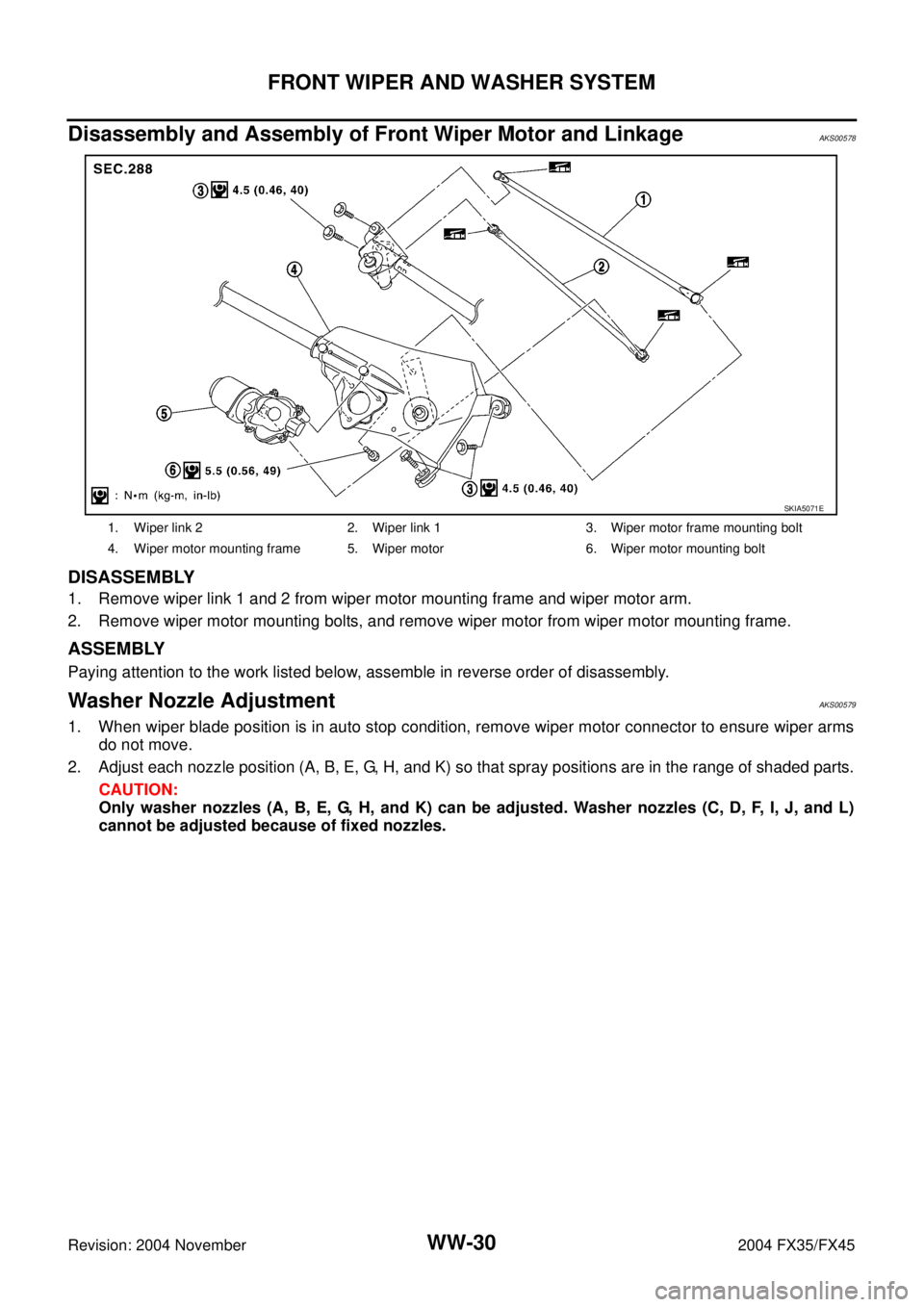

1. Wiper link 2 2. Wiper link 1 3. Wiper motor frame mounting bolt
4. Wiper motor mounting frame 5. Wiper motor 6. Wiper motor mounting bolt
SKIA5071E
Page 4422 of 4449
FRONT WIPER AND WASHER SYSTEM
WW-31
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
SKIA5072E
SKIA5073E
Page 4423 of 4449
WW-32
FRONT WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45

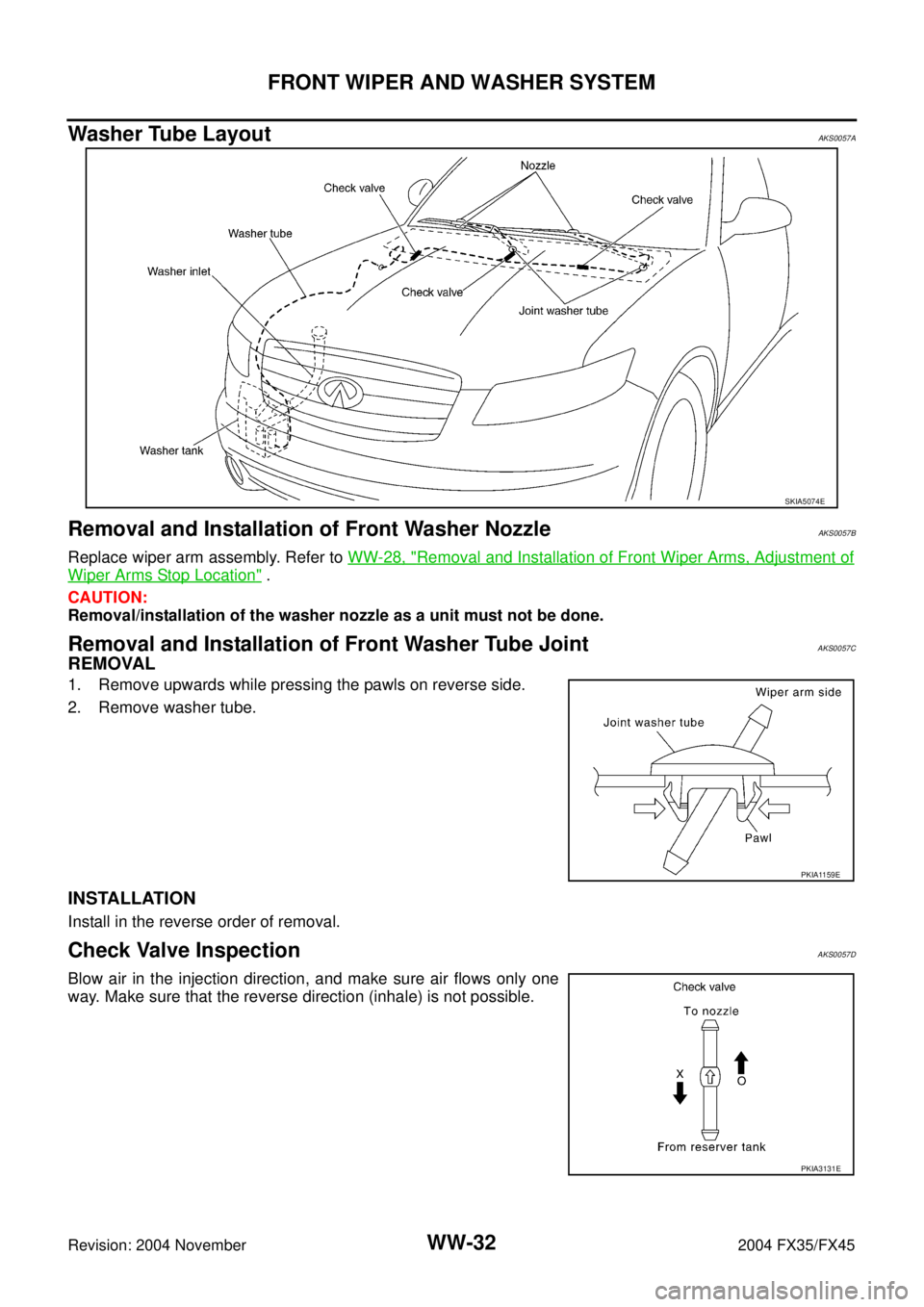

Washer Tube LayoutAKS0057A
Removal and Installation of Front Washer NozzleAKS0057B
Replace wiper arm assembly. Refer to WW-28, "Removal and Installation of Front Wiper Arms, Adjustment of
Wiper Arms Stop Location" .
CAUTION:
Removal/installation of the washer nozzle as a unit must not be done.
Removal and Installation of Front Washer Tube JointAKS0057C
REMOVAL
1. Remove upwards while pressing the pawls on reverse side.
2. Remove washer tube.
INSTALLATION
Install in the reverse order of removal.
Check Valve Inspection AKS0057D
Blow air in the injection direction, and make sure air flows only one
way. Make sure that the reverse direction (inhale) is not possible.
SKIA5074E
PKIA1159E
PKIA3131E
Page 4424 of 4449

FRONT WIPER AND WASHER SYSTEM
WW-33
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of Front Wiper and Washer SwitchAKS0057E
REMOVAL
1. Remove steering column upper cover. Refer to IP-14, "(N)
Steering Column Upper Cover" in “IP” section.
2. Disconnect wiper and washer switch connector.
3. Pull wiper and washer switch toward the passenger door while
pressing pawls in direction shown by the arrow in the figure, and
remove it from the base.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Washer TankAKS0057F
REMOVAL
1. Remove bolt and pull out washer tank inlet.
2. Remove fillet molding (RH) and fender protector (RH). Refer to
EI-14, "
Removal and Installation" , EI-25, "Removal and Installa-
tion" in “EI” section.
3. Remove bumper fascia assembly. Refer to EI-14, "
Removal and
Installation" in “EI” section.
4. Disconnect washer pump connector and wash fluid level sensor
connector.
5. Remove washer tank mounting screw and nuts.
6. Remove washer tube, and remove washer tank from the vehicle.
SKIA5075E
SKIA5076E
SKIA5077E
SKIA5078E
