INFINITI FX35 2004 Service Manual EC-796
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2004 November 2004 FX35/FX45
Intake Valve Timing Control Position Sensor
Intake valve timing control position sensors are located in the front of

Page 2138 of 4449

INFINITI FX35 2004 Service Manual DTC P0011, P0021 IVT CONTROL
EC-797
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS00C0I
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0

DTC P0011, P0021 IVT CONTROL
EC-797
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS00C0I
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 or P0021 is displayed with DTC P1111, P1136, P1140 or P1145, first perform the trou-
ble diagnosis for EC-1070
or EC-1095 .
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
PROCEDURE FOR MALFUNCTION A

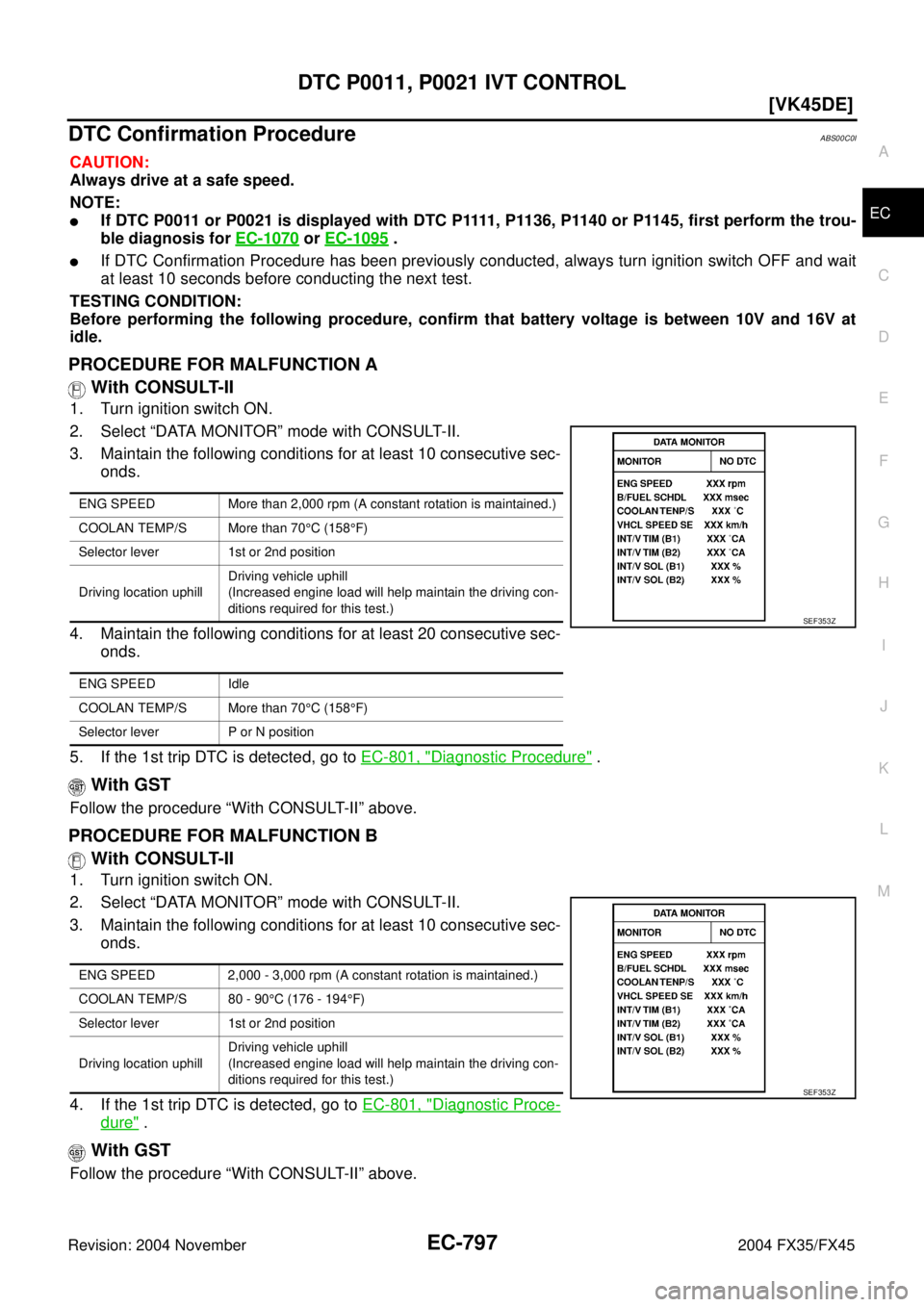

With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec-
onds.
4. Maintain the following conditions for at least 20 consecutive sec-
onds.
5. If the 1st trip DTC is detected, go to EC-801, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec-
onds.
4. If the 1st trip DTC is detected, go to EC-801, "
Diagnostic Proce-
dure" .
With GST
Follow the procedure “With CONSULT-II” above.
ENG SPEED More than 2,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 70°C (158°F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
ENG SPEED Idle
COOLAN TEMP/S More than 70°C (158°F)
Selector lever P or N position
SEF353Z
ENG SPEED 2,000 - 3,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S 80 - 90°C (176 - 194°F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
SEF353Z

Page 2139 of 4449

INFINITI FX35 2004 Service Manual EC-798
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS00C0J

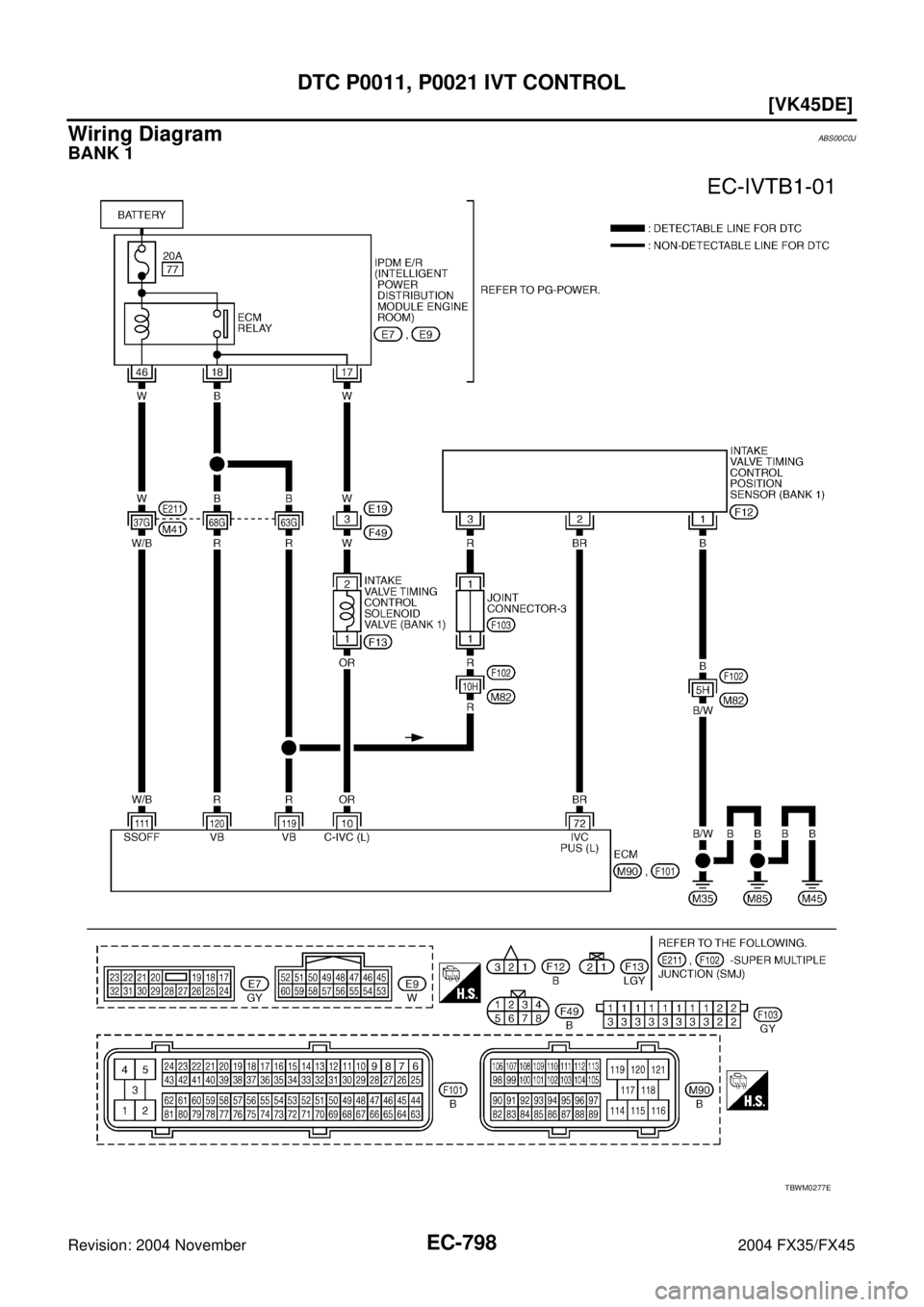

BANK 1
TBWM0277E

Page 2140 of 4449

INFINITI FX35 2004 Service Manual DTC P0011, P0021 IVT CONTROL
EC-799
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

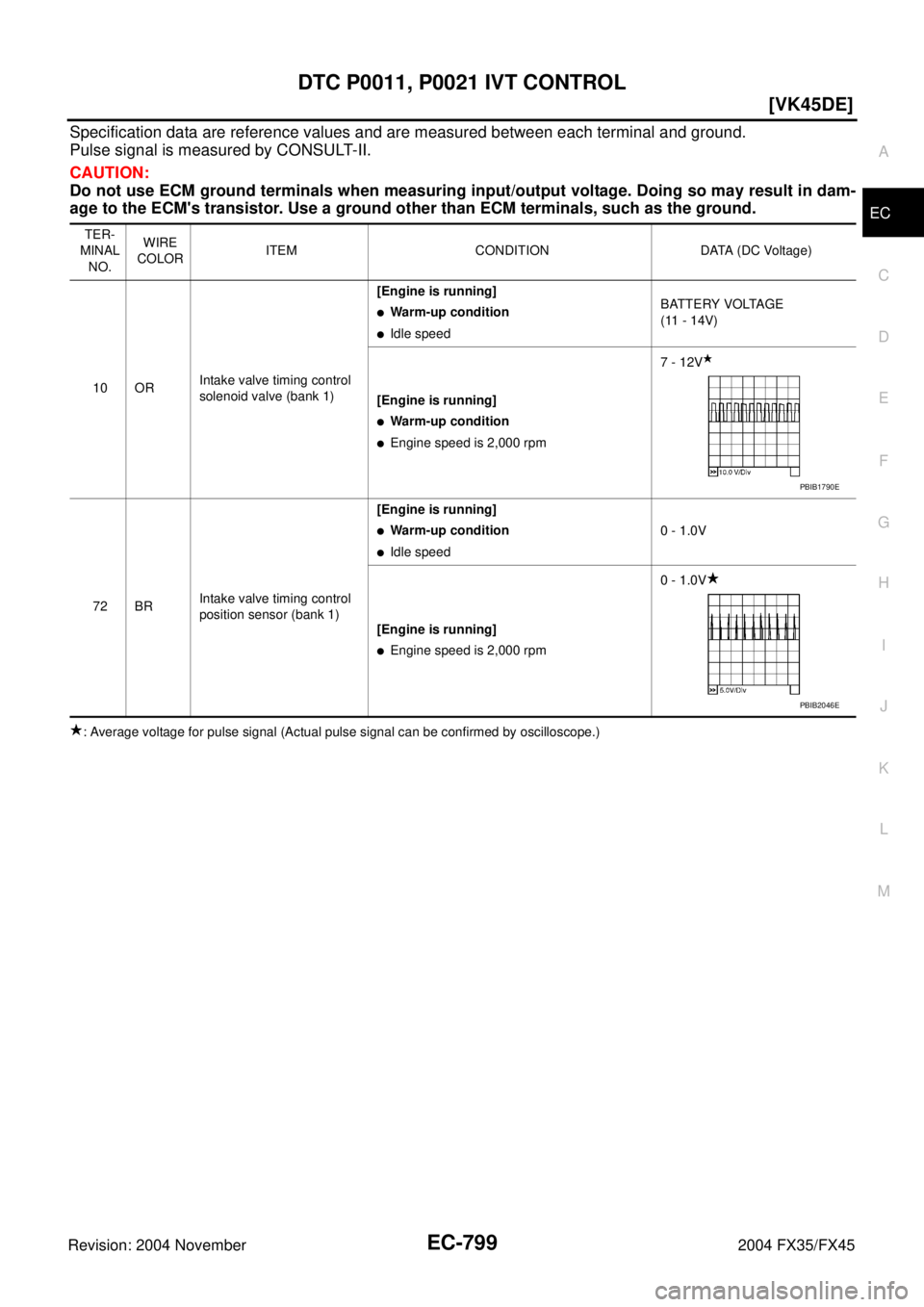

Specification data are reference values and are measured between each terminal and ground.

Page 2141 of 4449

INFINITI FX35 2004 Service Manual EC-800
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2004 November 2004 FX35/FX45

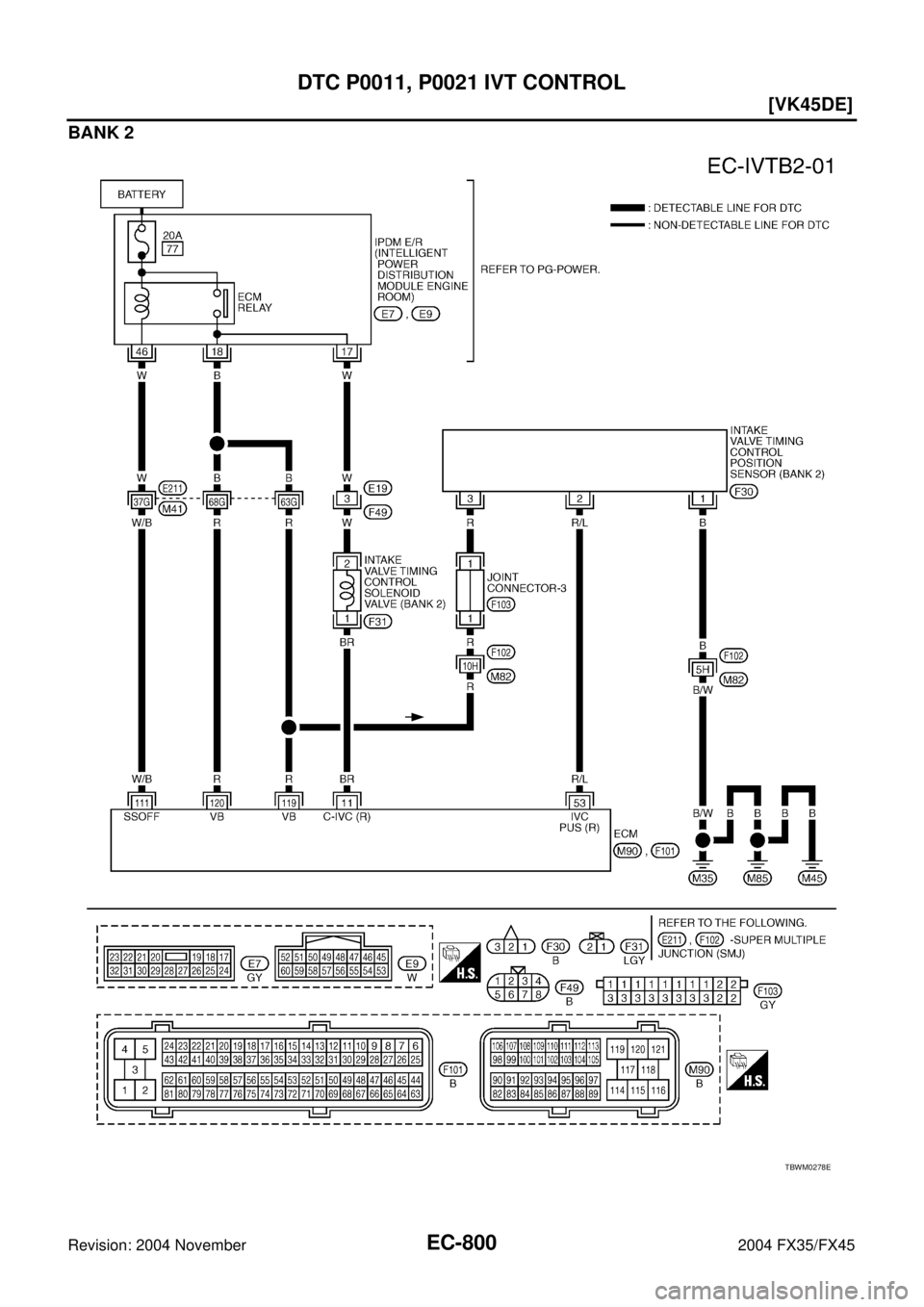

BANK 2
TBWM0278E

Page 2142 of 4449

INFINITI FX35 2004 Service Manual DTC P0011, P0021 IVT CONTROL
EC-801
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

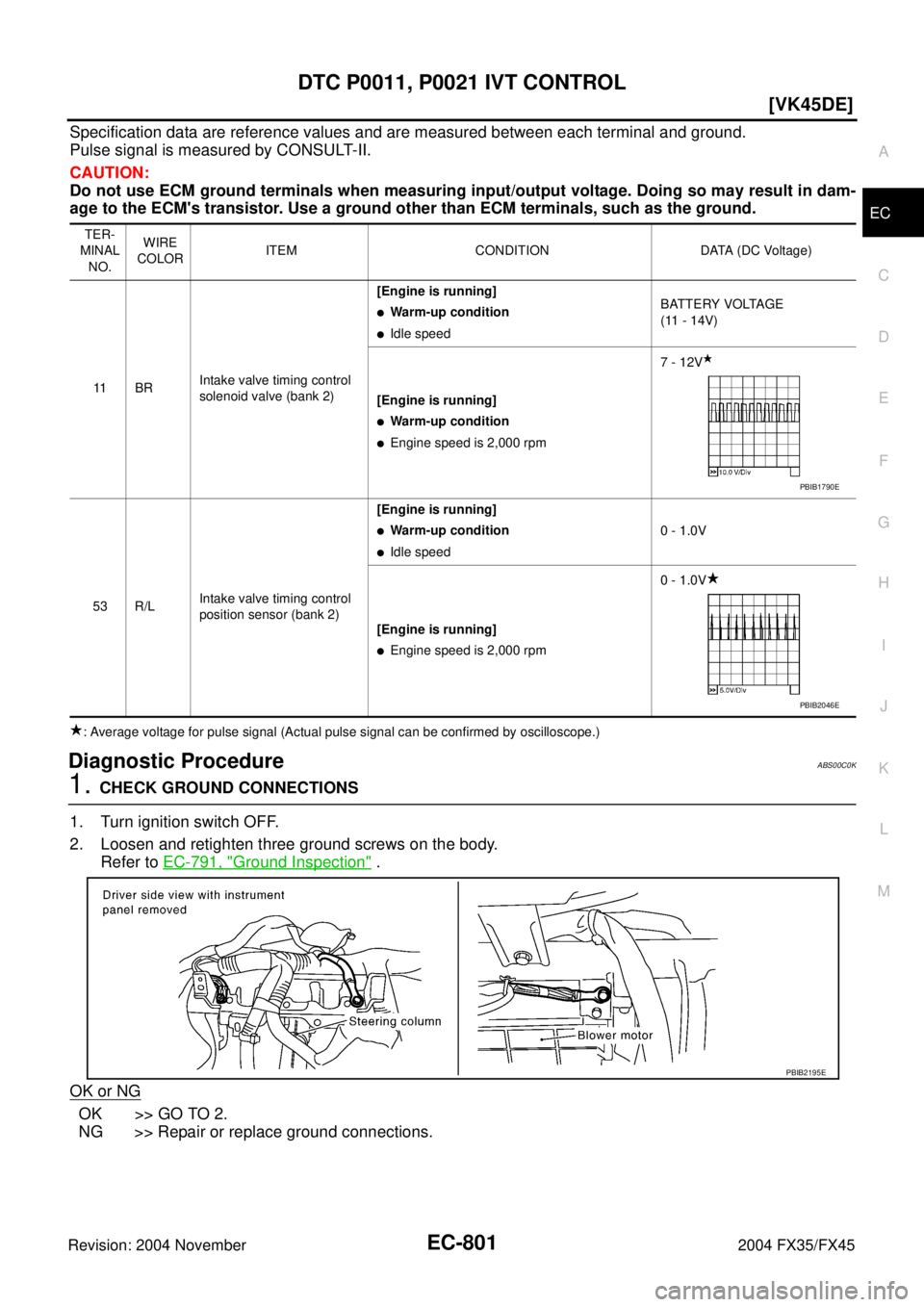

Specification data are reference values and are measured between each terminal and ground.

Page 2143 of 4449

INFINITI FX35 2004 Service Manual EC-802
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2004 November 2004 FX35/FX45

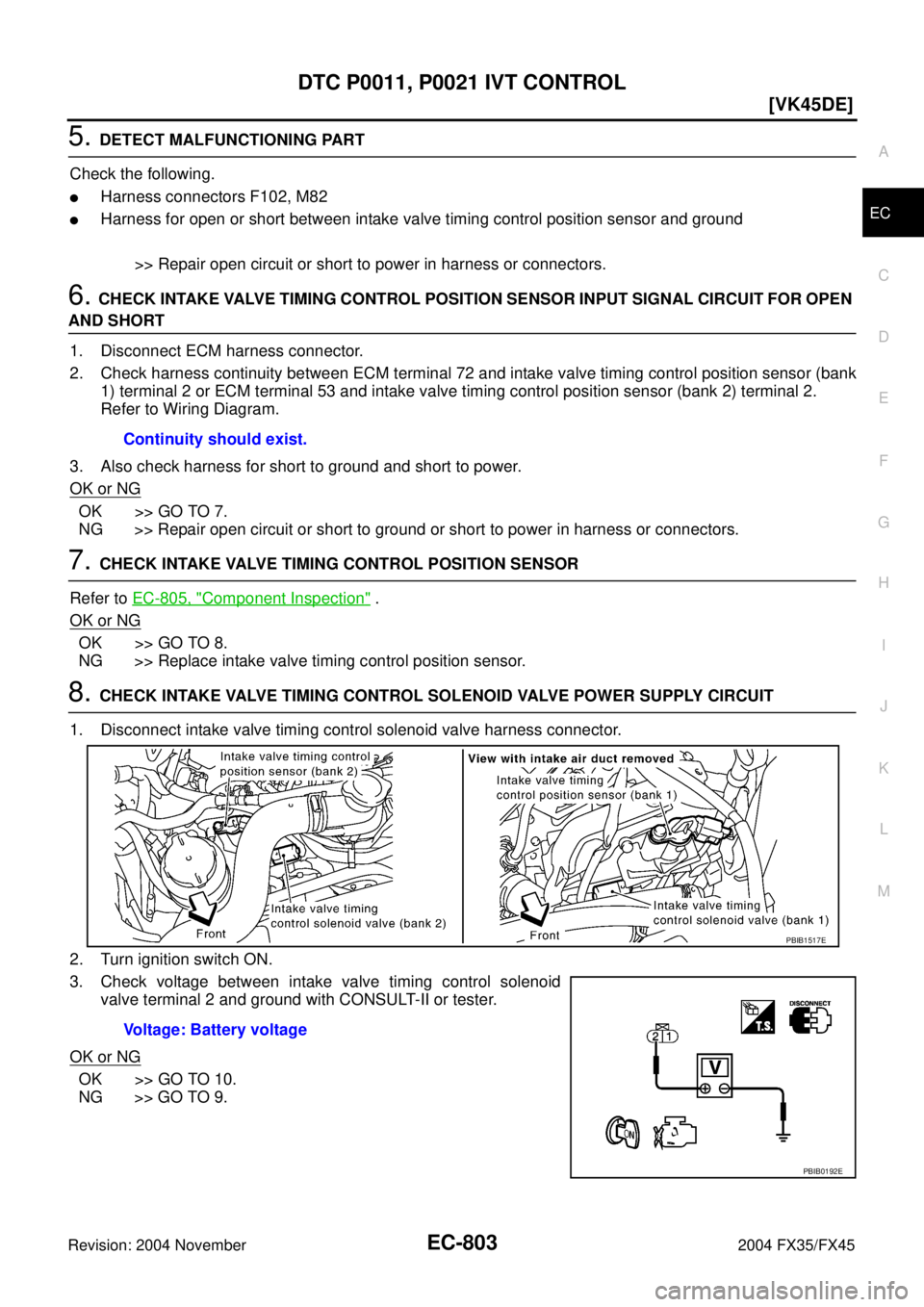

2. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control

Page 2144 of 4449

INFINITI FX35 2004 Service Manual DTC P0011, P0021 IVT CONTROL
EC-803
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M82
Harness
