INFINITI FX35 2004 Service Manual BL-234 BODY REPAIR Revision: 2004 November2004 FX35/FX45 BODY COMPONENT PARTS SIIA2387E

Page 1042 of 4449

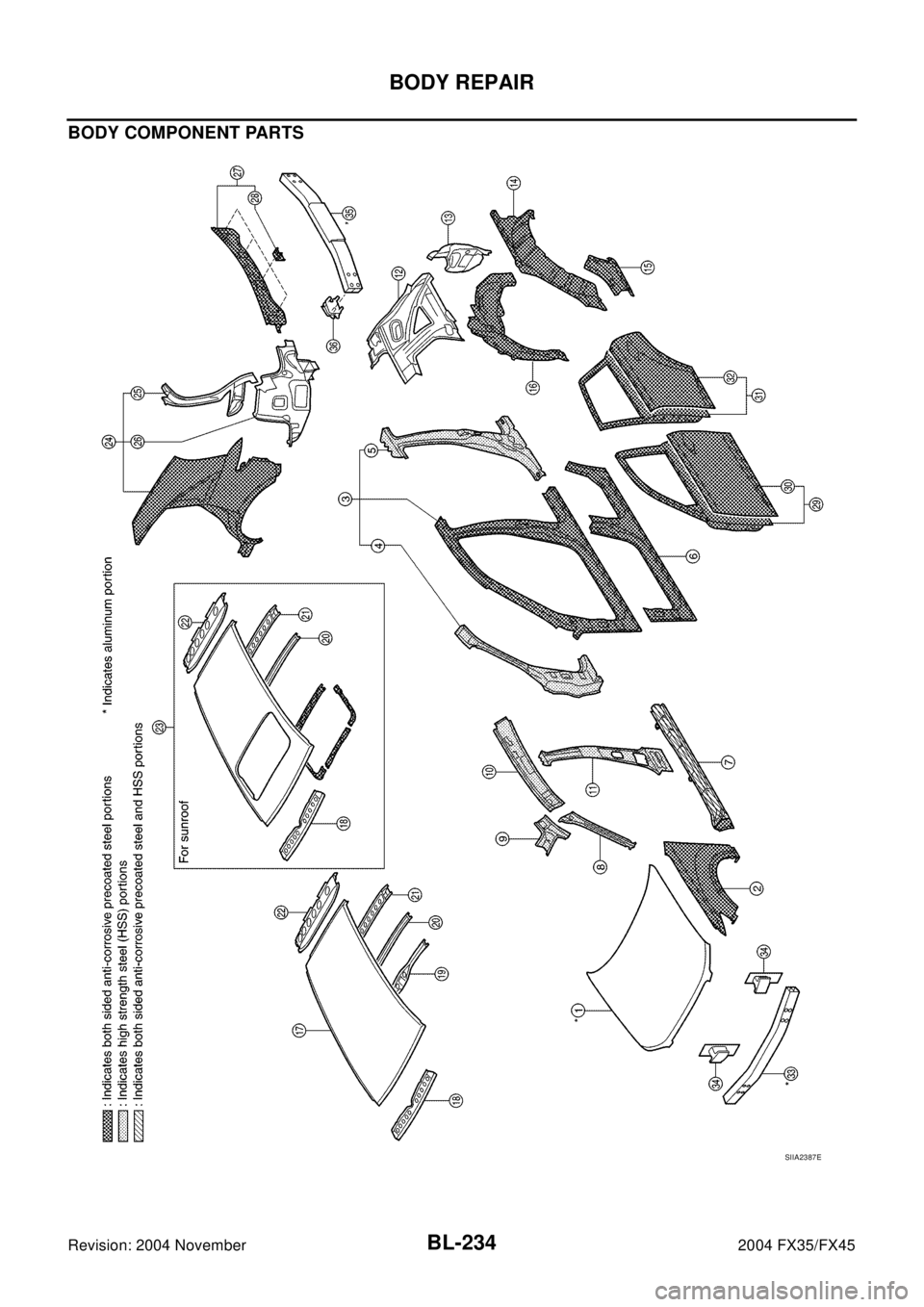

INFINITI FX35 2004 Service Manual BODY REPAIR BL-235 C D E F G H J K L MA B BL Revision: 2004 November2004 FX35/FX45 1. Hood 19. Roof bow No.1 2. Front fender (RH&LH) 20. Roof bow No.2 3. Side body assembly (RH&LH) 21. Roof bow No.3 4

Page 1043 of 4449

INFINITI FX35 2004 Service Manual BL-236 BODY REPAIR Revision: 2004 November2004 FX35/FX45 Corrosion ProtectionAIS0065Q DESCRIPTION To provide improved corrosion prevention, the following anti-corrosive measures have been implemented

Page 1044 of 4449

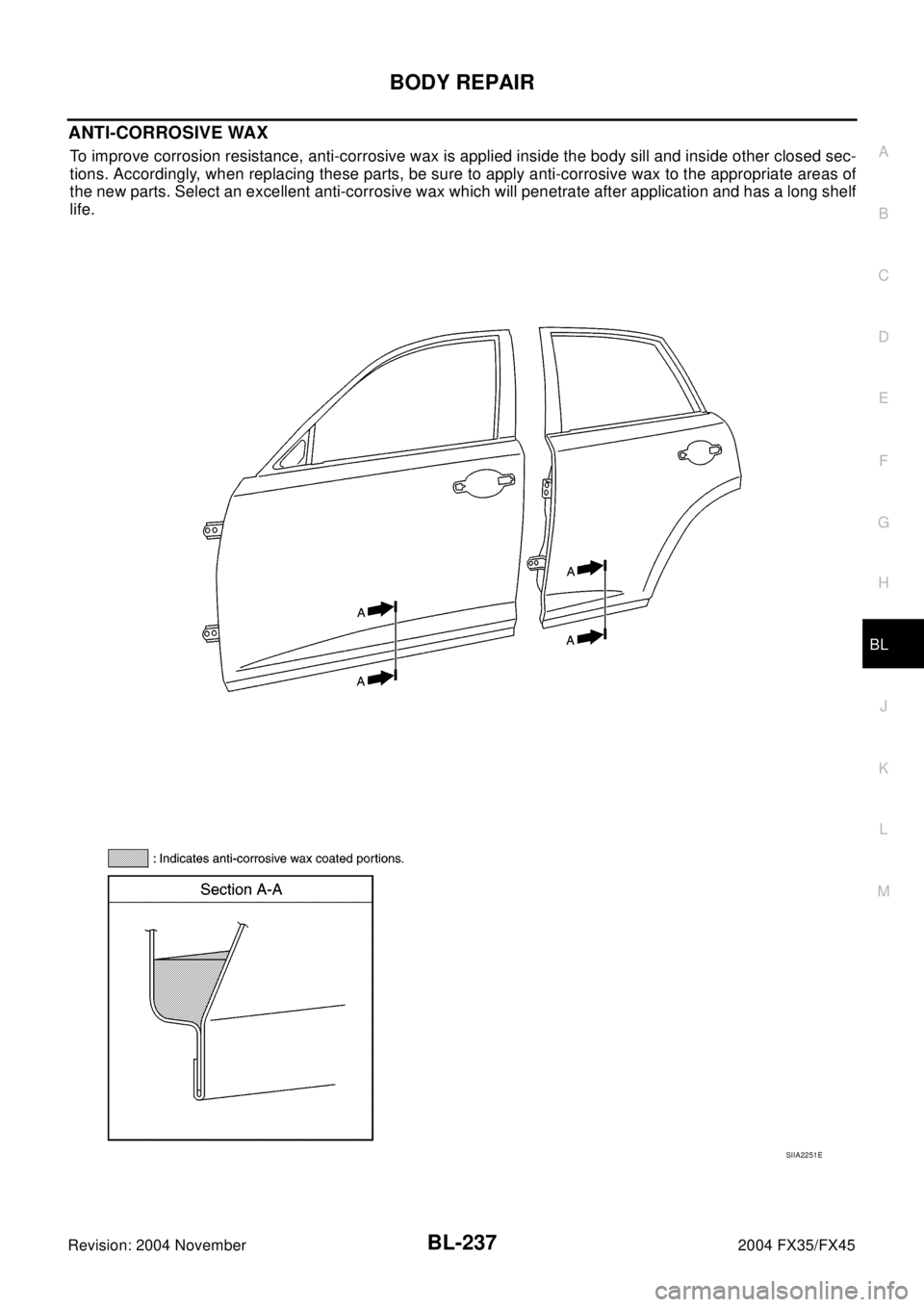

INFINITI FX35 2004 Service Manual BODY REPAIR BL-237 C D E F G H J K L MA B BL Revision: 2004 November2004 FX35/FX45 ANTI-CORROSIVE WAX To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside oth

Page 1045 of 4449

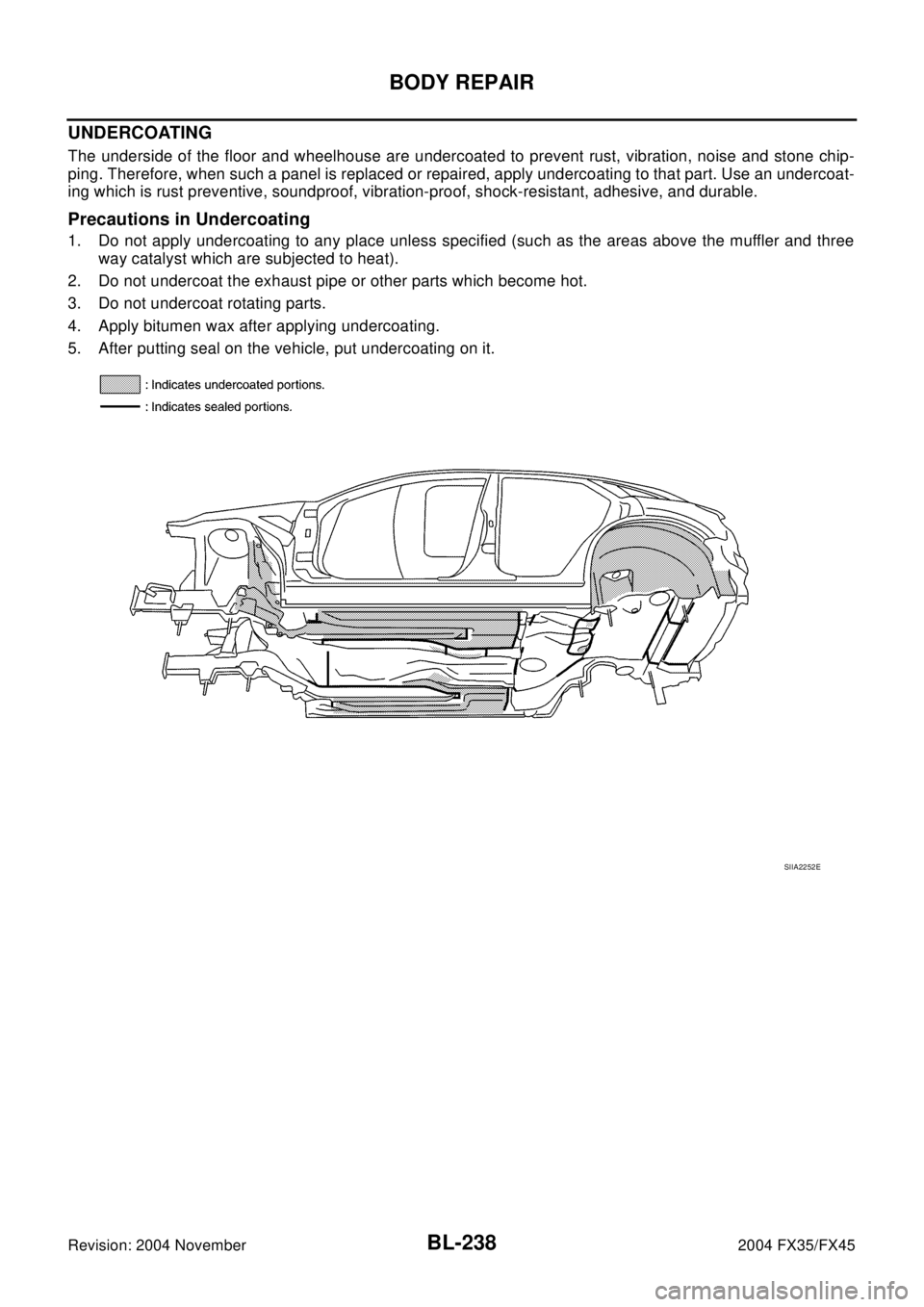

INFINITI FX35 2004 Service Manual BL-238 BODY REPAIR Revision: 2004 November2004 FX35/FX45 UNDERCOATING The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip- ping. Therefore, when

Page 1046 of 4449

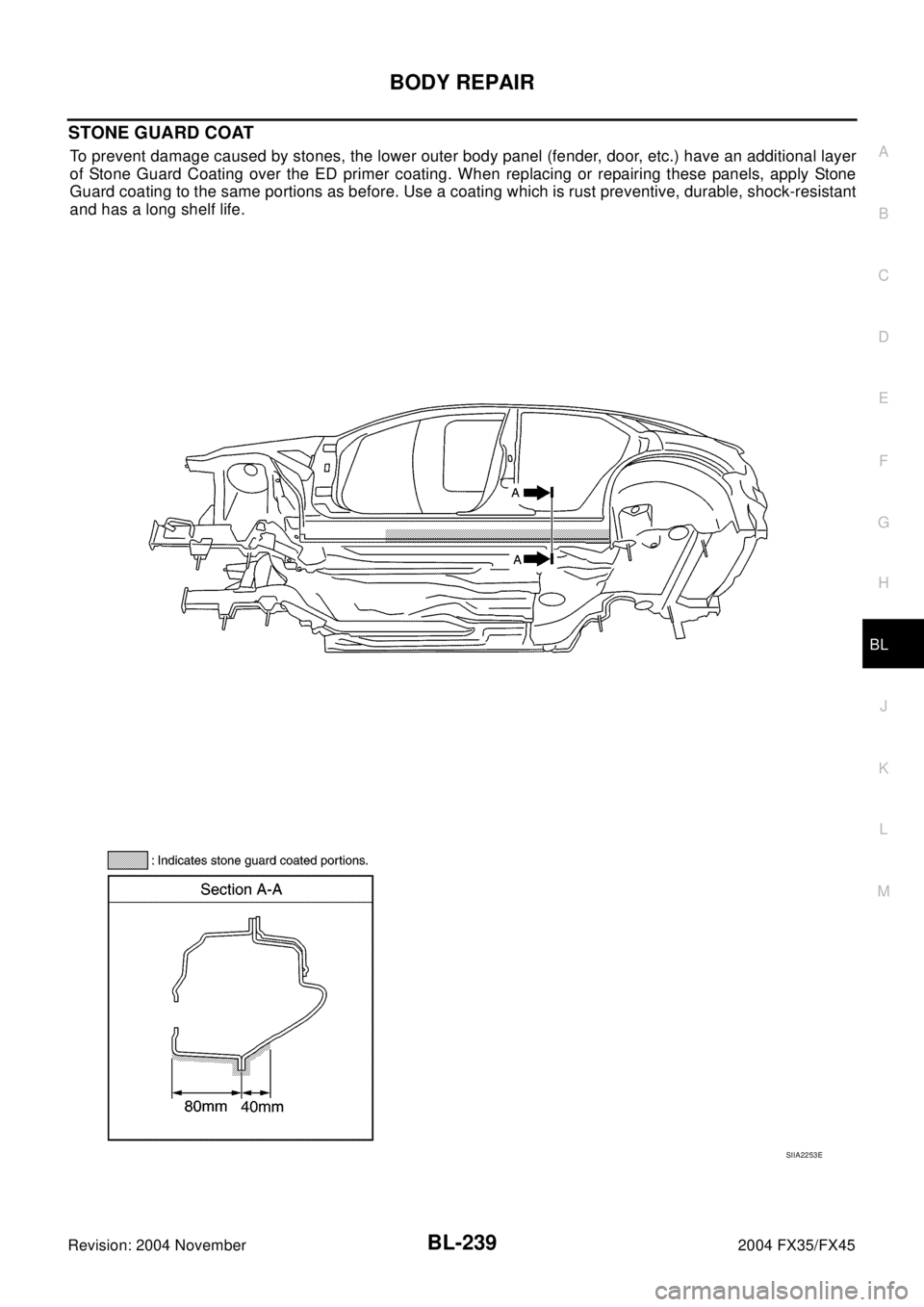

INFINITI FX35 2004 Service Manual BODY REPAIR BL-239 C D E F G H J K L MA B BL Revision: 2004 November2004 FX35/FX45 STONE GUARD COAT To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an addition

Page 1047 of 4449

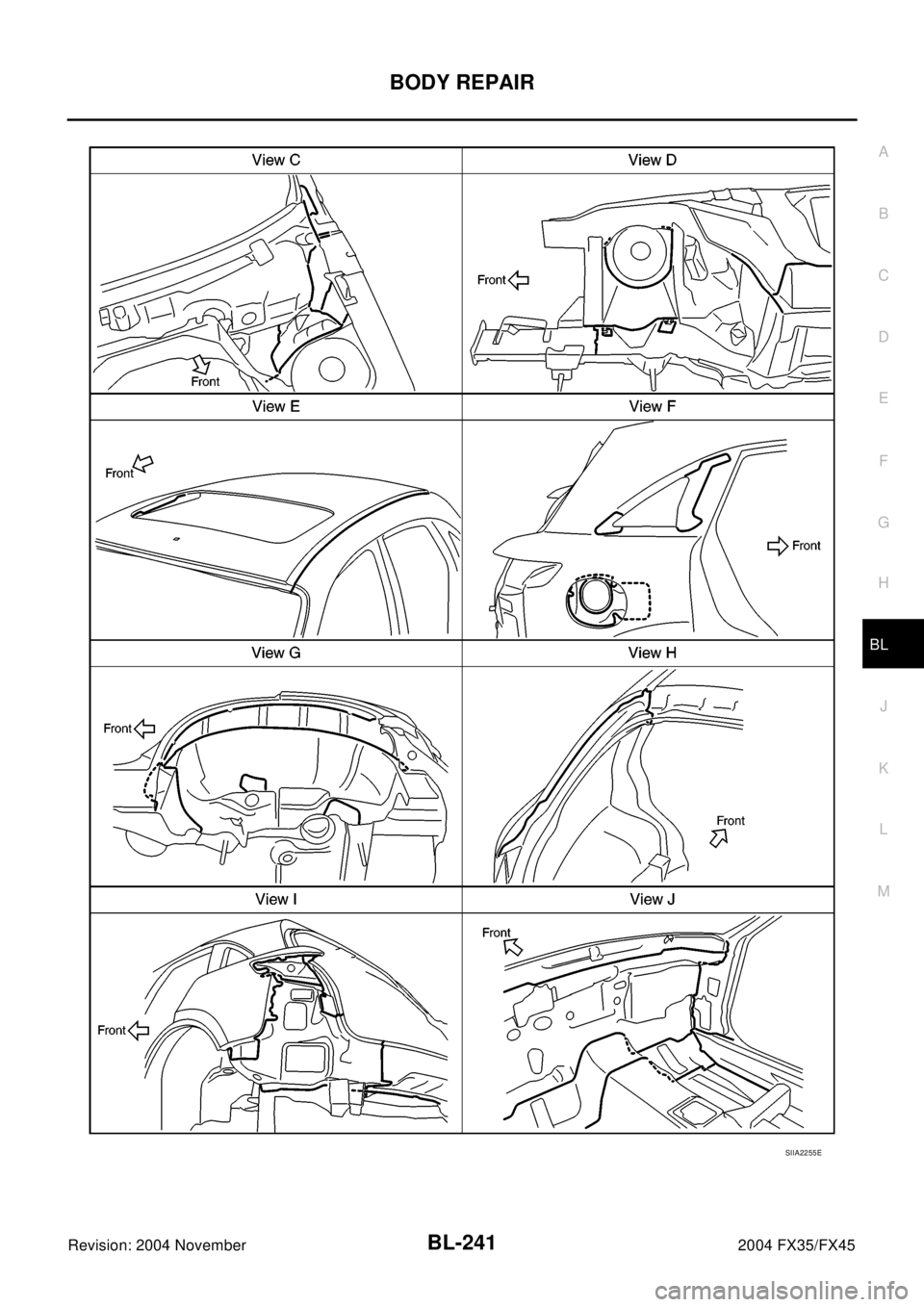

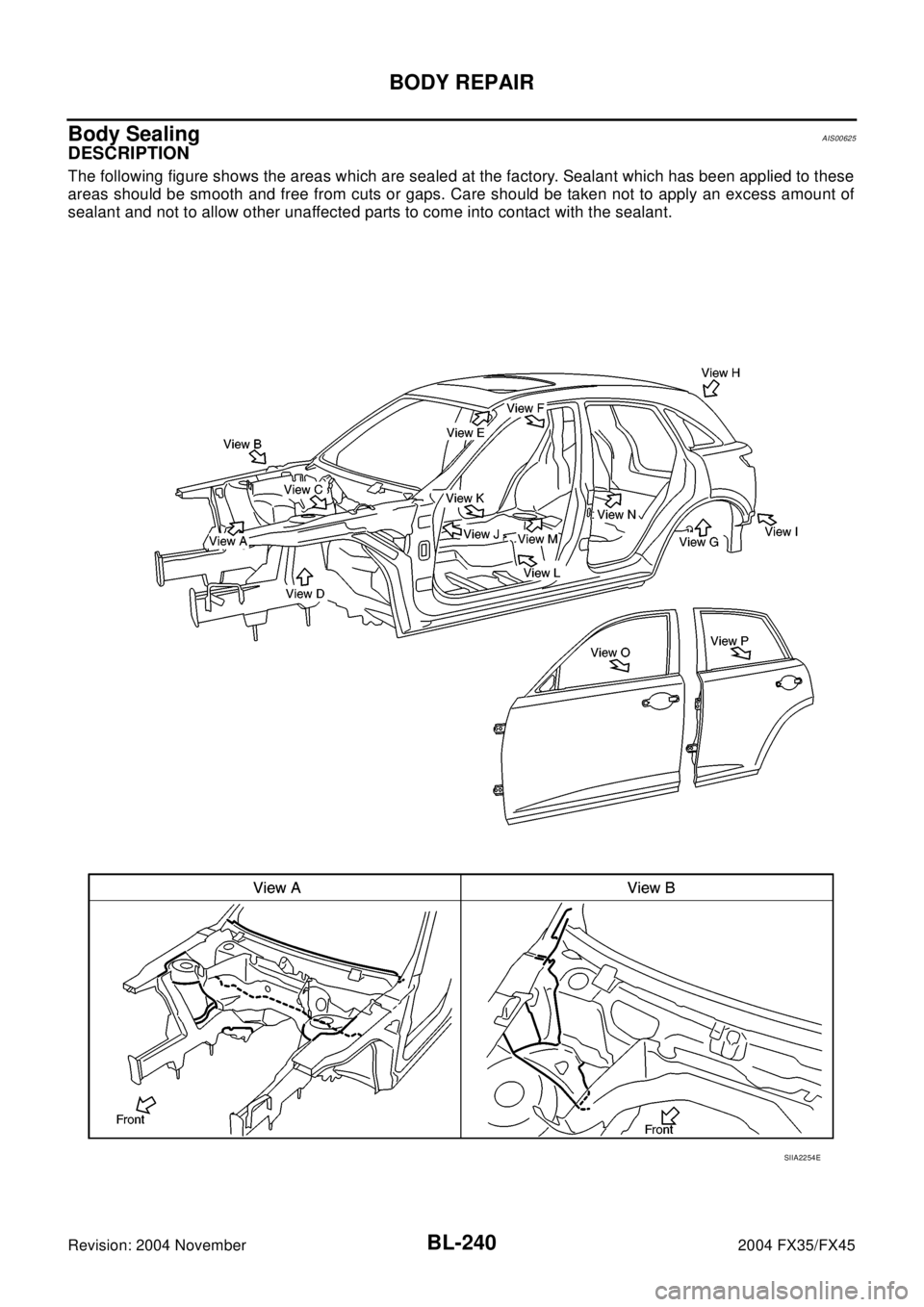

INFINITI FX35 2004 Service Manual BL-240 BODY REPAIR Revision: 2004 November2004 FX35/FX45 Body SealingAIS00625 DESCRIPTION The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these

Page 1048 of 4449

INFINITI FX35 2004 Service Manual BODY REPAIR BL-241 C D E F G H J K L MA B BL Revision: 2004 November2004 FX35/FX45 SIIA2255E
