DOOR OUTSIDE MOLDING
Revision: 2004 November 2004 FX35/FX45
DOOR OUTSIDE MOLDING PFP:82820
Removal and InstallationAIS0037E
FRONT DOOR OUTSIDE MOLDING
Removal
1. Open windows fully.
2. Remove door mirror. Refer to GW-113, "
Removal and Installation" .
3. Disconnect pawl on rear edge of molding.
4. Lift up to upper side, and remove molding.
Installation
Install in the reverse order of removal.
REAR DOOR OUTSIDE MOLDING
Removal
1. Open windows fully.
2. Disconnect pawl on front edge and rear edge of molding.
3. Lift up to upper side, and remove molding.
Installation
Install in the reverse order of removal.

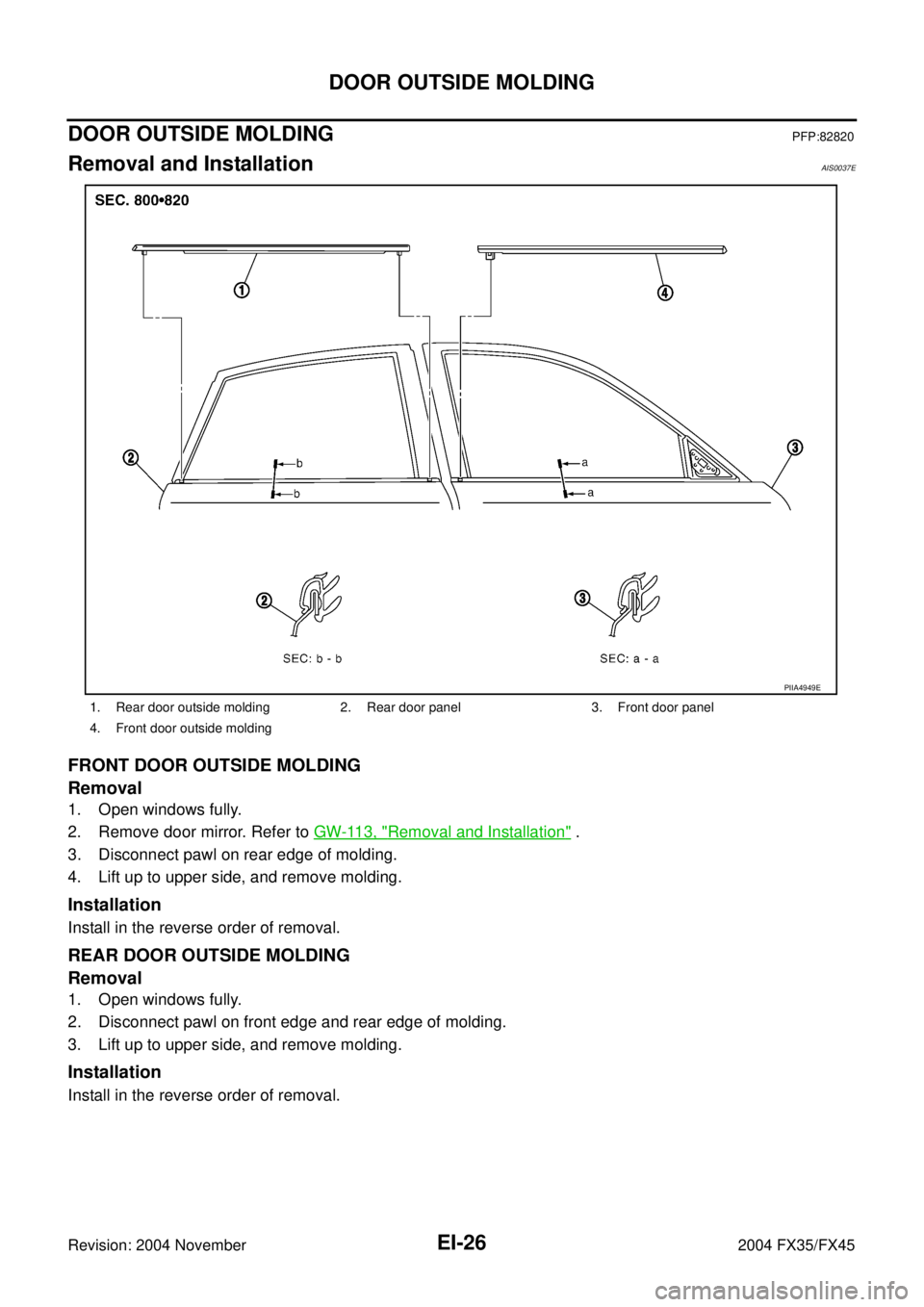

1. Rear door outside molding 2. Rear door panel 3. Front door panel
4. Front door outside molding
PIIA4949E
Page 2706 of 4449
DOOR OUTSIDE LOWER MOLDING
EI-27
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
DOOR OUTSIDE LOWER MOLDINGPFP:82877
Removal and InstallationAIS0037F
FRONT AND REAR DOOR OUTSIDE LOWER MOLDING
Removal
Remove clips, then remove door outside lower molding with double-faced adhesive tape.
Installation
1. Clean adhesive portion of front and rear door with white gasoline.
2. Strip pattern from the new door outside lower molding and paste on door.
PIIA4348E

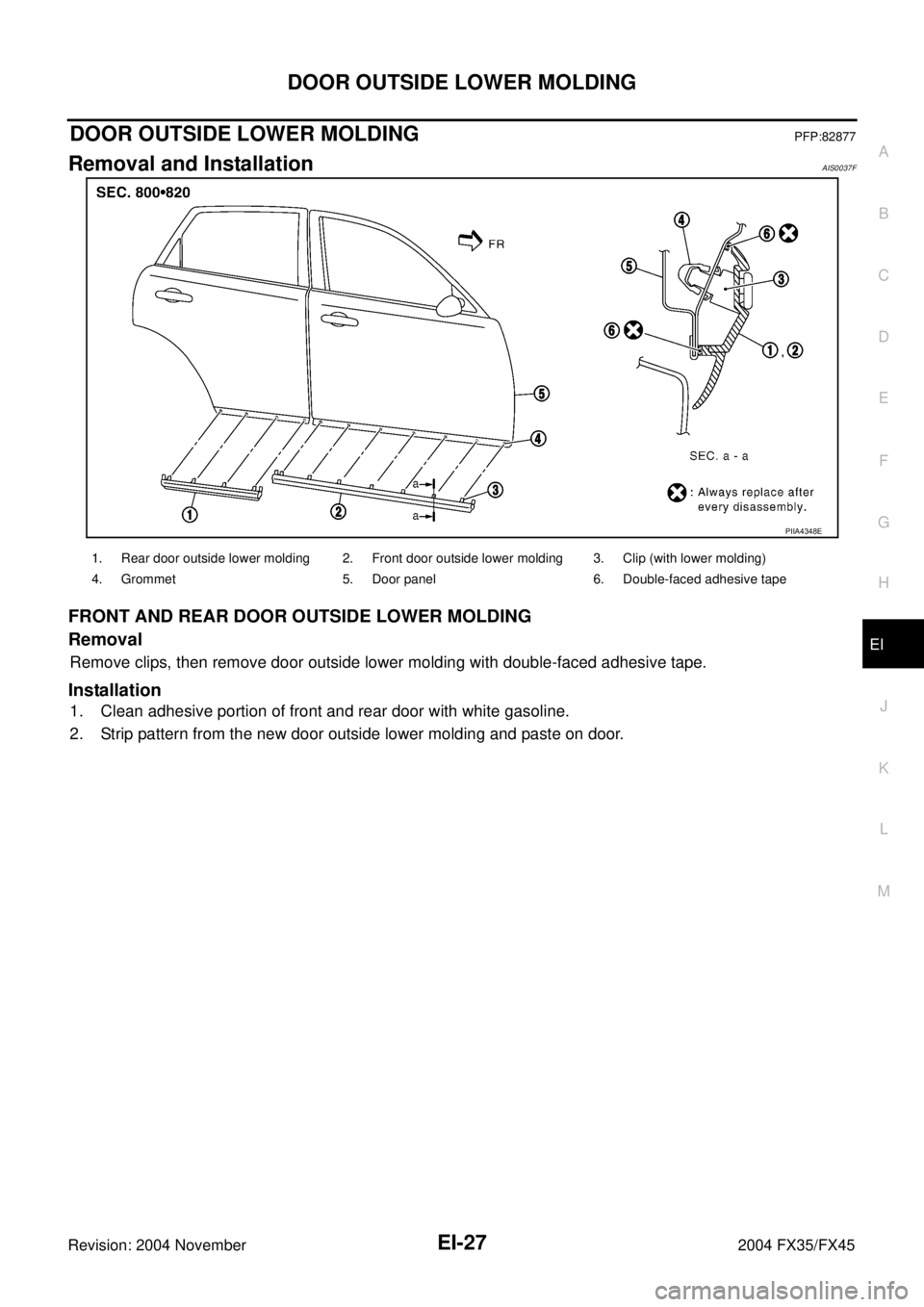

1. Rear door outside lower molding 2. Front door outside lower molding 3. Clip (with lower molding)
4. Grommet 5. Door panel 6. Double-faced adhesive tape
Page 2707 of 4449
EI-28
DOOR PARTING SEAL
Revision: 2004 November 2004 FX35/FX45
DOOR PARTING SEALPFP:80838
Removal and InstallationAIS0037G
REMOVAL
1. Remove rear door outside lower molding. Refer to EI-27, "Removal and Installation" .
2. Open front door fully.
3. Remove double-faced adhesive tapes and rear door parting seal.
INSTALLATION
1. Clean adhesive portion of rear door with white gasoline.
2. Strip pattern from the new rear door parting seal and paste on rear door panel.
3. Install rear door parting seal to rear door hem flange.
4. Install rear door outside lower molding. Refer to EI-27, "
Removal and Installation" .
CAUTION:
Rear door parting seal is not reusable. always use new rear door parting seal.
PIIA4950E

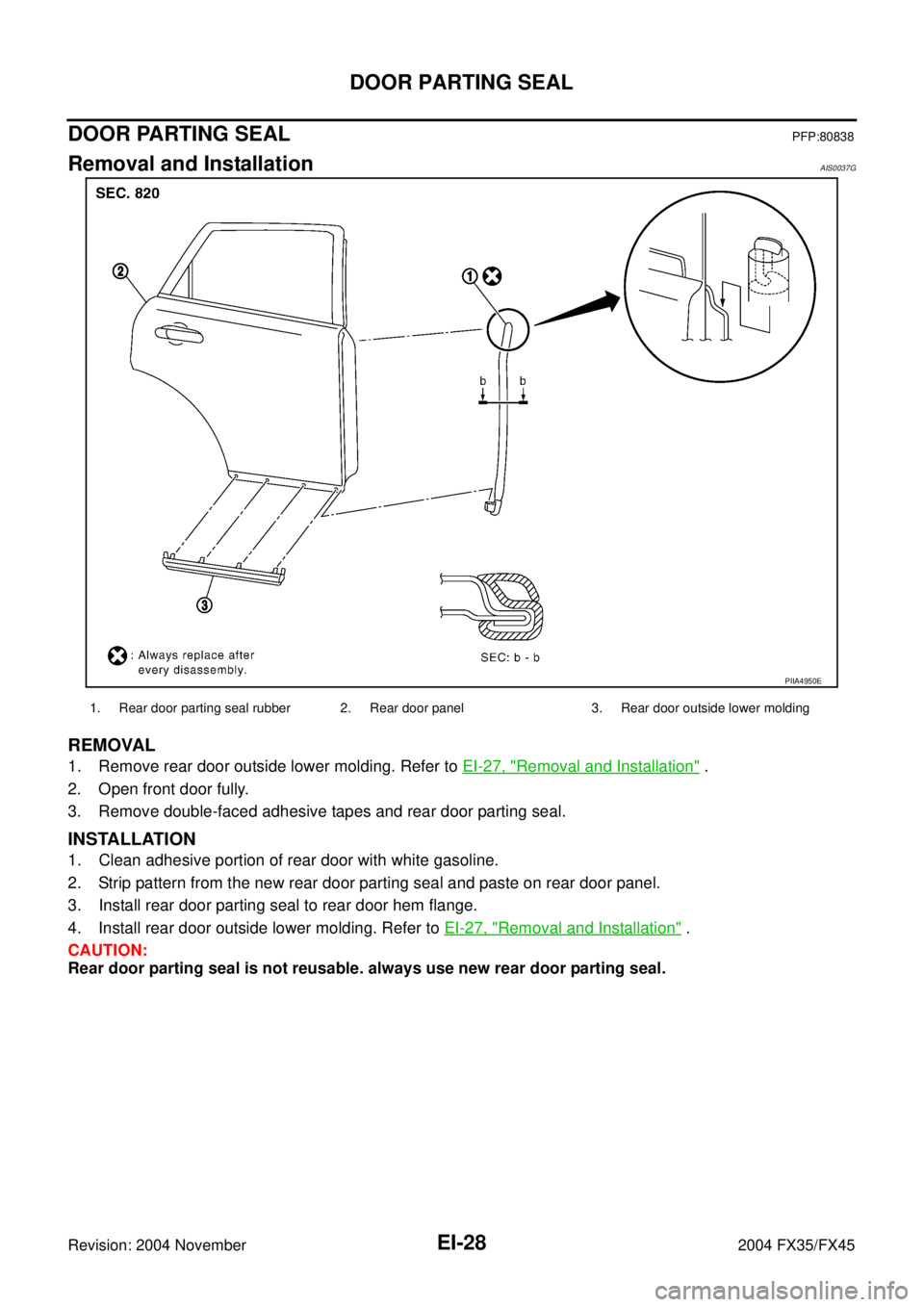

1. Rear door parting seal rubber 2. Rear door panel 3. Rear door outside lower molding
Page 2708 of 4449
CENTER MUD GUARD
EI-29
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
CENTER MUD GUARDPFP:76850
Removal and InstallationAIS0037H
REMOVAL
1. Remove bolts center mud-guard lower portion.
2. Remove screws center mud-guard front and rear portion.
3. Insert driver rolled with cloth or tapes between guard and body side sill, then pull it back to your side.
INSTALLATION
Install in the reverse order of removal.

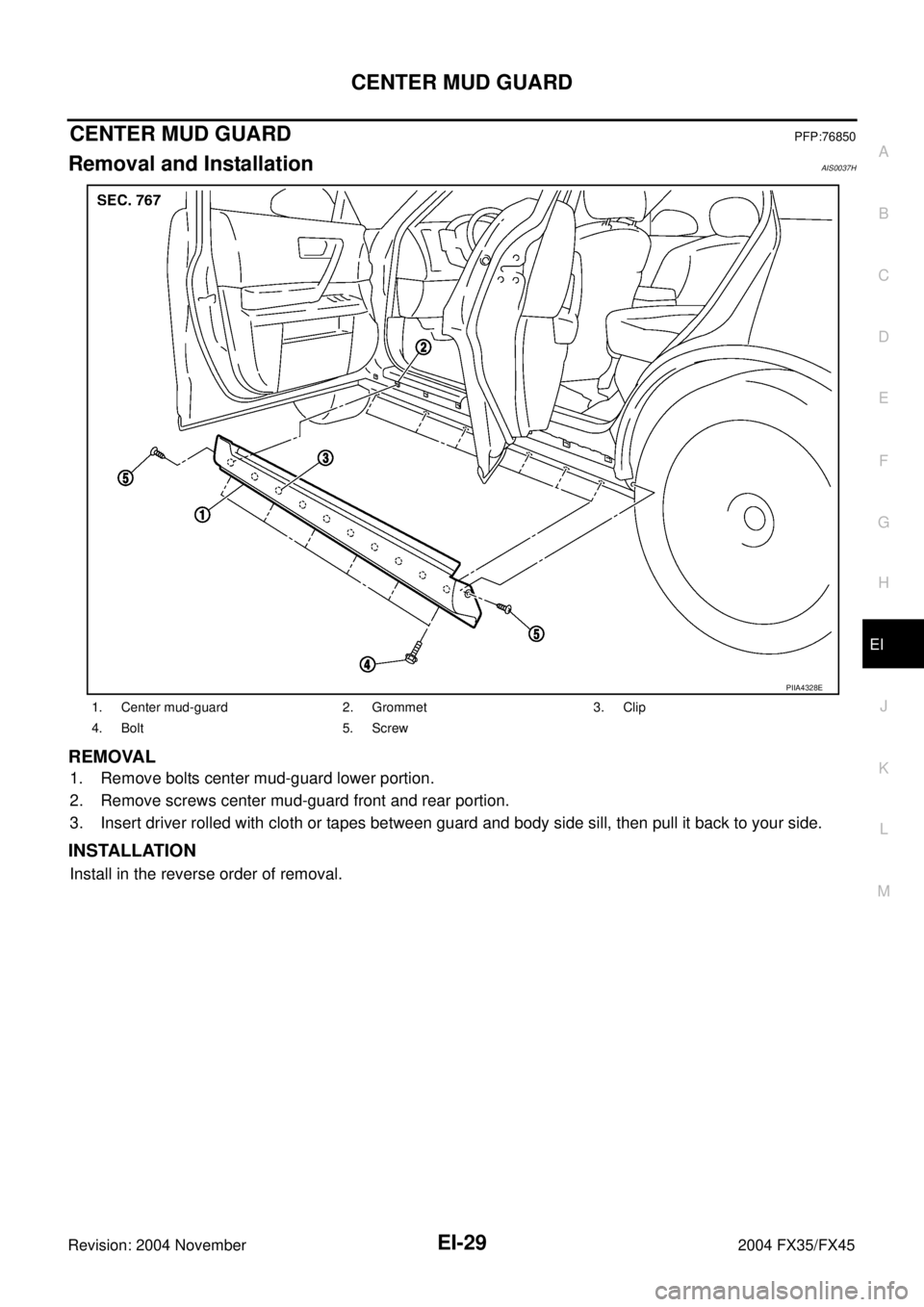

1. Center mud-guard 2. Grommet 3. Clip
4. Bolt 5. Screw
PIIA4328E
Page 2709 of 4449
EI-30
WINDSHIELD MOLDING
Revision: 2004 November 2004 FX35/FX45
WINDSHIELD MOLDINGPFP:72700
Removal and InstallationAIS00584
REMOVAL
Remove windshield molding. Refer to GW-11, "REMOVAL" .
INSTALLATION
Install windshield molding. Refer to GW-12, "INSTALLATION" .
PIIA9190E

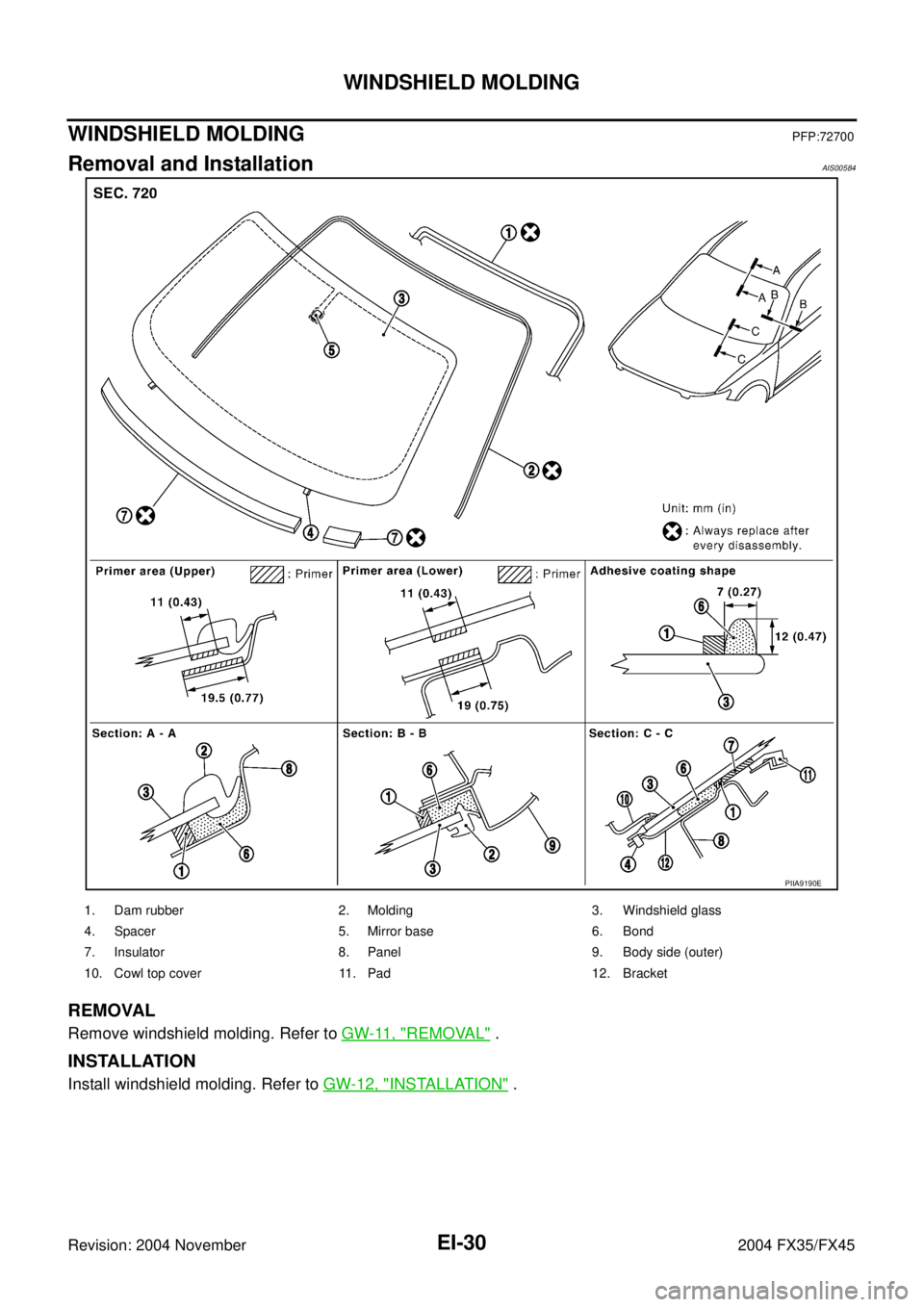

1. Dam rubber 2. Molding 3. Windshield glass
4. Spacer 5. Mirror base 6. Bond
7. Insulator 8. Panel 9. Body side (outer)
10. Cowl top cover 11. Pad 12. Bracket
Page 2710 of 4449
BACK DOOR WINDOW MOLDING
EI-31
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
BACK DOOR WINDOW MOLDINGPFP:90352
Removal and InstallationAIS00585
REMOVAL
Remove back door window molding. Refer to GW-13, "REMOVAL" .
NOTE:
Apply a strip of protective tape along the contour of back door window glass (molding) to prevent paint surface
from being damaged.
INSTALLATION
Install back door window molding. Refer to GW-14, "INSTALLATION" .
NOTE:
Clean adhesive portion of back door window glass and around circumference with white gasoline.
Apply dam rubber to upper and side surfaces of glass.
Attach back door window molding to side face of glass.
PIIA9191E

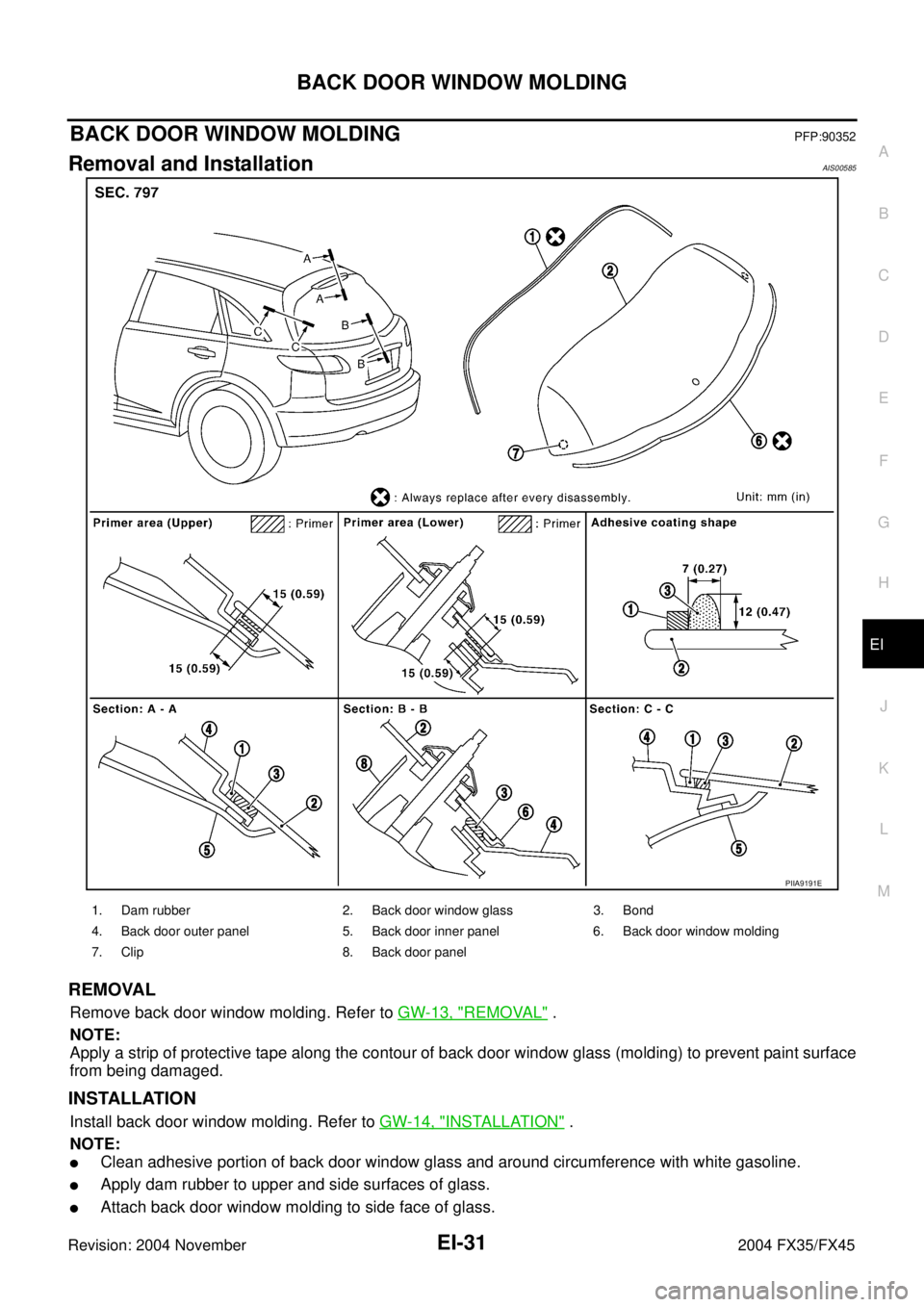

1. Dam rubber 2. Back door window glass 3. Bond
4. Back door outer panel 5. Back door inner panel 6. Back door window molding
7. Clip 8. Back door panel
Page 2711 of 4449
EI-32
BACK DOOR WINDOW MOLDING
Revision: 2004 November 2004 FX35/FX45
Back door window molding should not overlap on the surface of back door window glass.
Page 2712 of 4449
ROOF SIDE MOLDING
EI-33
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
ROOF SIDE MOLDINGPFP:73854
Removal and InstallationAIS0037J
REMOVAL
Disconnect molding from roof side clip and remove roof side molding.
INSTALLATION
Install in the reverse order of removal.
PIIA4951E
1. Roof side molding
