Page 2113 of 4449

INFINITI FX35 2004 Service Manual EC-772
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45

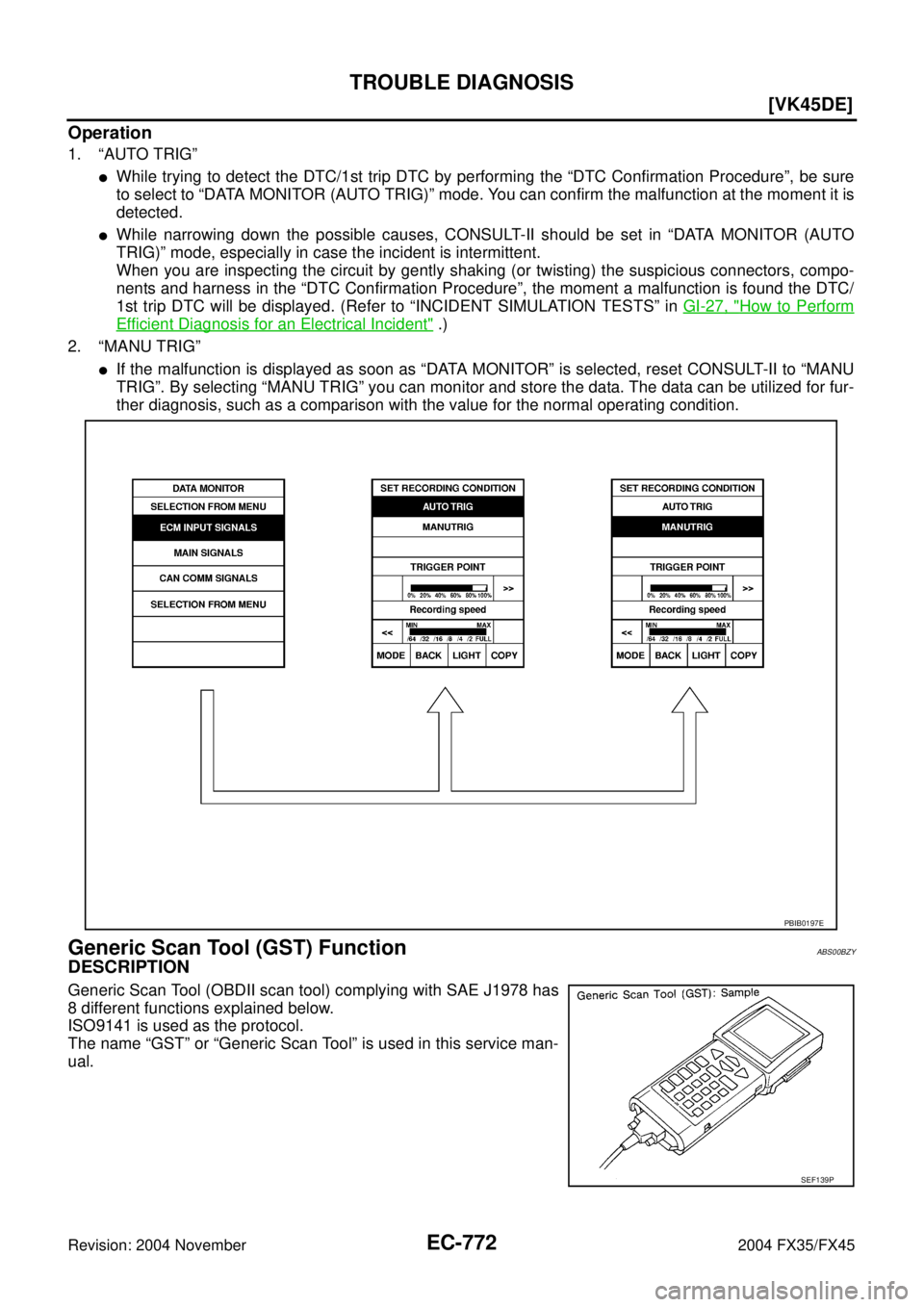

Operation
1. “AUTO TRIG”
While trying to detect the DTC/1st trip DTC by performing the “DTC Confirmation Procedure”, b

Page 2114 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-773
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
FUNCTION

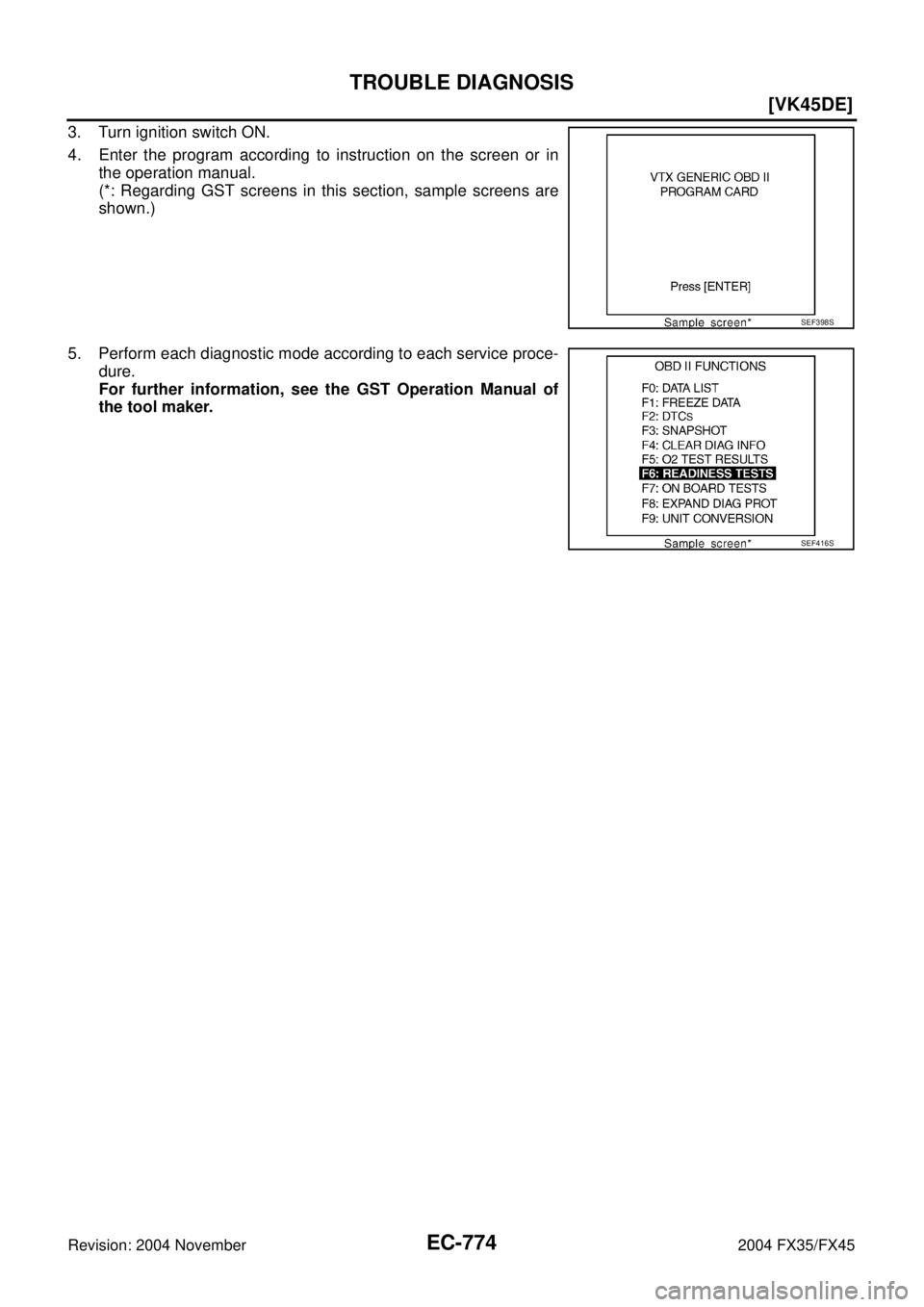

INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect “GST” to data link connecto

TROUBLE DIAGNOSIS
EC-773
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
FUNCTION
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect “GST” to data link connector, which is located under LH
dash panel near the hood opener handle.
Diagnostic test mode Function
MODE 1 READINESS TESTSThis mode gains access to current emission-related data values, including analog inputs
and outputs, digital inputs and outputs, and system status information.
MODE 2 (FREEZE DATA)This mode gains access to emission-related data value which were stored by ECM during
the freeze frame. For details, refer to EC-708, "
FREEZE FRAME DATA AND 1ST TRIP
FREEZE FRAME DATA" .
MODE 3 DTCsThis mode gains access to emission-related power train trouble codes which were stored
by ECM.
MODE 4 CLEAR DIAG INFOThis mode can clear all emission-related diagnostic information. This includes:
Clear number of diagnostic trouble codes (MODE 1)
Clear diagnostic trouble codes (MODE 3)
Clear trouble code for freeze frame data (MODE 1)
Clear freeze frame data (MODE 2)
Reset status of system monitoring test (MODE 1)
Clear on board monitoring test results (MODE 6 and 7)
MODE 6 (ON BOARD TESTS)This mode accesses the results of on board diagnostic monitoring tests of specific com-
ponents/systems that are not continuously monitored.
MODE 7 (ON BOARD TESTS)This mode enables the off board test drive to obtain test results for emission-related pow-
ertrain components/systems that are continuously monitored during normal driving condi-
tions.
MODE 8 —This mode can close EVAP system in ignition switch ON position (Engine stopped). When
this mode is performed, EVAP canister vent control valve can be closed.
In the following conditions, this mode cannot function.
Low ambient temperature
Low battery voltage
Engine running
Ignition switch OFF
Low fuel temperature
Too much pressure is applied to EVAP system
MODE 9 (CALIBRATION ID)This mode enables the off-board test device to request specific vehicle information such
as Vehicle Identification Number (VIN) and Calibration IDs.
PBIB1503E

Page 2115 of 4449

INFINITI FX35 2004 Service Manual EC-774
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in
the operation manual.
(*: Regardi

Page 2116 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-775
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
CONSULT-II Reference Value in Data MonitorABS00BZZ
Remarks:
Specification data are reference values

TROUBLE DIAGNOSIS
EC-775
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
CONSULT-II Reference Value in Data MonitorABS00BZZ
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare the CONSULT-II value with tachometer indica-
tionAlmost the same speed as the
tachometer indication
MAS A/F SE-B1 See EC-780, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-780, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2See EC-780, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S
Engine: After warming up More than 70°C (158°F)
HO2S1 (B1)
HO2S1 (B2)
Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S2 (B1)
HO2S2 (B2)
Warm-up condition
After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no loadRevving engine from idle to 3,000 rpm
quickly0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S1 MNTR (B1)
HO2S1 MNTR (B2)
Engine: After warming upMaintaining engine speed at 2,000
rpmLEAN ←→ RICH
Changes more than 5 times
during 10 seconds
HO2S2 MNTR (B1)
HO2S2 MNTR (B2)
Warm-up condition
After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no loadRevving engine from idle to 3,000 rpm
quicklyLEAN ←→ RICH
VEH SPEED SE
Turn drive wheels and compare the CONSULT-II value with speedometer
indicationAlmost the same speed as the
speedometer indication
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.7V
ACCEL SEN2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN1
THRTL SEN2*
Ignition switch: ON
(Engine stopped)
Shift lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES
Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON
P/N POSI SW
Ignition switch: ONShift lever: P or N ON
Shift lever: Except above OFF
PW/ST SIGNAL
Engine: After warming up, idle
the engineSteering wheel is in neutral position
(Forward direction)OFF
Steering wheel is turned ON

Page 2117 of 4449

INFINITI FX35 2004 Service Manual EC-776
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
LOAD SIGNALIgnition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2ndON
Rear window defogger switc

Page 2118 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-777
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by

TROUBLE DIAGNOSIS
EC-777
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM terminals voltage signal.VENT CONT/V
Ignition switch: ON OFF
THRTL RELAY
Ignition switch: ON ON
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is 95°C
(203°F) or moreHI
HO2S1 HTR (B1)
HO2S1 HTR (B2)
Engine: After warming up
Engine speed: Below 3,000 rpmON
Engine speed: Above 3,000 rpm OFF
HO2S2 HTR (B1)
HO2S2 HTR (B2)
Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no loadON
Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD
Vehicle speed: More than 20 km/h (12 MPH)Almost the same speed as the
tachometer indication
VEHICLE SPEED
Turn drive wheels and compare the CONSULT-II value with speedometer
indicationAlmost the same speed as the
speedometer indication
TRVL AFTER MIL
Ignition switch: ONVehicle has traveled after MIL has
turned ON.0 - 65,535 km
(0 - 40,723 miles)
O2SEN HTR DTY
Engine coolant temperature when engine started: More than 80°C (176°F)
Engine speed: Below 3,000 rpmApprox. 40%
AC PRESS SEN
Engine: Idle
Both A/C switch and blower fan switch: ON (Compressor operates)1.0 - 4.0V
VEH SPEED SE
Turn drive wheels and compare the CONSULT-II value with speedometer
indicationAlmost the same speed as the
speedometer indication
SET VHCL SPD
Engine: Running ASCD: OperatingThe preset vehicle speed is
displayed
MAIN SW
Ignition switch: ONON/OFF (MAIN) switch: Pressed ON
ON/OFF (MAIN) switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONACCEL/RESUME switch: Pressed ON
ACCEL/RESUME switch: Released OFF
SET SW
Ignition switch: ONCOAST/SET switch: Pressed ON
COAST/SET switch: Released OFF
BRAKE SW1
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DIST SW
Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
CRUISE LAMP
Ignition switch: ONON/OFF (MAIN) switch: Pressed at
the 1st time → at the 2nd timeON → OFF
SET LAMP
Ignition switch: ONASCD is operating ON
ASCD is not operating OFF MONITOR ITEM CONDITION SPECIFICATION

Page 2119 of 4449

INFINITI FX35 2004 Service Manual EC-778
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45

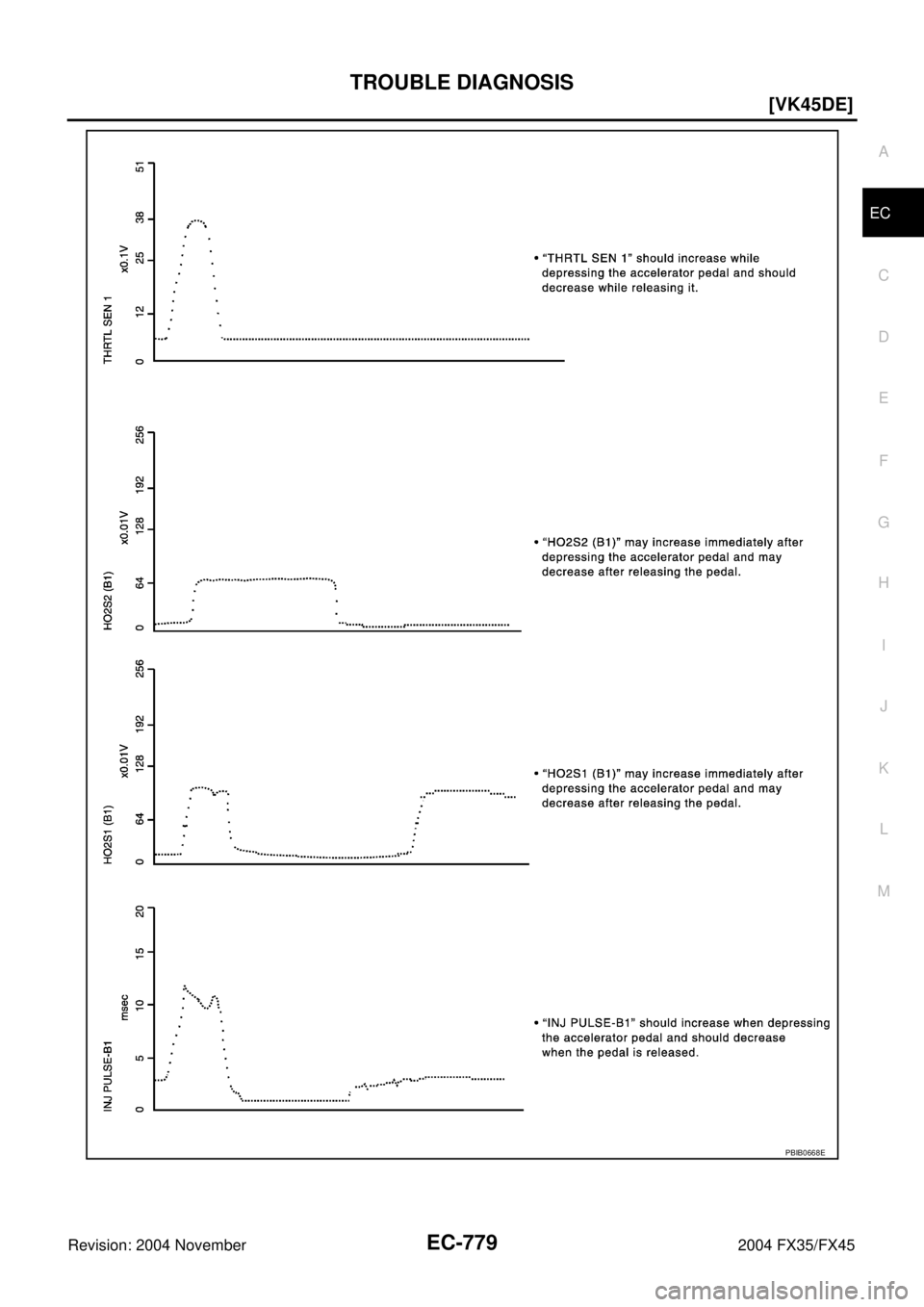

Major Sensor Reference Graph in Data Monitor ModeABS00C00
The following are the major sensor reference graphs in “DATA MONITO

Page 2120 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-779
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
PBIB0668E
