Page 1009 of 4449

INFINITI FX35 2004 Service Manual BL-202
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2004 November 2004 FX35/FX45

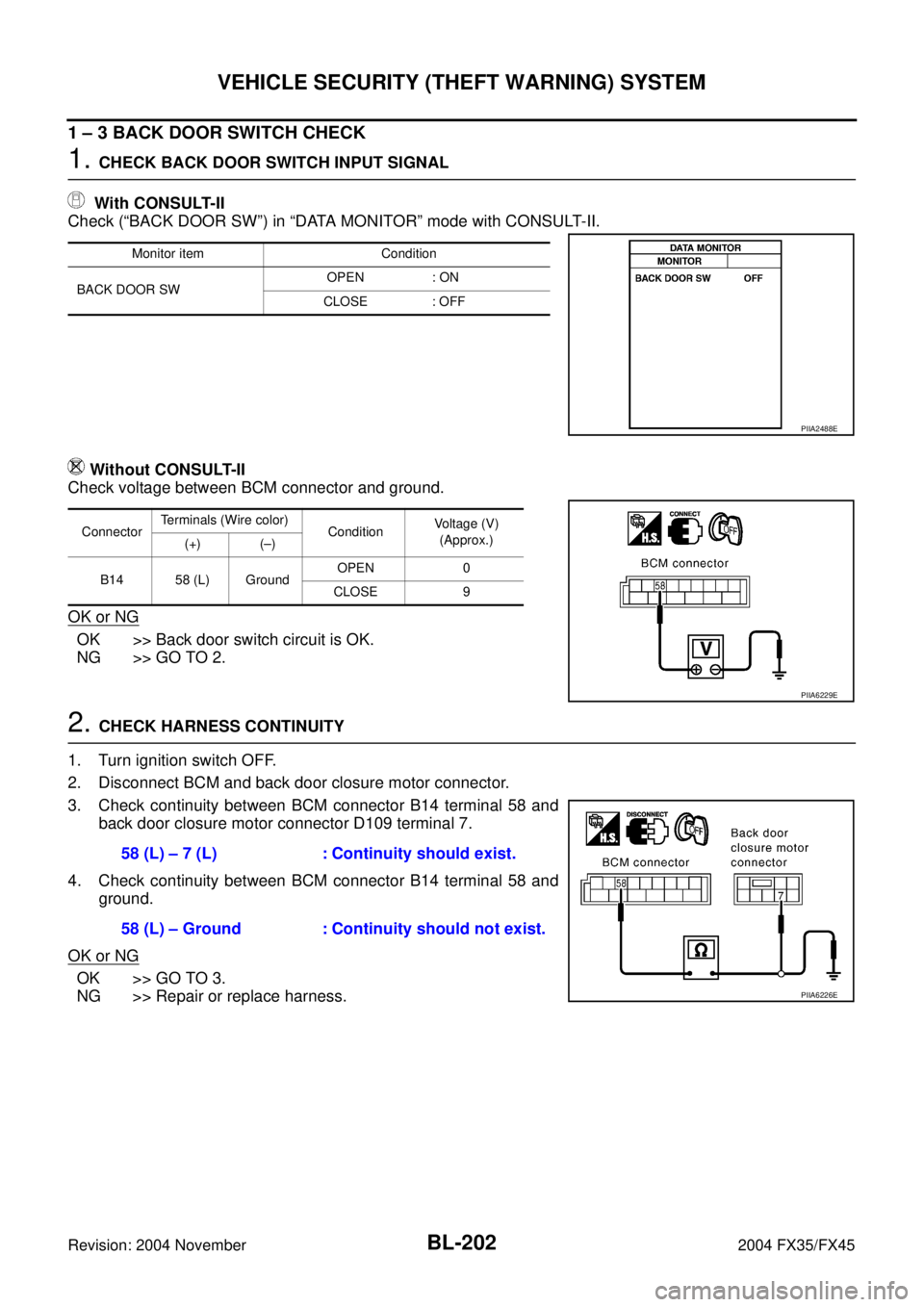

1 – 3 BACK DOOR SWITCH CHECK
1. CHECK BACK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check (“BACK DOOR SW”)

Page 1010 of 4449

INFINITI FX35 2004 Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-203
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45

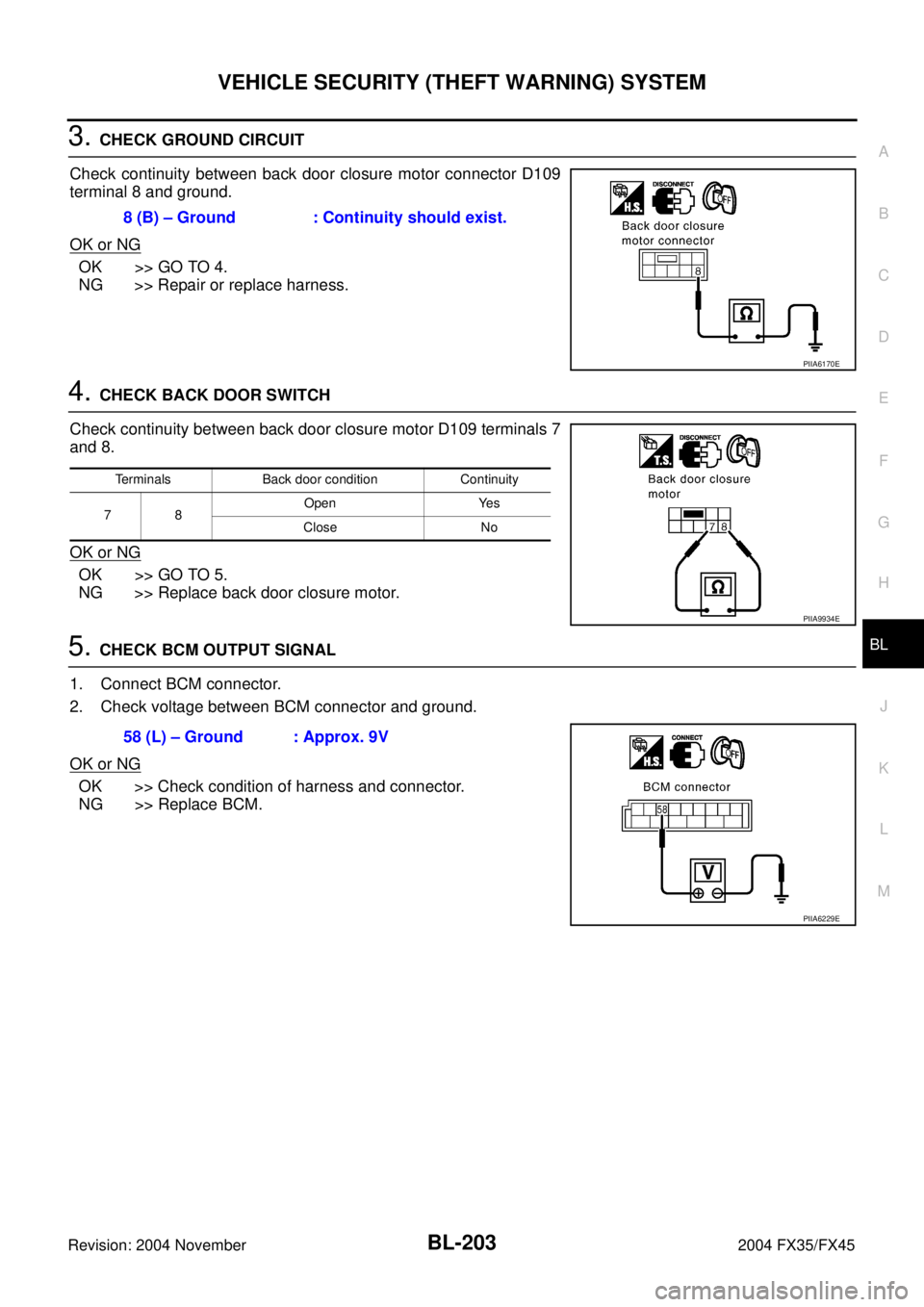

3. CHECK GROUND CIRCUIT
Check continuity between back door closure motor connector D109

Page 1011 of 4449

INFINITI FX35 2004 Service Manual BL-204
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2004 November 2004 FX35/FX45
Diagnostic Procedure 2AIS004P5
SECURITY INDICATOR LAMP CHECK
1. SECURITY INDICATOR LAMP ACTIVE TEST
With CONSULT

Page 1012 of 4449

INFINITI FX35 2004 Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-205
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45
Diagnostic Procedure 3AIS004P6
FRONT DOOR KEY CYLINDER SWITCH CHECK
1. CHECK KEY CYLIND

Page 1013 of 4449

INFINITI FX35 2004 Service Manual BL-206
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2004 November 2004 FX35/FX45
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)PFP:28591
Component Parts and Harness Connector LocationAIS

Page 1014 of 4449

INFINITI FX35 2004 Service Manual IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-207
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45
In the vehicle without Intelligent Key system, security indicator always flashe

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-207
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45
In the vehicle without Intelligent Key system, security indicator always flashes with other than ignition
switch ON or START position.
In the vehicle with Intelligent Key system, security indicator always flashes with mechanical key removed
condition (key switch OFF) and ignition knob released condition on LOCK position (ignition knob switch
OFF).
Therefore, IVIS (NATS) warns outsiders that the vehicle is equipped with the anti-theft system.
If system detects malfunction, it turns on security indicator in ignition switch ON position.
If the owner requires, mechanical key ID can be registered for up to 5 keys.
During trouble diagnosis or when the following parts have been replaced, and if ignition key or mechanical
key is added, registration* is required.
*: All keys kept by the owner of the vehicle should be registered with ignition key or mechanical key.
–ECM
–BCM
–Ignition key (models without Intelligent Key system)
–Mechanical key (models with Intelligent Key system)
IVIS (NATS) trouble diagnoses, system initialization and additional registration of other IVIS (NATS) igni-
tion key or mechanical key IDs must be carried out using CONSULT-II hardware and CONSULT-II IVIS
(NATS) software. When IVIS (NATS) initialization has been completed, the ID of the inserted ignition key
or mechanical key or mechanical key IDs can be carried out.
Regarding the procedures of IVIS (NATS) initialization and ignition key or mechanical key ID registration,
refer to CONSULT-II operation manual, NATS-IVIS/NVIS.
SECURITY INDICATOR
Warns that the vehicle has IVIS (NATS).
In the vehicle without Intelligent Key system, security indicator always flashes with other than ignition
switch ON or START position. In the vehicle with Intelligent Key system, security indicator always flashes
with mechanical key removed condition (key switch OFF) and ignition knob released condition on LOCK
position (ignition knob switch OFF).
NOTE:
Because security indicator is highly efficient, the battery is barely affected.
Condition of Security Indicator
WITHOUT INTELLIGENT KEY SYSTEM
WITH INTELLIGENT KEY SYSTEM
In ignition knob operation with Intelligent Key, it always turns on with pushing ignition knob, and always
flashes with ignition knob released (ignition knob switch OFF) condition on ignition knob “LOCK” position.
In ignition knob operation with mechanical key, it turns off on the condition that mechanical key is inserted
in key cylinder, and always flashes with ignition knob released (ignition knob switch OFF) condition on
mechanical key removed condition.
Security indicator
conditionIgnition keyOperation or condition of ignition key
Ignition switch:
ON positionIgnition switch:
ACC positionIgnition switch:
OFF position
(Key is inserted.)Ignition switch:
OFF position
(Remove key.)
Register key OFF Flashing Flashing Flashing
Ignition key not
registeredON Flashing Flashing Flashing

Page 1015 of 4449

INFINITI FX35 2004 Service Manual BL-208
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2004 November 2004 FX35/FX45

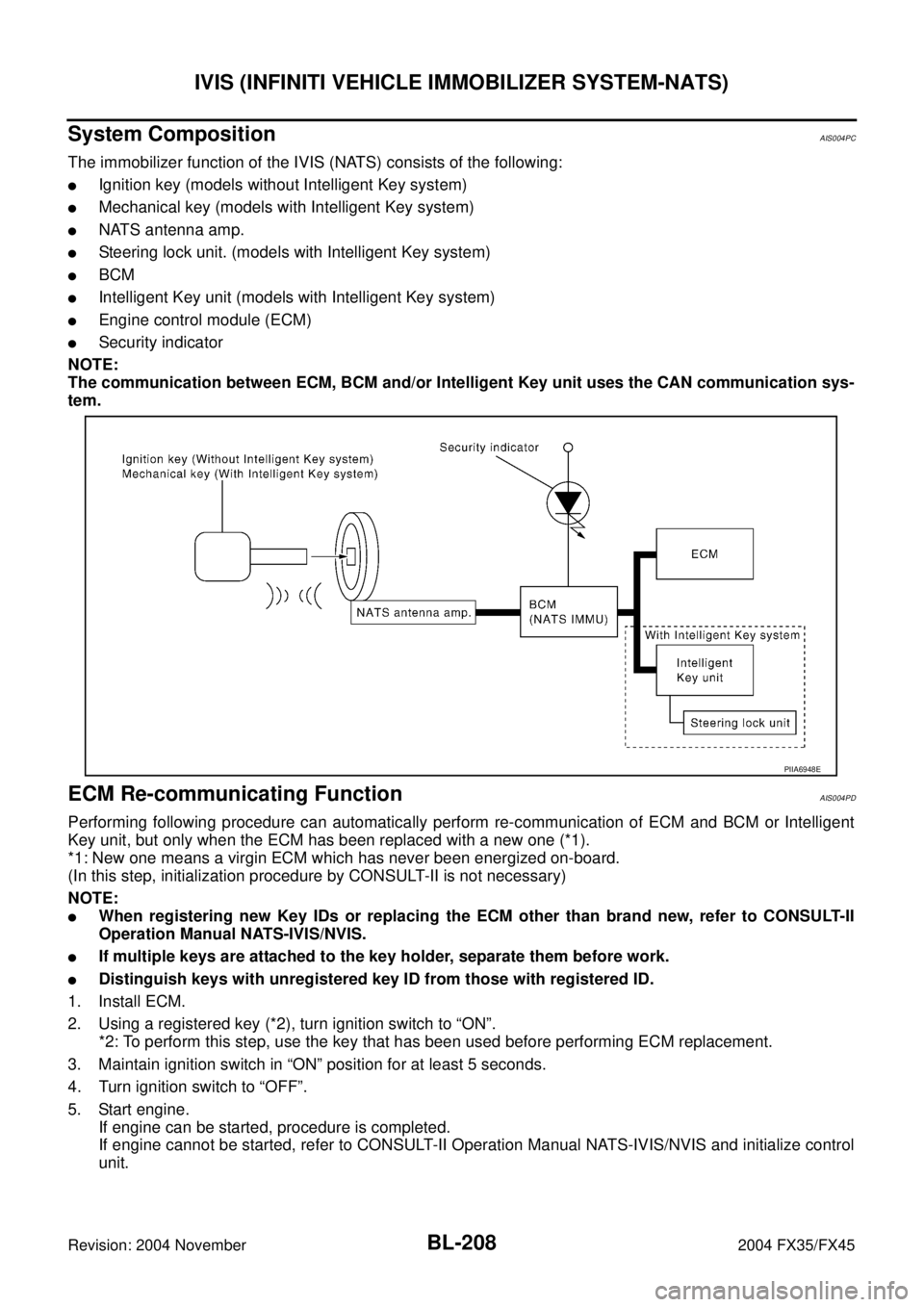

System CompositionAIS004PC
The immobilizer function of the IVIS (NATS) consists of the following:
Ignitio

Page 1016 of 4449

INFINITI FX35 2004 Service Manual IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-209
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45

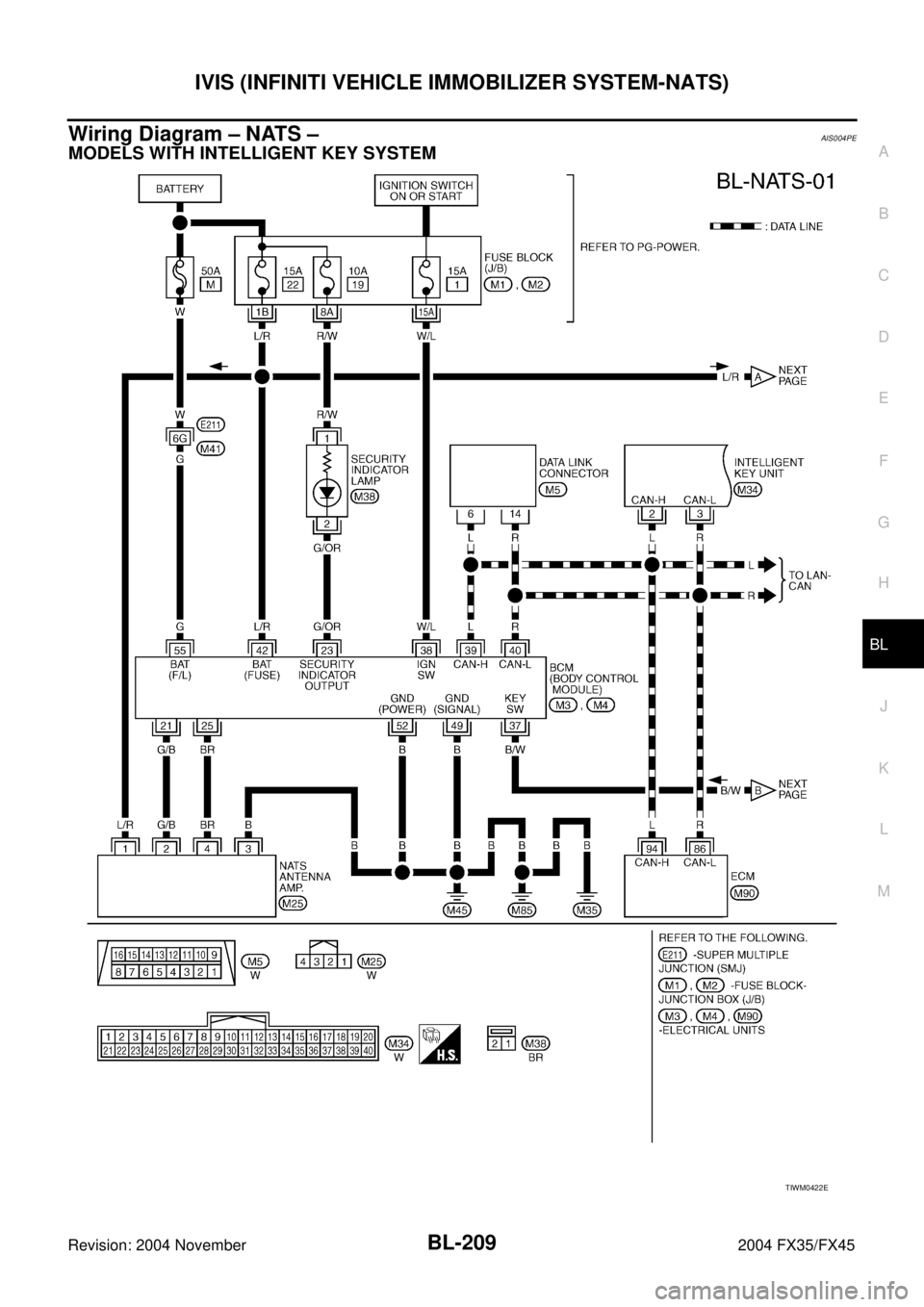

Wiring Diagram – NATS –AIS004PE
MODELS WITH INTELLIGENT KEY SYSTEM
TIWM0422E
