EC-1292
[VK45DE]
ELECTRICAL LOAD SIGNAL
Revision: 2004 November 2004 FX35/FX45
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionABS00CF4
The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
through the CAN communication line from BCM to ECM via IPDM E/R.
CONSULT-II Reference Value in Data Monitor ModeABS00CF5
Specification data are reference values.
Diagnostic ProcedureABS00CF6
1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Connect CONSULT-II and select “DATA MONITOR” mode.
3. Select “LOAD SIGNAL” and check indication under the following
conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check “LOAD SIGNAL” indication under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
3. CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to GW-86, "
REAR WINDOW DEFOGGER" .
>>INSPECTION END
4. CHECK HEADLAMP SYSTEM
Refer to LT- 7 , "
HEADLAMP - XENON TYPE -" .
>>INSPECTION END
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL
Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2ndON
Rear window defogger switch is OFF
and lighting switch is OFFOFF
Condition Indication
Rear window defogger switch ON ON
Rear window defogger switch OFF OFF
PBIB0103E
Condition Indication
Lighting switch ON at 2nd position ON
Lighting switch OFF OFF
PBIB0103E
Page 2634 of 4449
ICC BRAKE SWITCH
EC-1293
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
ICC BRAKE SWITCHPFP:25320
Component DescriptionABS00CF7
When depress on the brake pedal, ICC brake switch is turned OFF
and stop lamp switch is turned ON. ECM detects the state of the
brake pedal by this input of two kinds (ON/OFF signal)
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeABS00CF8
Specification data are reference values.
PBIB1539E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ICC brake switch)
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(stop lamp switch)
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
Page 2635 of 4449
EC-1294
[VK45DE]
ICC BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45

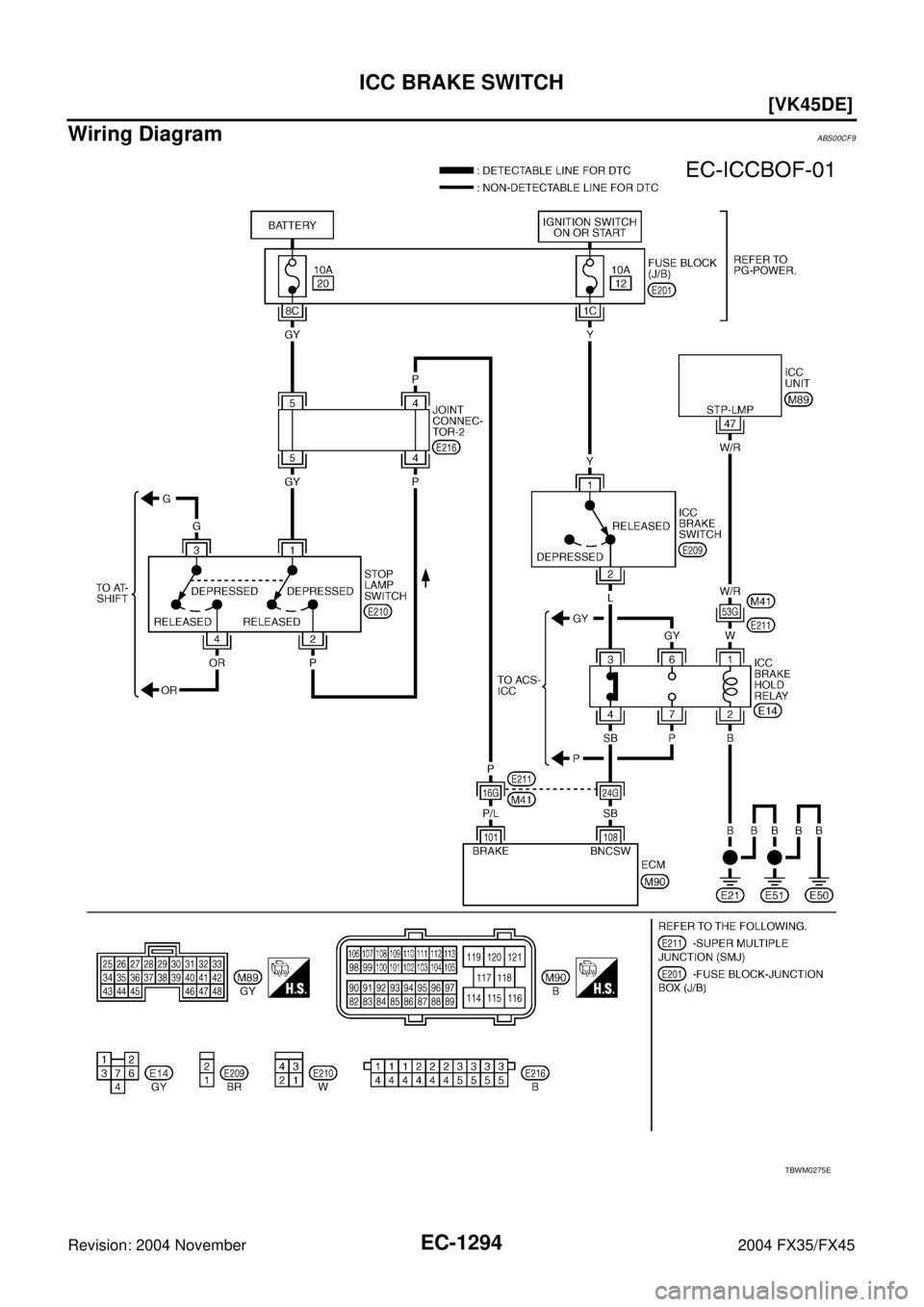

Wiring DiagramABS00CF9
TBWM0275E
Page 2636 of 4449
![INFINITI FX35 2004 Service Manual ICC BRAKE SWITCH
EC-1295
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
D INFINITI FX35 2004 Service Manual ICC BRAKE SWITCH
EC-1295
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
D](/manual-img/42/57021/w960_57021-2635.png)
ICC BRAKE SWITCH
EC-1295
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CFA
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101 P/L Stop lamp switch[Ignition switch: OFF]
Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
108 S/B ICC brake switch[Ignition switch: ON]
Brake pedal: Slightly depressedApproximately 0V
[Ignition switch: ON]
Brake pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
When brake pedal is slightly depress OFF
When brake pedal is fully released ON
SEC011D
CONDITION VOLTAGE
When brake pedal is slightly depress Approximately 0V
When brake pedal is fully released Battery voltage
MBIB0061E
Page 2637 of 4449
EC-1296
[VK45DE]
ICC BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2” indication in “DATA MONITOR” mode.
Without CONSULT-II
Check voltage between ECM terminal 101 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
3. CHECK DTC WITH ICC UNIT
Refer to ACS-40, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace.
CONDITION INDICATION
When brake pedal is fully released OFF
When brake pedal is slightly depressed ON
SEC013D
CONDITION VOLTAGE
When brake pedal is fully released Approximately 0V
When brake pedal is slightly depressed Battery voltage
PBIB1537E
Page 2638 of 4449
ICC BRAKE SWITCH
EC-1297
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
4. CHECK ICC BRAKE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake hold relay.
3. Turn ignition switch ON.
4. Check voltage between ICC brake hold relay terminal 3 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 5.
5. CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between ICC brake switch terminal 1 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
PBIB1531E
Voltage: Battery voltage
PBIB1538E
PBIB1539E
Voltage: Battery voltage
PBIB0857E
Page 2639 of 4449
![INFINITI FX35 2004 Service Manual EC-1298
[VK45DE]
ICC BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
6. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector M201
10A fuse
Harness for open or short betwee INFINITI FX35 2004 Service Manual EC-1298
[VK45DE]
ICC BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
6. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector M201
10A fuse
Harness for open or short betwee](/manual-img/42/57021/w960_57021-2638.png)
EC-1298
[VK45DE]
ICC BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
6. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector M201
10A fuse
Harness for open or short between ICC brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Check harness continuity between ICC brake hold relay terminal 3 and ICC brake switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK ICC BRAKE SWITCH
Refer to EC-1301, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ICC brake switch.
9. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ICC brake hold relay terminal 4 and ECM terminal 108.
Refer Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ICC brake hold relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ICC BRAKE HOLD RELAY
Refer to EC-1301, "
Component Inspection" .
OK >> GO TO 17.
NG >> Replace ICC brake fold relay.Continuity should exist.
Continuity should exist.
Page 2640 of 4449
![INFINITI FX35 2004 Service Manual ICC BRAKE SWITCH
EC-1299
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
12. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp INFINITI FX35 2004 Service Manual ICC BRAKE SWITCH
EC-1299
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
12. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp](/manual-img/42/57021/w960_57021-2639.png)
ICC BRAKE SWITCH
EC-1299
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
12. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT -II or tester.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E201
10A fuse
Joint connector-2
Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.
PBIB1539E
Voltage: Battery voltage
PBIB1184E
Continuity should exist.
