Page 3265 of 4449

GW-106
REAR WINDOW DEFOGGER
Revision: 2004 November 2004 FX35/FX45
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between door mirror (passenger side) connec-
tor D32 terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between door mirror (passen-
ger side) and ground.
3. CHECK DOOR MIRROR DEFOGGER
1. Connector door mirror connector.
2. Check continuity between each door mirror connector D32 (pas-
senger side) terminals 1 and 2.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace door mirror (passenger side).
Rear Window Defogger Signal CheckAIS004RG
1. CHECK REAR WINDOW DEFOGGER SWITCH LAMP
A/C and AV switch self-diagnosis is performed. Refer to AV- 3 5 , "
A/C and AV Switch Self-Diagnosis Function"
Does rear window defogger switch light?
YES >> GO TO 2.
NO >> Replace A/C and AV switch.
2. CHECK AV COMMUNICATION LINE
AV communication line check is performed. Refer to AV- 8 4 , "
A/C and AV Switch Does Not Operate"
Is rear window defogger displayed on the display?
YES >> GO TO 3.
NO >> Replace display control unit.
3. CHECK CAN COMMUNICATION LINE
CAN communication line check is performed. Refer toAV- 8 5 , "
CAN Communication Line Inspection"
OK or NG
OK >> Check condition of harness and connector.
NG >> In addition, it is necessary to check CAN communication line. Refer to AV- 8 5 , "
CAN Communica-
tion Line Inspection"
2 (B) – Ground : Continuity should exist.
PIIA6214E
1 (L) – 2 (B) : Continuity should exist.
PIIA6215E
Page 3266 of 4449
REAR WINDOW DEFOGGER
GW-107
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45

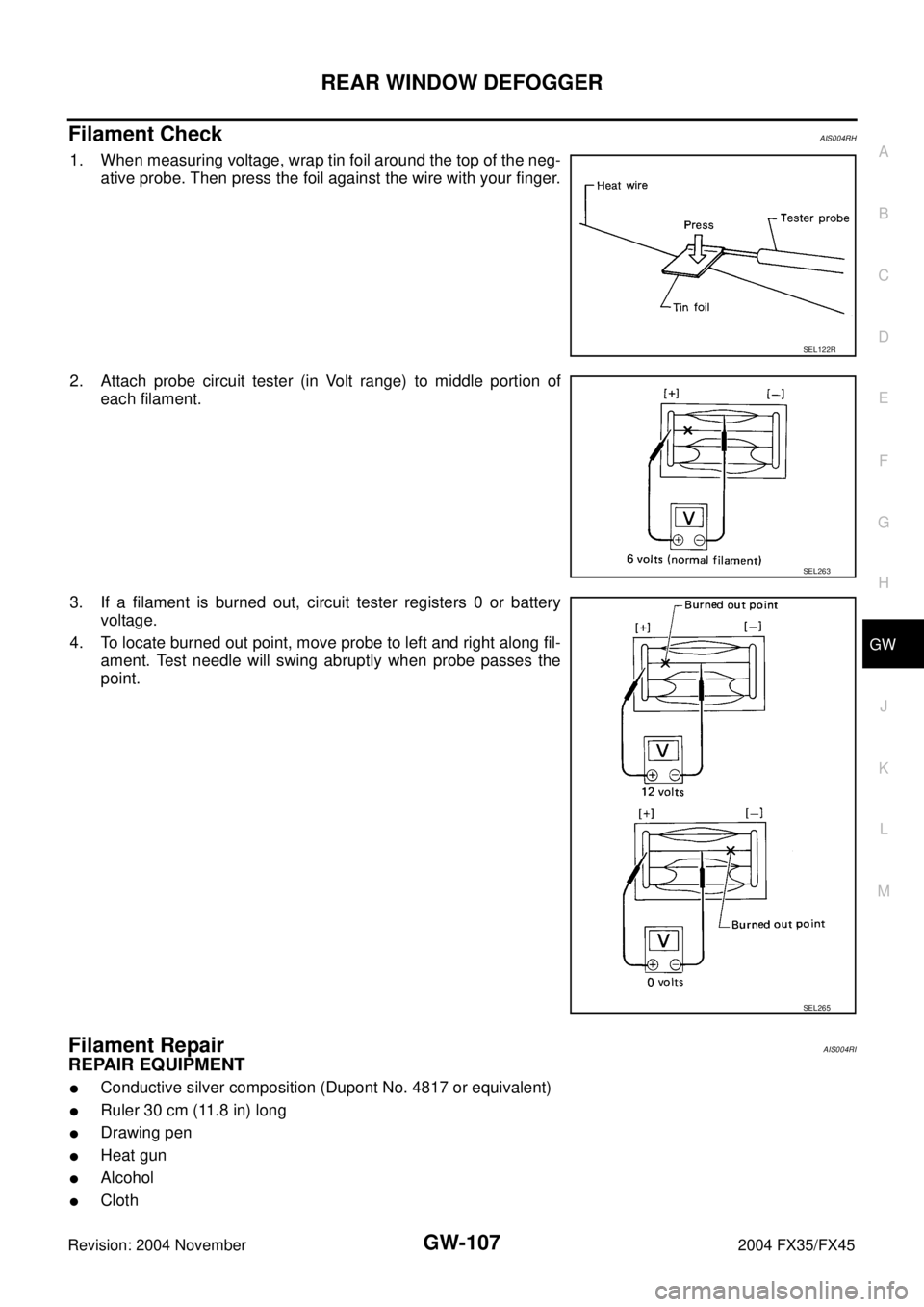

Filament CheckAIS004RH
1. When measuring voltage, wrap tin foil around the top of the neg-
ative probe. Then press the foil against the wire with your finger.
2. Attach probe circuit tester (in Volt range) to middle portion of
each filament.
3. If a filament is burned out, circuit tester registers 0 or battery
voltage.
4. To locate burned out point, move probe to left and right along fil-
ament. Test needle will swing abruptly when probe passes the
point.
Filament RepairAIS004RI
REPAIR EQUIPMENT
Conductive silver composition (Dupont No. 4817 or equivalent)
Ruler 30 cm (11.8 in) long
Drawing pen
Heat gun
Alcohol
Cloth
SEL122R
SEL263
SEL265
Page 3267 of 4449

GW-108
REAR WINDOW DEFOGGER
Revision: 2004 November 2004 FX35/FX45

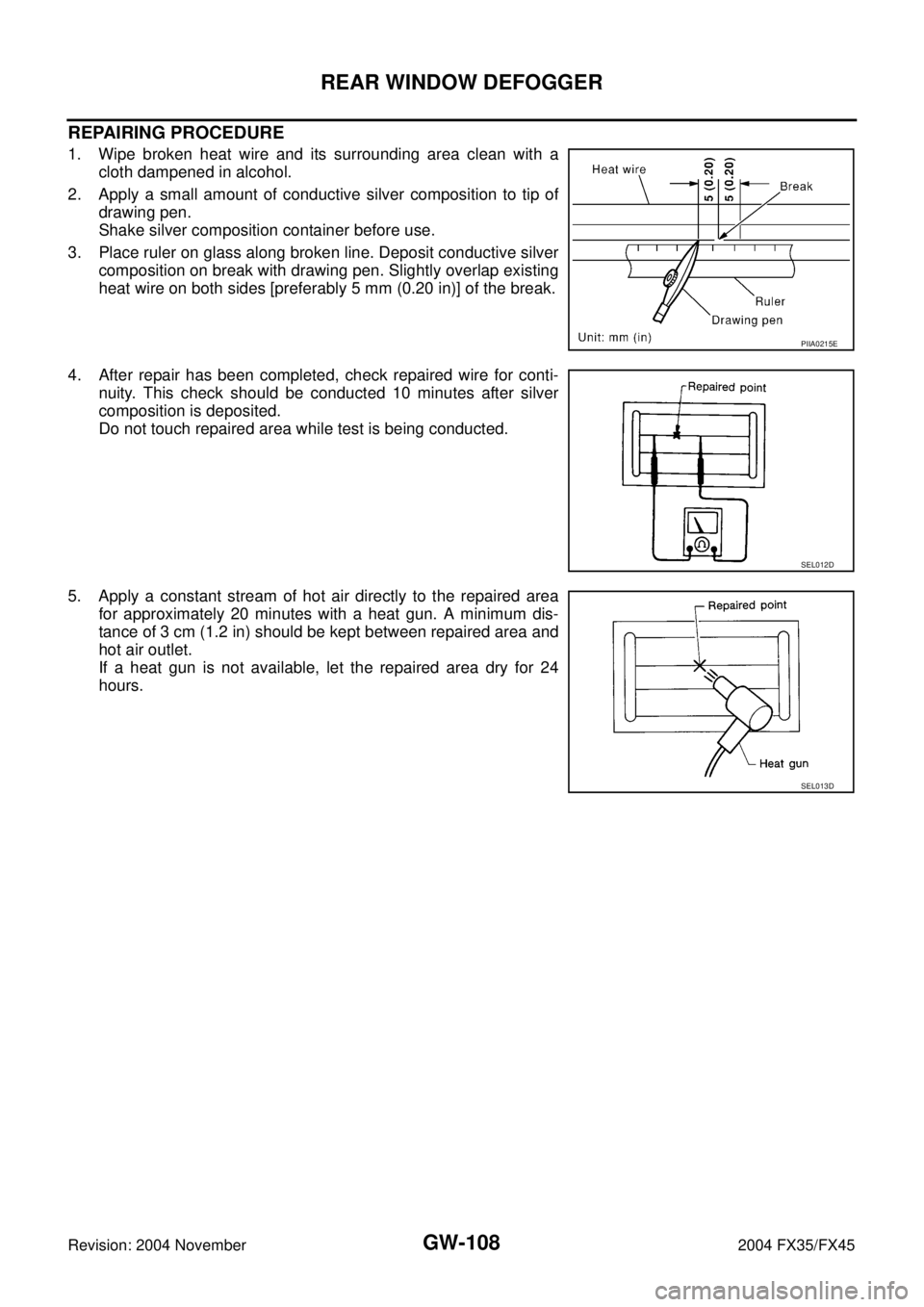

REPAIRING PROCEDURE
1. Wipe broken heat wire and its surrounding area clean with a
cloth dampened in alcohol.
2. Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.
3. Place ruler on glass along broken line. Deposit conductive silver
composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm (0.20 in)] of the break.
4. After repair has been completed, check repaired wire for conti-
nuity. This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.
5. Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.
PIIA0215E
SEL012D
SEL013D
Page 3268 of 4449
DOOR MIRROR
GW-109
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
DOOR MIRRORPFP:96301
Door Mirror (Only Manual Operation)AIS003AP

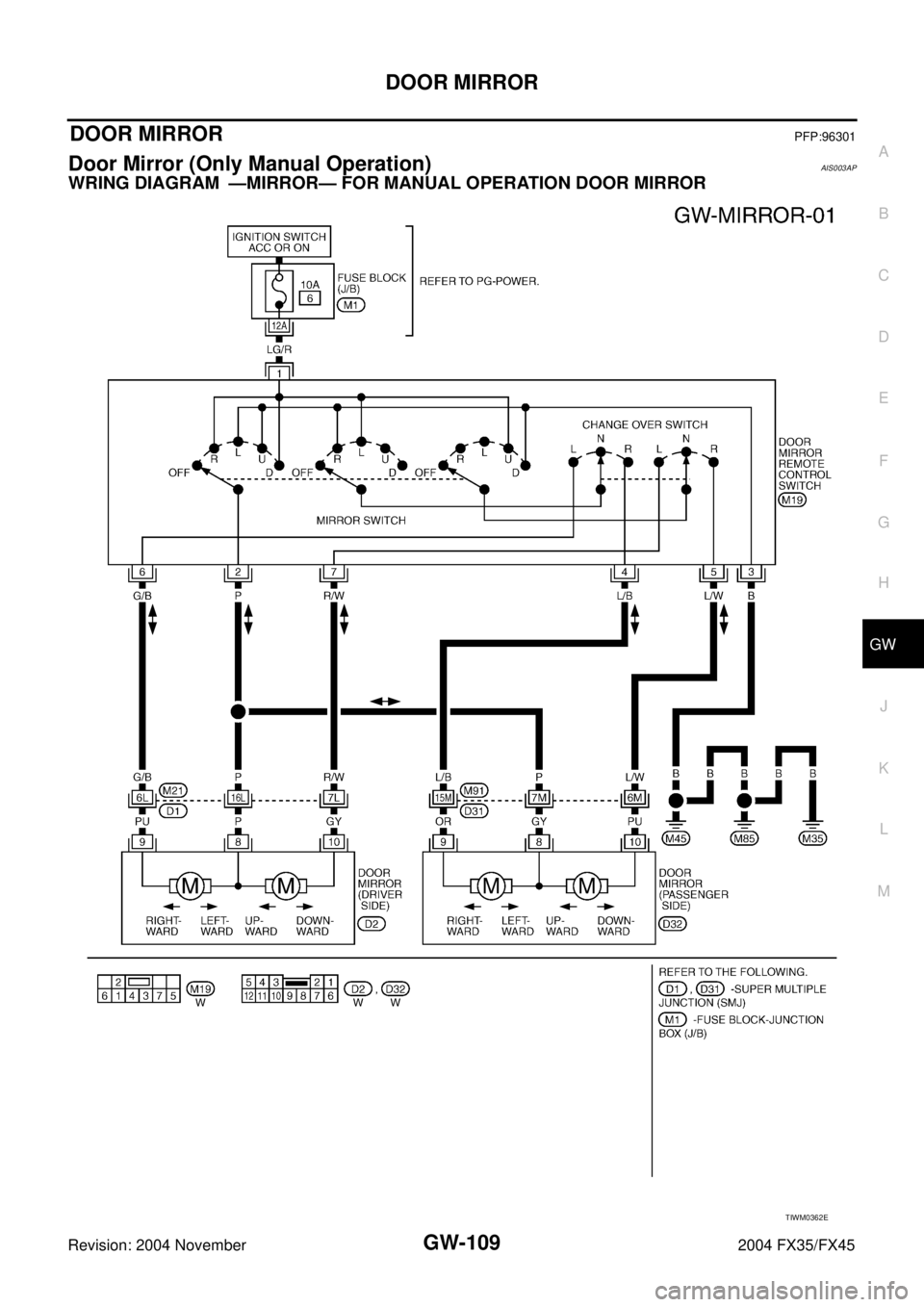

WRING DIAGRAM —MIRROR— FOR MANUAL OPERATION DOOR MIRROR
TIWM0362E
Page 3269 of 4449
GW-110
DOOR MIRROR
Revision: 2004 November 2004 FX35/FX45
Automatic Drive Positioner Interlocking Door Mirror AIS003L5
A trouble diagnosis of a automatic drive positioner interlocking door mirror is refer to SE-11, "AUTOMATIC
DRIVE POSITIONER" .
Page 3270 of 4449
DOOR MIRROR
GW-111
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
WRING DIAGRAM –MIRROR– FOR AUTOMATIC DRIVE POSITIONER INTERLOCKING DOOR
MIRROR
TIWH0061E
Page 3271 of 4449
GW-112
DOOR MIRROR
Revision: 2004 November 2004 FX35/FX45

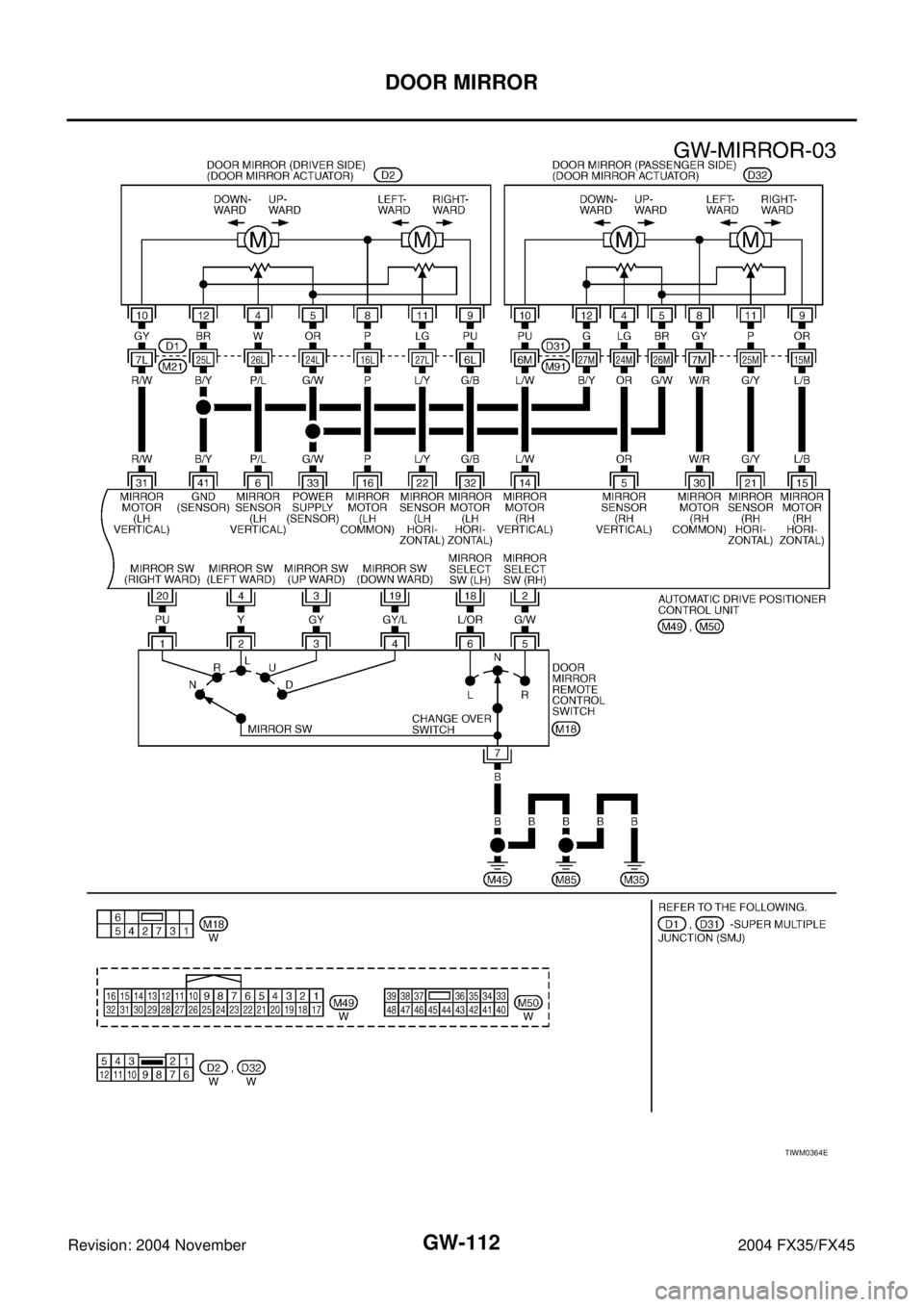

TIWM0364E
Page 3272 of 4449

DOOR MIRROR
GW-113
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45

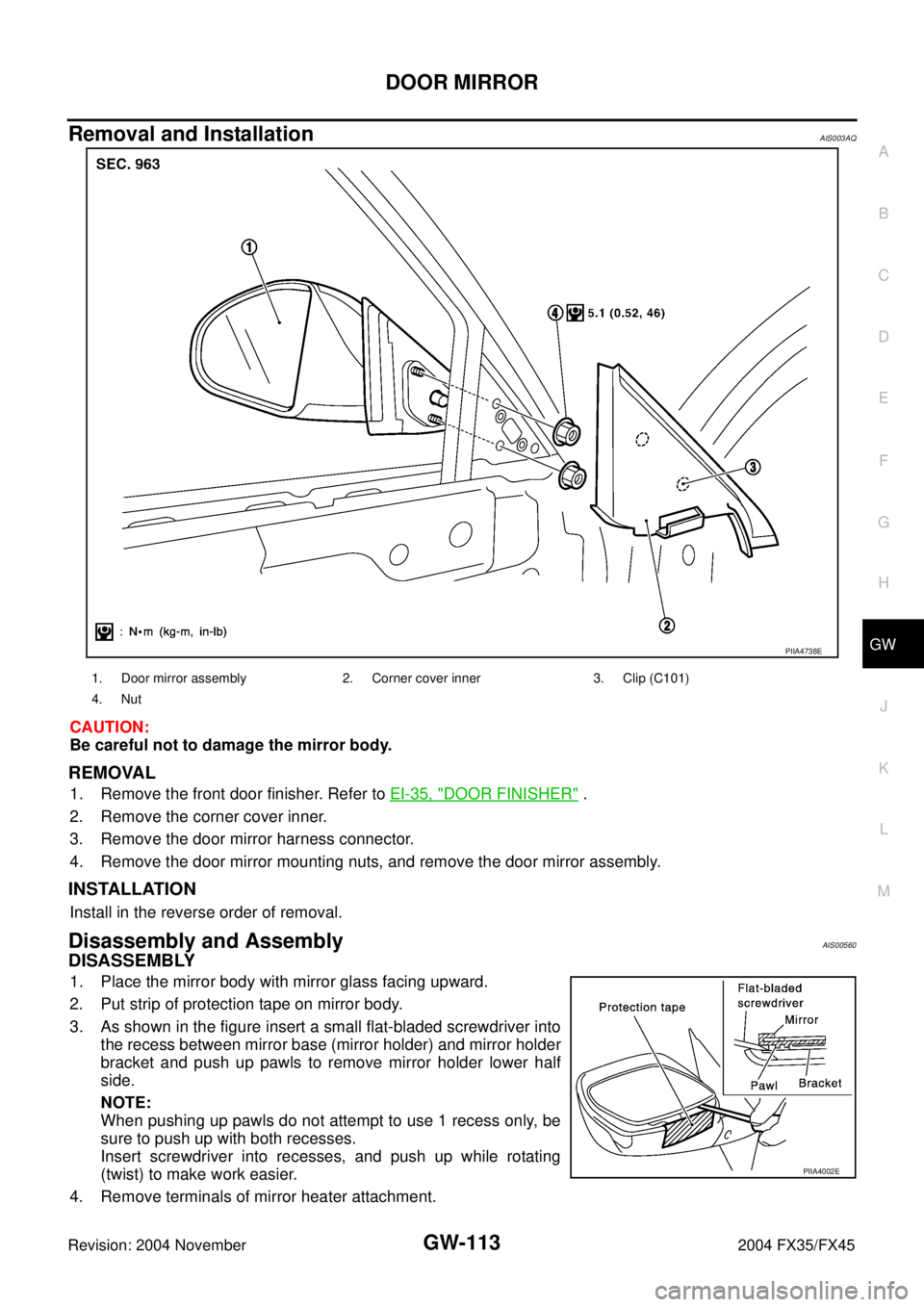

Removal and InstallationAIS003AQ
CAUTION:
Be careful not to damage the mirror body.
REMOVAL
1. Remove the front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove the corner cover inner.
3. Remove the door mirror harness connector.
4. Remove the door mirror mounting nuts, and remove the door mirror assembly.
INSTALLATION
Install in the reverse order of removal.
Disassembly and AssemblyAIS00560
DISASSEMBLY
1. Place the mirror body with mirror glass facing upward.
2. Put strip of protection tape on mirror body.
3. As shown in the figure insert a small flat-bladed screwdriver into
the recess between mirror base (mirror holder) and mirror holder
bracket and push up pawls to remove mirror holder lower half
side.
NOTE:
When pushing up pawls do not attempt to use 1 recess only, be
sure to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating
(twist) to make work easier.
4. Remove terminals of mirror heater attachment.
PIIA4738E
1. Door mirror assembly 2. Corner cover inner 3. Clip (C101)
4. Nut
PIIA4002E
