Page 4233 of 4449

INFINITI FX35 2004 Service Manual SE-104 FRONT SEAT Revision: 2004 November 2004 FX35/FX45 8. Remove the front and rear leg cover (LH and RH). NOTE: 1. Slide the seat backward, and disconnect the front tabs on the front leg cover. The

Page 4234 of 4449

INFINITI FX35 2004 Service Manual FRONT SEAT SE-105 C D E F G H J K L MA B SE Revision: 2004 November 2004 FX35/FX45 3. Remove the stay securing the inner cloth. 4. Remove the headrest. 5. Remove the headrest holder. From the back of

Page 4235 of 4449

INFINITI FX35 2004 Service Manual SE-106 FRONT SEAT Revision: 2004 November 2004 FX35/FX45 2. Remove the velcro and retainer. 3. Remove the seat harness connector. 4. Remove the seatback frame. 5. Remove the reclining device assembly.

Page 4236 of 4449

INFINITI FX35 2004 Service Manual REAR SEAT SE-107 C D E F G H J K L MA B SE Revision: 2004 November 2004 FX35/FX45 REAR SEATPFP:88300 Removal and InstallationAIS002X8 PIIA6033E

Page 4237 of 4449

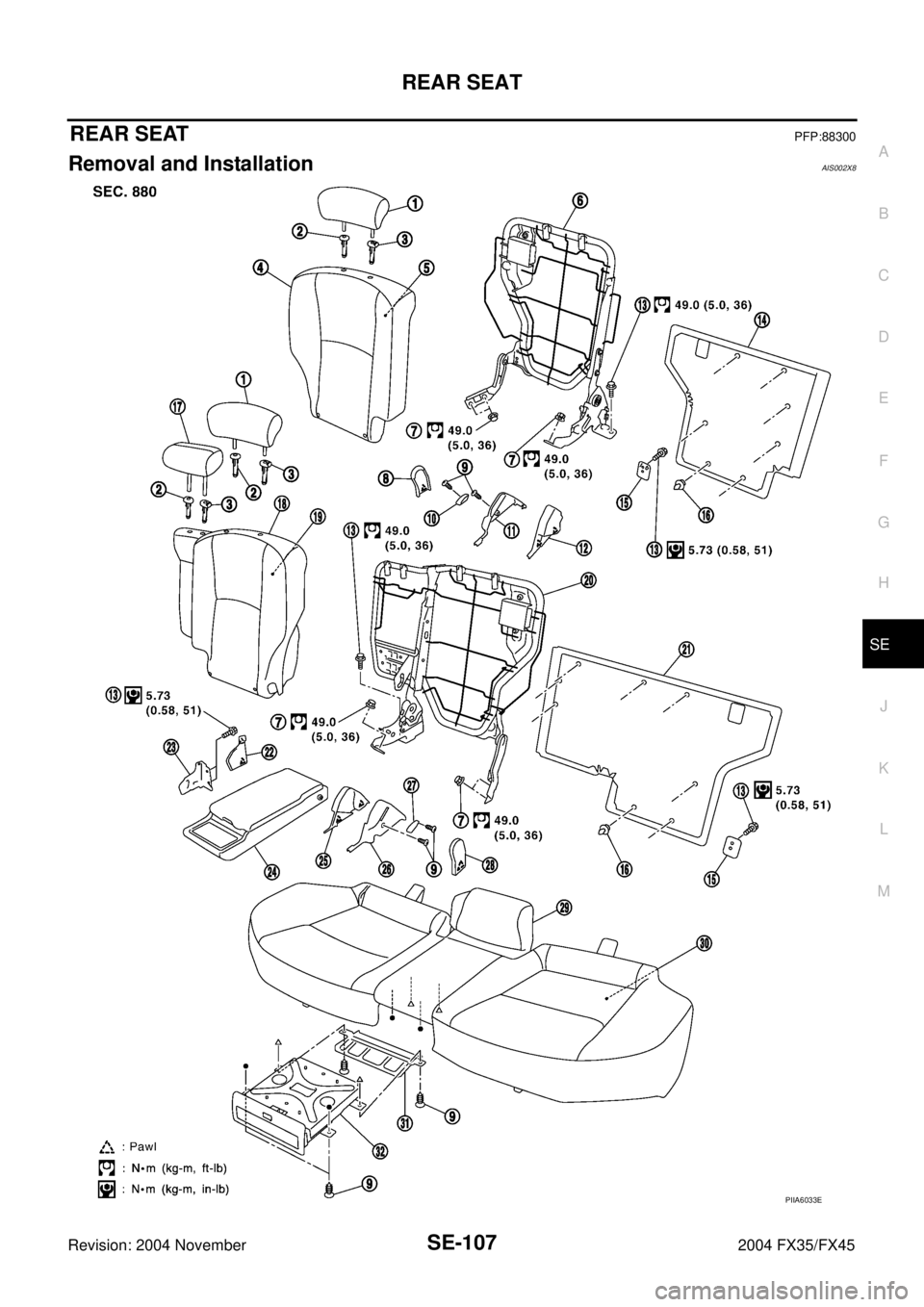

INFINITI FX35 2004 Service Manual SE-108 REAR SEAT Revision: 2004 November 2004 FX35/FX45 1. Headrest (Side) 2. Headrest holder (Free) 3. Headrest holder (Looked) 4. Seatback trim (RH) 5. Seatback pad (RH) 6. Seatback frame (RH) 7. Nu

Page 4238 of 4449

INFINITI FX35 2004 Service Manual REAR SEAT SE-109 C D E F G H J K L MA B SE Revision: 2004 November 2004 FX35/FX45 REMOVAL 1. Pull the lock at the front bottom of the seat cushion forward (1 for each side), and pull the seat cushion

Page 4239 of 4449

INFINITI FX35 2004 Service Manual SE-110 REAR SEAT Revision: 2004 November 2004 FX35/FX45 INSTALLATION OF SEAT CUSHION TRIM AND PAD Install in the reverse order of removal. REMOVAL OF SEATBACK TRIM AND PAD 1. Remove the trunk net hook

Page 4240 of 4449

INFINITI FX35 2004 Service Manual REAR SEAT SE-111 C D E F G H J K L MA B SE Revision: 2004 November 2004 FX35/FX45 REMOVAL OF REMOTE CONTROL LEVER 1. Remove the rear seat. Refer to SE-109, "REMOVAL" . 2. Remove the luggage side finis
