INFINITI FX35 2004 Service Manual EC-108
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
99 G/YICC steering switch
(models with ICC system)[Ignition switch: ON]
ICC steering switch: OFFApproximately 4.3V
[Ignition s

Page 1450 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-109
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
CONSULT-II

TROUBLE DIAGNOSIS
EC-109
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
CONSULT-II FunctionABS006KX
FUNCTION
*1: The following emission-related diagnostic information is cleared when the ECM memory is erased.
Diagnostic trouble codes
1st trip diagnostic trouble codes
Freeze frame data
1st trip freeze frame data
System readiness test (SRT) codes109 W/L Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
111 W / BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]
For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]
More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
113 GY/R Fuel pump relay[Ignition switch: ON]
For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]
More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
11 5
11 6B/R
B/WECM ground[Engine is running]
Idle speedBody ground
11 7 R / YEVAP canister vent control
valve[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
11 9
120R
RPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
121 R/WPower supply for ECM
(Back-up)[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
Diagnostic test mode Function
Work supportThis mode enables a technician to adjust some devices faster and more accurately by following the
indications on the CONSULT-II unit.
Self-diagnostic resultsSelf-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*
1
Data monitor Input/Output data in the ECM can be read.
Data monitor (SPEC)Input/Output of the specification for Basic fuel schedule, AFM, A/F feedback control value and the
other data monitor items can be read.
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read.
Active testDiagnostic Test Mode in which CONSULT-II drives some actuators apart from the ECMs and also
shifts some parameters in a specified range.
Function test This mode is used to inform customers when their vehicle condition requires periodic maintenance.
DTC & SRT confirmation The status of system monitoring tests and the self-diagnosis status/result can be confirmed.
ECM part number ECM part number can be read.

Page 1451 of 4449

INFINITI FX35 2004 Service Manual EC-110
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
Te s t v a l u e s
Others
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
ItemDIAGNOSTIC TEST MODE
WORK
SUP-
POR

Page 1452 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-111
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

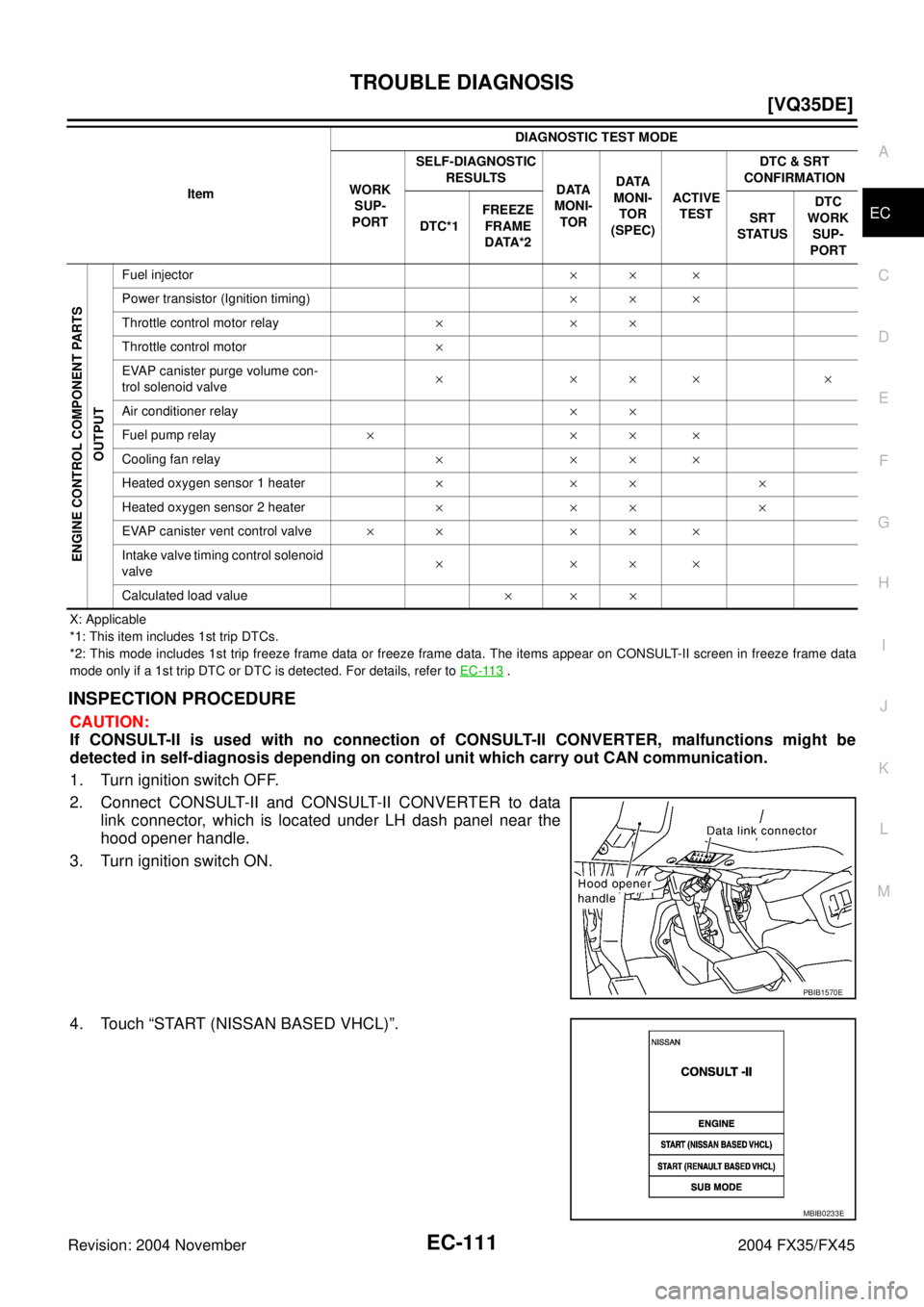

X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data

Page 1453 of 4449

INFINITI FX35 2004 Service Manual EC-112
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
5. Touch “ENGINE”.
If “ENGINE” is not indicated, go to GI-40, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
6. Perf

Page 1454 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-113
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnost

TROUBLE DIAGNOSIS
EC-113
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-15, "INDEX FOR DTC" .
Freeze Frame Data and 1st Trip Freeze Frame Data
*1: The items are the same as those of 1st trip freeze frame data.TARGET IDLE RPM ADJ*
IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ*
IDLE CONDITION When adjusting target ignition tim-
ing WORK ITEM CONDITION USAGE
Freeze frame data
item*1Description
DIAG TROUBLE
CODE
[PXXXX]
The engine control component part/control system has a trouble code, it is displayed as “PXXXX”. (Refer
to EC-15, "
INDEX FOR DTC" .)
FUEL SYS-B1
“Fuel injection system status” at the moment a malfunction is detected is displayed.
One mode in the following is displayed.
“Mode2”: Open loop due to detected system malfunction
“Mode3”: Open loop due to driving conditions (power enrichment, deceleration enleanment)
“Mode4”: Closed loop - using oxygen sensor(s) as feedback for fuel control
“Mode5”: Open loop - has not yet satisfied condition to go to closed loop FUEL SYS-B2
CAL/LD VALUE [%]
The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP [°C]
or [°F]
The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%]
“Long-term fuel trim” at the moment a malfunction is detected is displayed.
The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim. L-FUEL TRM-B2 [%]
S-FUEL TRM-B1 [%]
“Short-term fuel trim” at the moment a malfunction is detected is displayed.
The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule. S-FUEL TRM-B2 [%]
ENGINE SPEED
[rpm]
The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED [km/
h] or [mph]
The vehicle speed at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]
The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE [°C]
or [°F]
The intake air temperature at the moment a malfunction is detected is displayed.

Page 1455 of 4449

INFINITI FX35 2004 Service Manual EC-114
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item [Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks
EN

EC-114
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item [Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks
ENG SPEED [rpm]××
Indicates the engine speed computed from
the signal of the crankshaft position sensor
(POS) and camshaft position sensor
(PHASE).Accuracy becomes poor if engine
speed drops below the idle rpm.
If the signal is interrupted while the
engine is running, an abnormal value
may be indicated.
MAS A/F SE-B1 [V]××
The signal voltage of the mass air flow sen-
sor is displayed.When the engine is stopped, a cer-
tain value is indicated.
B/FUEL SCHDL
[msec]×
Base fuel schedule indicates the fuel injec-
tion pulse width programmed into ECM,
prior to any learned on board correction.
A/F ALPHA-B1 [%]×
The mean value of the air-fuel ratio feed-
back correction factor per cycle is indicated.
When the engine is stopped, a cer-
tain value is indicated.
This data also includes the data for
the air-fuel ratio learning control. A/F ALPHA-B2 [%]×
COOLAN TEMP/S
[°C] or [°F]××
The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is displayed.
When the engine coolant tempera-
ture sensor is open or short-circuited,
ECM enters fail-safe mode. The
engine coolant temperature deter-
mined by the ECM is displayed.
HO2S1 (B1) [V]××
The signal voltage of the heated oxygen
sensor 1 is displayed.
HO2S1 (B2) [V]×
HO2S2 (B1) [V]×
The signal voltage of the heated oxygen
sensor 2 is displayed.
HO2S2 (B2) [V]×
HO2S1 MNTR (B1)
[RICH/LEAN]××
Display of heated oxygen sensor 1 signal
during air-fuel ratio feedback control:
RICH: means the mixture became rich, and
control is being affected toward a leaner
mixture.
LEAN: means the mixture became lean,
and control is being affected toward a rich
mixture.After turning ON the ignition switch,
RICH is displayed until air-fuel mix-
ture ratio feedback control begins.
When the air-fuel ratio feedback is
clamped, the value just before the
clamping is displayed continuously. HO2S1 MNTR (B2)
[RICH/LEAN]×
HO2S2 MNTR (B1)
[RICH/LEAN]×
Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after
three way catalyst is relatively small.
LEAN: means the amount of oxygen after
three way catalyst is relatively large.
When the engine is stopped, a cer-
tain value is indicated.
HO2S2 MNTR (B2)
[RICH/LEAN]×
VHCL SPEED SE
[km/h] or [mph]××
The vehicle speed computed from the vehi-
cle speed signal sent from combination
meter is displayed.
BATTERY VOLT [V]××
The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V]××
The accelerator pedal position sensor sig-
nal voltage is displayed.ACCEL SEN2 signal is converted by
ECM internally. Thus, they differs
from ECM terminal voltage signal. ACCEL SEN 2 [V]×
THRTL SEN 1 [V]××
The throttle position sensor signal voltage
is displayed.THRTL SEN2 signal is converted by
ECM internally. Thus, they differs
from ECM terminal voltage signal. THRTL SEN 2 [V]×

Page 1456 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-115
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45FUEL T/TEMP SE
[°C] or [°F]×The fuel temperature (determined by the
signal voltage of the fuel t

TROUBLE DIAGNOSIS
EC-115
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45FUEL T/TEMP SE
[°C] or [°F]×The fuel temperature (determined by the
signal voltage of the fuel tank temperature
sensor) is displayed.
INT/A TEMP SE
[°C] or [°F]××
The intake air temperature (determined by
the signal voltage of the intake air tempera-
ture sensor) is indicated.
EVAP SYS PRES [V]×
The signal voltage of EVAP control system
pressure sensor is displayed.
FUEL LEVEL SE [V]×
The signal voltage of the fuel level sensor is
displayed.
START SIGNAL
[ON/OFF]××
Indicates start signal status [ON/OFF] com-
puted by the ECM according to the signals
of engine speed and battery voltage.After starting the engine, [OFF] is dis-
played regardless of the starter sig-
nal.
CLSD THL POS
[ON/OFF]××
Indicates idle position [ON/OFF] computed
by ECM according to the accelerator pedal
position sensor signal.
AIR COND SIG
[ON/OFF]××
Indicates [ON/OFF] condition of the air con-
ditioner switch as determined by the air
conditioner signal.
P/N POSI SW
[ON/OFF]××
Indicates [ON/OFF] condition from the park/
neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF]××
[ON/OFF] condition of the power steering
system (determined by the signal voltage of
the power steering pressure sensor signal)
is indicated.
LOAD SIGNAL
[ON/OFF]××
Indicates [ON/OFF] condition from the elec-
trical load signal.
ON: Rear window defogger switch is ON
and/or lighting switch is in 2nd position.
OFF: Both rear window defogger switch
and lighting switch are OFF.
SNOW MODE SW
[ON/OFF]
Indicates [ON/OFF] condition from the
snow mode switch signal.
IGNITION SW
[ON/OFF]×
Indicates [ON/OFF] condition from ignition
switch signal.
HEATER FAN SW
[ON/OFF]×
Indicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF]
Indicates [ON/OFF] condition from the stop
lamp switch signal.
INJ PULSE-B1
[msec]×
Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.When the engine is stopped, a cer-
tain computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING [BTDC]×
Indicates the ignition timing computed by
ECM according to the input signals.When the engine is stopped, a cer-
tain value is indicated.
CAL/LD VALUE [%]
Calculated load value indicates the value of
the current air flow divided by peak air flow.
MASS AIRFLOW
[g·m/s]
Indicates the mass air flow computed by
ECM according to the signal voltage of the
mass air flow sensor. Monitored item [Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks
