Page 2793 of 4449
![INFINITI FX35 2004 Service Manual EM-68
[VQ35DE]
TIMING CHAIN
Revision: 2004 November 2004 FX35/FX45
28. Remove internal chain guide, tension guide and slack guide.
NOTE:
Tension guide can be removed after removing timing chain (pri-
INFINITI FX35 2004 Service Manual EM-68
[VQ35DE]
TIMING CHAIN
Revision: 2004 November 2004 FX35/FX45
28. Remove internal chain guide, tension guide and slack guide.
NOTE:
Tension guide can be removed after removing timing chain (pri-](/manual-img/42/57021/w960_57021-2792.png)
EM-68
[VQ35DE]
TIMING CHAIN
Revision: 2004 November 2004 FX35/FX45
28. Remove internal chain guide, tension guide and slack guide.
NOTE:
Tension guide can be removed after removing timing chain (pri-
mary).
29. Remove timing chain (primary), tension guide and crankshaft sprocket.
CAUTION:
After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.
30. Remove timing chain (secondary) and camshaft sprockets as the following:
a. Attach a suitable stopper pin to right and left camshaft chain ten-
sioners (for secondary timing chains).
NOTE:
For removal and installation of secondary chain tensioner, refer
to EM-82, "
CAMSHAFT" . (Removing No. 1 camshaft bracket is
required.)
b. Remove intake and exhaust camshaft sprocket bolts.
Apply paint to timing chain and camshaft sprockets for align-
ment during installation.
Secure the hexagonal portion of camshaft using a wrench to
loosen mounting bolts.
c. Remove timing chain (secondary) together with camshaft sprockets.
Turn camshaft slightly to secure slackness of timing chain on timing chain tensioner (secondary) side.
PBIC2266E
SEM923G
KBIA1698J
Page 2794 of 4449
![INFINITI FX35 2004 Service Manual TIMING CHAIN
EM-69
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunge INFINITI FX35 2004 Service Manual TIMING CHAIN
EM-69
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunge](/manual-img/42/57021/w960_57021-2793.png)
TIMING CHAIN
EM-69
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunger (guide).
Remove timing chain (secondary) together with camshaft
sprockets with timing chain loose from guide groove.
CAUTION:
Be careful of plunger coming-off when removing timing
chain (secondary). This is because plunger of timing
chain tensioner (secondary) moves during operation,
leading to coming-off of fixed stopper pin.
NOTE:
Camshaft sprocket (INT) is two-for-one structure of primary
and secondary sprockets.
When handling camshaft sprocket (INT), be careful of the fol-
lowing:
CAUTION:
Handle carefully to avoid any shock to camshaft
sprocket.
Do not disassemble. (Do not loosen bolts “A” and “B”
as shown in the figure).
31. Remove rear timing chain case as follows:
a. Loosen and remove mounting bolts in reverse order as shown in
the figure.
b . C u t s e a l a n t u s i n g a s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J - 3 7 2 2 8 ) ] o r
an equivalent tool and remove rear timing chain case.
CAUTION:
Do not remove plate metal cover of engine oil passage.
After removing chain case, do not apply any load which
affects flatness.
PBIC1978E
SEM734G
SEM735G
KBIA1307E
Page 2795 of 4449
EM-70
[VQ35DE]
TIMING CHAIN
Revision: 2004 November 2004 FX35/FX45
32. Remove O-rings from cylinder head.
33. Remove O-rings from cylinder block.
34. Remove timing chain tensioners (secondary) from cylinder head as the following, if necessary.
a. Remove No. 1 camshaft brackets. Refer to EM-83, "
REMOVAL" .
b. Remove timing chain tensioners (secondary) with stopper pin attached.
35. Use a scraper to remove all traces of liquid gasket from front
and rear timing chain cases, and opposite mating surfaces.
CAUTION:
Be careful not to allow gasket fragments to enter oil pan.
Remove old liquid gasket from the bolt hole and thread.
SBIA0496E
PBIC0788E
SEM737G
PBIC2084E
Page 2796 of 4449
TIMING CHAIN
EM-71
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
36. Use a scraper to remove all traces of liquid gasket from water
pump cover, chain tensioner cover and intake valve timing con-
trol covers.
INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and any excessive wear at link plates and roller
links of timing chain. Replace timing chain as necessary.
INSTALLATION
NOTE:
The below figure shows the relationship between the mating mark on each timing chain and that on the corre-
sponding sprocket, with the components installed.
SEM926E
PBIC0282E
KBIA1053E
Page 2797 of 4449
EM-72
[VQ35DE]
TIMING CHAIN
Revision: 2004 November 2004 FX35/FX45
1. Install timing chain tensioners (secondary) to cylinder head as the following if removed. Refer to EM-87,
"INSTALLATION" .
a. Install chain tensioners with stopper pin attached and new O-rings.
b. Install No. 1 camshaft brackets. Refer to EM-87, "
INSTALLATION" .
2. Install new O-rings onto cylinder block.
3. Install new O-rings to cylinder head.
4. Apply liquid gasket to rear timing chain case back side as shown with tube presser [SST: WS39930000 ( –
)].
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS".
CAUTION:
For “A” in the figure, completely wipe out liquid gasket extended on a portion touching at
engine coolant.
PBIC0788E
SBIA0496E
Page 2798 of 4449
TIMING CHAIN
EM-73
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Apply liquid gasket on installation position of water pump and cylinder head very completely.
5. Align rear timing chain case and water pump assembly with dowel pins (right and left) on cylinder block
and install case.
Make sure O-rings stay in place during installation to cylinder block and cylinder head.
a. Tighten mounting bolts in the numerical order as shown in the
figure.
There are two bolt lengths used. Follow the below for proper
bolt length specifications.
b. After all bolts are temporarily tightened, retighten them to the
specification in the numerical order as shown in the figure.
If RTV Silicone Sealant protrudes, wipe it off immediately.Bolt length: Bolt position
20 mm (0.79 in) : 1, 2, 3, 6, 7, 8, 9, 10
16 mm (0.63 in) : Except the above
: 12.7 N·m (1.3 kg-m, 9 ft-lb)
PBIC1131E
SEM735G
Page 2799 of 4449
![INFINITI FX35 2004 Service Manual EM-74
[VQ35DE]
TIMING CHAIN
Revision: 2004 November 2004 FX35/FX45
6. After installing rear timing chain case, check surface height dif-
ference between following parts on oil pan mounting surface.
I INFINITI FX35 2004 Service Manual EM-74
[VQ35DE]
TIMING CHAIN
Revision: 2004 November 2004 FX35/FX45
6. After installing rear timing chain case, check surface height dif-
ference between following parts on oil pan mounting surface.
I](/manual-img/42/57021/w960_57021-2798.png)
EM-74
[VQ35DE]
TIMING CHAIN
Revision: 2004 November 2004 FX35/FX45

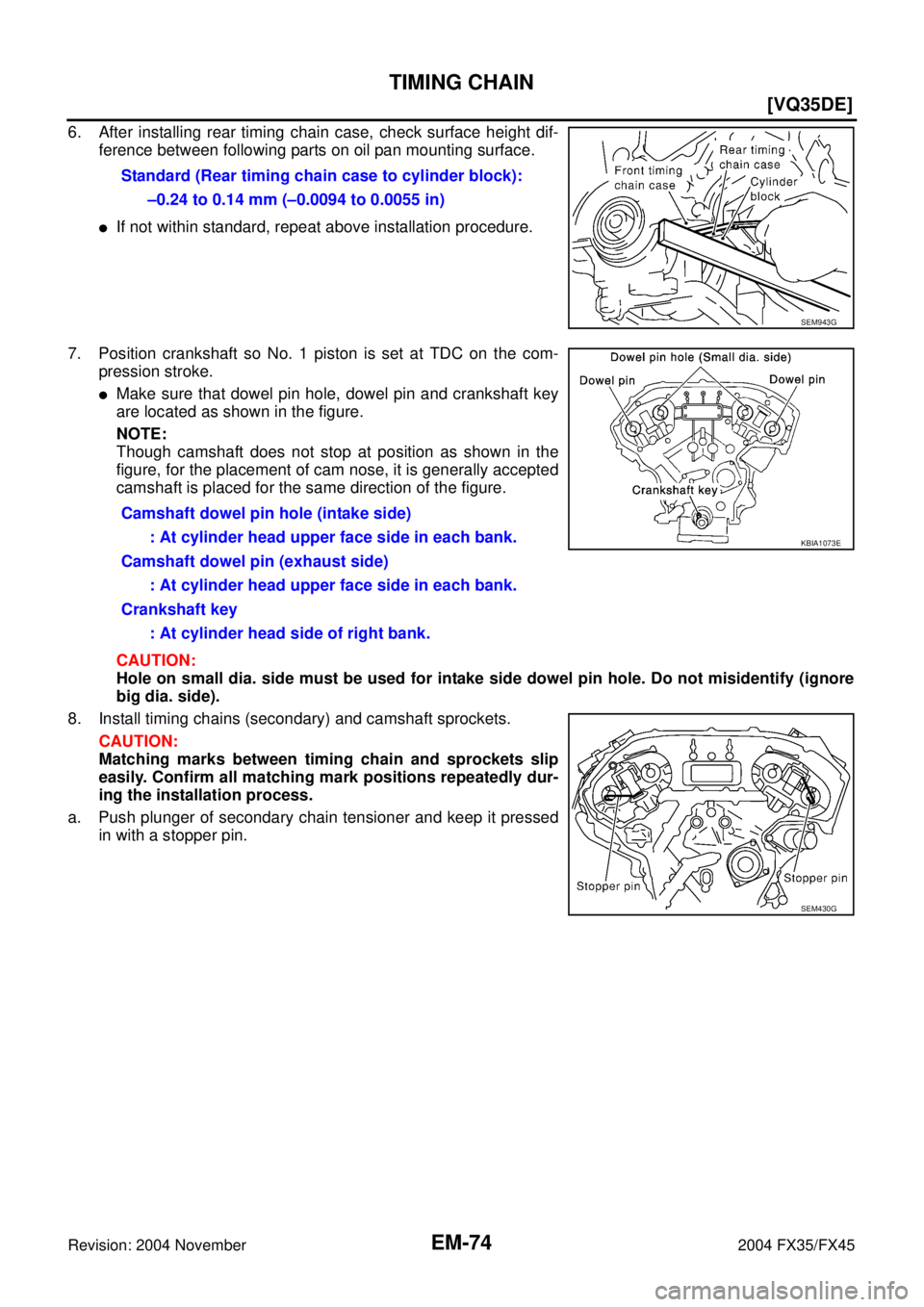

6. After installing rear timing chain case, check surface height dif-
ference between following parts on oil pan mounting surface.
If not within standard, repeat above installation procedure.
7. Position crankshaft so No. 1 piston is set at TDC on the com-
pression stroke.
Make sure that dowel pin hole, dowel pin and crankshaft key
are located as shown in the figure.
NOTE:
Though camshaft does not stop at position as shown in the
figure, for the placement of cam nose, it is generally accepted
camshaft is placed for the same direction of the figure.
CAUTION:
Hole on small dia. side must be used for intake side dowel pin hole. Do not misidentify (ignore
big dia. side).
8. Install timing chains (secondary) and camshaft sprockets.
CAUTION:
Matching marks between timing chain and sprockets slip
easily. Confirm all matching mark positions repeatedly dur-
ing the installation process.
a. Push plunger of secondary chain tensioner and keep it pressed
in with a stopper pin.Standard (Rear timing chain case to cylinder block):
–0.24 to 0.14 mm (–0.0094 to 0.0055 in)
SEM943G
Camshaft dowel pin hole (intake side)
: At cylinder head upper face side in each bank.
Camshaft dowel pin (exhaust side)
: At cylinder head upper face side in each bank.
Crankshaft key
: At cylinder head side of right bank.
KBIA1073E
SEM430G
Page 2800 of 4449
![INFINITI FX35 2004 Service Manual TIMING CHAIN
EM-75
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
b. Install timing chains (secondary) and camshaft sprockets.
Align the mating marks on secondary timing ch INFINITI FX35 2004 Service Manual TIMING CHAIN
EM-75
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
b. Install timing chains (secondary) and camshaft sprockets.
Align the mating marks on secondary timing ch](/manual-img/42/57021/w960_57021-2799.png)
TIMING CHAIN
EM-75
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45

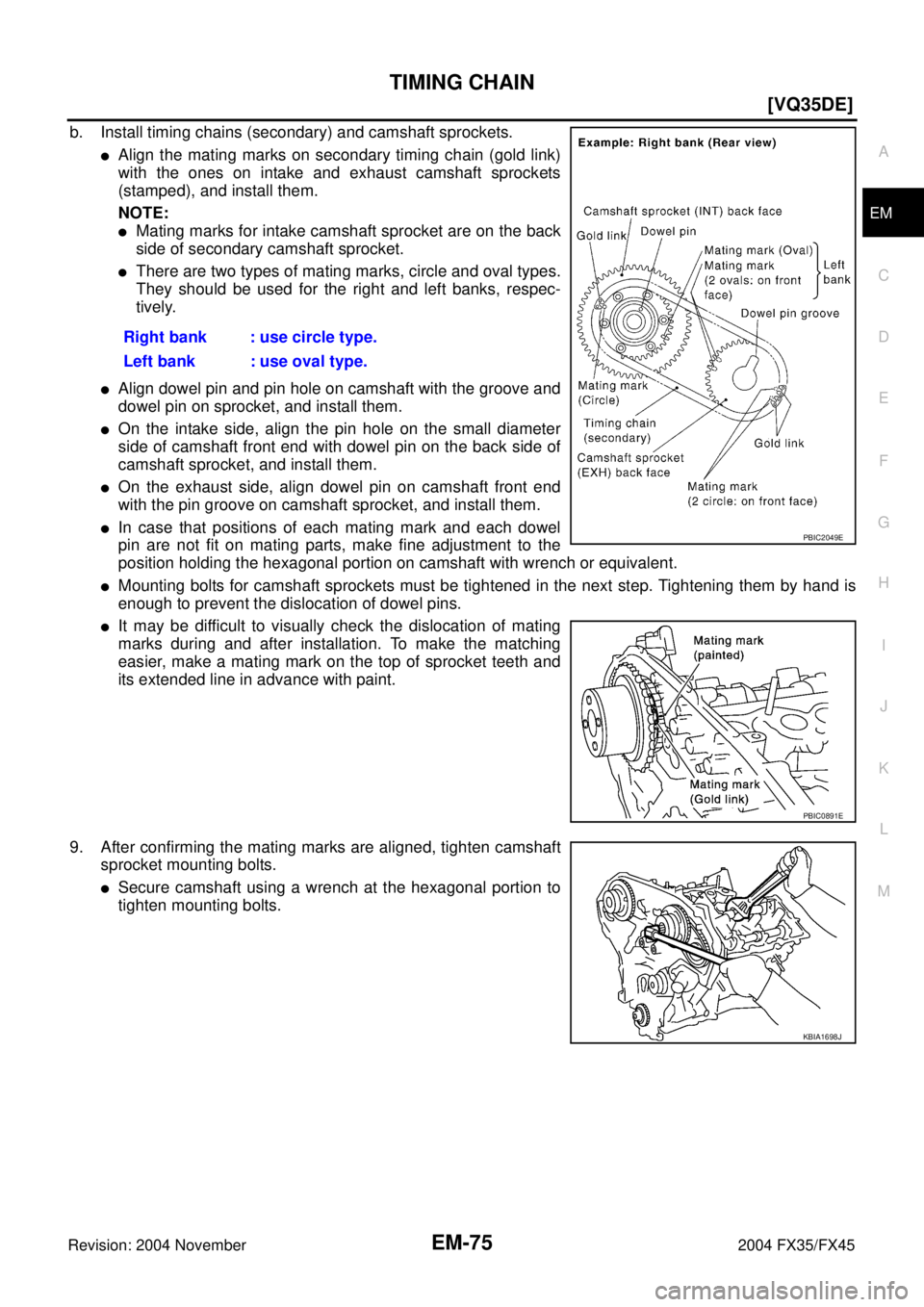

b. Install timing chains (secondary) and camshaft sprockets.
Align the mating marks on secondary timing chain (gold link)
with the ones on intake and exhaust camshaft sprockets
(stamped), and install them.
NOTE:
Mating marks for intake camshaft sprocket are on the back
side of secondary camshaft sprocket.
There are two types of mating marks, circle and oval types.
They should be used for the right and left banks, respec-
tively.
Align dowel pin and pin hole on camshaft with the groove and
dowel pin on sprocket, and install them.
On the intake side, align the pin hole on the small diameter
side of camshaft front end with dowel pin on the back side of
camshaft sprocket, and install them.
On the exhaust side, align dowel pin on camshaft front end
with the pin groove on camshaft sprocket, and install them.
In case that positions of each mating mark and each dowel
pin are not fit on mating parts, make fine adjustment to the
position holding the hexagonal portion on camshaft with wrench or equivalent.
Mounting bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is
enough to prevent the dislocation of dowel pins.
It may be difficult to visually check the dislocation of mating
marks during and after installation. To make the matching
easier, make a mating mark on the top of sprocket teeth and
its extended line in advance with paint.
9. After confirming the mating marks are aligned, tighten camshaft
sprocket mounting bolts.
Secure camshaft using a wrench at the hexagonal portion to
tighten mounting bolts.Right bank : use circle type.
Left bank : use oval type.
PBIC2049E
PBIC0891E
KBIA1698J
