EC-1316
[VK45DE]
SNOW MODE SWITCH
Revision: 2004 November 2004 FX35/FX45
8. CHECK SNOW MODE INDICATOR LAMP INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect snow mode switch harness connector.
3. Check harness continuity between snow mode switch terminal 5 and “unified meter and A/C amp.” termi-
nal 12. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK SNOW MODE INDICATOR LAMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between snow mode switch terminal 6 and ground.
Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to power in harness or connectors.
10. CHECK SNOW MODE INDICATOR LAMP
Check harness continuity between snow mode switch terminals 5 and 6 under the following conditions.
OK or NG
OK >> GO TO 11.
NG >> Replace snow mode switch.
11 . CHECK SNOW MODE SWITCH
Refer to EC-1317, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace snow mode switch.Continuity should exist.
Continuity should exist.
Condition Continuity
1 Should exist.
2 Should not exist.
PBIB2082E
Page 2658 of 4449
SNOW MODE SWITCH
EC-1317
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
12. CHECK “UNIFIED METER AND A/C AMP.”
Refer to DI-28, "
UNIFIED METER AND A/C AMP" .
OK or NG
OK >> GO TO 13.
NG >> Replace “unified meter and A/C amp.”.
13. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionABS00CFP
SNOW MODE SWITCH
1. Check snow mode switch continuity between terminals 1 and 3
under the following condition.
2. If NG, replace snow mode switch.
CONDITION CONTINUITY
Snow mode switch is ON Should exist
Snow mode switch is OFF Should not exist
PBIB2012E
Page 2659 of 4449
EC-1318
[VK45DE]
MIL AND DATA LINK CONNECTOR
Revision: 2004 November 2004 FX35/FX45
MIL AND DATA LINK CONNECTORPFP:24814

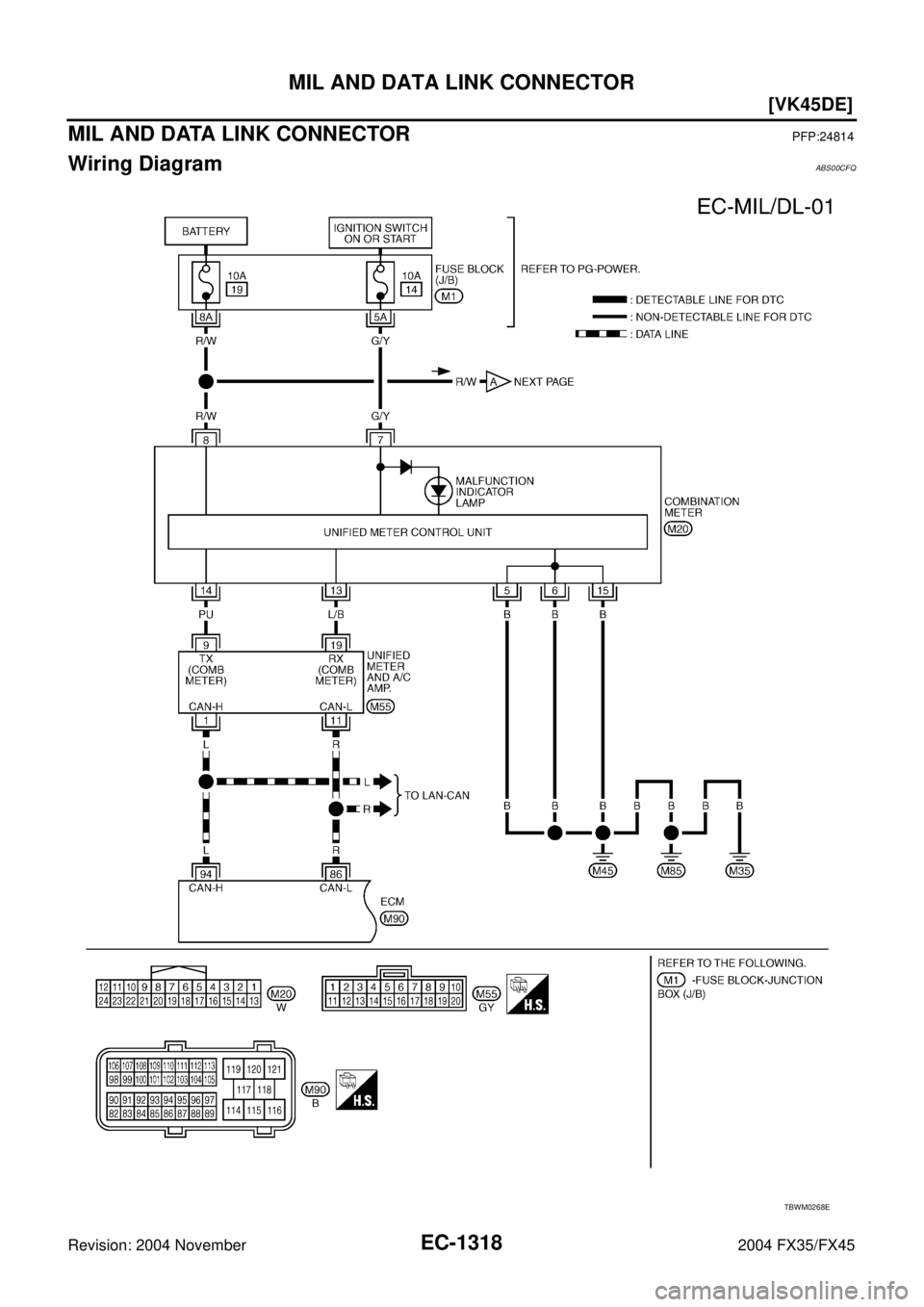

Wiring DiagramABS00CFQ
TBWM0268E
Page 2660 of 4449
MIL AND DATA LINK CONNECTOR
EC-1319
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

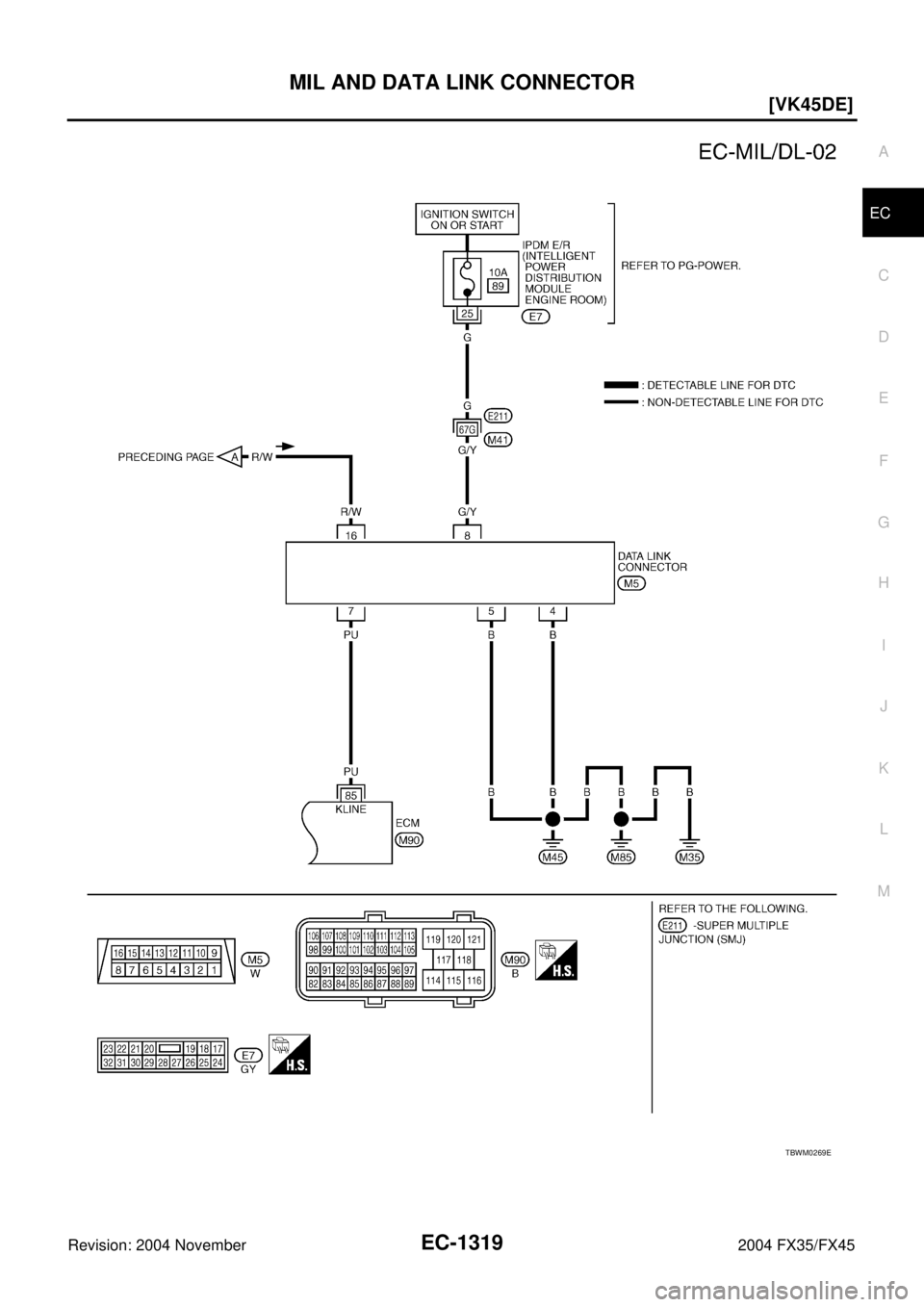

TBWM0269E
Page 2661 of 4449
![INFINITI FX35 2004 Service Manual EC-1320
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2004 November 2004 FX35/FX45
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionABS00CFR
SYSTEM DESCRIPTION
The evaporative emission system is used INFINITI FX35 2004 Service Manual EC-1320
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2004 November 2004 FX35/FX45
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionABS00CFR
SYSTEM DESCRIPTION
The evaporative emission system is used](/manual-img/42/57021/w960_57021-2660.png)
EC-1320
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2004 November 2004 FX35/FX45
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionABS00CFR
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB1631E
Page 2662 of 4449
EVAPORATIVE EMISSION SYSTEM
EC-1321
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

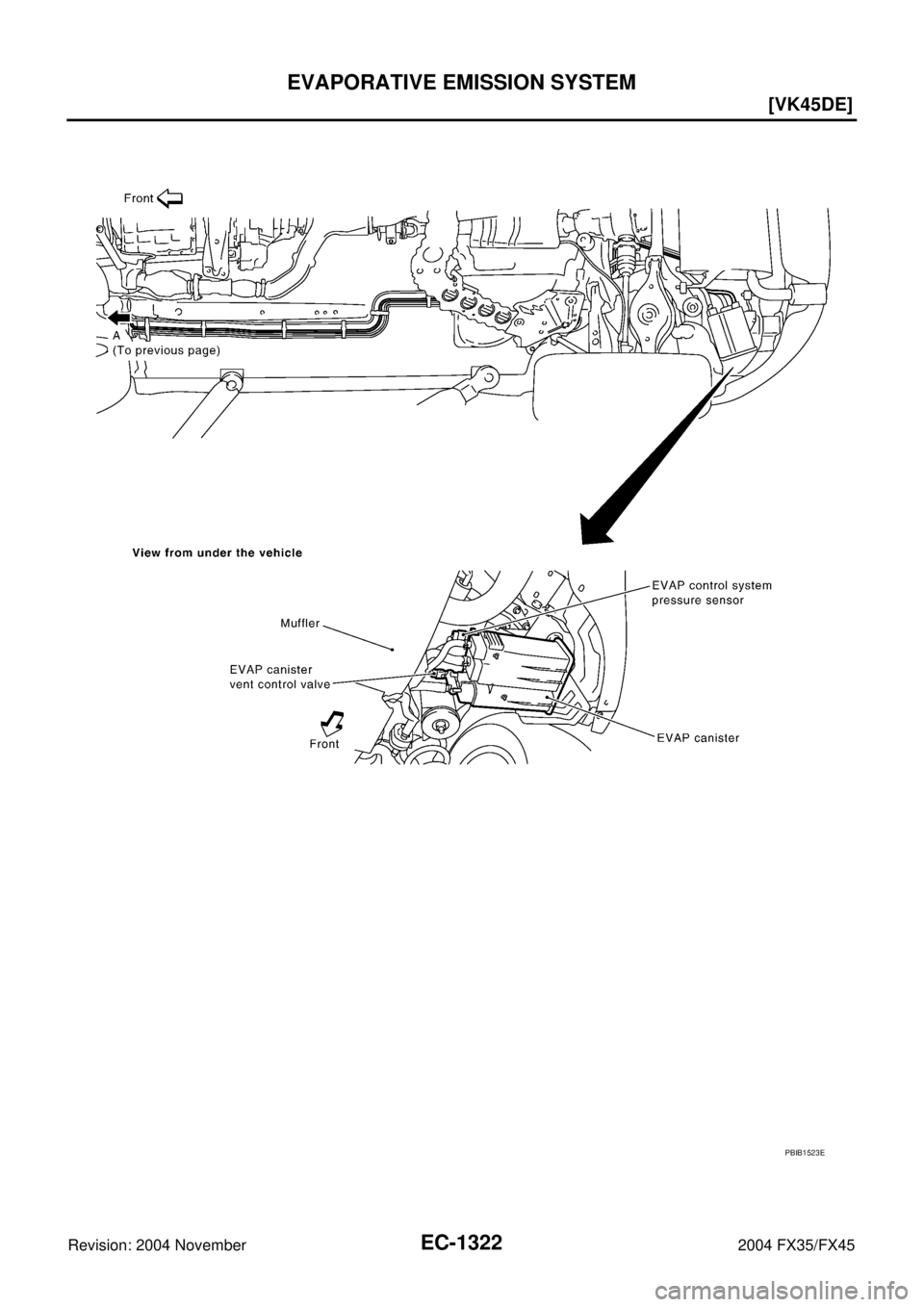

EVAPORATIVE EMISSION LINE DRAWING
PBIB1524E
Page 2663 of 4449
EC-1322
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2004 November 2004 FX35/FX45

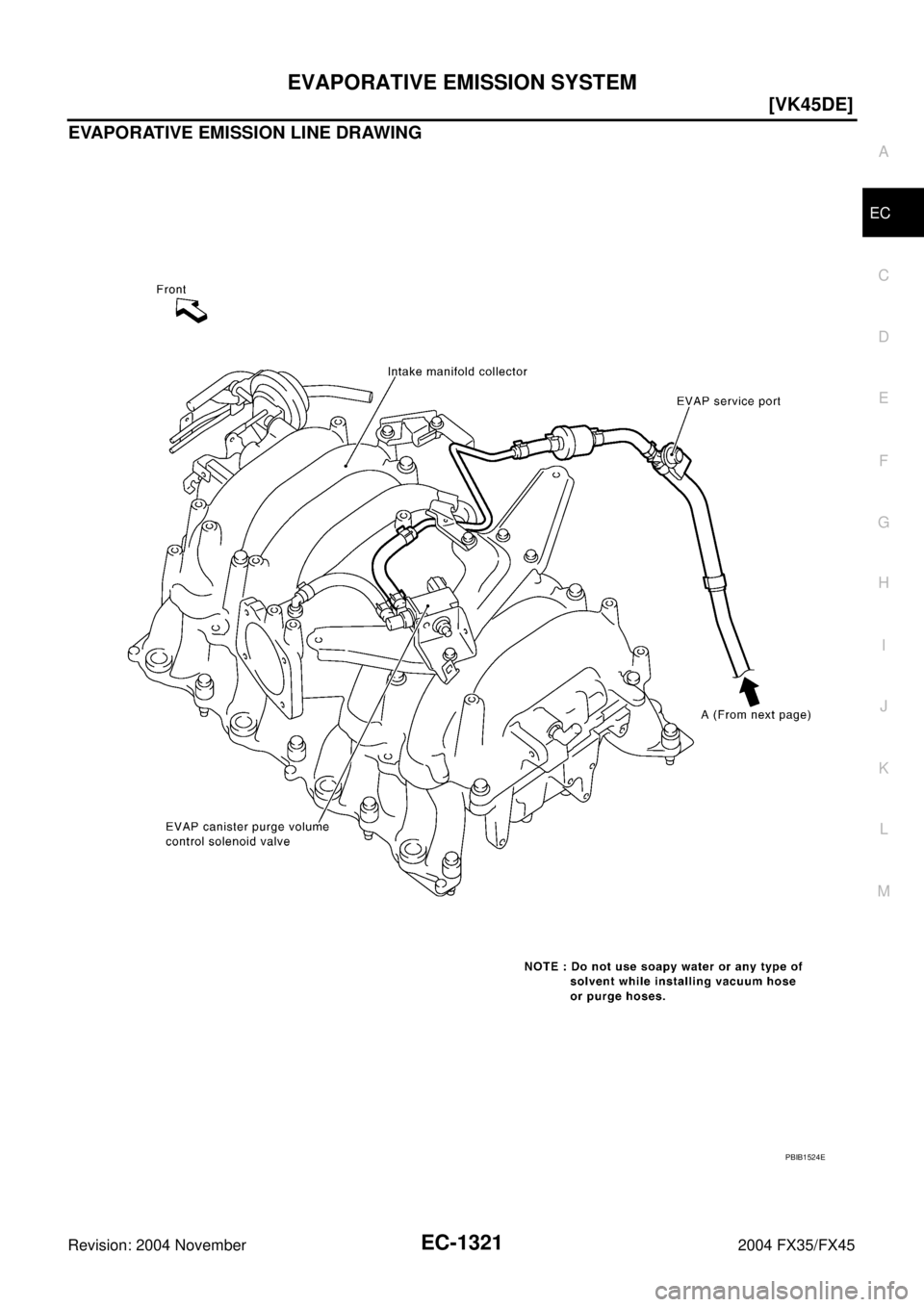

PBIB1523E
Page 2664 of 4449
![INFINITI FX35 2004 Service Manual EVAPORATIVE EMISSION SYSTEM
EC-1323
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS00CFS
EVAP CANISTER
Check EVAP canister as follows:
1. Block port B INFINITI FX35 2004 Service Manual EVAPORATIVE EMISSION SYSTEM
EC-1323
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS00CFS
EVAP CANISTER
Check EVAP canister as follows:
1. Block port B](/manual-img/42/57021/w960_57021-2663.png)
EVAPORATIVE EMISSION SYSTEM
EC-1323
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS00CFS
EVAP CANISTER
Check EVAP canister as follows:
1. Block port B .
2. Blow air into port A and check that it flows freely out of port C .
3. Release blocked port B .
4. Apply vacuum pressure to port B and check that vacuum pres-
sure exists at the ports A and C .
5. Block port A and B .
6. Apply pressure to port C and check that there is no leakage.
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FULLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
CAUTION:
Use only a genuine fuel filler cap as a replacement. If an incor-
rect fuel filler cap is used, the MIL may come on.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-995 .
FUEL TANK TEMPERATURE SENSOR
Refer to EC-941 .
EVAP CANISTER VENT CONTROL VALVE
Refer to EC-1002 .
EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-1013 .
PBIB1044E
SEF445Y
Pressure:
15.3 - 20.0 kPa (0.156 - 0.204 kg/cm2 , 2.22
- 2.90 psi)
Va c u u m :
−6.0 to −3.3 kPa (−0.061 to −0.034 kg/cm
2 ,
−0.87 to −0.48 psi)
SEF943S
