Page 4049 of 4449

RFD-22
REAR FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
Installation of J34309-9 and J34309-16; place a suitable 2.5 mm (0.098 in) thick plain washer between
J34309-9 and J34309-16. Both surfaces of J34309-9 and J34309-16 must be parallel with a clearance of
2.5 mm (0.098 in).
3. Install the pinion rear bearing inner race into the final drive hous-
ing. Then place the pinion preload shim selector tool, J34309-1,
gauge screw assembly.
4. Assemble the pinion front bearing inner race and the J34309-2
gauge anvil. Assemble them together with the J34309-1 gauge
screw in the final drive housing. Make sure that the pinion height
gauge plate, J34309-16, will turn a full 360 degrees. Tighten the
two sections together by hand.
5. Turn the assembly several times to seat the bearings.
6. Measure the turning torque at the end of the J34309-2 gauge
anvil using torque wrench J-25765A.
SPD893
SPD199A
SPD770
Turning torque specification
: 1.0 - 1.3 N·m ( 0.11 - 0.13 kg-m, 9 - 11 in-lb)
SPD234A
Page 4050 of 4449
REAR FINAL DRIVE ASSEMBLY
RFD-23
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
7. Place the J34309-11 “R200A” pinion height adapter onto the
gauge plate and tighten it by hand.
CAUTION:
Make sure all machined surfaces are clean.
Pinion Height Adjusting Washer Selection
1. Now, position the side bearing discs, J25269-4, and arbor firmly
into the side bearing bores. Install the bearing caps and tighten
the cap bolts to proper torque.
2. Select the correct standard pinion height adjusting washer thick-
ness. Select by using a standard gauge of 3 mm (0.12 in) and
your J34309-101 feeler gauge. Measure the distance between
the J34309-11 pinion height adapter including the standard
gauge and the arbor.
3. Write down your exact measurement (the value of feeler gauge).
SPD208A
SPD211A
SPD204A
SPD775
Page 4051 of 4449

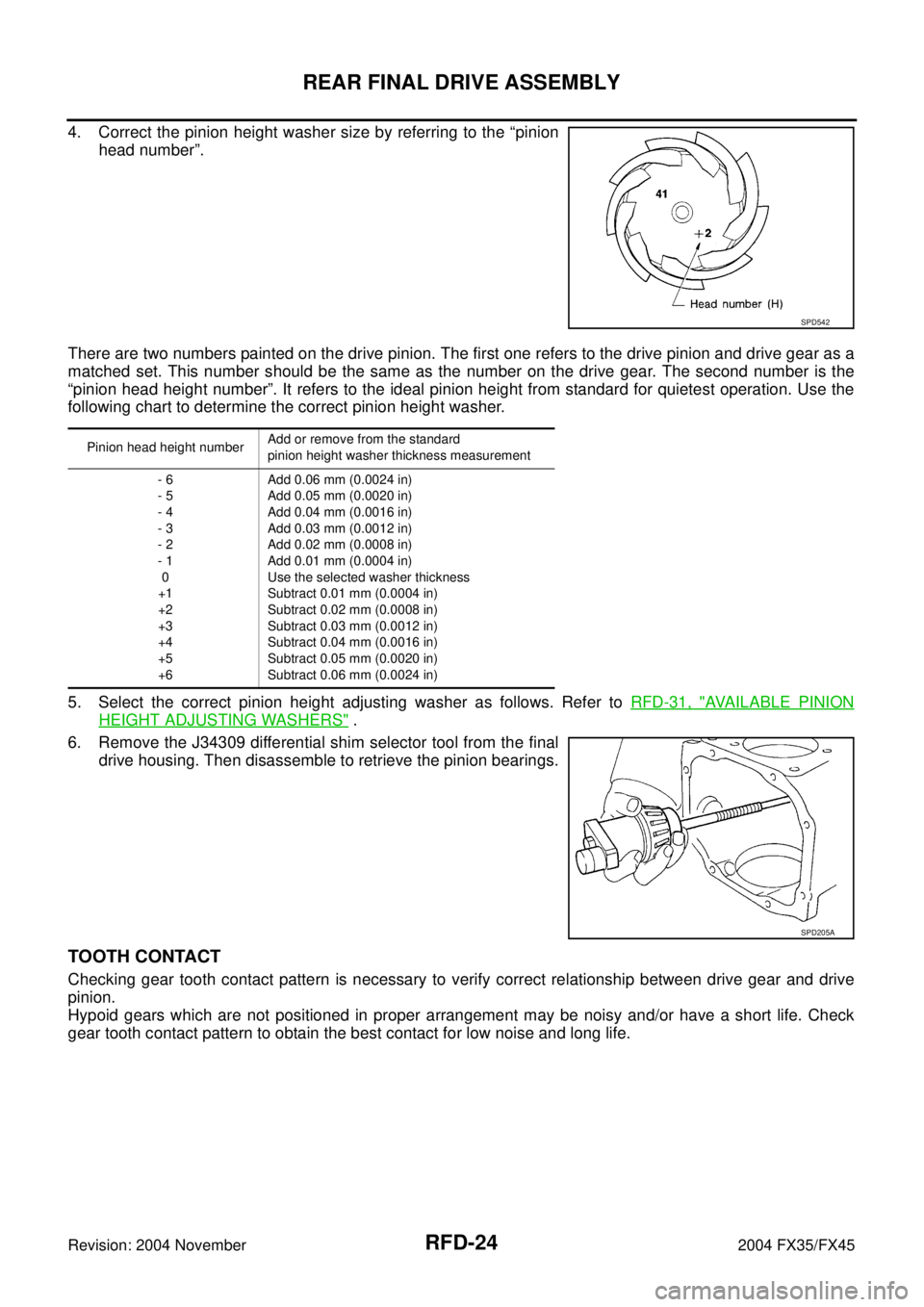

RFD-24
REAR FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
4. Correct the pinion height washer size by referring to the “pinion
head number”.
There are two numbers painted on the drive pinion. The first one refers to the drive pinion and drive gear as a
matched set. This number should be the same as the number on the drive gear. The second number is the
“pinion head height number”. It refers to the ideal pinion height from standard for quietest operation. Use the
following chart to determine the correct pinion height washer.
5. Select the correct pinion height adjusting washer as follows. Refer to RFD-31, "
AVAILABLE PINION
HEIGHT ADJUSTING WASHERS" .
6. Remove the J34309 differential shim selector tool from the final
drive housing. Then disassemble to retrieve the pinion bearings.
TOOTH CONTACT
Checking gear tooth contact pattern is necessary to verify correct relationship between drive gear and drive
pinion.
Hypoid gears which are not positioned in proper arrangement may be noisy and/or have a short life. Check
gear tooth contact pattern to obtain the best contact for low noise and long life.
SPD542
Pinion head height numberAdd or remove from the standard
pinion height washer thickness measurement
- 6
- 5
- 4
- 3
- 2
- 1
0
+1
+2
+3
+4
+5
+6Add 0.06 mm (0.0024 in)
Add 0.05 mm (0.0020 in)
Add 0.04 mm (0.0016 in)
Add 0.03 mm (0.0012 in)
Add 0.02 mm (0.0008 in)
Add 0.01 mm (0.0004 in)
Use the selected washer thickness
Subtract 0.01 mm (0.0004 in)
Subtract 0.02 mm (0.0008 in)
Subtract 0.03 mm (0.0012 in)
Subtract 0.04 mm (0.0016 in)
Subtract 0.05 mm (0.0020 in)
Subtract 0.06 mm (0.0024 in)
SPD205A
Page 4052 of 4449

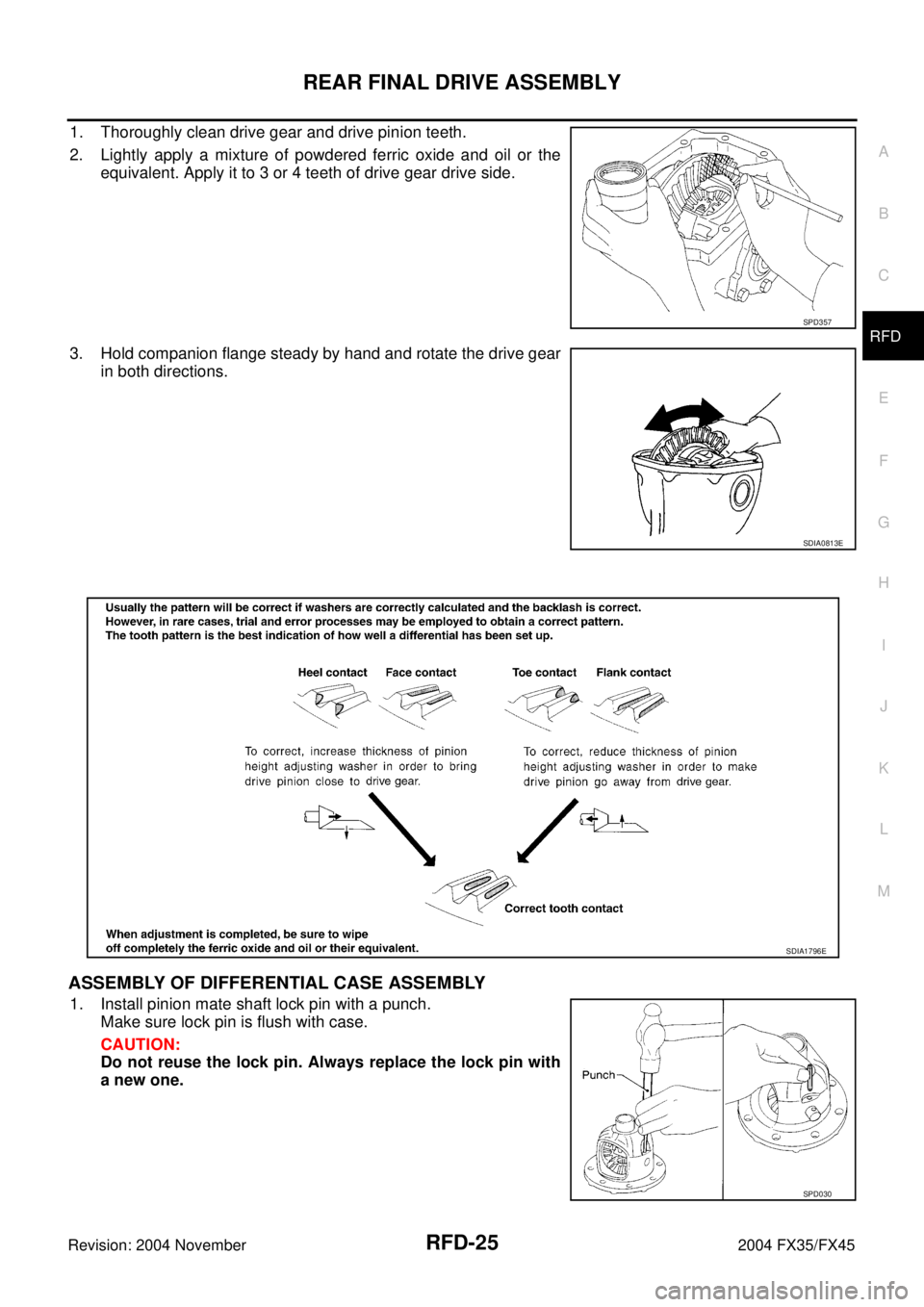

REAR FINAL DRIVE ASSEMBLY
RFD-25
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
1. Thoroughly clean drive gear and drive pinion teeth.
2. Lightly apply a mixture of powdered ferric oxide and oil or the
equivalent. Apply it to 3 or 4 teeth of drive gear drive side.
3. Hold companion flange steady by hand and rotate the drive gear
in both directions.
ASSEMBLY OF DIFFERENTIAL CASE ASSEMBLY
1. Install pinion mate shaft lock pin with a punch.
Make sure lock pin is flush with case.
CAUTION:
Do not reuse the lock pin. Always replace the lock pin with
a new one.
SPD357
SDIA0813E
SDIA1796E
SPD030
Page 4053 of 4449

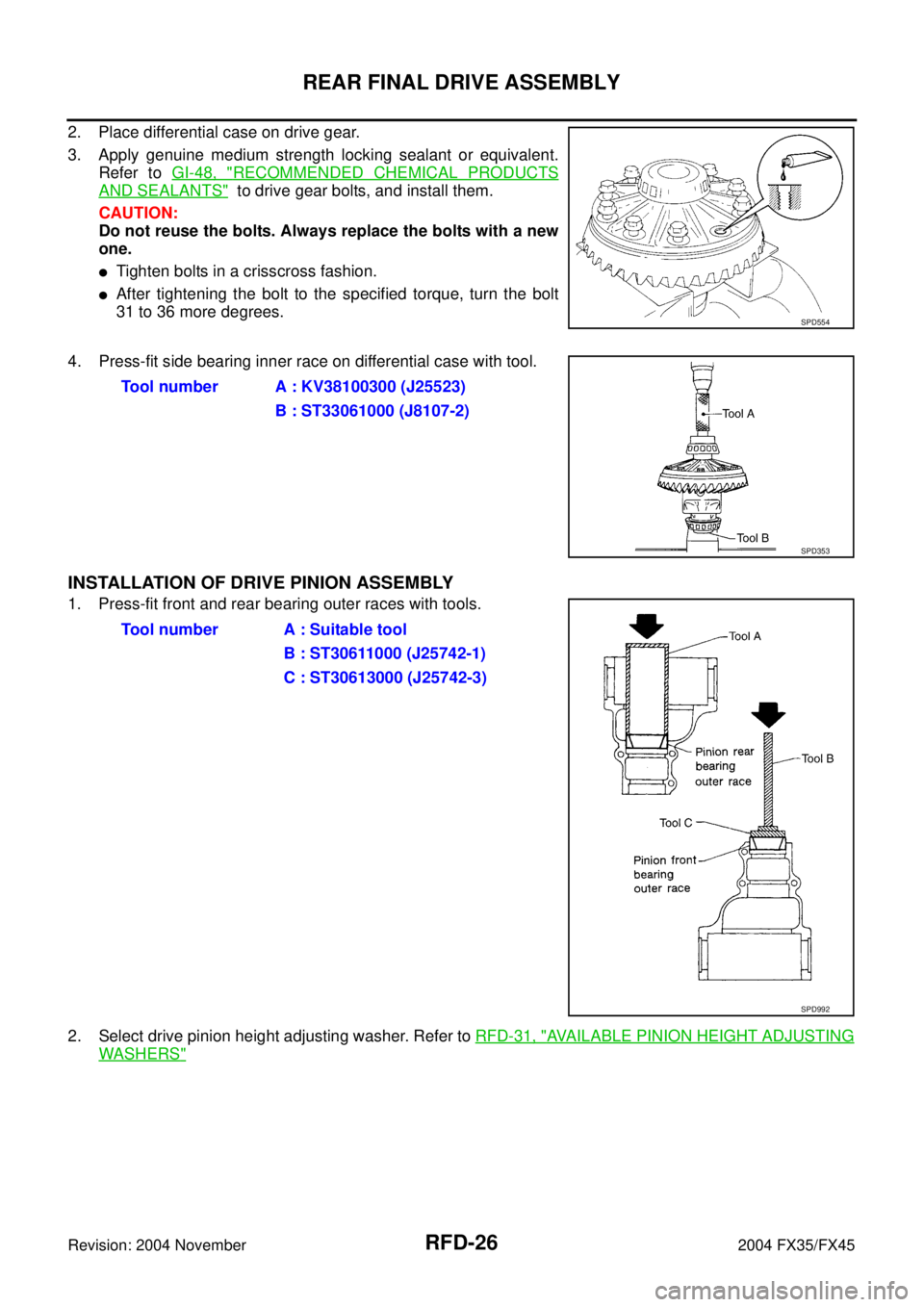

RFD-26
REAR FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
2. Place differential case on drive gear.
3. Apply genuine medium strength locking sealant or equivalent.
Refer to GI-48, "
RECOMMENDED CHEMICAL PRODUCTS
AND SEALANTS" to drive gear bolts, and install them.
CAUTION:
Do not reuse the bolts. Always replace the bolts with a new
one.
Tighten bolts in a crisscross fashion.
After tightening the bolt to the specified torque, turn the bolt
31 to 36 more degrees.
4. Press-fit side bearing inner race on differential case with tool.
INSTALLATION OF DRIVE PINION ASSEMBLY
1. Press-fit front and rear bearing outer races with tools.
2. Select drive pinion height adjusting washer. Refer to RFD-31, "
AVAILABLE PINION HEIGHT ADJUSTING
WASHERS"
SPD554
Tool number A : KV38100300 (J25523)
B : ST33061000 (J8107-2)
SPD353
Tool number A : Suitable tool
B : ST30611000 (J25742-1)
C : ST30613000 (J25742-3)
SPD992
Page 4054 of 4449

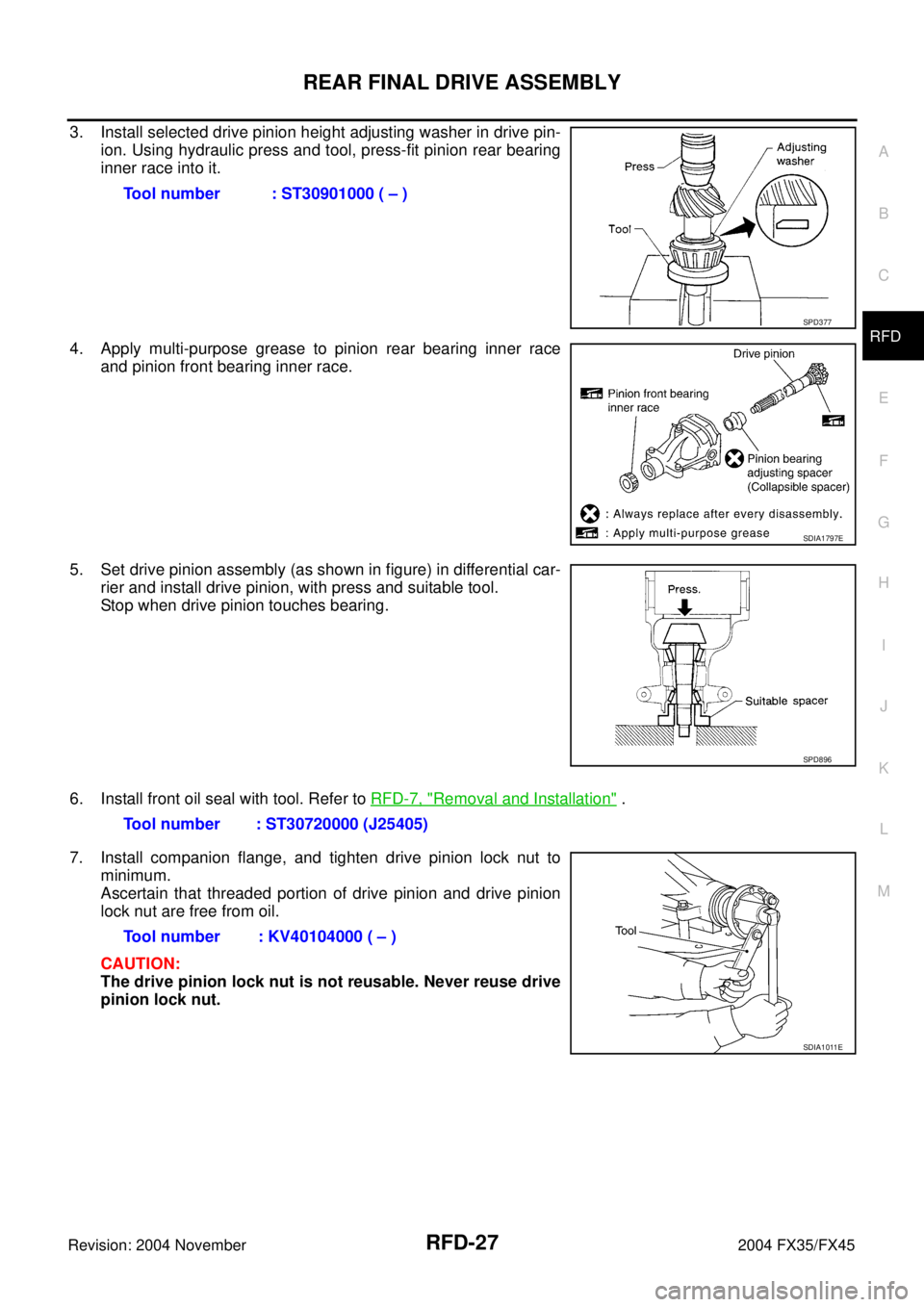

REAR FINAL DRIVE ASSEMBLY
RFD-27
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
3. Install selected drive pinion height adjusting washer in drive pin-
ion. Using hydraulic press and tool, press-fit pinion rear bearing
inner race into it.
4. Apply multi-purpose grease to pinion rear bearing inner race
and pinion front bearing inner race.
5. Set drive pinion assembly (as shown in figure) in differential car-
rier and install drive pinion, with press and suitable tool.
Stop when drive pinion touches bearing.
6. Install front oil seal with tool. Refer to RFD-7, "
Removal and Installation" .
7. Install companion flange, and tighten drive pinion lock nut to
minimum.
Ascertain that threaded portion of drive pinion and drive pinion
lock nut are free from oil.
CAUTION:
The drive pinion lock nut is not reusable. Never reuse drive
pinion lock nut.Tool number : ST30901000 ( – )
SPD377
SDIA1797E
SPD896
Tool number : ST30720000 (J25405)
Tool number : KV40104000 ( – )
SDIA1011E
Page 4055 of 4449

RFD-28
REAR FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
8. Tighten the drive pinion lock nut by very small degrees until the
specified preload in achieved, when checking the preload, turn
drive pinion in both directions several times.
If pinion bearing preload is too small, tighten the drive pinion lock nut more.
If pinion bearing preload is too great, replace pinion bearing adjusting spacer.
INSTALLATION OF DIFFERENTIAL CASE ASSEMBLY
1. Select side bearing adjusting washer.
Refer to RFD-32, "
SIDE BEARING ADJUSTING WASHERS" .
2. Install differential case assembly with side bearing outer races
into gear carrier.
3. Insert original left and right side bearing adjusting washers in
place between side bearings and carrier.
4. Align matching mark on bearing cap with that on gear carrier.
5. Install the side bearing cap.
6. Install side oil seal. Refer to RFD-9, "
Removal and Installation" . Tool number
: ST3127S000 (J25765-A)
Drive pinion bearing preload
: 2.65 - 3.23 N·m (0.27 - 0.32 kg-m, 24 - 28 in-lb)
SDIA1007E
SPD919
SPD924
SPD889
Tool number : KV38100200 (J26233)
Page 4056 of 4449

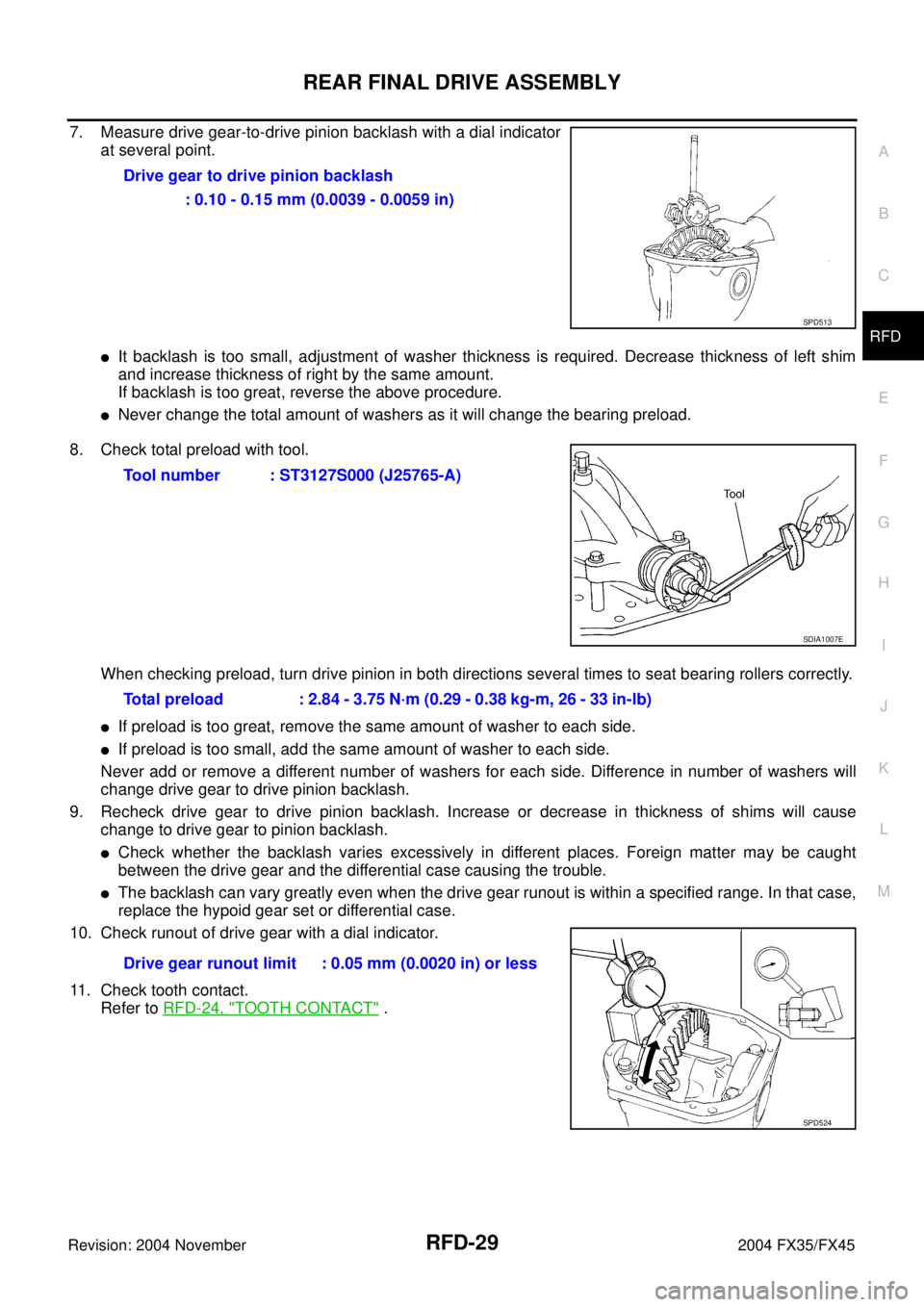

REAR FINAL DRIVE ASSEMBLY
RFD-29
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
7. Measure drive gear-to-drive pinion backlash with a dial indicator
at several point.
It backlash is too small, adjustment of washer thickness is required. Decrease thickness of left shim
and increase thickness of right by the same amount.
If backlash is too great, reverse the above procedure.
Never change the total amount of washers as it will change the bearing preload.
8. Check total preload with tool.
When checking preload, turn drive pinion in both directions several times to seat bearing rollers correctly.
If preload is too great, remove the same amount of washer to each side.
If preload is too small, add the same amount of washer to each side.
Never add or remove a different number of washers for each side. Difference in number of washers will
change drive gear to drive pinion backlash.
9. Recheck drive gear to drive pinion backlash. Increase or decrease in thickness of shims will cause
change to drive gear to pinion backlash.
Check whether the backlash varies excessively in different places. Foreign matter may be caught
between the drive gear and the differential case causing the trouble.
The backlash can vary greatly even when the drive gear runout is within a specified range. In that case,
replace the hypoid gear set or differential case.
10. Check runout of drive gear with a dial indicator.
11. Check tooth contact.
Refer to RFD-24, "
TOOTH CONTACT" . Drive gear to drive pinion backlash
: 0.10 - 0.15 mm (0.0039 - 0.0059 in)
SPD513
Tool number : ST3127S000 (J25765-A)
SDIA1007E
Total preload : 2.84 - 3.75 N·m (0.29 - 0.38 kg-m, 26 - 33 in-lb)
Drive gear runout limit : 0.05 mm (0.0020 in) or less
SPD524
